Hammond H1BS3042WH 30W x 42D Solid Bottom Panel, White Steel
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid bottom panel with six 4.00 x 7.00 in knock-out cable entries for controlled cable routing
- Fits H1 cabinet frames 30 in or 31.5 in wide by 42 in deep
- 14 gauge mild steel construction, .07 in (2 mm) panel thickness on drawing
- RAL9003 white powder paint coat meeting Greenguard indoor air quality guidelines
- Encloses the cabinet base for airflow management
- Mounting hardware included: 6 x 8-32 clip nuts and 6 x 8-32 x 0.5 in machine screws (CLPKIT832-6)
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; 18.7 lbs (8.48 kg) shipping weight
The H1BS3042WH is a solid bottom panel for Hammond H1 cabinet frames, finished in RAL9003 white powder paint. It is designed for cabinets 30 in or 31.5 in wide by 42 in deep, and is intended for IT, AV and facilities teams who need to close off the base of a cabinet for airflow management while still routing cable into the enclosure.
Construction is 14 gauge mild steel, and the panel includes six 4.00 x 7.00 inch knock-out cable entries so only the openings you actually need are removed. Overall drawing dimensions are 27.50 in (698 mm) by 35.86 in (911 mm), with a 26.36 in (669 mm) reference width and a nominal 30 in wide by 42 in deep cabinet fit. Panel thickness on the drawing is .07 in (2 mm). Shipping weight is 18.7 lbs (8.48 kg).
Mounting hardware is included in the box: six 8-32 clip nuts in a black oxide finish and six 8-32 x 0.5 in zinc-plated machine screws, available separately as replacement kit CLPKIT832-6. The panel carries 8X .22 in (6 mm) and 24X .20 in (5 mm) holes for attachment and clip-nut placement.
The white powder paint coat complies with Greenguard guidelines for indoor air quality, and H1BS3042WH is RoHS and REACH compliant, USMCA compliant and TAA-compliant for GSA Schedule purchases. It is manufactured in North America (country of origin CA).
Ideal For
- Closing off the base of H1 server and network cabinets
- Airflow management and containment in cabinet installations
- Routing power and data cable into a cabinet through knock-out entries
- TAA-compliant GSA Schedule cabinet build-outs
Overview
| Series | H1B Series Bottom Panels |
| Panel Type | Solid with cable entry knockouts |
| Description | 30W 42D WHITE H1 BOTTOM PANEL |
| Part Number | H1BS3042WH |
| Compatibility | H1 cabinet series frames |
Dimensions
| Reference Width | 26.36 in / 669 mm |
| Reference Dimension | 3.52 in / 89 mm |
| Use With Cabinet Depth | 42 in |
| Use With Cabinet Width | 30, 31.5 in |
| Overall Width (Drawing) | 27.50 in / 698 mm |
| Overall Length (Drawing) | 35.86 in / 911 mm |
| Panel Thickness (Drawing) | .07 in / 2 mm |
Cable Entry
| Knock-Out Cable Entries | 6X 4.00 x 7.00 inch knock-outs |
Identifiers
| UPC | 623980802862 |
| UNSPSC | 43201611 |
| GTIN-14 | 00623980802862 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (Manufactured in North America) |
| UPC W/o Check Digit | 62398080286 |
Included Hardware
| Bottom Panel | 1 |
| 8-32 Clip Nut (Black Oxide Finish) | 6 (replacement part CLPKIT832-6) |
| 8-32 X 0.5" Machine Screw (Zinc Plated) | 6 (replacement part CLPKIT832-6) |
Packaging & Shipping
| Shipping Weight | 18.7 lbs (8.48 kg) |
Construction & Finish
| Gauge | 14 gauge steel |
| Finish | RAL9003 white powder paint coat, painted white texture |
| Material | Mild Steel |
| Clip Nut Holes | 24X .20 in / 5 mm dia. |
| Mounting Holes | 8X .22 in / 6 mm dia. |
Environmental & Protection
| Indoor Air Quality | Paint finish complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does H1BS3042WH fit?▾
It is made for H1 cabinet frames with a 30 in or 31.5 in width and a 42 in depth.
How does cable pass through a solid bottom panel?▾
The panel has six 4.00 x 7.00 inch knock-out cable entries, so you remove only the openings needed for your cable routing.
Is mounting hardware included?▾
Yes. The box includes the bottom panel, six 8-32 black oxide clip nuts and six 8-32 x 0.5 in zinc-plated machine screws. The hardware is also sold as CLPKIT832-6.
What is the difference between H1BS3042WH and H1BB3042WH?▾
H1BS3042WH is the solid version with cable entry knockouts; the H1BB part number is the brushed bottom panel with cable entry knockouts for the same cabinet width and depth.
Is there a black version of this panel?▾
Yes. H1BS3042BK is the same solid panel in RAL9005 black; H1BS3042WH is the RAL9003 white version.
Is this panel suitable for government purchasing?▾
It is TAA-compliant for GSA Schedule purchases and is RoHS, REACH and USMCA compliant, with ECCN EAR99 and country of origin CA.
Related Products
Save 35%H1BS3042BK — 30W 42D Black H1 Bottom Panel
Hammond Manufacturing · H1BS3042BK

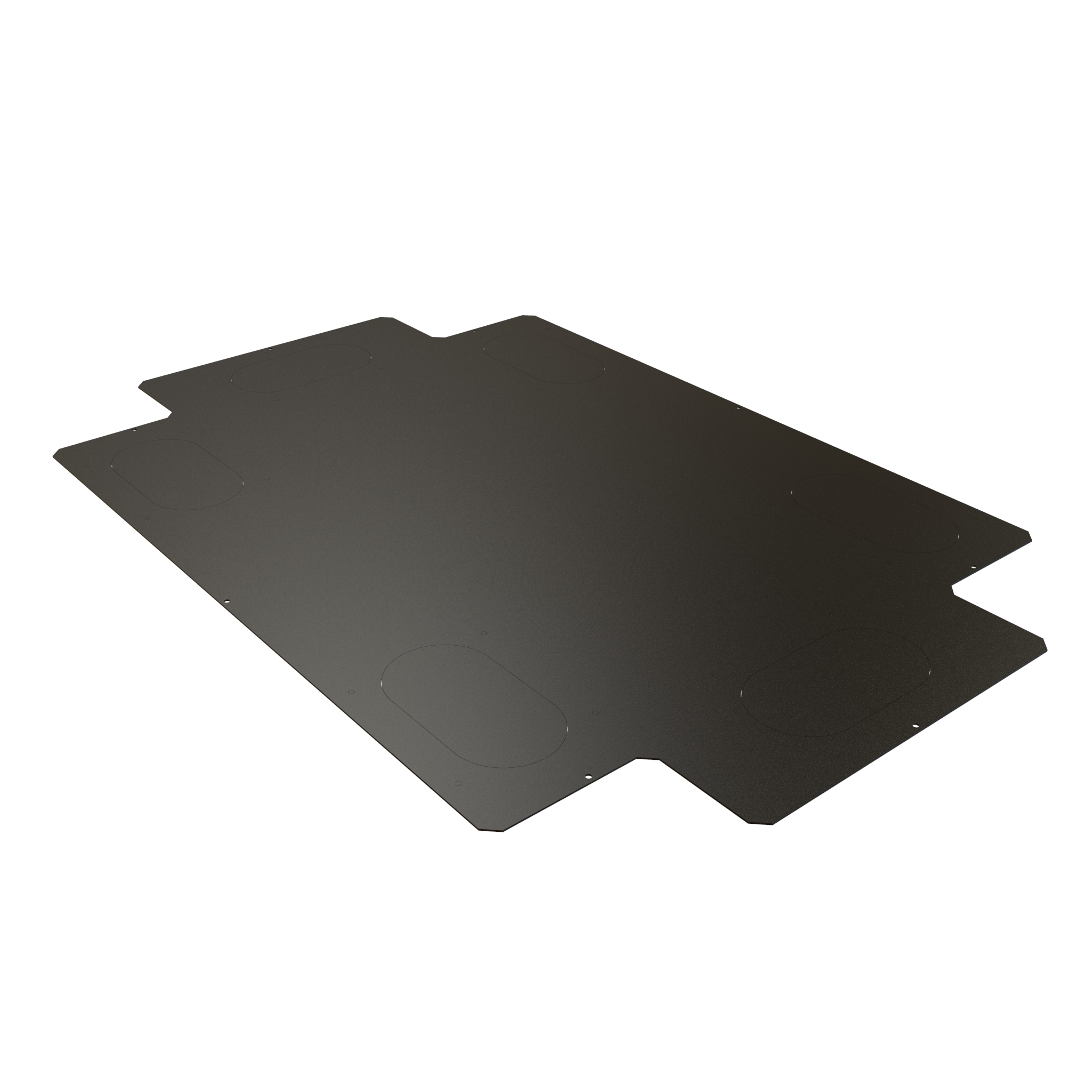

Save 35%H1BS3048BK — 30W 48D Black H1 Bottom Panel
Hammond Manufacturing · H1BS3048BK
Save 35%H1BS2448WH — 24W 48D White H1 Bottom Panel
Hammond Manufacturing · H1BS2448WH

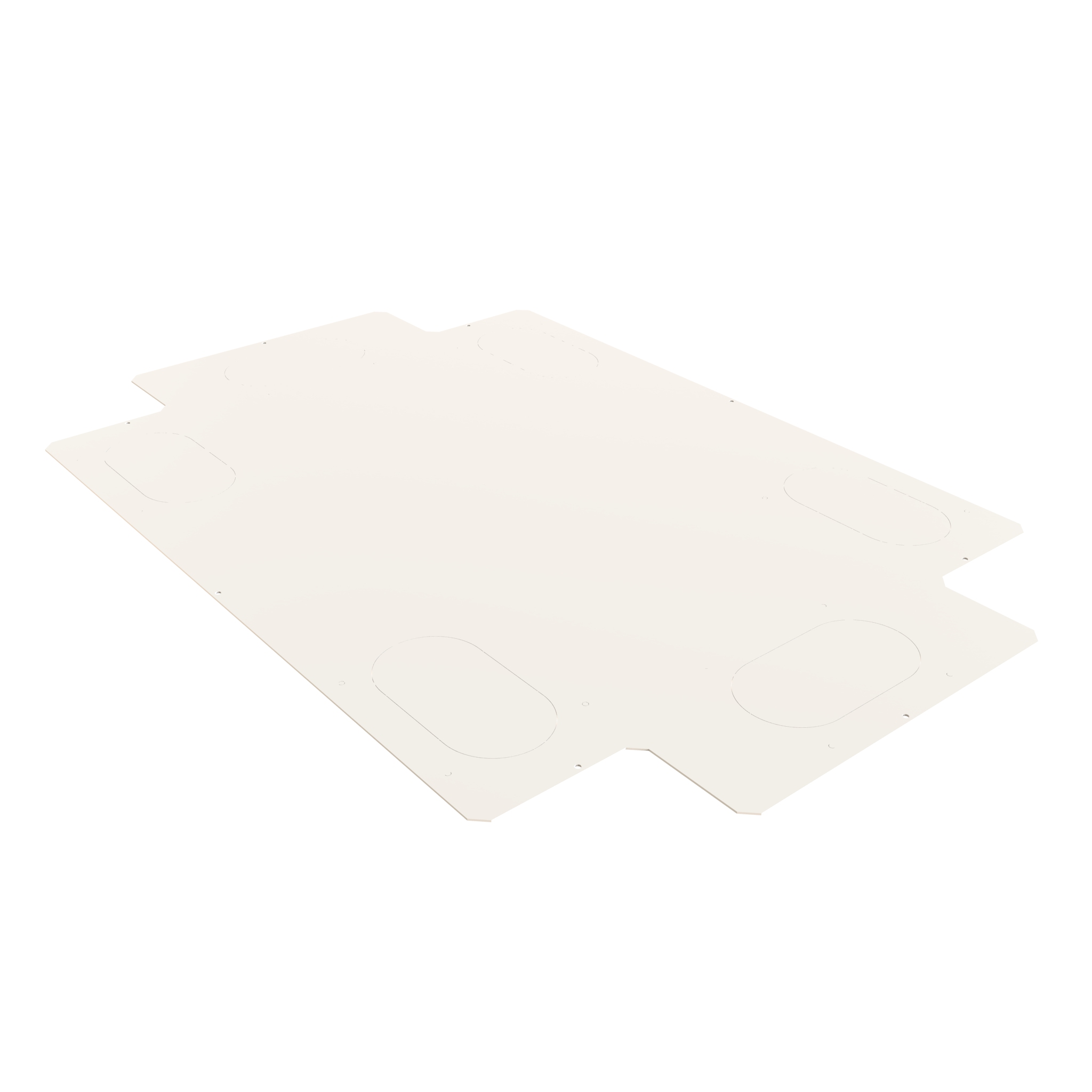

Save 35%H1BS3048WH — 30W 48D White H1 Bottom Panel
