Hammond H1VFMC3142UBK 42U Finger Cable Manager Pair for 31.5in Cabinets

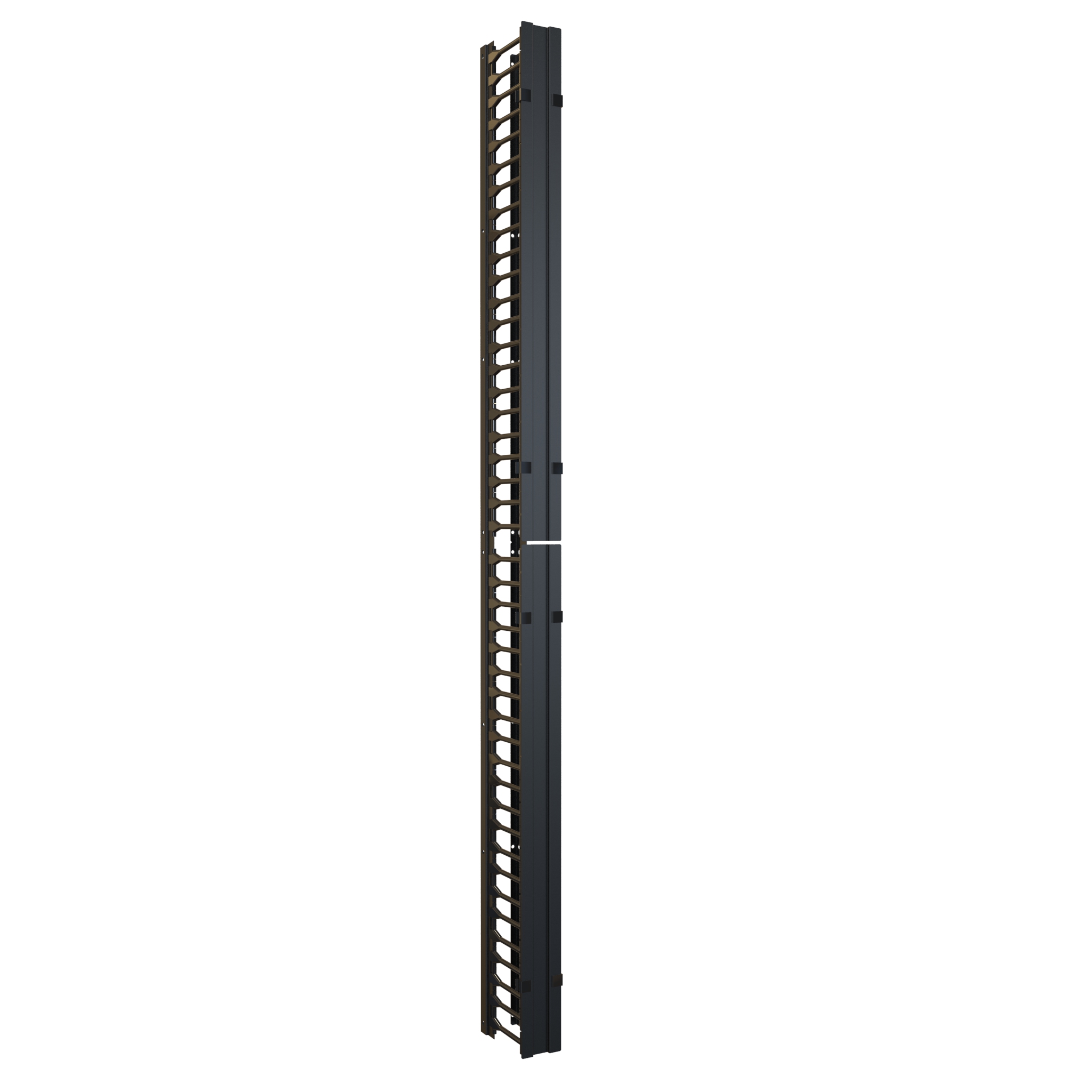

The H1VFMC3142UBK is a vertical finger cable manager with door, sized for 42U Hammond H1 server cabinets that are 31.5 in wide. This configuration includes two (2) finger verticals with cover, making it suited to data center, network and telecom builds where cables must be routed up both sides of an enclosed cabinet and kept separated at each rack unit.

The body is built from 16-gauge mild steel for durable vertical cable routing and support inside server cabinet environments. The fingers and door clips are molded from UL94-V0 rated polycarbonate to help protect cables and add safety margin, while a removable aluminum cover contains the cable bundle for a clean, finished installation. The finish is black powder coat, textured black per the part drawing, and is GREENGUARD, TSCA and RoHS compliant to support indoor air quality and environmental compliance.

Overall size of H1VFMC3142UBK is 73.5 in x 4.25 in x 7 in (1,867 mm x 108 mm x 178 mm), with a manager depth of 7.00 in (178 mm) and a shipping weight of 16 lbs (7.26 kg). The drawing shows an overall height of 73.53 in (1868 mm) and 16 oblong 0.28 x 0.41 in mounting holes, and the assembly consists of four 42U back pieces with fingers and two 42U cable manager doors with clips.

The manager mounts vertically to the cabinet rails for structured cable routing inside enclosed rack systems, and mounting hardware is included for quick installation. It supports routing of fiber, Cat6/6A and coax cables in high-density cabinet environments. The part is TAA compliant and manufactured in North America, is USMCA, RoHS and REACH compliant, and is classified ECCN EAR99.
