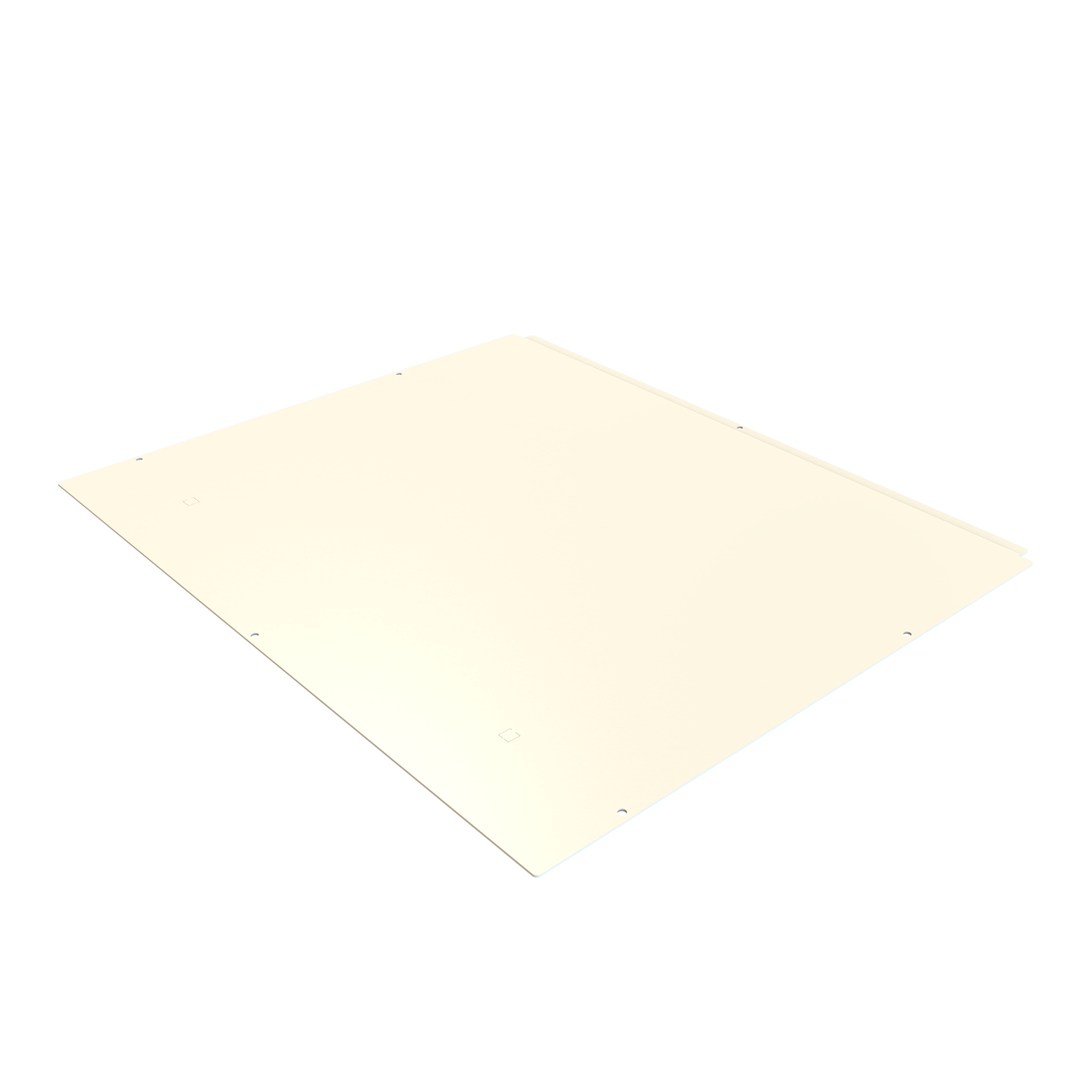

Hammond H1TS24WH 24 in. Wide Solid Cabinet Top Panel, White
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid top panel for 24 in. wide H1 Series server rack cabinets, white (RAL9003) painted texture finish
- Mild steel construction; interchangeable with other H1 top panel options including brushed cable entry and fan tops
- Drawing dimensions 23.50 in. (597 mm) x 22.44 in. (570 mm), 2.62 in. (67 mm) formed profile
- Two 0.375 in. diameter knockouts provide optional entry points
- Six 0.22 in. (6 mm) attachment holes; mounting hardware included
- Standards listing: cULus, PCI, Zone 4, TAA-compliant; UL file E474597
- RoHS, REACH and USMCA compliant; manufactured in Canada
- Shipping weight 11 lbs (4.99 kg); black equivalent available as H1TS24BK
H1TS24WH is a solid steel top panel for 24 in. wide H1 Series server rack cabinets, finished in white (RAL9003) painted texture. It is the closed-top option for data center, enterprise IT and network cabinet builds where overhead openings are not needed, or where a sealed top is preferred for airflow containment and a cleaner appearance.
The panel is formed from mild steel and is one of the interchangeable H1 top panel options, so it can be swapped with brushed cable-entry, fan or accessory tops as a deployment changes. Each H1 cabinet assembly ships with one solid and one brushed cable-entry top panel; H1TS24WH is the individual replacement or spare solid top for 24 in. wide cabinets, and a matching black version is also offered in the series.
Per the part drawing, the panel measures 23.50 in. (597 mm) by 22.44 in. (570 mm) overall with a 19.82 in. (504 mm) dimension across the top face and a 2.62 in. (67 mm) formed profile. Two 0.375 in. diameter knockouts are provided if limited cable or conduit entry is required later, and six 0.22 in. (6 mm) holes are used for attachment. Mounting hardware is included, and shipping weight is 11 lbs (4.99 kg).
- Use with: H1 cabinets 24 in. wide
- Description in series table: Solid
- Colour: RAL9003 White
H1TS24WH is RoHS and REACH compliant, USMCA compliant, made in Canada, and falls under the H1 platform's cULus, PCI, Zone 4 seismic and TAA-compliant standards listing (UL file E474597).
Ideal For
- Data center and enterprise IT cabinet builds
- High-density server and storage deployments
- Network infrastructure installations requiring a closed cabinet top
- Replacement or spare top panel for 24 in. wide H1 cabinets
- Airflow management and containment configurations
Overview
| Series | H1 Series High-Performance Server Rack Cabinet |
| Panel Style | Solid |
| Part Number | H1TS24WH |
| Product Type | Rack cabinet top panel |
| Short Description | 24W WHT H1 SOLID TOP |
| Use With Cabinet Width | 24 in. |
| Matching Black Part Number | H1TS24BK |
Dimensions
| Top Face Dimension | 19.82 in / 504 mm |
| Formed Profile Height | 2.62 in / 67 mm |
| Overall Depth (Drawing) | 22.44 in / 570 mm |
| Overall Width (Drawing) | 23.50 in / 597 mm |
| Secondary Width Dimension | 15.50 in / 394 mm |
Identifiers
| UPC | 623980802664 |
| ECCN | EAR99 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980802664 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398080266 |
Packaging & Shipping
| Shipping Weight | 11 lbs (4.99 kg) |
Construction & Finish
| Material | Mild Steel |
| Finish / Colour | Painted white texture (RAL9003 White) |
| Included Hardware | Mounting hardware included |
Compliance & Certifications
| Standards | cULus, PCI, Zone 4, TAA-compliant |
| UL File # | E474597 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does H1TS24WH fit?▾
It is listed for use with H1 Series cabinets that are 24 in. wide. The 30 in. and 31.5 in. wide cabinets use the H1TS30WH solid top instead.
Does this top panel have cable entry openings?▾
It is the solid version. The drawing shows two 0.375 in. diameter knockouts, but for a dedicated cable entry top the series lists the brushed side cable entry panel H1TB24WH for 24 in. wide cabinets.
Is mounting hardware included?▾
Yes. The part drawing states that mounting hardware is included, and the panel has six 0.22 in. (6 mm) holes for attachment.
Can I swap this panel later for a fan or chimney top?▾
Yes. H1 top panels are interchangeable; the series also lists fan top and thermal air chimney top options for 24 in. wide cabinets.
What colour and material is H1TS24WH?▾
It is mild steel with a painted white texture finish, corresponding to RAL9003 White in the series ordering table. A black version, H1TS24BK, is also available.
Is this part suitable for government or TAA-sensitive projects?▾
The standards listing for this part includes TAA-compliant, along with cULus, PCI and Zone 4; it is made in Canada and USMCA compliant.
Related Products

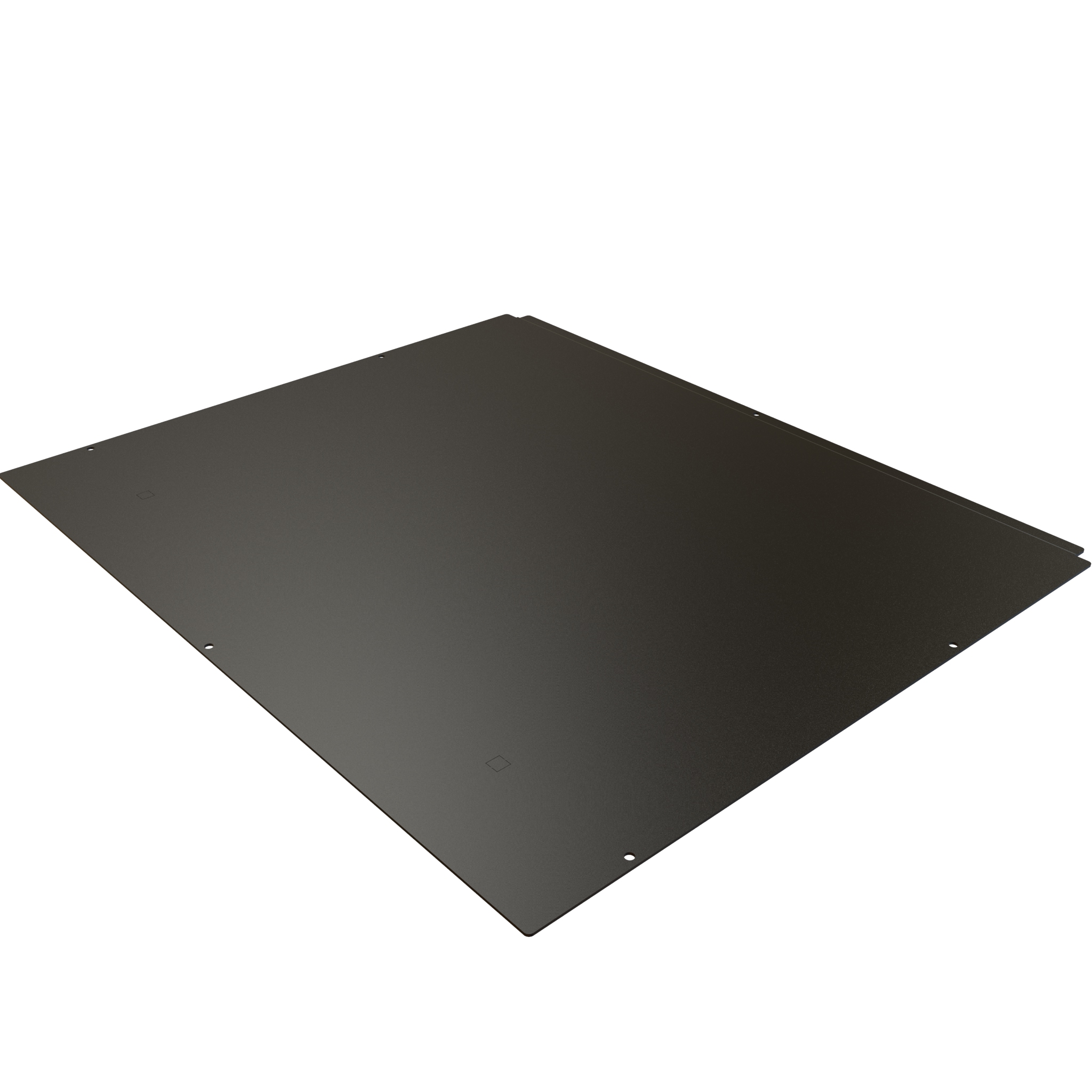

Save 35%H1TS24BK — 24W Black H1 Solid Top
Hammond Manufacturing · H1TS24BK

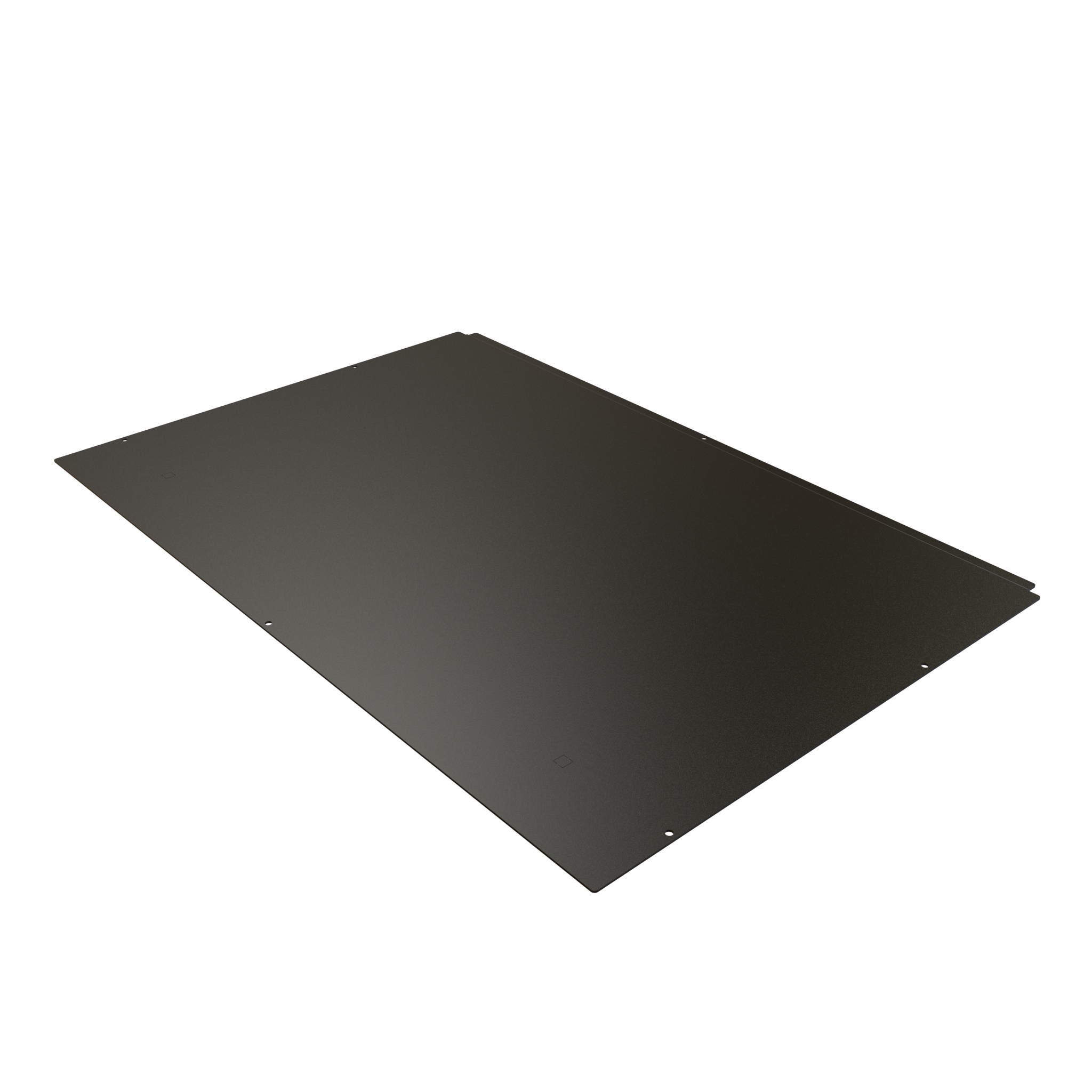

Save 35%H1TS30BK — 30W Black H1 Solid Top
Hammond Manufacturing · H1TS30BK

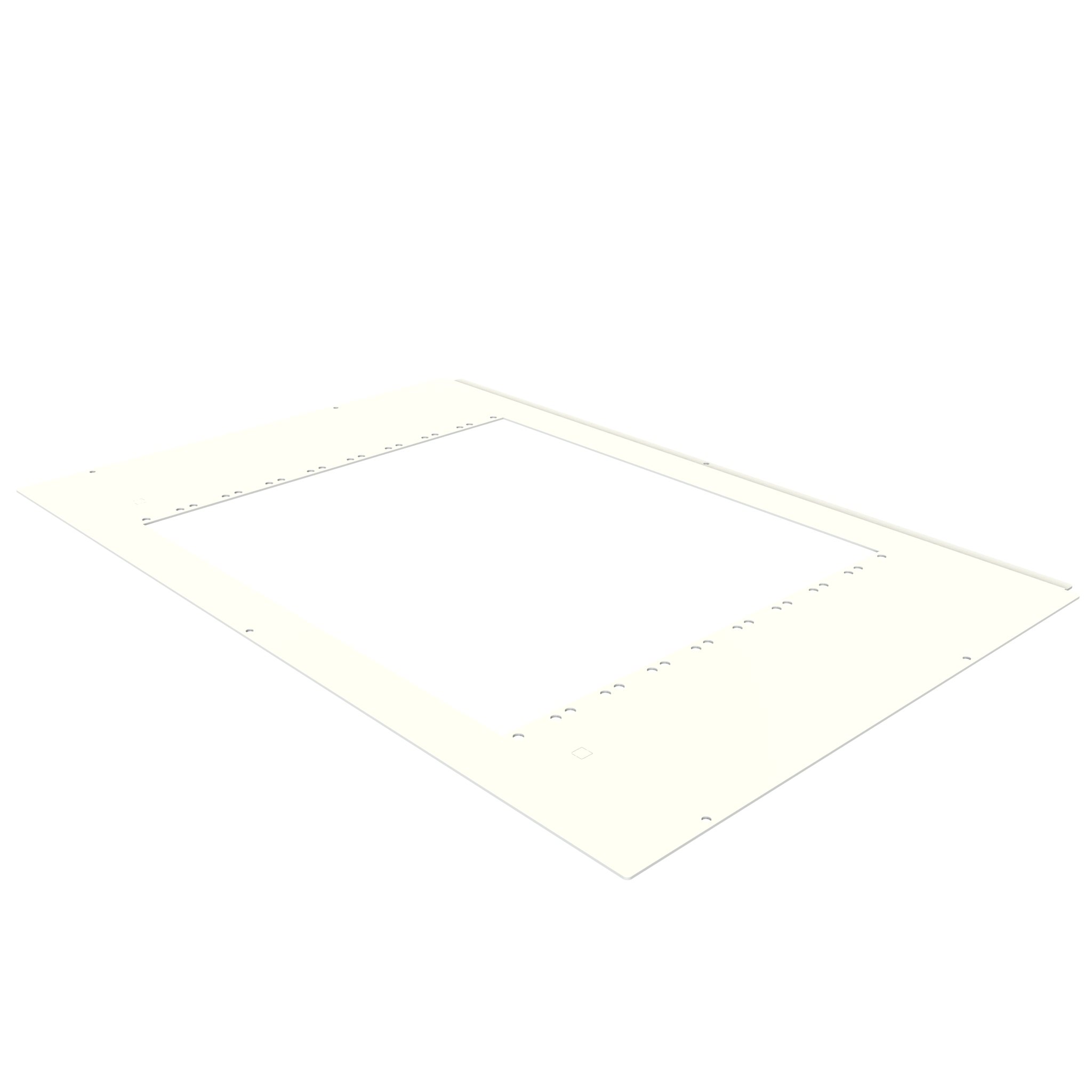

Save 35%H1TR30WH — 30W White H1 9U Rack Mount Top
Hammond Manufacturing · H1TR30WH

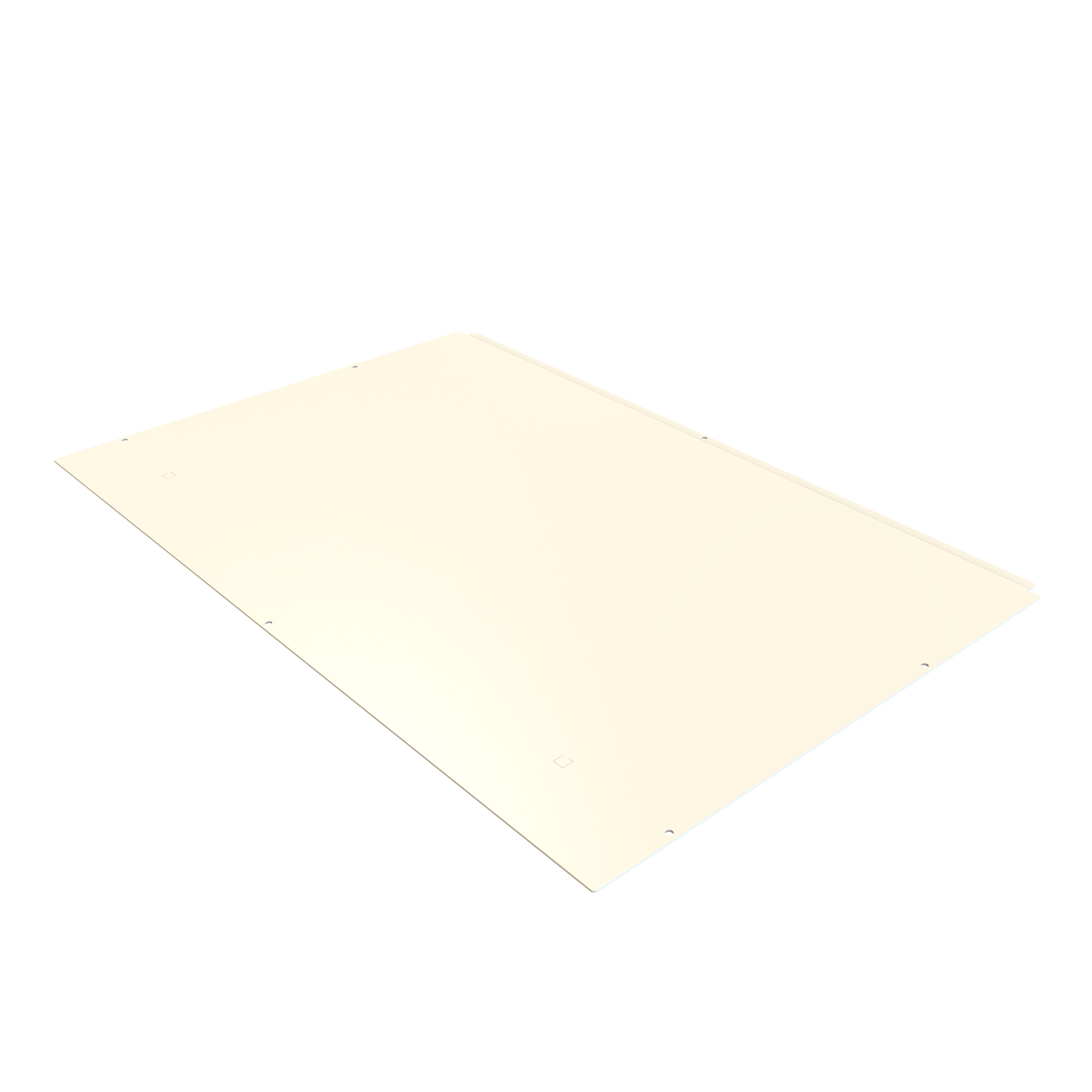

Save 35%H1TS30WH — 30W White H1 Solid Top
Hammond Manufacturing · H1TS30WH

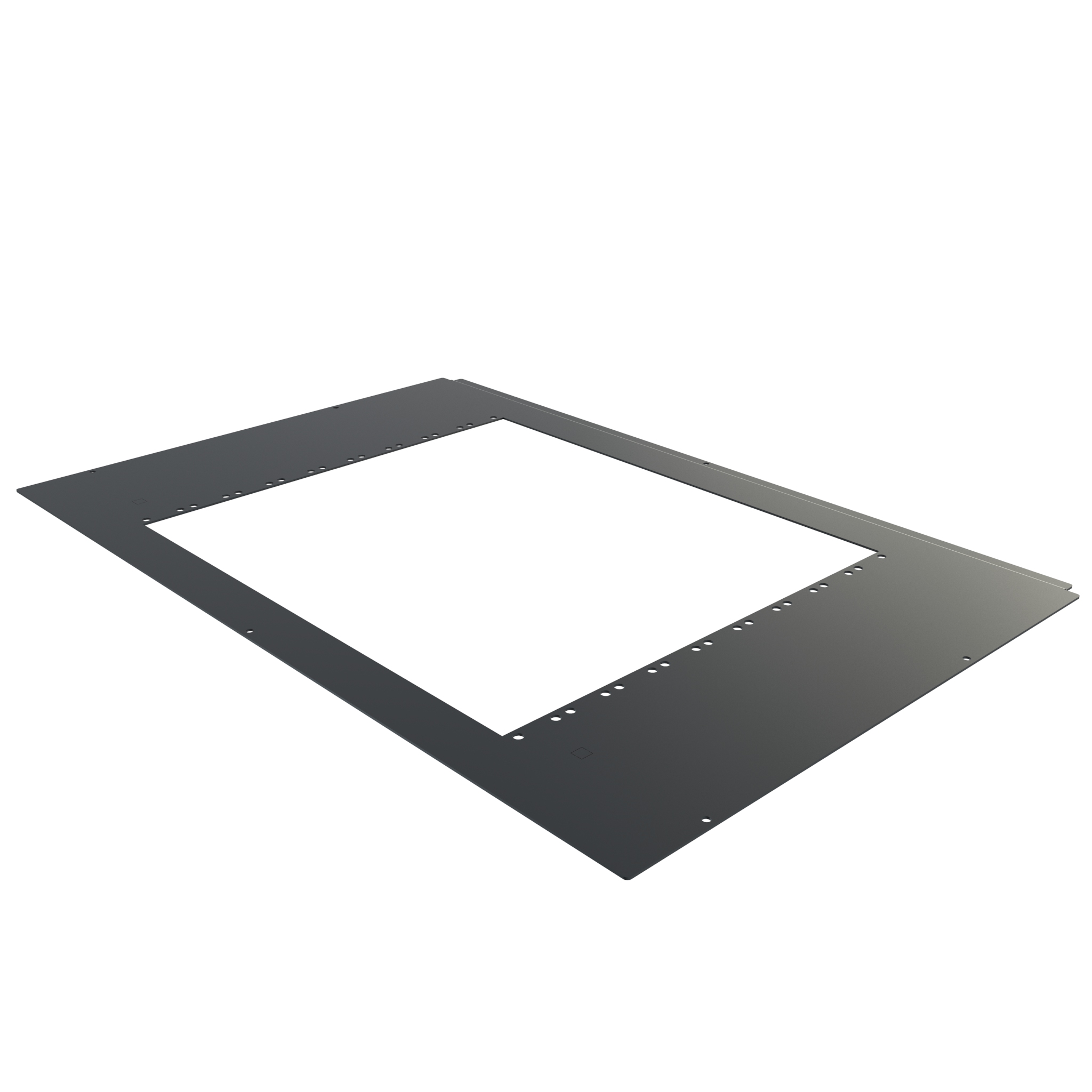

Save 35%H1TR30BK — 30W Black H1 9U Rack Mount Top
