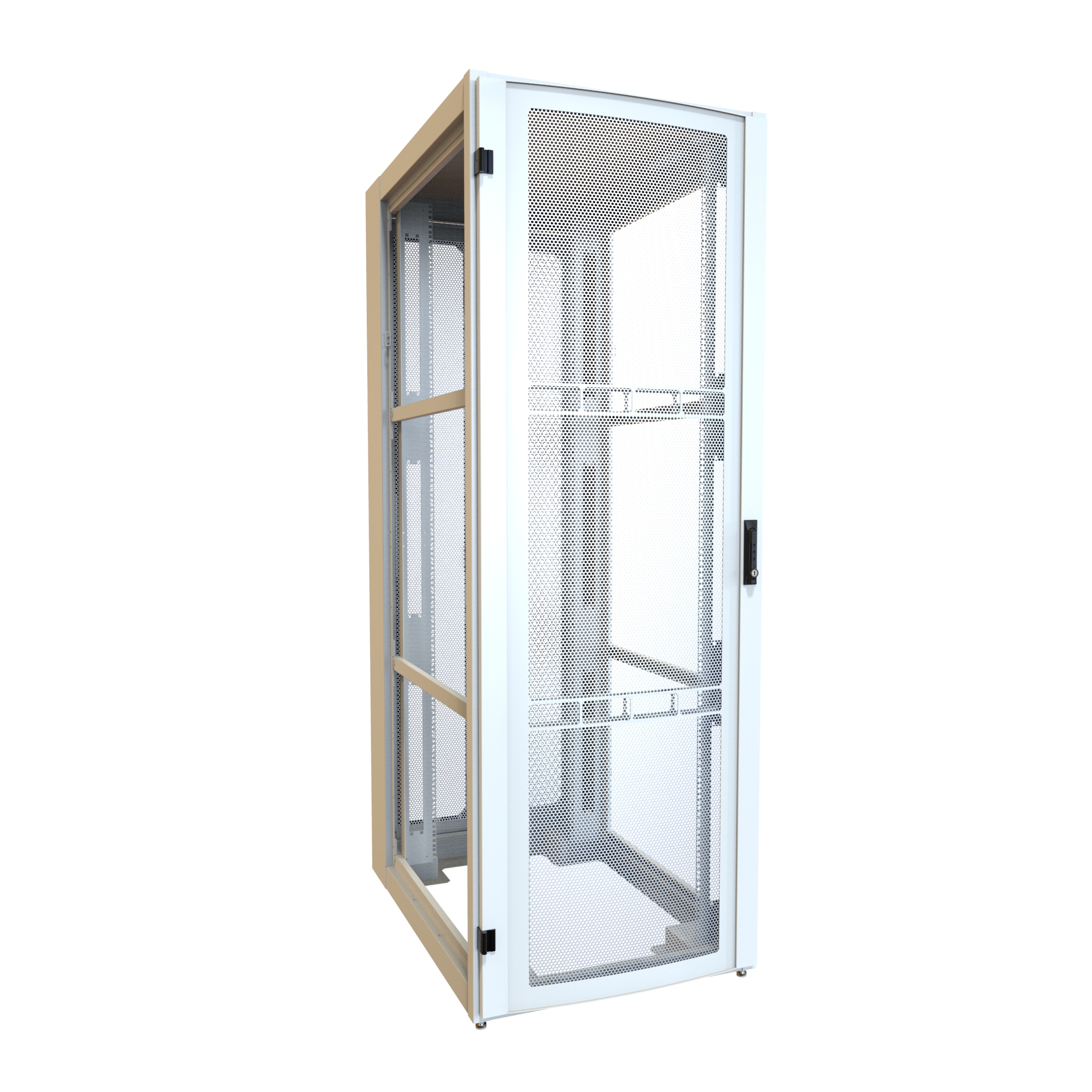

Hammond H13045U42WH 45U 30W x 42D Server Cabinet, White, 3,000 lb

The H13045U42WH is a 45U H1 Series data center server cabinet in RAL9003 White, 30 in wide with a 42 in nominal depth. It is built for data centers, enterprise IT, high-density server and storage deployments, network infrastructure and colocation or cloud environments where airflow, security and structural certification matter.

Construction is a 14-gauge mild steel welded frame with 12-gauge reinforced corner brackets and 16-gauge doors, UL2416 rated to 3,000 lb (1,360 kg) and seismic rated to 1,200 lb dynamic load under IBC, CBC, NBC and ASCE standards. The cabinet also meets PCI DSS requirements and is TAA-compliant, manufactured in North America, with a white powder coat finish that is GREENGUARD, TSCA and RoHS compliant.

Overall dimensions are 85.65 in (2176 mm) high x 30.00 in (762 mm) wide x 43.91 in (1115 mm) deep, with 78.75 in (2000 mm) of usable mounting height and 39.00 in (991 mm) of usable mounting depth. Two pairs of infinitely adjustable, EIA-310 compliant 12-gauge square hole rails are supplied with 10-32 cage nuts, and the 30 in wide rails add 12U of in-rail cutouts that can be used for cable pass-through or for mounting 1U equipment.

H13045U42WH ships with a perforated front door and perforated split/barn rear door (79% open area) with locking swing handles and lift-off hinges, interchangeable solid and brushed cable-entry top panels, a rear-mounted PDU cable tray, four heavy-duty swivel casters, four 5/16-18 UNC leveling feet, grounding studs and a 50-pack starter kit of CAGKIT1032-50 screws and cage nuts. Top panel cable entries include two 4.00 x 7.00 in knockouts and four 2.25 x 7.50 in brushed openings, plus knockouts for ganging cabinets. Side panels are not included and are ordered separately as H1SP45U42WH (white) or H1SP45U42BK (black).
