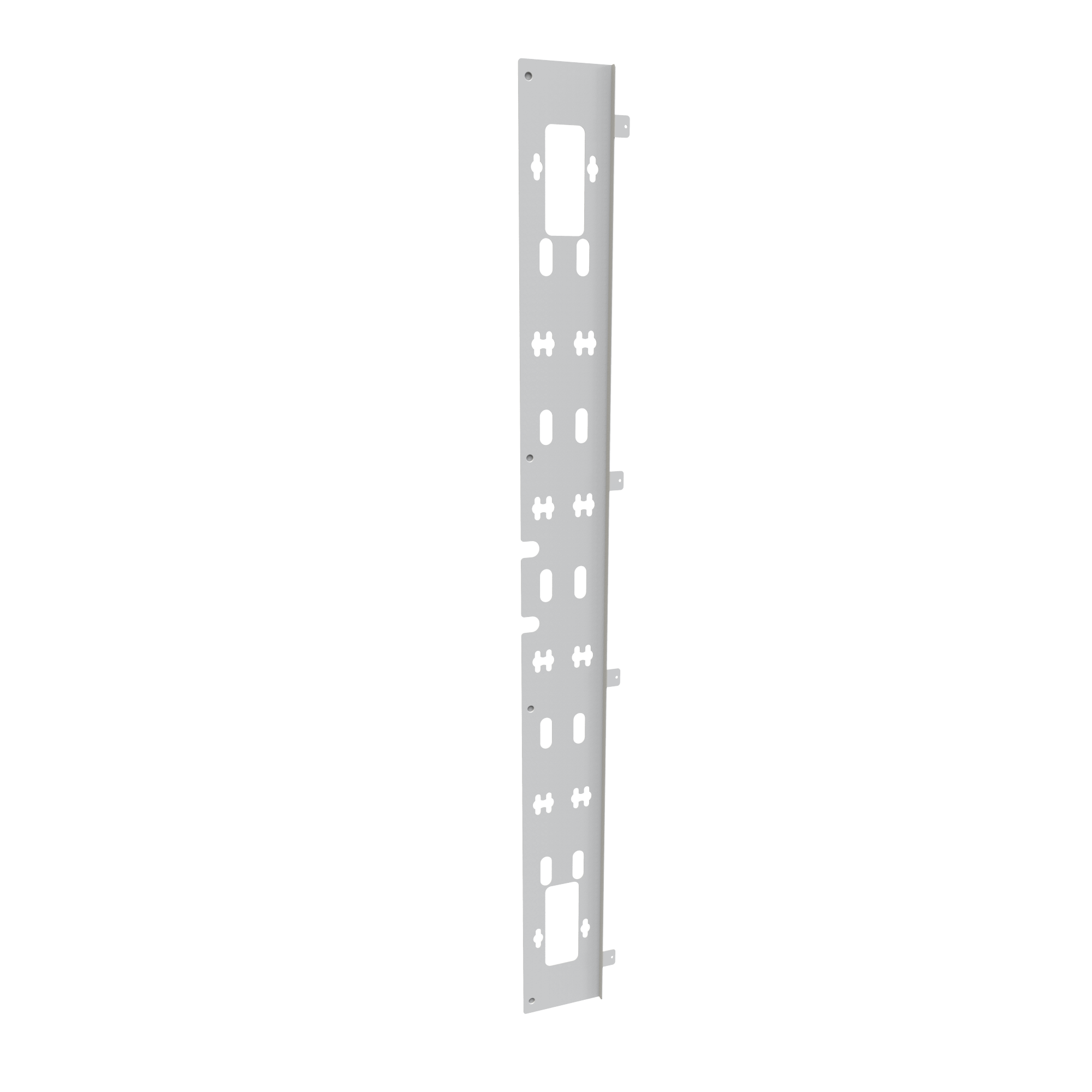

Hammond H1PDU45UWH 45U Vertical Cable Tray With PDU Mount, White

The H1PDU45UWH is a vertical cable tray with integrated PDU mounting, sized for 45U H1 server cabinets. It is intended for data center, IT room and high-density network installations where an additional vertical pathway is needed for cables, power distribution units, or both. Adding this tray complements the tray already included with the cabinet, expanding cable management and PDU mounting capacity without consuming rack-mount space.

Construction is 16-gauge mild steel with folded (flanged) edges that increase structural strength and improve cable handling and organization. The finish on H1PDU45UWH is painted white textured powder coat, described as GREENGUARD, TSCA and RoHS compliant. Cutouts along the tray accept cable ties or hook and loop straps for tie-down and strain relief, and the body includes obround cable openings measuring 1.00 in x 2.62 in (25 mm x 67 mm) and 3.00 in x 7.50 in (76 mm x 190 mm).

Overall dimensions are 70.00 in (1778 mm) high by 6.94 in (176 mm) wide. In a 45U H1 cabinet, the maximum space available for the PDU, including large power plugs, is 75.50 in. Integrated tool-free mounting supports most PDUs that use button-style mounting hardware, so power distribution and cable routing can share a single vertical channel and help separate power from data cabling.

Cabinet mounting hardware is included, with Ø.22 in (6 mm) mounting holes on 12.25 in (311 mm) typical spacing for fast installation. The part is TAA-compliant and manufactured in North America (country of origin CA), USMCA compliant, and both RoHS and REACH compliant, supporting government and enterprise procurement requirements.
