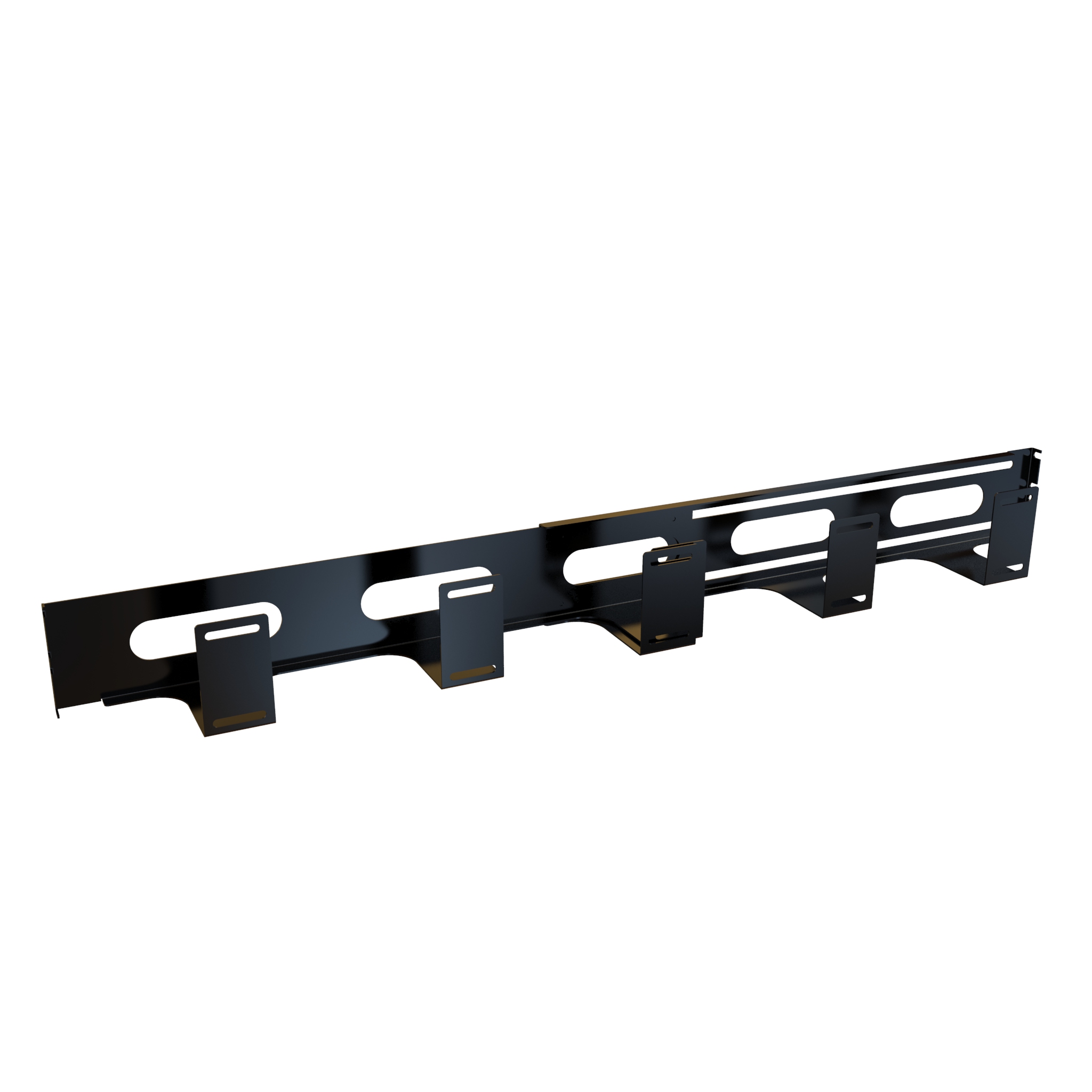

2U 21-36D Adjustable Depth Cable Mgr
$116.82In stock
Buy now

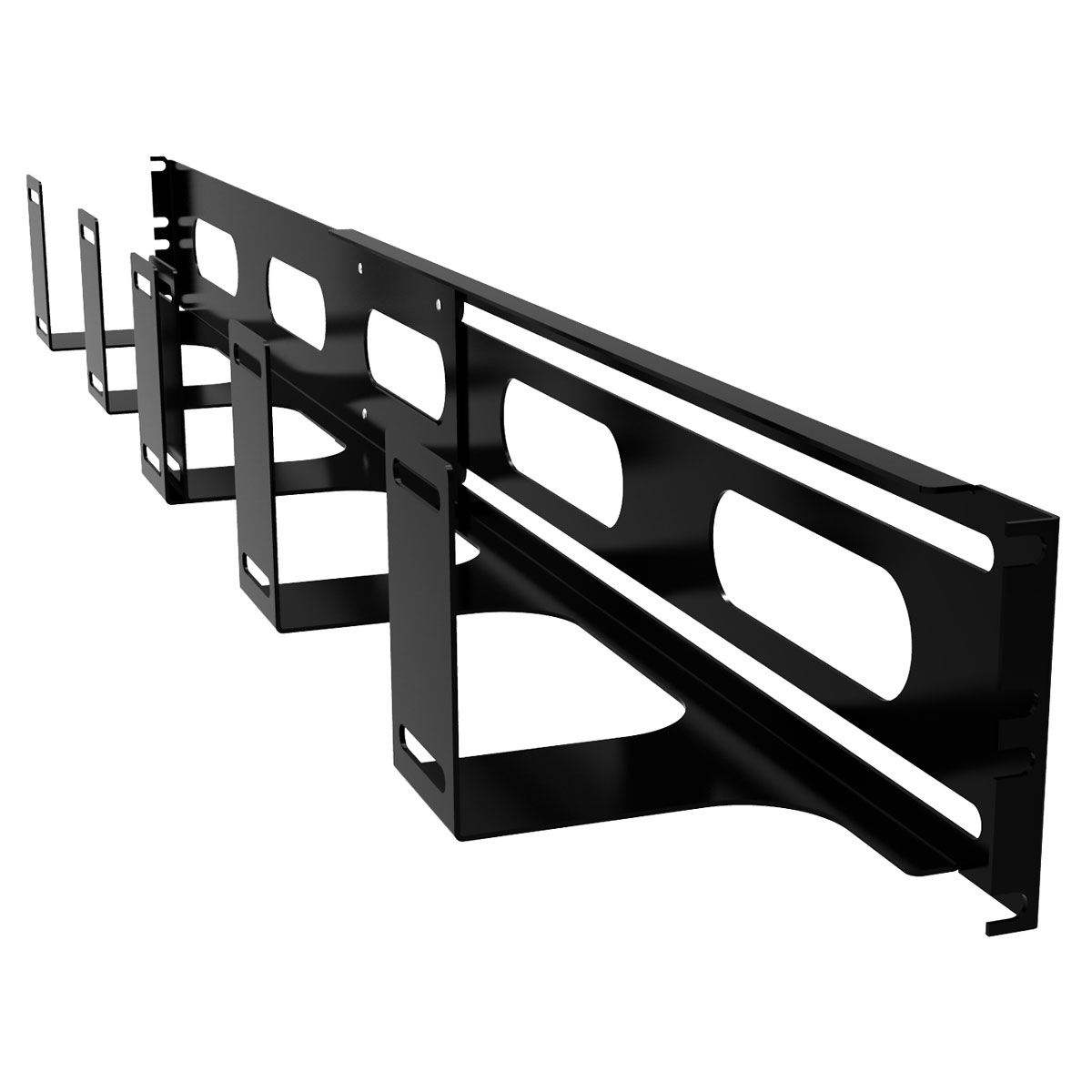

Adjustable Depth Cable Manager Front to Rear Rack Cable Support · RDCM Series
Brand: Hammond Manufacturing · 2 part numbers
Adjustable depth cable manager designed to support and organize cables running front-to-rear in racks and cabinets.
- ■16-gauge steel construction provides durable front-to-rear cable support and prevents sagging in rack and cabinet installations.
- ■Adjustable depth design spans from approximately 21.5 in to 48.5 in to match varying rack and cabinet depths.
- ■Prevents cables from sagging when running between front and rear mounting rails.
- ■Universal design compatible with both open frame racks and enclosed cabinets.
- ■Evenly spaced cable pass-through holes support organized routing and cable separation.
- ■Integrated cable tie-off slots allow secure cable management and strain relief.
from $116.82
2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RDCM Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
2 of 2 part numbers · 2 priced online

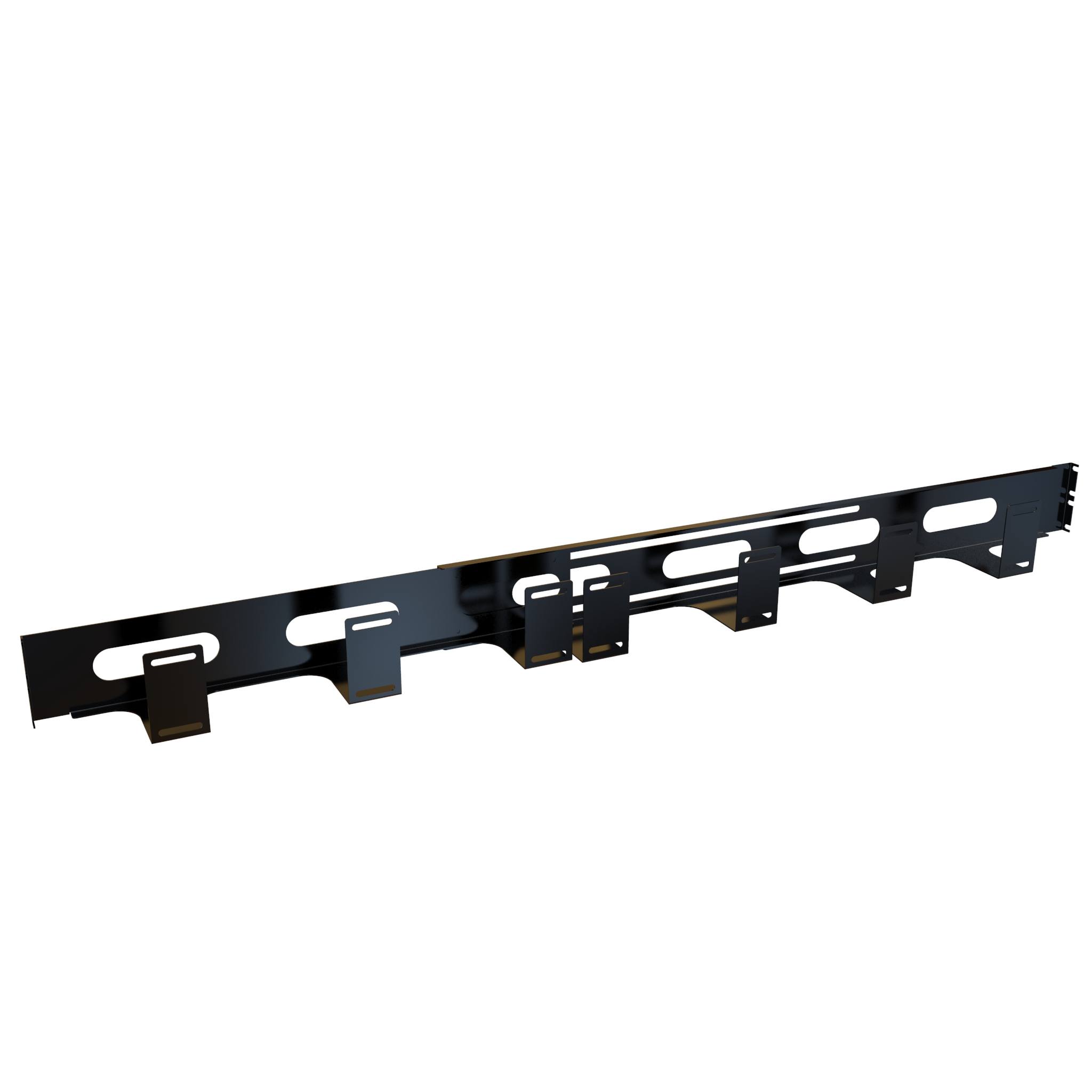

2U 33-48D Adjustable Depth Cable Mgr
$129.80In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Min Depth | Overall Dimensions · Max Depth | Rack · Units | Price | Order |
|---|---|---|---|---|---|---|---|
| RDCM2136BK | 3.00 | 3.95 | 21.50 | 36.50 | 2U | $116.82In stock | Buy now |
| RDCM3348BK | 3.00 | 3.95 | 33.50 | 48.50 | 2U | $129.80In stock | Buy now |
Key Features and Benefits
The RDCM Series adjustable depth cable managers provide a reliable solution for supporting cables routed between the front and rear of rack and cabinet systems. By preventing cable sag and maintaining organized pathways, they improve cable reliability and system performance.
Designed for flexibility, the adjustable depth allows the manager to fit a wide range of rack sizes, making it ideal for both new installations and retrofit applications.
- ■16-gauge steel construction provides durable front-to-rear cable support and prevents sagging in rack and cabinet installations.
- ■Adjustable depth design spans from approximately 21.5 in to 48.5 in to match varying rack and cabinet depths.
- ■Prevents cables from sagging when running between front and rear mounting rails.
- ■Universal design compatible with both open frame racks and enclosed cabinets.
- ■Evenly spaced cable pass-through holes support organized routing and cable separation.
- ■Integrated cable tie-off slots allow secure cable management and strain relief.
- ■Mounts directly to EIA-310 compliant rails for broad compatibility.
- ■Free-floating adjustable design allows precise positioning within the rack depth.
- ■Requires two pairs of mounting rails for installation.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
Documents
Additional information
Where the RDCM Series Works Best
- ■Server cabinets and 4-post racks
- ■Data centers and IT rooms
- ■Network and telecom installations
- ■High-density rack environments
- ■Installations with significant front-to-rear cabling
- ■Supporting cables between front and rear rack rails
- ■Preventing cable sag in deep cabinets
- ■Organizing front-to-rear cable routing paths
- ■Improving airflow by maintaining cable positioning
- ■Supporting structured cabling in high-density racks
Part Details
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Min Depth | Overall Dimensions · Max Depth | Rack · Units |
|---|---|---|---|---|---|
| RDCM2136BK | 3.00 | 3.95 | 21.50 | 36.50 | 2U |
| RDCM3348BK | 3.00 | 3.95 | 33.50 | 48.50 | 2U |
