Hammond H1PDU48UWH 48U Vertical PDU Cable Tray Bracket, White

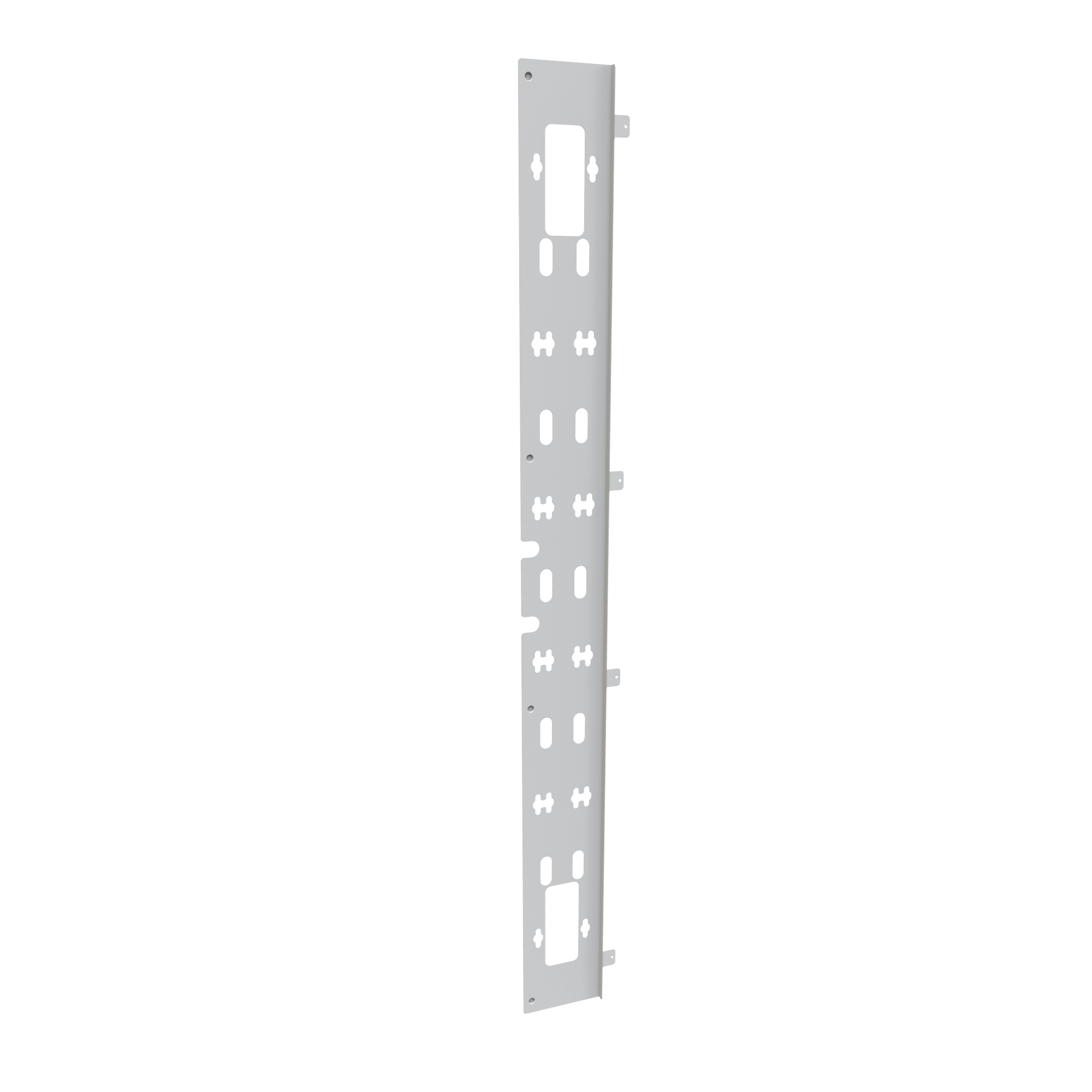

The H1PDU48UWH is a vertical PDU cable tray bracket sized for 48U H1 Series server rack cabinets. It gives data center, enterprise IT and network teams a dedicated vertical channel at the rear of the cabinet for mounting power distribution units and routing the power cabling that serves them, keeping cords out of the equipment mounting area and away from airflow paths.

The bracket is formed from mild steel and finished in white textured paint (RAL9003 White), matching the white H1 cabinet finish; the equivalent black version is H1PDU48UBK. It measures 75.25 in (1911 mm) high by 6.94 in (176 mm) wide, running nearly the full internal height of a 48U H1 cabinet so PDUs and cords can be supported along the entire rail depth. Formed openings along the bracket, including 1.00 in x 2.62 in (25 mm x 67 mm) obround knockouts and 3.00 in x 7.50 in (76 mm x 190 mm) cable openings, allow cords to pass through and be dressed to the frame, while 0.22 in (6 mm) mounting holes at 12.25 in (311 mm) typical spacing locate the part to the cabinet.

Mounting hardware is included with H1PDU48UWH. The part is RoHS and REACH compliant, USMCA compliant and TAA compliant, manufactured in Canada, and falls under Hammond's UL file E474597. Series standards references include cULus, PCI and Zone 4 (seismic).

Note that the H1 cabinet assemblies ship with one PDU cable tray already mounted in the rear; H1PDU48UWH is the 48U replacement or additional tray for cabinets that need a second PDU position or a spare.
