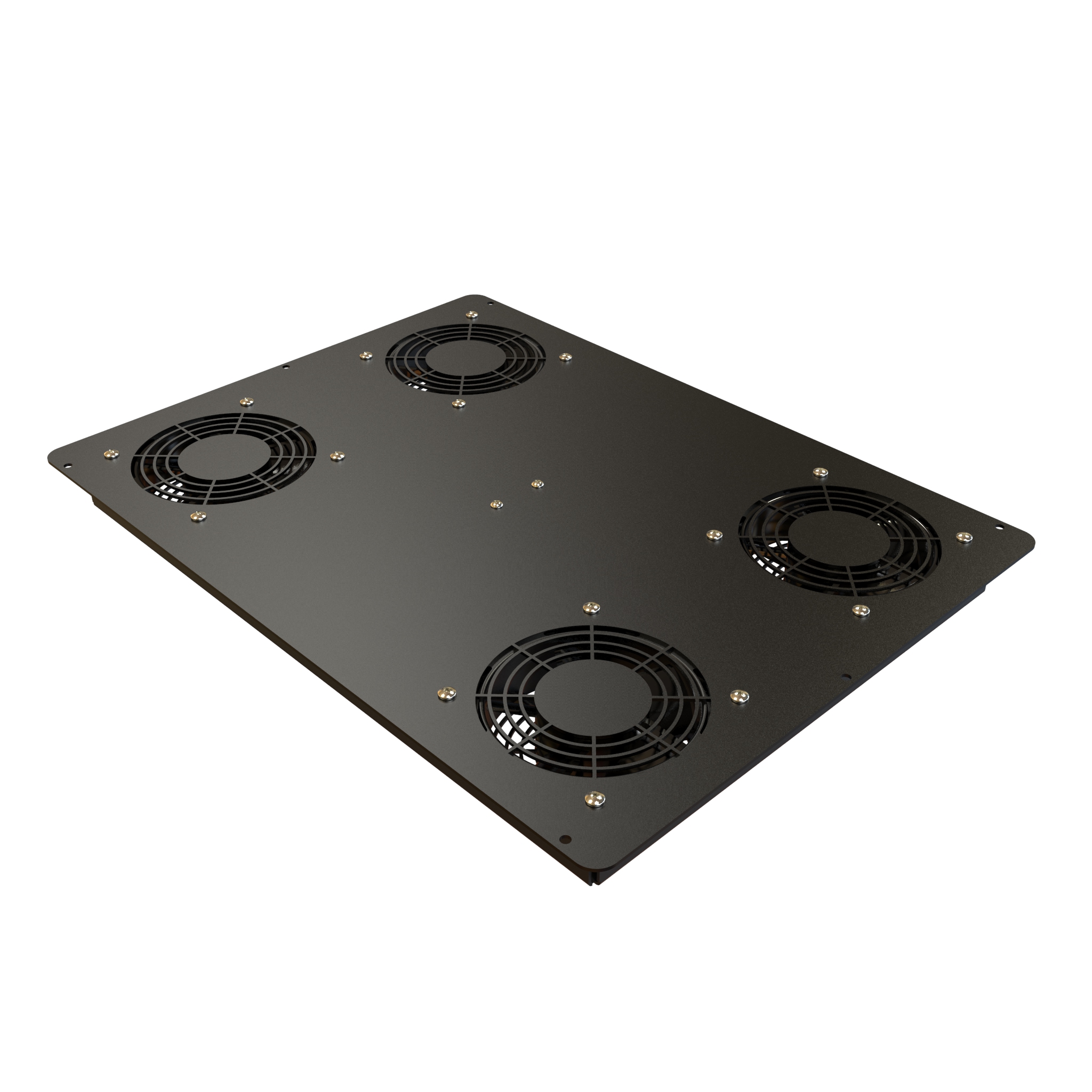

Hammond C2T1923F4TBK1 400 CFM Fan Top Panel with Adjustable Thermostat
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Four pre-wired 4.70 in (119 mm) ball-bearing AC fans deliver 400 CFM free-flow air at 64 dB
- Adjustable thermostat included, 32 degrees F to 140 degrees F, for automatic temperature-based cooling
- Rated 115 VAC, 50/60 Hz, 0.77 Amps with a 6 ft power cord - no field wiring of fans required
- 14-gauge steel panel in RAL9005 Black powder coat (GREENGUARD, TSCA, RoHS compliant)
- Includes CLPKIT832-6 mounting hardware, six 8-32 x 1/2 in screws and six 8-32 speed nuts
- Fits C2 (23.00 x 23.63 in), C4 (24.00 x 31.50 in), and all H1 and RCK cabinet sizes (H1 needs H1TC Series)
- Light gray equivalent available as C2T1923F4TLG1 for finish matching
The C2T1923F4TBK1 is a factory pre-wired fan top panel from the C2TF Series, built to add active cooling to a rack cabinet without on-site fan wiring. It carries four long-life, ball-bearing 4.70 in (119 mm) AC fans rated for a combined 400 CFM free-flow air delivery at 64 dB, plus an adjustable thermostat so the fans run only when cabinet temperature calls for it. It suits IT, network, telecom, AV and broadcast installations where heat load has outgrown passive venting.
Construction is 14-gauge steel with a RAL9005 Black powder coat finish; the finish is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental requirements. The unit is TAA-compliant and manufactured in North America, which helps with government and public-sector procurement. Material is mild steel and the assembly is RoHS and REACH compliant.
Electrically, the fan assembly is rated 115 VAC, 50/60 Hz, 0.77 Amps and ships with a 6 ft power cord, with an adjustable thermostat range of 32°F to 140°F. Approvals are cURus Recognized to UL507 and CSA C22.2 No. 113. This version has no cable entry grommets; C2T1923F10CEBK1-style 10 in models cover that requirement.
Mounting uses the supplied hardware: six 8-32 x 1/2 in round-head screws and six 8-32 speed (U-clip) nuts, plus CLPKIT832-6 cabinet mounting hardware. U-clip nuts install on the cabinet frame, the panel is set in place, screws are started loosely and then tightened with a Phillips screwdriver. The C2T1923* footprint is intended for C2 cabinets 23.00 in wide x 23.63 in deep, C4 cabinets 24.00 in wide x 31.50 in deep, and all sizes of H1 and RCK cabinets; H1 cabinets require the H1TC Series for mounting.
Ideal For
- Active cooling for data center and IT room cabinets
- High-density rack and network or telecom deployments
- AV and broadcast equipment cabinets with high heat loads
- Upgrading passive cabinets to thermostat-controlled cooling
- Thermal management for high heat load equipment installations
Cooling
| Fan Size | 4.70 in (119 mm) |
| Fan Type | Long life, ball bearing AC fan(s) |
| Cable Entry | No |
| Noise Level | 64 dB |
| Fan Quantity | 4 |
| Thermostat Included | Yes |
| Free Flow Air Delivery | 400 CFM |
Overview
| Series | C2TF Series |
| Part Number | C2T1923F4TBK1 |
| Product Type | Rack cabinet fan top panel, pre-wired fans with thermostat |
| Short Description | 400CFM FANTOP W/ THERMOSTAT |
| Light Gray Equivalent | C2T1923F4TLG1 (ASA61 Light Gray) |
Dimensions
| Shipping Weight | 21 lbs (9.53 kg) |
| Nominal Size (H X W X D) | 98.55 in x 25.48 in x 24.46 in (2,503 mm x 647 mm x 621 mm) |
Electrical
| Rating | 115 VAC, 50/60 Hz, 0.77 Amps |
| Wiring | Factory wired |
| Power Cord | 6 ft power cord |
Identifiers
| UPC | 623980713212 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980713212 |
| Tariff Code | 8414.90.9180 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398071321 |
Rack Mounting
| C2 Cabinet Fit | 23.00 in width x 23.63 in depth |
| C4 Cabinet Fit | 24.00 in width x 31.50 in depth |
| Included Hardware | CLPKIT832-6 cabinet mounting hardware; 6 round-head 8-32 x 1/2 in screws; 6 speed nuts (8-32 U-clip nuts) |
| H1 / RCK Cabinet Fit | All sizes |
| Assembly Instructions | BUL86698 - install U-clip nuts on cabinet frame, place top panel, loosely install 8-32 x 1/2 screws, then tighten |
| Compatible Cabinet Series | C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK or CLC (H1 requires H1TC Series for mounting) |
Construction & Finish
| Gauge | 14-gauge steel construction |
| Finish | RAL9005 Black powder coat (GREENGUARD, TSCA, RoHS compliant) |
| Material | Mild Steel |
| Top Finish (Drawing) | Painted steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | cruus, taa-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | No |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Are the fans already installed and wired on C2T1923F4TBK1?▾
Yes. This is a pre-wired fan top with four 4.70 in (119 mm) ball-bearing AC fans installed and factory wired, supplied with a 6 ft power cord and rated 115 VAC, 50/60 Hz, 0.77 Amps.
How much airflow and noise should I expect?▾
The four-fan assembly is rated at 400 CFM free-flow air delivery with a noise level of 64 dB.
Does it include a thermostat?▾
Yes. C2T1923F4TBK1 includes an adjustable thermostat with a range of 32 degrees F to 140 degrees F, so the fans can cycle based on cabinet temperature. Non-thermostat versions of the four-fan top are also offered in the series.
Which cabinets does this fan top fit?▾
The C2TF Series is designed for C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK or CLC cabinets. The C2T1923 footprint matches C2 cabinets 23.00 in wide x 23.63 in deep, C4 cabinets 24.00 in wide x 31.50 in deep, and all H1 and RCK sizes; H1 cabinets require the H1TC Series for mounting.
Does this model have cable entry holes?▾
No. C2T1923F4TBK1 is listed with cable entry: No. Pre-wired 10 in models with cable entry grommets, such as the C2T1923F10CE versions, cover that requirement.
What mounting hardware is supplied?▾
CLPKIT832-6 cabinet mounting hardware is included, consisting of six round-head 8-32 x 1/2 in screws and six 8-32 speed (U-clip) nuts. Only a Phillips screwdriver is needed for installation.
Is this part suitable for government projects?▾
It is TAA-compliant and manufactured in North America (country of origin CA), with RoHS and REACH compliance and ECCN EAR99.
