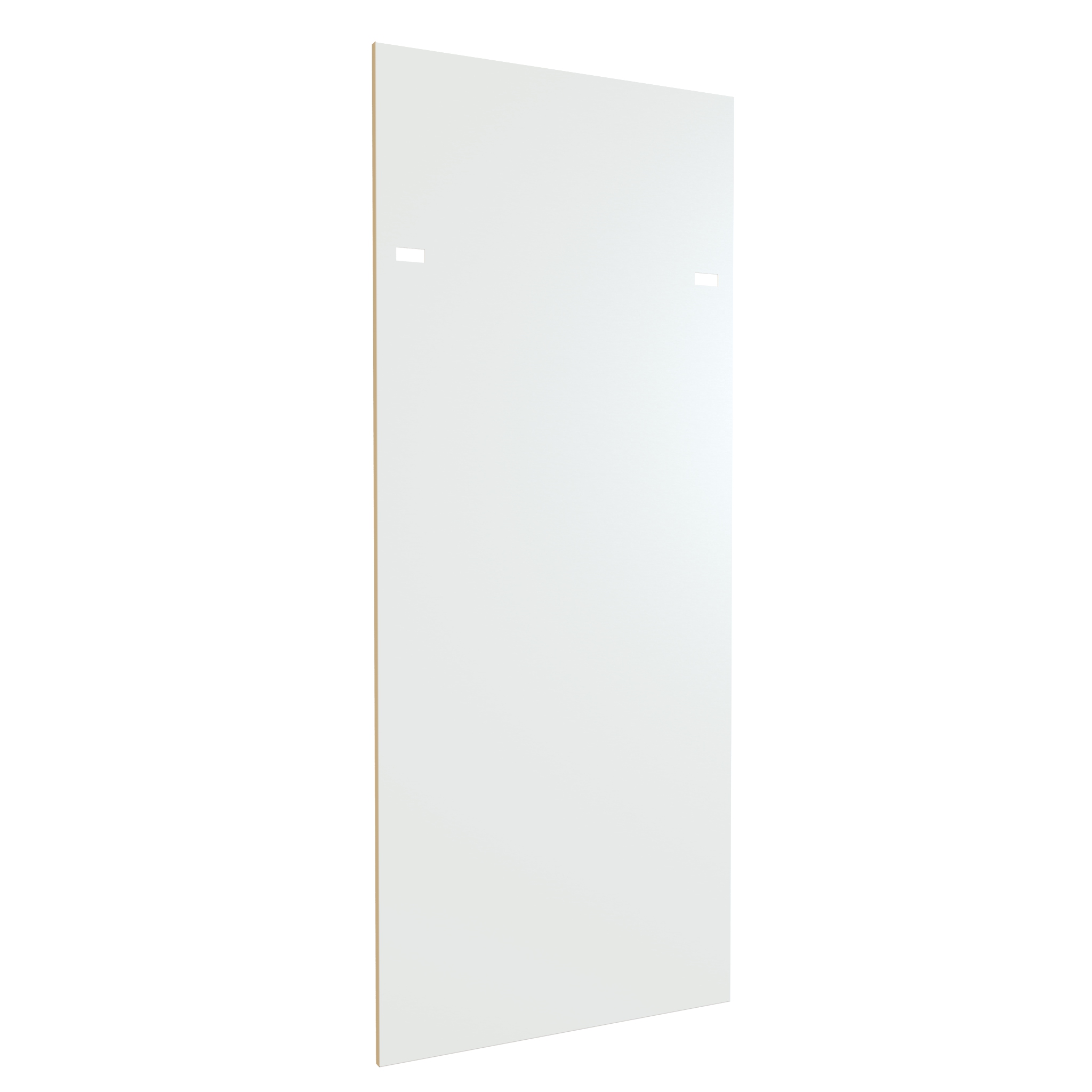

Hammond H1SP45U42WH 45U White Solid Side Panel, 42-Inch Deep Cabinet
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid side panel for 45U H1 Series cabinets with 42 in deep rails (43.91 in overall cabinet depth)
- RAL9003 white powder coat finish; black equivalent is H1SP45U42BK
- Panel dimensions 78.69 in (1999 mm) x 32.38 in (822 mm) x .72 in (18 mm)
- Mild steel construction matching H1 Series cabinet frame and doors
- Includes two H1 locking side panel latches and two 10-32 studs; mounting hardware included
- Sold individually - order two panels to enclose both sides of a cabinet
- TAA-compliant and manufactured in North America; RoHS and REACH compliant
- Part of the UL2416 listed H1 platform (3,000 lb rack load rating, UL File # E474597)
H1SP45U42WH is a solid side panel for 45U, 42 in deep H1 Series server rack cabinets, finished in RAL9003 white. Side panels are not included with H1 cabinet assemblies, so data center, enterprise IT and network teams order them separately to close in the sides of a cabinet for airflow separation, appearance and controlled access. This part is the white counterpart to H1SP45U42BK and is listed as the optional single side panel for the 45U, 43.91 in deep cabinets H12445U42WH, H13045U42WH and H13145U42WH.
The panel is made of mild steel and finished in powder coat, matching the H1 Series cabinet construction. It measures 78.69 in (1999 mm) high by 32.38 in (822 mm) with a .72 in (18 mm) profile, and ships at 56 lbs (25.40 kg). Because panels are sold individually, order two per cabinet if both sides need to be covered.
Installation uses two H1 side panel locking latches together with two 10-32 studs, and mounting hardware is included. Each panel assembly consists of one H1 solid side panel and two locking latches, so access to the cabinet interior can be secured and then released without tools once keyed.
The H1 Series platform is UL2416 listed at a 3,000 lb load rating (UL File # E474597), seismic rated to 1,200 lb dynamic load to IBC, CBC, NBC and ASCE standards, and meets PCI DSS requirements. H1SP45U42WH is TAA-compliant and manufactured in North America, with RoHS and REACH compliance, making it suitable for government and regulated procurement.
Ideal For
- Enclosing 45U H1 cabinets in data centers and enterprise IT rooms
- Airflow separation for high-density server and storage deployments
- Network infrastructure installations requiring controlled cabinet access
- Colocation and cloud environments where cabinets must be closed in
- Installations requiring TAA-compliant, structurally certified cabinet hardware
Overview
| Series | H1 Series High-Performance Server Rack Cabinet |
| Panel Style | Solid side panel, sold individually |
| Part Number | H1SP45U42WH |
| Assembly Content | 1 x H1 solid side panel; 2 x H1 side panel latch - locking |
| Long Description | 45U 42D Solid Side Panel for H1 Cabinet (White) |
| Short Description | 45U 42D WHITE H1 SIDE PANEL |
Dimensions
| Panel Width | 32.38 in (822 mm) |
| Panel Height | 78.69 in (1999 mm) |
| Panel Thickness / Profile | .72 in (18 mm) |
Identifiers
| UPC | 623980802527 |
| ECCN | EAR99 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980802527 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398080252 |
Rack Mounting
| Mounting | Two locking side panel latches with 10-32 studs (x2); mounting hardware included |
| Cabinet Rack Units | 45U |
| Black Equivalent Part | H1SP45U42BK |
| Cabinet Depth Designation | 42D (for H1 cabinets with 43.91 in / 1115 mm overall depth) |
Packaging & Shipping
| Shipping Weight | 56 lbs (25.40 kg) |
Construction & Finish
| Material | Mild Steel |
| Finish / Colour | RAL9003 White powder coat |
Compliance & Certifications
| PCI DSS | Meets PCI DSS (Payment Card Industry Data Security Standard) |
| Standards | cULus, PCI, Zone 4, TAA-compliant |
| UL File # | E474597 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Seismic Rating (H1 Platform) | 1,200 lb dynamic load (IBC, CBC, NBC, ASCE standards) |
| Manufacturing Origin Statement | TAA-compliant, manufactured in North America |
| UL2416 Rack Load Rating (H1 Platform) | 3,000 lb / 1,360 kg |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many side panels do I need for one H1 cabinet?▾
H1SP45U42WH is a single side panel sold individually, so order two if you want to enclose both sides of a 45U, 42 in deep H1 cabinet.
Which cabinets does H1SP45U42WH fit?▾
It is listed as the optional side panel for the 45U H1 cabinets with 43.91 in (1115 mm) overall depth: H12445U42WH, H13045U42WH and H13145U42WH, plus their black equivalents.
Is mounting hardware included?▾
Yes. The drawing notes that mounting hardware is included; the panel uses two locking H1 side panel latches and two 10-32 studs.
Are side panels included with the H1 cabinet?▾
No. The series data states that cabinet side panels are not included with H1 cabinet assemblies and are sold separately, which is why H1SP45U42WH is ordered on its own.
What colour is this panel and is there a black version?▾
This part is RAL9003 white powder coat. The matching black panel is H1SP45U42BK in RAL9005 black.
Is this part suitable for government procurement?▾
It is TAA-compliant and manufactured in North America, with RoHS, REACH and USMCA compliance listed, and an ECCN of EAR99.
Related Products

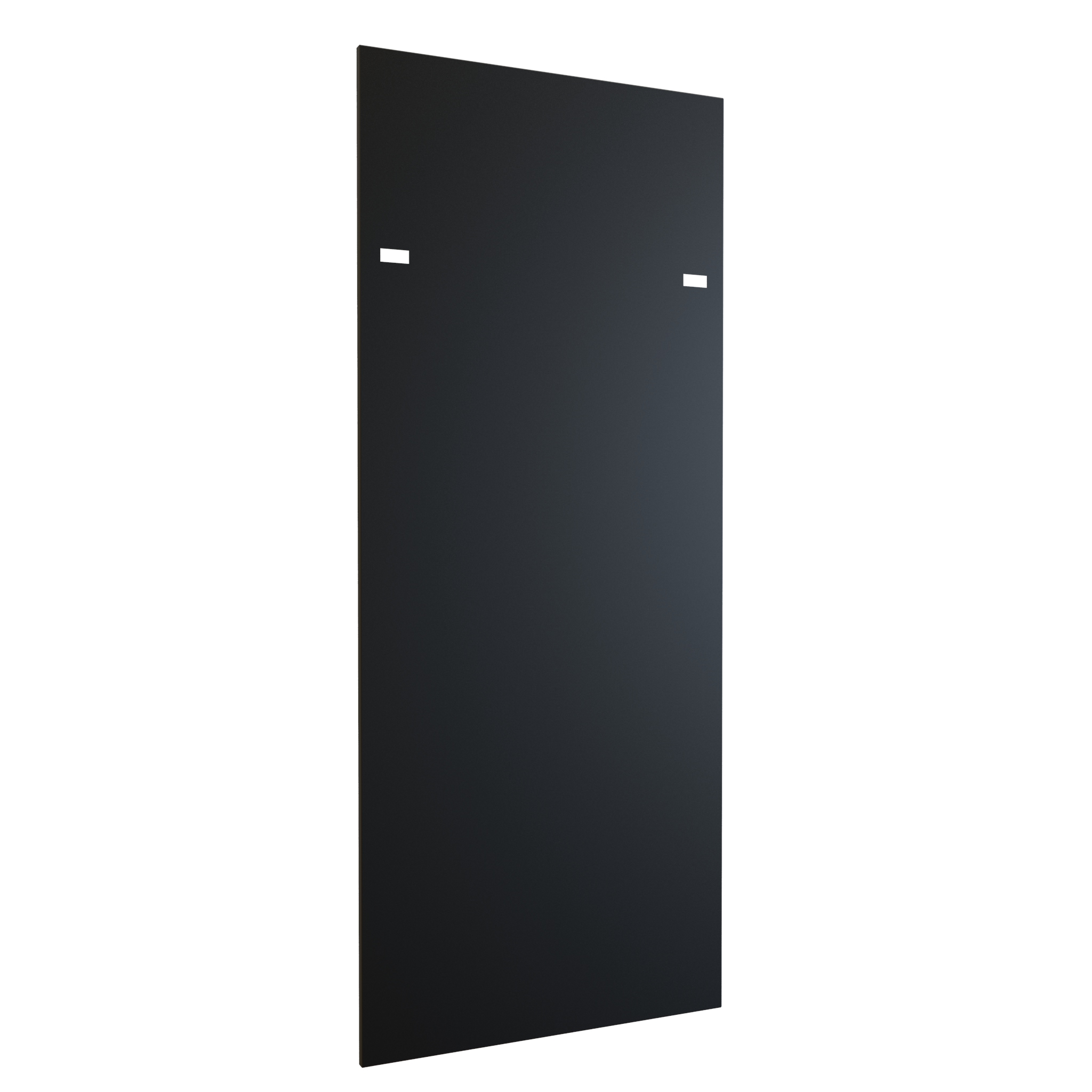

Save 35%H1SP45U42BK — 45U 42D Solid Side Panel for H1 Cabinet (Black)
Hammond Manufacturing · H1SP45U42BK

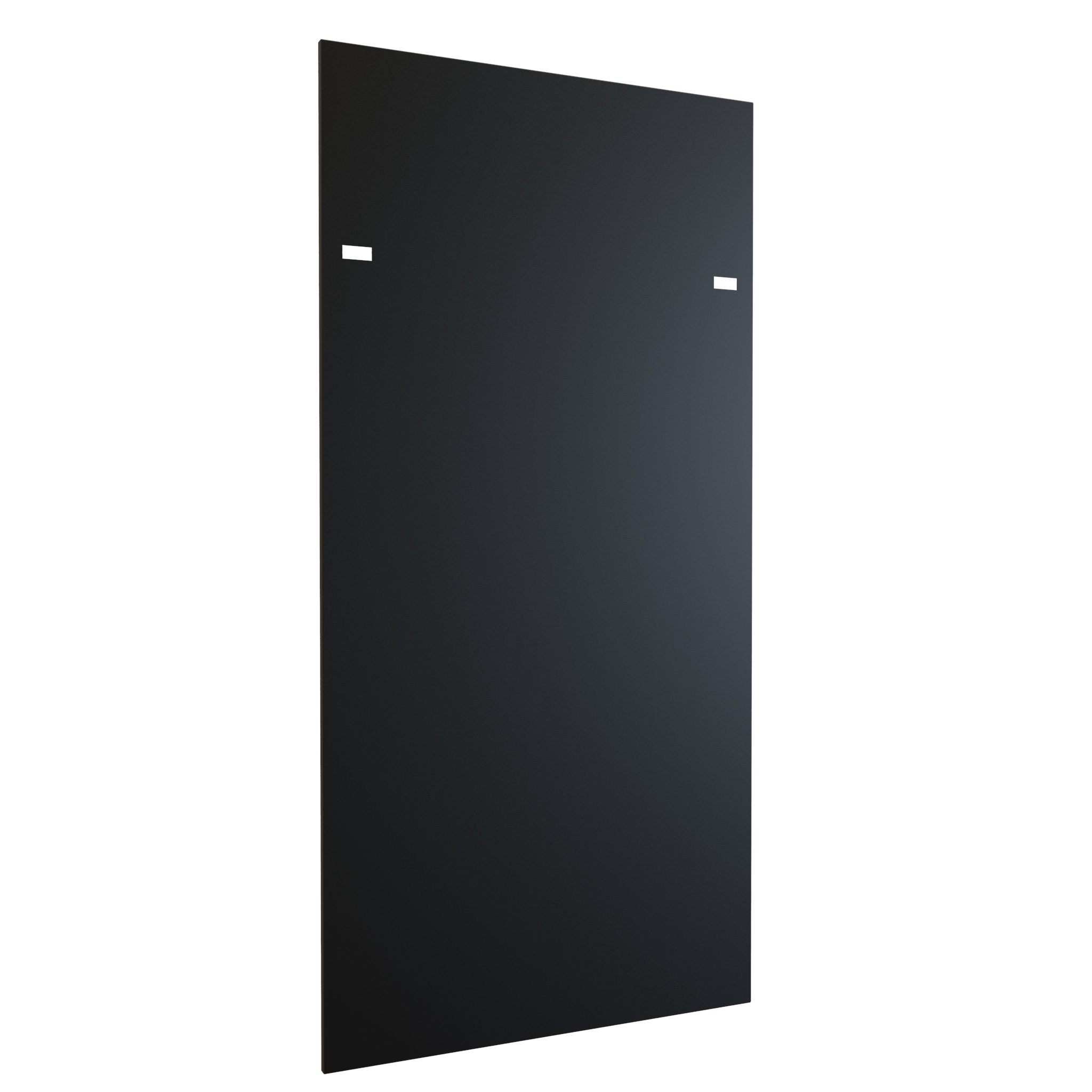

Save 35%H1SP45U48BK — 45U 48D Solid Side Panel for H1 Cabinet (Black)
Hammond Manufacturing · H1SP45U48BK

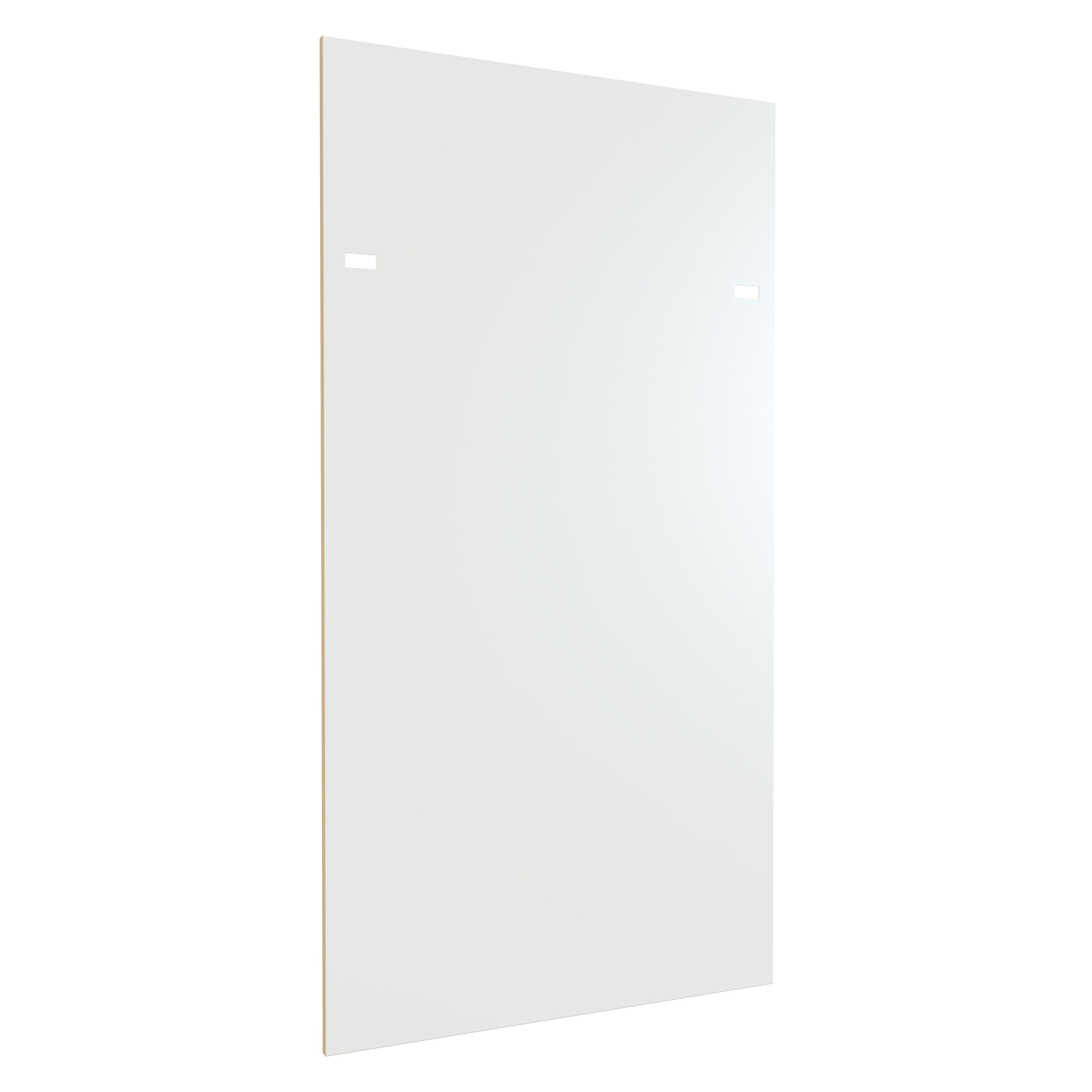

Save 35%H1SP42U48WH — 42U 48D Solid Side Panel for H1 Cabinet (White)
Hammond Manufacturing · H1SP42U48WH

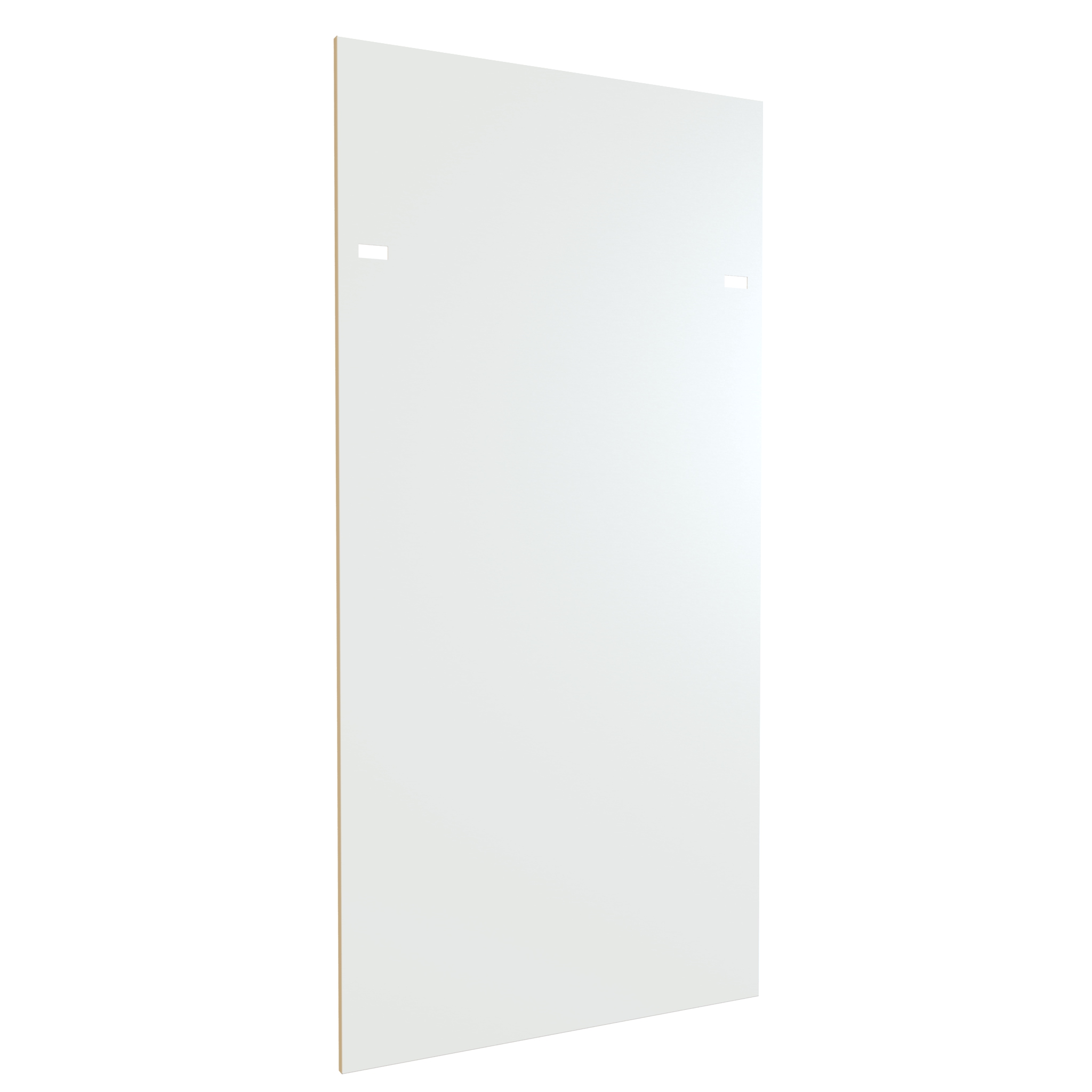

Save 35%H1SP45U48WH — 45U 48D Solid Side Panel for H1 Cabinet (White)
Hammond Manufacturing · H1SP45U48WH

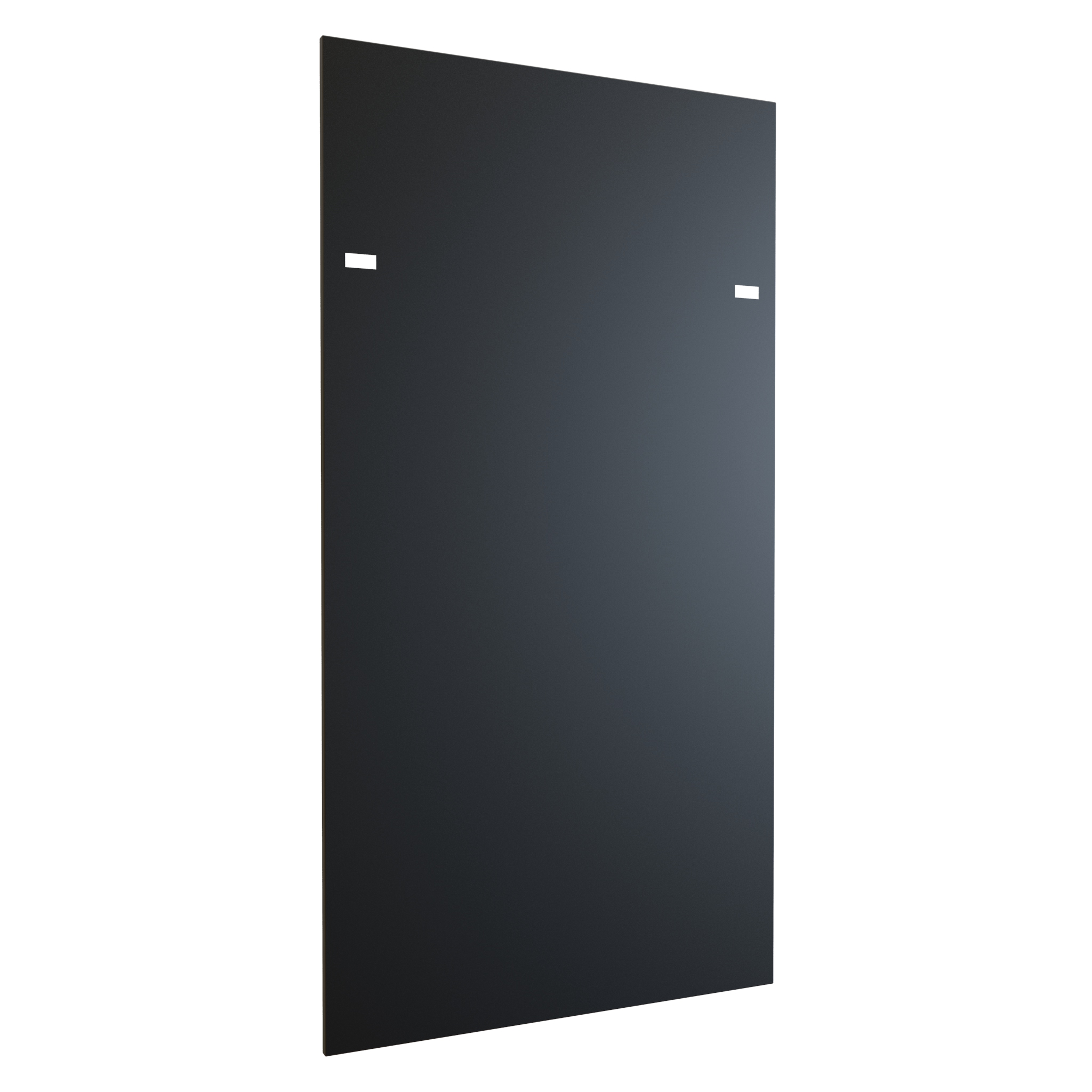

Save 35%H1SP42U48BK — 42U 48D Solid Side Panel for H1 Cabinet (Black)
