Hammond H1SP52U42BK 52U 42-Inch Deep Solid Side Panel, Black

H1SP52U42BK is a single solid side panel for 52U H1 Series server rack cabinets built on the 42 in deep frame. Side panels are not supplied with H1 cabinet assemblies, so this part is the way IT and data center teams close in a new cabinet, replace a damaged panel, or convert a bayed row into individually enclosed cabinets. It is finished in black (RAL9005 is the H1 black cabinet finish) so it matches black H1 frames and doors.

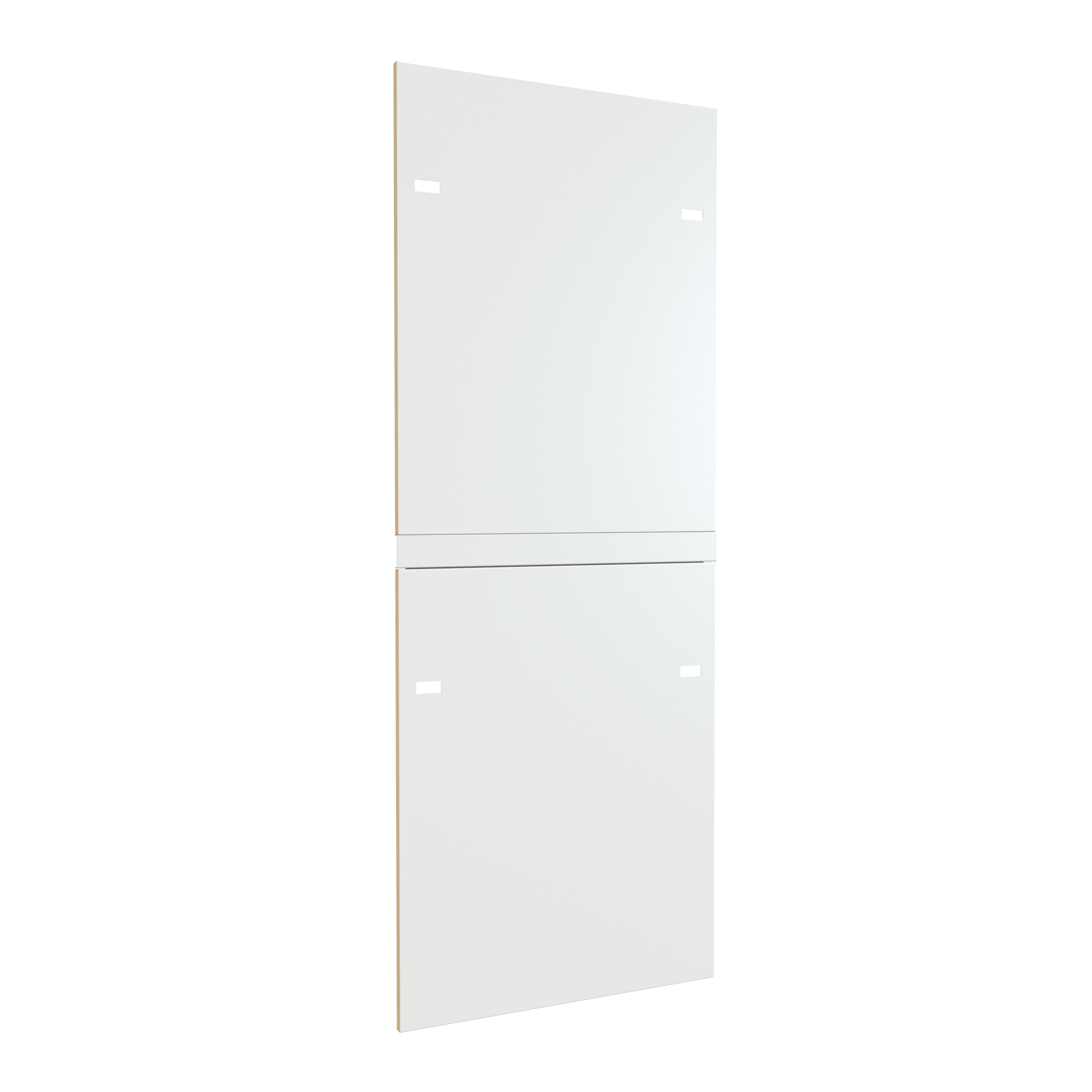

The panel is made from mild steel and ships as a split, two-piece assembly: two H1 split side panels, one H1 support bar, and four locking side panel latches, with mounting hardware included. The split construction means each half is handled and lifted separately rather than as one full-height sheet, which is useful when working in an aisle or alongside adjacent cabinets. Per the drawing, each split panel measures 43.96 in (1117 mm) by 32.38 in (822 mm), and the support bar is 32.50 in (826 mm). Shipping weight is 58 lbs (26.31 kg).

H1SP52U42BK is listed by the manufacturer as the black optional single side panel for the 52U, 43.91 in (1115 mm) deep H1 cabinets — H12452U42BK/WH (24 in wide), H13052U42BK/WH (30 in wide) and H13152U42BK/WH (31.5 in wide). Because the panel is width-independent, one part number covers all three cabinet widths in that height and depth; order two per cabinet to enclose both sides.

The H1 platform it belongs to is a UL2416 listed rack system (3,000 lb / 1,360 kg load rating, UL file E474597), seismic rated to 1,200 lb dynamic load, meets PCI DSS, and is TAA-compliant and manufactured in North America. This part is RoHS, REACH and USMCA compliant, with country of origin Canada.
