ABS Plastic Hand Held Enclosures · 1553 Series

Key Features:

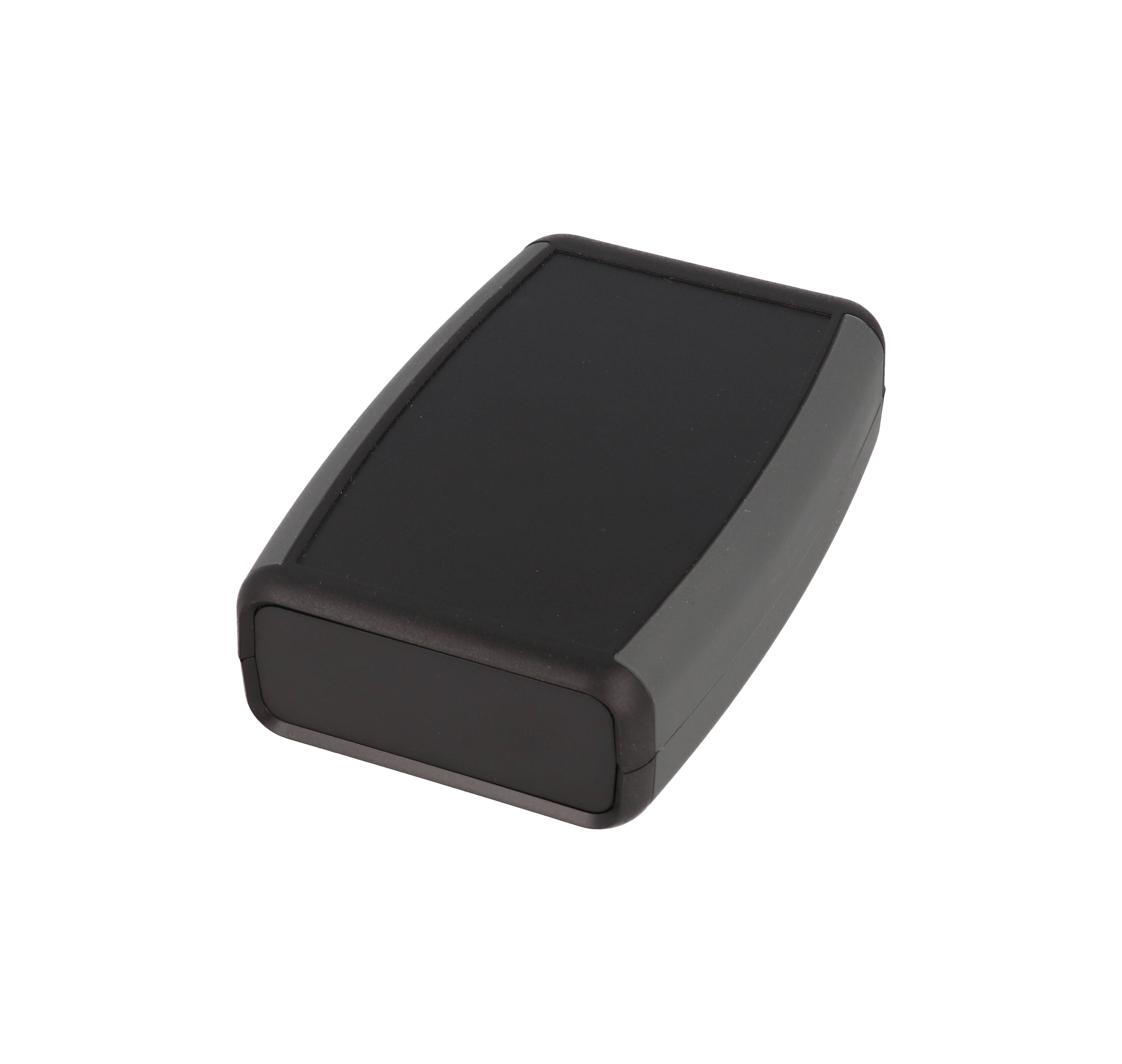

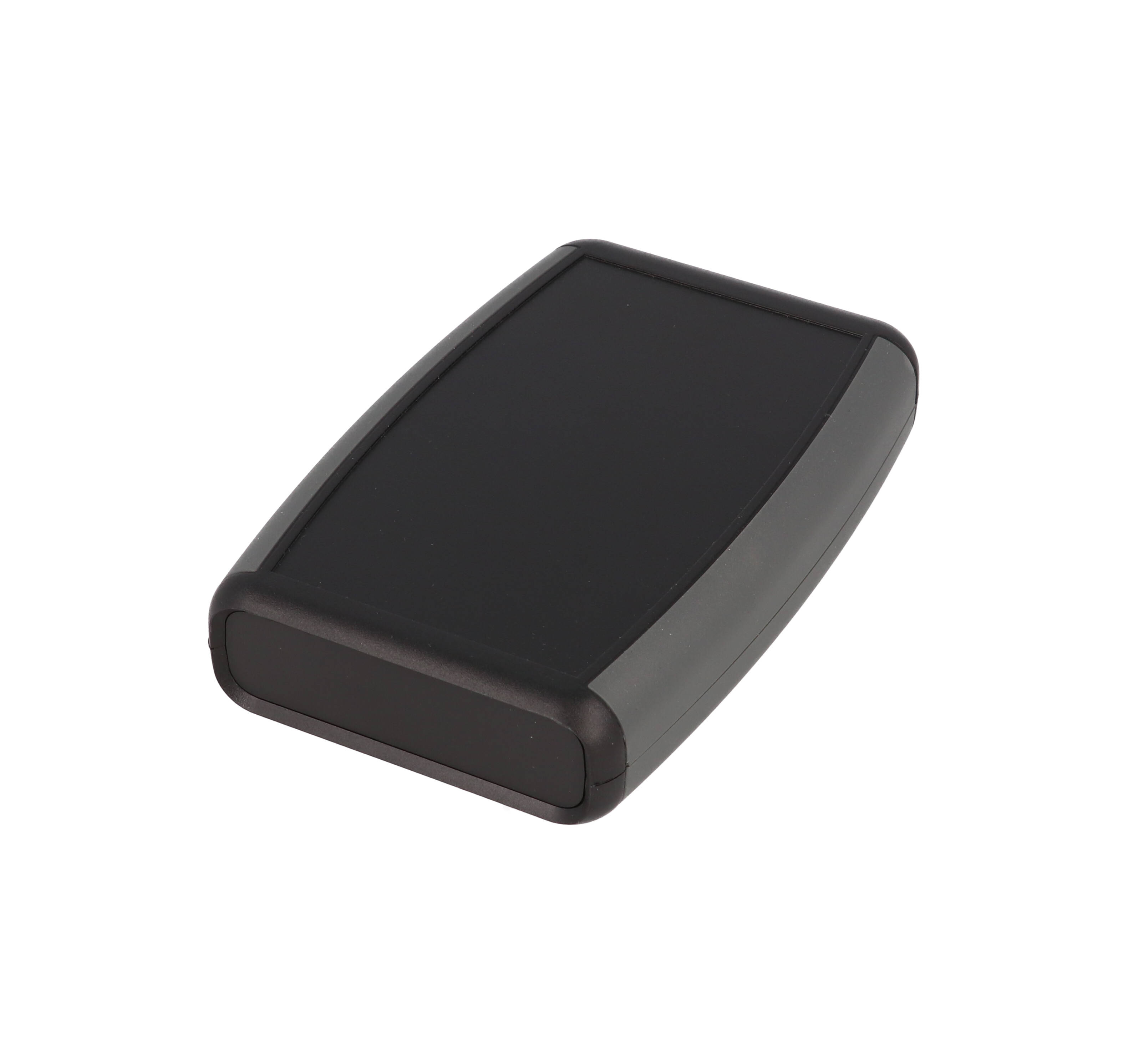

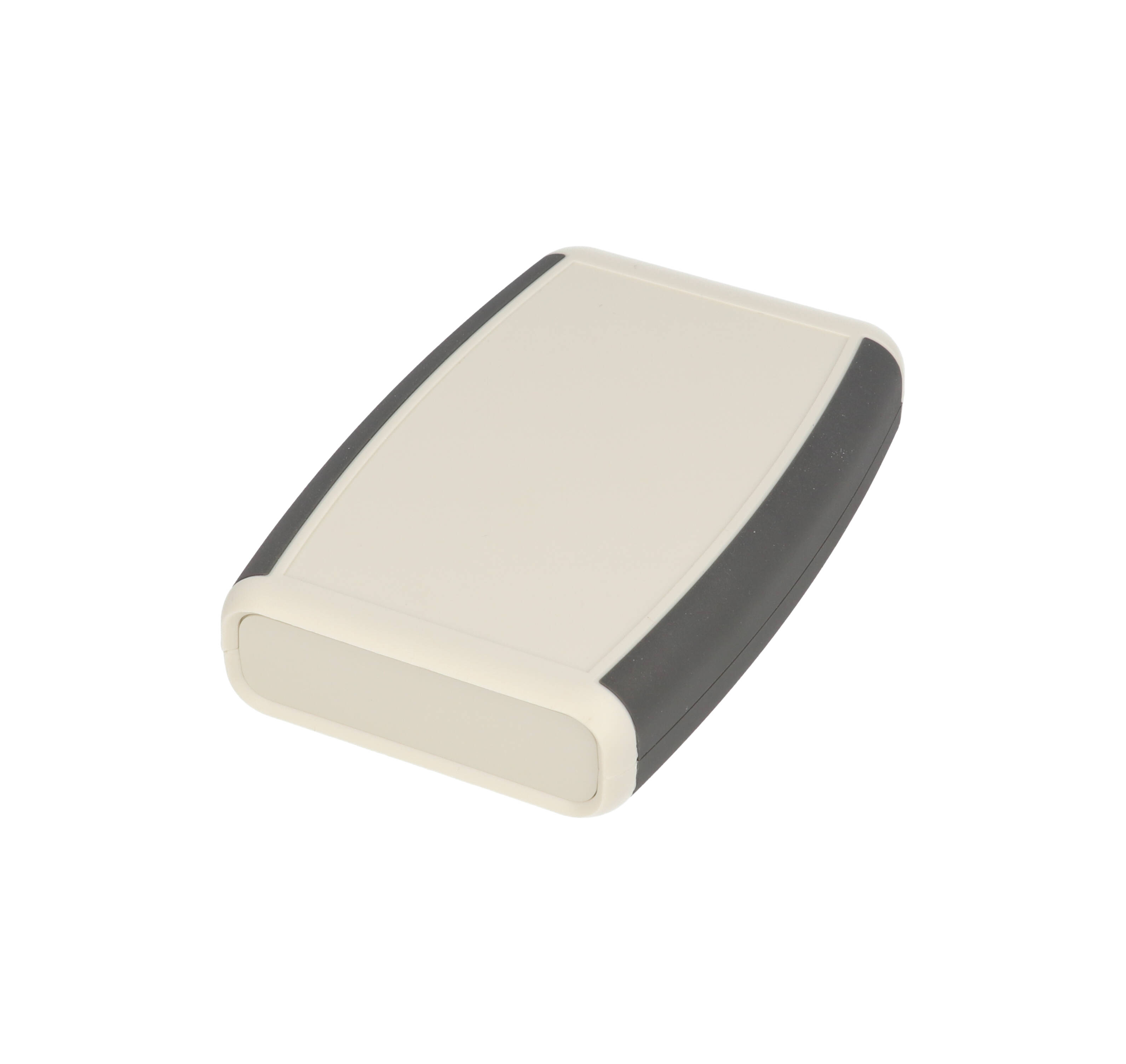

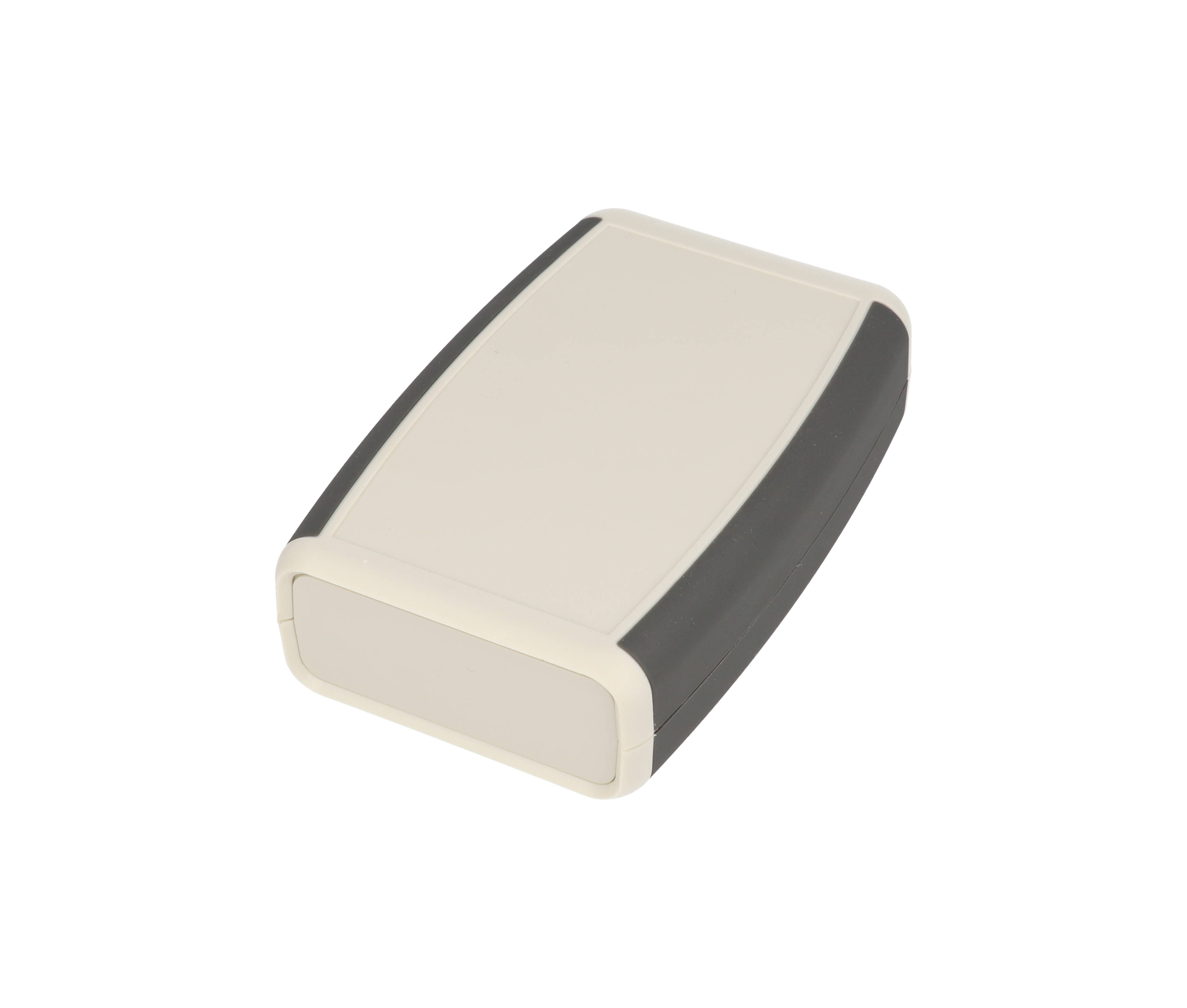

• ■Ergonomically designed for handheld comfort.
• ■All sizes except 1553AA and 1553A available with or without battery compartment.
• ■Molded in general purpose ABS plastic with a soft plastic overmold for comfortable grip.
• ■Top cover is recessed for membrane display or keypad.
• ■PC board standoffs are molded into case.

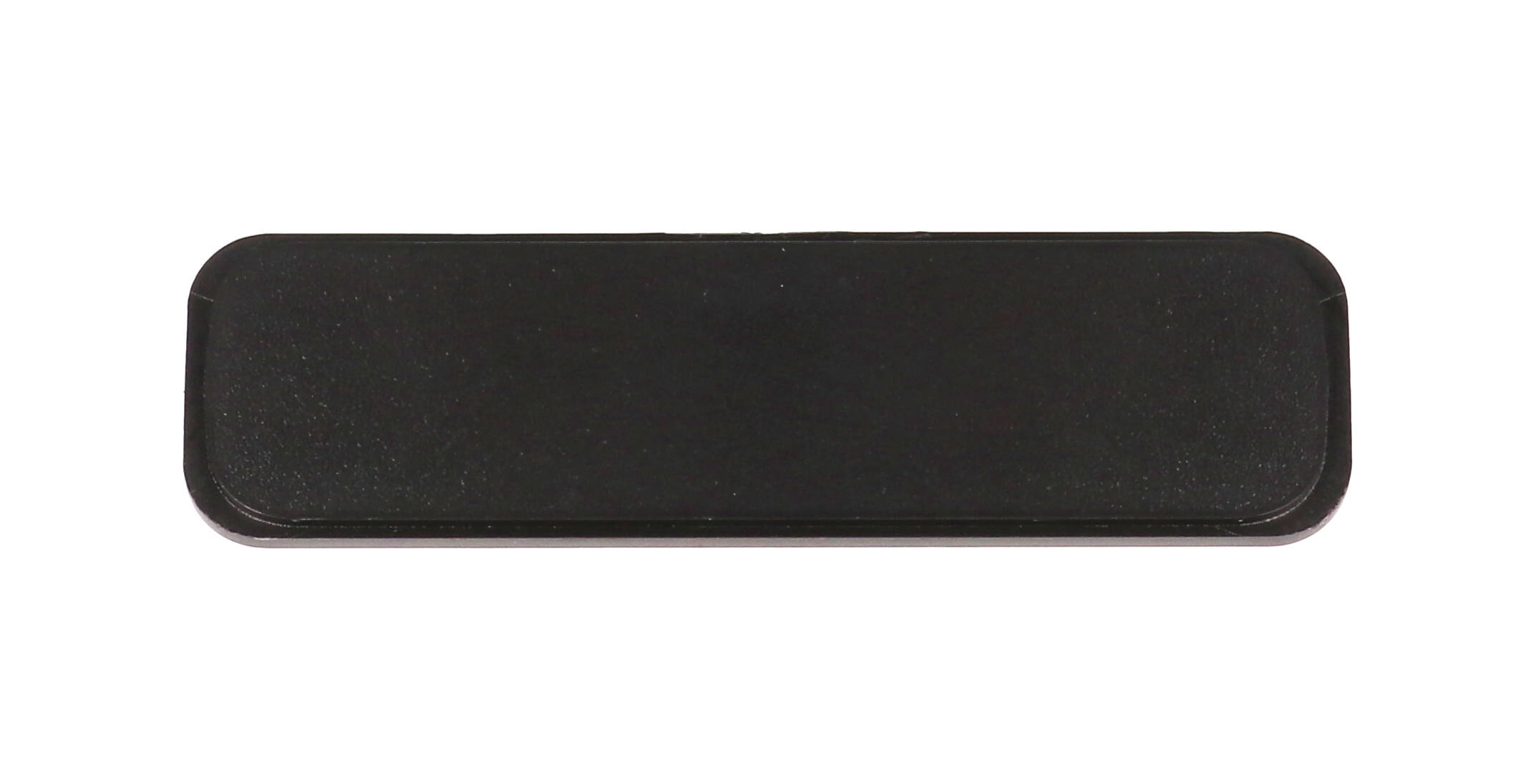

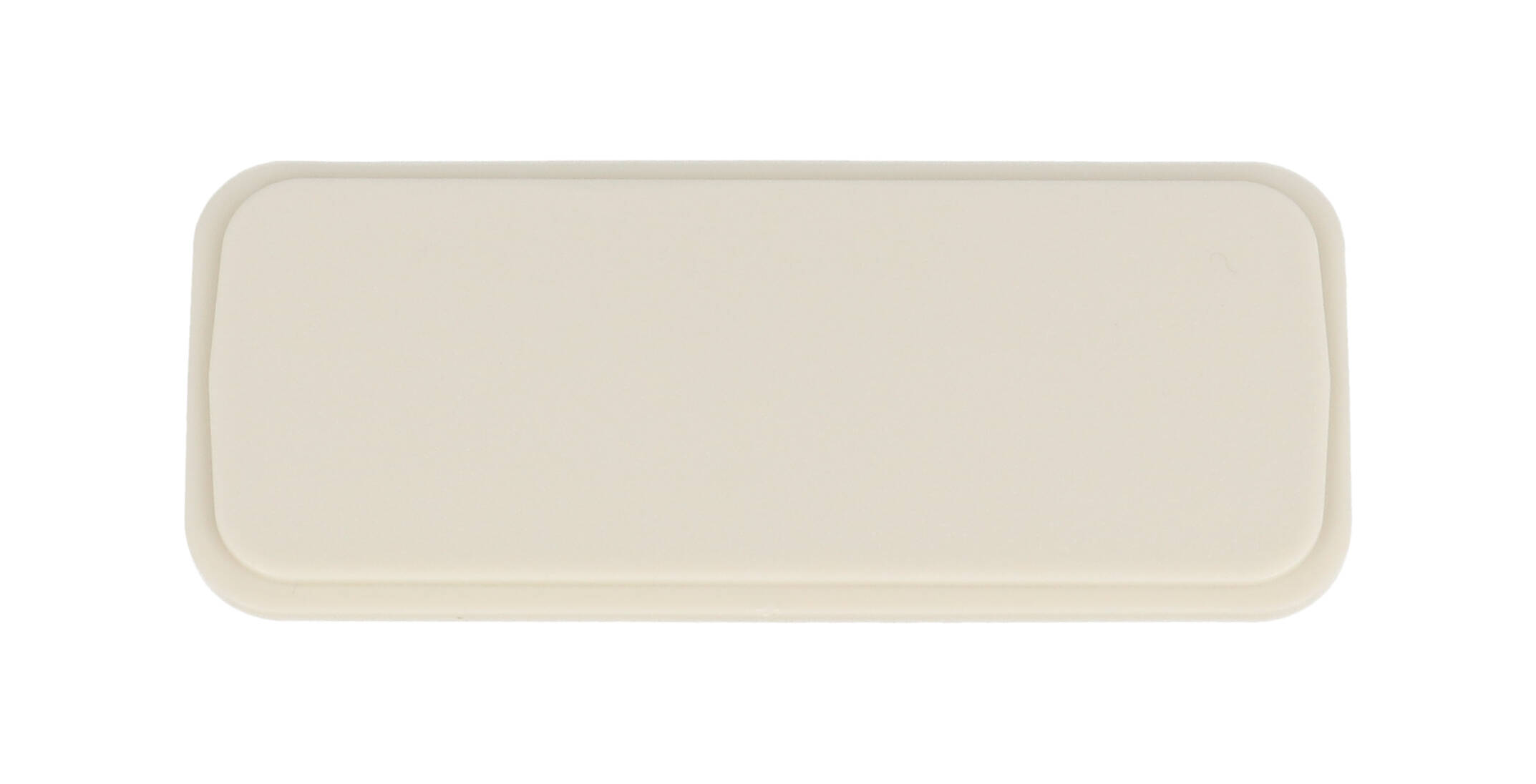

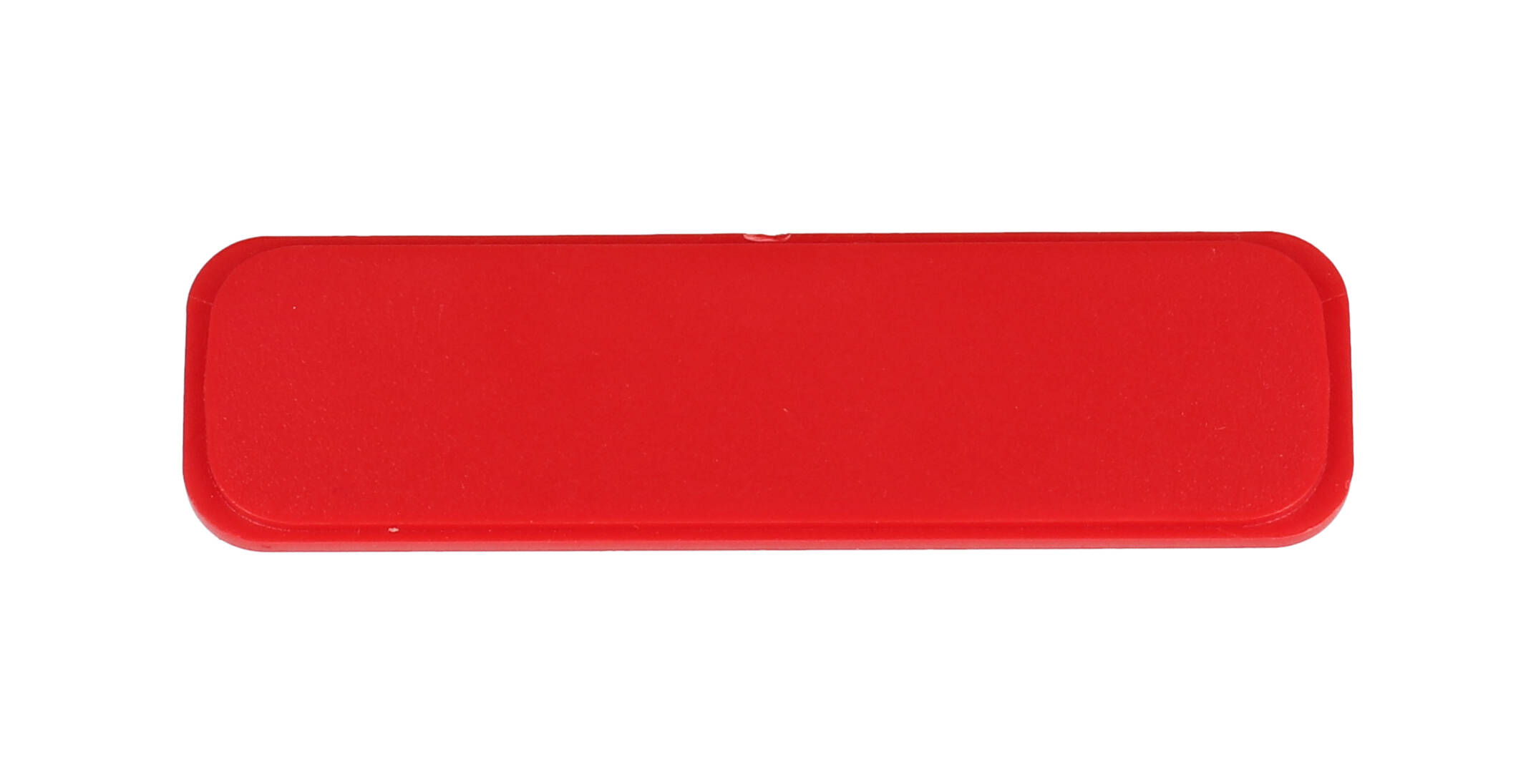

• ■Includes removable front panel (except 1553AA and 1553A sizes) and assembly hardware.

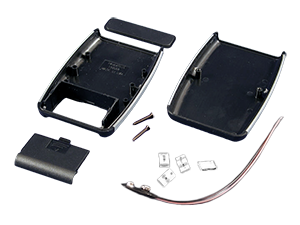

• ■Battery door and compartment version includes 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip.
• ■Gray 1553 series enclosures include nickel plated screws. All other colors use black screws. Refer to product datasheets for correct part numbers.
• ■PC Board mounting screws are not included. Order part number 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100).
• ■Versions without a battery door are designed to meet IP54 ratings.
• ■For similar enclosures designed for water-tight applications, try series 1553W.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Photo Features:

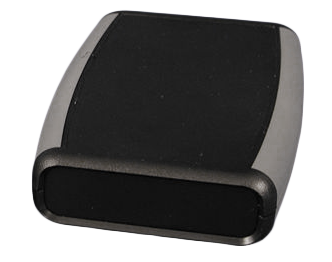

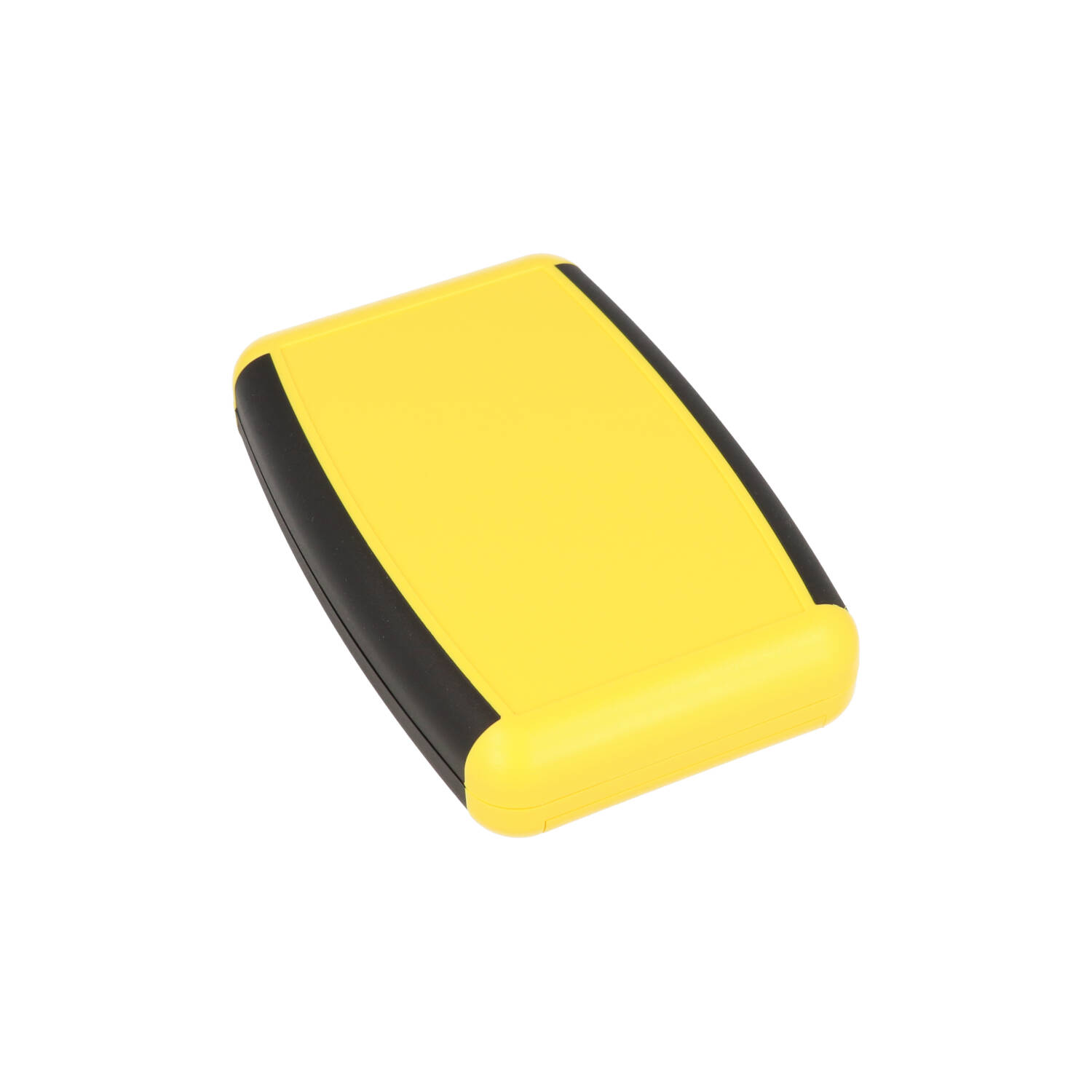

Perfect for handheld use.

Battery version comes with clips for AA and 9V.

Accessories:

1553BPCB - designed for 1553 sizes "B" and "C" Note: not compatible with battery compartment versions

1553DBPCB - designed for all 1553 size "D"

1599CLIP (black)

1599CLIPGY (gray)

For all 1553 "B" sized enclosures - Part Number 1553BIR-BULK

For all 1553 "D" sized enclosures - Part Number 1553DIR-BULK

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: mm . Switch units to: inch

Units shown: mm . Switch units to: inch

Units shown: mm . Switch units to: inch

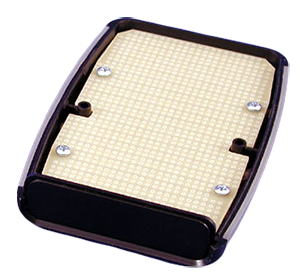

• ■High quality FR4 glass epoxy board
• ■Mounting screws included
• ■Lead free etched copper PCB with a flux coating for easy soldering
• ■0.042" holes drilled on 0.1" centers
• ■For more information, see the BusBoard Prototype Systems (BPS) website at www.busboard.com
• ■Molded from tough nylon
• ■Includes 2x nylon screws (insulated to avoid interference)
• ■Mounting template included (user drilling required)
• ■Replaces existing front plastic panel

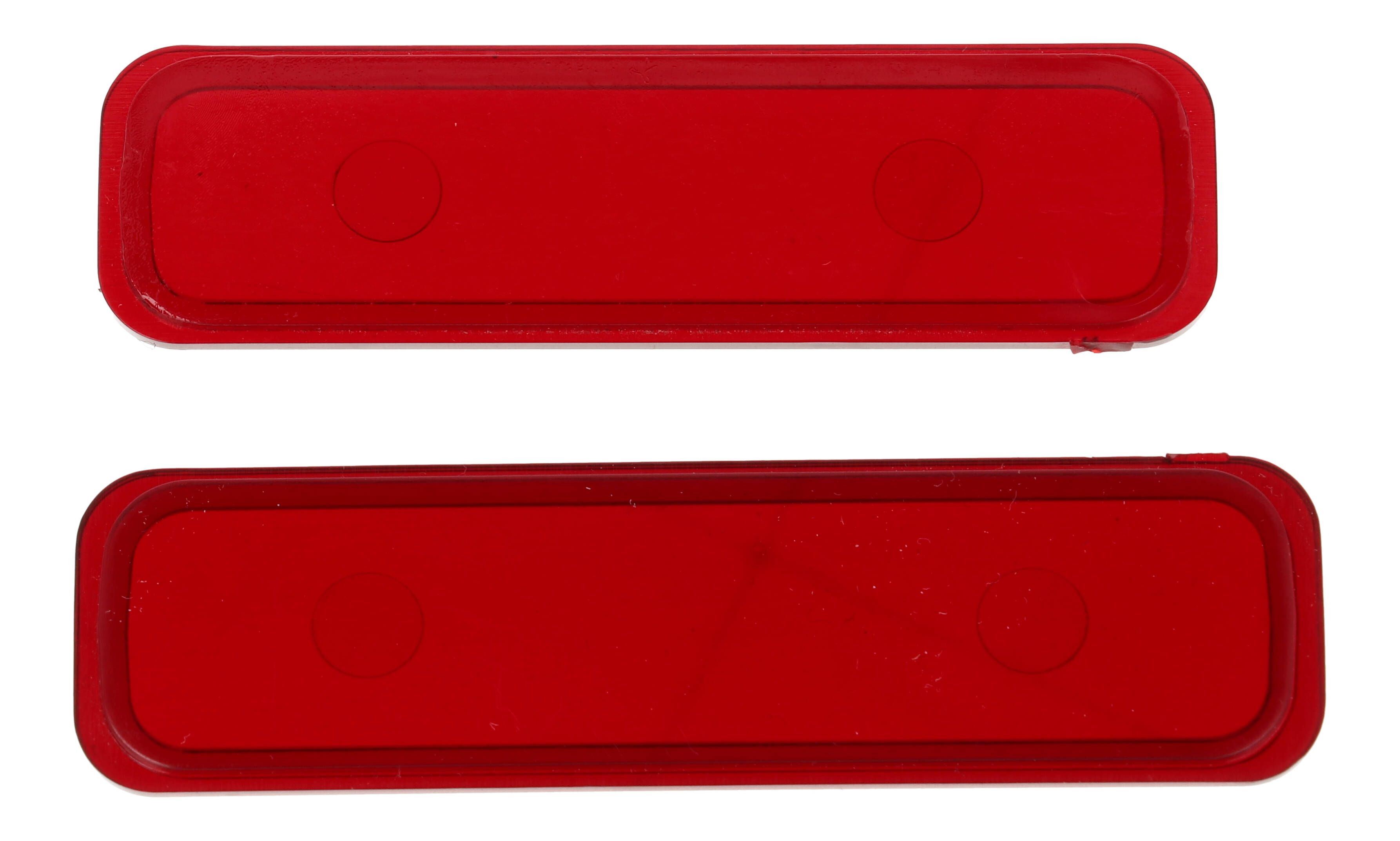

• ■Dark red plastic filter is transparent to IR
