Hammond 1553CBKBAT 117x79x32mm Black Battery Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Integrated battery door and compartment with clips for 2x AA or one 9V (PP3) battery
- Black ABS enclosure with grey soft plastic overmold
- 117 x 79 x 32 mm overall (4.61 x 3.11 x 1.26 in)
- Maximum PC board 78 x 69 mm (3.07 x 2.72 in)
- Recessed top cover for membrane display or keypad
- Includes front panel, battery door, 4 spring clips, 9V adapter and 2 cover screws
- UL94 HB; RoHS and REACH compliant

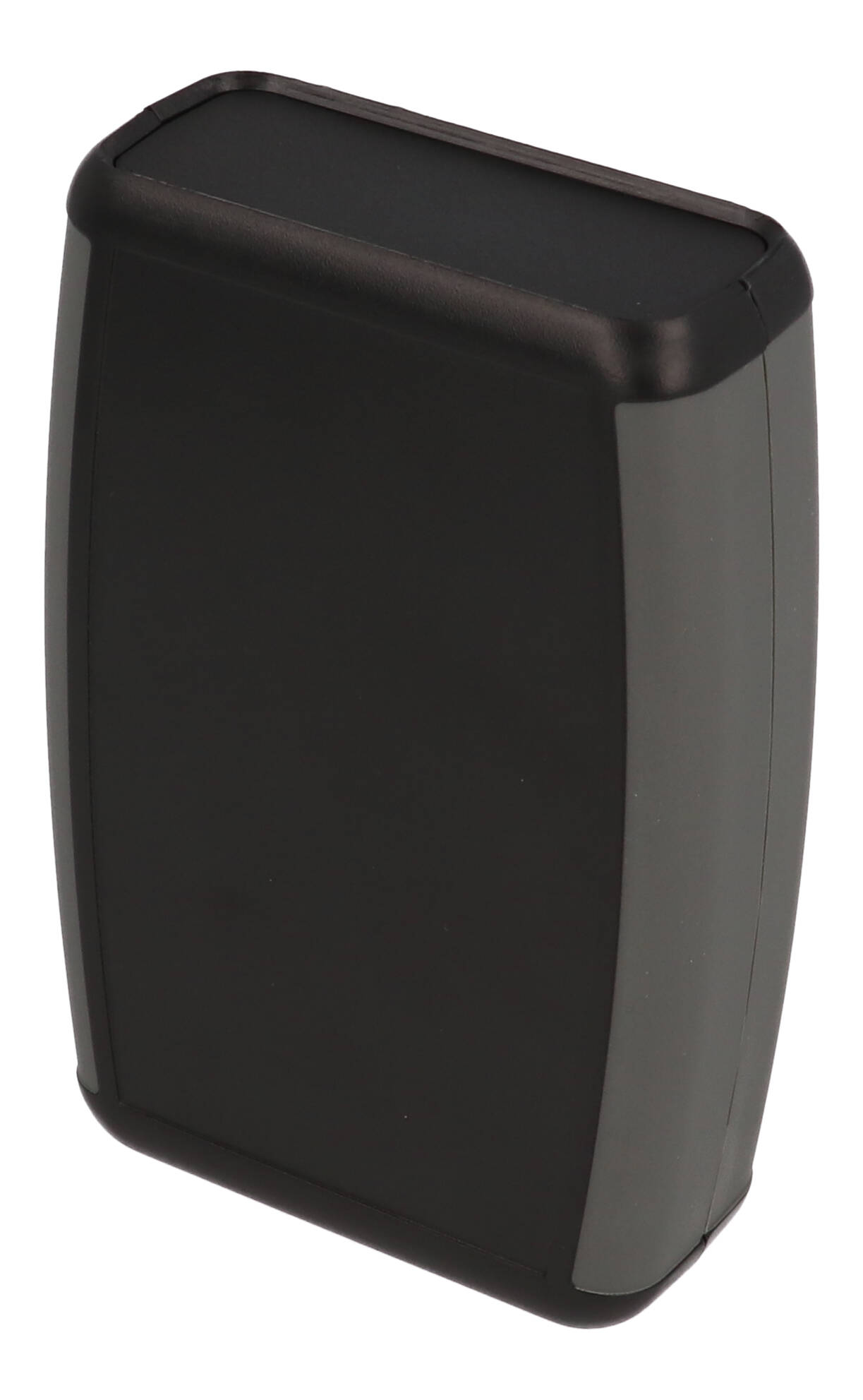

The 1553CBKBAT is the battery-compartment version of the size C 1553 Series handheld enclosure, in black ABS with a grey soft plastic overmold. It is aimed at designers of battery-powered handheld devices who need an integrated battery bay rather than a separate holder.
The case includes a battery door and compartment fitted with 4 battery spring clips for 2x AA batteries and a 9V (PP3) adapter clip. The body is molded from general purpose ABS with a UL94 HB flame rating, the top cover is recessed for a membrane display or keypad, and PCB standoffs are molded in.
Overall dimensions are 117 x 79 x 32 mm (4.61 x 3.11 x 1.26 in); the nominal listed size is 117 x 79 x 33 mm. Because the battery bay takes up part of the interior, the maximum PC board drops to 78 mm x 69 mm (3.07 x 2.72 in). The inner box length is 108.91 mm and inner height 27.00 mm.

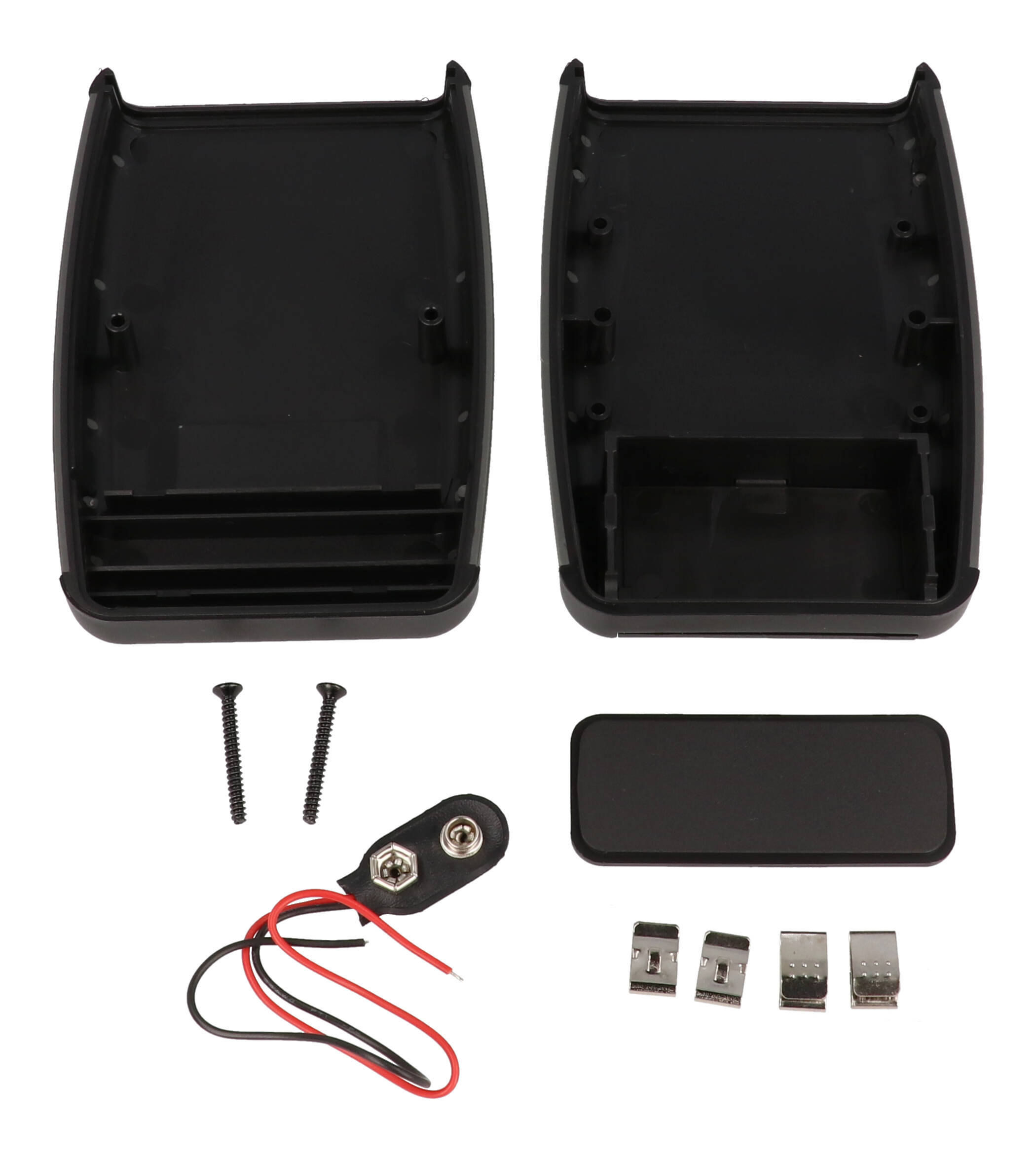

The 1553CBKBAT ships with the top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 2 cover screws; the PC board is not supplied. Replacement black lid screws are SC1553C100BK, torqued to 2.5 lbf-in (30 cN-m). Spare 9V (BS61) and AA clip (1553HDR-BKIT) kits are listed as accessories.
It is RoHS and REACH compliant and ships in shrink wrap at 0.18 lbs (0.08 kg).
Ideal For
- Battery-powered handheld instruments
- AA or 9V powered remote controls
- Portable test equipment
- Handheld devices with keypad or display
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Configuration | With Battery Doors & Compartments |
| Enclosure Size | 1553C |
| Long Description | black ABS w/ grey soft side hand held enclosure & battery door 4.62x3.11x1.30 |
| Short Description | 1553 SOFT TOUCH W BAT. DOOR |
Dimensions
| Overall Depth | 1.26 in (32 mm) |
| Overall Width | 3.11 in (79 mm) |
| Overall Length | 4.61 in (117 mm) |
| PCB Boss Height | 5.00 mm [.197 in] |
| Top Inlay Depth | 0.50 mm [.020 in] |
| Front Panel Size | 65.28 mm x 27.50 mm [2.570 in x 1.083 in] |
| Inner Box Height | 27.00 mm [1.063 in] |
| Inner Box Length | 108.91 mm [4.288 in] |
| Top Inlay Length | 100.43 mm [3.954 in] |
| Max. P.C. Board Width | 2.72 in (69 mm) |
| Inner Box Width At End | 63.22 mm [2.489 in] |
| Max. P.C. Board Length | 3.07 in (78 mm) |
| Top Inlay Width At End | 52.35 mm [2.061 in] |
| Overall Depth (Drawing) | 32.00 mm [1.260 in] |
| Overall Width (Drawing) | 78.97 mm [3.109 in] |
| Nominal Size (L X W X H) | 4.62 in x 3.11 in x 1.3 in (117 mm x 79 mm x 33 mm) |
| Overall Length (Drawing) | 117.24 mm [4.616 in] |
| Inner Box Width At Center | 70.46 mm [2.774 in] |
| Top Inlay Width At Center | 59.43 mm [2.340 in] |
| Max. P.C. Board Size (Drawing) | 78.18 mm x 68.73 mm [3.078 in x 2.706 in] |
| Max. P.C. Board Length X Width (Part Page) | 68.73 mm x 78.18 mm |
Electrical
| Battery Clips | 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
| Replacement 9V Battery Kit | BS61 (not supplied) |
| Replacement AA Battery Clip Kit | 1553HDR-BKIT (4 positive and 4 negative, not supplied) |
Identifiers
| UPC | 623980023939 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Top, Bottom, front plastic panel, Battery Door, battery spring clips (4 pcs), 9V adapter (1 pc) and 2 cover screws (P.C. Board not supplied) |
| Solid Models | Available in STEP or IGES |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board Mounting Screws | Not included; order 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" (6.4 mm) plated self-tapping |
| Replacement Cover Screws | Oval head self-tapping cover screws, #4 x 1" (25.4 mm), pkg of 100: SC1553C100 (Silver) / SC1553C100BK (Black) |
| Belt Or Pocket Clip (Optional) | 1599CLIP (Black) / 1599CLIPGY (Grey) |
Construction & Finish
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |
| Overmold | Soft plastic overmold for comfortable grip |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | Single removable front panel |
| Cover Screws | Black |
| Overmold Color | Gray |
| Enclosure Color | Black |
| PC Board Standoffs | Molded into case |
| Battery Compartment | Battery door and compartment |
| Replacement Lid Screws | SC1553C100BK |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid and strong solvents |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What batteries does the 1553CBKBAT hold?▾
The compartment includes 4 battery spring clips for 2x AA batteries and 1 clip/adapter for a 9 volt (PP3) battery.
How large a PC board fits with the battery compartment?▾
Up to 78 mm x 69 mm (3.07 x 2.72 in) per the ordering table; the part page lists 68.73 x 78.18 mm.
Is the battery version IP54 rated?▾
The data states that versions without a battery door are designed to meet IP54; no IP rating is listed for this battery-door version.
Which replacement screws does it use?▾
SC1553C100BK black oval head #4 x 1 in (25.4 mm) self-tapping cover screws, pack of 100.
Can I order spare battery clips?▾
Yes, the drawing lists a 9V Battery Kit, BS61, and an AA Battery Clip Kit (4 positive and 4 negative), 1553HDR-BKIT.
