Hammond 1553AGY Mini Grey Soft-Touch Handheld Enclosure, IP54
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light grey ABS body with grey soft overmold
- 100 x 61 x 17 mm (3.94 x 2.41 x 0.67 in) compact footprint
- IP54 protection and UL94 HB flame rating
- PCB up to 94.8 x 48.8 mm on bosses molded into the case
- Recessed top inlay 86.69 x 47.77 mm for keypad or display
- Includes 4 cover screws; silver SC1553A100 replacements
- RoHS and REACH compliant, shrink wrap packed

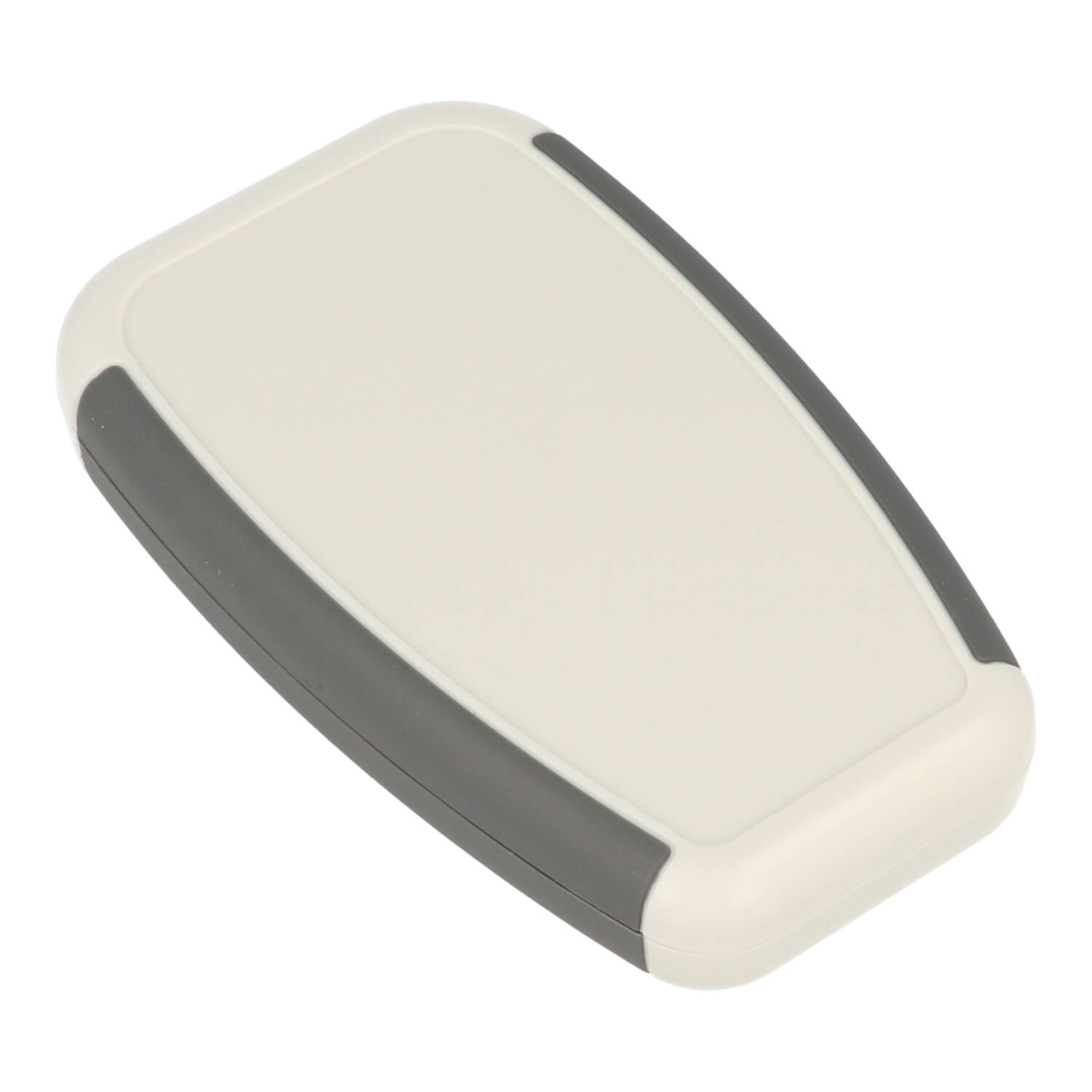

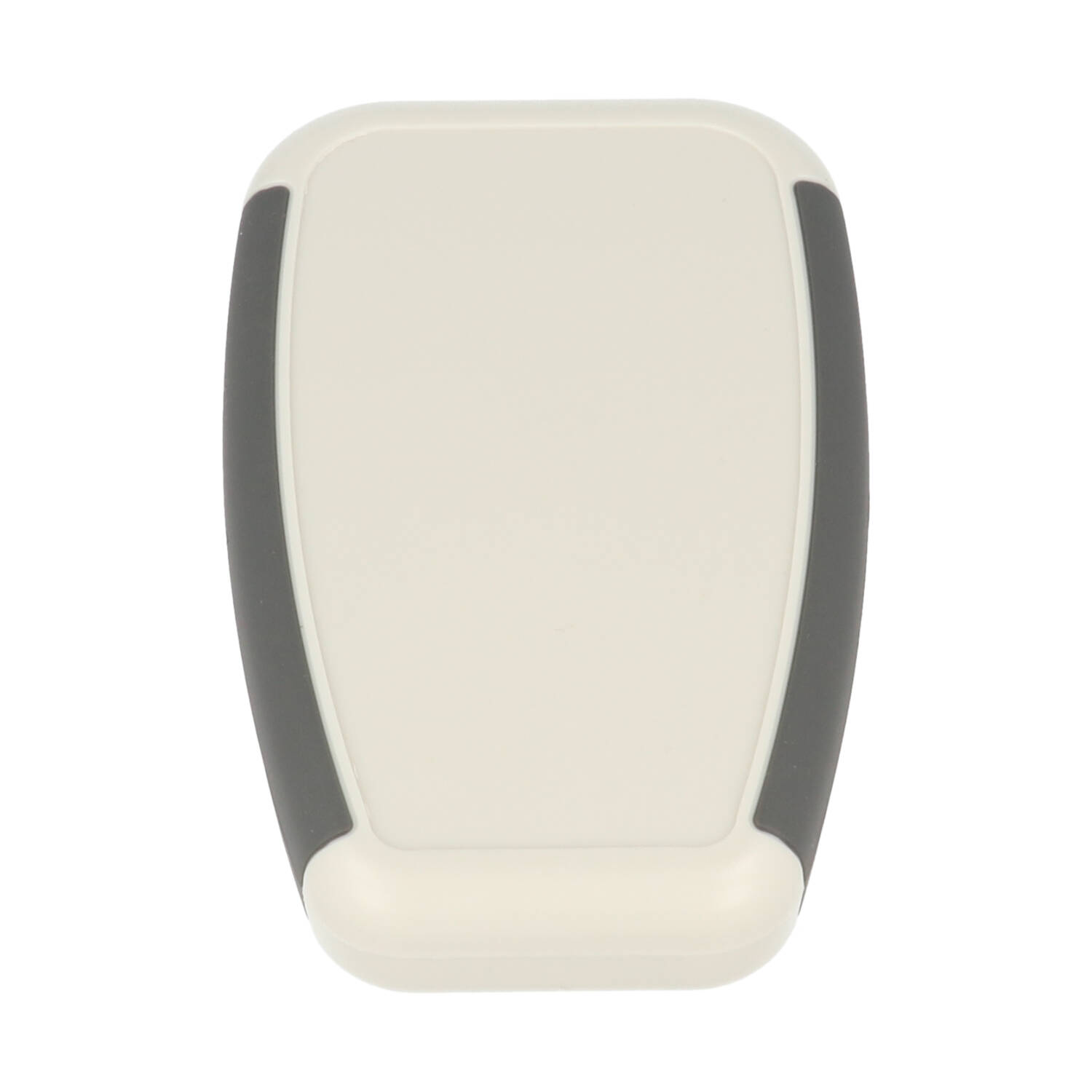

The 1553AGY pairs a light grey ABS body with a matching grey soft overmold in the smallest 1553A size of the series. It is aimed at designers of compact handheld electronics who want an ergonomic, soft-sided case in a neutral finish for test tools, remotes or data loggers.
Overall size on the part page is 3.94 x 2.41 x 0.67 in (100 x 61 x 17 mm). The drawing gives an inner box length of 96.62 mm, inner width of 53.37 mm and inner height of 13.00 mm, with 5.00 mm high PCB bosses molded into the case. A board up to 94.8 x 48.8 mm fits, and the top cover has a 0.50 mm recessed inlay of 86.69 x 47.77 mm ready for a membrane keypad or display overlay.

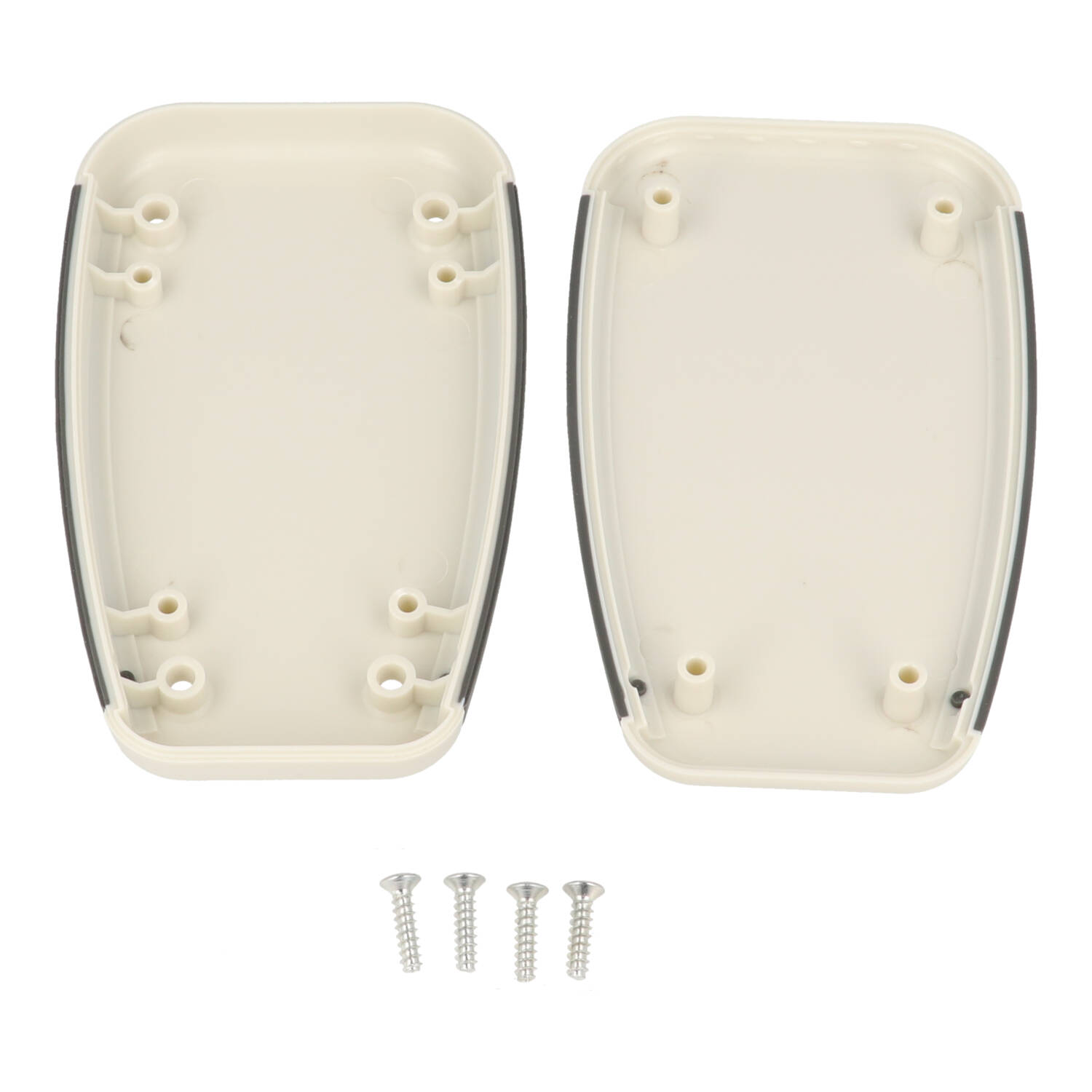

The enclosure is molded from general purpose ABS, rated IP54 and UL94 HB, and is RoHS and REACH compliant. Gray 1553 enclosures come with nickel plated screws; this assembly includes top, bottom and 4 cover screws, with the P.C. board not supplied. The 1553A size has no battery compartment option and no removable front panel.
For spares, the 1553AGY takes SC1553A100 silver oval head self-tapping lid screws (#4 x 1/2 in). Board screws (1593ATS50/1593ATS100) and a grey 1599CLIPGY belt clip are sold separately. Tighten covers to 2.5 lbf-in (30 cN-m).
Ideal For
- Compact handheld electronic devices
- Keypad or membrane-display controllers
- Portable test and measurement tools
- IP54 handheld housings in neutral grey
Overview
| Type | Hand-held, soft sided |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553AGY |
| Solid Models | STEP or IGES |
| Ordering Table | Single End Panel |
| Long Description | grey ABS w/ grey soft side hand held enclosure 3.87x2.38x0.68 |
| Short Description | 1553 MINI SOFT TOUCH CASE |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Boss Height | 5.00 mm [.20 in] |
| Inlay Depth | 0.50 mm [.02 in] |
| Size L X W X H | 3.94 in x 2.41 in x 0.67 in (100 mm x 61 mm x 17 mm) |
| Inner Box Width | 53.37 mm [2.10 in] |
| Top Inlay Width | 47.77 mm [1.88 in] |
| Inner Box Height | 13.00 mm [.51 in] |
| Inner Box Length | 96.62 mm [3.80 in] |
| Top Inlay Length | 86.69 mm [3.41 in] |
| Overall Size (Drawing) | 100.00 x 61.08 x 17.00 mm [3.94 x 2.40 x .67 in] |
| Overall Depth (Ordering Table) | 0.67 in (17 mm) |
| Overall Width (Ordering Table) | 3.43 in (87 mm) |
| Nominal Size (Long Description) | 3.87 x 2.38 x 0.68 in |
| Overall Length (Ordering Table) | 3.94 in (100 mm) |
Accessories
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | SC1553A100BK — oval head, self-tapping, #4 x 1/2" (12.7 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | SC1553A100 — oval head, self-tapping, #4 x 1/2" (12.7 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | SC1553A100 |
Identifiers
| UPC | 623980035482 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into case |
| Max. P.C. Board Width (Part Page) | 48.8 mm |
| Max. P.C. Board Length (Part Page) | 94.8 mm |
| Max. P.C. Board Width (Ordering Table) | 1.93 in (49 mm) |
| Max. P.C. Board Length (Ordering Table) | 3.74 in (95 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.07 lbs (0.03 kg) |
Construction & Finish
| Included | Top, bottom and 4 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Grey |
| Enclosure Color | Grey |
| Color (Part Page) | Light Gray |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour is the 1553AGY?▾
Grey enclosure with a grey overmold; the part page lists the colour as Light Gray.
How big a PCB can I fit?▾
Up to 94.8 x 48.8 mm per the part page (95 x 49 mm in the series ordering table).
What screws come with it?▾
Four cover screws are included. Gray 1553 enclosures use nickel plated screws; the replacement lid screw part number is SC1553A100.
What is its IP rating?▾
IP54.
Can I get a battery version of this size?▾
No. All 1553 sizes except 1553AA and 1553A are available with a battery compartment.
Can Hammond modify the enclosure?▾
Yes, the drawing notes enclosures can be factory modified (milling, drilling, printing etc.) on quotation.
