Hammond 1553BXBK Black Dual End Panel Handheld Enclosure, 117 x 79 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Dual end panel design: 2 plastic end panels included
- Black ABS with grey soft overmold, 117 x 79 x 24 mm
- Maximum PCB 104.80 x 70.00 mm (4.13 x 2.76 in)
- IP54 rated
- Bosses accept #4 self-tapping PCB screws
- 4 cover screws included; 1593QS100BK replacements
- RoHS and REACH compliant

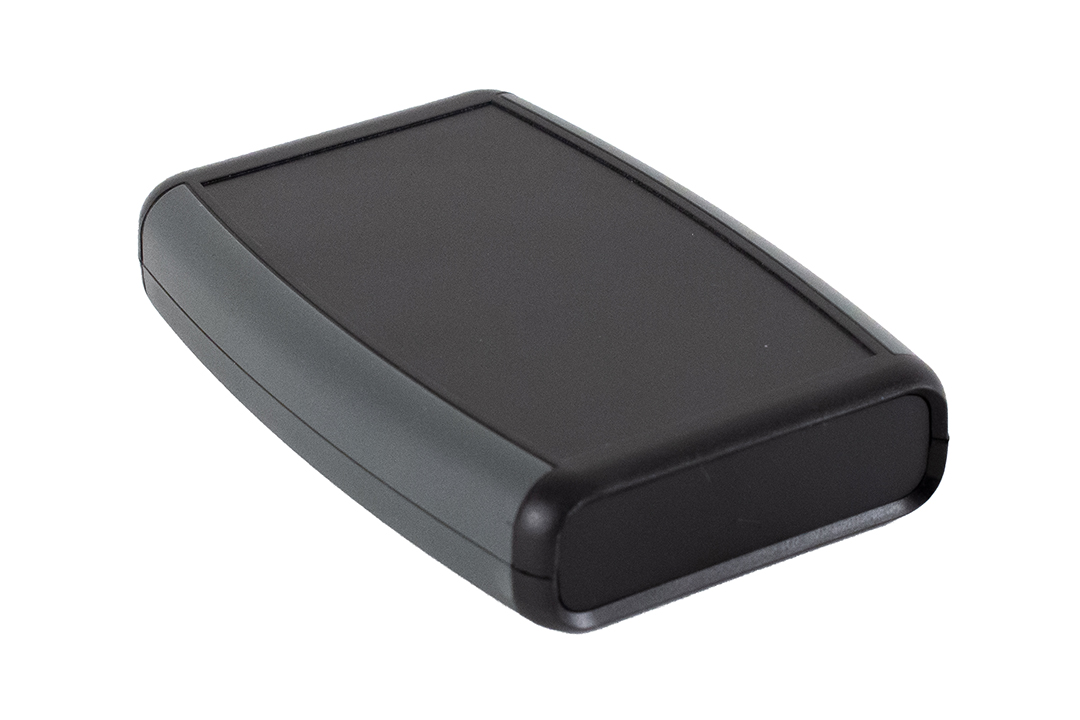

The 1553BXBK is the dual end panel (2-panel) version of the 1553B soft-sided hand held enclosure, in black ABS with a grey soft overmold. With openings at both ends, it suits handheld devices that need connectors, displays or cable exits at each end, such as inline controllers, dongles and portable interface units.
Overall size is 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm). The drawing shows an inner box height of 18.50 mm, a 100.69 mm top inlay, and end panels measuring 64.90 x 18.40 mm. The maximum P.C.B. size on the drawing is 104.80 x 70.00 mm (4.13 x 2.76 in), a wider board than the single-panel 1553B, and the bosses accept #4 self-tapping screws. The top cover is recessed for a membrane display or keypad.

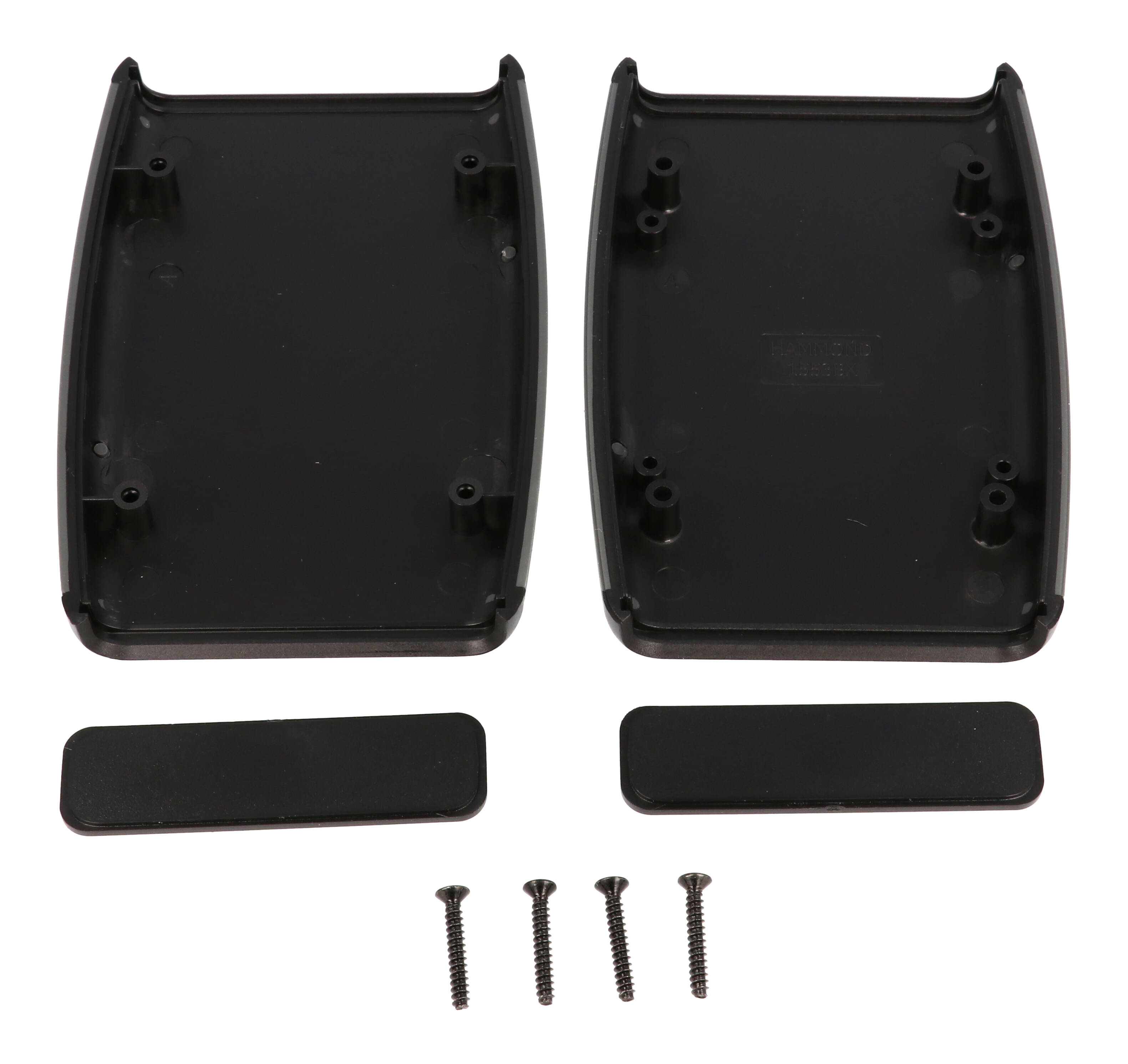

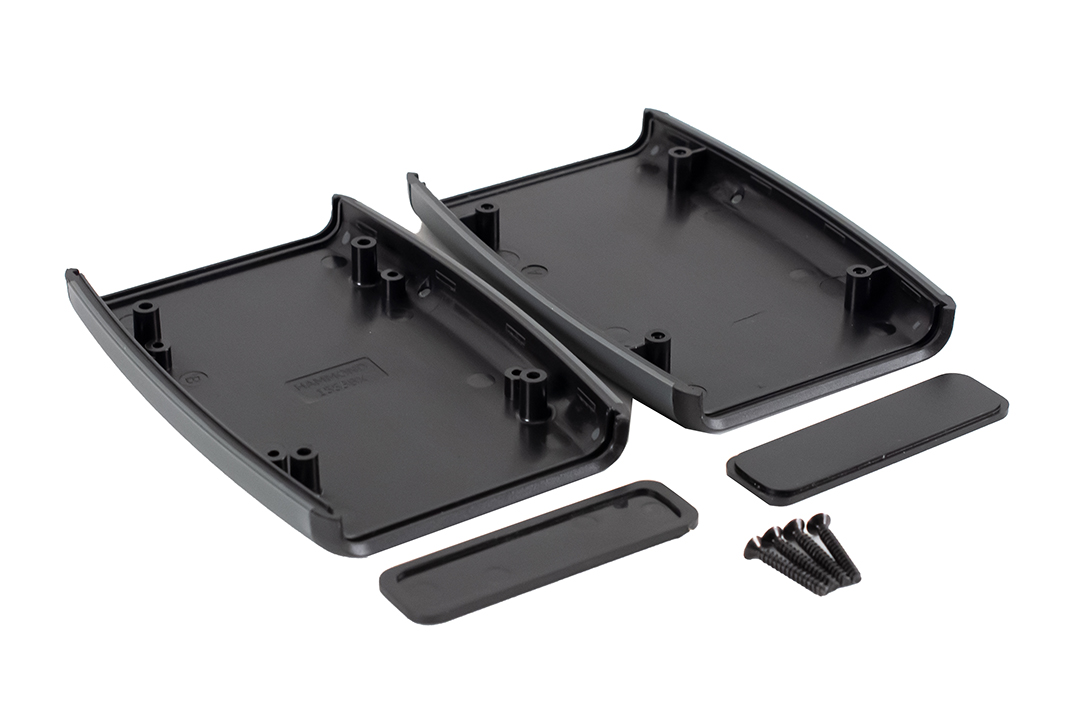

The 1553BXBK is molded from general purpose ABS, rated IP54, and is RoHS and REACH compliant. It is packed in a bag and includes top, bottom, 2 plastic end panels and 4 cover screws; the P.C. board is not supplied. Shipping weight is 0.16 lbs (0.07 kg).
Black replacement lid screws are 1593QS100BK (#4 x 3/4 in). PCB screws are ordered as 1593ATS50 or 1593ATS100, and a 1599CLIP belt or pocket clip is available. Recommended cover torque is 2.5 lbf-in (30 cN-m). Factory modification (milling, drilling, printing) and .stp or .x_t solid models are offered.
Ideal For
- Handheld devices with connectors at both ends
- Inline controllers and interface units
- Portable devices with keypad tops
- IP54 handheld housings
Overview
| Type | Hand-held, soft sided |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BXBK |
| Solid Models | .stp or .x_t |
| Ordering Table | Dual End Panel |
| Drawing Revision | 26.11.2020 |
| Short Description | 1553BX SOFT TOUCH CASE 2-PANEL |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Boss Diameter | 5.50 mm [.22 in] |
| End Panel Size | 64.90 x 18.40 mm [2.56 x .72 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| Inner Box Height | 18.50 mm [.73 in] |
| Top Inlay Length | 100.69 mm [3.96 in] |
| Overall Size (Drawing) | 117.00 x 79.00 x 24.00 mm [4.61 x 3.11 x .94 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
Accessories
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100BK |
Identifiers
| UPC | 623980850177 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Bosses | Accept #4 self-tapping screw |
| Maximum P.C.B. Size (Drawing) | 104.80 x 70.00 mm [4.13 x 2.76 in] |
| Max. P.C. Board Width (Part Page) | 70 mm |
| Max. P.C. Board Length (Part Page) | 104 mm |
| Max. P.C. Board Width (Ordering Table) | 2.76 in (70 mm) |
| Max. P.C. Board Length (Ordering Table) | 4.13 in (105 mm) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.16 lbs (0.07 kg) |
Construction & Finish
| Included | Top, bottom, 2 plastic end panels and 4 cover screws; P.C. board not supplied |
| Material | ABS Plastic (GP ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | 2 plastic end panels (dual end panel design) |
| Overmold Color | Gray |
| Enclosure Color | Black |
| Color (Part Page) | Black |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does the X in 1553BXBK mean?▾
The 1553BX is the dual end panel (2-panel) version of the 1553B size, with plastic end panels at both ends.
What PCB size fits?▾
Up to 104.80 x 70.00 mm per the drawing; the ordering table lists 105 x 70 mm and the part page 104 x 70 mm.
What is included?▾
Top, bottom, 2 plastic end panels and 4 cover screws. The P.C. board is not supplied.
What is the IP rating?▾
IP54.
What are the end panel dimensions?▾
The drawing shows the end panel at 64.90 x 18.40 mm [2.56 x .72 in].
