Hammond 1553DXGY Grey Dual End Panel Handheld Enclosure, 147 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Dual end panel design with 2 plastic end panels included
- 147 x 89 x 25 mm (5.79 x 3.50 x 0.98 in) overall
- Takes a P.C. board up to 138 x 79 mm (5.43 x 3.11 in)
- Designed to meet IP54
- Grey ABS enclosure with gray soft plastic overmold
- Nickel plated cover screws; replacement 1593QS100 (silver)
- Recessed top cover suits a membrane display or keypad
- Factory modification and .stp / .x_t solid models available

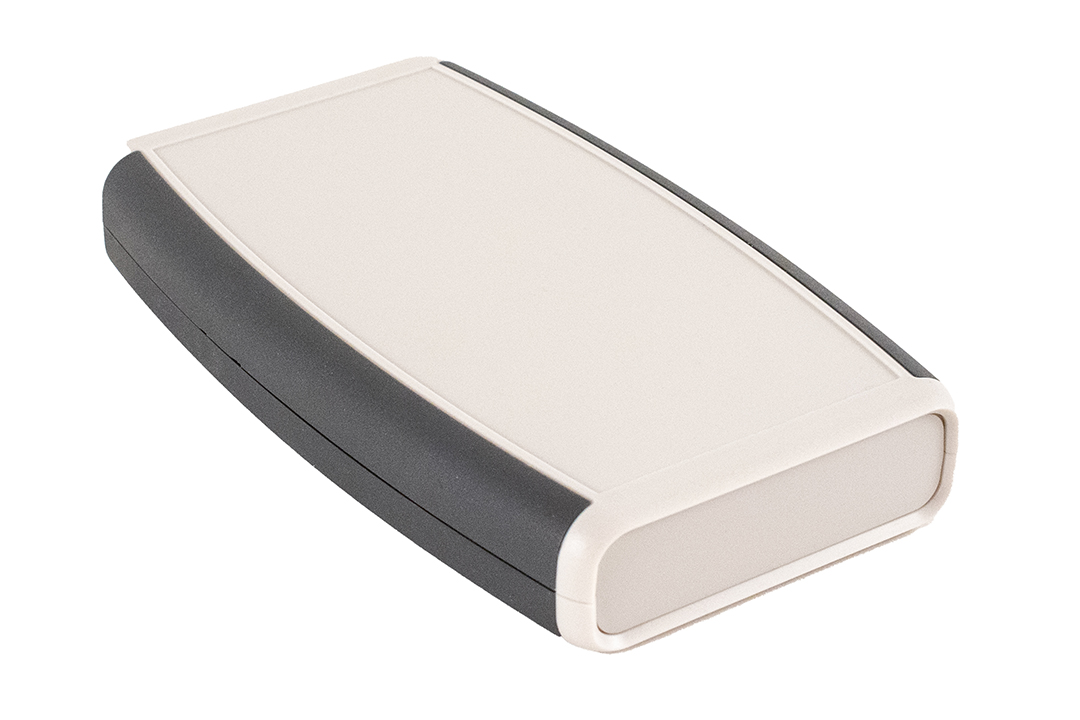

The 1553DXGY is the grey, dual end panel version of the large D-size 1553 hand held enclosure. A grey ABS body with a gray soft plastic overmold gives a comfortable grip, and the two plastic end panels leave room for connectors, buttons or cable entries at each end of a handheld device.
Overall dimensions are 5.79 x 3.50 x 0.98 in (147 x 89 x 25 mm), with a maximum P.C. board size of 5.43 x 3.11 in (138 x 79 mm) and an inner box height of 19.50 mm. PC board standoffs are molded into the case and accept #4 self-tapping screws, which are ordered separately as 1593ATS50 or 1593ATS100.
The top cover is recessed for a membrane display or keypad. The enclosure is designed to meet IP54, a useful baseline for handheld equipment.

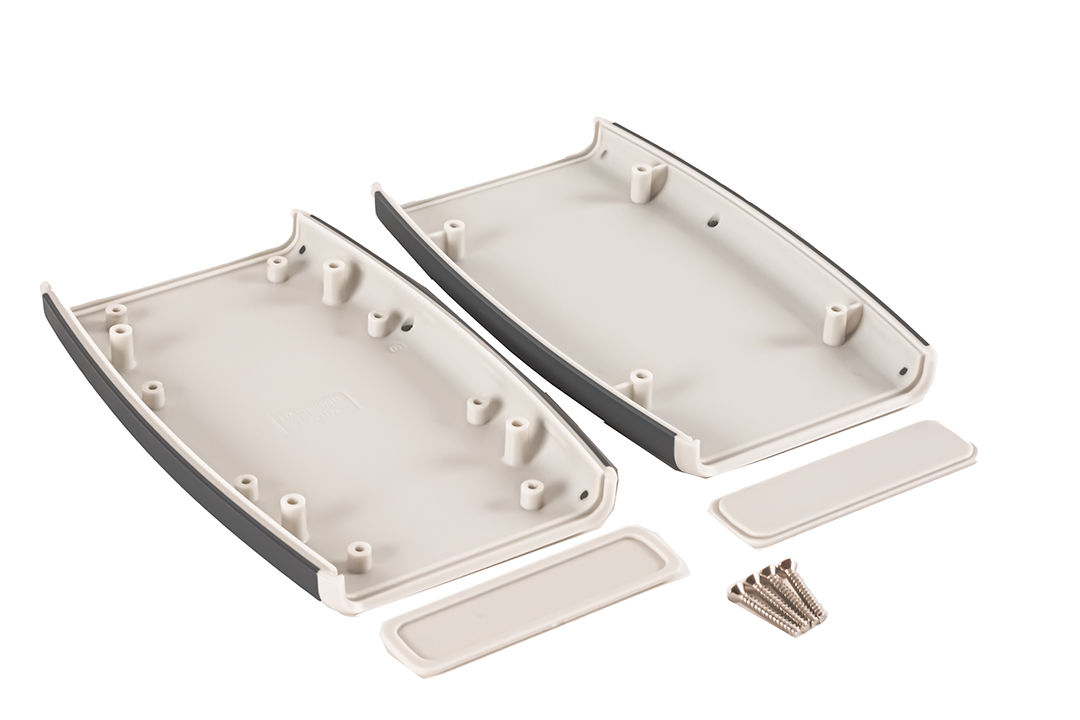

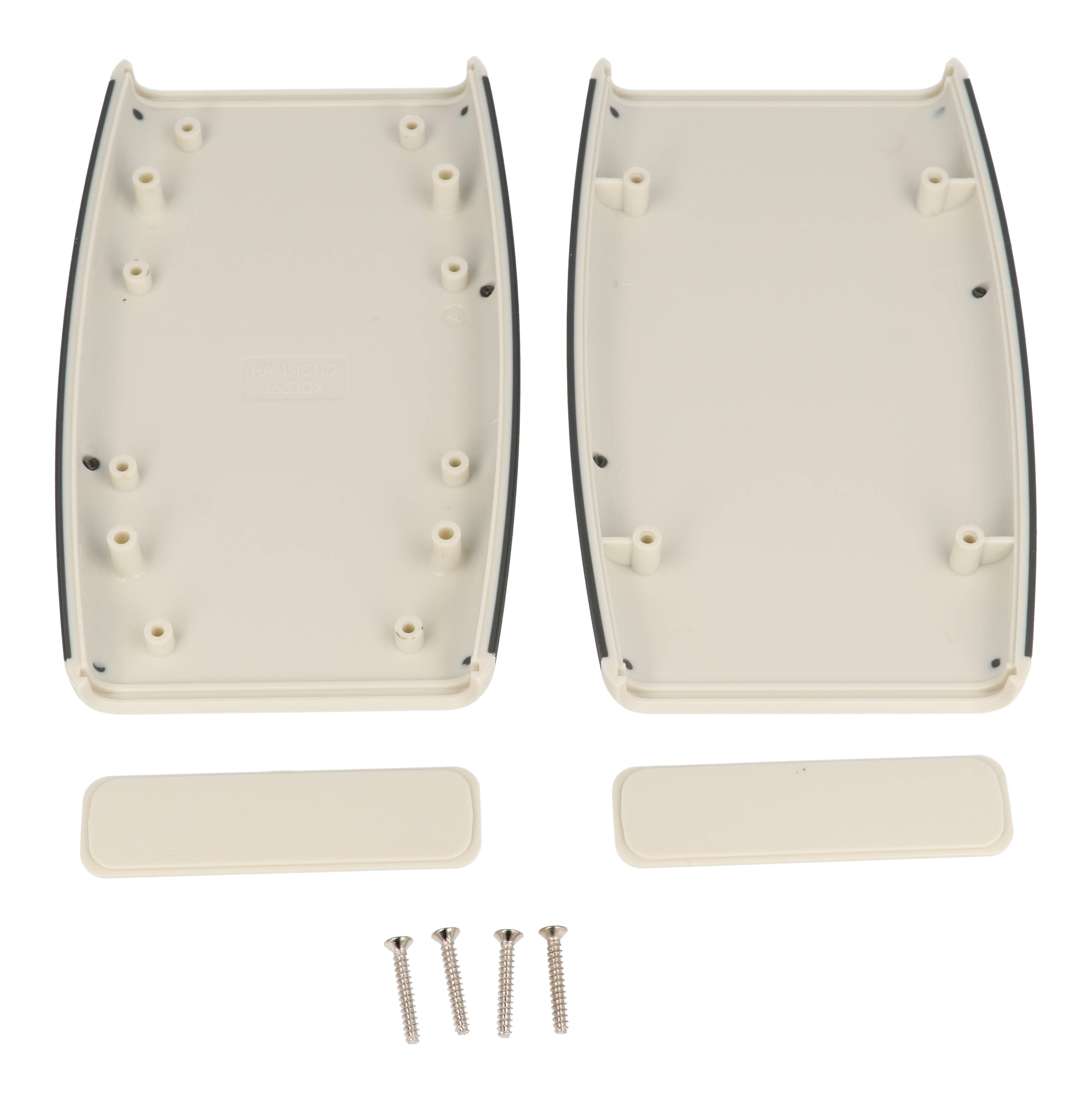

Each 1553DXGY assembly includes the top, bottom, 2 plastic end panels and 4 cover screws (P.C. board not supplied). Grey 1553 enclosures use nickel plated screws, and the listed replacement lid screws are 1593QS100 (silver). Recommended cover screw torque is 2.5 lbf-in (30 cN-m). Factory modification such as milling, drilling and printing is available, solid models come in .stp or .x_t, and the part is RoHS and REACH compliant, packed in a bag at 0.21 lbs (0.10 kg).
Ideal For
- Handheld devices needing I/O at both ends
- Keypad and display handheld units
- Factory-modified OEM handheld housings
- Handheld electronics needing IP54 protection
Overview
| Type | Hand-held, soft sided |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Ordering Table | Dual End Panel |
| Short Description | 1553DX SOFT TOUCH CASE 2-PANEL |
Dimensions
| Overall Depth | 0.98 in (25 mm); drawing 25.00 mm [.98 in] |
| Overall Width | 3.50 in (89 mm); drawing 88.90 mm [3.50 in] |
| Overall Length | 5.79 in (147 mm); drawing 147.00 mm [5.79 in] |
| Inner Box Height | 19.50 mm [.77 in] |
| Size (L X W X H) | 5.8 in x 3.5 in x 0.98 in (147 mm x 89 mm x 25 mm) |
| Inside Bottom Length | 118.00 mm [4.65 in] |
| Max. P.C. Board Width | 3.11 in (79 mm); drawing 79.42 mm [3.13 in] |
| Max. P.C. Board Length | 5.43 in (138 mm) |
Accessories
| Belt Or Pocket Clip | 1599CLIP (Black), 1599CLIPGY (Grey) |
| Replacement Lid Screws | 1593QS100 |
| ProtoBoard PCB (All 1553 Size D) | 1553DBPCB |
| P.C. Board Self Tapping Screw (Not Included) | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) — #4 x 1/4" (6.4 mm) plated |
| Oval Head Cover Screws, Self-Tapping (Pkg 100) | 1593QS100 (Silver), 1593QS100BK (Black) — #4 x 3/4" (19 mm) |
Identifiers
| UPC | 623980000732 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Grip | Soft plastic overmold on the sides |
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | Two plastic end panels (dual end panel version) |
| Cover Screws | Nickel plated screws (grey 1553 enclosures); replacement lid screws 1593QS100 (silver) |
| Solid Models | Available in .stp or .x_t |
| Overmold Color | Gray |
| Enclosure Color | Grey |
| Drawing Revision | REV: 26.11.2020 |
| P.C. Board Mounting | PC board standoffs molded into case; bosses accept #4 self-tapping screw |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, 2 plastic end panels and 4 cover screws (P.C. board not supplied) |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the outside dimensions of the 1553DXGY?▾
5.79 x 3.50 x 0.98 in (147 x 89 x 25 mm).
What size board fits?▾
The maximum P.C. board size is 5.43 x 3.11 in (138 x 79 mm).
What screws does it come with?▾
It includes 4 cover screws; grey 1553 enclosures use nickel plated screws, and the replacement lid screw part number is 1593QS100.
Does it have a battery compartment?▾
No. The 1553DXGY is the dual end panel version without a battery door, and it is designed to meet IP54.
Can Hammond machine or print the enclosure?▾
The drawing states the enclosures can be factory modified with milling, drilling, printing and similar work.
Is there a matching belt clip?▾
The drawing lists the 1599CLIPGY grey belt or pocket clip, with 1599CLIP in black.
