Hammond 1553DXBK Black Dual End Panel Handheld Enclosure, 147 mm
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two removable plastic end panels for I/O at both ends
- Overall 147 x 89 x 25 mm (5.79 x 3.50 x 0.98 in)
- Largest board capacity in this size: 138 x 79 mm (5.43 x 3.11 in)
- Designed to meet IP54
- Black ABS body with gray soft plastic overmold grip
- Recessed top cover for membrane display or keypad
- Molded PC board standoffs accept #4 self-tapping screws
- Includes 4 cover screws; replacement lid screws 1593QS100BK

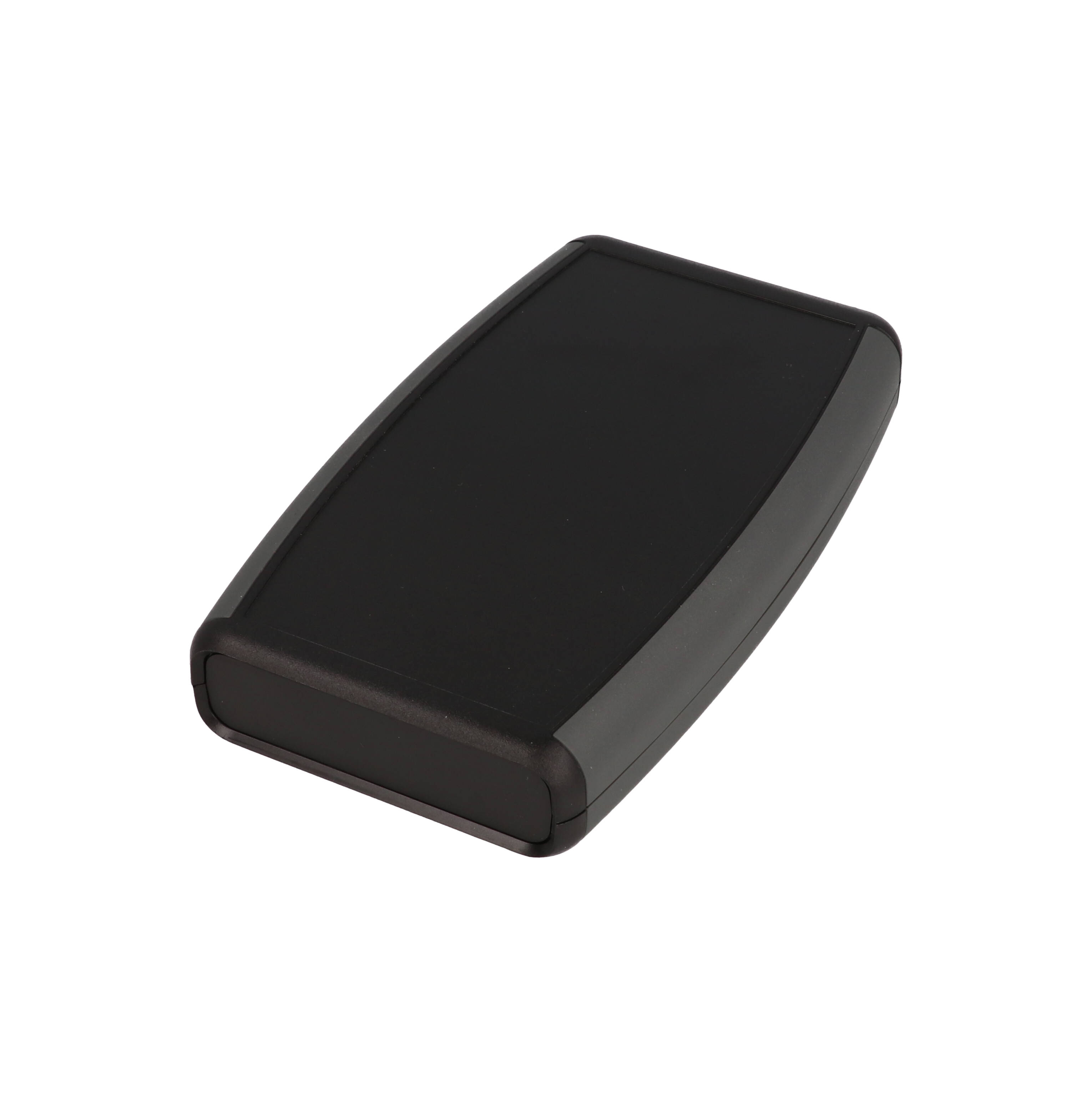

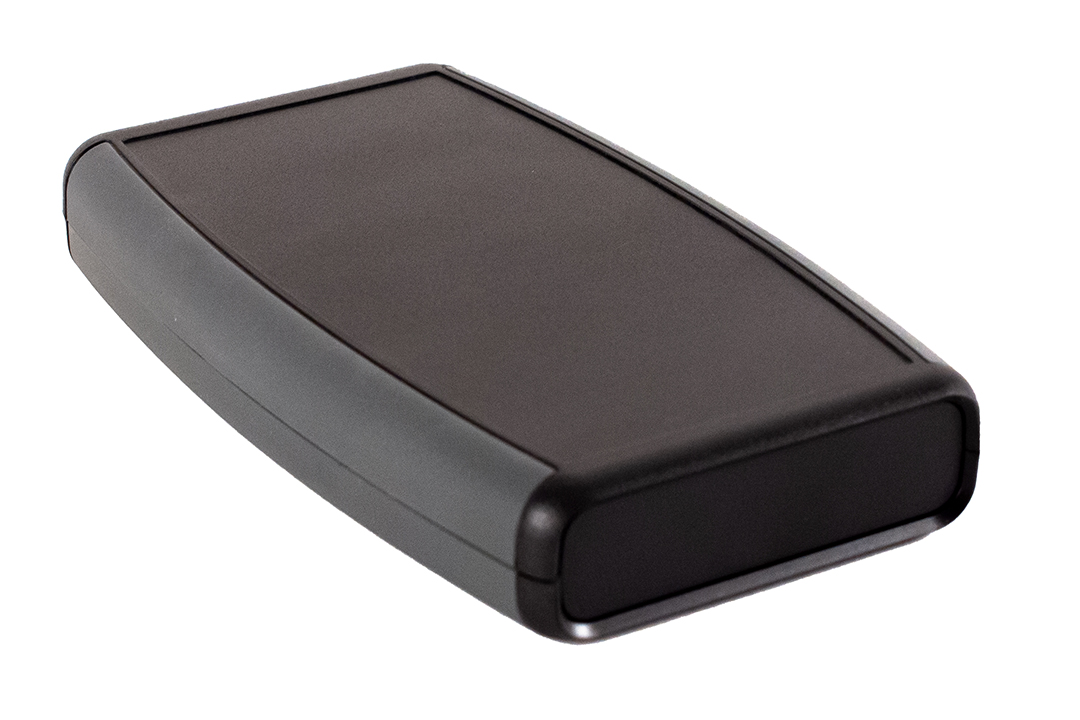

The 1553DXBK is the dual end panel ("X") version of the 1553 D-size hand held enclosure, molded in black ABS with a gray soft side overmold. With plastic panels at both ends it suits handheld electronics that need connectors, switches or cables at each end, and is aimed at OEM engineers and designers building handheld products.
The case measures 5.79 x 3.50 x 0.98 in (147 x 89 x 25 mm). It accepts a maximum P.C. board of 5.43 x 3.11 in (138 x 79 mm), and the drawing shows an inner box height of 19.50 mm. PC board standoffs are molded into the case and accept #4 self-tapping screws.

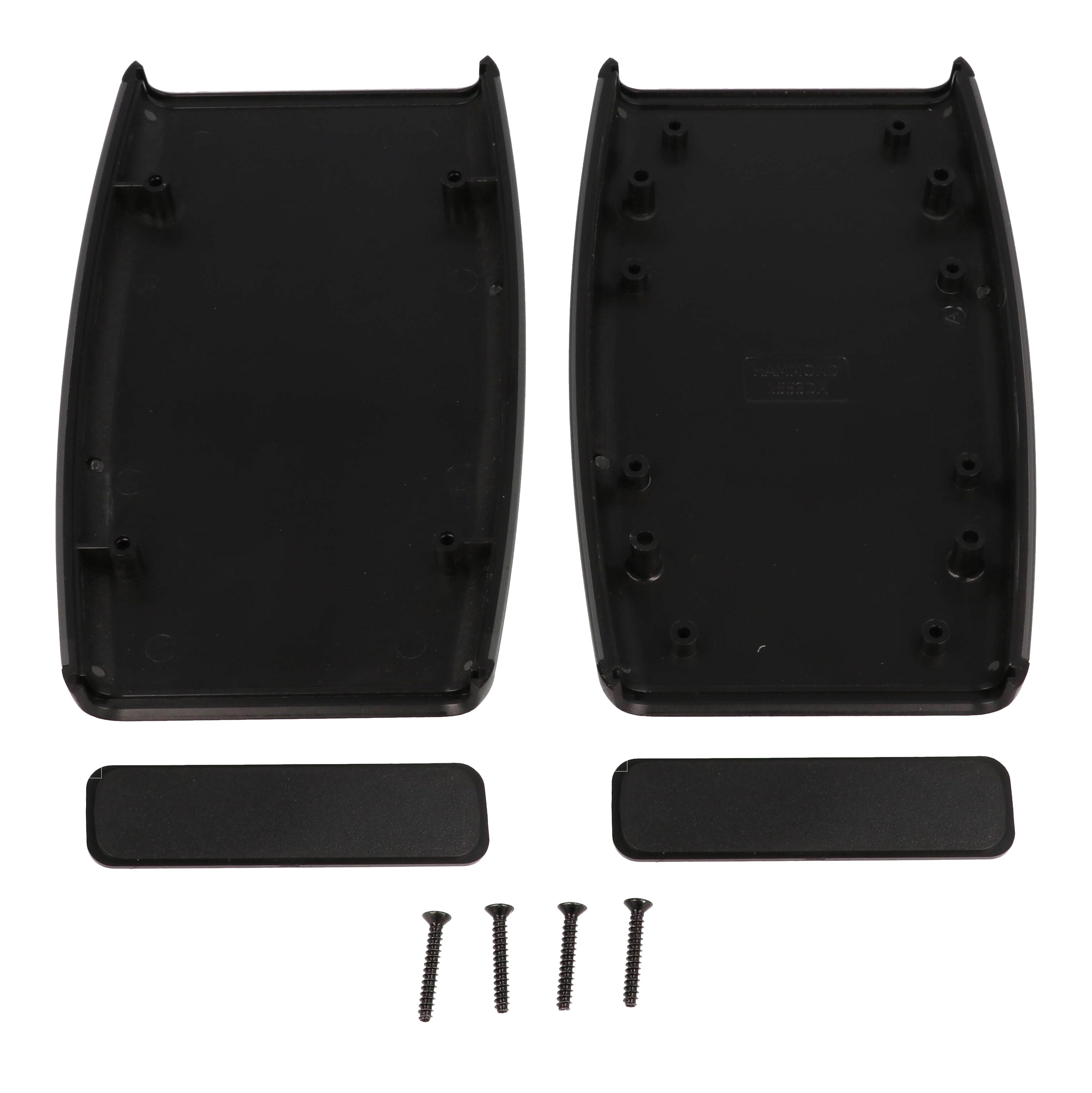

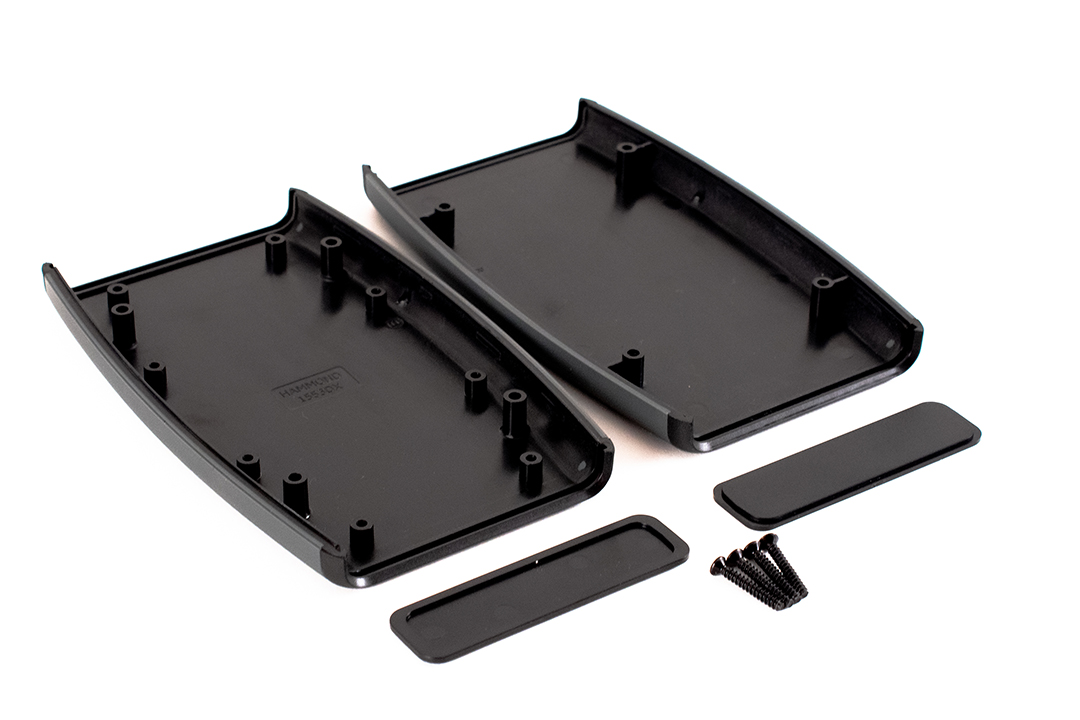

The top cover is recessed for a membrane display or keypad, and the enclosure is designed to meet IP54. The purchased 1553DXBK assembly includes the top, bottom, 2 plastic end panels and 4 cover screws; the P.C. board is not supplied. Recommended cover screw torque is 2.5 lbf-in (30 cN-m) and the replacement lid screws are 1593QS100BK.
Enclosures can be factory modified by milling, drilling or printing, and solid models are available in .stp or .x_t. The 1553DXBK ships in a bag, weighs 0.21 lbs (0.10 kg) and is RoHS and REACH compliant. For boards, the 1553DBPCB ProtoBoard is designed for all 1553 size D enclosures.
Ideal For
- Handheld devices with I/O at both ends
- Handheld units with a membrane keypad or display
- Custom-modified OEM handheld housings
- Handheld electronics needing IP54 protection
Overview
| Type | Hand-held, soft sided |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Ordering Table | Dual End Panel |
| Short Description | 1553DX SOFT TOUCH CASE 2-PANEL |
Dimensions
| Overall Depth | 0.98 in (25 mm); drawing 25.00 mm [.98 in] |
| Overall Width | 3.50 in (89 mm); drawing 88.90 mm [3.50 in] |
| Overall Length | 5.79 in (147 mm); drawing 147.00 mm [5.79 in] |
| Inner Box Height | 19.50 mm [.77 in] |
| Size (L X W X H) | 5.8 in x 3.5 in x 0.98 in (147 mm x 89 mm x 25 mm) |
| Inside Bottom Length | 118.00 mm [4.65 in] |
| Max. P.C. Board Width | 3.11 in (79 mm); drawing 79.42 mm [3.13 in] |
| Max. P.C. Board Length | 5.43 in (138 mm) |
Accessories
| Belt Or Pocket Clip | 1599CLIP (Black), 1599CLIPGY (Grey) |
| Replacement Lid Screws | 1593QS100BK |
| ProtoBoard PCB (All 1553 Size D) | 1553DBPCB |
| P.C. Board Self Tapping Screw (Not Included) | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) — #4 x 1/4" (6.4 mm) plated |
| Oval Head Cover Screws, Self-Tapping (Pkg 100) | 1593QS100 (Silver), 1593QS100BK (Black) — #4 x 3/4" (19 mm) |
Identifiers
| UPC | 623980000725 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Grip | Soft plastic overmold on the sides |
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | Two plastic end panels (dual end panel version) |
| Cover Screws | Black screws; replacement lid screws 1593QS100BK |
| Solid Models | Available in .stp or .x_t |
| Overmold Color | Gray |
| Enclosure Color | Black |
| Drawing Revision | REV: 26.11.2020 |
| P.C. Board Mounting | PC board standoffs molded into case; bosses accept #4 self-tapping screw |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, 2 plastic end panels and 4 cover screws (P.C. board not supplied) |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1553DXBK different from the 1553DBK?▾
The 1553DXBK is listed in the Dual End Panel table and includes 2 plastic end panels, with a maximum P.C. board of 138 x 79 mm; the single end panel D size lists 139 x 74 mm.
What is the largest PC board it takes?▾
Up to 5.43 x 3.11 in (138 x 79 mm).
What IP rating does it have?▾
The part is listed as IP54.
What comes in the box?▾
Top, bottom, 2 plastic end panels and 4 cover screws. The P.C. board and PC board mounting screws are not included.
Which screws mount the PC board?▾
The board standoffs accept #4 self-tapping screws; order 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100).
Is there a lighter color option?▾
Yes, the same dual end panel size is listed with a grey enclosure as 1553DXGY.
Related Products
Save 52%1553DTBUBKBAT — trans. blue ABS w/ black soft side enclosure & battery door 5.80x3.50x0.98
Hammond Manufacturing · 1553DTBUBKBAT
Save 52%1553DXGY — 1553DX Soft Touch Case 2-PANEL
Hammond Manufacturing · 1553DXGY
Save 52%1553DTBUBK — trans. blue ABS w/ black soft side hand held enclosure 5.80x3.50x0.98
Hammond Manufacturing · 1553DTBUBK

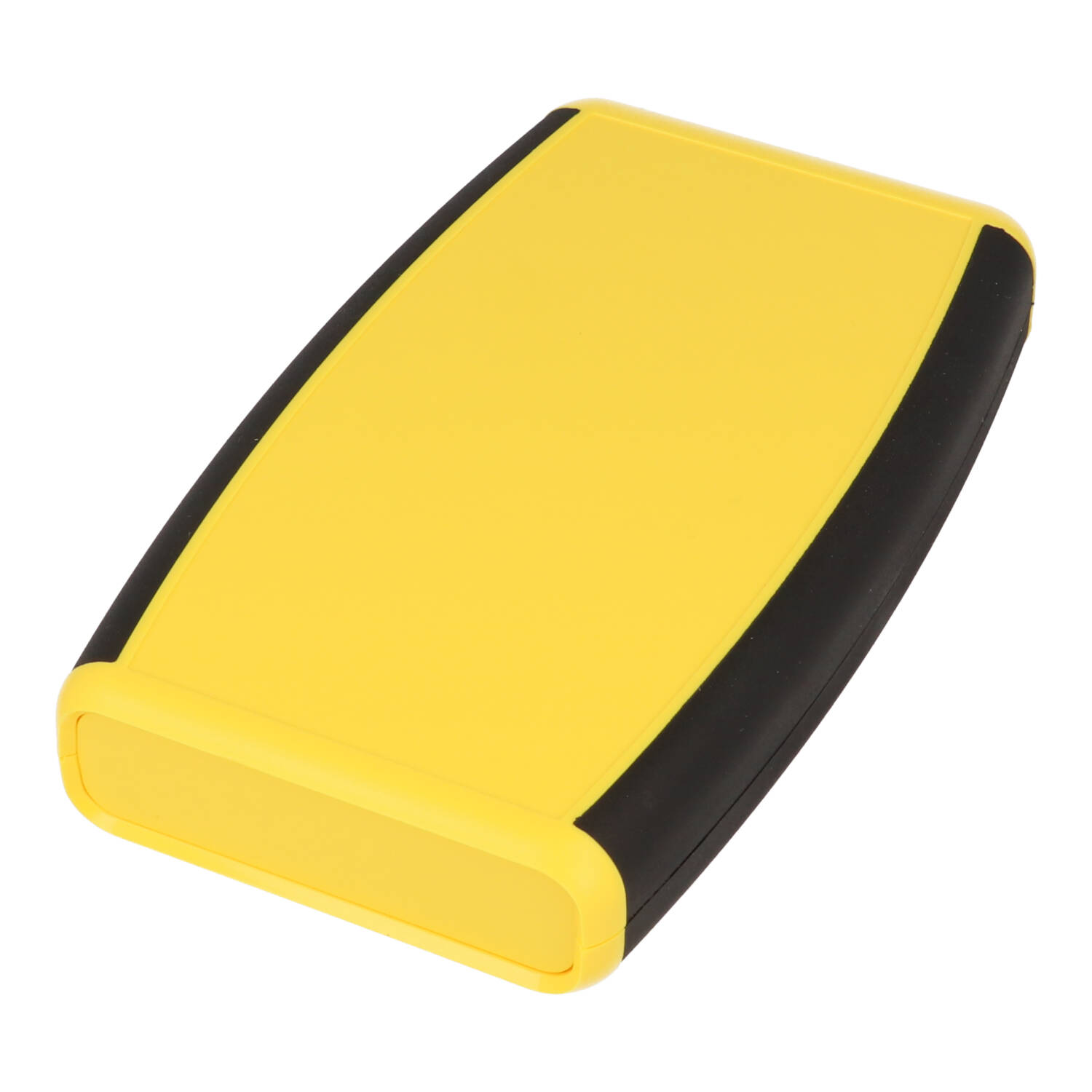

Save 52%1553DYLBK — yellow ABS w/ black soft side hand held enclosure 5.80x3.50x0.98
