Hammond 1553BRDBKBAT Red Battery-Door Handheld Enclosure, Black Overmold
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Red ABS body, black soft overmold, battery door
- Clips for 2x AA plus a 9V (PP3) adapter included
- 117 x 79 x 24 mm (4.62 x 3.11 x 0.95 in)
- PCB up to 78 x 67 mm per the ordering table
- Removable front plastic panel and 2 cover screws
- Recessed top cover for keypad or display
- UL94 HB, RoHS and REACH compliant

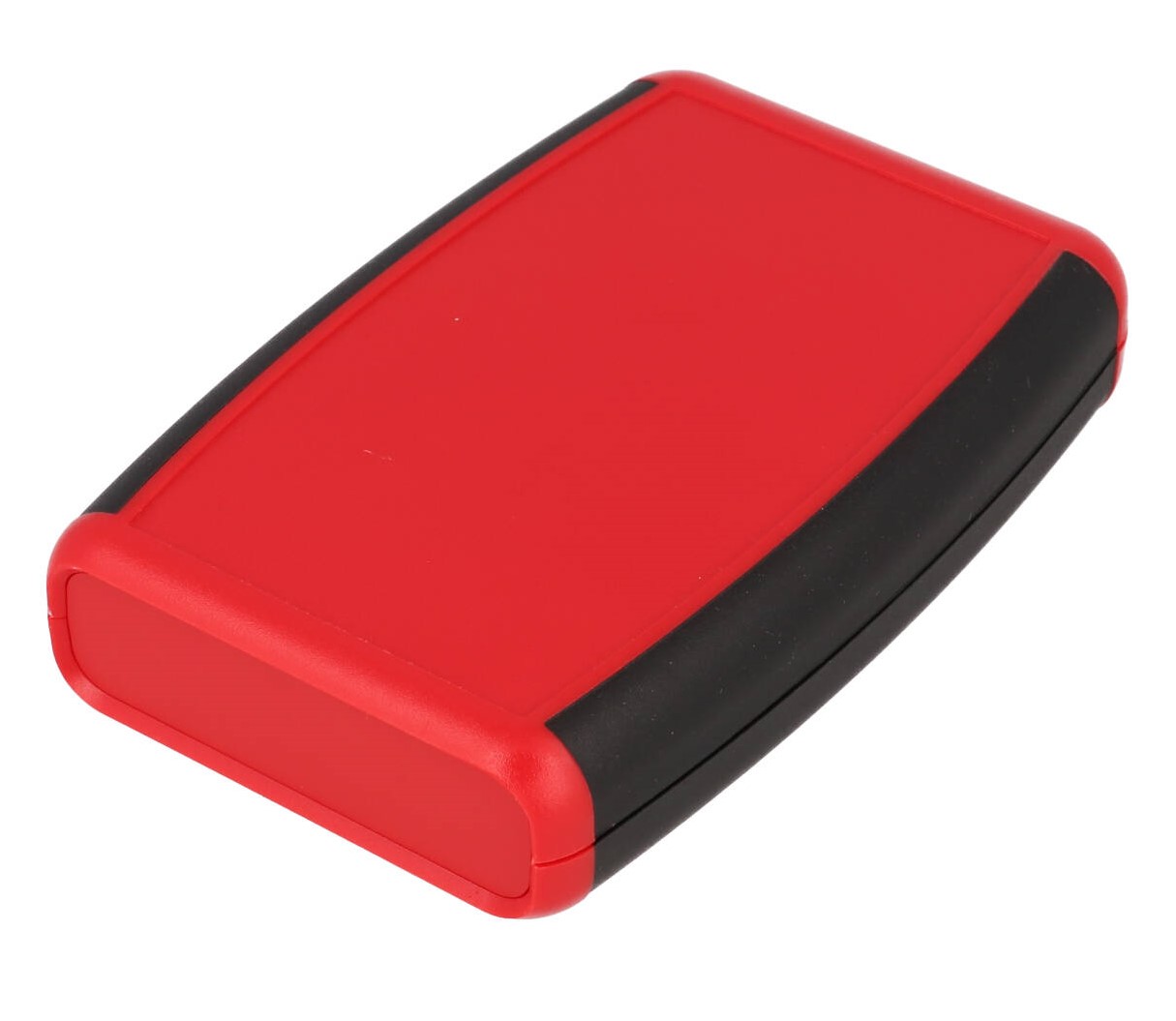

The 1553BRDBKBAT is a red ABS 1553B hand held enclosure with a black soft overmold and a built-in battery door and compartment. It is aimed at battery-powered handheld products that benefit from a high-visibility red housing, such as alarms, safety devices or field tools.
The enclosure is 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm). With the battery compartment in place, the ordering table lists a maximum P.C. board of 3.07 x 2.64 in (78 x 67 mm). The drawing shows an inner box 110.24 mm long and 18.50 mm high, PCB bosses on the bottom cover, and a 100.71 mm recessed inlay on the top cover for a membrane keypad or display.

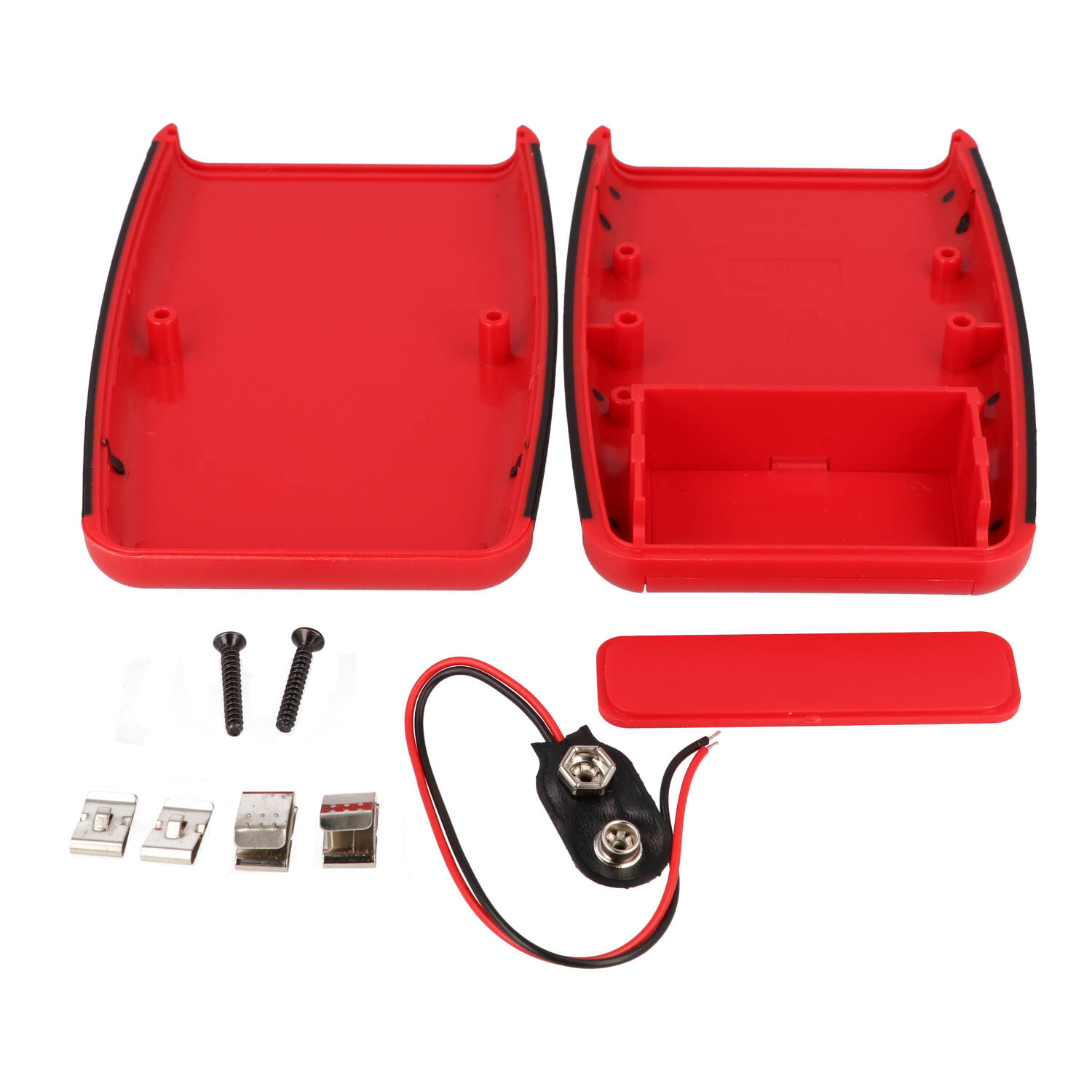

Supplied parts are the top, bottom, a removable front plastic panel, the battery door, 4 battery spring clips (for 2x AA), a 9V (PP3) adapter and 2 cover screws; the P.C. board is not included. Molded in general purpose ABS, it has a UL94 HB flame rating, is RoHS and REACH compliant, and ships shrink wrapped at 0.19 lbs (0.09 kg).
Black 1593QS100BK screws replace the lid screws; PCB screws are 1593ATS50 or 1593ATS100. Spare red end panels (1553BPLRD-10), the BS61 9V battery kit and the 1553HDR-BKIT AA clip kit are available. Recommended cover torque is 2.5 lbf-in (30 cN-m).
Ideal For
- High-visibility battery-powered handhelds
- Portable alarm and signalling devices
- AA or 9V powered field tools
- Keypad handheld controllers
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BRDBKBAT |
| Solid Models | STEP or IGES |
| Ordering Table | With Battery Doors & Compartments |
| Long Description | red ABS w/ black soft side hand held enclosure & battery door 4.62x3.11x0.95 |
| Short Description | 1553B IN RED ABS |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Inlay Depth | 0.50 mm [.02 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| End Inlay Width | 51.61 mm [2.032 in] |
| Inner Box Height | 18.50 mm [.728 in] |
| Inner Box Length | 110.24 mm [4.340 in] |
| Top Inlay Length | 100.71 mm [3.965 in] |
| PCB Boss Diameter | 5.00 mm [.197 in] |
| Center Inlay Width | 59.71 mm [2.351 in] |
| Inner Box Width At End | 62.86 mm [2.475 in] |
| Overall Size (Drawing) | 117.24 x 79.00 x 24.00 mm [4.616 x 3.110 x .945 in] |
| Front Panel Viewing Area | 65.15 x 16.83 mm [2.565 x .663 in] |
| Inner Box Width At Center | 71.02 mm [2.796 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
| Boss Diameter (Top And Bottom Assembly) | 5.50 mm [.217 in] |
Electrical
| Battery Compartment | Battery door and compartment with 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
Accessories
| 9V Battery Kit | BS61 |
| AA Battery Clip Kit | 1553HDR-BKIT (4 positive and 4 negative) |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100BK |
Identifiers
| UPC | 623980035079 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into bottom cover |
| Max. P.C. Board Width (Part Page) | 78.18 mm |
| Maximum P.C. Board Size (Drawing) | 78.18 x 67.00 mm [3.078 x 2.638 in] |
| Max. P.C. Board Length (Part Page) | 67 mm |
| Max. P.C. Board Width (Ordering Table) | 2.64 in (67 mm) |
| Max. P.C. Board Length (Ordering Table) | 3.07 in (78 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Included | Top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 2 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Black |
| Enclosure Color | Red |
| Color (Part Page) | Red |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colours is the 1553BRDBKBAT?▾
Red ABS enclosure with a black overmold.
What batteries fit?▾
Two AA batteries (4 spring clips included) and one 9V (PP3) battery via the included adapter.
What board size will fit?▾
Up to 78 x 67 mm (3.07 x 2.64 in) per the ordering table.
Is there a version without the battery door?▾
Yes, 1553BRDBK is the regular red version without the battery compartment.
What does it weigh?▾
Shipping weight is 0.19 lbs (0.09 kg).
