Hammond 1553BTBUBK Translucent Blue Handheld Enclosure, Black Overmold
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Translucent blue ABS body with black soft overmold
- 117 x 79 x 24 mm (4.62 x 3.11 x 0.95 in)
- IP54 rated; removable front plastic panel
- Holds a PCB up to 109 x 70 mm (part page)
- Recessed top cover for membrane keypad or display
- Matching end panel 10-pack: 1553BPLTBU-10
- UL94 HB, RoHS and REACH compliant

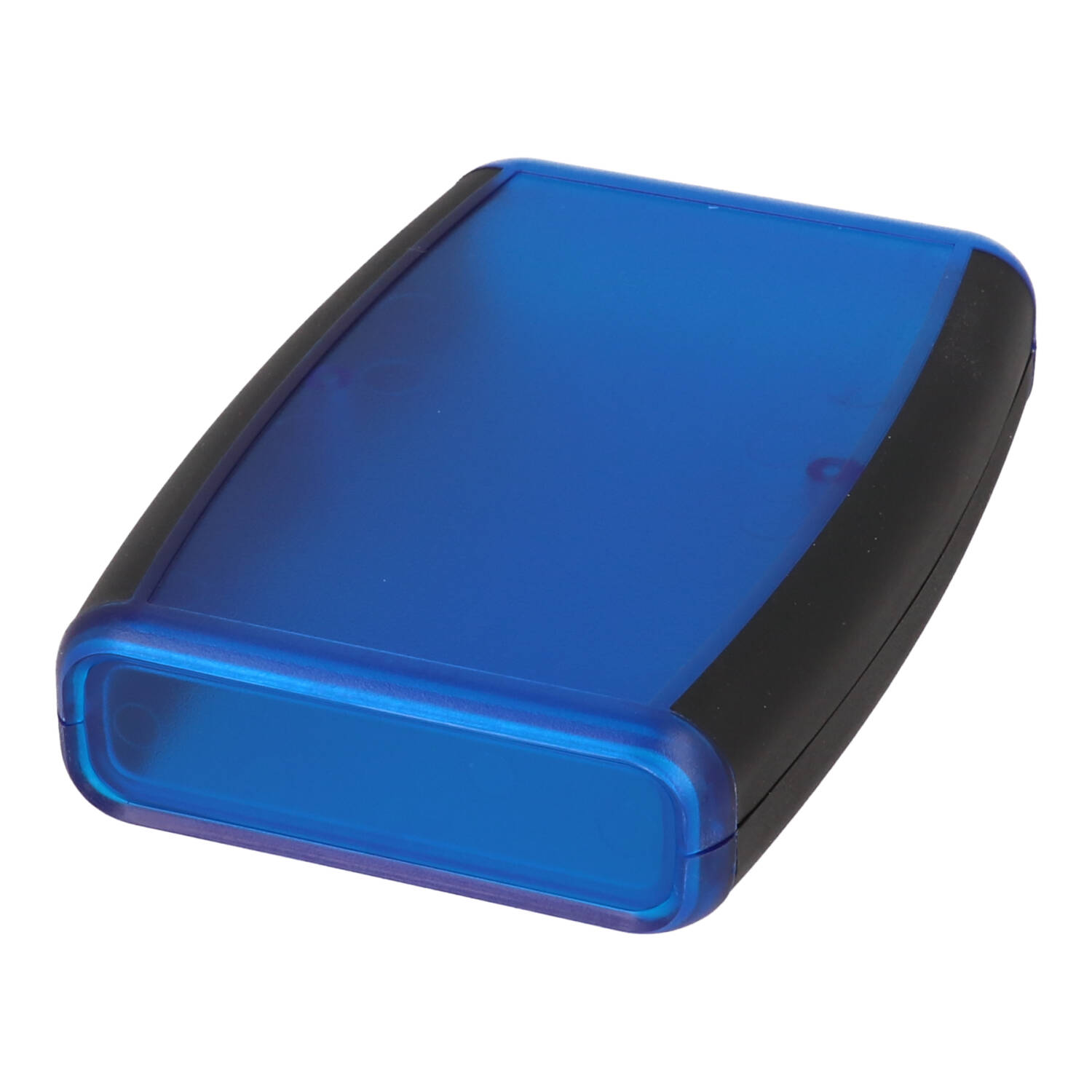

The 1553BTBUBK is the 1553B regular hand held enclosure in translucent blue ABS with a black soft plastic overmold. Its see-through tinted body suits handheld electronics where a distinctive look is wanted, such as consumer gadgets, demo units or indicator devices.
Overall size per the part page is 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm). The drawing lists an inner box length of 110.25 mm, inner width of 71.02 mm at center and 62.86 mm at the end, and inner height of 18.50 mm. PCB bosses molded into the bottom cover hold a board up to 109 x 70 mm per the part page (105 x 61 mm in the ordering table). The top cover is recessed for a membrane display or keypad.

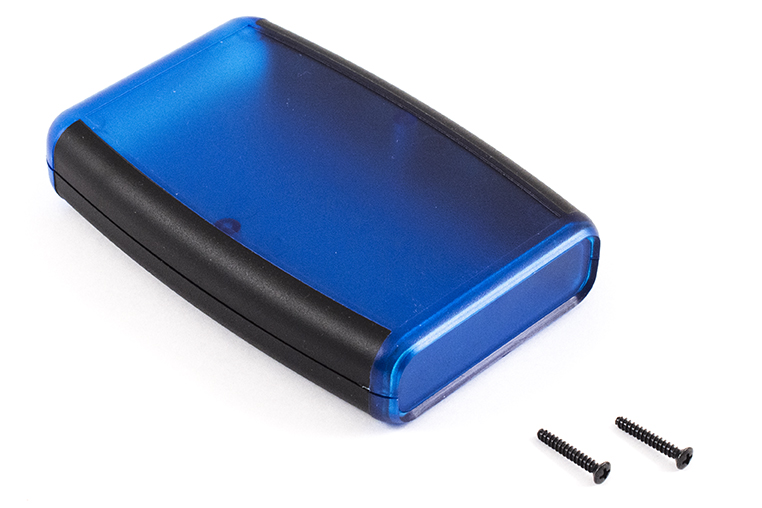

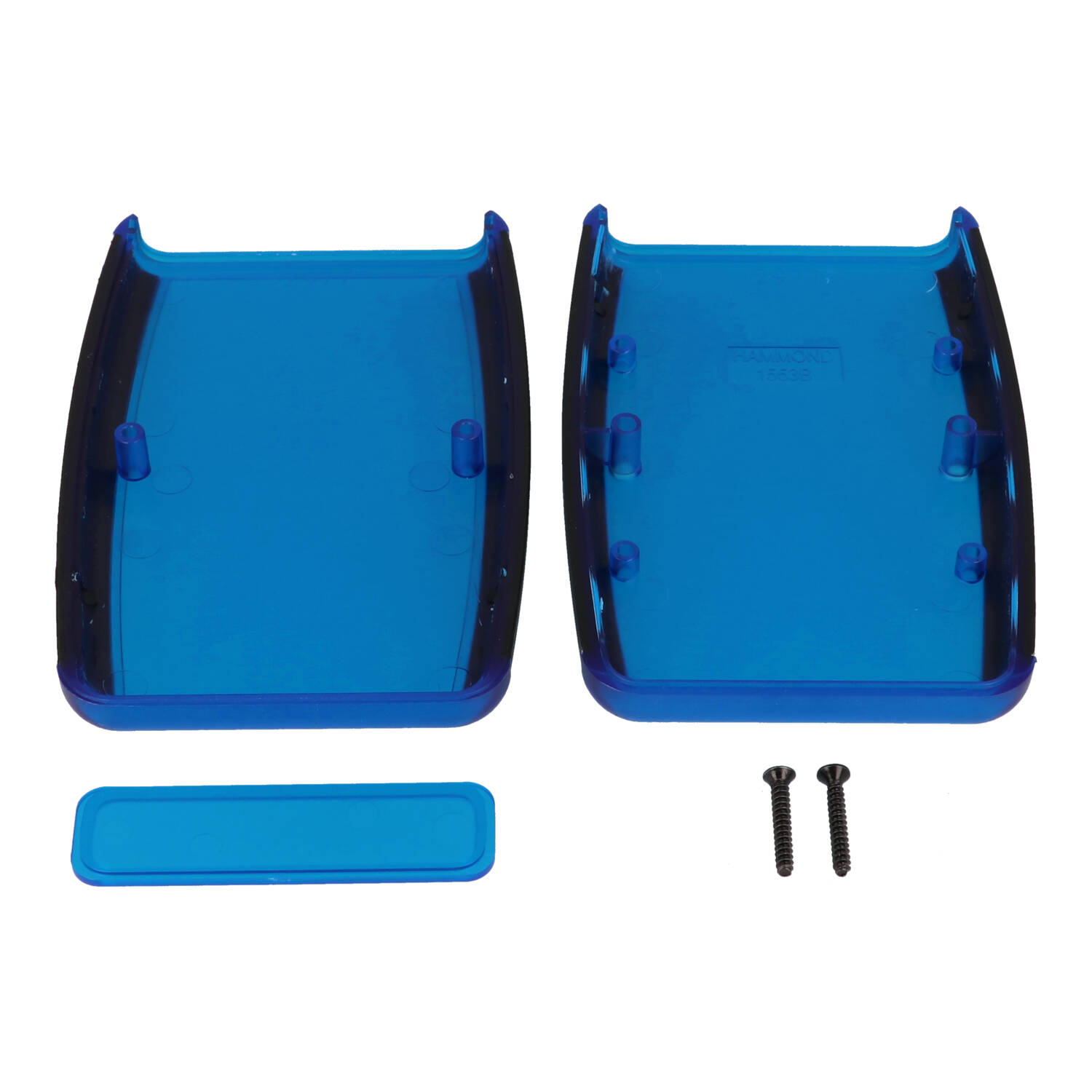

This enclosure is molded in general purpose ABS, rated IP54 and UL94 HB, and RoHS and REACH compliant. Supplied shrink wrapped with top, bottom, a removable front plastic panel and 2 cover screws; P.C. board not supplied. Shipping weight is 0.17 lbs (0.08 kg).
Replacement lid screws are black 1593QS100BK. Matching translucent blue end panels are sold as 1553BPLTBU-10, and PCB screws (1593ATS50/1593ATS100), a 1599CLIP belt or pocket clip, and a battery door version (1553BTBUBKBAT) are also listed. Cover screw torque: 2.5 lbf-in (30 cN-m).
Ideal For
- Consumer handheld gadgets
- Demo and prototype handheld units
- Handheld devices with internal indicators
- IP54 handheld housings
Overview
| Type | Hand-held, soft sided |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BTBUBK |
| Solid Models | STEP or IGES |
| Ordering Table | Single End Panel |
| Long Description | trans. blue ABS w/ black soft side hand held enclosure 4.62x3.11x0.95 |
| Short Description | 1553B IN TRANS BLUE ABS |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Inlay Depth | 0.50 mm [.020 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| End Inlay Width | 51.61 mm [2.032 in] |
| Inner Box Height | 18.50 mm [.728 in] |
| Inner Box Length | 110.25 mm [4.341 in] |
| Top Inlay Length | 100.71 mm [3.965 in] |
| PCB Boss Diameter | 5.00 mm [.197 in] |
| Center Inlay Width | 59.71 mm [2.351 in] |
| Inner Box Width At End | 62.86 mm [2.475 in] |
| Overall Size (Drawing) | 117.23 x 78.97 x 24.00 mm [4.615 x 3.109 x .945 in] |
| Front Panel Viewing Area | 65.15 x 16.81 mm [2.56 x .66 in] |
| Inner Box Width At Center | 71.02 mm [2.796 in] |
| Boss Diameter (Top And Bottom) | 5.50 mm [.217 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
Accessories
| IR End Panel | 1553BIR-BULK |
| Prototype PCB | 1553BPCB (not compatible with battery compartment versions) |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Extra End Panels (10-packs) | 1553BPLBK-10, 1553BPLGY-10, 1553BPLRD-10, 1553BPLTBU-10, 1553BPLYL-10 |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100BK |
Identifiers
| UPC | 623980035048 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into bottom cover |
| Max. P.C. Board Width (Part Page) | 70 mm |
| Maximum P.C. Board Size (Drawing) | 109.14 x 60.86 mm [4.297 x 2.396 in] |
| Max. P.C. Board Length (Part Page) | 109 mm |
| Max. P.C. Board Width (Ordering Table) | 2.40 in (61 mm) |
| Max. P.C. Board Length (Ordering Table) | 4.13 in (105 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Included | Top, bottom, front plastic panel (removable) and 2 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Black |
| Enclosure Color | Trans Blue |
| Color (Part Page) | Trans. Blue |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1553BTBUBK see-through?▾
The enclosure body is translucent blue ABS; the overmold is black.
What are its dimensions?▾
4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm).
What PCB size fits?▾
109 x 70 mm per the part page; 105 x 61 mm per the ordering table.
Is there a version with a battery compartment?▾
Yes, 1553BTBUBKBAT is the battery door version in the same colours.
What IP rating does it have?▾
IP54.
