Hammond 1553BXGY Grey Dual End Panel Handheld Enclosure, 117 x 79 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two removable plastic end panels (2-panel design)
- Grey ABS with gray soft overmold, 117 x 79 x 24 mm
- PCB up to 104.80 x 70.00 mm per drawing
- IP54 rated
- Nickel plated screws; 1593QS100 silver replacements
- Recessed top cover for membrane display or keypad
- RoHS and REACH compliant

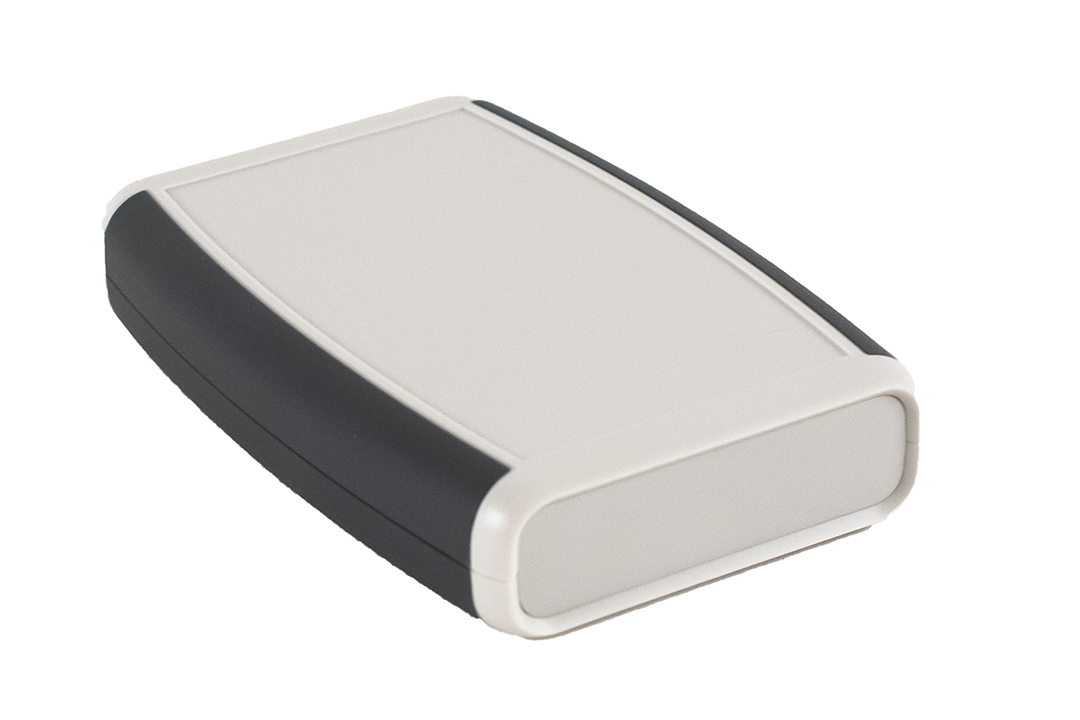

The 1553BXGY is the grey member of the 1553BX dual end panel family: a grey ABS body with a gray soft overmold and removable plastic panels at both ends. It is designed for handheld electronics that route cables, connectors or indicators out of two ends, such as pass-through adapters and portable data units.
The enclosure is 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm) on the part page, 117.00 x 79.00 x 24.00 mm on the drawing. Inner box height is 18.50 mm, and each end panel measures 64.90 x 18.40 mm. The drawing gives a maximum P.C.B. size of 104.80 x 70.00 mm, and the bosses take #4 self-tapping screws. The top cover is recessed with a 100.69 mm inlay for a membrane display or keypad.
Construction is general purpose ABS with an IP54 rating, and the part is RoHS and REACH compliant. The bagged assembly includes top, bottom, 2 plastic end panels and 4 cover screws, with no P.C. board. Gray 1553 enclosures include nickel plated screws. Note that the ordering table lists the enclosure colour as Grey while the part page colour attribute reads Black.
The silver replacement lid screw pack for the 1553BXGY is 1593QS100. PCB screws (1593ATS50/1593ATS100) and a 1599CLIPGY grey belt or pocket clip are sold separately. Cover screw torque is 2.5 lbf-in (30 cN-m).
Ideal For
- Pass-through handheld adapters
- Portable units with connectors at both ends
- Handheld data devices with keypads
- IP54 handheld housings in grey
Overview
| Type | Hand-held, soft sided |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BXGY |
| Solid Models | .stp or .x_t |
| Ordering Table | Dual End Panel |
| Drawing Revision | 26.11.2020 |
| Short Description | 1553BX SOFT TOUCH CASE 2-PANEL |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Boss Diameter | 5.50 mm [.22 in] |
| End Panel Size | 64.90 x 18.40 mm [2.56 x .72 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| Inner Box Height | 18.50 mm [.73 in] |
| Top Inlay Length | 100.69 mm [3.96 in] |
| Overall Size (Drawing) | 117.00 x 79.00 x 24.00 mm [4.61 x 3.11 x .94 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
Accessories
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100 |
Identifiers
| UPC | 623980850184 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Bosses | Accept #4 self-tapping screw |
| Maximum P.C.B. Size (Drawing) | 104.80 x 70.00 mm [4.13 x 2.76 in] |
| Max. P.C. Board Width (Part Page) | 70 mm |
| Max. P.C. Board Length (Part Page) | 104 mm |
| Max. P.C. Board Width (Ordering Table) | 2.76 in (70 mm) |
| Max. P.C. Board Length (Ordering Table) | 4.13 in (105 mm) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.16 lbs (0.07 kg) |
Construction & Finish

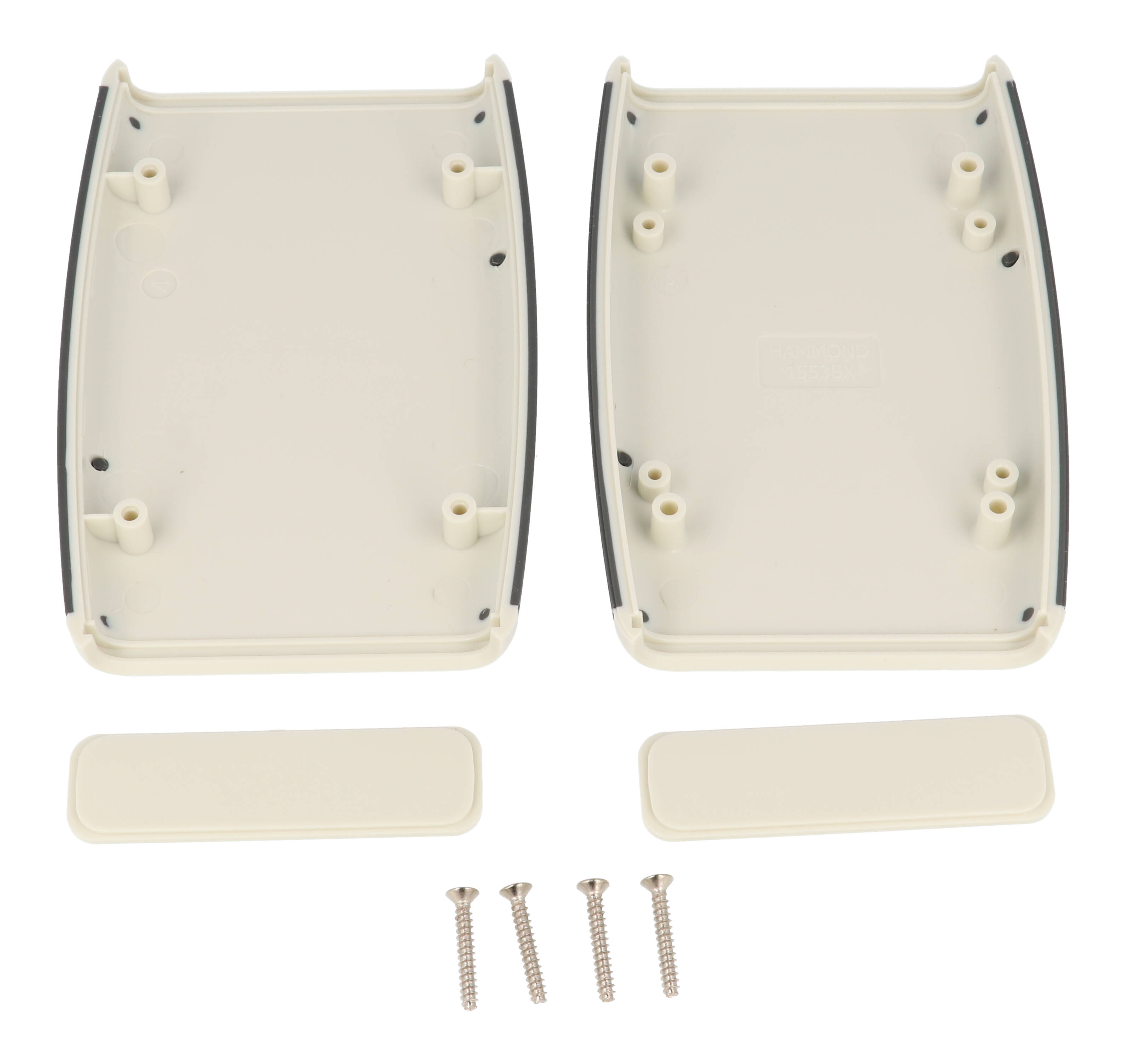

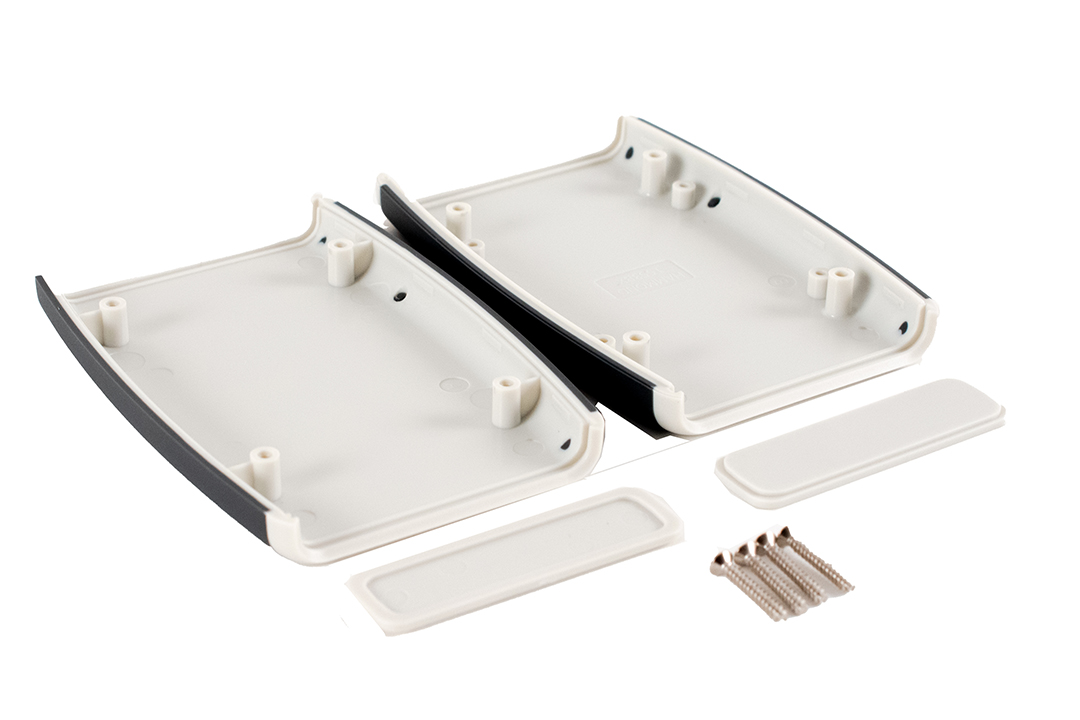

| Included | Top, bottom, 2 plastic end panels and 4 cover screws; P.C. board not supplied |
| Material | ABS Plastic (GP ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | 2 plastic end panels (dual end panel design) |
| Overmold Color | Gray |
| Enclosure Color | Grey |
| Color (Part Page) | Black |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1553BXGY differ from the 1553BGY?▾
The 1553BXGY has two end panels (dual end panel) and takes a PCB up to 104.80 x 70.00 mm, while the 1553BGY has a single end panel.
What colour is it?▾
The ordering table lists a Grey enclosure with Gray overmold; the part page colour attribute reads Black.
What board size fits?▾
104.80 x 70.00 mm per the drawing (105 x 70 mm ordering table; 104 x 70 mm part page).
Which screws are included?▾
4 cover screws; gray 1553 enclosures use nickel plated screws. Replacement part: 1593QS100.
Is it IP rated?▾
Yes, IP54.
