Hammond 1553ABK Mini Black Soft-Touch Handheld Enclosure, IP54
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 100 x 61 x 17 mm (3.94 x 2.41 x 0.67 in) handheld case
- Black ABS body with grey soft overmold for comfortable grip
- IP54 rated, UL94 HB flame rating, RoHS and REACH compliant
- Accepts a PCB up to 94.8 x 48.8 mm on molded-in bosses
- Recessed 86.69 x 47.77 mm top inlay for a membrane display or keypad
- Ships with top, bottom and 4 cover screws; black SC1553A100BK replacements
- Factory modification available; STEP or IGES models

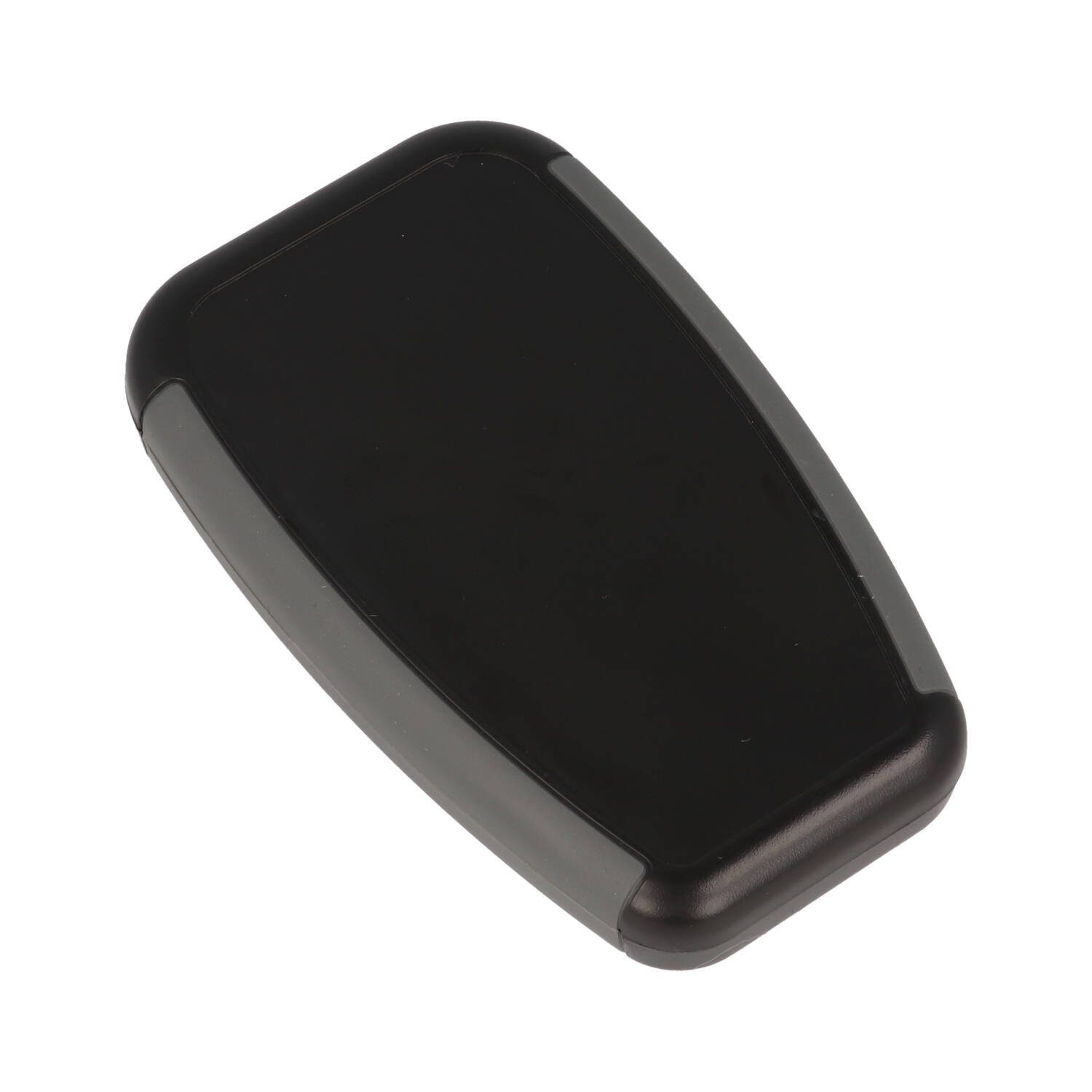

The 1553ABK is the compact 1553A size of the soft-sided hand held enclosure family: a black ABS case wrapped in a grey soft plastic overmold for a comfortable grip. It suits OEM engineers and product designers packaging small handheld electronics such as remotes, meters and control pods where a slim, pocketable housing matters.
The case is molded in general purpose ABS plastic and measures 3.94 x 2.41 x 0.67 in (100 x 61 x 17 mm). Inside, the drawing shows an inner box of 96.62 x 53.37 mm with 13.00 mm of height, and PCB bosses molded into the case locate a board of up to 94.8 x 48.8 mm. The top cover carries a recessed inlay of 86.69 x 47.77 mm, 0.50 mm deep, sized for a membrane display or keypad.

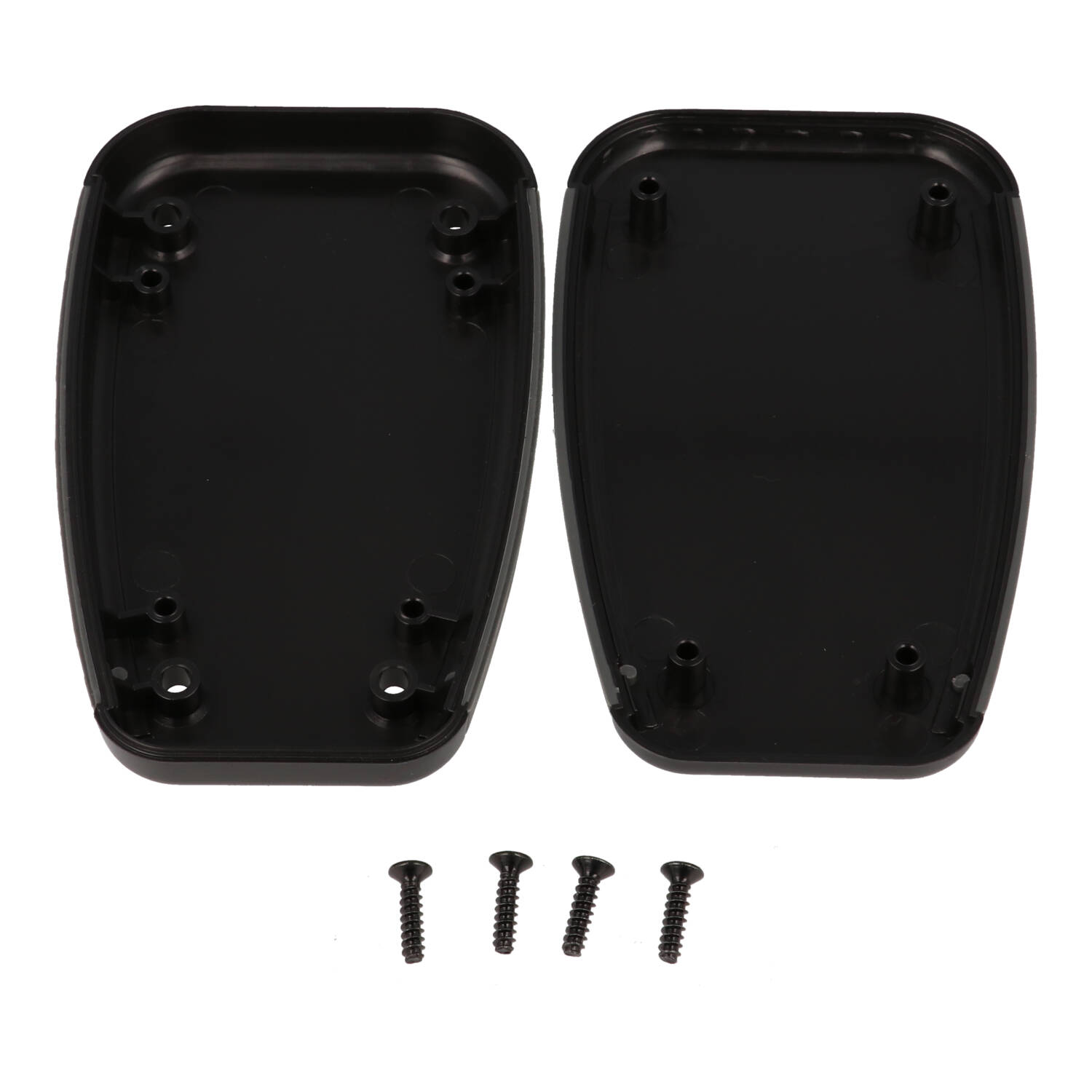

This part is rated IP54 and UL94 HB, and is RoHS and REACH compliant. Unlike the larger 1553 sizes, the 1553A has no removable front panel and no battery compartment option; the assembly ships with top, bottom and 4 cover screws, and the P.C. board is not supplied.
Board screws are ordered separately as 1593ATS50 or 1593ATS100, black replacement lid screws are SC1553A100BK, and a 1599CLIP belt or pocket clip is available. The recommended cover screw torque is 2.5 lbf-in (30 cN-m). The 1553ABK can also be factory modified (milling, drilling, printing), and STEP or IGES solid models are available.
Ideal For
- Compact handheld electronic devices
- Membrane keypad or display front ends
- Pocket-sized remotes and meters
- IP54 handheld instrument housings
Overview
| Type | Hand-held, soft sided |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553ABK |
| Solid Models | STEP or IGES |
| Ordering Table | Single End Panel |
| Long Description | black ABS w/ grey soft side hand held enclosure 3.87x2.38x0.68 |
| Short Description | 1553 MINI SOFT TOUCH CASE |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Boss Height | 5.00 mm [.20 in] |
| Inlay Depth | 0.50 mm [.02 in] |
| Size L X W X H | 3.94 in x 2.41 in x 0.67 in (100 mm x 61 mm x 17 mm) |
| Inner Box Width | 53.37 mm [2.10 in] |
| Top Inlay Width | 47.77 mm [1.88 in] |
| Inner Box Height | 13.00 mm [.51 in] |
| Inner Box Length | 96.62 mm [3.80 in] |
| Top Inlay Length | 86.69 mm [3.41 in] |
| Overall Size (Drawing) | 100.00 x 61.08 x 17.00 mm [3.94 x 2.40 x .67 in] |
| Overall Depth (Ordering Table) | 0.67 in (17 mm) |
| Overall Width (Ordering Table) | 3.43 in (87 mm) |
| Nominal Size (Long Description) | 3.87 x 2.38 x 0.68 in |
| Overall Length (Ordering Table) | 3.94 in (100 mm) |
Accessories
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | SC1553A100BK — oval head, self-tapping, #4 x 1/2" (12.7 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | SC1553A100 — oval head, self-tapping, #4 x 1/2" (12.7 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | SC1553A100BK |
Identifiers
| UPC | 623980035475 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into case |
| Max. P.C. Board Width (Part Page) | 48.8 mm |
| Max. P.C. Board Length (Part Page) | 94.8 mm |
| Max. P.C. Board Width (Ordering Table) | 1.93 in (49 mm) |
| Max. P.C. Board Length (Ordering Table) | 3.74 in (95 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.07 lbs (0.03 kg) |
Construction & Finish
| Included | Top, bottom and 4 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Grey |
| Enclosure Color | Black |
| Color (Part Page) | Black |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the outside dimensions of the 1553ABK?▾
The part page lists 3.94 x 2.41 x 0.67 in (100 x 61 x 17 mm). The series ordering table lists width as 3.43 in (87 mm).
What size circuit board fits?▾
Maximum P.C. board size is 94.8 x 48.8 mm per the part page (95 x 49 mm in the ordering table). The board is not supplied.
Is the 1553ABK weatherproof?▾
It carries an IP54 rating. For water-tight applications the series points to the 1553W series.
Does it have a battery compartment or removable end panel?▾
No. The 1553A size is not offered with a battery compartment and does not include a removable front panel.
Are PCB mounting screws included?▾
No. Order 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100), #4 x 1/4 in plated self-tapping screws.
Which cover screws does it use?▾
Black SC1553A100BK oval head self-tapping screws, #4 x 1/2 in (12.7 mm); 4 are included.
