Hammond 1553BGYBAT Grey Handheld Enclosure with Battery Door, 117 x 79 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Grey ABS with grey soft overmold and battery door
- 4 AA spring clips (2x AA) plus a 9V (PP3) adapter included
- 117 x 79 x 24 mm (4.62 x 3.11 x 0.95 in)
- PCB up to 78 x 67 mm (ordering table)
- Nickel plated screws; 1593QS100 silver replacements
- Removable front plastic panel and recessed top cover
- UL94 HB, RoHS and REACH compliant

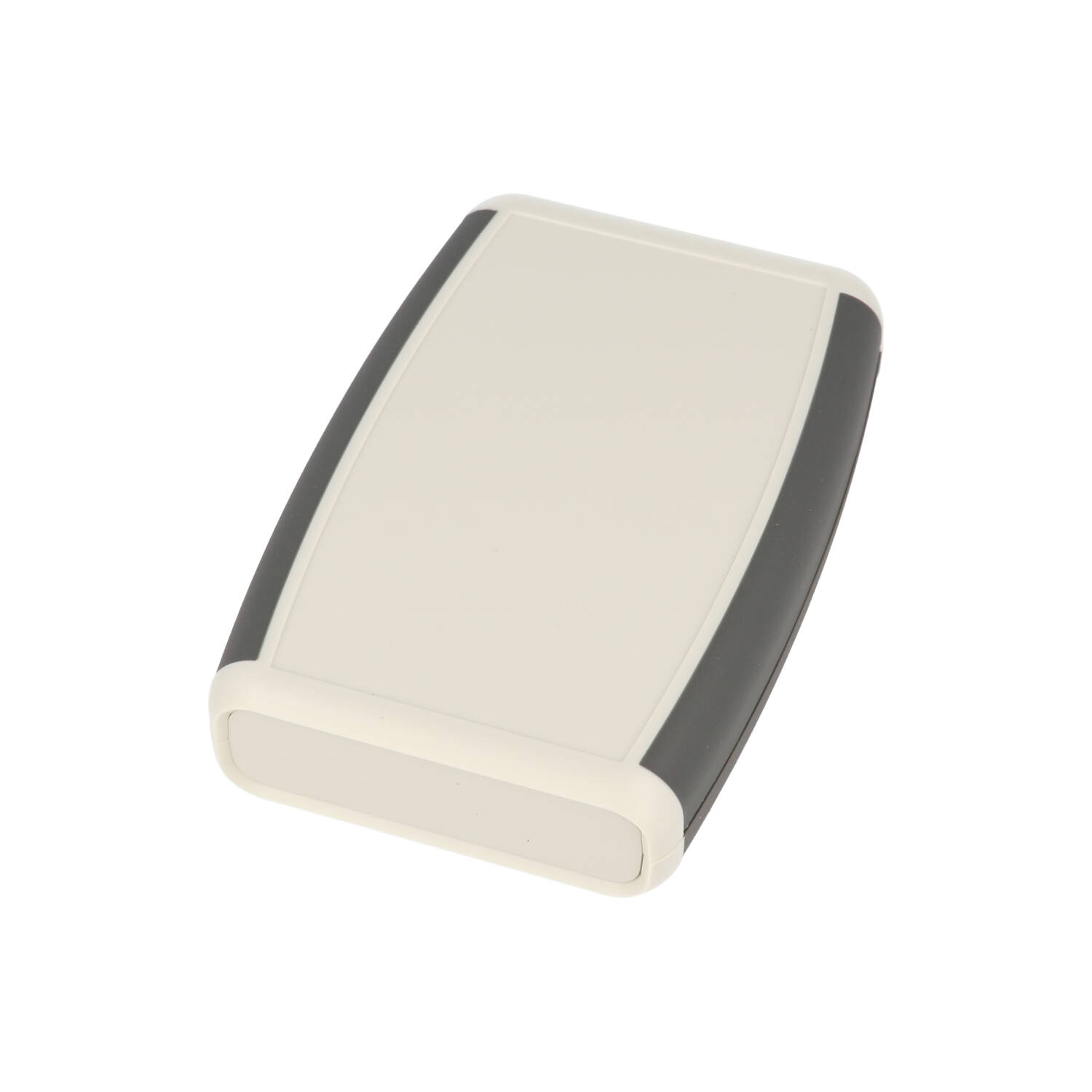

The 1553BGYBAT is the grey battery-door model of the 1553B soft-sided hand held enclosure, with a grey ABS body and grey soft overmold. It serves product teams building portable, battery-operated instruments that call for a neutral finish.
Size per the part page is 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm). The battery compartment in the bottom limits the maximum P.C. board to 78 x 67 mm (3.07 x 2.64 in) per the ordering table; the drawing shows the board outline at 78.18 x 67.00 mm. Inner box length is 110.24 mm and inner height 18.50 mm, and PCB bosses are molded into the bottom cover. The top cover is recessed to receive a membrane display or keypad.

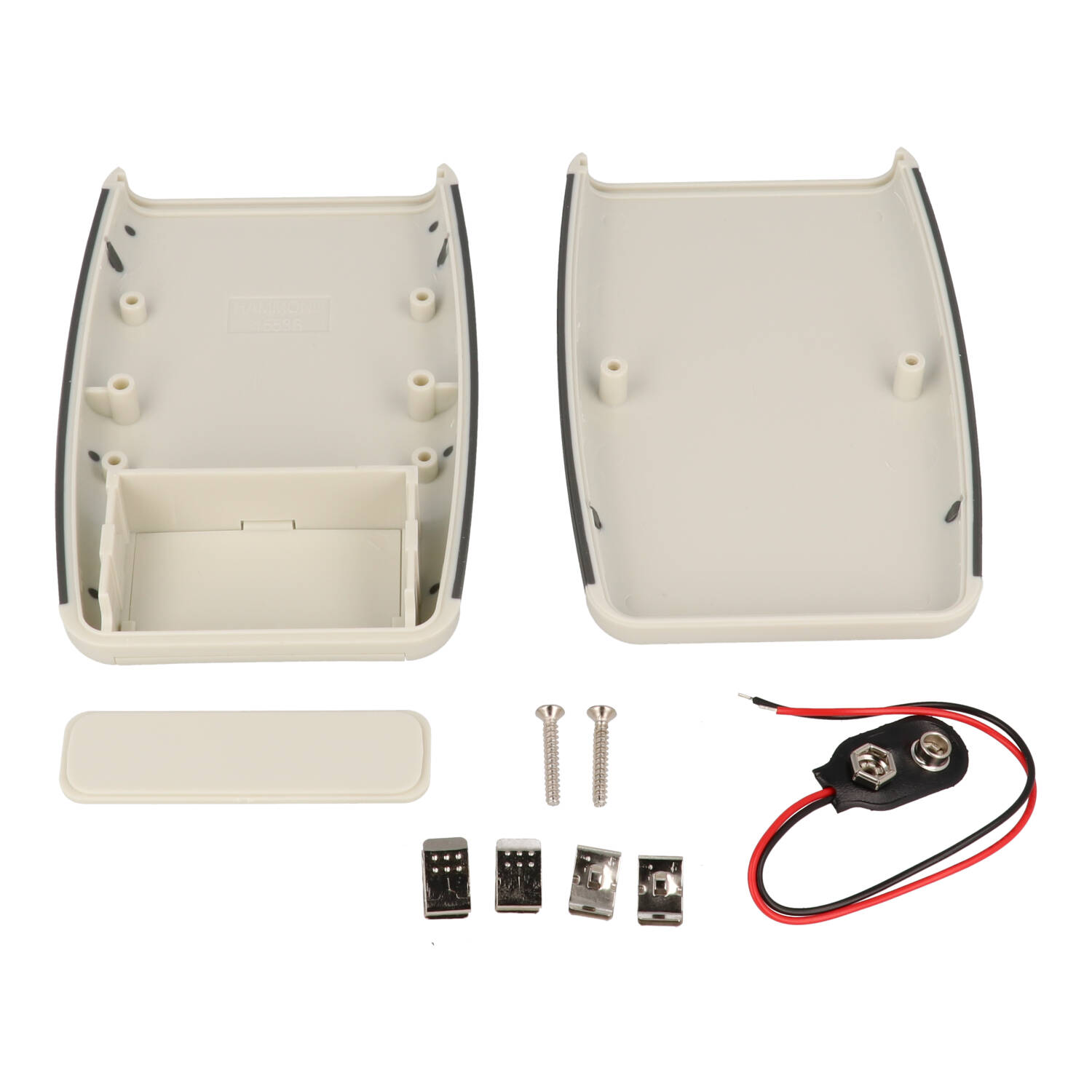

Included are the top, bottom, a removable front plastic panel, battery door, 4 battery spring clips for 2x AA cells, a 9V (PP3) adapter and 2 cover screws. Gray 1553 enclosures include nickel plated screws. The P.C. board is not supplied. The case is general purpose ABS, UL94 HB, RoHS and REACH compliant, and ships shrink wrapped at 0.17 lbs (0.08 kg).
The silver 1593QS100 pack replaces lid screws. PCB screws (1593ATS50 or 1593ATS100), a 1599CLIPGY grey belt or pocket clip, the BS61 9V battery kit and the 1553HDR-BKIT AA clip kit are sold separately. Cover screw torque: 2.5 lbf-in (30 cN-m).
Ideal For
- Battery-operated handheld instruments
- Portable meters in neutral grey
- Handheld remotes with keypads
- AA or 9V powered field devices
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BGYBAT |
| Solid Models | STEP or IGES |
| Ordering Table | With Battery Doors & Compartments |
| Long Description | grey ABS w/ grey soft side hand held enclosure & battery door 4.62x3.11x0.95 |
| Short Description | 1553 SOFT TOUCH CASE W/BAT DOR |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Inlay Depth | 0.50 mm [.02 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| End Inlay Width | 51.61 mm [2.032 in] |
| Inner Box Height | 18.50 mm [.728 in] |
| Inner Box Length | 110.24 mm [4.340 in] |
| Top Inlay Length | 100.71 mm [3.965 in] |
| PCB Boss Diameter | 5.00 mm [.197 in] |
| Center Inlay Width | 59.71 mm [2.351 in] |
| Inner Box Width At End | 62.86 mm [2.475 in] |
| Overall Size (Drawing) | 117.24 x 79.00 x 24.00 mm [4.616 x 3.110 x .945 in] |
| Front Panel Viewing Area | 65.15 x 16.83 mm [2.565 x .663 in] |
| Inner Box Width At Center | 71.02 mm [2.796 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
| Boss Diameter (Top And Bottom Assembly) | 5.50 mm [.217 in] |
Electrical
| Battery Compartment | Battery door and compartment with 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
Accessories
| 9V Battery Kit | BS61 |
| AA Battery Clip Kit | 1553HDR-BKIT (4 positive and 4 negative) |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100 |
Identifiers
| UPC | 623980581439 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into bottom cover |
| Max. P.C. Board Width (Part Page) | 78.18 mm |
| Maximum P.C. Board Size (Drawing) | 78.18 x 67.00 mm [3.078 x 2.638 in] |
| Max. P.C. Board Length (Part Page) | 67 mm |
| Max. P.C. Board Width (Ordering Table) | 2.64 in (67 mm) |
| Max. P.C. Board Length (Ordering Table) | 3.07 in (78 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Included | Top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 2 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Gray |
| Enclosure Color | Grey |
| Color (Part Page) | Light Gray |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
