Hammond 1553DYLBKBAT Yellow Battery Door Handheld Enclosure, 147 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Battery compartment with clips for 2x AA plus a 9V (PP3) clip
- Yellow ABS enclosure with black soft side overmold
- Overall 147 x 89 x 25 mm (5.79 x 3.50 x 0.98 in)
- Maximum P.C. board 107 x 74 mm (4.21 x 2.91 in)
- Recessed top cover for a membrane display or keypad
- Includes battery door, 9V adapter and 4 cover screws
- UL94 HB flame rating; RoHS and REACH compliant

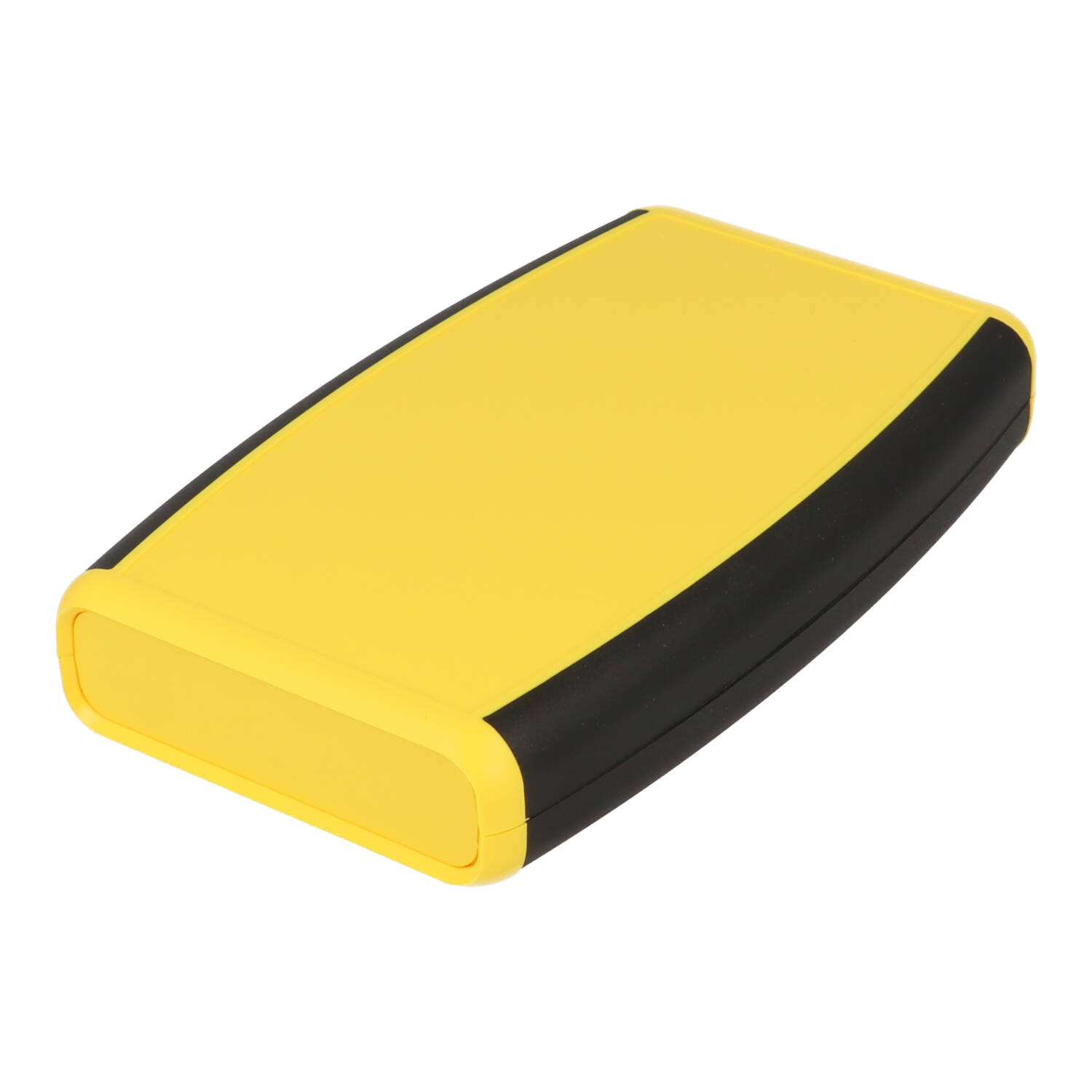

The 1553DYLBKBAT combines the bright yellow D-size 1553 hand held enclosure with a battery door and compartment. The yellow ABS body and black soft side overmold make a brightly colored, comfortable housing for battery powered handheld electronics.
Outside, it measures 5.79 x 3.50 x 0.98 in (147 x 89 x 25 mm). With the battery compartment in place, the ordering table gives a maximum P.C. board of 4.21 x 2.91 in (107 x 74 mm). The drawing shows an inner box length of 140.24 mm, inner box height of 19.50 mm, and an inner width of 80.98 mm at the center and 68.93 mm at the end.
Power comes from the included battery clips: 4x clips for 2x AA batteries and 1x 9 volt (PP3) battery clip, with a 9V adapter supplied. Extra clip kits are listed as 1553HDR-BKIT for AA and BS61 for 9V. The top cover is recessed for a membrane display or keypad, and molded PC board standoffs locate the board on the PCB bosses.

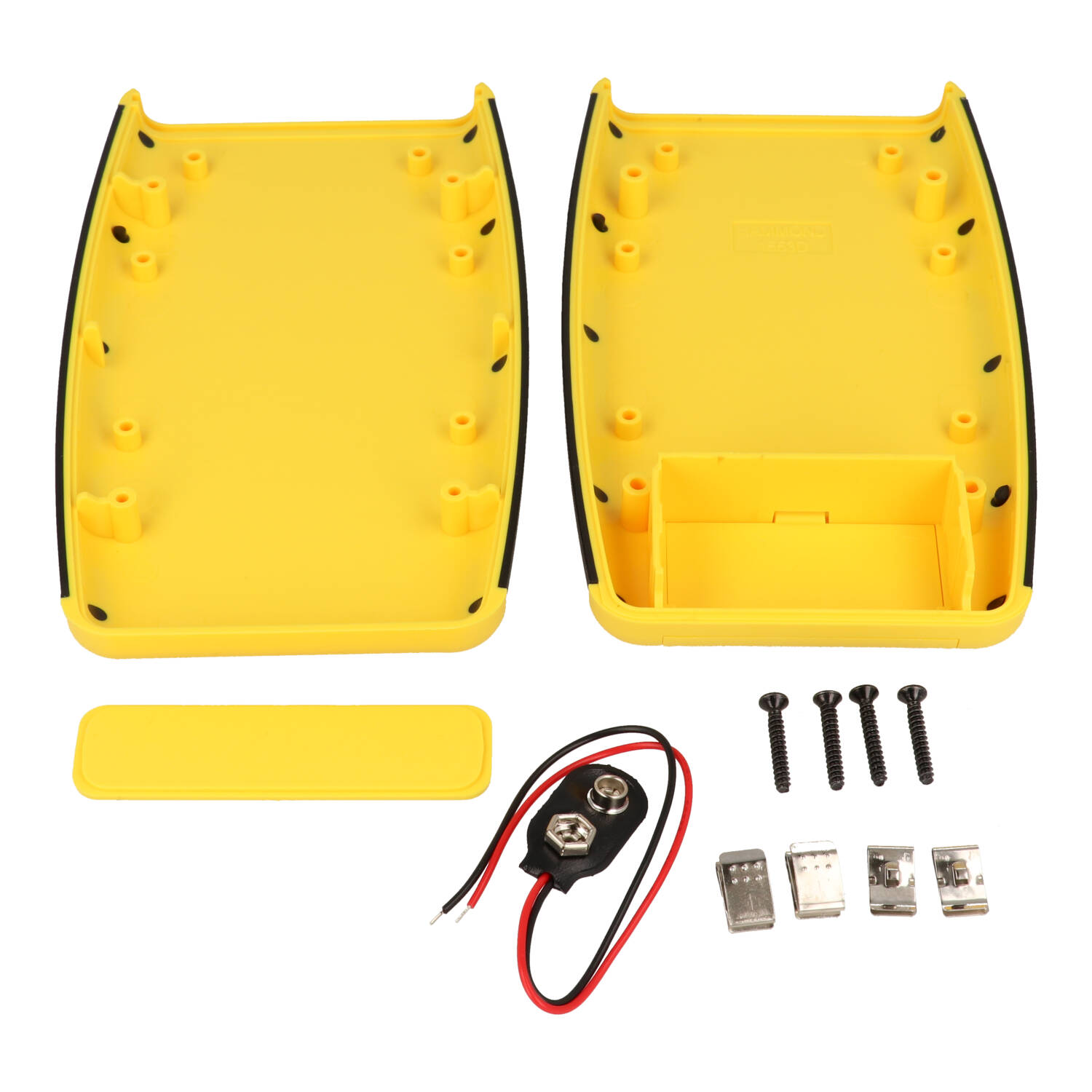

The 1553DYLBKBAT assembly includes the top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 4 cover screws; the P.C. board is not supplied. Use 1593QS100BK for replacement lid screws and tighten to 2.5 lbf-in (30 cN-m). It has a UL94 HB flame rating, is RoHS and REACH compliant, and ships shrink wrapped at 0.26 lbs (0.12 kg).
Ideal For
- Battery powered handheld electronics
- Brightly colored handheld devices
- Handheld units with a membrane keypad
- Portable devices running on AA or 9V batteries
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Ordering Table | With Battery Doors & Compartments |
| Short Description | 1553D LRG SOFT TOUCH CASE YEL |
Dimensions
| Inlay Depth | .50 mm [.02 in] |
| Overall Depth | 0.98 in (25 mm); drawing 25.00 mm [.984 in] |
| Overall Width | 3.50 in (89 mm); drawing 89.00 mm [3.504 in] |
| Overall Length | 5.79 in (147 mm); drawing 147.24 mm [5.797 in] |
| Top Inlay Width | 69.68 mm [2.743 in] |
| Inner Box Height | 19.50 mm [.768 in] |
| Inner Box Length | 140.24 mm [5.521 in] |
| Size (L X W X H) | 5.8 in x 3.5 in x 0.98 in (147 mm x 89 mm x 25 mm) |
| Top Inlay Length | 130.68 mm [5.145 in] |
| Front Inlay Width | 58.93 mm [2.320 in] |
| Inner Box Width At End | 68.93 mm [2.714 in] |
| Inner Box Width At Center | 80.98 mm [3.188 in] |
| Max. P.C. Board Width (Part Page) | 106.7 mm |
| Maximum P.C. Board Size (Drawing) | 106.80 mm [4.205 in] x 73.67 mm [2.900 in] |
| Max. P.C. Board Length (Part Page) | 75.82 mm |
| Top And Bottom Assembly Boss Diameter | 6.00 mm [.236 in] |
| Max. P.C. Board Width (Ordering Table) | 2.91 in (74 mm) |
| Max. P.C. Board Length (Ordering Table) | 4.21 in (107 mm) |
Accessories
| 9V Battery Kit | BS61 |
| Belt Or Pocket Clip | 1599CLIP (Black), 1599CLIPGY (Grey) |
| Replacement Lid Screws | 1593QS100BK |
| IR End Panel (All 1553 D Sized Enclosures) | 1553DIR-BULK |
| P.C. Board Self Tapping Screw (Not Included) | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) — #4 x 1/4" (6.4 mm) plated |
| Oval Head Cover Screws, Self-Tapping (Pkg 100) | 1593QS100 (Silver), 1593QS100BK (Black) — #4 x 3/4" (19 mm) |
| AA Battery Clip Kit (4 Positive And 4 Negative) | 1553HDR-BKIT |
Identifiers
| UPC | 623980035611 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Construction & Finish
| Grip | Soft plastic overmold on the sides |
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |
| Top Cover | Recessed for membrane display or keypad |
| Cover Screws | Black screws; replacement lid screws 1593QS100BK |
| Solid Models | Available in STEP or IGES |
| Overmold Color | Black |
| Enclosure Color | Yellow |
| Battery Provision | Battery door and compartment with 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
| P.C. Board Mounting | PC board standoffs molded into case; P.C. board aligned on PCB bosses |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 4 cover screws (P.C. board not supplied) |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Flame Rating | UL94 HB |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What power options does the 1553DYLBKBAT support?▾
The battery compartment includes 4x battery clips for 2x AA batteries and 1x 9 volt (PP3) battery clip, plus a 9V adapter.
How large a PC board can I use?▾
The ordering table lists 4.21 x 2.91 in (107 x 74 mm) as the maximum P.C. board for this battery version.
What are the outside dimensions?▾
5.79 x 3.50 x 0.98 in (147 x 89 x 25 mm).
Where can I get extra battery clips?▾
The drawing lists the 1553HDR-BKIT AA battery clip kit (4 positive and 4 negative) and the BS61 9V battery kit.
Is the battery version rated IP54?▾
The series says versions without a battery door are designed to meet IP54; no IP rating is listed for this battery-door part.
What screw torque is recommended for the cover?▾
2.5 lbf-in (30 cN-m).
