Hammond 1553BRDBK Red Soft-Sided Handheld Enclosure, Black Overmold
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Red ABS body with black soft overmold
- 117 x 79 x 24 mm (4.62 x 3.11 x 0.95 in)
- IP54 rated; single removable front plastic panel
- PCB up to 109 x 70 mm (part page) on molded bosses
- Top cover recessed for keypad or display overlay
- Spare red end panels: 1553BPLRD-10
- UL94 HB, RoHS and REACH compliant

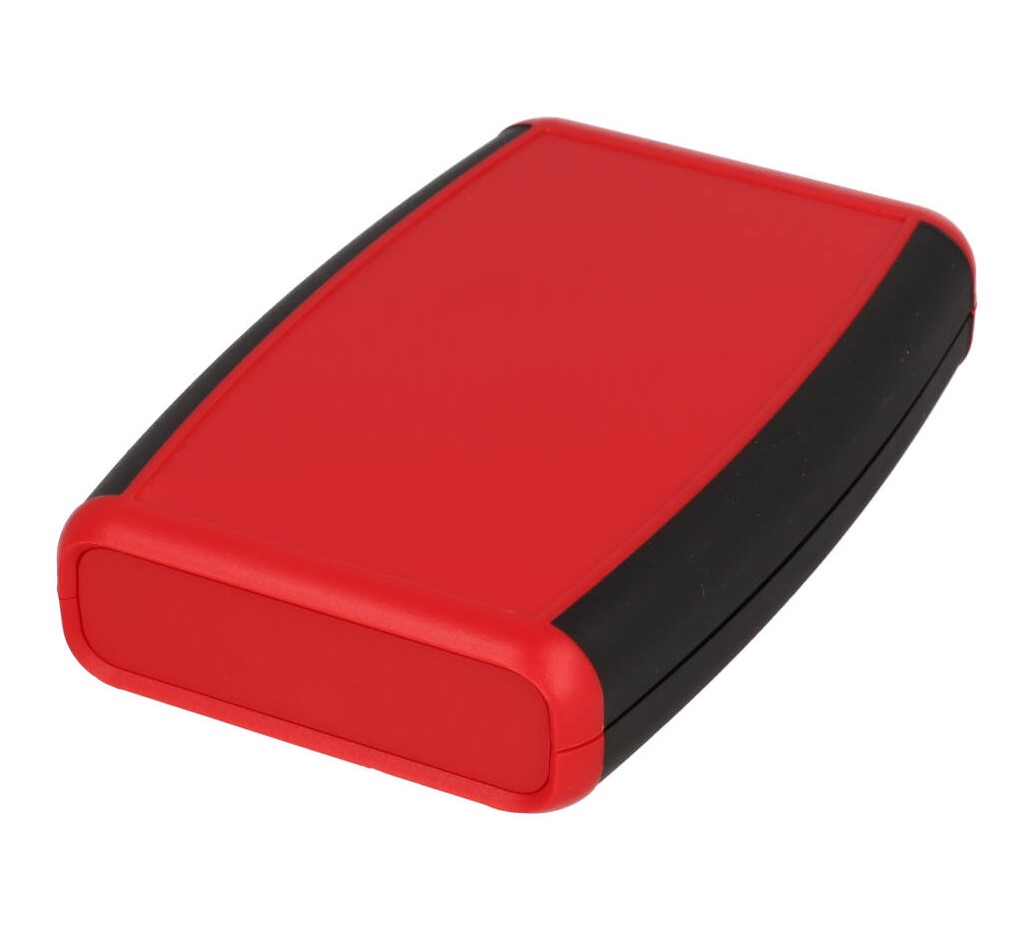

The 1553BRDBK puts a red ABS body inside a black soft plastic overmold in the regular 1553B handheld size. The bright colour makes it a practical choice for handheld devices that need to stand out, such as safety tools, field instruments or branded consumer electronics.
On the part page the size is 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm). The drawing shows an inner box of 110.25 x 71.02 mm (center width) with an 18.50 mm inner height. The maximum board is 109 x 70 mm per the part page and 105 x 61 mm per the ordering table, mounted on PCB bosses molded into the bottom cover. A 0.50 mm recessed inlay on the top cover takes a membrane keypad or display.

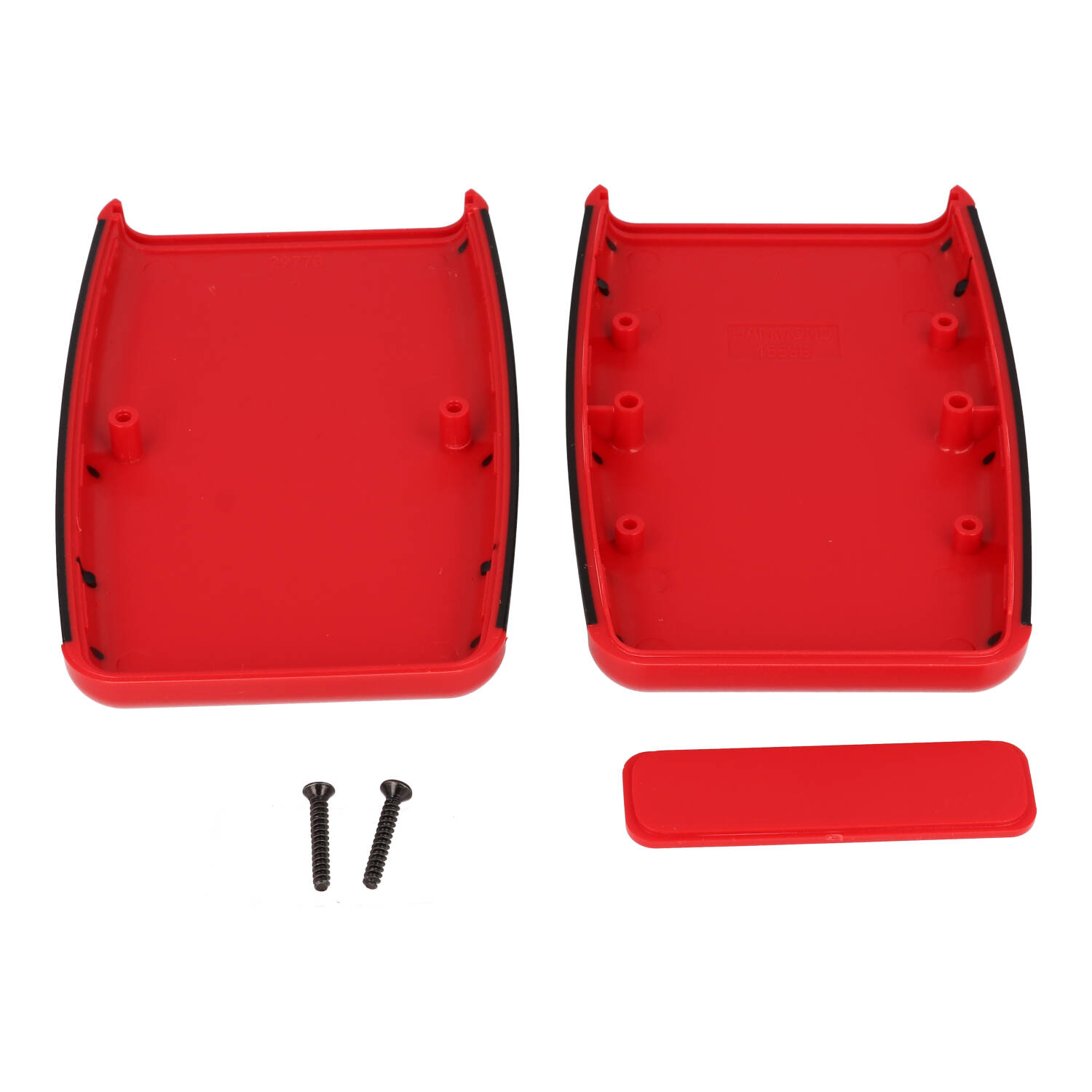

Molded from general purpose ABS, the 1553BRDBK is rated IP54 and UL94 HB and is RoHS and REACH compliant. It ships shrink wrapped with top, bottom, a removable front plastic panel and 2 cover screws, and weighs 0.17 lbs (0.08 kg). The P.C. board is not included.
Black 1593QS100BK screws replace the lid screws, and matching red end panels come as 1553BPLRD-10. PCB screws (1593ATS50/1593ATS100), a 1599CLIP belt clip and the 1553BIR-BULK infrared end panel are also available. Recommended cover torque is 2.5 lbf-in (30 cN-m).
Ideal For
- High-visibility handheld devices
- Field instruments with membrane keypads
- Colour-coded handheld controllers
- IP54 handheld housings
Overview
| Type | Hand-held, soft sided |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BRDBK |
| Solid Models | STEP or IGES |
| Ordering Table | Single End Panel |
| Long Description | red ABS w/ black soft side hand held enclosure 4.62x3.11x0.95 |
| Short Description | 1553B IN RED ABS |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Inlay Depth | 0.50 mm [.020 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| End Inlay Width | 51.61 mm [2.032 in] |
| Inner Box Height | 18.50 mm [.728 in] |
| Inner Box Length | 110.25 mm [4.341 in] |
| Top Inlay Length | 100.71 mm [3.965 in] |
| PCB Boss Diameter | 5.00 mm [.197 in] |
| Center Inlay Width | 59.71 mm [2.351 in] |
| Inner Box Width At End | 62.86 mm [2.475 in] |
| Overall Size (Drawing) | 117.23 x 78.97 x 24.00 mm [4.615 x 3.109 x .945 in] |
| Front Panel Viewing Area | 65.15 x 16.81 mm [2.56 x .66 in] |
| Inner Box Width At Center | 71.02 mm [2.796 in] |
| Boss Diameter (Top And Bottom) | 5.50 mm [.217 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
Accessories
| IR End Panel | 1553BIR-BULK |
| Prototype PCB | 1553BPCB (not compatible with battery compartment versions) |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Extra End Panels (10-packs) | 1553BPLBK-10, 1553BPLGY-10, 1553BPLRD-10, 1553BPLTBU-10, 1553BPLYL-10 |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100BK |
Identifiers
| UPC | 623980035062 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into bottom cover |
| Max. P.C. Board Width (Part Page) | 70 mm |
| Maximum P.C. Board Size (Drawing) | 109.14 x 60.86 mm [4.297 x 2.396 in] |
| Max. P.C. Board Length (Part Page) | 109 mm |
| Max. P.C. Board Width (Ordering Table) | 2.40 in (61 mm) |
| Max. P.C. Board Length (Ordering Table) | 4.13 in (105 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Included | Top, bottom, front plastic panel (removable) and 2 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Black |
| Enclosure Color | Red |
| Color (Part Page) | Red |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colours is the 1553BRDBK?▾
Red ABS enclosure with a black overmold.
What size is it?▾
4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm).
How large a PCB will fit?▾
Up to 109 x 70 mm per the part page; the ordering table lists 105 x 61 mm.
Is there a battery door version?▾
Yes, the battery door version of this colour is 1553BRDBKBAT.
What is included?▾
Top, bottom, front plastic panel and 2 cover screws; no P.C. board.
