Hammond 1553DRDBK 147x89x25mm Red Handheld Enclosure, Black Overmold
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Red ABS enclosure with black soft plastic overmold
- Large size D case: 147 x 89 x 25 mm (5.79 x 3.50 x 0.98 in)
- PC board up to 139 x 74 mm (5.47 x 2.91 in)
- IP54 rated, single end panel
- Recessed top cover for membrane display or keypad
- Includes top, bottom, front panel and 4 black cover screws
- UL94 HB; RoHS and REACH compliant

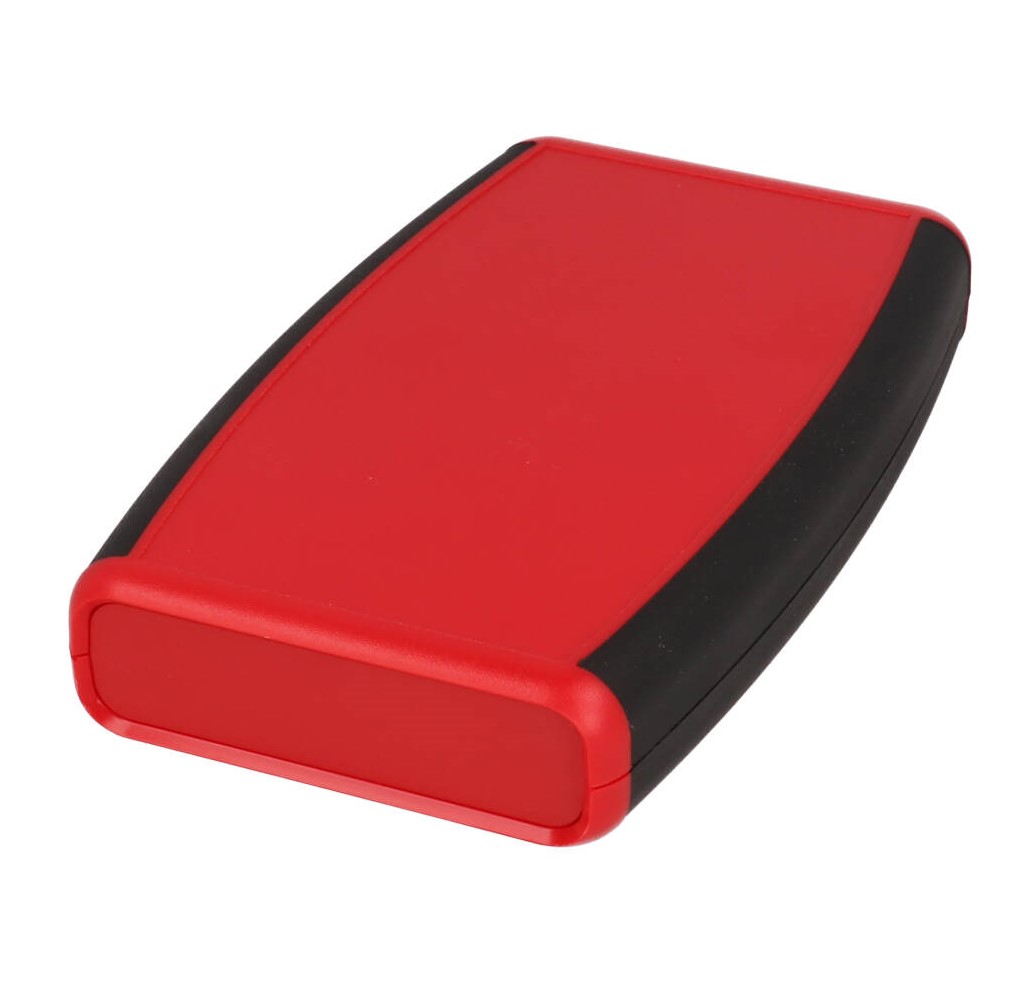

The 1553DRDBK is the red size D handheld enclosure in the 1553 Series, with a red ABS case and a black soft-sided overmold. The bright body colour makes it easy to spot or colour-code handheld equipment, while keeping the same ergonomic shape as the rest of the range.
The body is molded from general purpose ABS plastic with a UL94 HB flame rating and a soft plastic overmold for a comfortable grip. The top cover is recessed to take a membrane display or keypad, and PC board standoffs are molded into the case so the board aligns on the PCB bosses. As a single end panel version without a battery door, it is rated IP54.
Overall dimensions are 147 mm long, 89 mm wide and 25 mm deep (5.79 x 3.50 x 0.98 in); the nominal listed size is 5.8 x 3.5 x 0.98 in. The inner box is 140.24 mm long with an inner height of 19.50 mm, and the ordering table gives a maximum PC board of 139 mm x 74 mm (5.47 x 2.91 in).

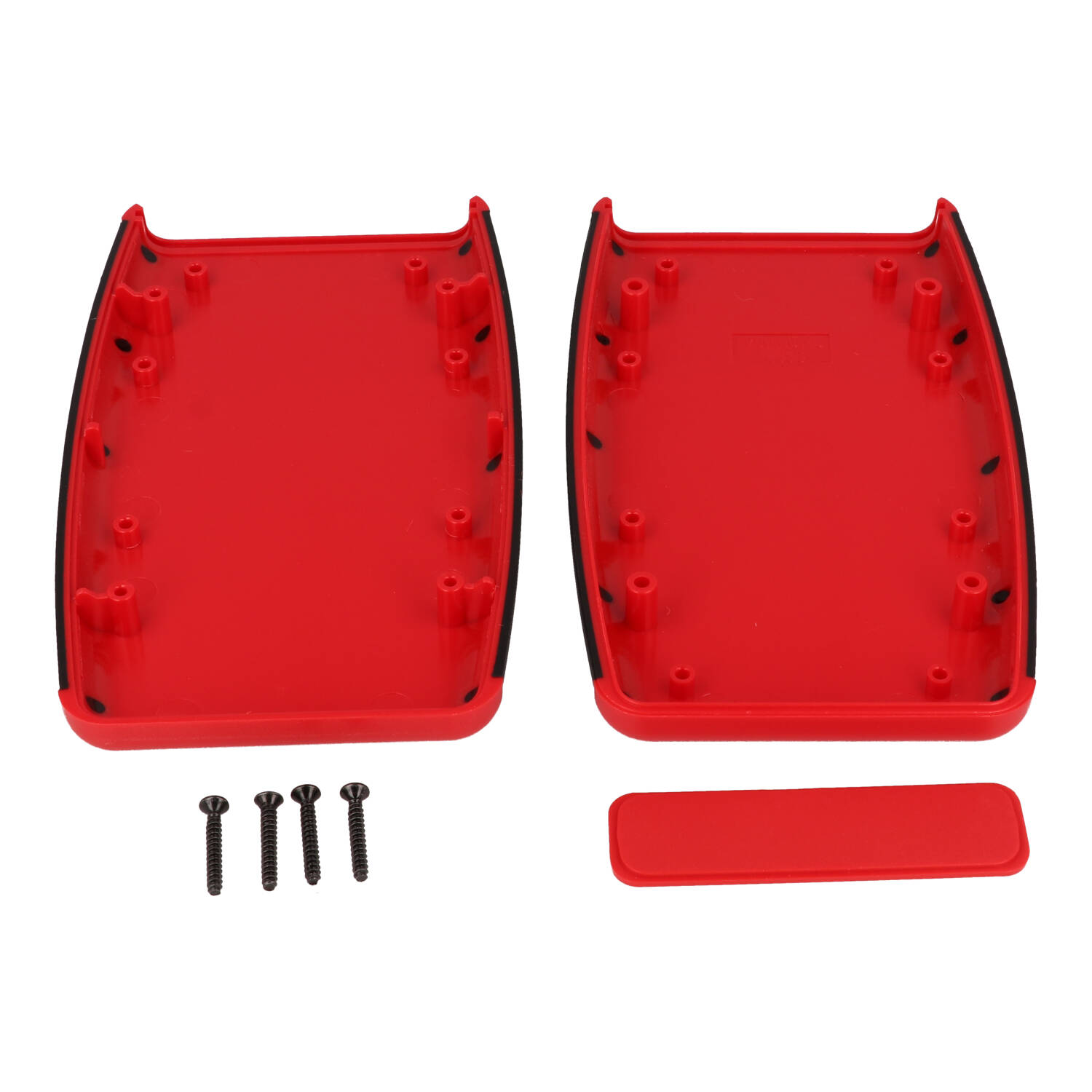

The 1553DRDBK is supplied with the top, bottom, removable front plastic panel and 4 cover screws; the PC board is not supplied. Non-grey 1553 enclosures use black screws. The replacement lid screw pack is 1593QS100BK, and the recommended cover screw torque is 2.5 lbf-in (30 cN-m). PC board mounting screws are ordered separately as 1593ATS50 or 1593ATS100.
It is RoHS and REACH compliant, ships in shrink wrap at 0.24 lbs (0.11 kg), and can be factory modified with milling, drilling or printing.
Ideal For
- Colour-coded handheld equipment
- Handheld controllers and remotes
- Portable instruments
- Keypad or display handheld devices
Overview
| Type | Hand-held, soft sided |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Configuration | Single End Panel |
| Enclosure Size | 1553D |
| Long Description | red ABS w/ black soft side hand held enclosure 5.80x3.50x0.98 |
| Short Description | 1553D LRG SOFT TOUCH CASE RED |
Dimensions
| Overall Depth | 0.98 in (25 mm) |
| Overall Width | 3.50 in (89 mm) |
| Overall Length | 5.79 in (147 mm) |
| Top Inlay Depth | 0.50 mm [.020 in] |
| Inner Box Height | 19.50 mm [.768 in] |
| Inner Box Length | 140.24 mm [5.521 in] |
| Top Inlay Length | 130.68 mm [5.145 in] |
| P.C. Board Location | Aligned on PCB bosses |
| Max. P.C. Board Width | 2.91 in (74 mm) |
| Max. P.C. Board Length | 5.47 in (139 mm) |
| Top Inlay Width At End | 58.89 mm [2.319 in] |
| Overall Depth (Drawing) | 25.00 mm [.984 in] |
| Overall Width (Drawing) | 89.00 mm [3.504 in] |
| Nominal Size (L X W X H) | 5.8 in x 3.5 in x 0.98 in (147 mm x 89 mm x 25 mm) |
| Overall Length (Drawing) | 147.24 mm [5.797 in] |
| Top Inlay Width At Center | 69.64 mm [2.742 in] |
| Max. P.C. Board Size (Drawing) | 139.11 mm x 73.67 mm [5.477 in x 2.900 in] |
| Assembly Boss Diameter (Top And Bottom) | 6.00 mm [.236 in] |
Identifiers
| UPC | 623980035123 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Top, Bottom, front plastic panel and 4 cover screws (P.C. Board not supplied) |
| Solid Models | Available in STEP or IGES |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.24 lbs (0.11 kg) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board Mounting Screws | Not included; order 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" (6.4 mm) plated self-tapping |
| Replacement Cover Screws | Oval head self-tapping cover screws, #4 x 3/4" (19 mm), pkg of 100: 1593QS100 (Silver) / 1593QS100BK (Black) |
| Belt Or Pocket Clip (Optional) | 1599CLIP (Black) / 1599CLIPGY (Grey) |
Construction & Finish
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |
| Overmold | Soft plastic overmold for comfortable grip |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | Single removable front panel |
| Cover Screws | Black |
| Overmold Color | Black |
| Enclosure Color | Red |
| PC Board Standoffs | Molded into case |
| Replacement Lid Screws | 1593QS100BK |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid and strong solvents |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colours make up the 1553DRDBK?▾
A red ABS enclosure with a black overmold.
What PC board size fits?▾
Up to 139 mm x 74 mm (5.47 x 2.91 in) per the series ordering table.
Which cover screws does it use?▾
Black screws; replacement pack 1593QS100BK (#4 x 3/4 in / 19 mm, pack of 100).
Are matching red end panels available?▾
Yes, 1553DPLRD-10 is a pack of 10 red end panels for 1553D enclosures.
Is it IP rated?▾
Yes, IP54.
