Hammond 1553CXGY 117x79x32mm Grey Dual End Panel Handheld Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Dual removable plastic end panels
- Grey ABS enclosure with grey soft plastic overmold
- 117 x 79 x 32 mm overall (4.61 x 3.11 x 1.26 in)
- Maximum PC board 108 x 69 mm (4.25 x 2.72 in)
- IP54 rated
- Nickel plated cover screws; replacement pack SC1553C100
- RoHS and REACH compliant

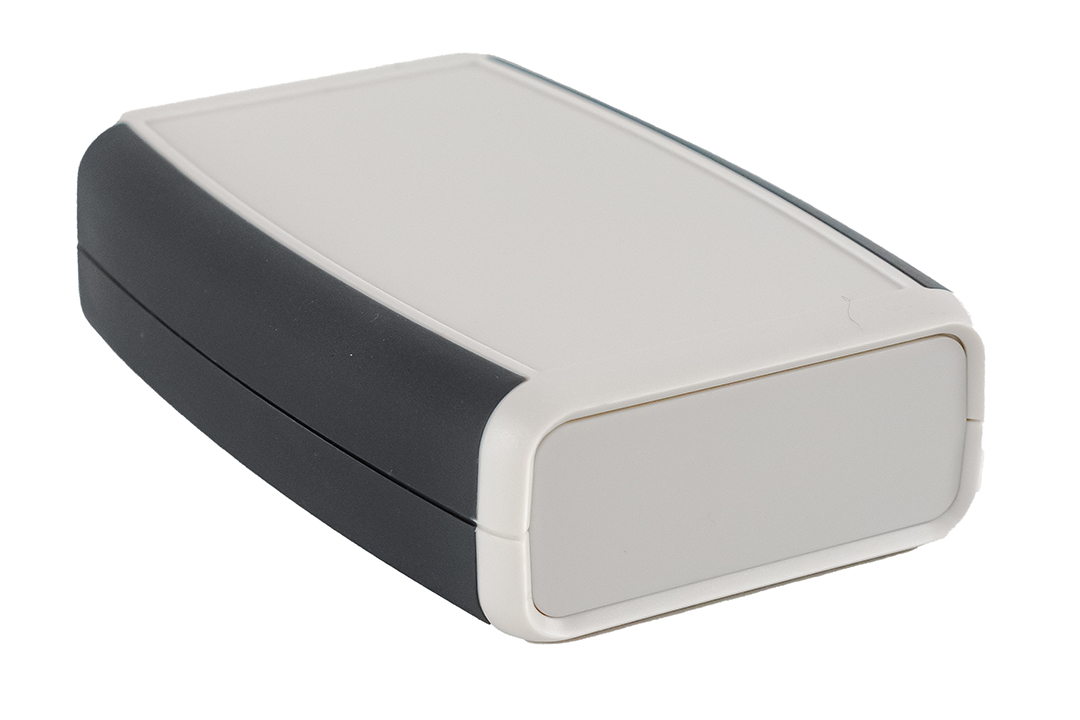

The 1553CXGY is the grey, dual end panel version of the size C 1553 Series soft-sided handheld enclosure. The grey ABS body and grey overmold carry end panels at both ends, giving room for cable entries, connectors or switches front and rear on handheld equipment.
Molded from general purpose ABS plastic and rated IP54, the enclosure has a recessed top cover for a membrane display or keypad and PC board standoffs molded into the case. Mounting bosses inside the bottom accept #4 self-tapping screws.
Overall size is 117 x 79 x 32 mm (4.61 x 3.11 x 1.26 in), listed nominally as 117 x 79 x 33 mm. It accepts a PC board up to 108 mm x 69 mm (4.25 x 2.72 in), shown on the drawing as 108.00 x 68.74 mm.

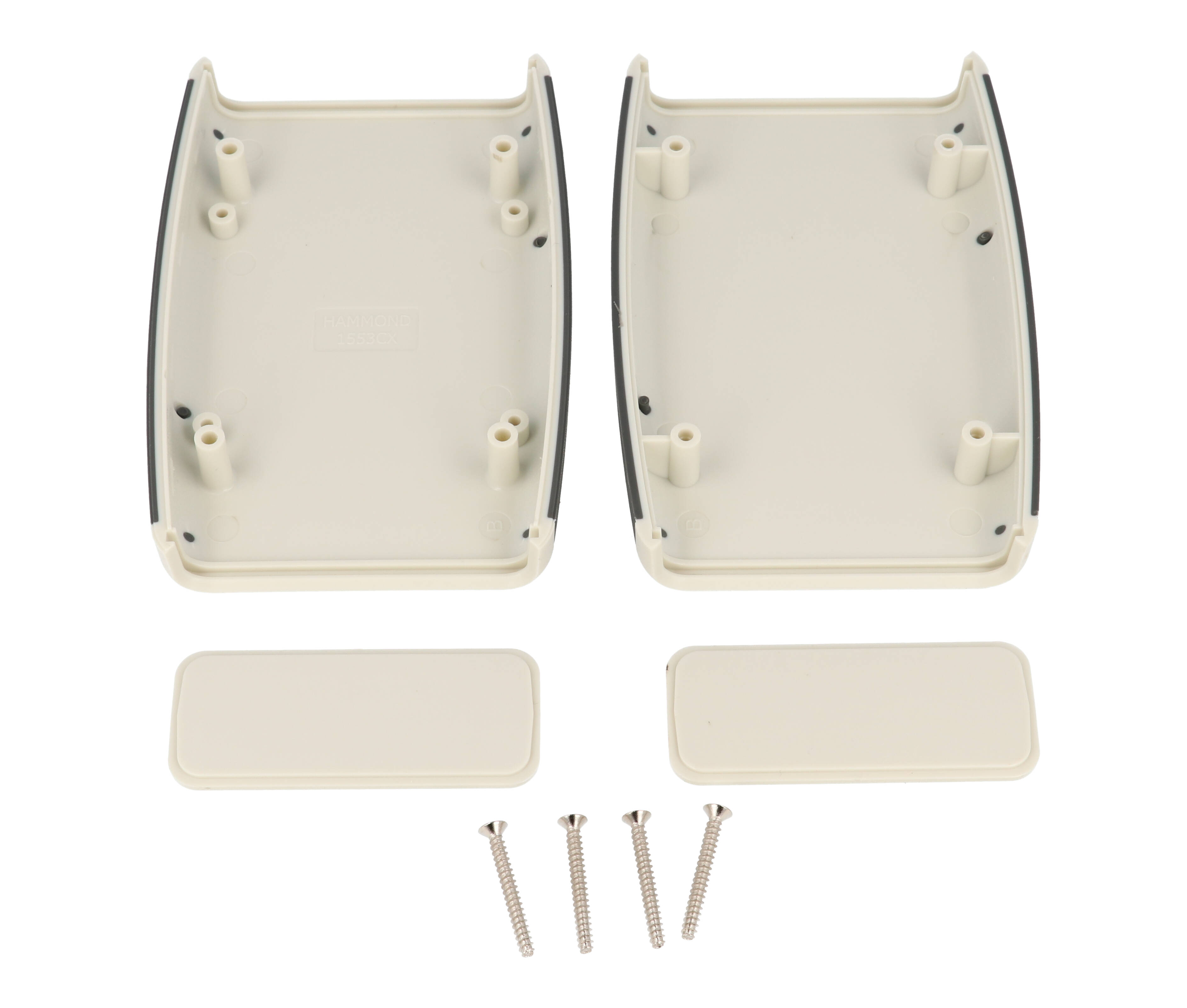

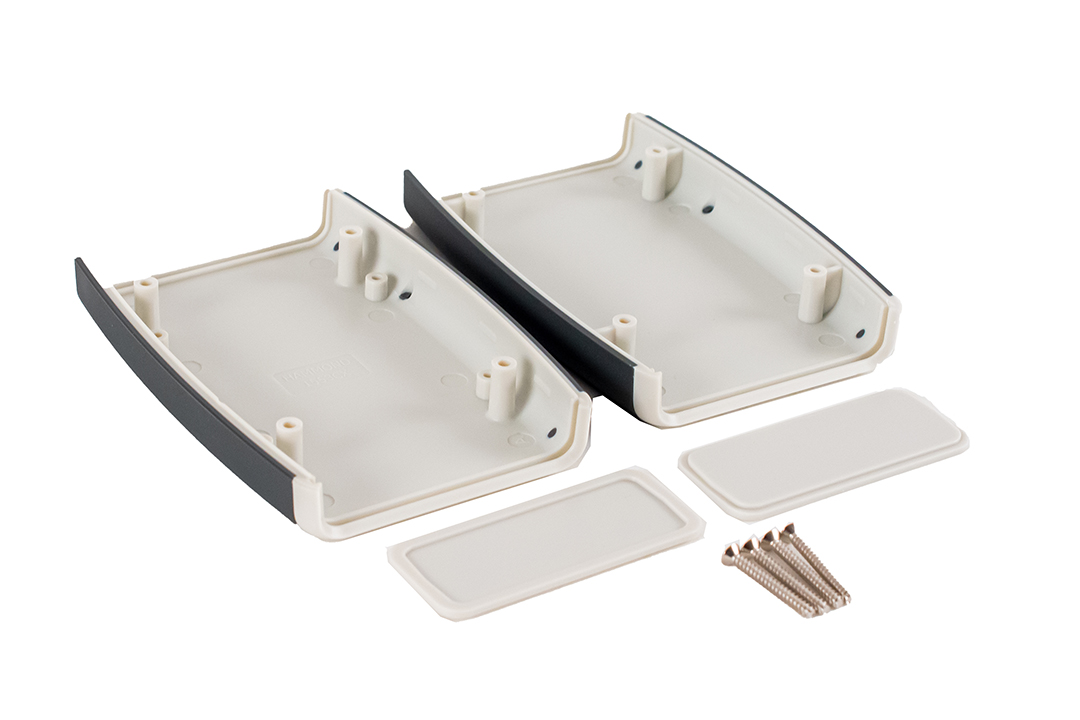

The 1553CXGY ships with the top, bottom, 2 plastic end panels and 4 cover screws; no PC board is supplied. Grey 1553 enclosures use nickel plated screws, with SC1553C100 as the replacement lid screw pack. Recommended cover screw torque is 2.5 lbf-in (30 cN-m), and solid models are offered in .stp or .x_t.
It is RoHS and REACH compliant and ships in a bag at 0.15 lbs (0.07 kg).
Ideal For
- Handheld devices needing I/O at both ends
- Portable instrument housings
- Handheld controllers with keypads
- OEM prototype enclosures
Overview
| Type | Hand-held, soft sided |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Configuration | Dual End Panel |
| Enclosure Size | 1553C |
| Short Description | 1553CX SOFT TOUCH CASE 2-PANEL |
Dimensions
| Overall Depth | 1.26 in (32 mm) |
| Overall Width | 3.11 in (79 mm) |
| Overall Length | 4.61 in (117 mm) |
| Max. P.C. Board Width | 2.72 in (69 mm) |
| Max. P.C. Board Length | 4.25 in (108 mm) |
| Overall Depth (Drawing) | 32.00 mm [1.26 in] |
| Overall Width (Drawing) | 79.00 mm [3.11 in] |
| Internal Mounting Bosses | Accept #4 self-tapping screw (inside bottom) |
| Nominal Size (L X W X H) | 4.62 in x 3.11 in x 1.3 in (117 mm x 79 mm x 33 mm) |
| Overall Length (Drawing) | 117.00 mm [4.61 in] |
| Max. P.C. Board Size (Drawing) | 108.00 mm x 68.74 mm [4.25 in x 2.71 in] |
| Max. P.C. Board Length X Width (Part Page) | 108 mm x 68.7 mm |
Identifiers
| UPC | 623980000664 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Top, Bottom, 2 plastic end panels and 4 cover screws (P.C. Board not supplied) |
| Solid Models | Available in .stp or .x_t |
| Packaging Type | Bag |
| Shipping Weight | 0.15 lbs (0.07 kg) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board Mounting Screws | Not included; order 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" (6.4 mm) plated self-tapping |
| Replacement Cover Screws | Oval head self-tapping cover screws, #4 x 1" (25.4 mm), pkg of 100: SC1553C100 (Silver) / SC1553C100BK (Black) |
| Belt Or Pocket Clip (Optional) | 1599CLIP (Black) / 1599CLIPGY (Grey) |
Construction & Finish
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |
| Overmold | Soft plastic overmold for comfortable grip |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | 2 plastic end panels |
| Cover Screws | Nickel plated |
| Overmold Color | Gray |
| Enclosure Color | Grey |
| PC Board Standoffs | Molded into case |
| Replacement Lid Screws | SC1553C100 |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid and strong solvents |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included with the 1553CXGY?▾
Top, bottom, 2 plastic end panels and 4 cover screws. The PC board is not supplied.
What PC board size fits?▾
Up to 108 mm x 69 mm (4.25 x 2.72 in) per the ordering table.
What screws does the grey version use?▾
Grey 1553 series enclosures include nickel plated screws; replacements are SC1553C100 (pack of 100).
Are CAD models available?▾
Yes, solid models of this enclosure are available in .stp or .x_t format.
