Hammond 1553CGY 117x79x32mm Grey Handheld Enclosure, Soft Overmold
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Grey ABS enclosure with grey soft plastic overmold
- 117 x 79 x 32 mm overall (4.61 x 3.11 x 1.26 in) size C case
- Maximum PC board 109 x 69 mm (4.29 x 2.72 in)
- IP54 rated, no battery door
- Nickel plated cover screws; replacement pack SC1553C100
- Recessed top for membrane display or keypad; molded PCB standoffs
- UL94 HB flame rating; RoHS and REACH compliant

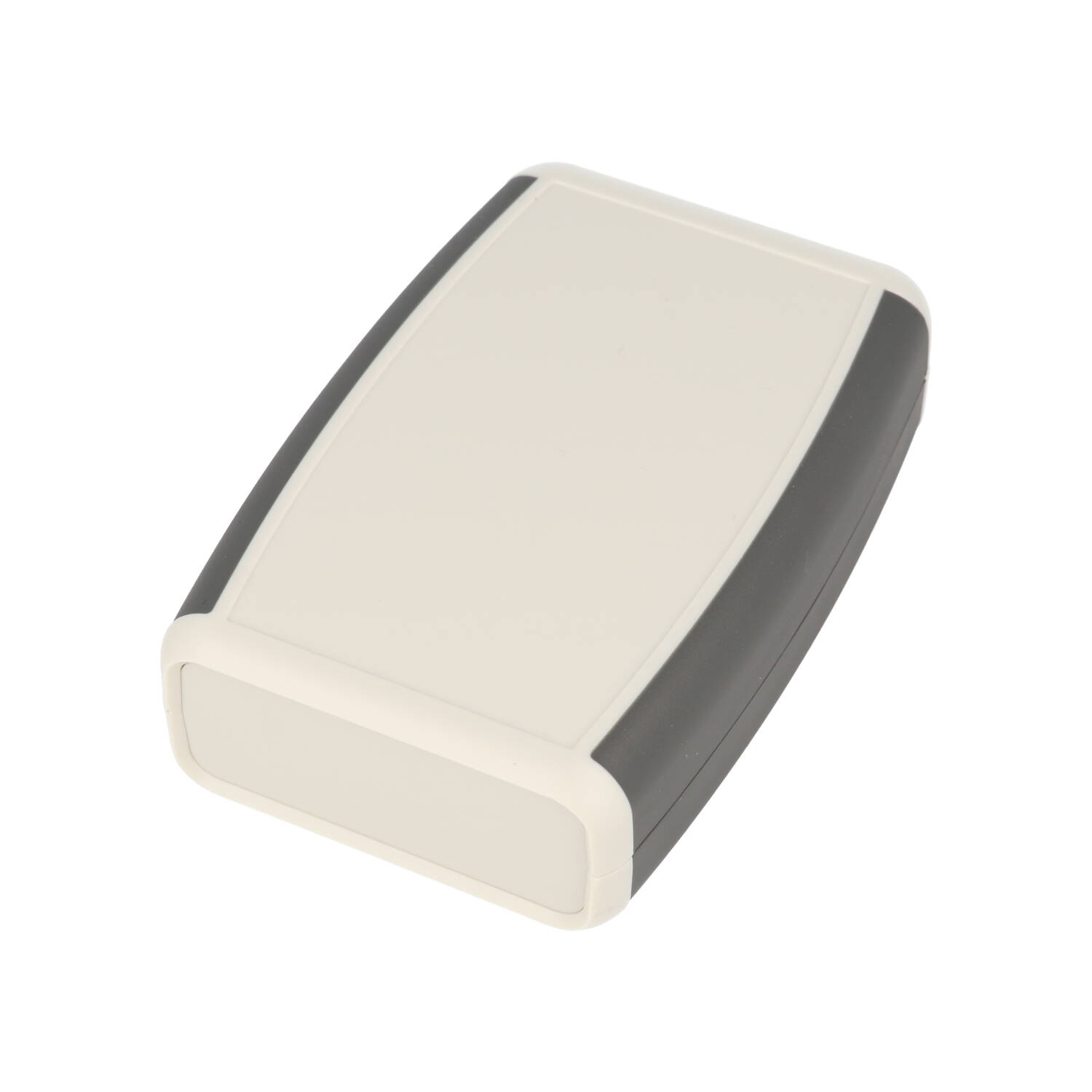

The 1553CGY is the all-grey version of the size C 1553 Series handheld enclosure: a light grey ABS body wrapped in a grey soft plastic overmold. It suits engineers and product builders packaging handheld controllers, data loggers and instruments who want a finished, comfortable case in a neutral colour.
Molded from general purpose ABS plastic with a UL94 HB flame rating, the case has a recessed top cover for a membrane display or keypad and PC board standoffs molded into the base. This single end panel version, without a battery door, is rated IP54.
Overall size is 117 mm x 79 mm x 32 mm (4.61 x 3.11 x 1.26 in), with a nominal listed size of 117 x 79 x 33 mm. The interior is 110.25 mm long and 27.00 mm high, and the maximum PC board is 109 mm x 69 mm (4.29 x 2.72 in).

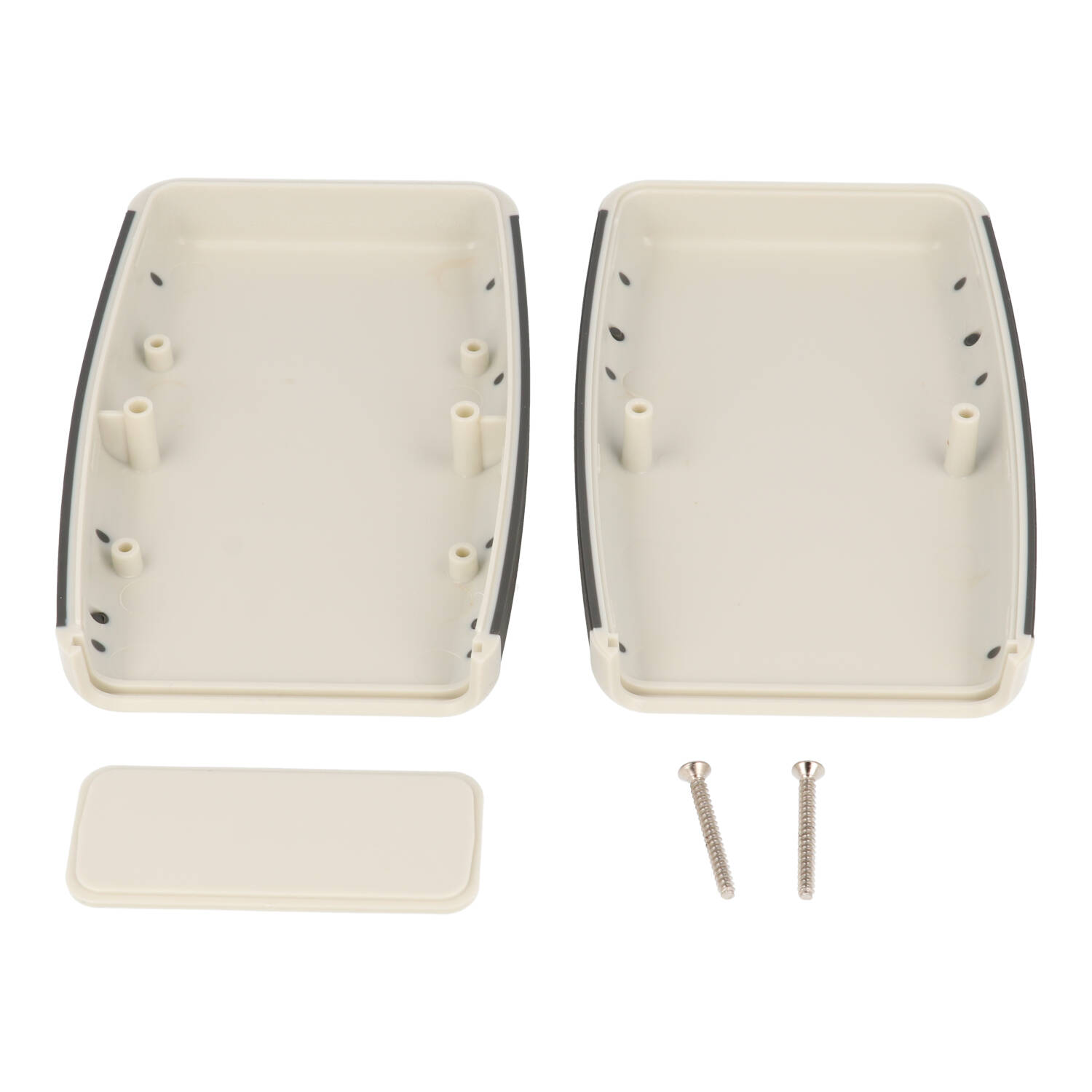

The 1553CGY is supplied with the top, bottom, removable front plastic panel and 2 cover screws. As a grey 1553 enclosure it uses nickel plated screws; the replacement lid screw pack is SC1553C100 (silver). Tighten cover screws to 2.5 lbf-in (30 cN-m). PC board mounting screws are sold separately as 1593ATS50 or 1593ATS100.
It is RoHS and REACH compliant and ships in shrink wrap at 0.15 lbs (0.07 kg).
Ideal For
- Handheld instruments and meters
- Portable data loggers
- Handheld keypads with membrane overlays
- OEM handheld electronics
Overview
| Type | Hand-held, soft sided |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Configuration | Single End Panel |
| Enclosure Size | 1553C |
| Long Description | grey ABS w/ grey soft side hand held enclosure 4.62x3.11x1.30 |
| Short Description | 1553 SOFT TOUCH CASE |
Dimensions
| Overall Depth | 1.26 in (32 mm) |
| Overall Width | 3.11 in (79 mm) |
| Overall Length | 4.61 in (117 mm) |
| PCB Boss Height | 5.00 mm [.197 in] |
| Top Inlay Depth | 0.50 mm [.020 in] |
| Front Panel Size | 65.28 mm x 27.50 mm [2.570 in x 1.083 in] |
| Inner Box Height | 27.00 mm [1.063 in] |
| Inner Box Length | 110.25 mm [4.341 in] |
| Top Inlay Length | 100.43 mm [3.954 in] |
| Max. P.C. Board Width | 2.72 in (69 mm) |
| Inner Box Width At End | 62.86 mm [2.475 in] |
| Max. P.C. Board Length | 4.29 in (109 mm) |
| Top Inlay Width At End | 52.35 mm [2.061 in] |
| Overall Depth (Drawing) | 32.00 mm [1.260 in] |
| Overall Width (Drawing) | 78.97 mm [3.109 in] |
| Nominal Size (L X W X H) | 4.62 in x 3.11 in x 1.3 in (117 mm x 79 mm x 33 mm) |
| Overall Length (Drawing) | 117.23 mm [4.615 in] |
| Inner Box Width At Center | 71.02 mm [2.796 in] |
| Top Inlay Width At Center | 59.43 mm [2.340 in] |
Identifiers
| UPC | 623980992983 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Top, Bottom, front plastic panel and 2 cover screws (P.C. Board not supplied) |
| Solid Models | Available in STEP or IGES |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board Mounting Screws | Not included; order 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" (6.4 mm) plated self-tapping |
| Replacement Cover Screws | Oval head self-tapping cover screws, #4 x 1" (25.4 mm), pkg of 100: SC1553C100 (Silver) / SC1553C100BK (Black) |
| Belt Or Pocket Clip (Optional) | 1599CLIP (Black) / 1599CLIPGY (Grey) |
Construction & Finish
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |
| Overmold | Soft plastic overmold for comfortable grip |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | Single removable front panel |
| Cover Screws | Nickel plated |
| Overmold Color | Grey |
| Enclosure Color | Grey |
| Color (Part Page) | Light Gray |
| PC Board Standoffs | Molded into case |
| Replacement Lid Screws | SC1553C100 |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid and strong solvents |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour are the screws on the 1553CGY?▾
Grey 1553 series enclosures include nickel plated screws. The replacement lid screw pack is SC1553C100 (silver, pack of 100).
What is the largest PC board the 1553CGY accepts?▾
109 mm x 69 mm (4.29 x 2.72 in) per the series ordering table.
What IP rating does it have?▾
IP54. Versions without a battery door are designed to meet IP54.
Is a belt clip available?▾
Yes, the optional 1599CLIPGY (grey) or 1599CLIP (black) nylon belt/pocket clip can be added; user drilling is required.
Are PC board screws included?▾
No. Order 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100) #4 x 1/4 in plated self-tapping screws.
