Hammond 1553BYLBK Yellow Soft-Sided Handheld Enclosure, Black Overmold
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Yellow ABS body with black soft overmold
- 117 x 79 x 24 mm (4.62 x 3.11 x 0.95 in)
- IP54 rated; removable front plastic panel
- PCB up to 105 x 61 mm per the ordering table
- Top cover recessed for membrane keypad or display
- Matching yellow end panels: 1553BPLYL-10
- UL94 HB, RoHS and REACH compliant

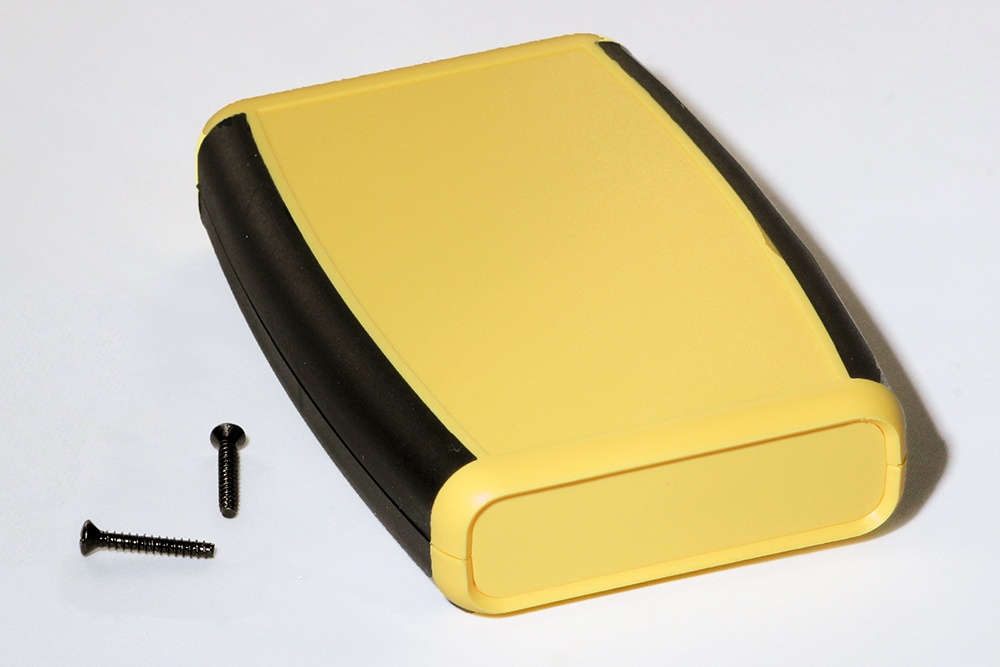

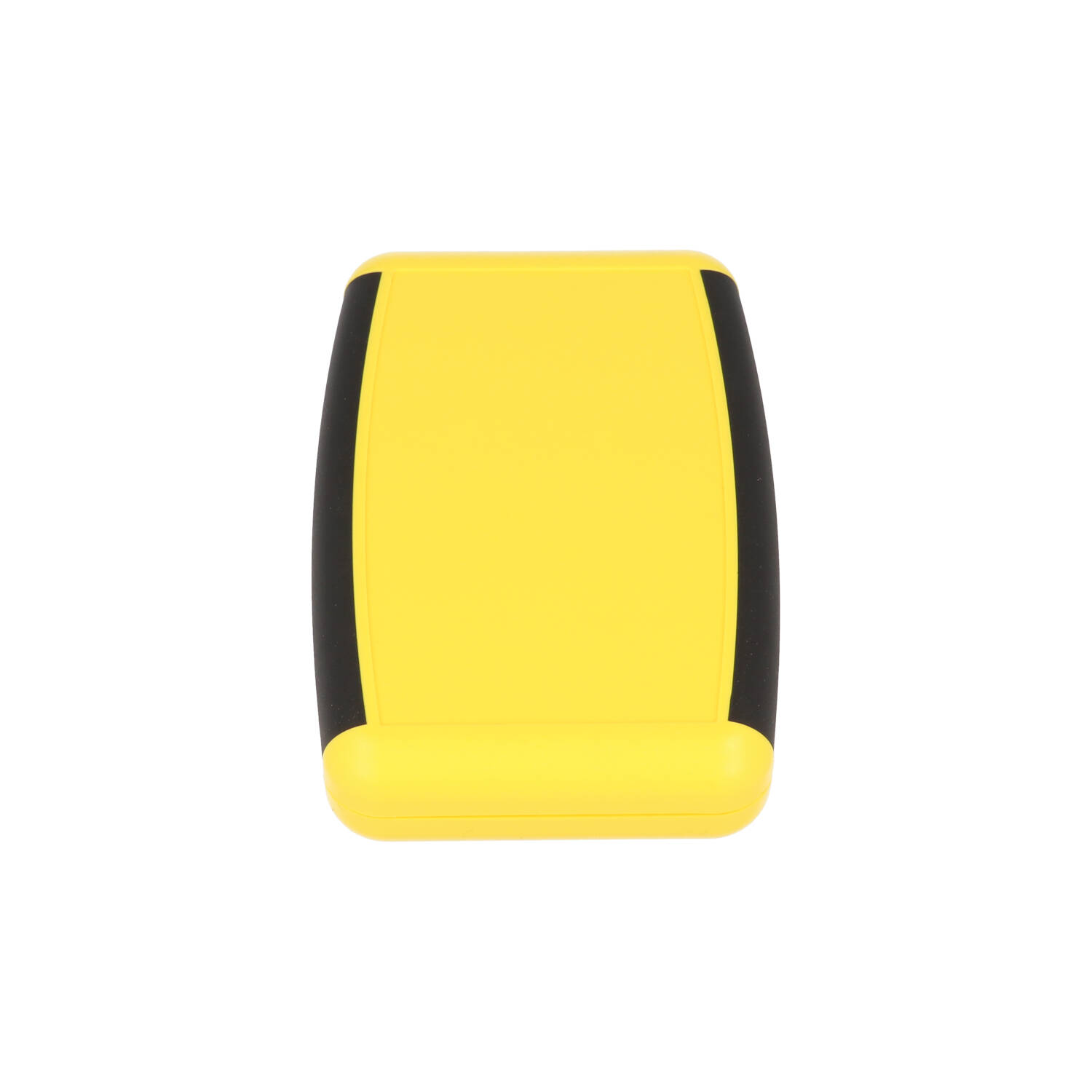

The 1553BYLBK is a yellow ABS 1553B hand held enclosure with a black soft plastic overmold. The high-contrast colour scheme is well suited to handheld tools and instruments that should be easy to spot on a job site or bench.
The part page lists the size as 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm). The drawing shows an inner box 110.25 mm long, 71.02 mm wide at the center and 18.50 mm high, with the board aligned on PCB bosses molded into the bottom cover. The series ordering table gives a maximum P.C. board of 4.13 x 2.40 in (105 x 61 mm), and the drawing's board outline is 109.14 x 60.86 mm. The top cover is recessed for a membrane display or keypad.

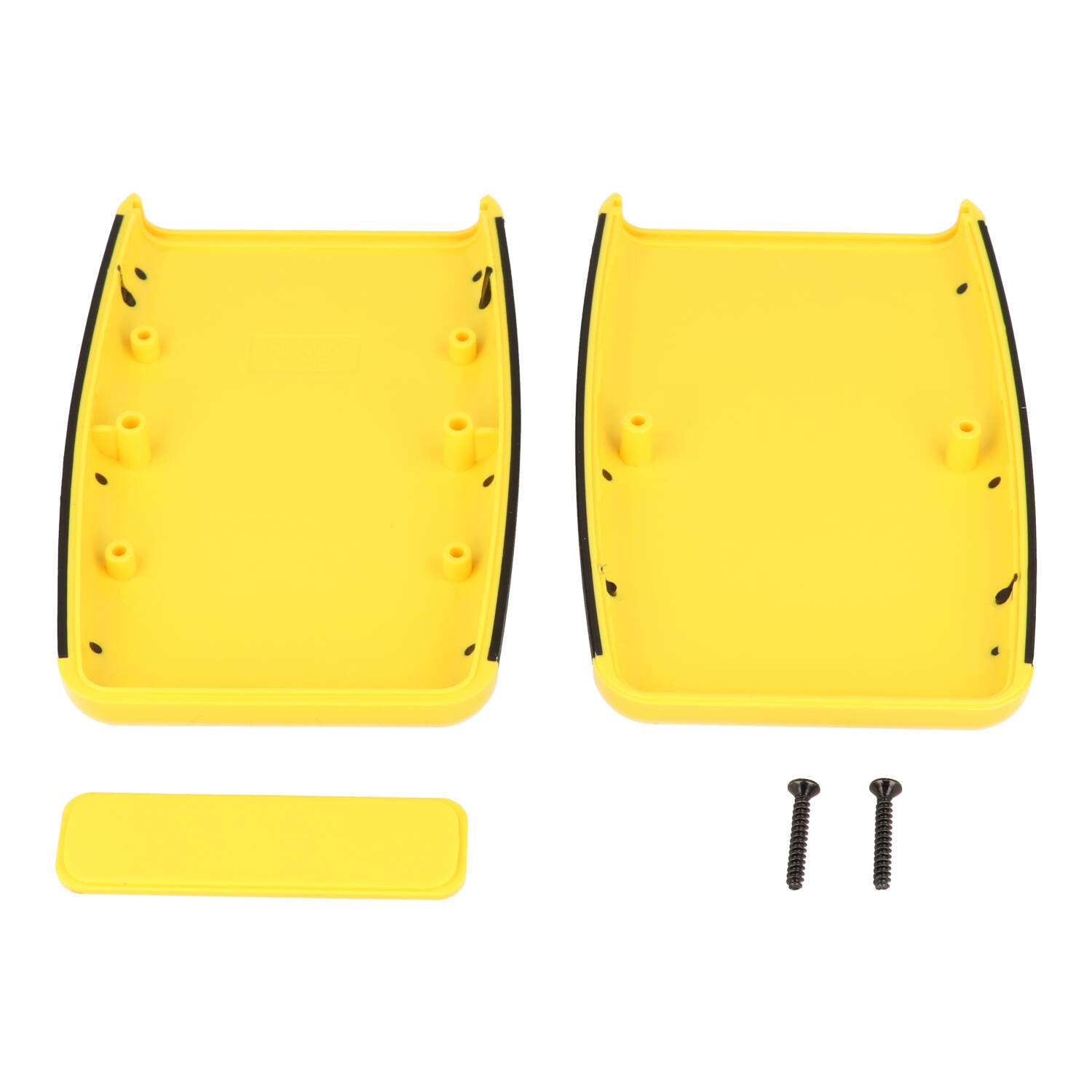

Molded from general purpose ABS, it is rated IP54 and UL94 HB and is RoHS and REACH compliant. The shrink wrapped assembly includes top, bottom, a removable front plastic panel and 2 cover screws; no P.C. board is supplied. Shipping weight is 0.17 lbs (0.08 kg).
Use black 1593QS100BK screws for lid replacement and 1593ATS50 or 1593ATS100 for mounting the board. Spare yellow end panels are 1553BPLYL-10, and the battery door version in the same colours is 1553BYLBKBAT. Tighten covers to 2.5 lbf-in (30 cN-m).
Ideal For
- High-visibility handheld tools
- Job-site handheld instruments
- Keypad-driven handheld controllers
- IP54 handheld housings
Overview
| Type | Hand-held, soft sided |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BYLBK |
| Solid Models | STEP or IGES |
| Ordering Table | Single End Panel |
| Long Description | yellow ABS w/ black soft side hand held enclosure 4.62x3.11x0.95 |
| Short Description | 1553B IN YELLOW ABS |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Inlay Depth | 0.50 mm [.020 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| End Inlay Width | 51.61 mm [2.032 in] |
| Inner Box Height | 18.50 mm [.728 in] |
| Inner Box Length | 110.25 mm [4.341 in] |
| Top Inlay Length | 100.71 mm [3.965 in] |
| PCB Boss Diameter | 5.00 mm [.197 in] |
| Center Inlay Width | 59.71 mm [2.351 in] |
| Inner Box Width At End | 62.86 mm [2.475 in] |
| Overall Size (Drawing) | 117.23 x 78.97 x 24.00 mm [4.615 x 3.109 x .945 in] |
| Front Panel Viewing Area | 65.15 x 16.81 mm [2.56 x .66 in] |
| Inner Box Width At Center | 71.02 mm [2.796 in] |
| Boss Diameter (Top And Bottom) | 5.50 mm [.217 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
Accessories
| IR End Panel | 1553BIR-BULK |
| Prototype PCB | 1553BPCB (not compatible with battery compartment versions) |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Extra End Panels (10-packs) | 1553BPLBK-10, 1553BPLGY-10, 1553BPLRD-10, 1553BPLTBU-10, 1553BPLYL-10 |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100BK |
Identifiers
| UPC | 623980035598 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into bottom cover |
| Max. P.C. Board Width (Part Page) | 70 mm |
| Maximum P.C. Board Size (Drawing) | 109.14 x 60.86 mm [4.297 x 2.396 in] |
| Max. P.C. Board Length (Part Page) | 190 mm |
| Max. P.C. Board Width (Ordering Table) | 2.40 in (61 mm) |
| Max. P.C. Board Length (Ordering Table) | 4.13 in (105 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Included | Top, bottom, front plastic panel (removable) and 2 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Black |
| Enclosure Color | Yellow |
| Color (Part Page) | Yellow |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colours is the 1553BYLBK?▾
Yellow ABS enclosure with a black overmold.
What size PCB fits?▾
The series ordering table lists 4.13 x 2.40 in (105 x 61 mm), and the drawing's maximum board outline is 109.14 x 60.86 mm. The part page lists 190 x 70 mm.
Is it IP rated?▾
Yes, IP54.
What is included?▾
Top, bottom, front plastic panel and 2 cover screws. The P.C. board is not supplied.
Is a battery version available?▾
Yes, 1553BYLBKBAT adds a battery door and compartment.
