Hammond 1553BBKBKBAT All-Black Handheld Enclosure with Battery Compartment
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black ABS with black soft overmold and battery door
- Holds 2x AA (4 spring clips) and a 9V (PP3) battery
- 117 x 79 x 24 mm (4.62 x 3.11 x 0.95 in)
- Board space up to 78 x 67 mm per ordering table
- Removable front plastic panel included
- Recessed top cover for keypad or display
- UL94 HB, RoHS and REACH compliant

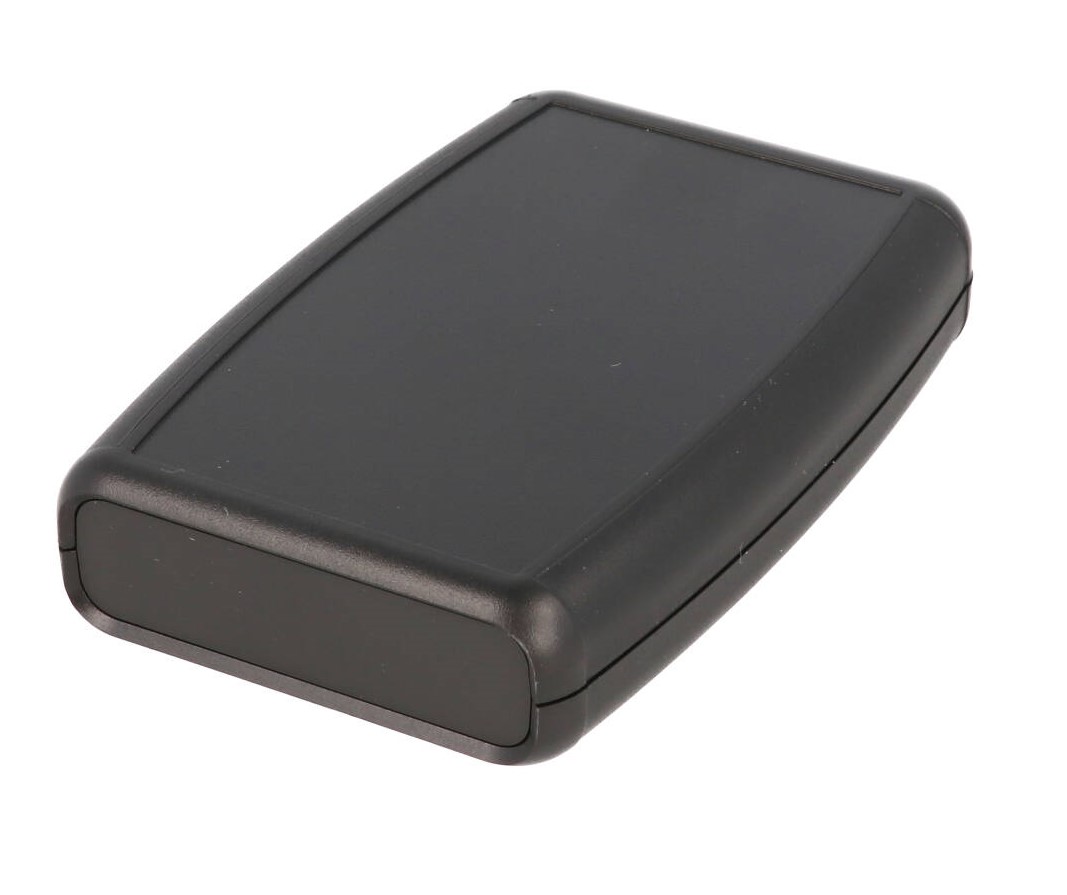

The 1553BBKBKBAT combines a black ABS body, a black soft plastic overmold and a battery door and compartment in the 1553B size. It is the uniform-black choice for designers of battery-powered handheld electronics such as scanners, remotes and portable test gear.
The enclosure measures 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm). Because the battery compartment occupies part of the case, the maximum P.C. board is 78 x 67 mm (3.07 x 2.64 in) per the ordering table. The drawing lists an inner box length of 110.24 mm and inner height of 18.50 mm, with PCB bosses on the bottom cover and a recessed top cover for a membrane display or keypad.
- Battery door with 4 spring clips for 2x AA batteries and a 9V (PP3) adapter
- Removable front plastic panel with a 65.15 x 16.83 mm viewing area
- 2 cover screws included; P.C. board not supplied
Molded from general purpose ABS, the 1553BBKBKBAT is UL94 HB rated and RoHS and REACH compliant, and ships shrink wrapped at 0.17 lbs (0.08 kg). Replacement lid screws are 1593QS100BK; order 1593ATS50 or 1593ATS100 for PCB screws. Spare BS61 9V battery kits and 1553HDR-BKIT AA clip kits are listed as accessories. Recommended cover torque is 2.5 lbf-in (30 cN-m).
Ideal For
- Battery-powered handheld scanners and remotes
- Portable test gear on AA or 9V power
- Handheld devices needing an all-black housing
- Keypad-operated portable controllers
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BBKBKBAT |
| Solid Models | STEP or IGES |
| Ordering Table | With Battery Doors & Compartments |
| Long Description | black ABS w/ black soft side hand held enclosure & battery door 4.62x3.11x0.95 |
| Short Description | 1553 SOFT TOUCH CASE SMALL |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Inlay Depth | 0.50 mm [.02 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| End Inlay Width | 51.61 mm [2.032 in] |
| Inner Box Height | 18.50 mm [.728 in] |
| Inner Box Length | 110.24 mm [4.340 in] |
| Top Inlay Length | 100.71 mm [3.965 in] |
| PCB Boss Diameter | 5.00 mm [.197 in] |
| Center Inlay Width | 59.71 mm [2.351 in] |
| Inner Box Width At End | 62.86 mm [2.475 in] |
| Overall Size (Drawing) | 117.24 x 79.00 x 24.00 mm [4.616 x 3.110 x .945 in] |
| Front Panel Viewing Area | 65.15 x 16.83 mm [2.565 x .663 in] |
| Inner Box Width At Center | 71.02 mm [2.796 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
| Boss Diameter (Top And Bottom Assembly) | 5.50 mm [.217 in] |
Electrical
| Battery Compartment | Battery door and compartment with 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
Accessories
| 9V Battery Kit | BS61 |
| AA Battery Clip Kit | 1553HDR-BKIT (4 positive and 4 negative) |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100BK |
Identifiers
| UPC | 623980035031 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into bottom cover |
| Max. P.C. Board Width (Part Page) | 78.18 mm |
| Maximum P.C. Board Size (Drawing) | 78.18 x 67.00 mm [3.078 x 2.638 in] |
| Max. P.C. Board Length (Part Page) | 67 mm |
| Max. P.C. Board Width (Ordering Table) | 2.64 in (67 mm) |
| Max. P.C. Board Length (Ordering Table) | 3.07 in (78 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish

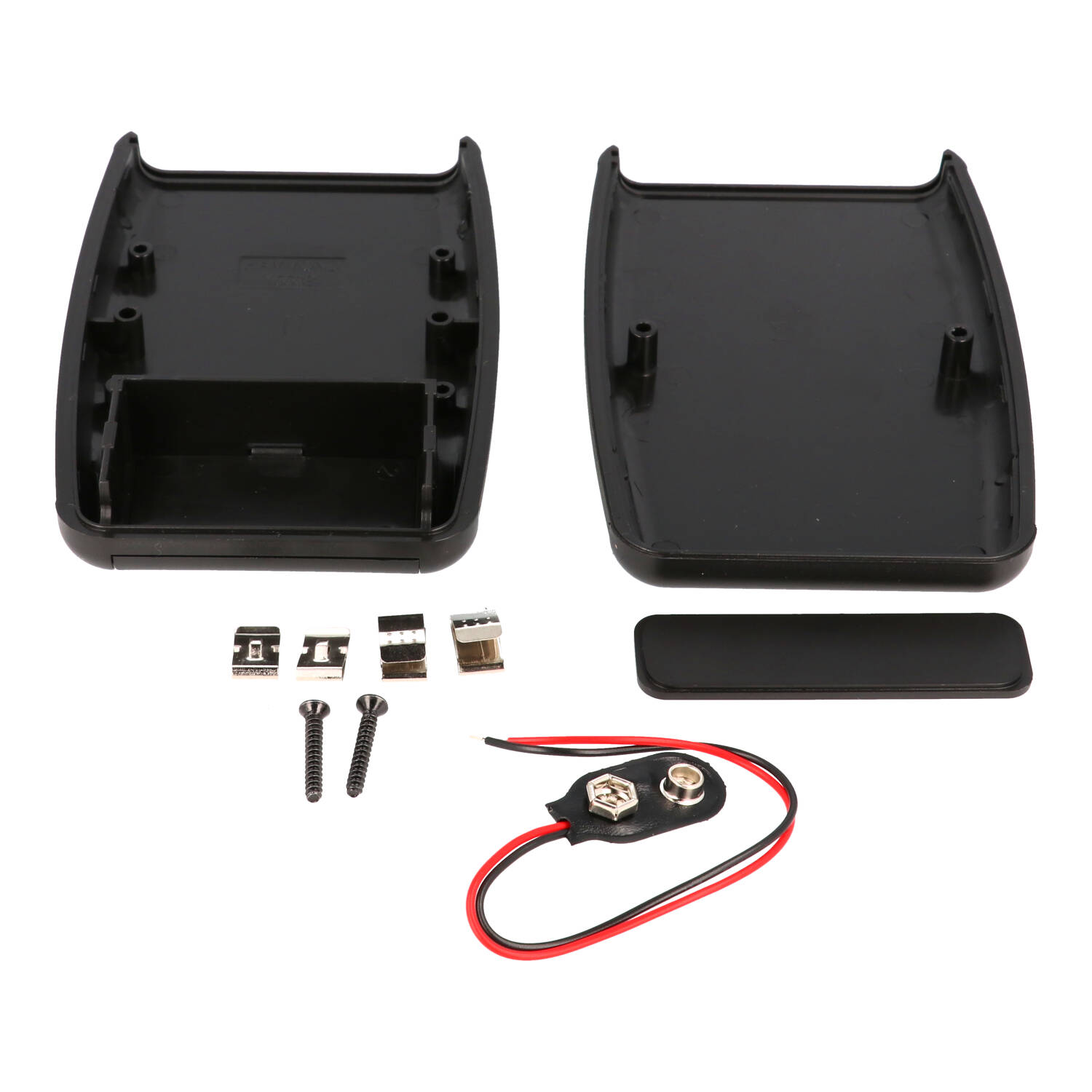

| Included | Top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 2 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Black |
| Enclosure Color | Black |
| Color (Part Page) | Black |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1553BBKBKBAT different from the 1553BBKBAT?▾
Both are black ABS battery versions; the 1553BBKBKBAT has a black overmold, the 1553BBKBAT a grey one.
Which batteries can I use?▾
Two AA batteries (via 4 included spring clips) and a 9V (PP3) battery via the included adapter clip.
What PCB size fits?▾
Up to 78 x 67 mm (3.07 x 2.64 in) per the ordering table.
Which lid screws are used?▾
Black 1593QS100BK oval head self-tapping screws, #4 x 3/4 in (19 mm).
Are replacement battery clips available?▾
Yes, 1553HDR-BKIT (AA clip kit, 4 positive and 4 negative) and BS61 (9V battery kit).
