Hammond 1553BBKBAT Black Battery-Door Handheld Enclosure, 117 x 79 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Built-in battery door and compartment
- Includes 4 AA spring clips (2x AA) and a 9V (PP3) clip
- Black ABS with grey soft overmold, 117 x 79 x 24 mm
- PCB up to 78 x 67 mm (ordering table)
- Removable front plastic panel and 2 cover screws included
- Top cover recessed for a membrane keypad or display
- UL94 HB, RoHS and REACH compliant

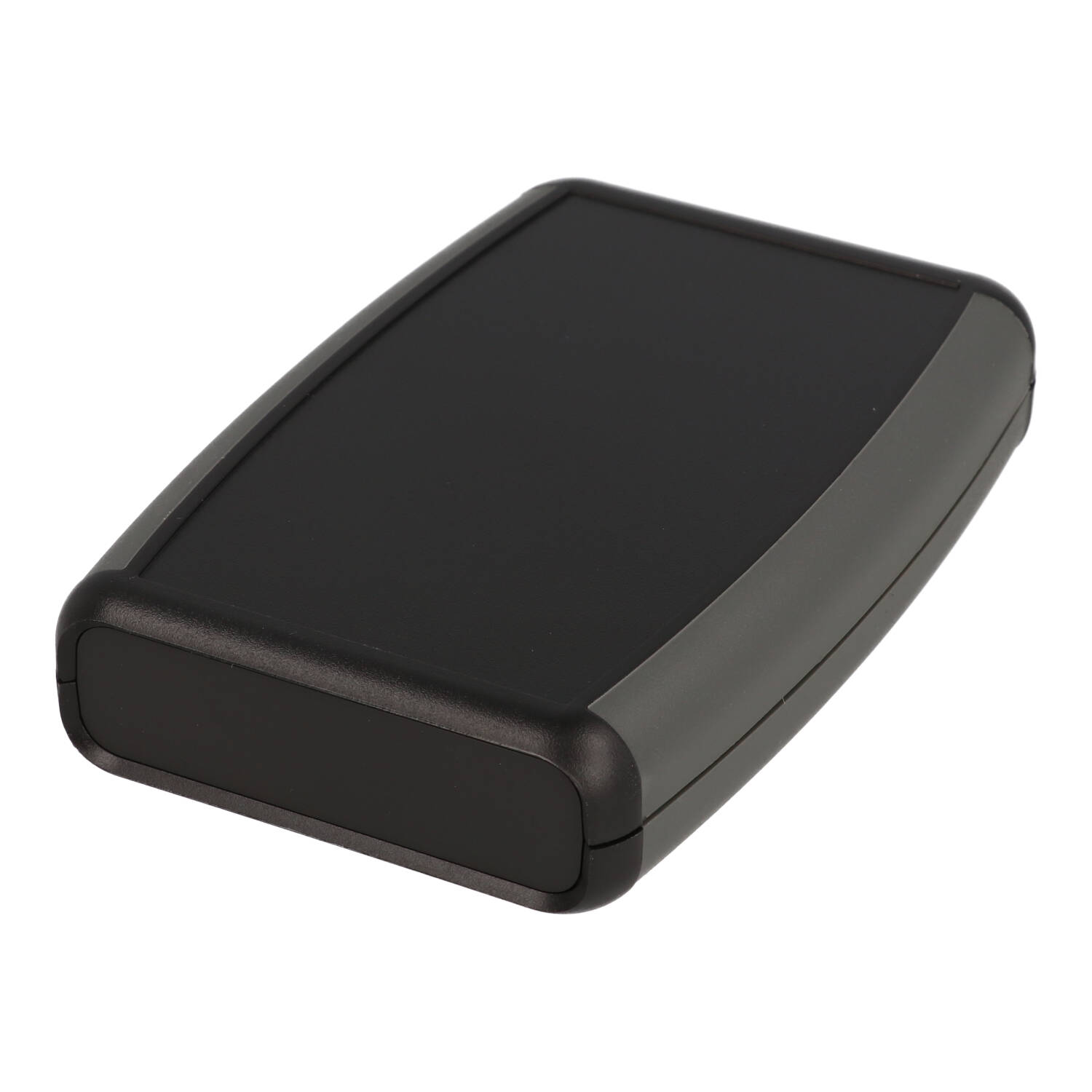

The 1553BBKBAT is the battery version of the 1553B soft-sided hand held enclosure: black ABS with a grey soft plastic overmold, plus a battery door and compartment in the bottom. It is intended for engineers building self-powered handheld devices such as meters, remotes and portable controllers.
Overall size is 4.62 x 3.11 x 0.95 in (117 x 79 x 24 mm). The battery compartment reduces the board area: the ordering table lists a maximum P.C. board of 3.07 x 2.64 in (78 x 67 mm), and the drawing shows 78.18 x 67.00 mm. The inner box is 110.24 mm long with 18.50 mm inner height, PCB bosses are molded into the bottom cover, and the top cover is recessed for a membrane display or keypad.

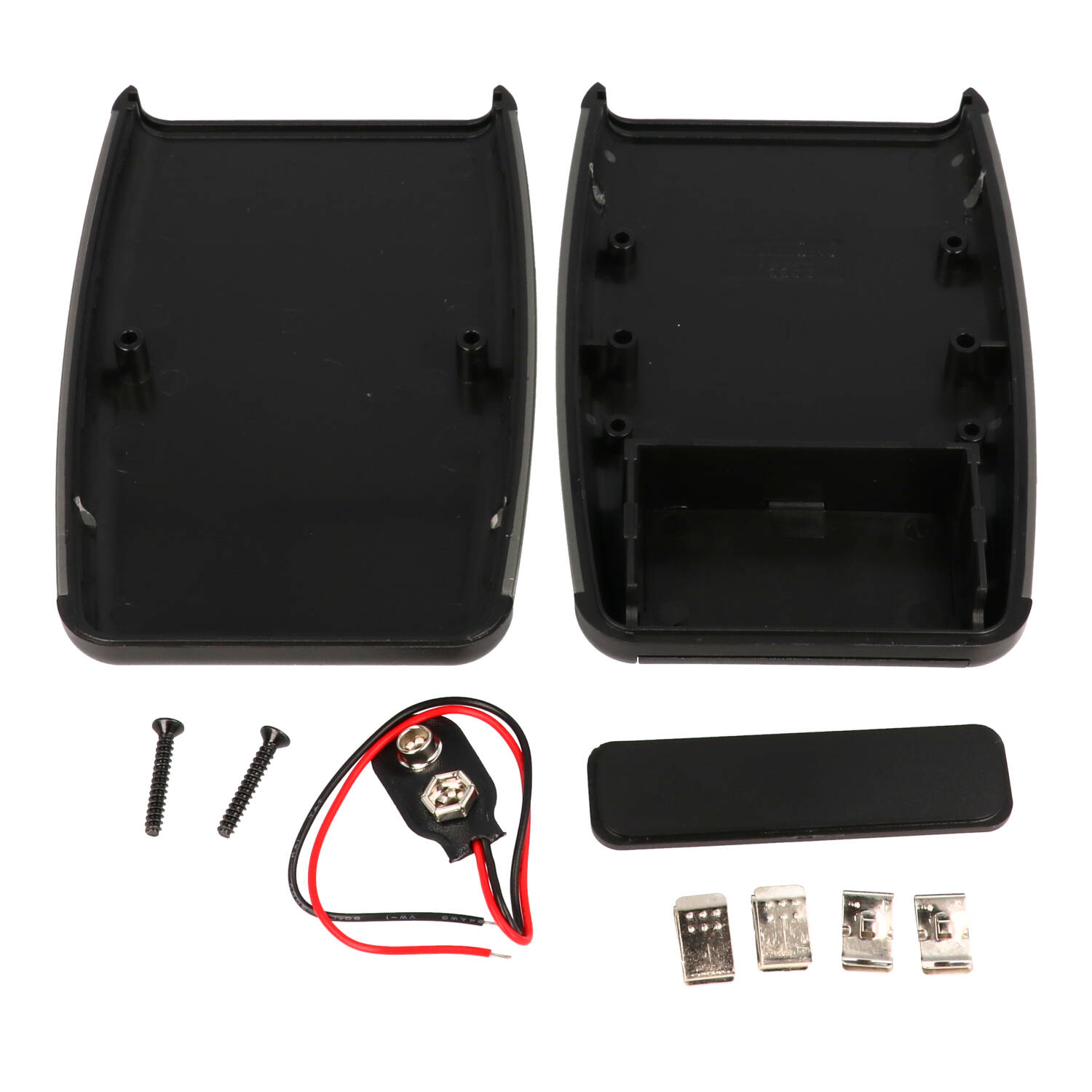

The assembly includes top, bottom, a removable front plastic panel, the battery door, 4 battery spring clips (for 2x AA batteries), a 9V (PP3) adapter clip and 2 cover screws. The P.C. board is not supplied. The case is molded in general purpose ABS with a UL94 HB flame rating and is RoHS and REACH compliant; note that the series IP54 design rating applies to versions without a battery door.
Replacement black lid screws are 1593QS100BK; PCB screws are 1593ATS50 or 1593ATS100. Additional kits include BS61 (9V battery kit) and 1553HDR-BKIT (AA battery clip kit, 4 positive and 4 negative). Recommended cover torque is 2.5 lbf-in (30 cN-m).
Ideal For
- Battery-powered handheld devices
- Portable meters running on AA or 9V cells
- Handheld remotes with membrane keypads
- Self-contained field instruments
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553 ABS Plastic Hand Held Enclosures |
| Part Number | 1553BBKBAT |
| Solid Models | STEP or IGES |
| Ordering Table | With Battery Doors & Compartments |
| Long Description | black ABS w/ grey soft side hand held enclosure & battery door 4.62x3.11x0.95 |
| Short Description | 1553 SOFT TOUCH CASE W/BAT DOR |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Dimensions
| Inlay Depth | 0.50 mm [.02 in] |
| Size L X W X H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
| End Inlay Width | 51.61 mm [2.032 in] |
| Inner Box Height | 18.50 mm [.728 in] |
| Inner Box Length | 110.24 mm [4.340 in] |
| Top Inlay Length | 100.71 mm [3.965 in] |
| PCB Boss Diameter | 5.00 mm [.197 in] |
| Center Inlay Width | 59.71 mm [2.351 in] |
| Inner Box Width At End | 62.86 mm [2.475 in] |
| Overall Size (Drawing) | 117.24 x 79.00 x 24.00 mm [4.616 x 3.110 x .945 in] |
| Front Panel Viewing Area | 65.15 x 16.83 mm [2.565 x .663 in] |
| Inner Box Width At Center | 71.02 mm [2.796 in] |
| Overall Depth (Ordering Table) | 0.94 in (24 mm) |
| Overall Width (Ordering Table) | 3.11 in (79 mm) |
| Overall Length (Ordering Table) | 4.61 in (117 mm) |
| Boss Diameter (Top And Bottom Assembly) | 5.50 mm [.217 in] |
Electrical
| Battery Compartment | Battery door and compartment with 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
Accessories
| 9V Battery Kit | BS61 |
| AA Battery Clip Kit | 1553HDR-BKIT (4 positive and 4 negative) |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Self-Tapping Screws | 1593ATS50 (pkg of 50) or 1593ATS100 (pkg of 100), #4 x 1/4" (6.4 mm) plated — not included |
| Replacement Cover Screws (Black) | 1593QS100BK — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Cover Screws (Silver) | 1593QS100 — oval head, self-tapping, #4 x 3/4" (19 mm), pkg of 100 |
| Replacement Lid Screws (Ordering Table) | 1593QS100BK |
Identifiers
| UPC | 623980581415 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Mounting | P.C. board aligned on PCB bosses molded into bottom cover |
| Max. P.C. Board Width (Part Page) | 78.18 mm |
| Maximum P.C. Board Size (Drawing) | 78.18 x 67.00 mm [3.078 x 2.638 in] |
| Max. P.C. Board Length (Part Page) | 67 mm |
| Max. P.C. Board Width (Ordering Table) | 2.64 in (67 mm) |
| Max. P.C. Board Length (Ordering Table) | 3.07 in (78 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Included | Top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 2 cover screws; P.C. board not supplied |
| Material | ABS Plastic (general purpose ABS) with soft plastic overmold |
| Top Cover | Recessed for membrane display or keypad |
| Overmold Color | Gray |
| Enclosure Color | Black |
| Color (Part Page) | Black |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What batteries does the 1553BBKBAT hold?▾
It includes 4 battery spring clips for 2x AA batteries and 1 clip for a 9 volt (PP3) battery.
What is the largest PCB that fits?▾
78 x 67 mm (3.07 x 2.64 in) per the ordering table; the drawing shows 78.18 x 67.00 mm.
Is the battery version IP54?▾
No IP rating is listed for this part. The series states that versions without a battery door are designed to meet IP54.
Does the 1553BPCB prototype board fit?▾
No. The 1553BPCB is not compatible with battery compartment versions.
What is included?▾
Top, bottom, front plastic panel, battery door, 4 battery spring clips, a 9V adapter and 2 cover screws; the P.C. board is not supplied.
