Hammond 1553CGYBAT 117x79x32mm Grey Battery Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Battery door and compartment with clips for 2x AA or one 9V (PP3) battery
- Grey ABS enclosure with grey soft plastic overmold
- 117 x 79 x 32 mm overall (4.61 x 3.11 x 1.26 in)
- PC board up to 78 x 69 mm (3.07 x 2.72 in)
- Nickel plated cover screws; replacement pack SC1553C100
- Recessed top for membrane display or keypad
- UL94 HB; RoHS and REACH compliant

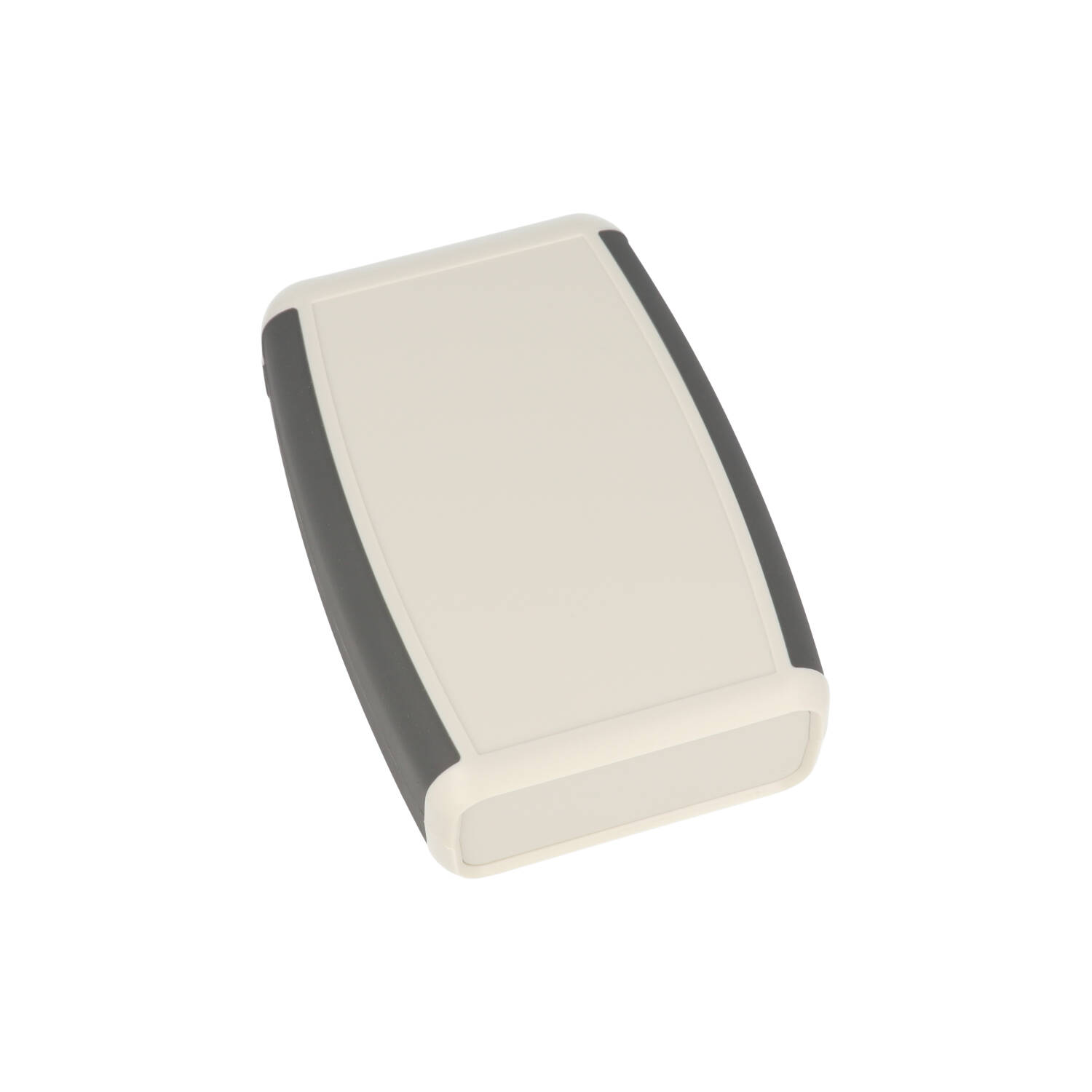

The 1553CGYBAT is the grey-on-grey battery version of the size C 1553 Series handheld enclosure. A light grey ABS body with a grey soft overmold houses a built-in battery compartment, making it a practical choice for portable instruments and controllers that run on AA or 9V cells.

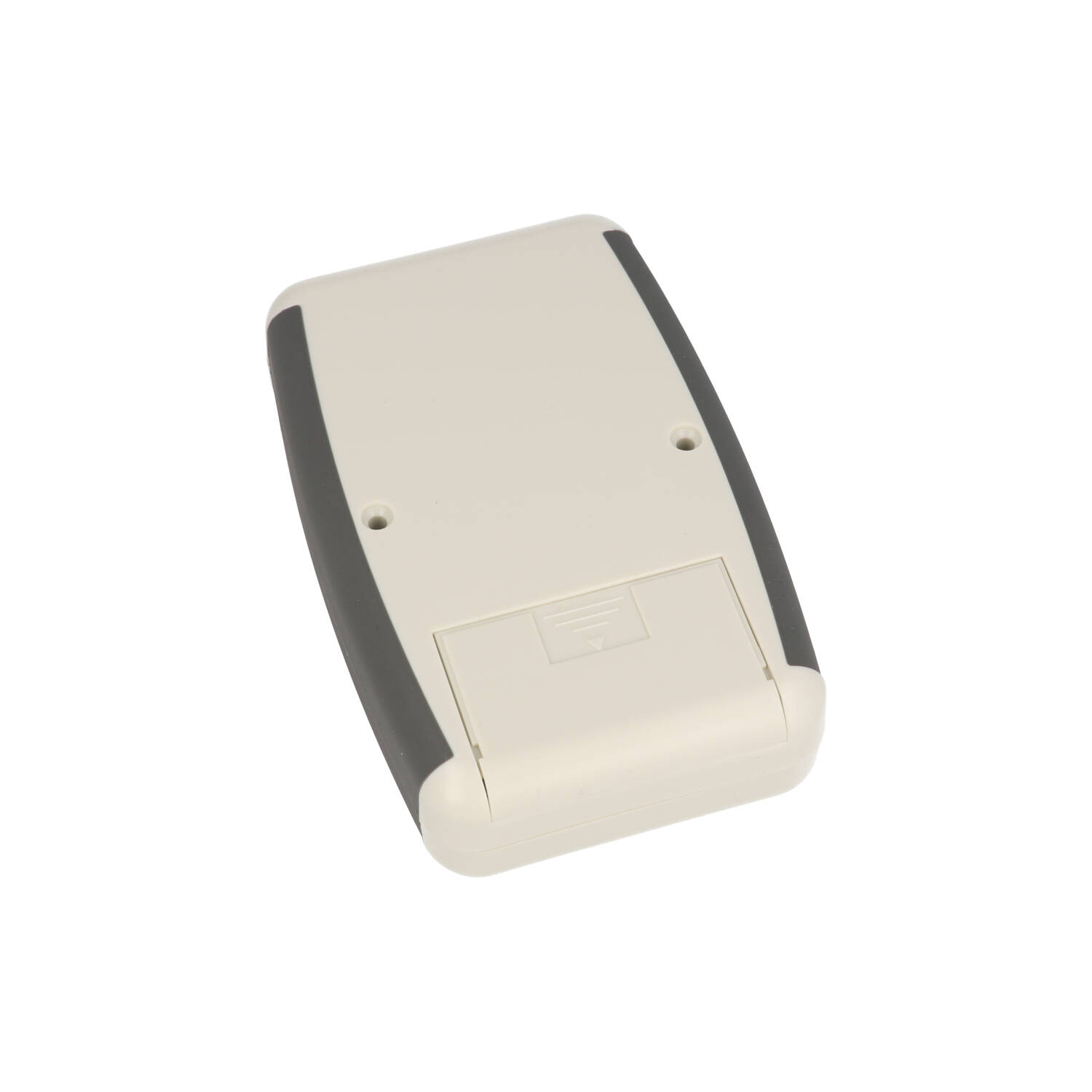

Its battery door and compartment come with 4 battery spring clips for 2x AA batteries plus a 9V (PP3) adapter. The case is molded from general purpose ABS rated UL94 HB, with a recessed top cover for a membrane display or keypad and molded-in PC board standoffs.
Overall size is 117 x 79 x 32 mm (4.61 x 3.11 x 1.26 in), with a nominal listed size of 117 x 79 x 33 mm. Inside, the box is 108.91 mm long and 27.00 mm high, and the maximum PC board is 78 mm x 69 mm (3.07 x 2.72 in).

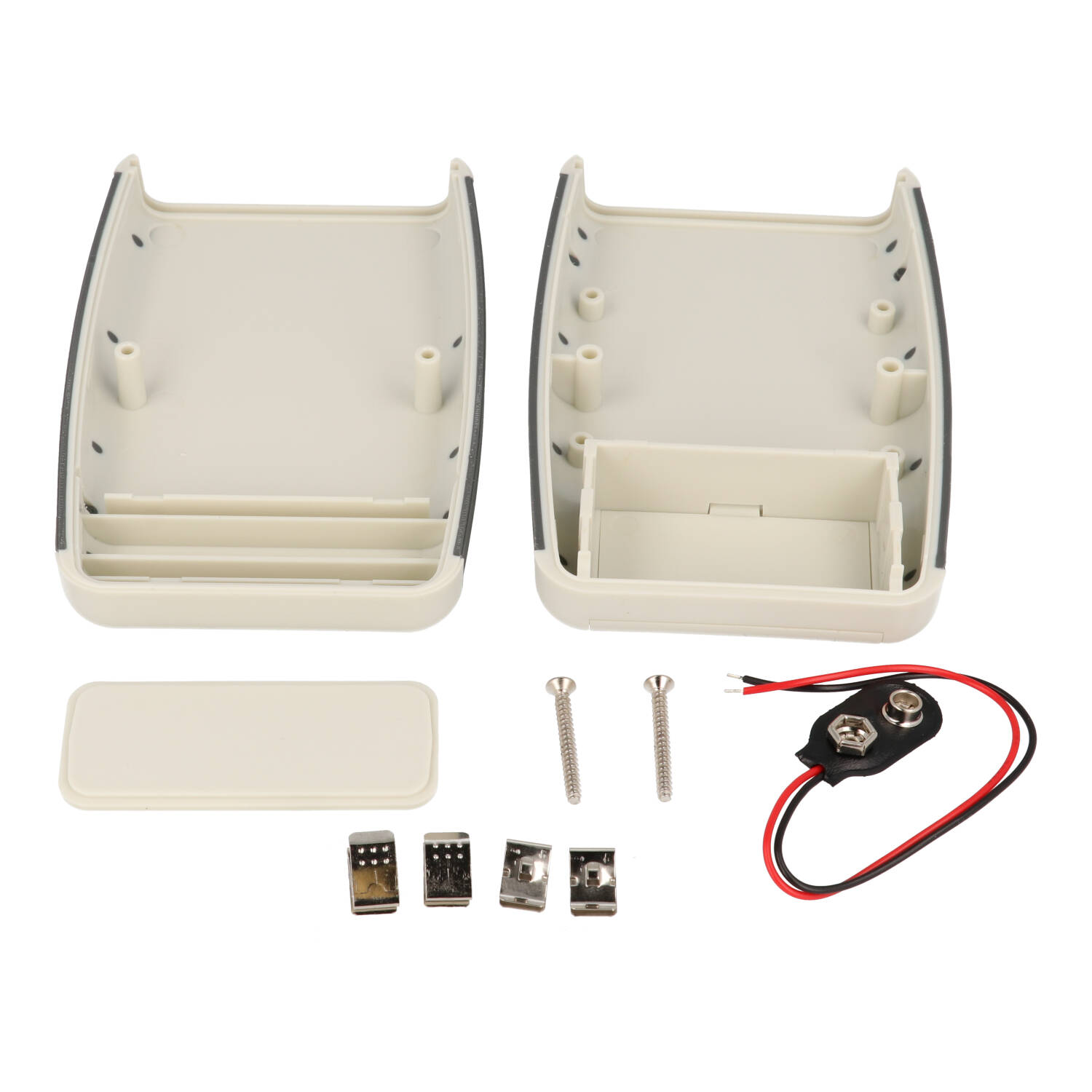

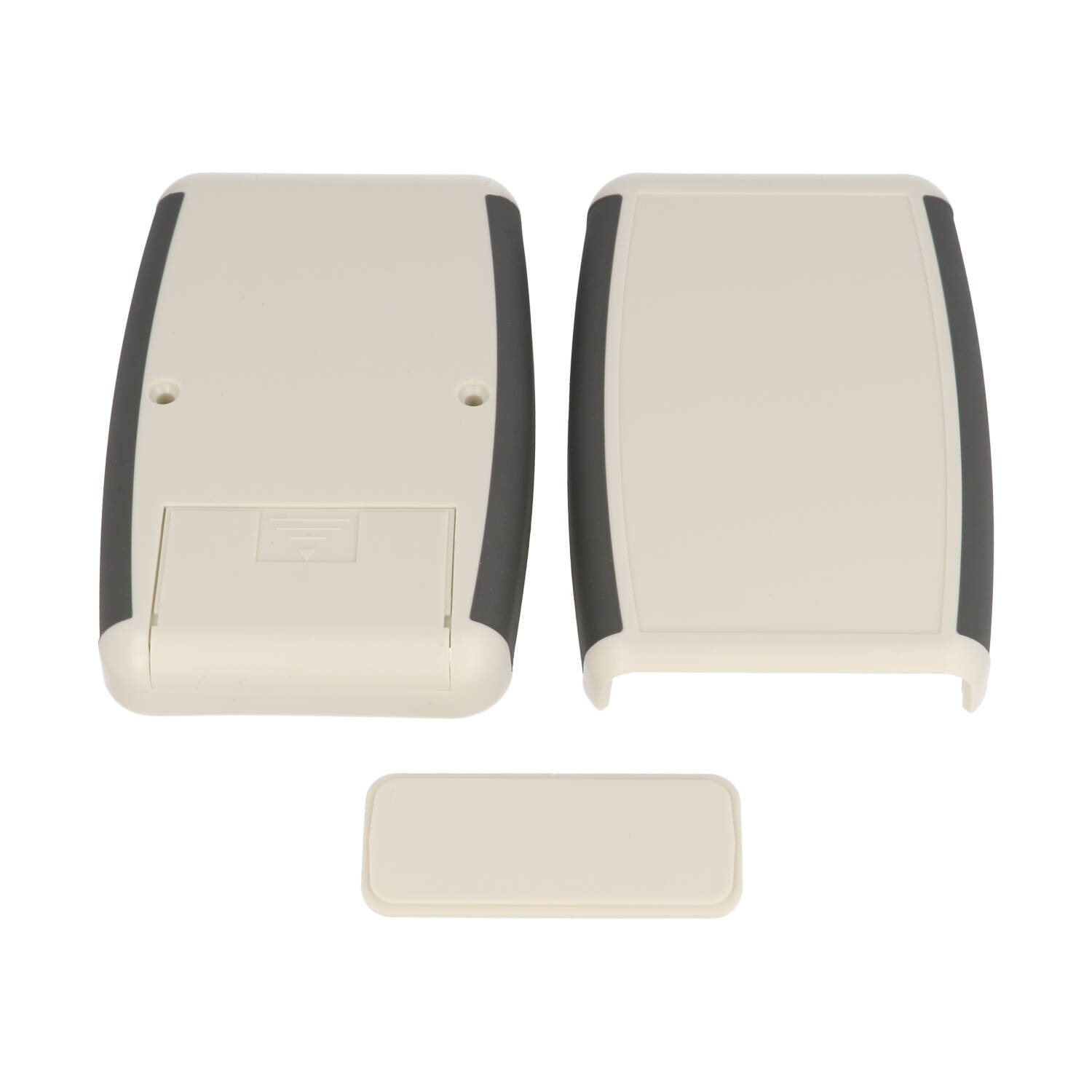

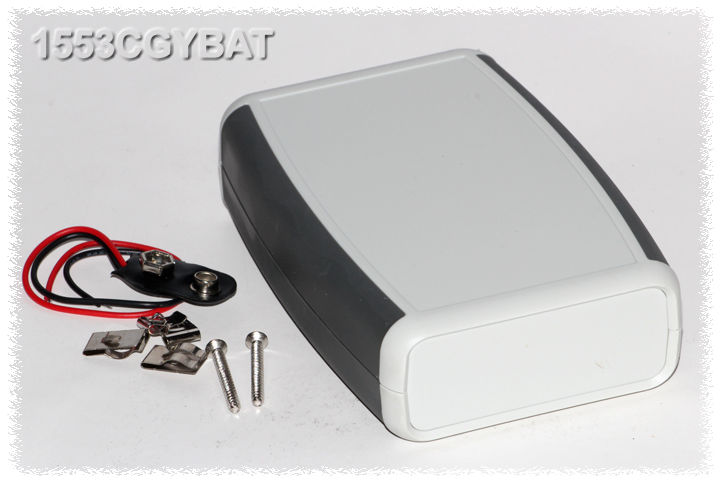

The 1553CGYBAT is supplied with the top, bottom, front plastic panel, battery door, 4 battery spring clips, 1 9V adapter and 2 cover screws; no PC board is included. Grey 1553 enclosures use nickel plated screws, and the replacement pack is SC1553C100. Recommended cover screw torque is 2.5 lbf-in (30 cN-m).
RoHS and REACH compliant, it ships in shrink wrap at 0.18 lbs (0.08 kg).
Ideal For
- AA or 9V powered handheld instruments
- Portable data collection devices
- Handheld remotes with keypads
- Battery-powered OEM electronics
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Configuration | With Battery Doors & Compartments |
| Enclosure Size | 1553C |
| Long Description | grey ABS w/ grey soft side hand held enclosure & battery door 4.62x3.11x1.30 |
| Short Description | 1553 SOFT TOUCH W BAT. DOOR |
Dimensions
| Overall Depth | 1.26 in (32 mm) |
| Overall Width | 3.11 in (79 mm) |
| Overall Length | 4.61 in (117 mm) |
| PCB Boss Height | 5.00 mm [.197 in] |
| Top Inlay Depth | 0.50 mm [.020 in] |
| Front Panel Size | 65.28 mm x 27.50 mm [2.570 in x 1.083 in] |
| Inner Box Height | 27.00 mm [1.063 in] |
| Inner Box Length | 108.91 mm [4.288 in] |
| Top Inlay Length | 100.43 mm [3.954 in] |
| Max. P.C. Board Width | 2.72 in (69 mm) |
| Inner Box Width At End | 63.22 mm [2.489 in] |
| Max. P.C. Board Length | 3.07 in (78 mm) |
| Top Inlay Width At End | 52.35 mm [2.061 in] |
| Overall Depth (Drawing) | 32.00 mm [1.260 in] |
| Overall Width (Drawing) | 78.97 mm [3.109 in] |
| Nominal Size (L X W X H) | 4.62 in x 3.11 in x 1.3 in (117 mm x 79 mm x 33 mm) |
| Overall Length (Drawing) | 117.24 mm [4.616 in] |
| Inner Box Width At Center | 70.46 mm [2.774 in] |
| Top Inlay Width At Center | 59.43 mm [2.340 in] |
| Max. P.C. Board Size (Drawing) | 78.18 mm x 68.73 mm [3.078 in x 2.706 in] |
| Max. P.C. Board Length X Width (Part Page) | 68.73 mm x 78.18 mm |
Electrical
| Battery Clips | 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
| Replacement 9V Battery Kit | BS61 (not supplied) |
| Replacement AA Battery Clip Kit | 1553HDR-BKIT (4 positive and 4 negative, not supplied) |
Identifiers
| UPC | 623980023946 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Top, Bottom, front plastic panel, Battery Door, battery spring clips (4 pcs), 9V adapter (1 pc) and 2 cover screws (P.C. Board not supplied) |
| Solid Models | Available in STEP or IGES |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board Mounting Screws | Not included; order 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" (6.4 mm) plated self-tapping |
| Replacement Cover Screws | Oval head self-tapping cover screws, #4 x 1" (25.4 mm), pkg of 100: SC1553C100 (Silver) / SC1553C100BK (Black) |
| Belt Or Pocket Clip (Optional) | 1599CLIP (Black) / 1599CLIPGY (Grey) |
Construction & Finish
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |
| Overmold | Soft plastic overmold for comfortable grip |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | Single removable front panel |
| Cover Screws | Nickel plated |
| Overmold Color | Gray |
| Enclosure Color | Grey |
| Color (Part Page) | Light Gray |
| PC Board Standoffs | Molded into case |
| Battery Compartment | Battery door and compartment |
| Replacement Lid Screws | SC1553C100 |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid and strong solvents |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included with the 1553CGYBAT?▾
Top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 2 cover screws. The PC board is not supplied.
What PC board size fits?▾
Up to 78 mm x 69 mm (3.07 x 2.72 in) per the ordering table.
Does it use silver or black screws?▾
Grey 1553 series enclosures include nickel plated screws; the replacement lid screw pack is SC1553C100.
Is there a non-battery grey version?▾
Yes, the 1553CGY is the same size C grey/grey case without a battery door, rated IP54.
