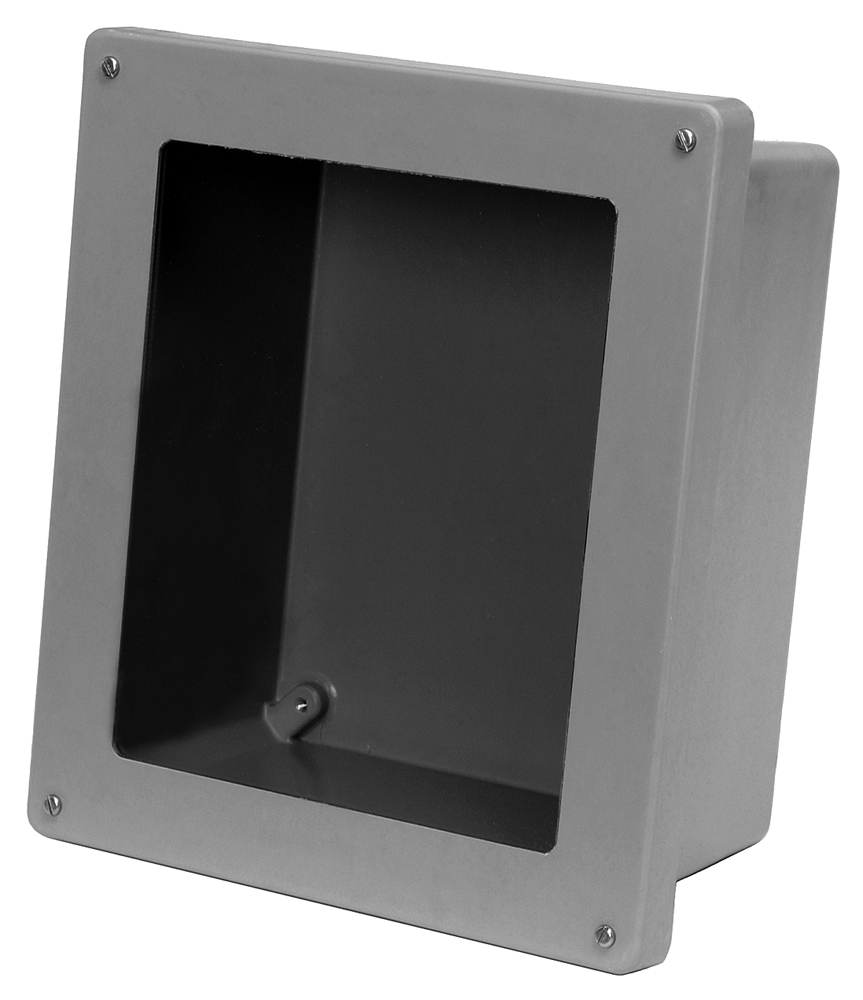

Type 4X Polyester Junction Box w/ Window · PJ Series
Brand: Hammond Manufacturing · 53 part numbers
Various Door Styles
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- ■Ideal in applications with high temperatures or highly corrosive environments.
- ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12, & 13 IEC 60529, IP66
from $5.35
52 of 53 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your PJ Series part number
Filter 44 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
44 of 44 part numbers · 43 priced online
Non Met Snap Latch Window
$180.99In stock
Buy nowNon Met Twist Latch/Window
$180.99Backorder
Buy nowNon Met Screw Cvr/Window
$161.78In stock
Buy nowNon Met Hng Scr Cov W/Window
$186.68Backorder
Buy nowNon Met Hng Snap Lat/Window
$201.91In stock
Buy nowNon Met Window Cove Hinge Twis
QuoteRequest a quote
Non Met Screw Cvr/Window
$182.74Backorder
Buy nowNon Met Hng Screw Cvr/Window
$213.24In stock
Buy nowNon Met Hng Snap Lat Ch/Windw
$227.44In stock
Buy nowNon Met Window Cover Hinge Twi
$227.44In stock
Buy nowNon Met Screw Cov/Window
$205.32Backorder
Buy nowNon Met Hng Screw Cvr/Window
$228.11Backorder
Buy nowNon Met Hng Snap Lat Ch/Windw
$243.20Backorder
Buy nowNon Met Window Cover Hinge Twi
$243.20Backorder
Buy nowNon Met Screw Cov/Window
$219.65Backorder
Buy nowNon Met Hng Screw Cvr/Window
$235.54Backorder
Buy nowNon Met Hng Snap Lat Ch/Windw
$251.13In stock
Buy nowNon Met Window Cover Hinge Twi
$251.13Backorder
Buy nowNon Met Screw Cov/Window
$226.77Backorder
Buy nowNon Met Hng Screw Cov/Window
$250.59In stock
Buy nowNon Met Hng Snap Lat Ch/Window
$274.37In stock
Buy nowNon Met Window Cover Hinge Twi
$274.37In stock
Buy nowNon Met Screw Cvr Window
$248.31Backorder
Buy nowNon Met Hng Screw Cv/Window
$282.30Backorder
Buy nowNon Met Hng Snap Latch Window
$306.05In stock
Buy nowNon Met Window Cover Hinge Twi
$306.05In stock
Buy nowNon Met Screw Cvr/W Window
$279.98In stock
Buy nowNon Met Hng Screw Cvr/W Window
$338.29Backorder
Buy nowNon Met Snap Lat Ch/Window
$364.90In stock
Buy nowNon Met Window Cover Hinge Twi
$364.90Backorder
Buy nowNon Met Screw Cvr/Window
$336.05Backorder
Buy nowNon Met Hng Screw Cvr/Window
$519.29Backorder
Buy nowNon Met Hng Screw Cvr/Window
$571.91Backorder
Buy nowNon Met Window Cover Hinge Twi
$571.91In stock
Buy nowNon Met Screw Cvr/Window
$518.75Backorder
Buy nowNon Met Hng Screw Cvr/Window
$137.51Backorder
Buy nowNon Met Snap Latch Window
$152.72Backorder
Buy nowNon Met Window Cover Hinge Twi
$152.72In stock
Buy nowNon Met Screw Cvr/Window
$134.06Backorder
Buy nowNon Met Hng Screw Cov/Window
$147.68In stock
Buy nowNon Met Snap Latch Ch/Window
$163.48Backorder
Buy nowNon Met Window Cover Hinge Twi
$163.48In stock
Buy nowNon Met Screw Cvr/Window
$143.73Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Lift-Off · Part No. | Hinged · Part No. | Snap Latch · Part No. | Twist Latch · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · H | Optional Inner Panel · W | Optional Inner Panel · Part No. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ664W | PJ664HW | PJ664LW | PJ664TW | 6.10 | 6.10 | 4.18 | 4.88 | 4.88 | 14R0505 | $134.06BackorderPJ664W | Buy now |
| PJ864W | PJ864HW | PJ864LW | PJ864TW | 8.00 | 6.12 | 4.13 | 6.75 | 4.88 | 14R0705 | $143.73BackorderPJ864W | Buy now |
| PJ1084W | PJ1084HW | PJ1084LW | PJ1084TW | 10.13 | 8.26 | 4.13 | 8.75 | 6.88 | 14R0907 | $161.78In stockPJ1084W | Buy now |
| PJ1086W | PJ1086HW | PJ1086LW | PJ1086TW | 10.13 | 8.26 | 6.13 | 8.75 | 6.88 | 14R0907 | $182.74BackorderPJ1086W | Buy now |
| PJ12106W | PJ12106HW | PJ12106LW | PJ12106TW | 12.13 | 10.26 | 6.13 | 10.75 | 8.88 | 14R1109 | $205.32BackorderPJ12106W | Buy now |
| PJ12124W | PJ12124HW | PJ12124LW | PJ12124TW | 12.13 | 12.13 | 4.13 | 10.75 | 10.88 | 14R1111 | $219.65BackorderPJ12124W | Buy now |
| PJ12126W | PJ12126HW | PJ12126LW | PJ12126TW | 12.13 | 12.13 | 6.13 | 10.75 | 10.88 | 14R1111 | $226.77BackorderPJ12126W | Buy now |
| PJ14126W | PJ14126HW | PJ14126LW | PJ14126TW | 14.13 | 12.26 | 6.13 | 12.75 | 10.88 | 14R1311 | $248.31BackorderPJ14126W | Buy now |
| PJ16148W | PJ16148HW | PJ16148LW | PJ16148TW | 16.27 | 14.40 | 8.13 | 14.75 | 12.88 | 14R1513 | $279.98In stockPJ16148W | Buy now |
| PJ18168W | PJ18168HW | PJ18168LW | PJ18168TW | 18.40 | 16.40 | 8.13 | 16.88 | 14.88 | P1868 | $336.05BackorderPJ18168W | Buy now |
| PJ20168W | PJ20168HW | PJ20168LW | PJ20168TW | 20.00 | 16.00 | 8.13 | 18.44 | 14.44 | P2068 | $518.75BackorderPJ20168W | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- ■Ideal in applications with high temperatures or highly corrosive environments.
Standards
- ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12, & 13 IEC 60529, IP66
- ■NEMA Type 1, 2, 3, 4, 4X, 12, & 13
- ■IEC 60529, IP66
Construction
- ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- ■Enhanced UV inhibitors protect against outdoor weathering.
- ■Standard JIC sizes under 18"x16".
- ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- ■Stainless steel draw type "snap latch" door fasteners.
- ■Door fasteners include a provision for padlocking.
- ■Enclosures are available with bonded polycarbonate viewing windows.
- ■Door is supported with a continuous stainless steel hinge.
- ■Captive oil resistant gasket provides a positive seal.
- ■Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
- ■Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
- ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
- ■Impact index of 6.78J (5 ft/lb).
- ■For corrosion resistance information, please refer to table in the Technical Information section.
Finish
- ■Fiberglass polyester material has a gray finish.
- ■Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
Documents
Additional information
Part Details
| Lift-Off · Part No. | Hinged · Part No. | Snap Latch · Part No. | Twist Latch · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · H | Optional Inner Panel · W | Optional Inner Panel · Part No. |
|---|---|---|---|---|---|---|---|---|---|
| PJ664W | PJ664HW | PJ664LW | PJ664TW | 6.10 | 6.10 | 4.18 | 4.88 | 4.88 | 14R0505 |
| PJ864W | PJ864HW | PJ864LW | PJ864TW | 8.00 | 6.12 | 4.13 | 6.75 | 4.88 | 14R0705 |
| PJ1084W | PJ1084HW | PJ1084LW | PJ1084TW | 10.13 | 8.26 | 4.13 | 8.75 | 6.88 | 14R0907 |
| PJ1086W | PJ1086HW | PJ1086LW | PJ1086TW | 10.13 | 8.26 | 6.13 | 8.75 | 6.88 | 14R0907 |
| PJ12106W | PJ12106HW | PJ12106LW | PJ12106TW | 12.13 | 10.26 | 6.13 | 10.75 | 8.88 | 14R1109 |
| PJ12124W | PJ12124HW | PJ12124LW | PJ12124TW | 12.13 | 12.13 | 4.13 | 10.75 | 10.88 | 14R1111 |
| PJ12126W | PJ12126HW | PJ12126LW | PJ12126TW | 12.13 | 12.13 | 6.13 | 10.75 | 10.88 | 14R1111 |
| PJ14126W | PJ14126HW | PJ14126LW | PJ14126TW | 14.13 | 12.26 | 6.13 | 12.75 | 10.88 | 14R1311 |
| PJ16148W | PJ16148HW | PJ16148LW | PJ16148TW | 16.27 | 14.40 | 8.13 | 14.75 | 12.88 | 14R1513 |
| PJ18168W | PJ18168HW | PJ18168LW | PJ18168TW | 18.40 | 16.40 | 8.13 | 16.88 | 14.88 | P1868 |
| PJ20168W | PJ20168HW | PJ20168LW | PJ20168TW | 20.00 | 16.00 | 8.13 | 18.44 | 14.44 | P2068 |
