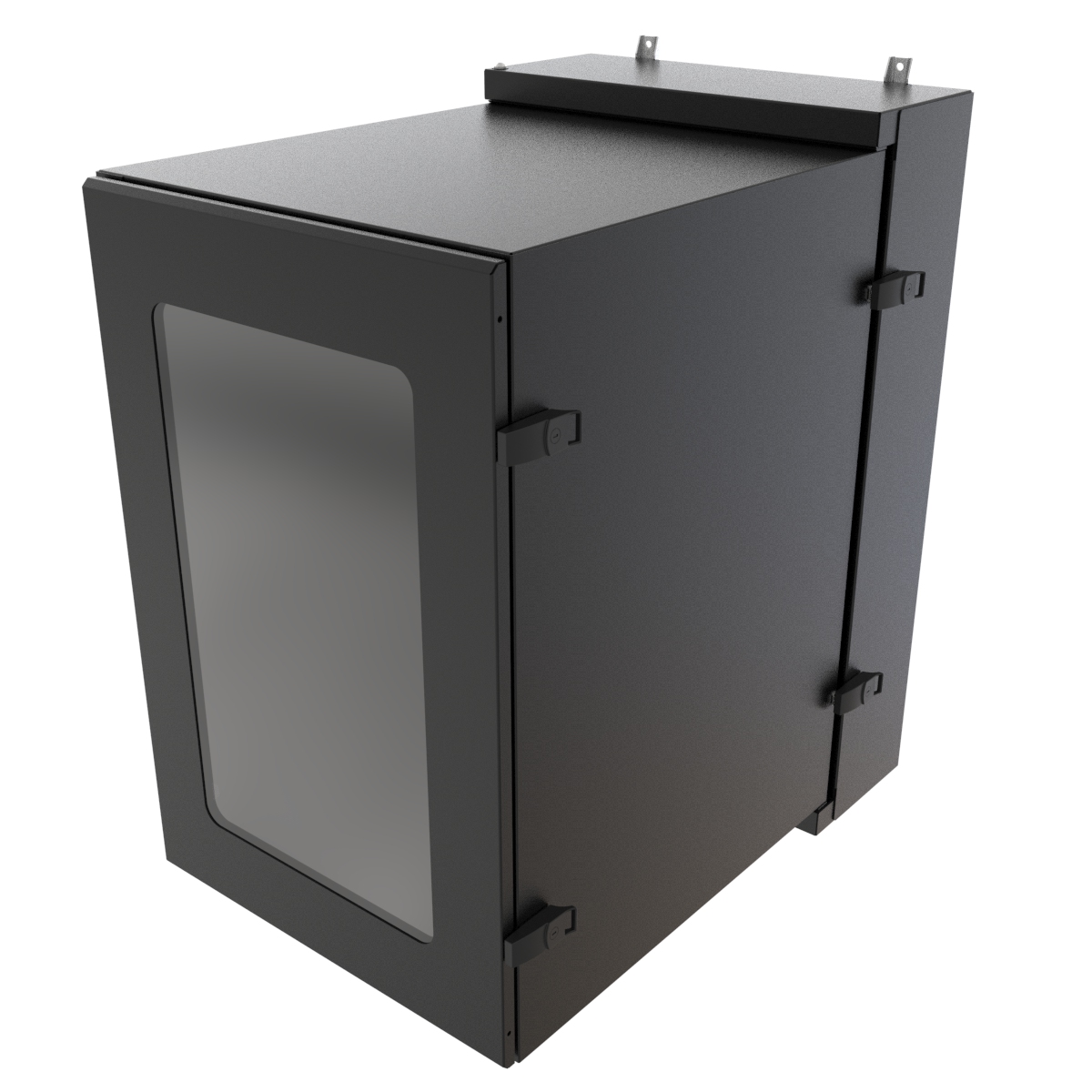

Environmental Wall-Mount Cabinet, Type 12, IP56 (350 lb) · NWC Series

Key Features and Benefits

• ■14-gauge welded steel construction UL2416 Type 12 rated to 350 lb (158 kg), seismic rated to 200 lb (90.72 kg) supports network and industrial equipment in demanding environments.
• ■Double-hinged cabinet design (19" rack compatible) provides dual access to equipment for installation, servicing, and maintenance.
• ■Sealed enclosure with gasketed doors protects equipment from dust, dirt, and dripping liquids in industrial environments.
• ■Two (2) pairs of adjustable 10-32 threaded mounting rails (EIA compliant) support flexible equipment positioning and standard rack compatibility. Includes starter hardware pack with SCREW1032-50 screws for equipment installation.
• ■Available in three configurations to match application requirements: "N" Version comes without climate control or cutouts. "F" Version includes rear and door filters that maintain UL Type 12 ratings and are compatible with fan kits. "A" Version includes a factory-supplied 900–1300 BTU DTS3021A115LG air conditioner (shipped inside the cabinet) with cord.

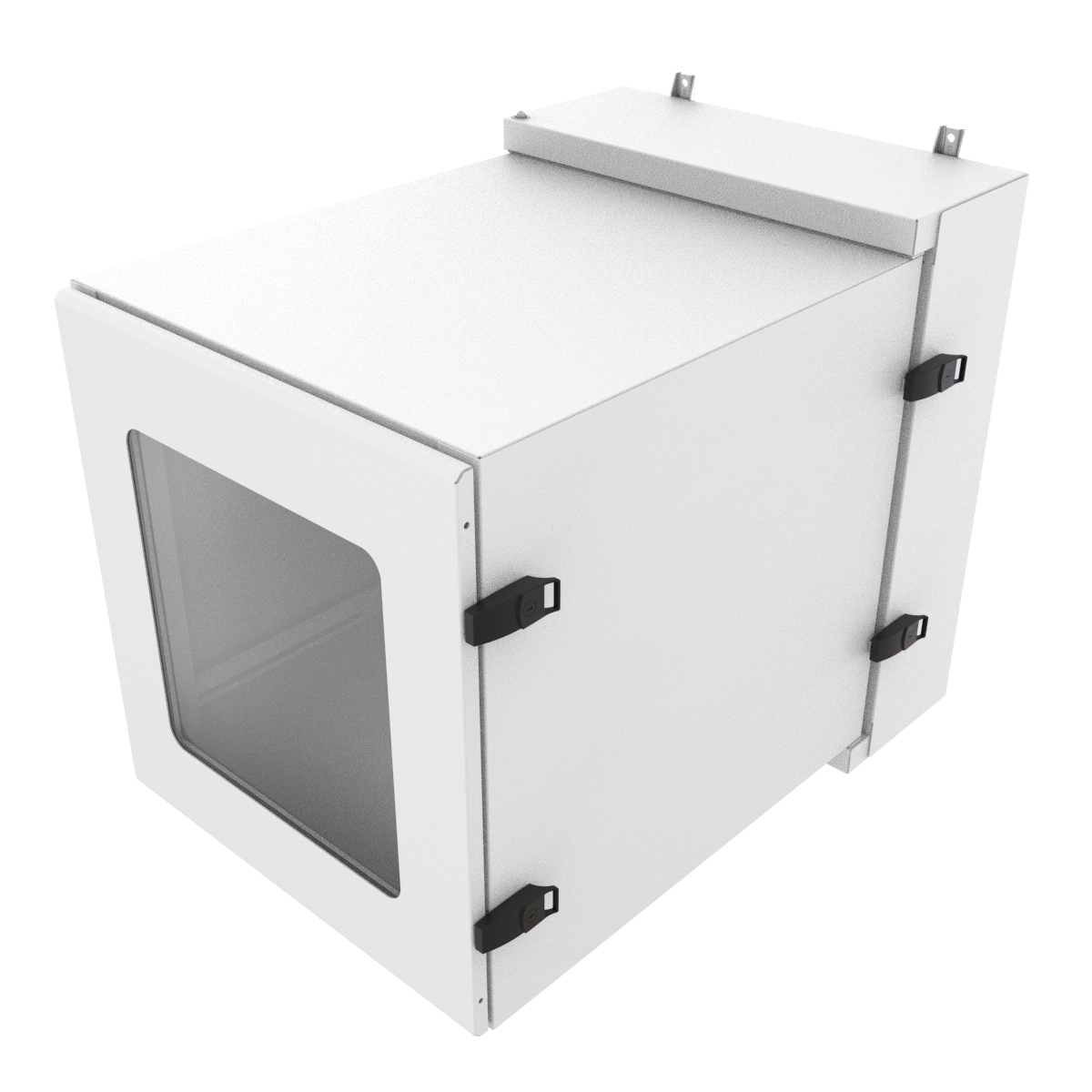

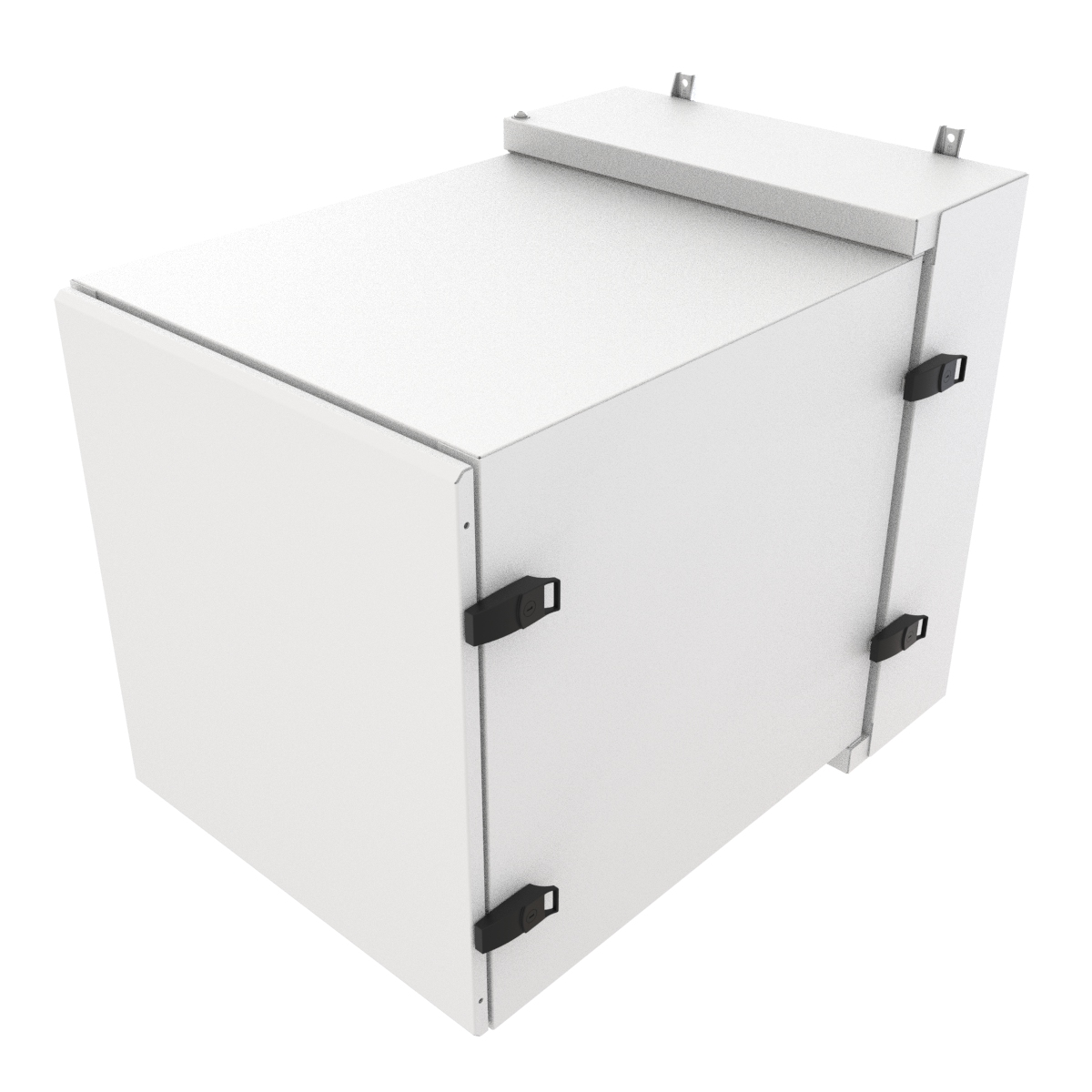

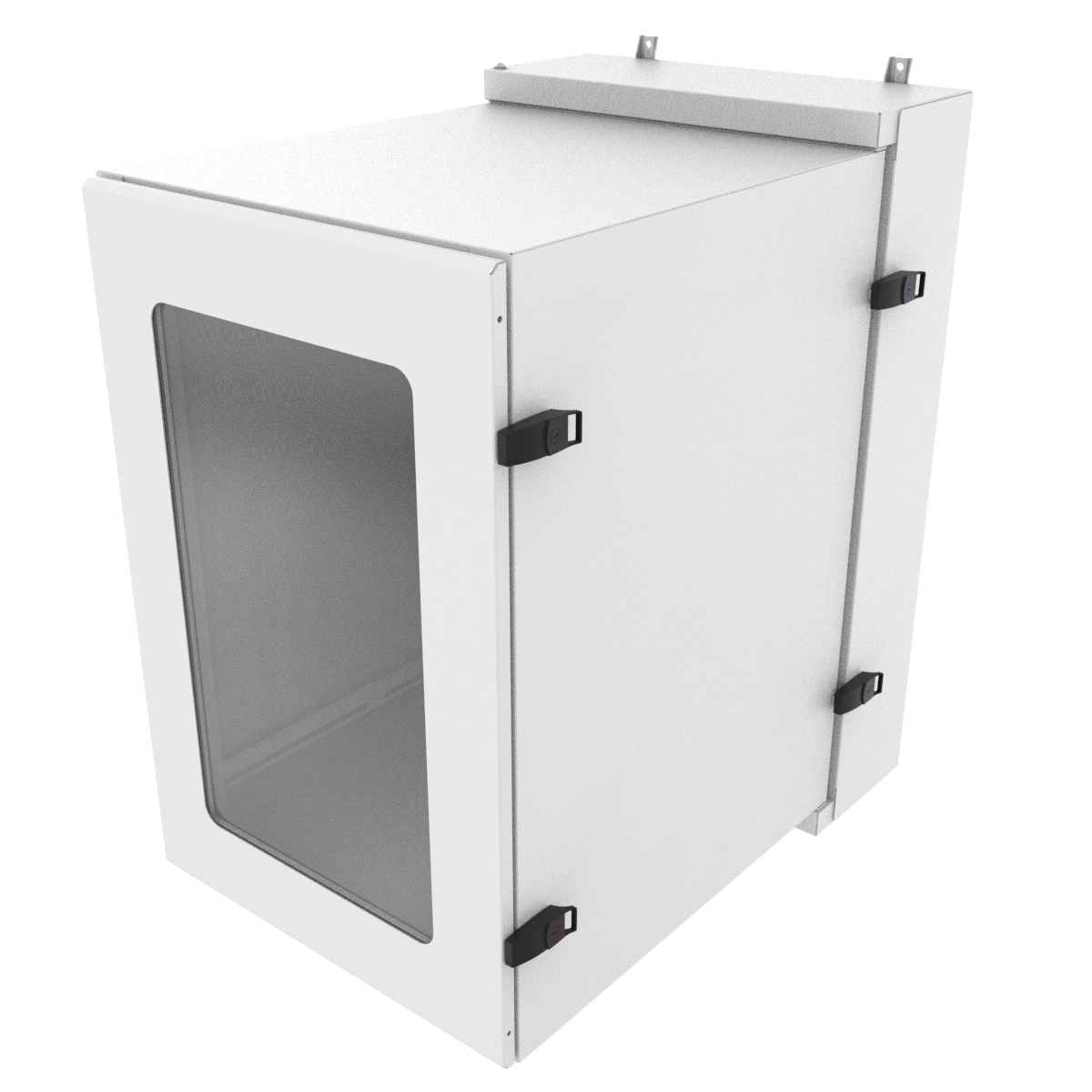

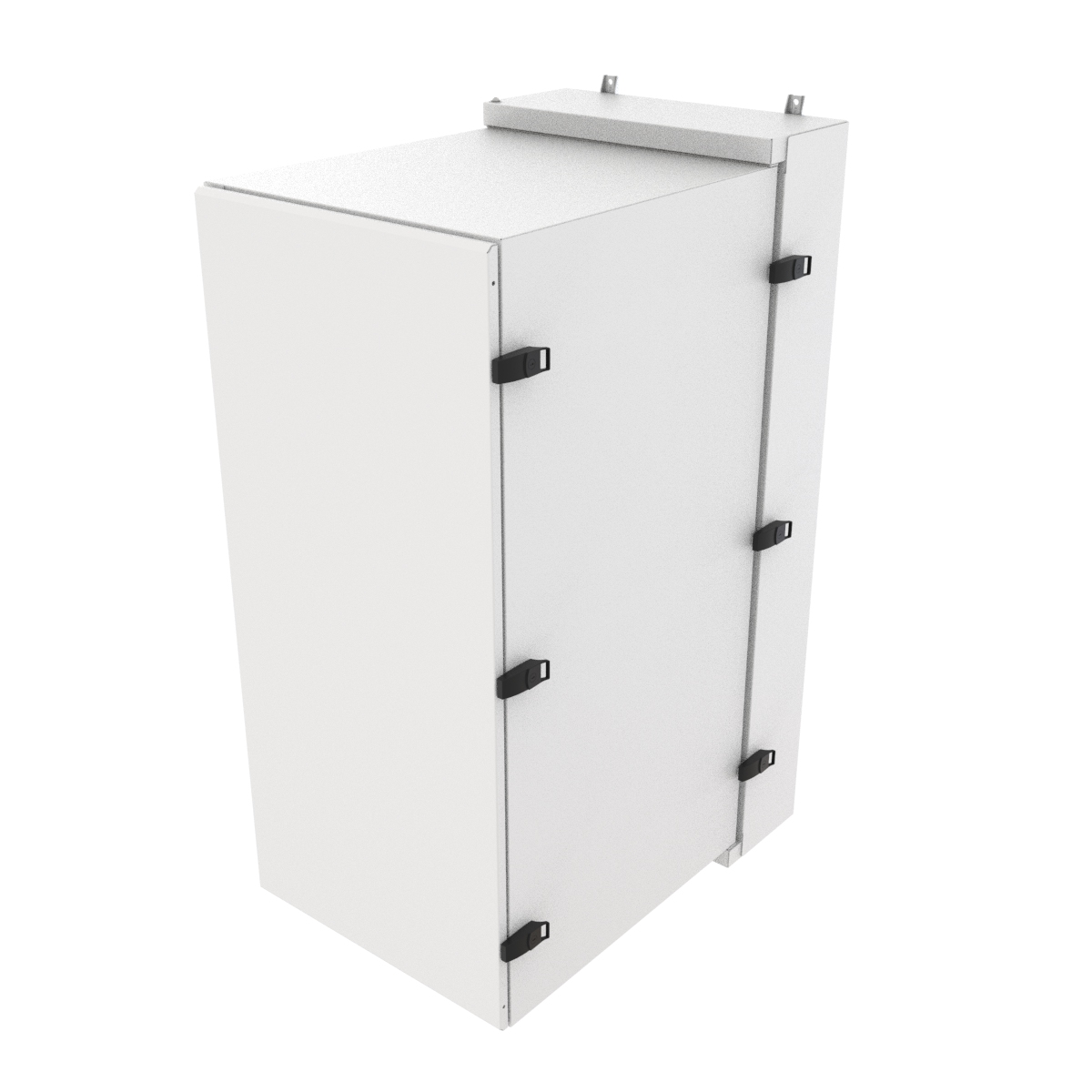

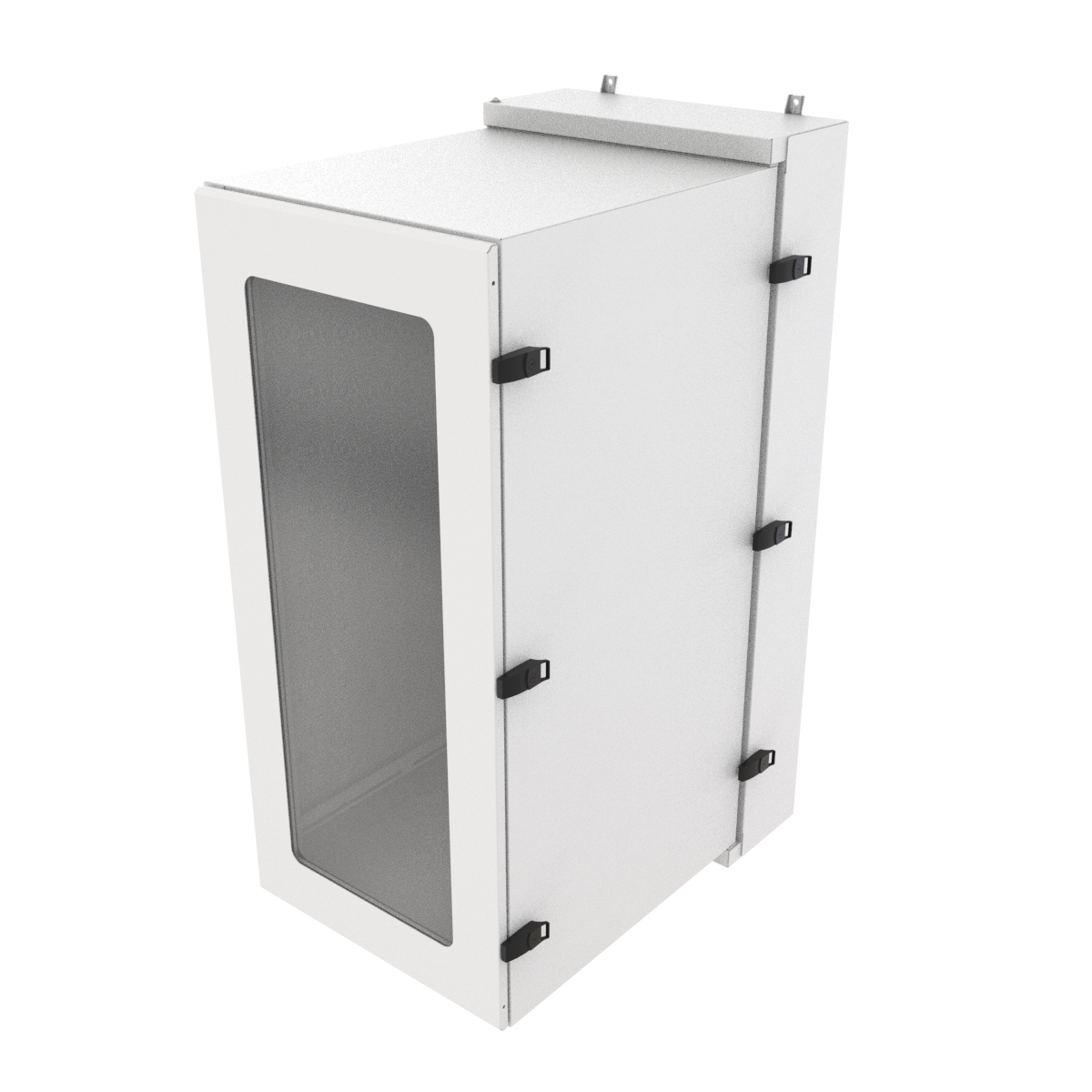

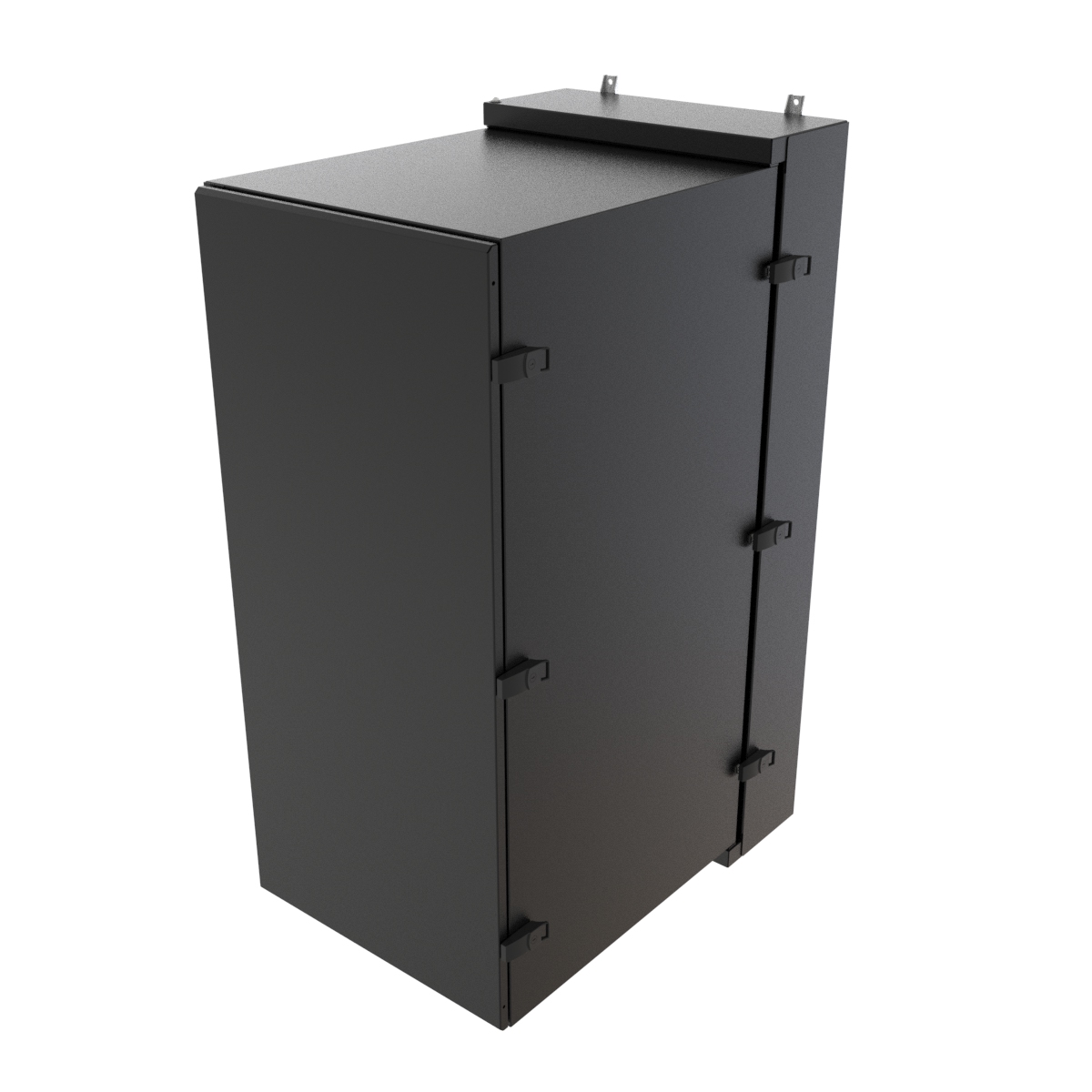

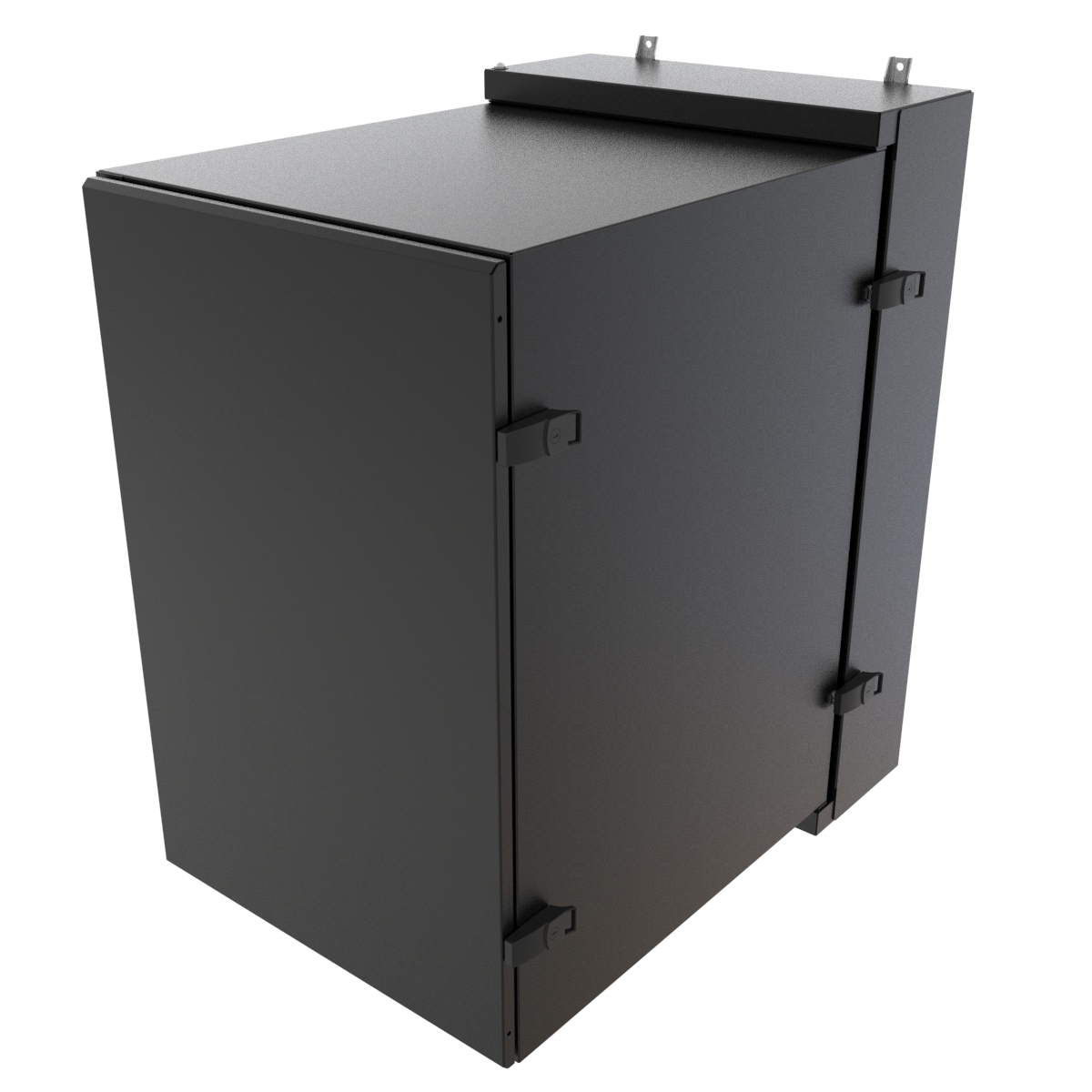

• ■"N" Version comes without climate control or cutouts.

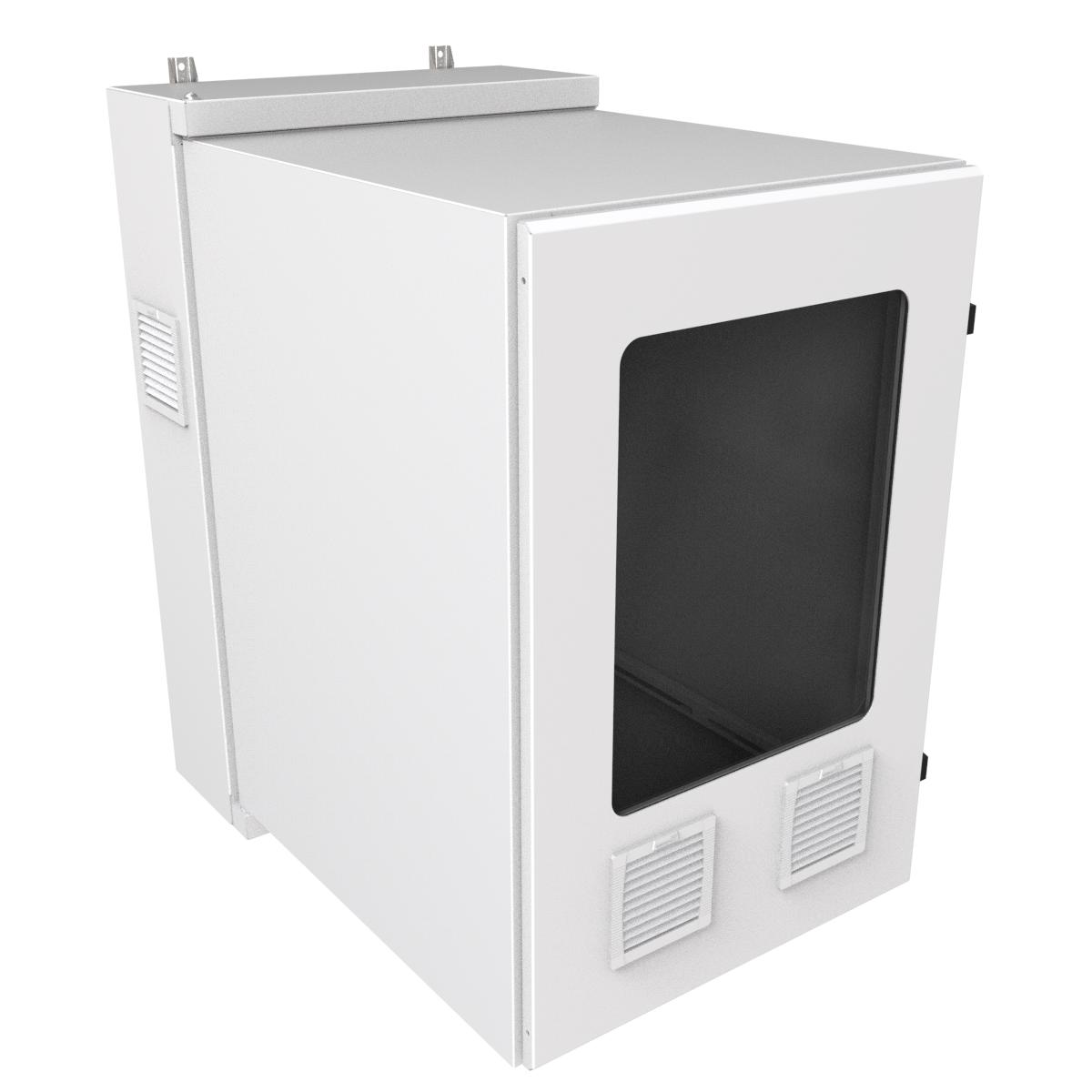

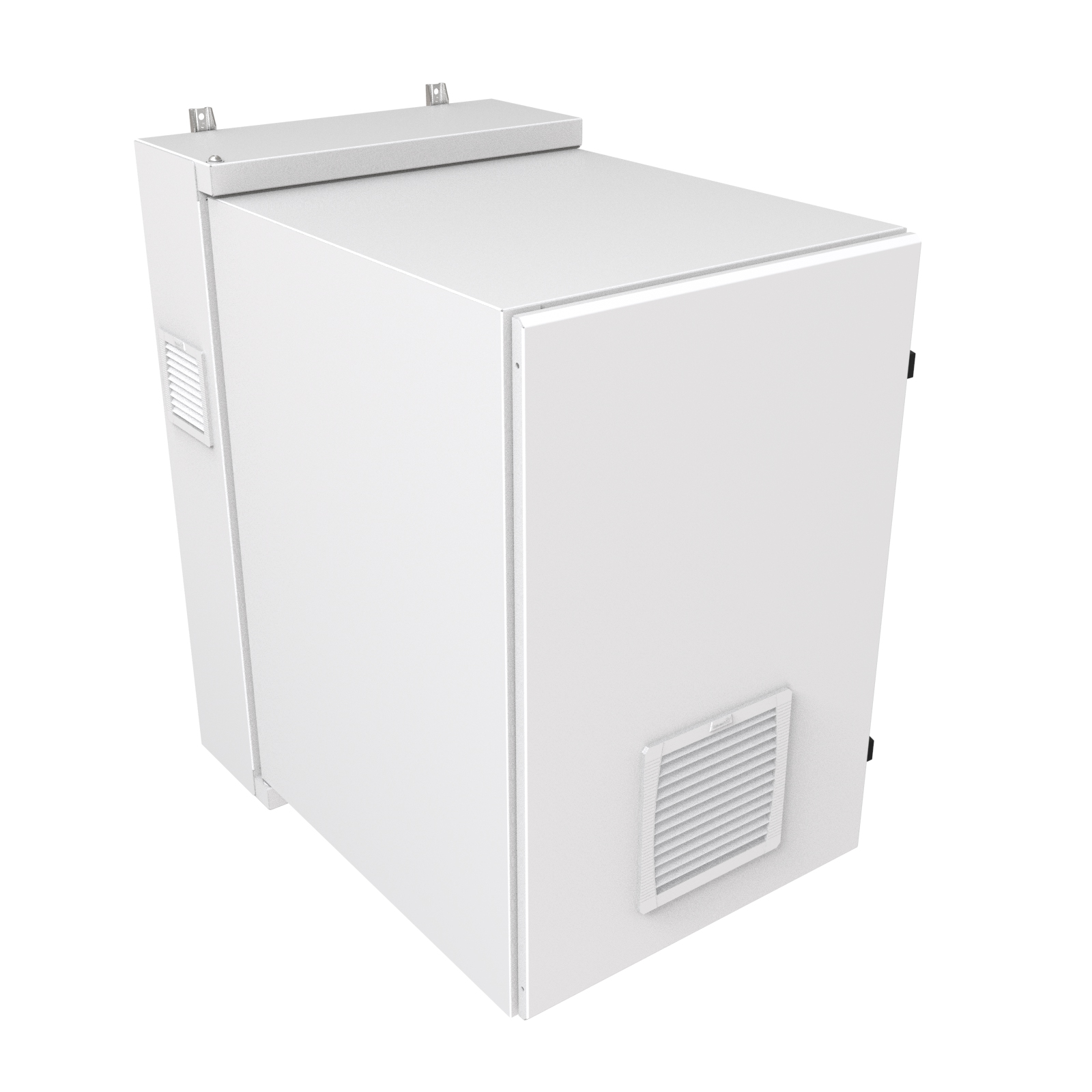

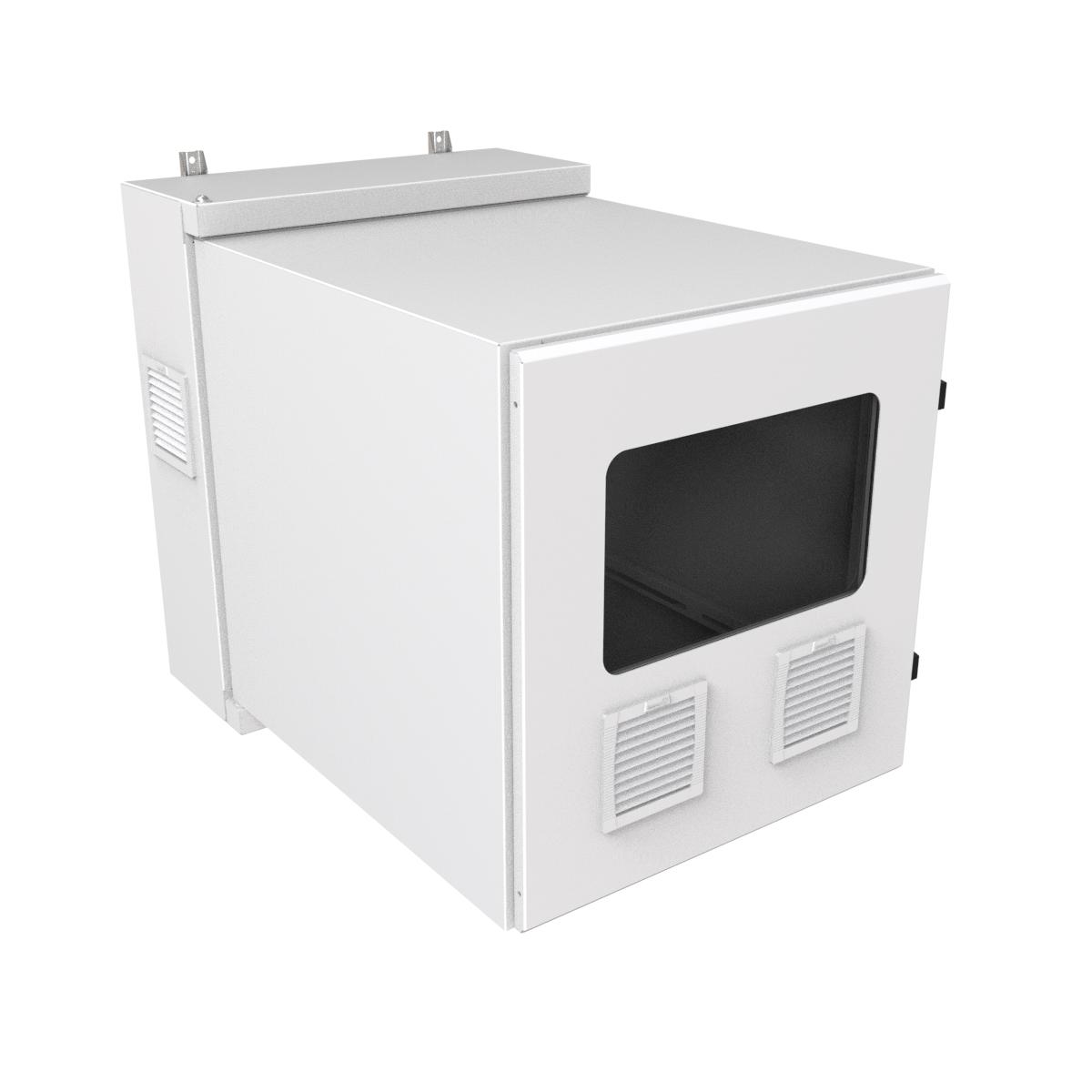

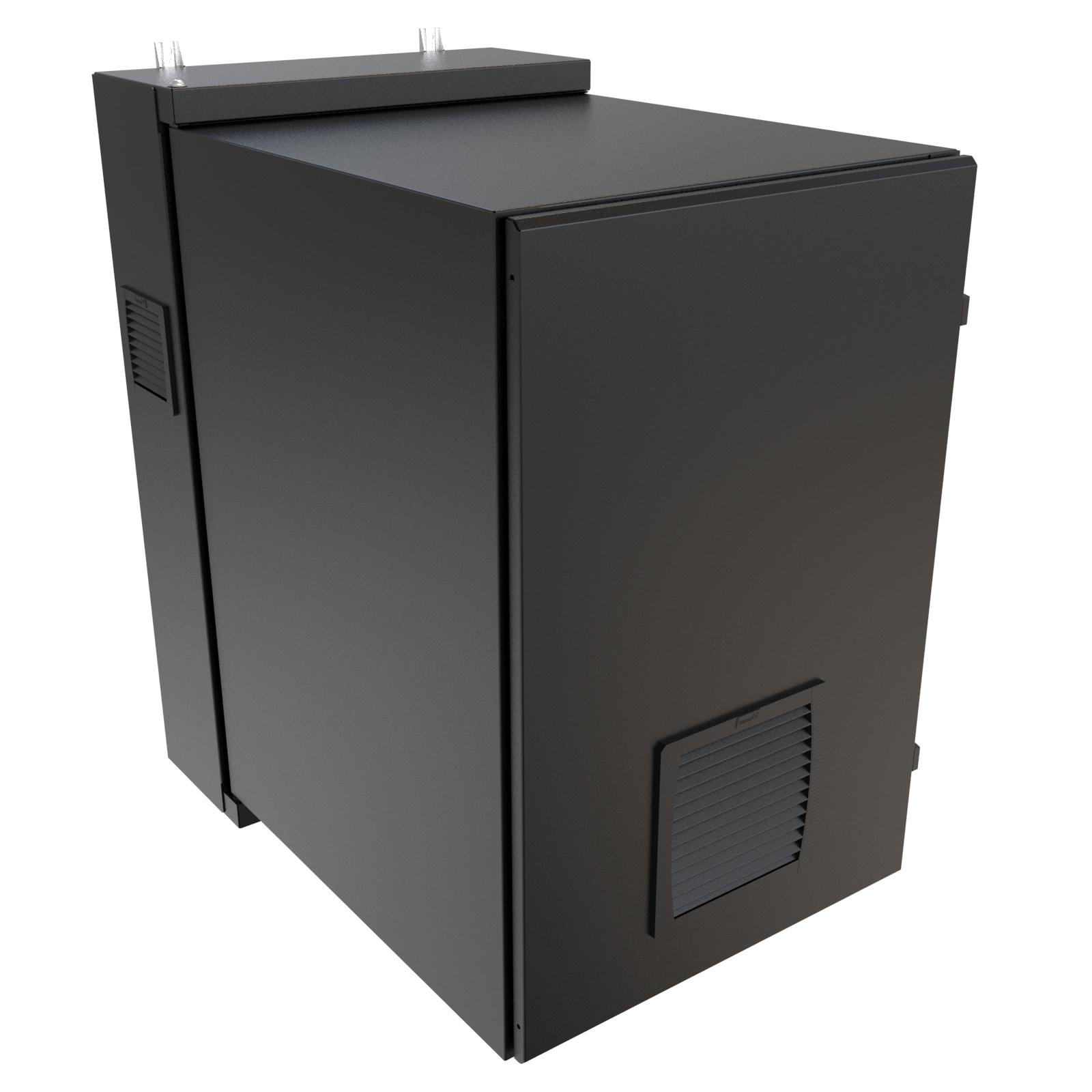

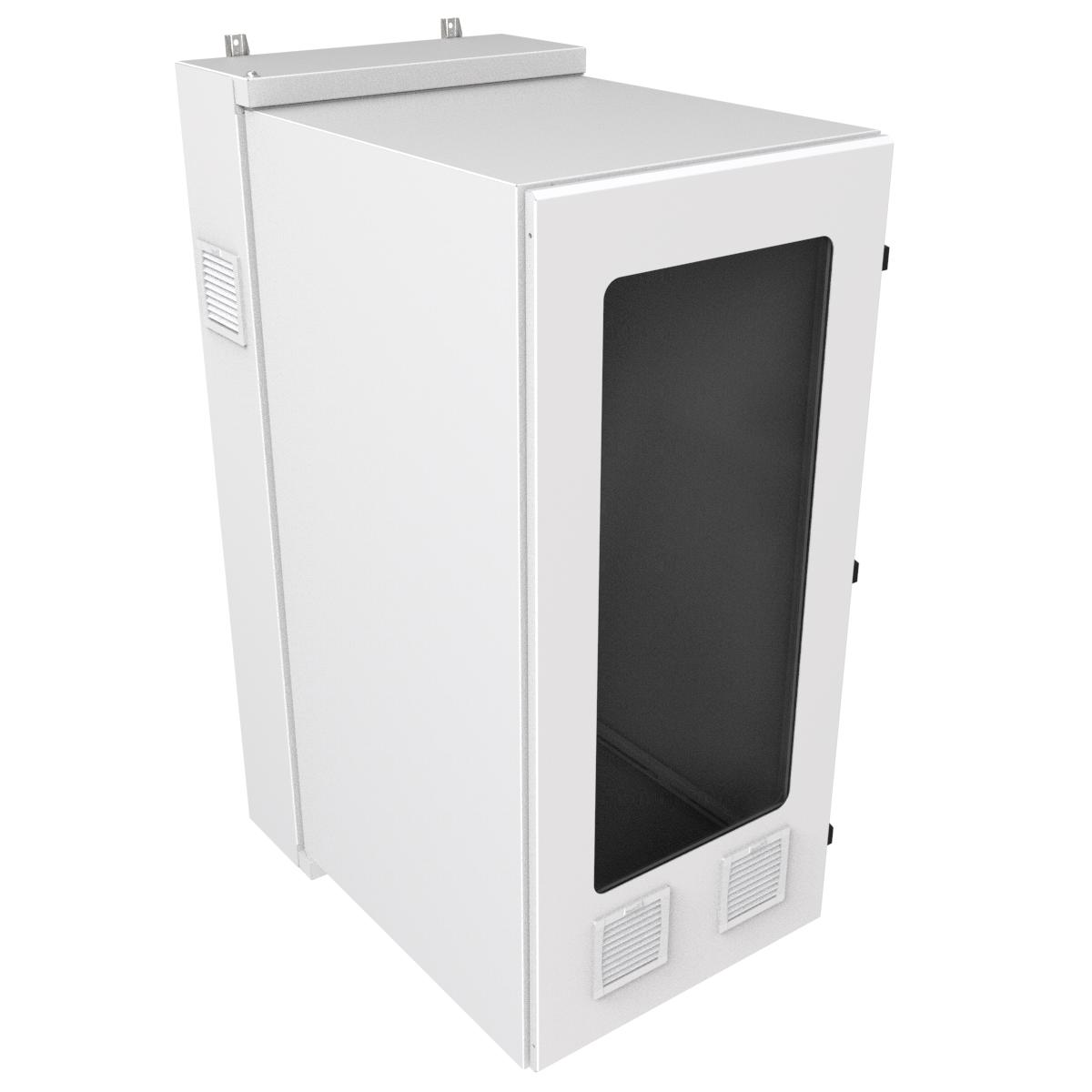

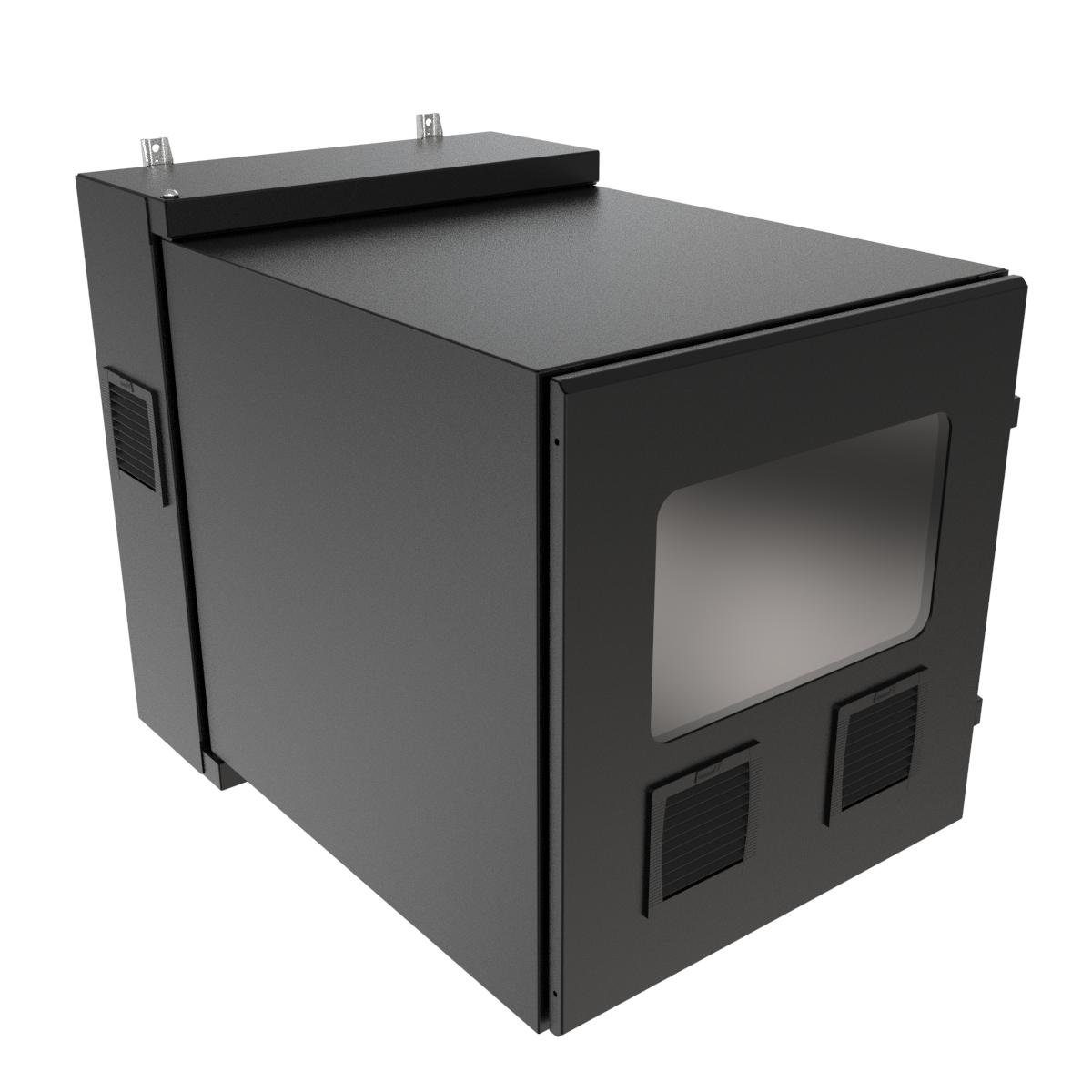

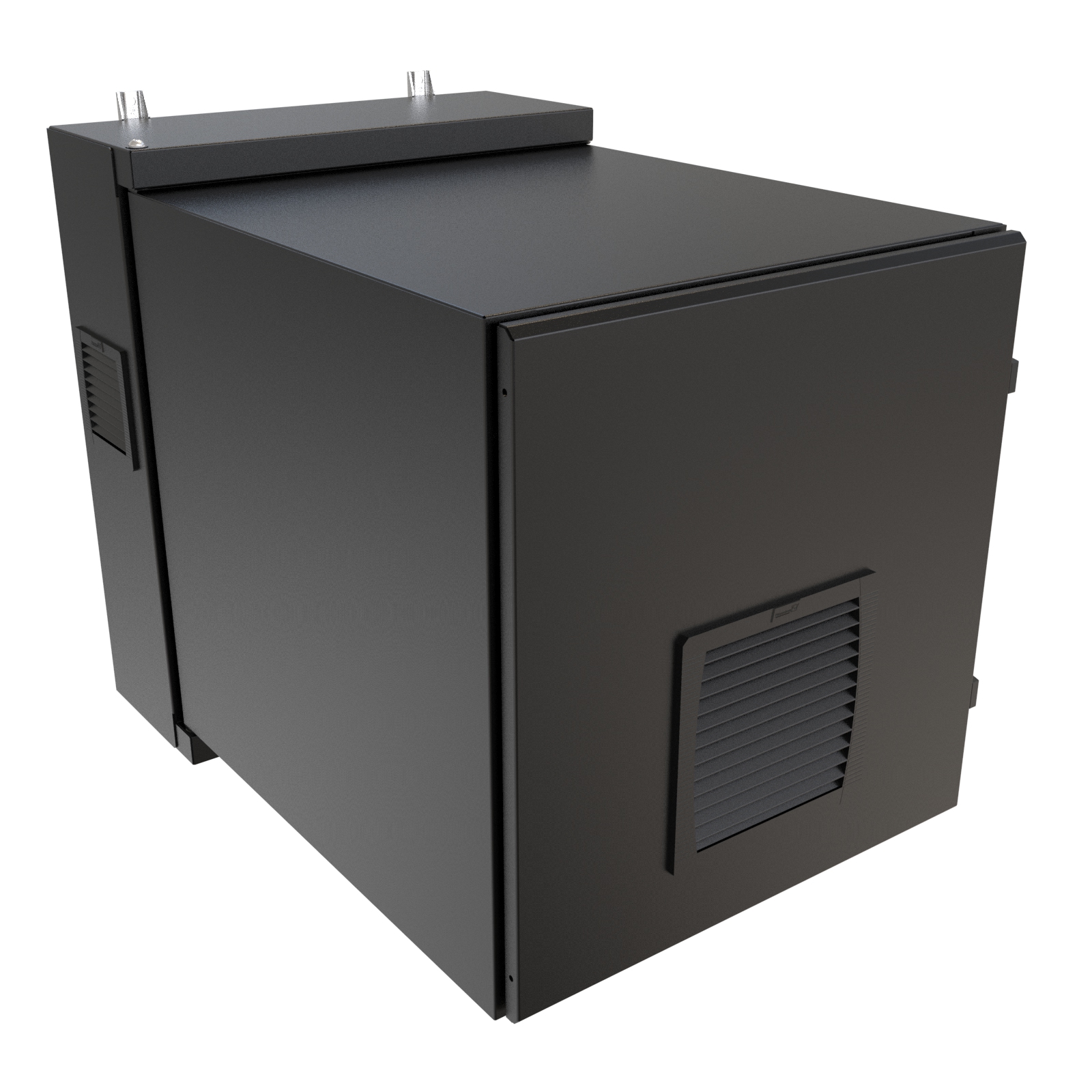

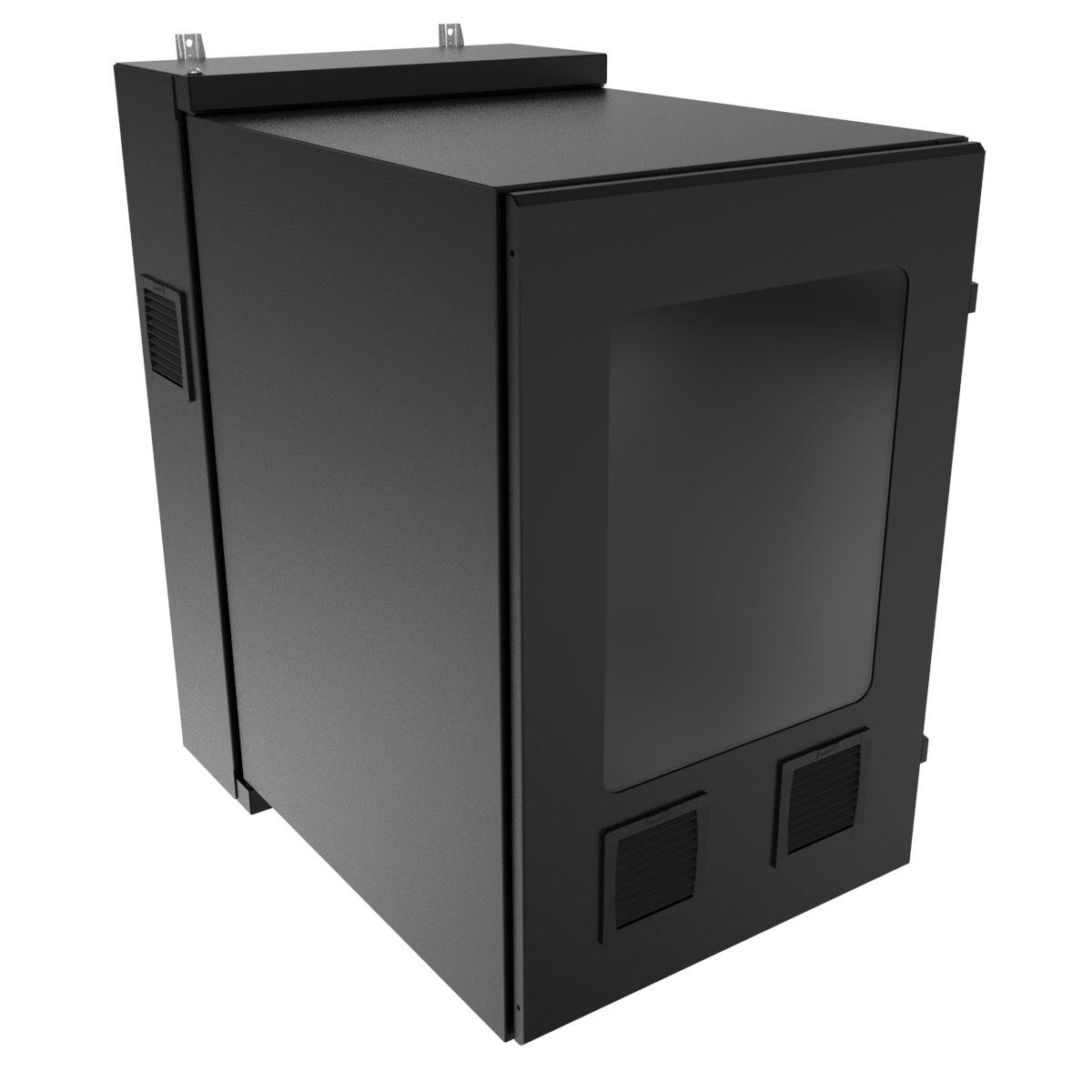

• ■"F" Version includes rear and door filters that maintain UL Type 12 ratings and are compatible with fan kits.

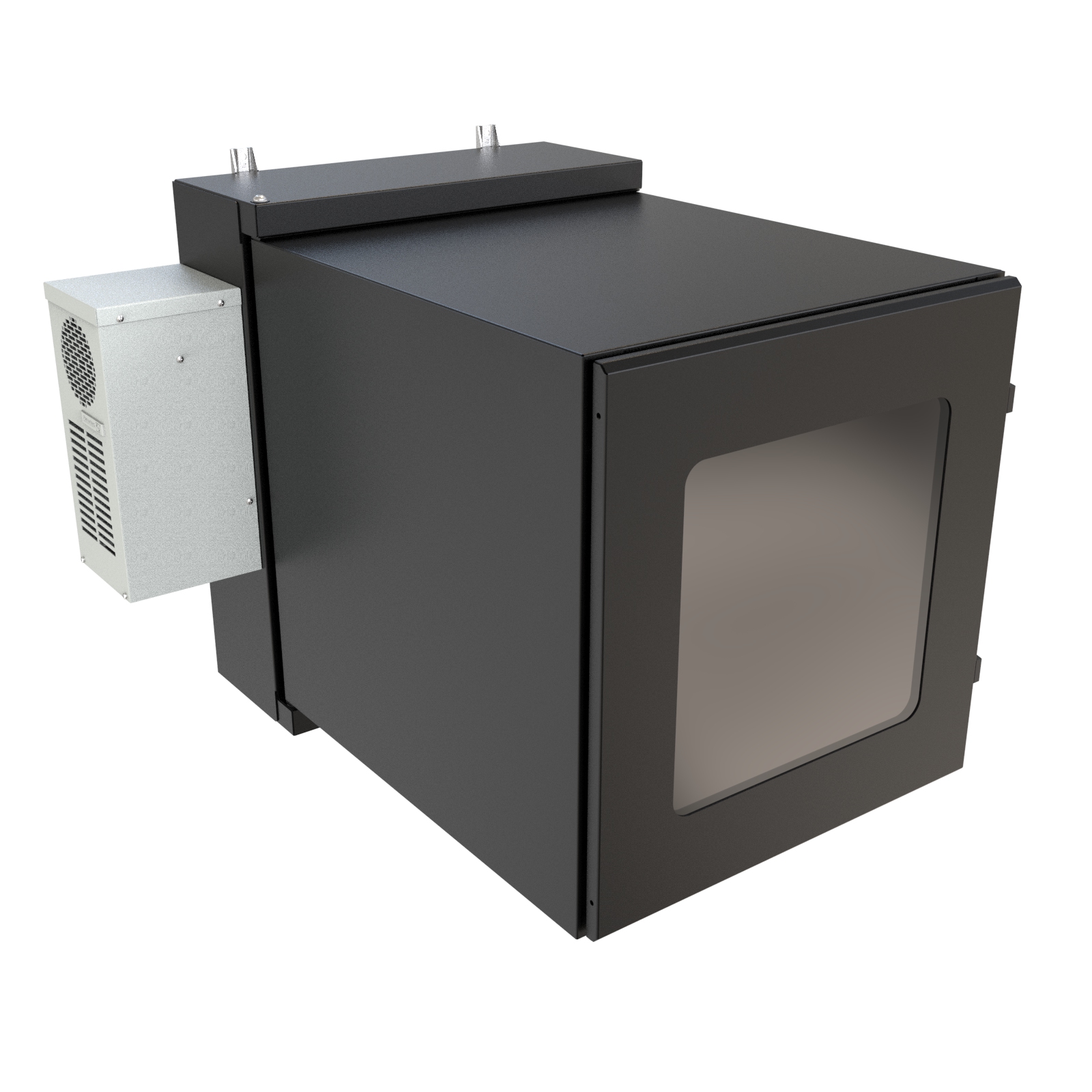

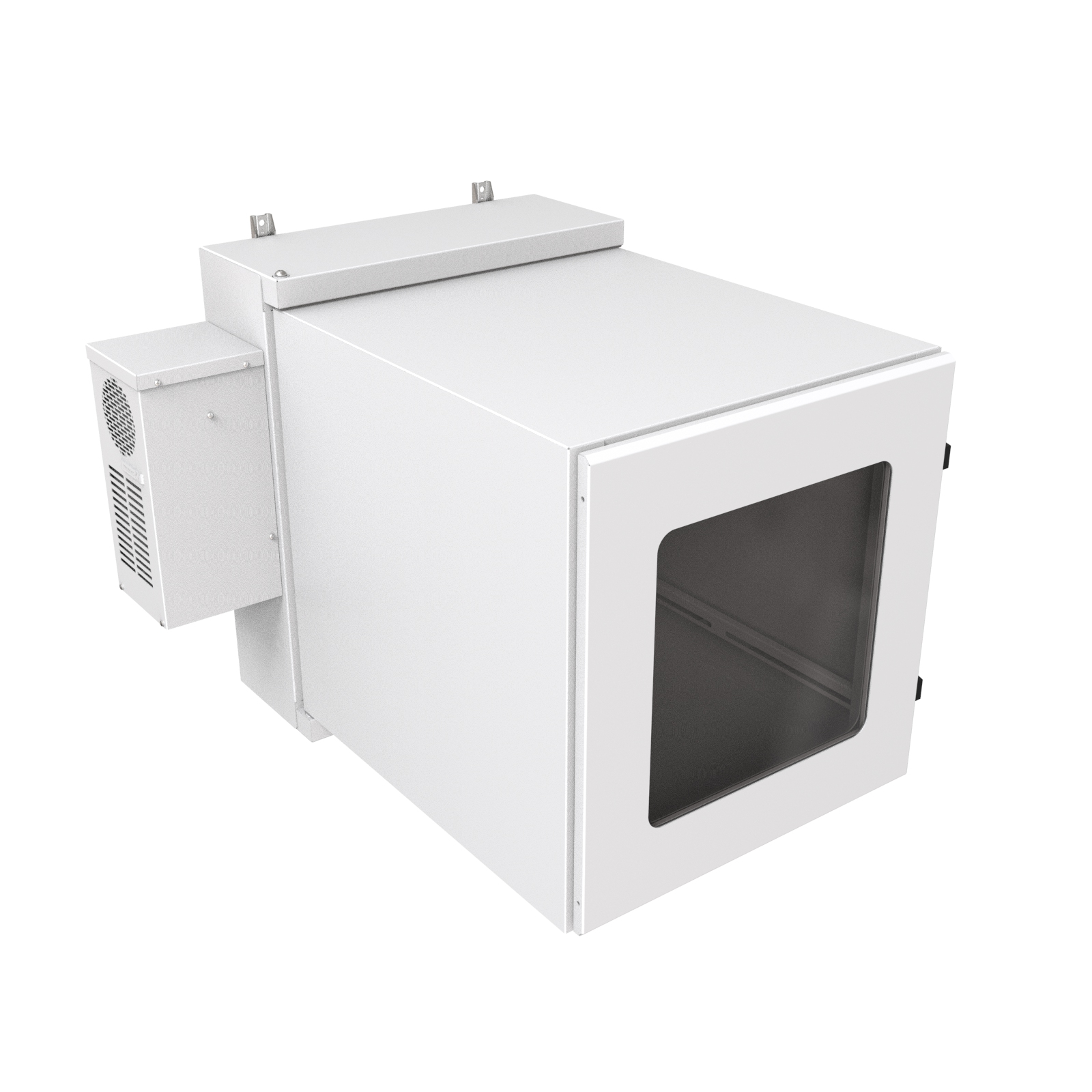

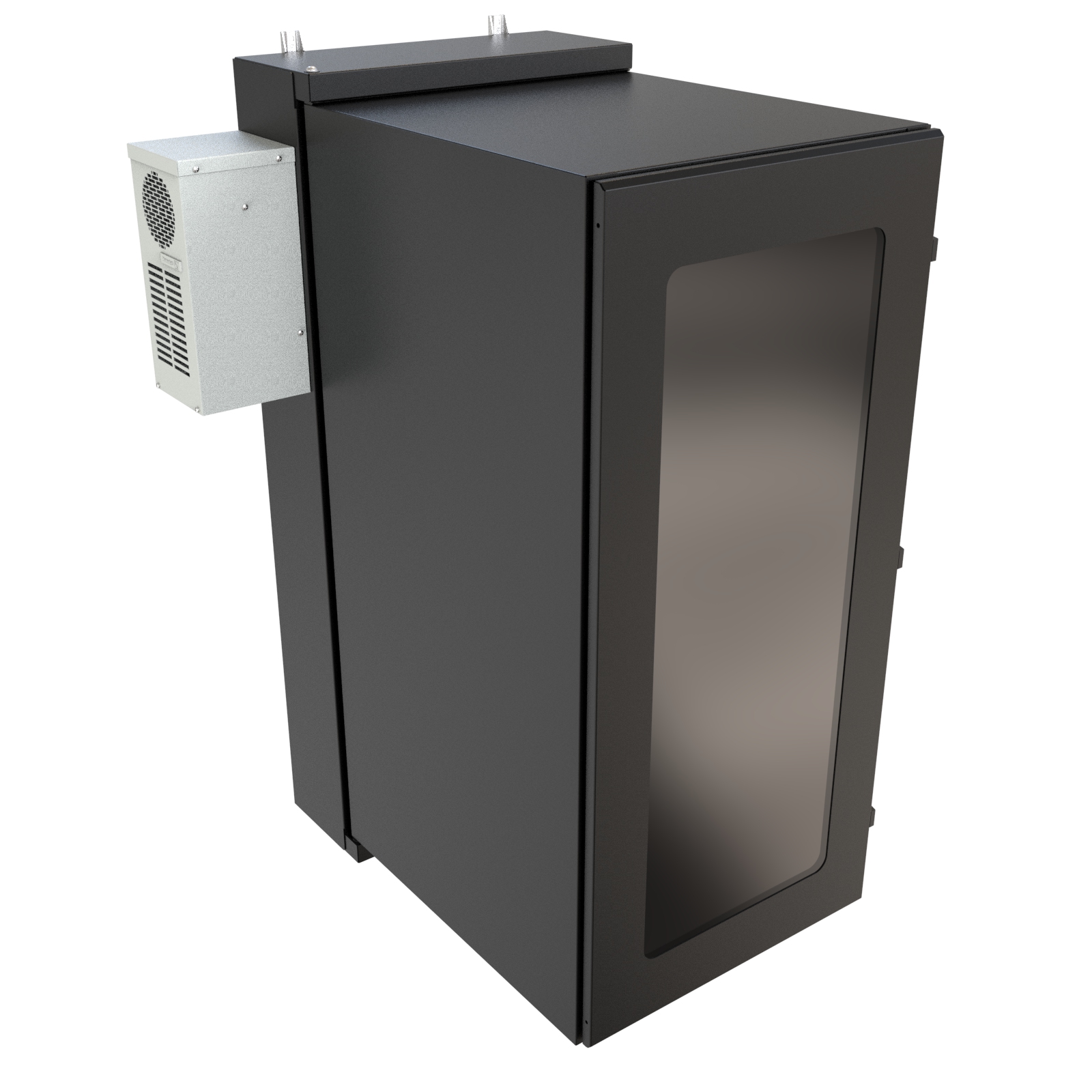

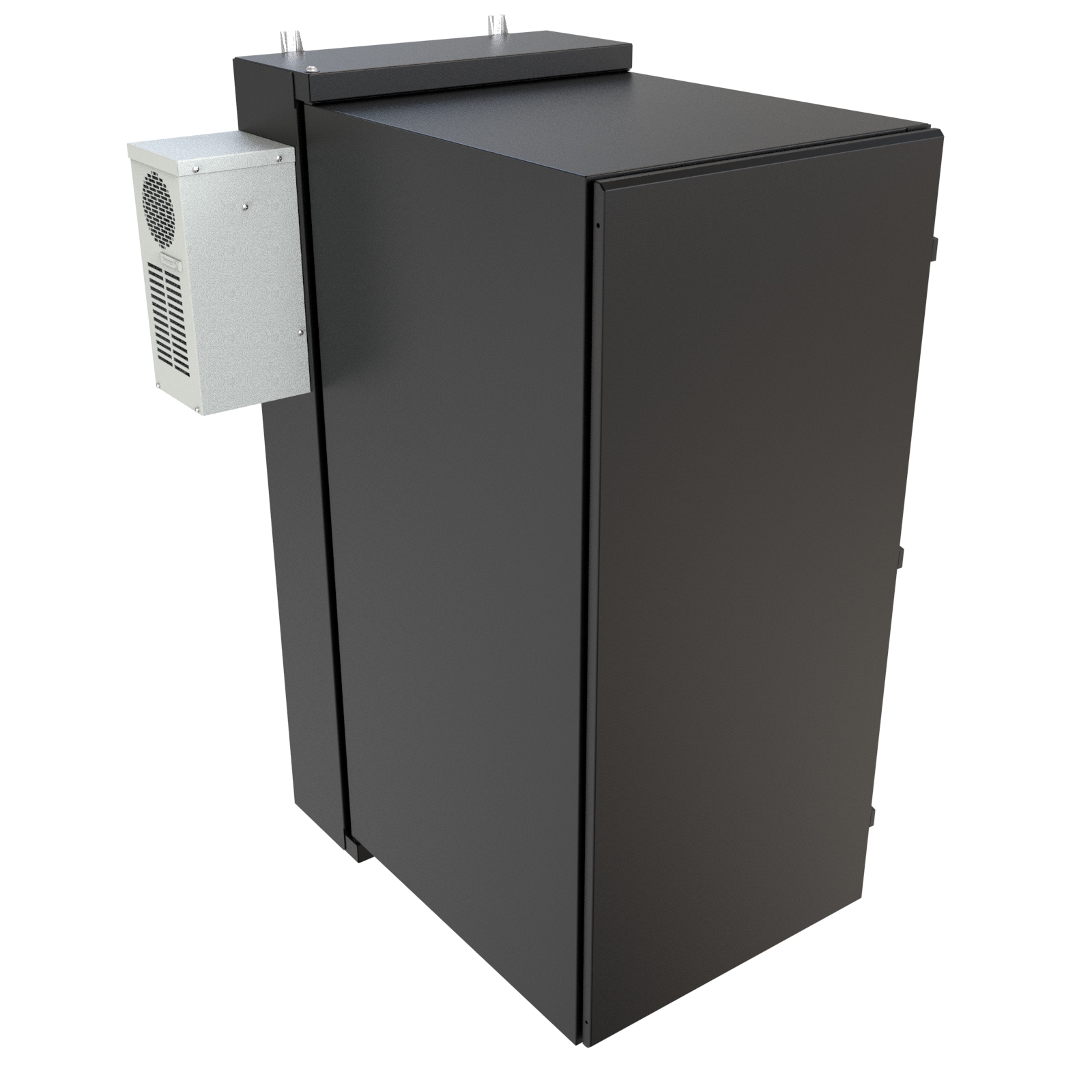

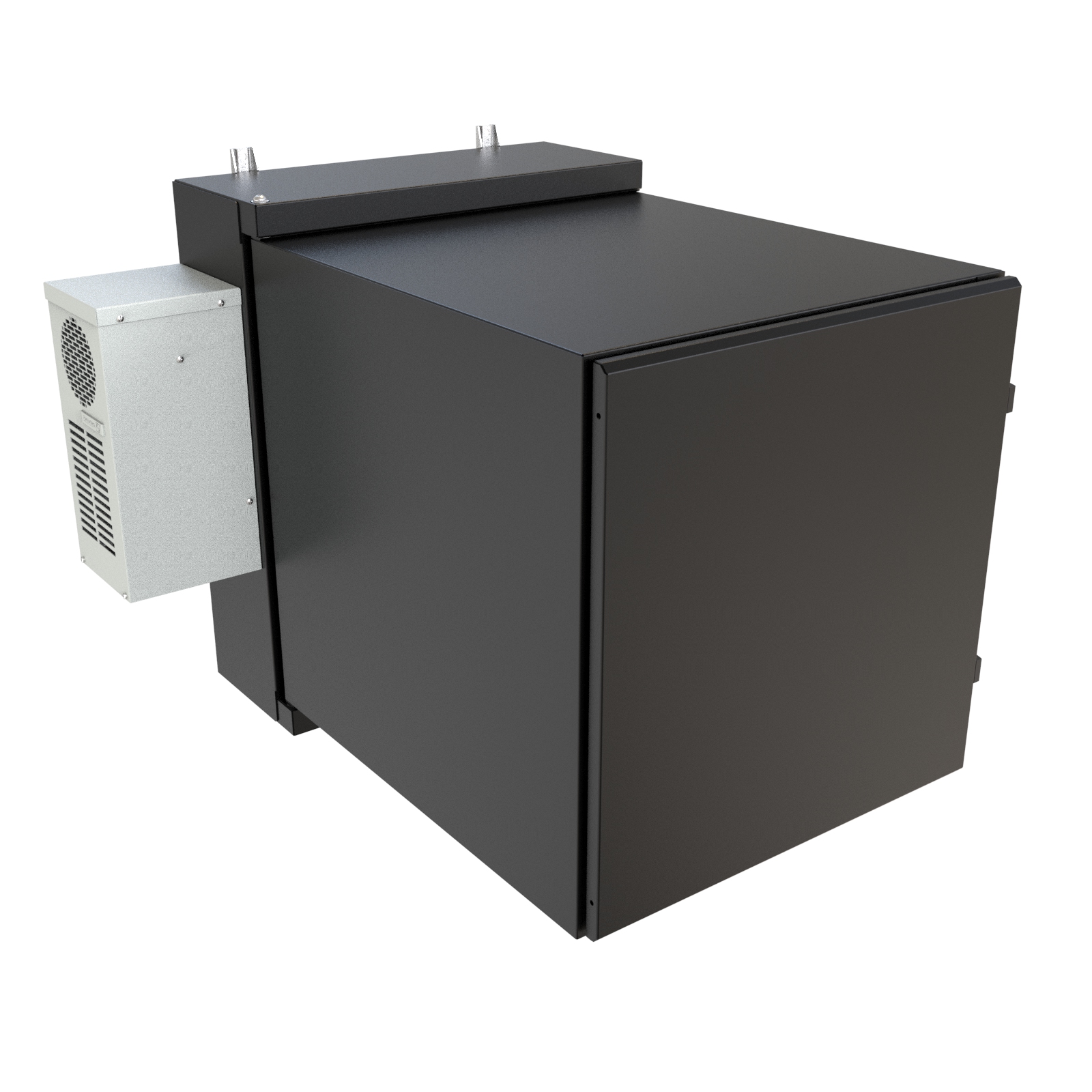

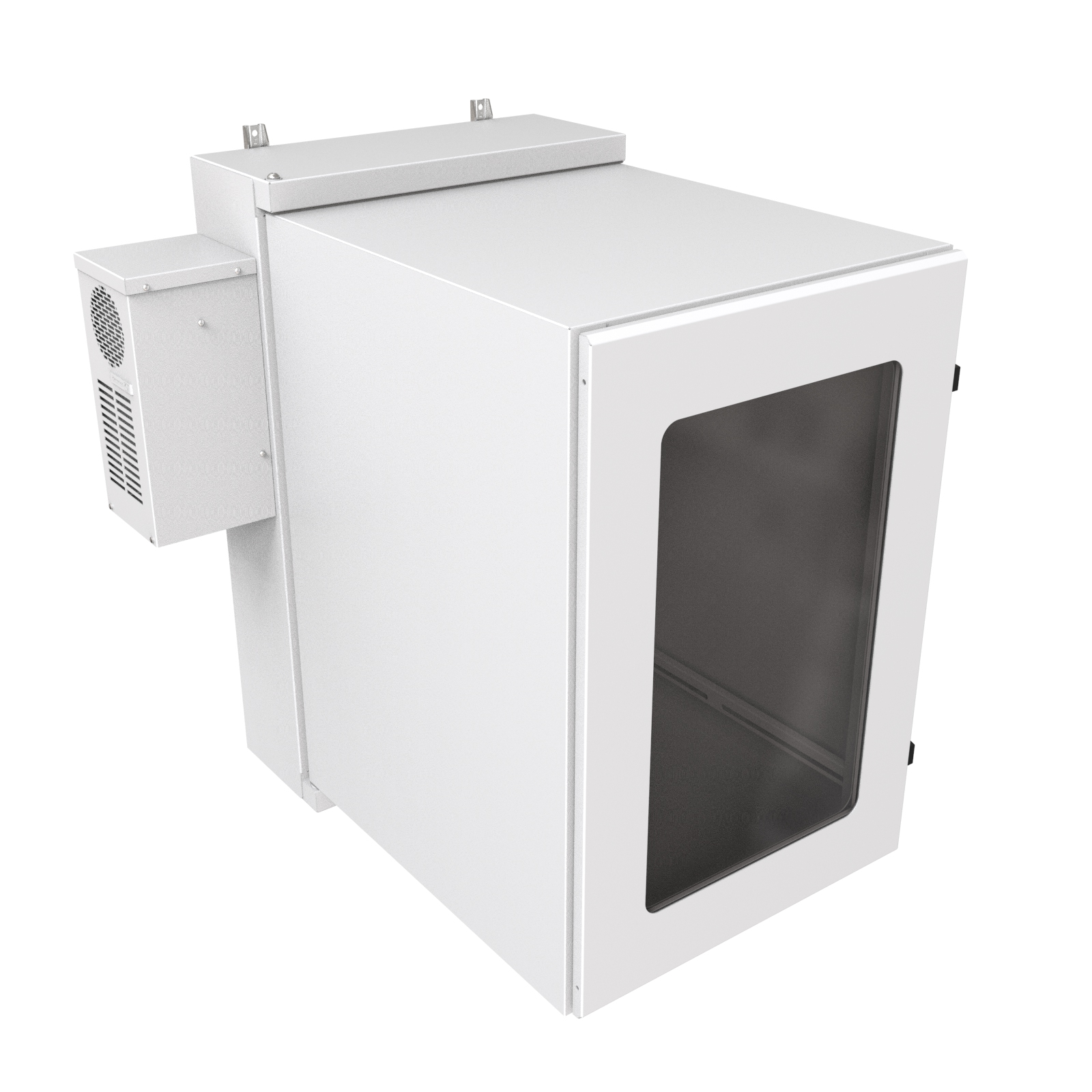

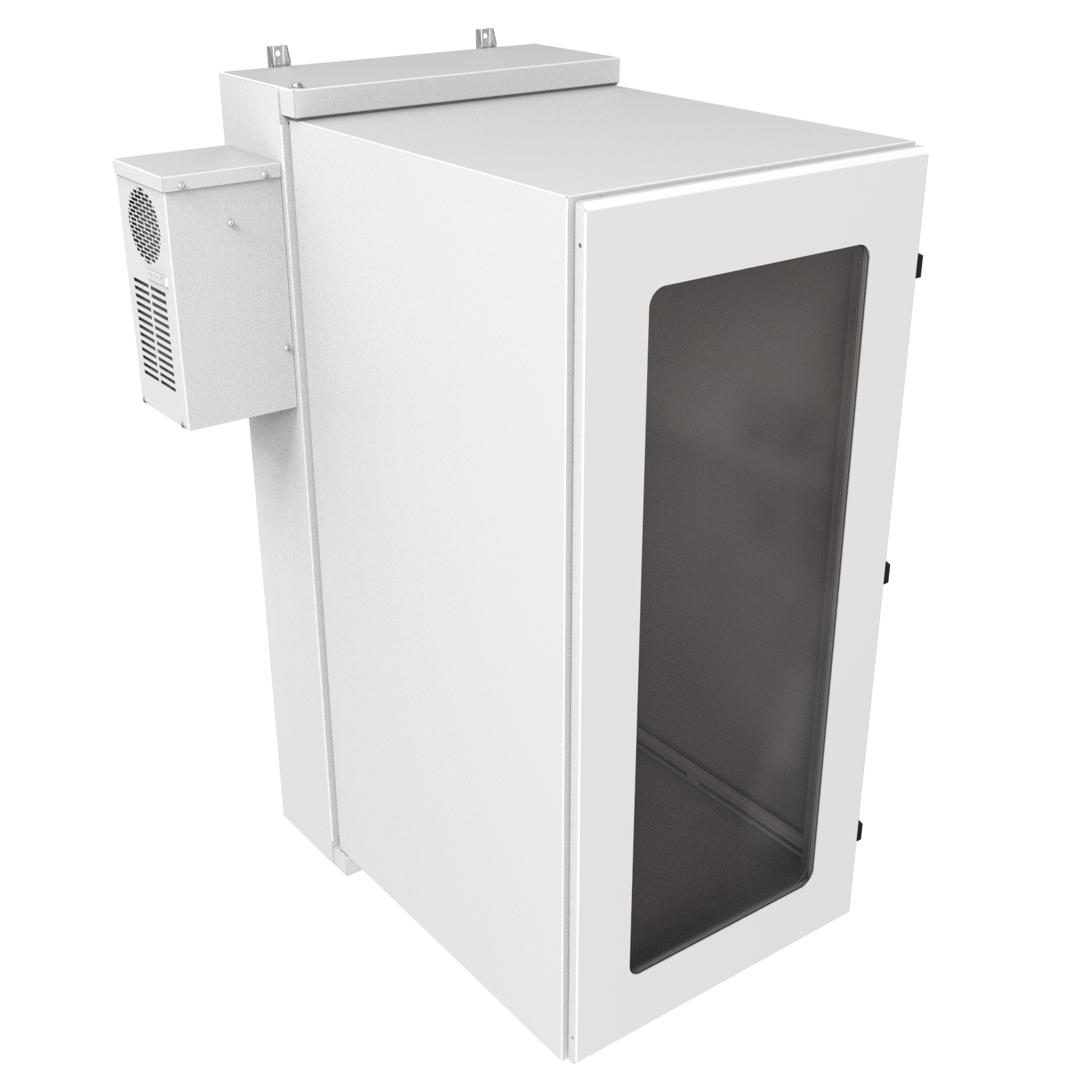

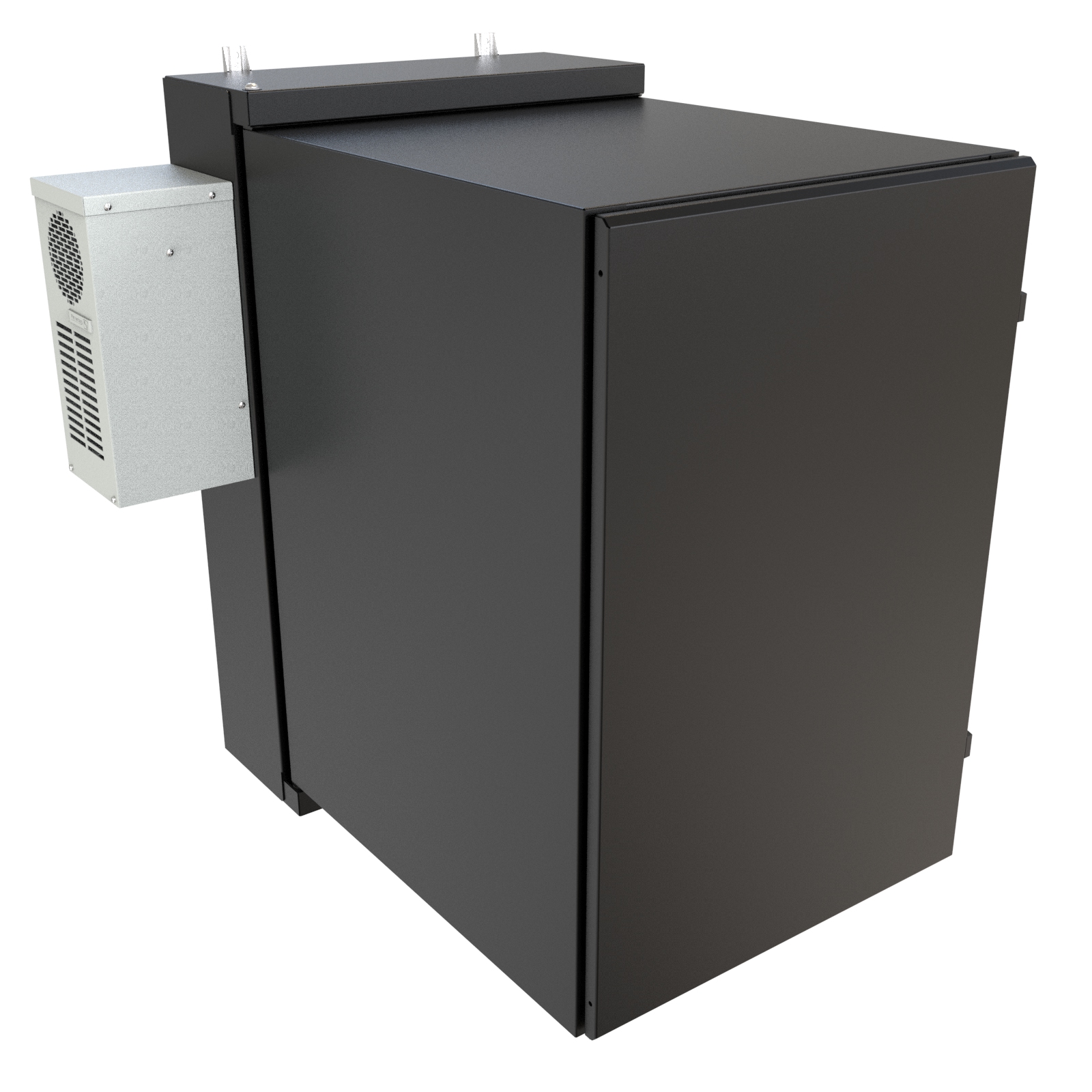

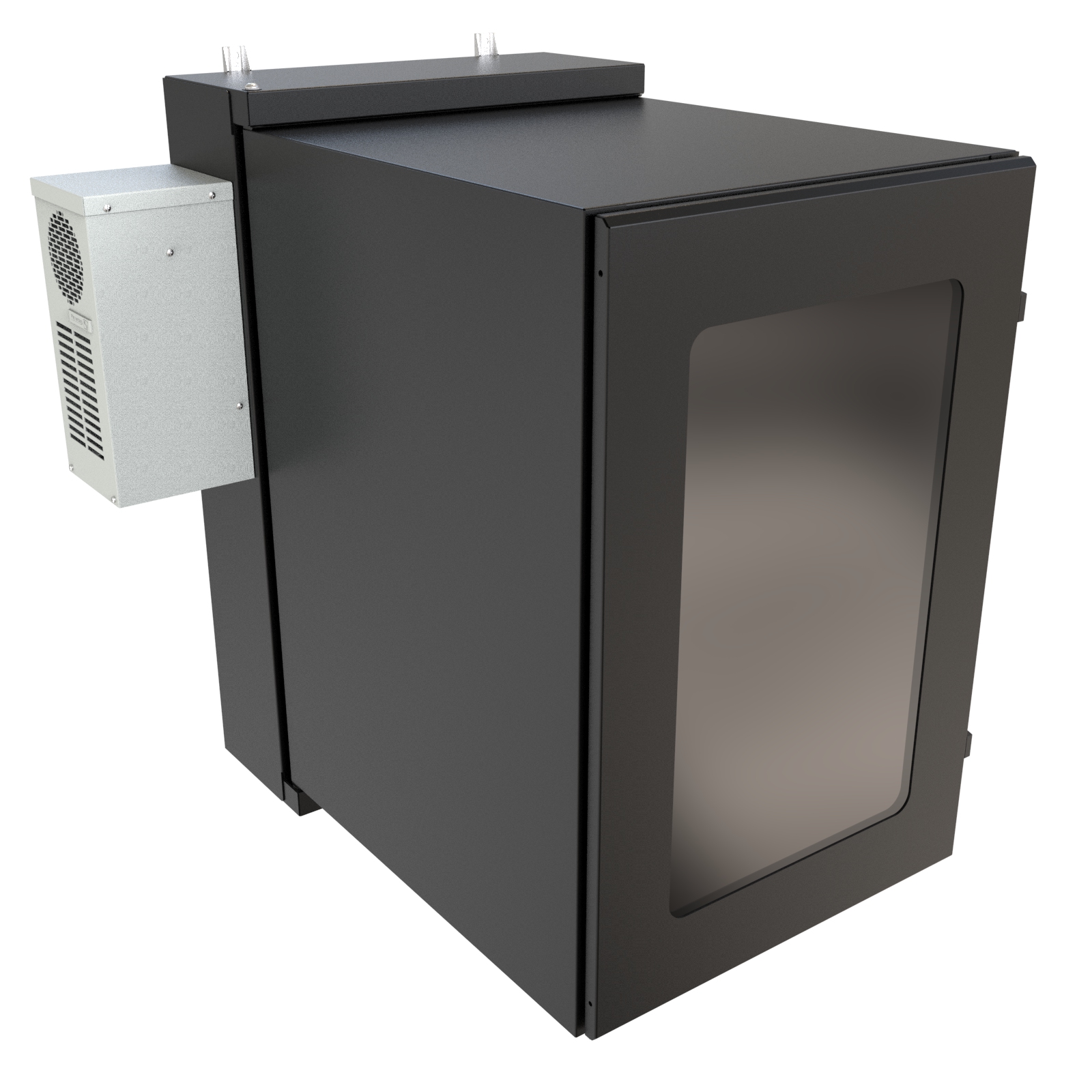

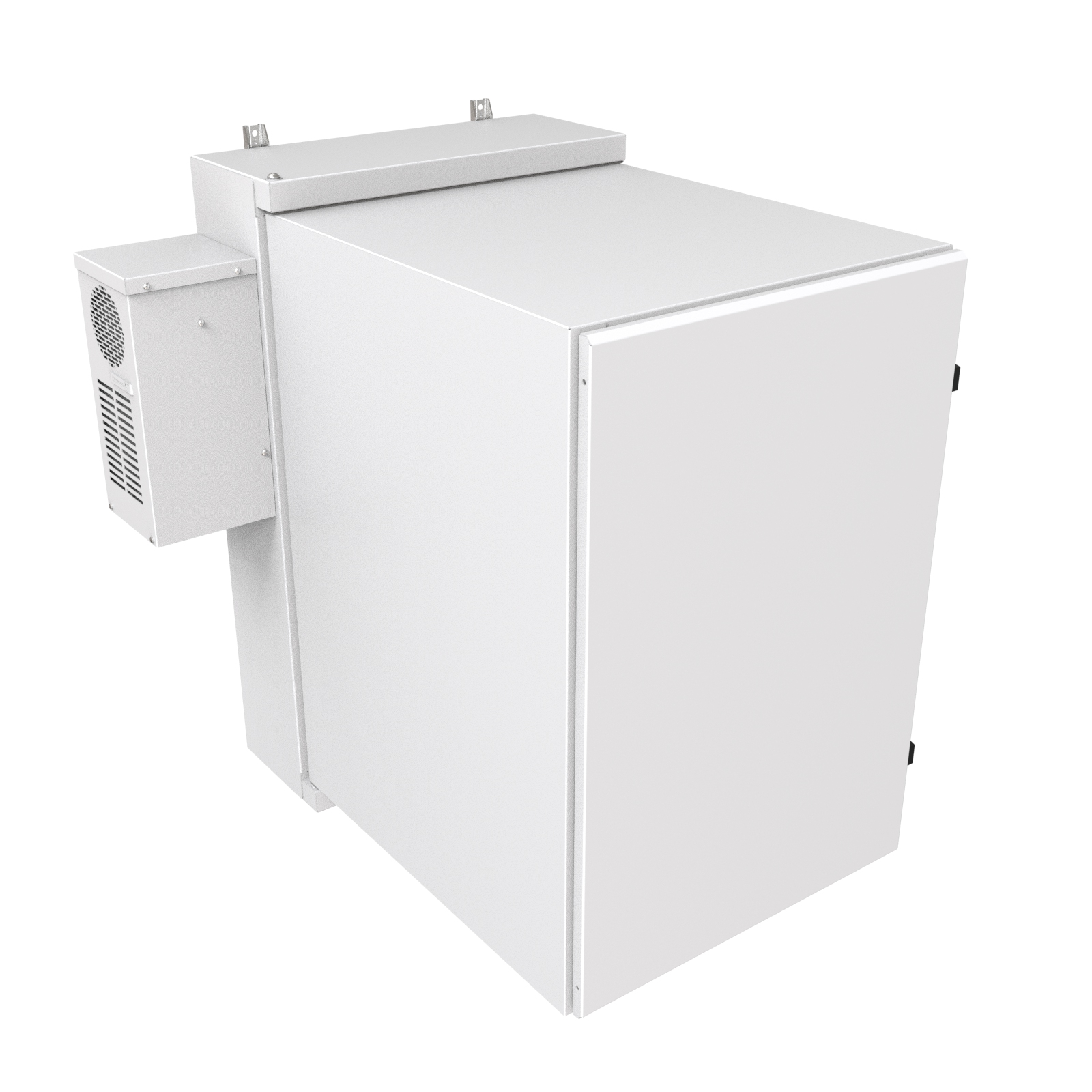

• ■"A" Version includes a factory-supplied 900–1300 BTU DTS3021A115LG air conditioner (shipped inside the cabinet) with cord.
• ■Dedicated bonding and grounding points support proper electrical installation and bonding of all cabinet components.
• ■External mounting feet and rear pan design support secure wall installation and cable entry.

Compliance and Certifications

The NWC Series environmental wall-mount cabinet uniquely combines UL2416 load rating and UL Type 12 environmental protection in a single enclosure. Independently tested to IP56 and designed for seismic-rated installations, it provides a sealed solution for network and industrial equipment in demanding environments.

Available in three configurations, including sealed (N), filtered (F), and air-conditioned (A) options, the NWC supports a wide range of applications requiring environmental protection, airflow management, or active cooling. Ideal for industrial, edge computing, and IDF deployments where reliability is critical.

• ■UL2416 Type 12 rated enclosure (350 lb load rating) combines structural load rating with environmental protection in a single cabinet.
• ■Independently tested to IEC 60529, IP56 provides protection against dust ingress and powerful water jets.
• ■Seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
• ■Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black or light gray powder coat finish (GREENGUARD Gold, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

When another product may be a better choice

• ■When you need an indoor wall-mount cabinet with light dust resistance but do not require a Type 12 rating, consider our HWC Series with the HWCF filter kit installed. This provides a significantly lower-cost alternative.
• ■When you need an outdoor-rated cabinet with enhanced environmental protection, consider our NWM Series.
• ■When you need a free-standing cabinet for floor-mounted installations, consider our HDME Series.
