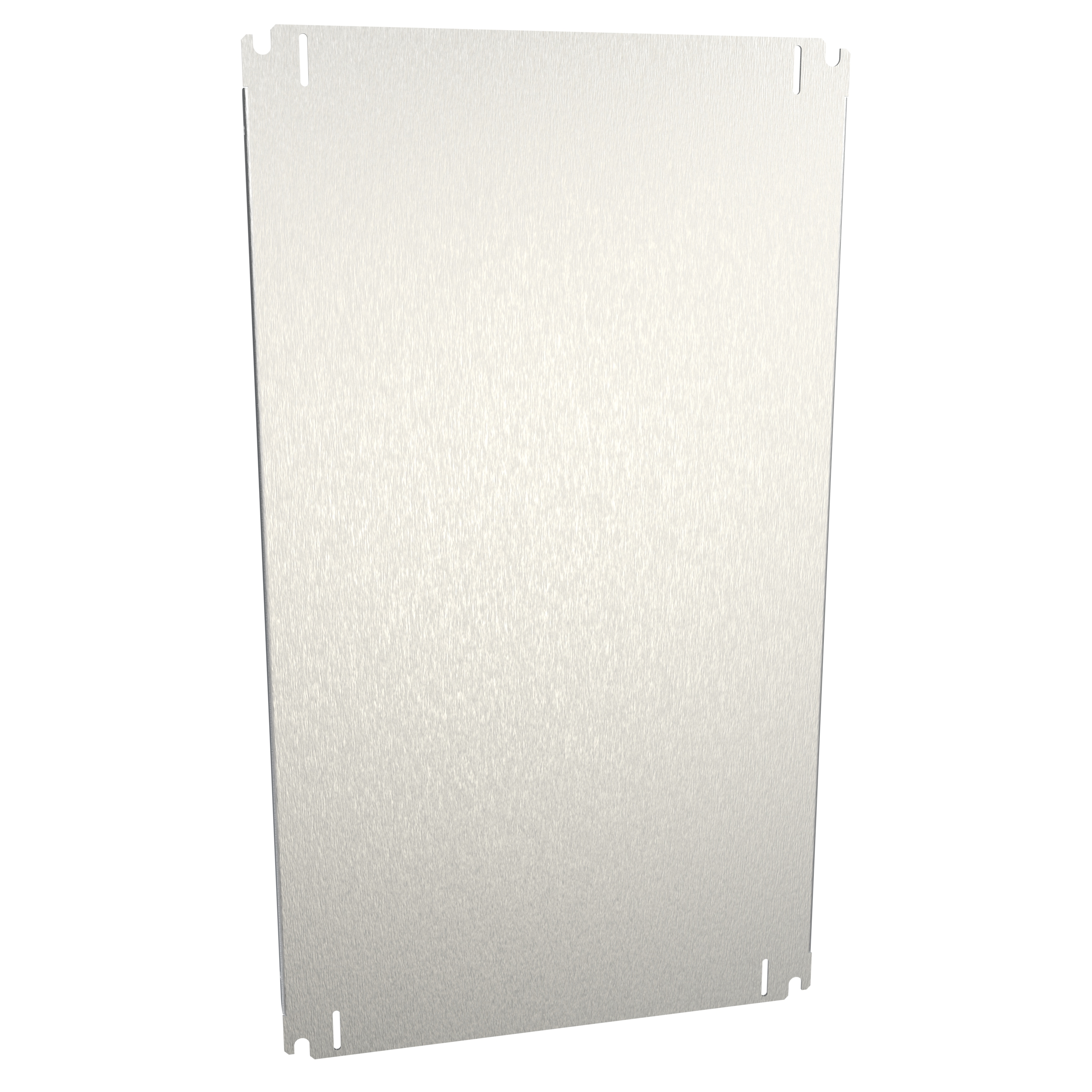

Hammond WRPS18UNF 18U Unfinished Aluminum Inner Mounting Panel

The WRPS18UNF is an 18U inner equipment panel that creates a solid, flat mounting surface for non-rackmount devices inside Hammond wall cabinets. It is intended for IT and network integrators, telecom and low-voltage installers, and industrial panel builders who need to secure DIN rail components, small network devices or cable management accessories inside a wall-mounted enclosure without consuming EIA rack rail space.

This version of the panel is unfinished aluminum, part of the WRP Series 14-gauge steel or aluminum construction that provides a durable mounting surface for non-rackmount equipment inside wall cabinets. The same 18U size is also offered in steel with a smooth RAL9003 white powder coat finish as WRPS18UWH; the WRPS18UNF is supplied with no finish applied.

Overall dimensions are 27.13 in x 16.19 in x 0.50 in (689 mm x 411 mm x 13 mm), matching an 18U cabinet. Rather than attaching to EIA-compliant rack rails, the panel secures to the rear mounting studs inside compatible Hammond wall cabinets, so rack-mounted equipment at the front is unaffected. A slotted corner design supports easier installation and alignment on the cabinet mounting studs, and mounting hardware is included.

• Compatible with HWM, HWC, NWC and NWM wall cabinet series.
• Helps optimize cabinet space by creating a secondary mounting surface behind rack-mounted equipment.
• Suits DIN rail components, network devices, IT equipment and cable management accessories.

WRPS18UNF is TAA-compliant and manufactured in North America within an ISO 9001 certified facility. It is RoHS compliant, REACH compliant and USMCA compliant, with country of origin Canada, tariff code 8538.10.0000 and ECCN EAR99.
