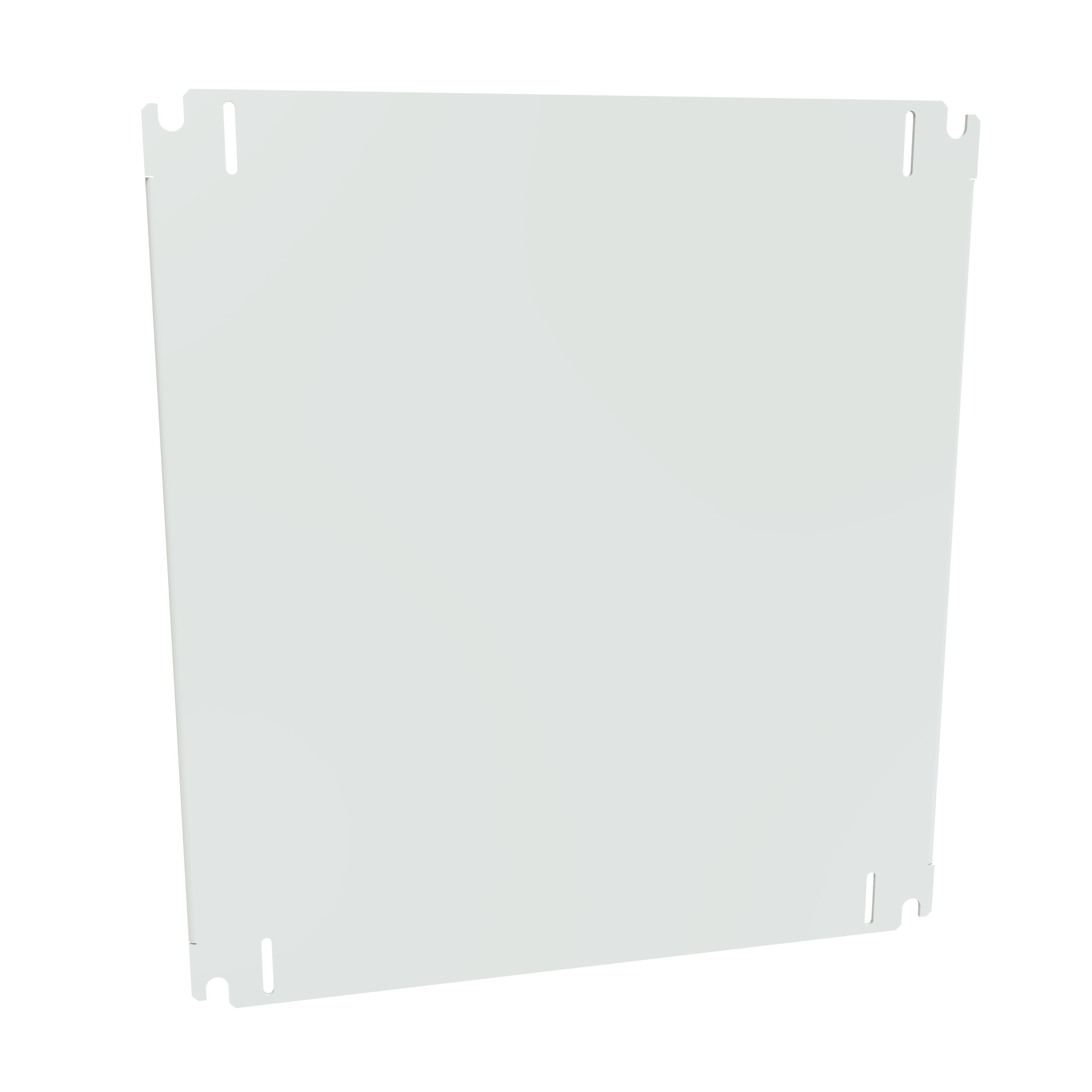

Hammond WRPS12UWH 12U Steel Inner Panel, RAL9003 White Finish

The WRPS12UWH is a 12U inner mounting panel that creates a solid, flat mounting surface for non-rackmount equipment inside wall-mounted rack cabinets. It is intended for IT and network integrators, telecom and low-voltage installers, and industrial or facilities teams who need to secure devices that have no rack ears inside a wall cabinet.

The panel is fabricated from 14-gauge steel and finished in a smooth RAL9003 white powder coat. The finish supports GREENGUARD, TSCA and RoHS compliance where applicable. A slotted corner design helps with installation and alignment on the cabinet mounting studs, and mounting hardware is included. The same panel is offered as WRPS12UNF in unfinished aluminum for applications that do not require a painted surface.

Overall dimensions are 16.63 in x 16.19 in x 0.50 in (422 mm x 411 mm x 13 mm), sized for 12U cabinets, with a shipping weight of 10 lbs (4.54 kg). Rather than attaching to EIA-compliant rack rails, WRPS12UWH secures to the rear mounting studs inside compatible Hammond wall cabinets, so rack-mounted gear at the front is not obstructed. It is compatible with the HWM, HWC, NWC and NWM wall cabinet series.

• Mount DIN rail components, control devices, network hardware, IT equipment and cable management accessories.
• Add a secondary mounting surface behind rack-mounted equipment to improve space utilization and organization.

WRPS12UWH is TAA-compliant and manufactured in North America (country of origin CA) in an ISO 9001 certified facility. It is listed as RoHS compliant, REACH compliant and USMCA compliant, with ECCN EAR99 and tariff code 9403.10.0040.
