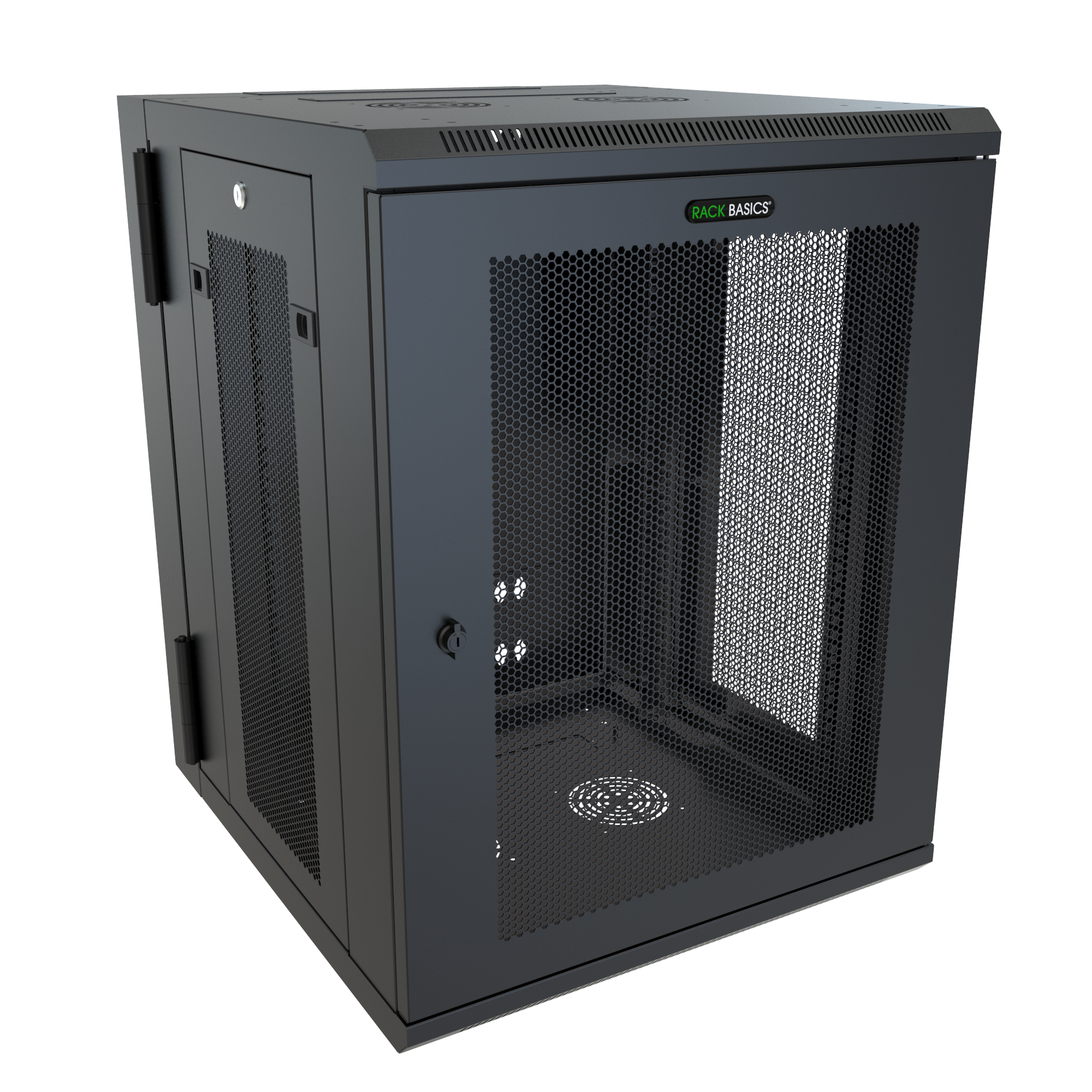

Swing-Out Wall-Mount Rack Cabinet, Deep Depth (200 lb) · RB-SWDV Series

Key Features and Benefits

The RB-SW Series swing-out wall-mount cabinet provides secure housing for 19-inch rack equipment with the added benefit of rear access for installation, servicing, and cable management. Its hinged design allows the cabinet to swing away from the wall, making it ideal for network closets and telecom rooms where accessibility is required.

Used in structured cabling and IT deployments, the RB-SW offers a balance between enclosure security and serviceability, making it a practical solution for installations that require frequent maintenance.

• ■16-gauge steel construction (200 lb capacity) provides reliable support for switches, patch panels, and rack-mounted equipment.
• ■Double-hinged swing-out cabinet design (19" rack compatible) allows full rear access up to 120° for installation, servicing, and cable management.
• ■Adjustable square-hole mounting rails support flexible equipment positioning and standard rack compatibility. Includes two (2) pairs of 19" mounting rails and a starter pack of (25) M6 screws and cage nuts (for 10-32 hardware, see CAGKIT Series).
• ■Includes two (2) pairs of 19" mounting rails and a starter pack of (25) M6 screws and cage nuts (for 10-32 hardware, see CAGKIT Series).
• ■Locking vented front door and removable side panels provide physical security with airflow for equipment cooling.
• ■Top, bottom, and rear cable access supports structured cable routing in wall-mounted installations.
• ■Fan-ready design with venting provisions supports optional cooling solutions.
• ■Reversible cabinet orientation allows left-to-right hinging flexibility during installation.
• ■Ships fully assembled for faster installation and deployment.
• ■Meets PCI DSS compliance requirements supports applications where payment card data security standards are required.
• ■RoHS compliant supports environmental compliance requirements.

When Another Product May Be a Better Choice

Part of the Rack Basics® line designed for simple, reliable, and affordable installations.

• ■When you need a shallower swing-out cabinet for standard-depth equipment, consider our RB-SW Series.
• ■When you need a fixed cabinet with no rear access requirements, consider our RB-FW Series.
• ■When you need higher load capacity with UL2416 and seismic load ratings, consider our HWC Series.
• ■When you need environmental protection against dust or water, consider our NWC or NWM Series cabinets.
