RB-2PW Extension Bracket
$90.86In stock
Buy now
Open Frame 2-Post Wall-Mount Rack (200 lb) · RB-2PW Series
Brand: Hammond Manufacturing · 11 part numbers
Fixed-depth open frame wall rack with 200 lb load rating for mounting network and telecom equipment.
- ■14-gauge steel body with 12-gauge rails (200 lb capacity ) provides reliable support for switches, patch panels, and rack-mounted equipment.
- ■Fixed wall-mount open frame design (19" rack compatible) provides a simple, space-efficient solution for equipment mounting.
- ■One (1) pair of 10-32 threaded mounting rails with rack unit indicators supports standard rack equipment and consistent installation. Includes starter hardware pack with (25) 10-32 screws ( SCREW1032-25 ) for equipment mounting.
- ■18 inches of usable mounting depth supports standard network and telecom equipment.
- ■Open-rear design allows installation over existing equipment and simplifies cable routing.
- ■Optional RB-2PW-EXT extender increases depth to 25 inches without reducing load capacity.
from $25.96
11 of 11 part numbers priced · in stock · ships by ground · volume pricing on request
This product is not designed nor intended to be used for non-wall mounted applications.
Configure & price
Find your RB-2PW Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Rack · Units | Mounting Dimensions · Height | Mounting Dimensions · Width | Mounting Dimensions · Depth | Weight · Capacity | Vertical Cable Manager · Part No. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|

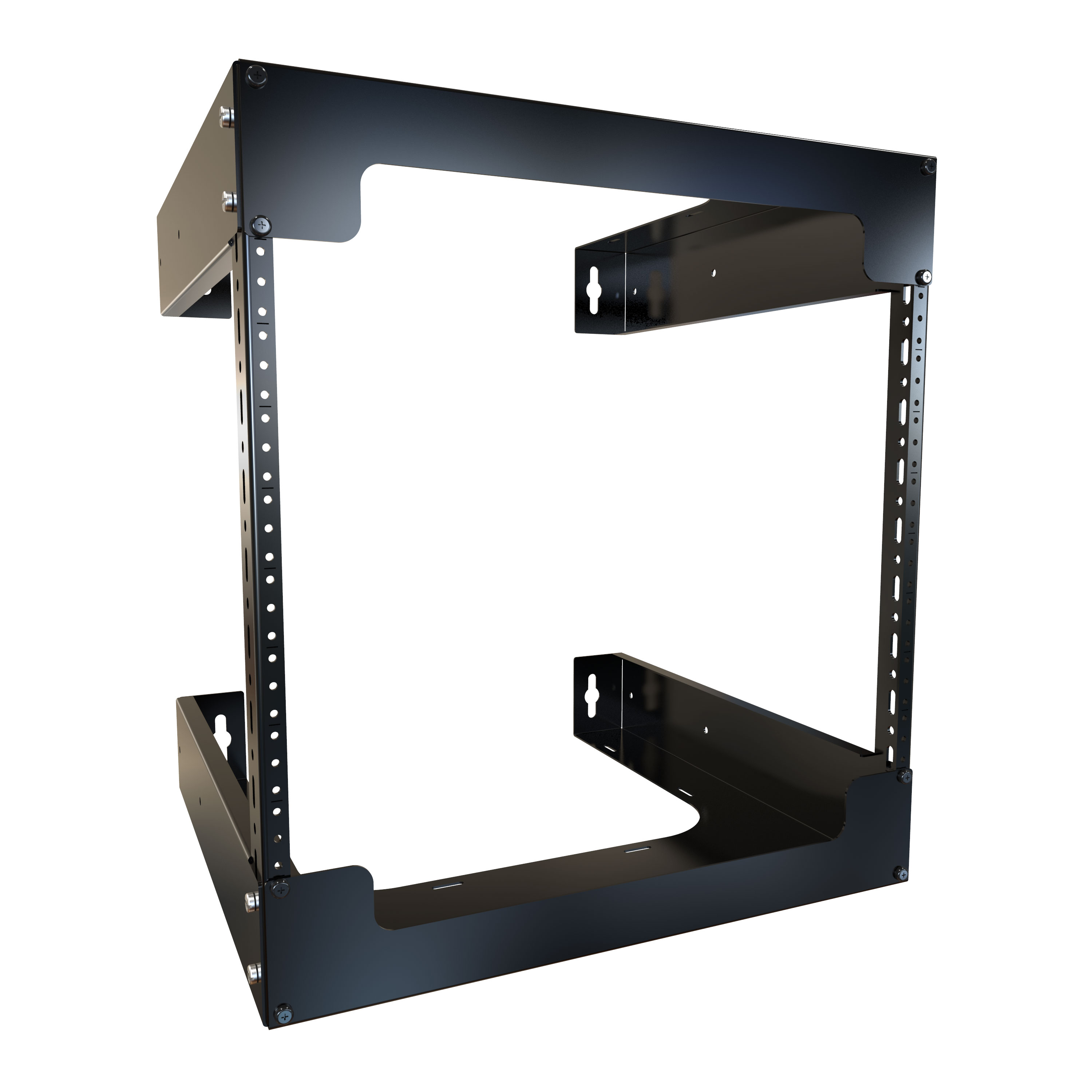

| RB-2PW8 | 18.00 | 20.00 | 18.00 | 8U | 14.00 | 19.00 | 18.00 | 200 lbs | WRCM8U4BK | $201.19In stockRB-2PW8 | Buy now |

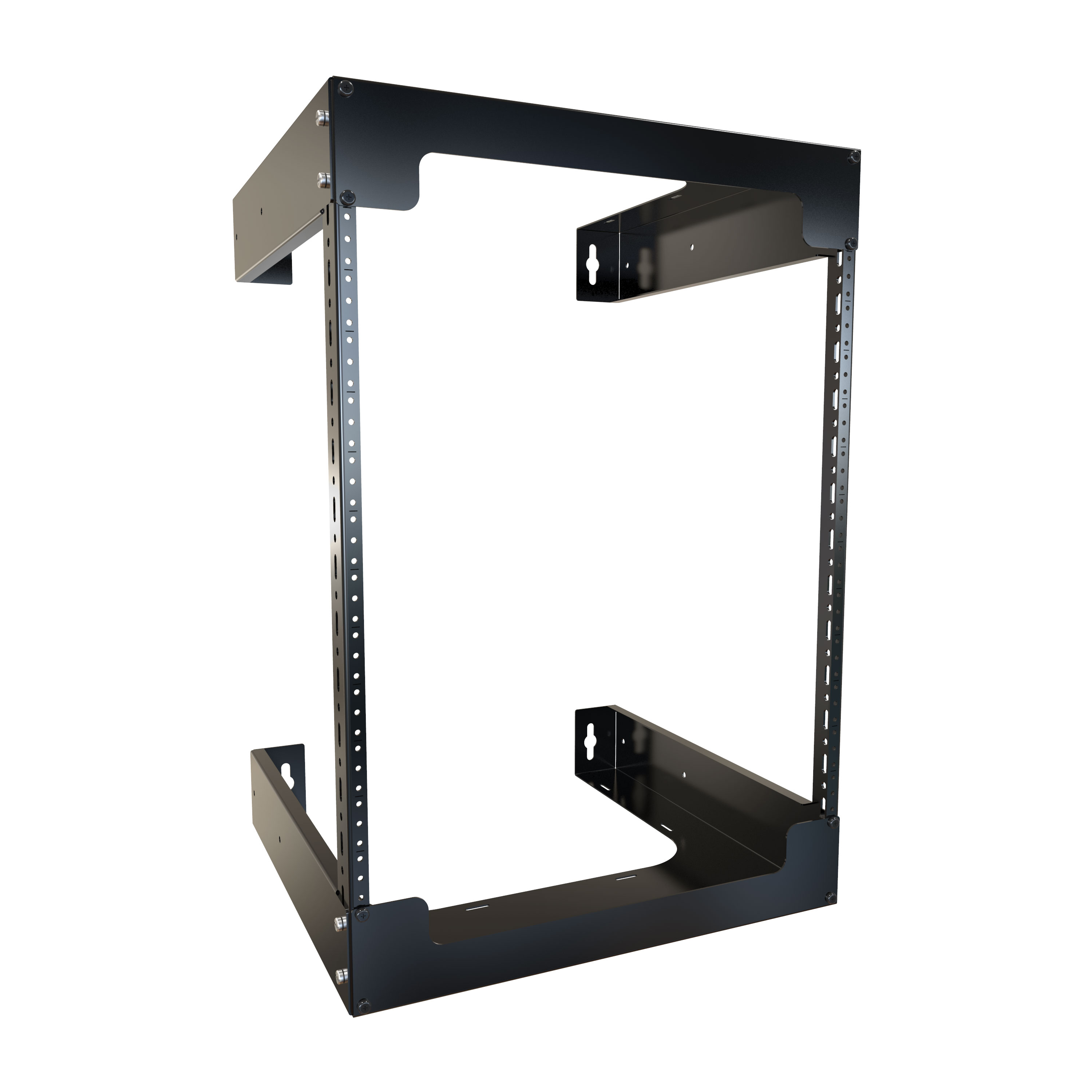

| RB-2PW12 | 28.50 | 20.00 | 18.00 | 12U | 21.00 | 19.00 | 18.00 | 200 lbs | WRCM12U4BK | $155.76In stock | Buy now |
| RB-2PW20 | 40.00 | 20.00 | 18.00 | 20U | 35.00 | 19.00 | 18.00 | 175 lbs | WRCM20U4BK | $194.70In stock | Buy now |

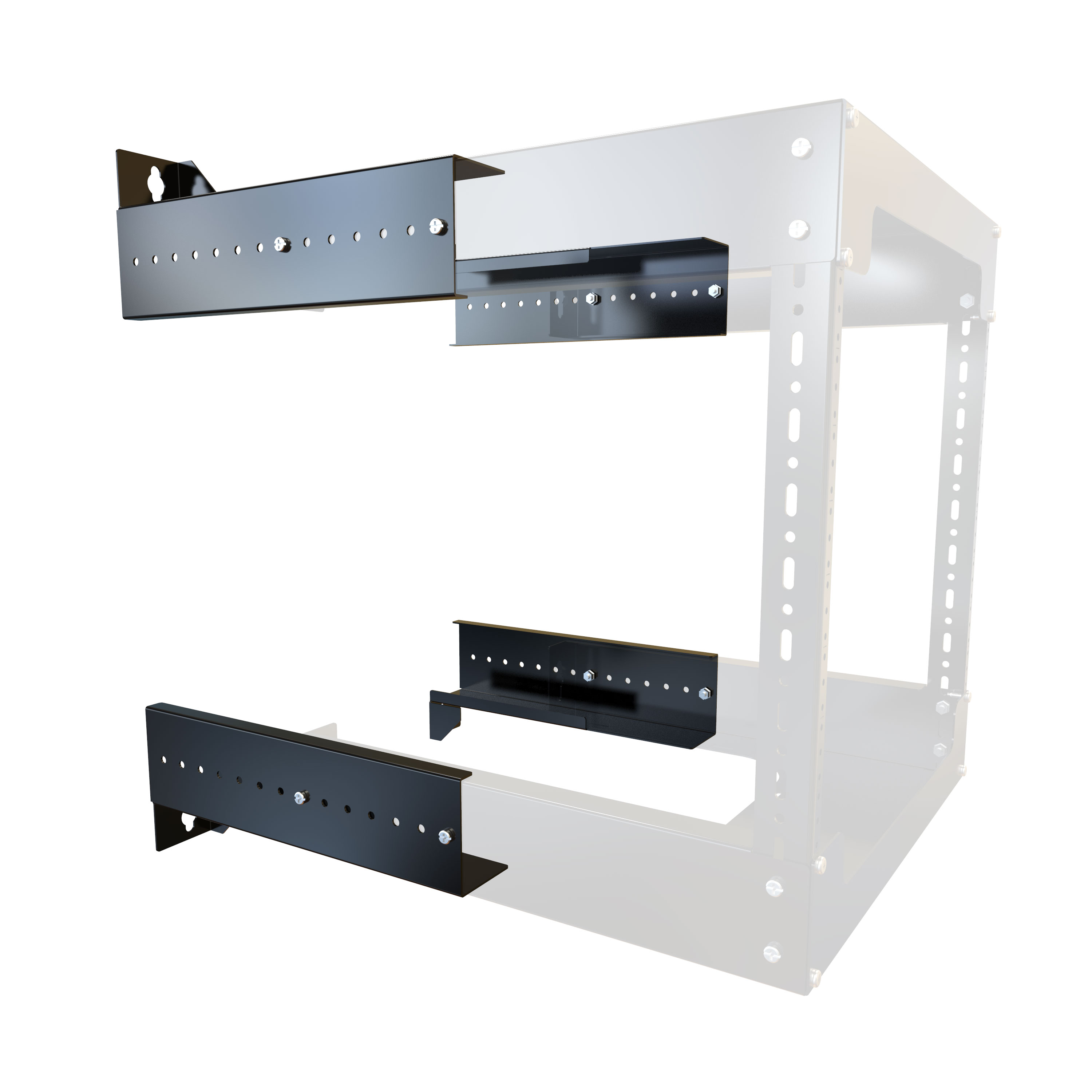

Optional Extender Bracket
| Part No. | Description | Price | Order |
|---|---|---|---|
| RB-2PW-EXT | Provides additional seven inches of mounting depth (18” to 25”) while maintaining weight load capacity. | $90.86In stock | Buy now |
What's Inside the Box
| Qty Included | Description | Replacement Part No. | Price | Order |
|---|---|---|---|---|
| 1 | Pair of Rack Rails | URR8U, URR12U, or URR20U | Quote | Quote |
| 2 | Top and Bottom Cover/Wall Brackets | Quote | Quote | |
| 1 | Assembly Instructions | Quote | Quote | |
| 8 | 1/4-20 x 0.5in Screw For Assembly | Quote | Quote | |
| 8 | 1/4-20 Kep Nut For Assembly | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Key Features and Benefits
The RB-2PW Series open frame wall rack provides a simple and durable solution for mounting 19-inch rack equipment in telecom and IT environments. With a 200 lb load rating and fixed 18-inch depth, it supports patch panels, switches, and network equipment in wall-mounted installations.
Designed for structured cabling and network deployments, the RB-2PW offers open access for cable routing and installation over existing equipment. Its heavy-duty construction and optional depth extender make it a versatile solution for a wide range of applications.
- ■14-gauge steel body with 12-gauge rails (200 lb capacity ) provides reliable support for switches, patch panels, and rack-mounted equipment.
- ■Fixed wall-mount open frame design (19" rack compatible) provides a simple, space-efficient solution for equipment mounting.
- ■One (1) pair of 10-32 threaded mounting rails with rack unit indicators supports standard rack equipment and consistent installation. Includes starter hardware pack with (25) 10-32 screws ( SCREW1032-25 ) for equipment mounting.
- ■18 inches of usable mounting depth supports standard network and telecom equipment.
- ■Open-rear design allows installation over existing equipment and simplifies cable routing.
- ■Optional RB-2PW-EXT extender increases depth to 25 inches without reducing load capacity.
- ■Self-squaring knock-down design ships unassembled for easier handling and installation.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD Gold, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.
When another product may be a better choice
Part of the Rack Basics® line designed for simple, reliable, and affordable installations.
- ■When you need an adjustable depth wall bracket, consider our APB Series.
- ■When you need a wall bracket with an integrated shelf, consider our APBS Series.
- ■When you need a hinged or center-swing wall bracket for rear access, consider our HWMR Series.
Documents
Additional information
Where the RB-2PW series works best

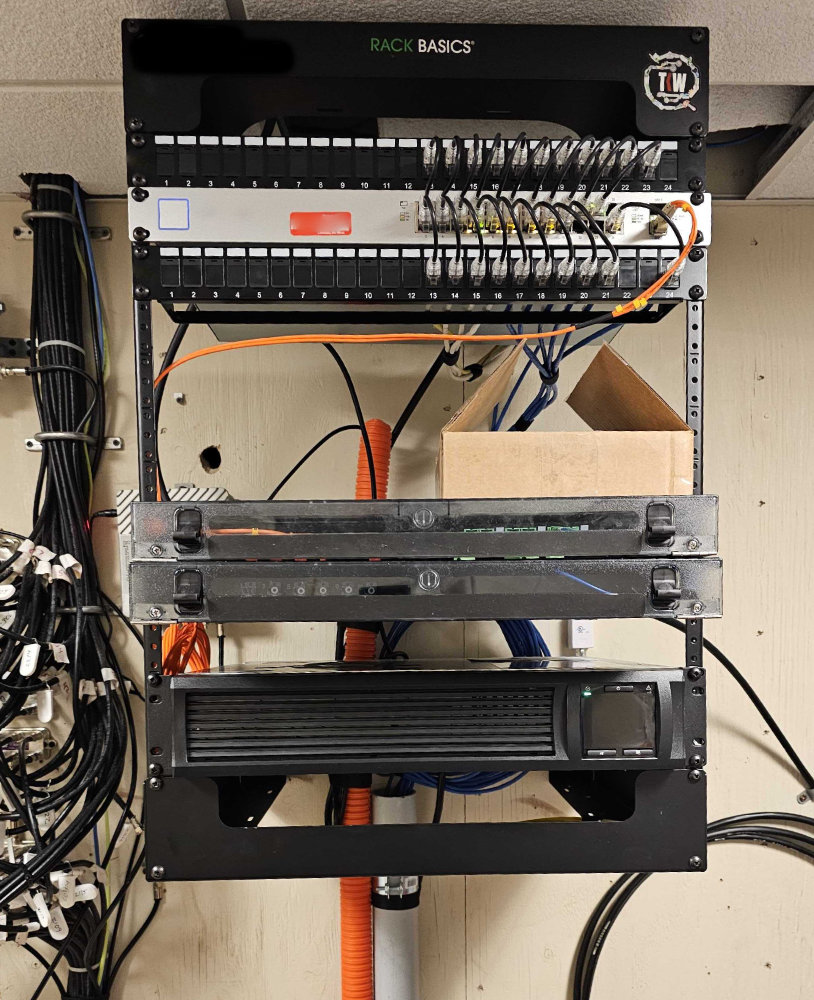

- ■Telecom backboards and network demarcation points.
- ■Network closets requiring higher load capacity without enclosure.

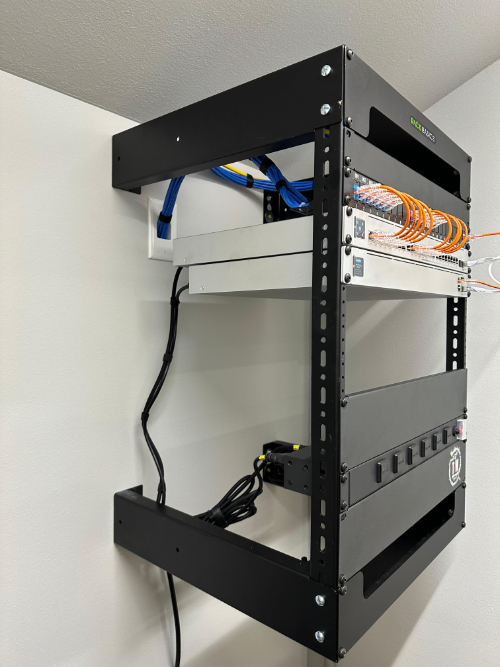

- ■Wall-mounted installations over existing equipment.
- ■Structured cabling environments with open access requirements.
- ■Installations where simplicity and strength are prioritized.
- ■Installations requiring higher load capacity in an open frame design (up to 200 lb).
- ■Applications needing fixed-depth mounting for consistent equipment placement.
- ■Environments where open access is preferred over enclosed cabinets.
- ■Deployments requiring installation over existing equipment or infrastructure.
- ■Installations needing cost-effective, heavy-duty wall-mounted support.
Any questions? Talk with an expert
Call us (224) 955-1644Accessories for this series
Universal Rack Mount Rails · URR Series
from $20.77
Shop parts

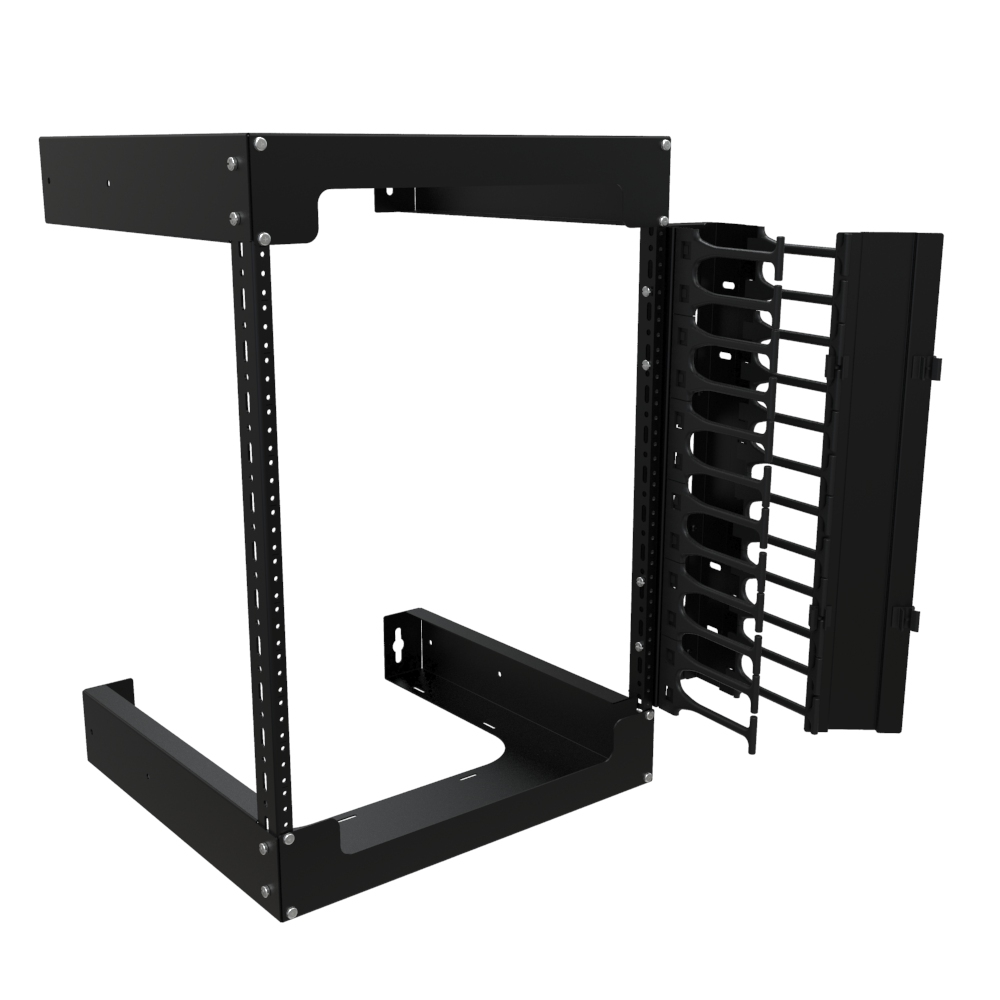

Vertical Cable Manager for Wall Mount Racks · WRCM Series
