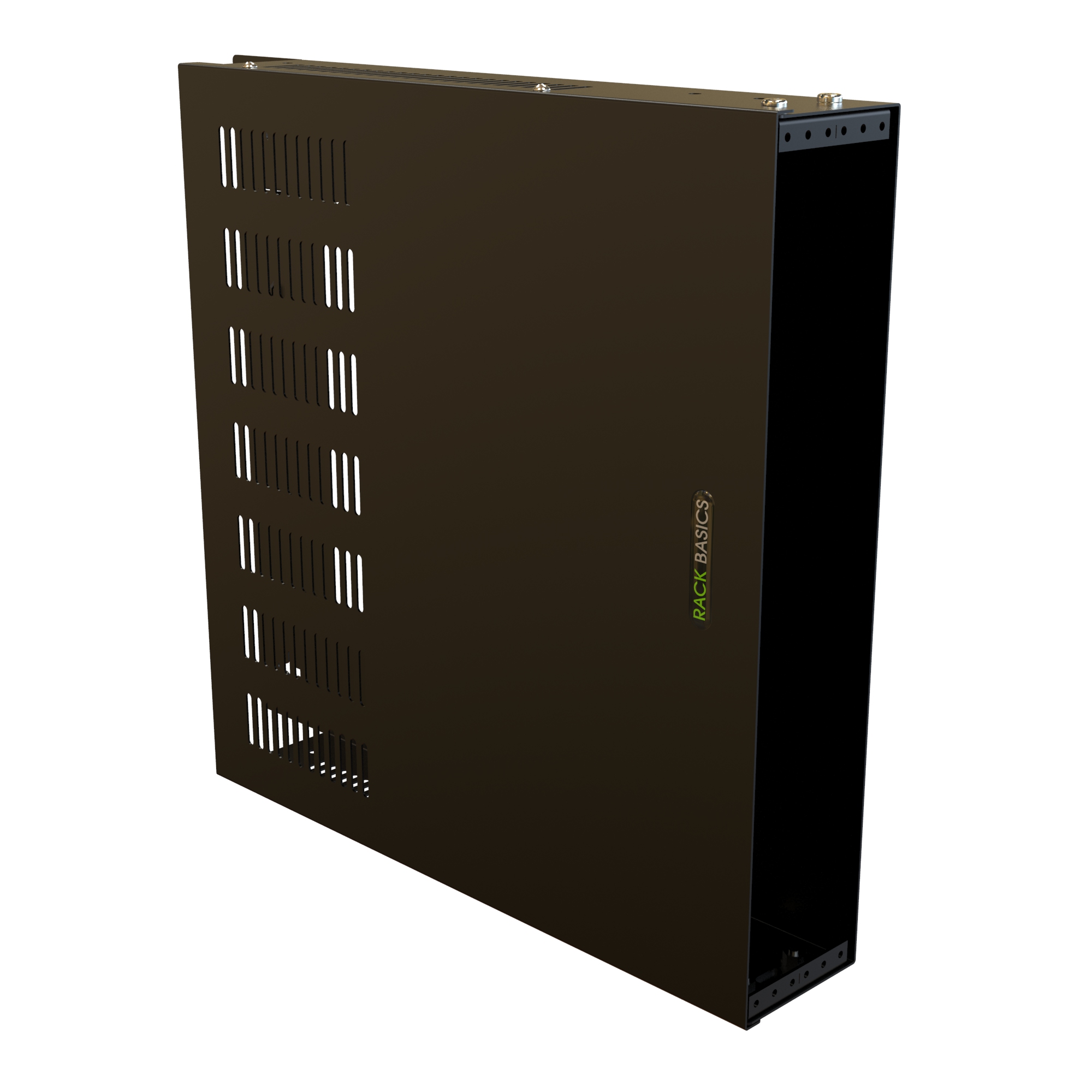

2U Compact Wall Cabinet
- Rack Units 2U
$155.76In stock
Buy now

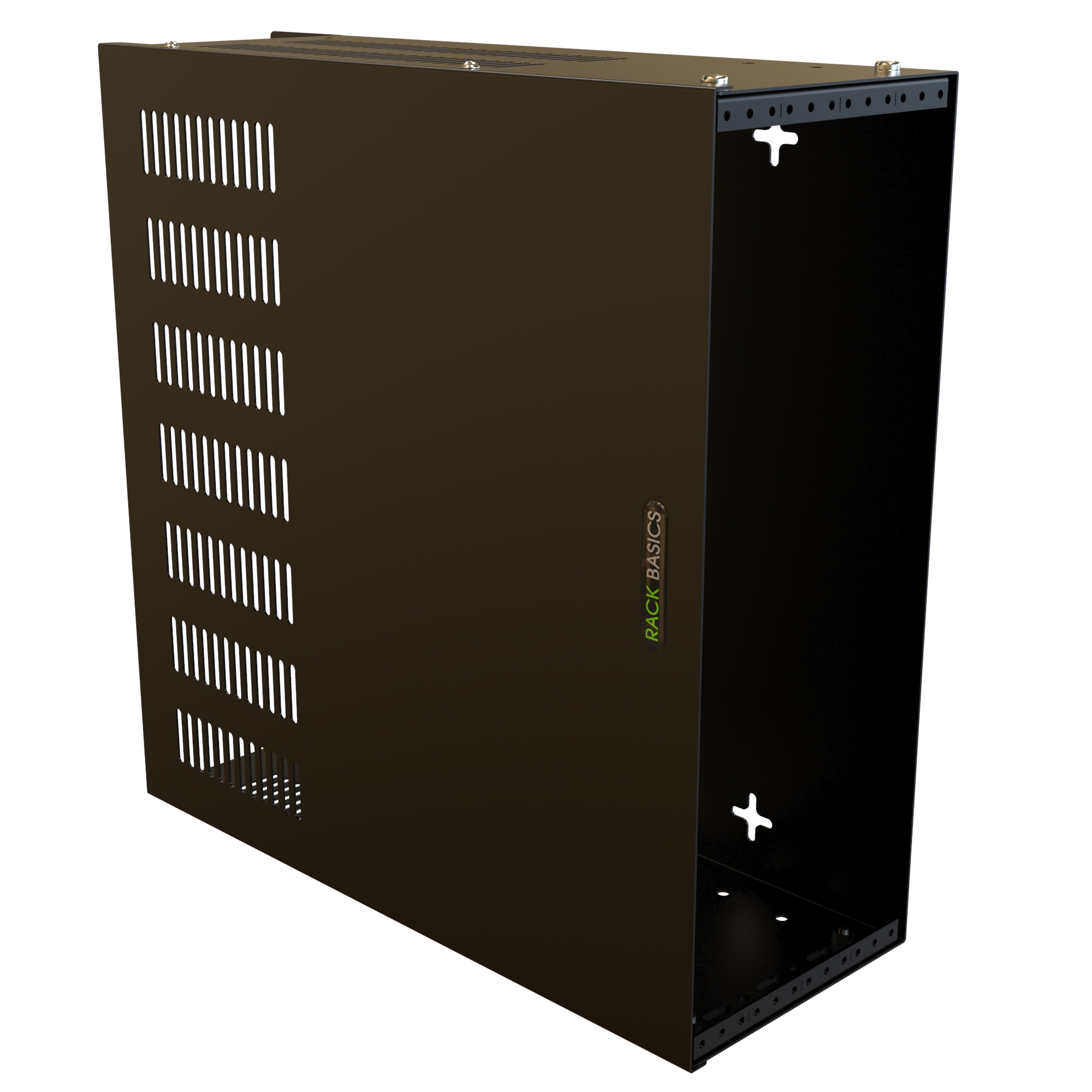

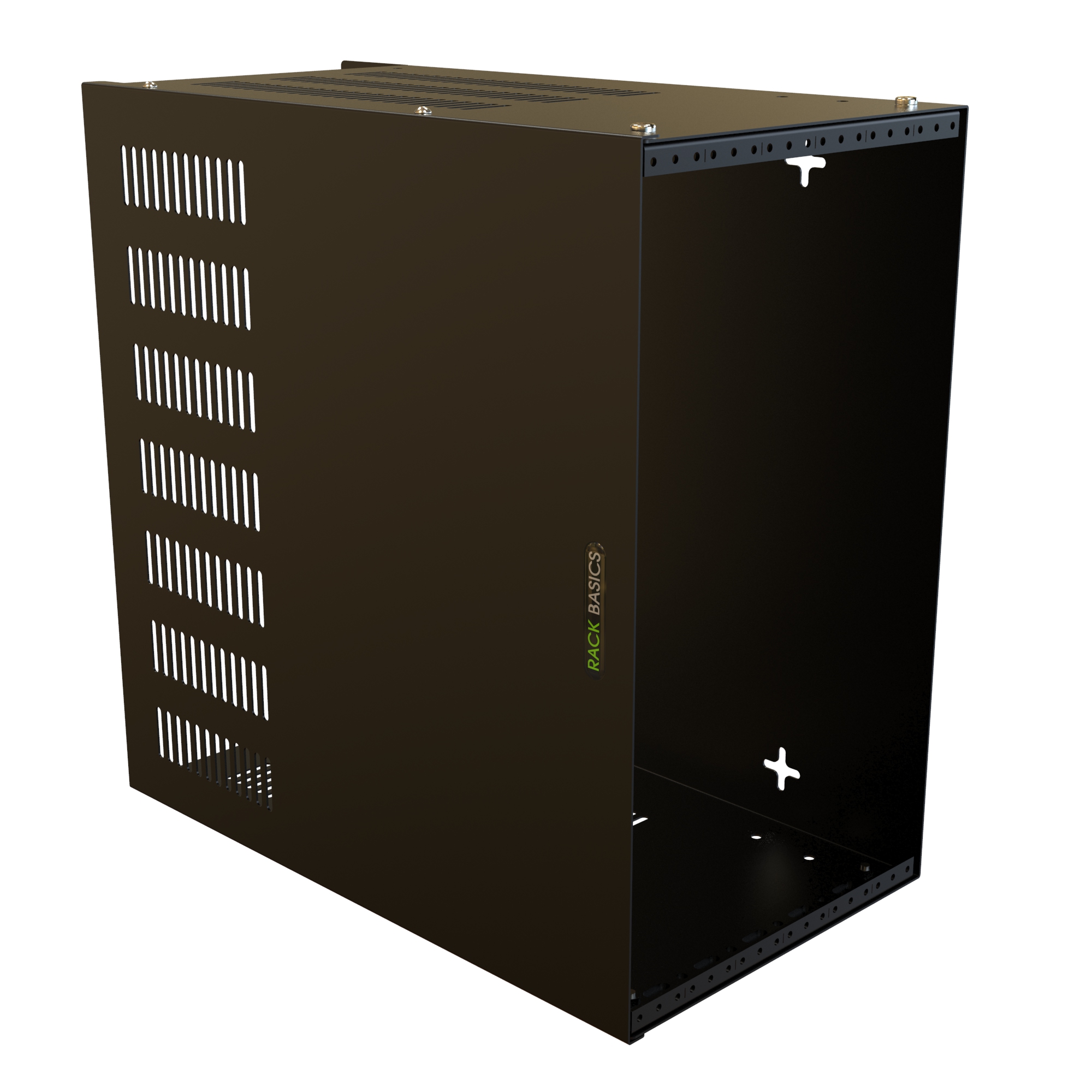

Compact Wall-Mount Rack Bracket (60 lb) · RB-CW Series
Brand: Hammond Manufacturing · 6 part numbers
Compact, cost-effective mounting solution for low-density network and telecom installations.
- ■16-gauge steel body with 12-gauge rails (60 lb capacity ): provides reliable support for patch panels, switches, and lightweight rack equipment.

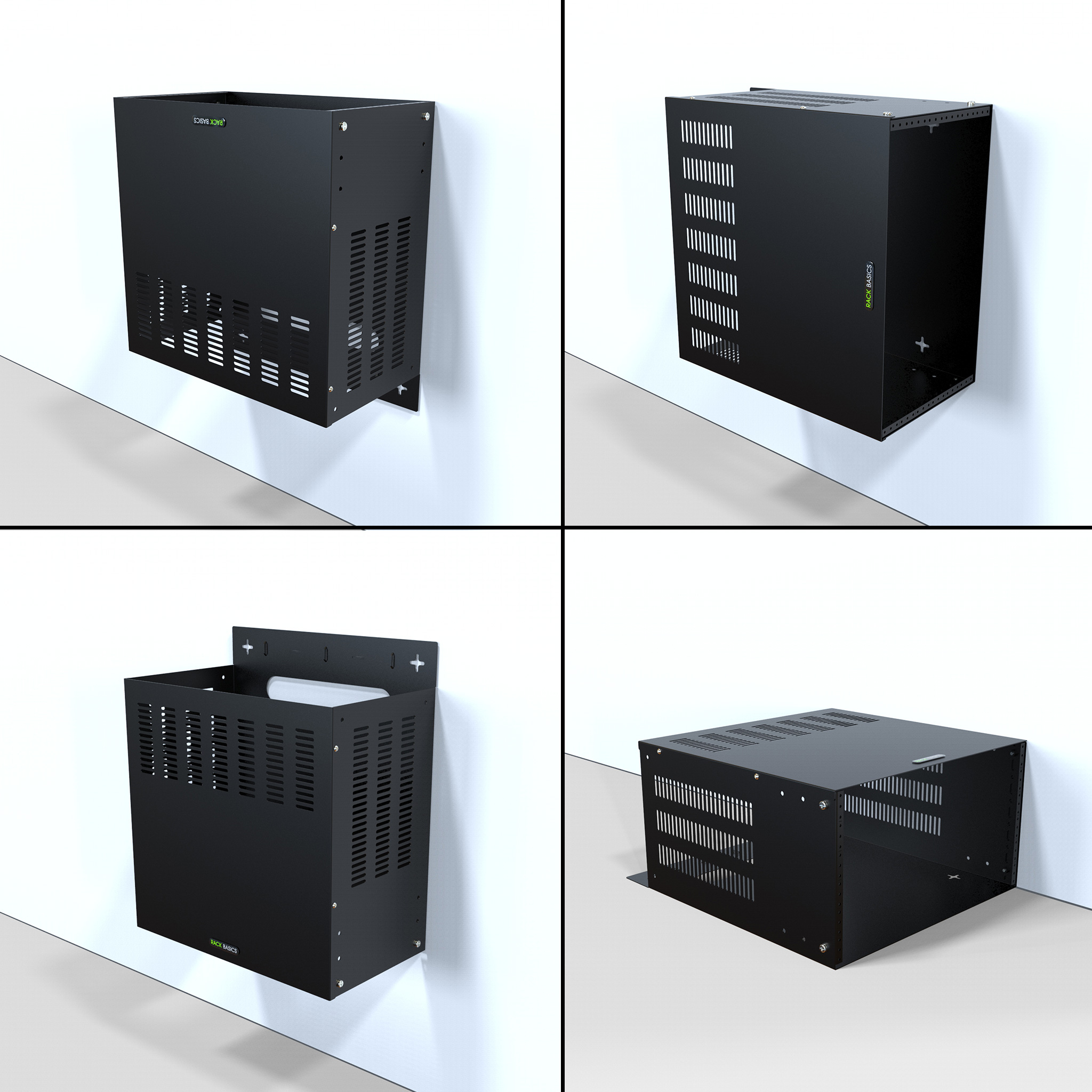

- ■Simple wall-mount design (19" rack compatible) provides a minimal footprint for low-density installations.
- ■Open frame construction allows easy access for installation, maintenance, and cable routing.
- ■Fast installation reduces setup time in small or retrofit environments.
- ■Lightweight, cost-effective solution ideal for basic network and telecom deployments.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
from $20.77
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RB-CW Series part number
Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Rack · Units | Mounting Dimensions · Height | Mounting Dimensions · Width | Mounting Dimensions · Depth | Additional · Rail Pair (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| RB-CW2 | 3.55 | 19.36 | 22.00 | 2U | 3.50 | 19.00 | 20.00 | URR2U | $155.76In stockRB-CW2 | Buy now |
| RB-CW4 | 7.05 | 19.36 | 22.00 | 4U | 7.00 | 19.00 | 20.00 | URR4U | $162.25BackorderRB-CW4 | Buy now |
| RB-CW6 | 10.55 | 19.36 | 22.00 | 6U | 10.50 | 19.00 | 20.00 | URR6U | $175.23In stockRB-CW6 | Buy now |

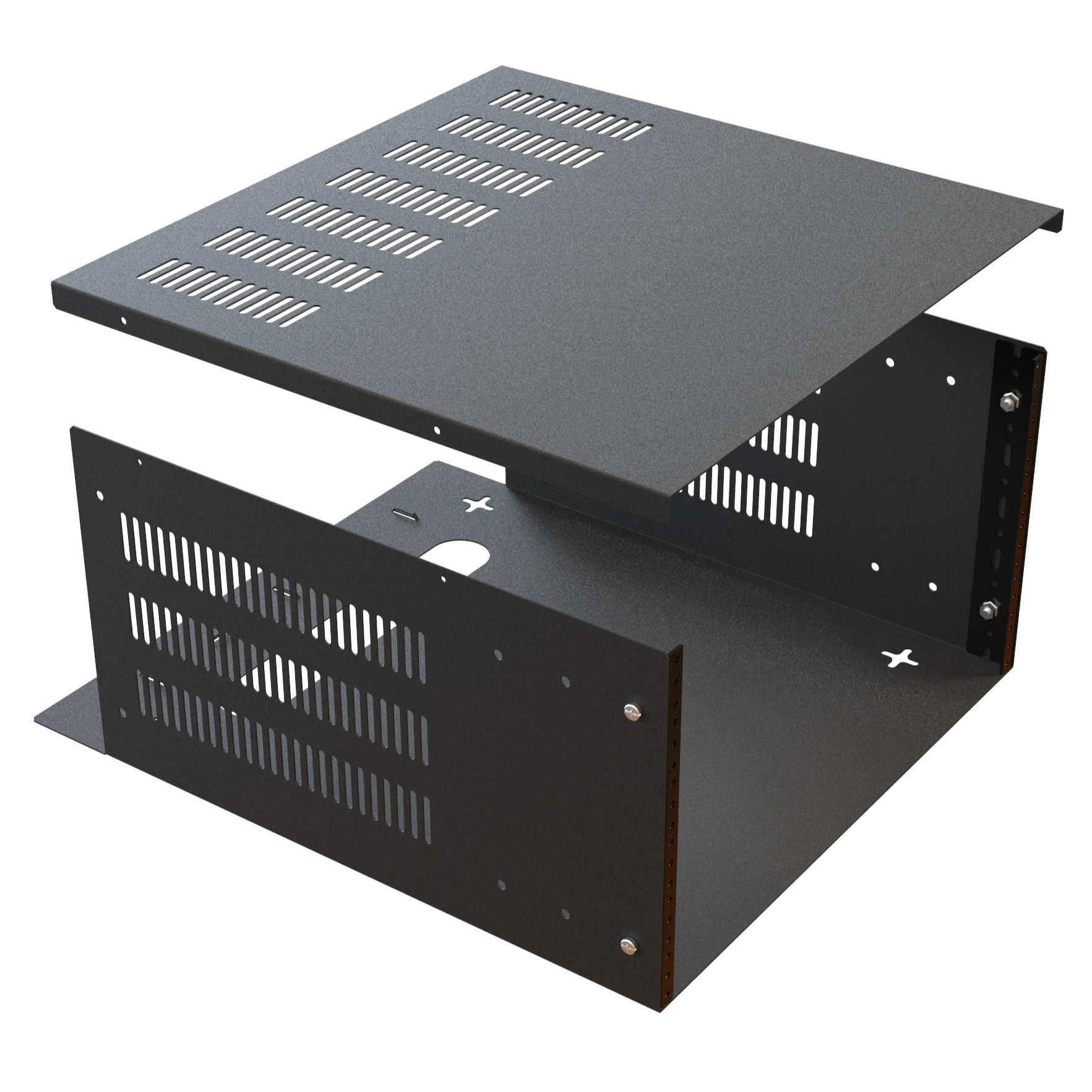

What's Inside the Box
| Qty · Included | Description | Replacement Part No. · 2U | Replacement Part No. · 4U | Replacement Part No. · 6U | Price | Order |
|---|---|---|---|---|---|---|
| 1 | Body Section | Quote | Quote | |||
| 1 | Lid/Cover | Quote | Quote | |||
| 4 | 10-24 x 3/8in Screws (To attach lid) | Quote | Quote | |||
| 1 | Pair of mounting rails | URR2U | URR4U | URR6U | $20.77BackorderURR2U | Buy now |
| 4 | 1/4-20 x 0.5in Machine Screws (To secure rails) | Quote | Quote | |||
| 4 | 1/4-20 Nuts (To secure rails) | Quote | Quote |
Key Features and Benefits
The RB-CW wall-mount rack bracket is a compact, cost-effective solution for mounting 19-inch rack equipment directly to a wall in low-density network environments. Designed for simplicity and efficiency, it provides reliable support for patch panels, switches, and lightweight equipment without the size or cost of a full rack or cabinet.
Commonly used in telecom backboards, small network closets, and retail locations, the RB-CW is ideal for installations where space is limited and open access is acceptable. Compared to enclosed cabinets or larger rack systems, it offers a straightforward, budget-friendly option for basic network infrastructure deployments.
- ■16-gauge steel body with 12-gauge rails (60 lb capacity ): provides reliable support for patch panels, switches, and lightweight rack equipment.
- ■Simple wall-mount design (19" rack compatible) provides a minimal footprint for low-density installations.
- ■Open frame construction allows easy access for installation, maintenance, and cable routing.
- ■Fast installation reduces setup time in small or retrofit environments.
- ■Lightweight, cost-effective solution ideal for basic network and telecom deployments.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD Gold, TSCA, and RoHS compliant) provides a low-emitting, corrosion-resistant finish suitable for indoor environments.
When Another Product May Be a Better Choice
Part of the Rack Basics® line designed for simple, reliable, and affordable installations.
- ■The VPB Series is a better fit for deeper equipment installations requiring additional internal depth within a wall-mount form factor.
- ■The SDC Series is better suited for applications requiring a secure enclosed cabinet with integrated side access and equipment protection.
- ■The HLP Series is the preferred choice for higher load capacity applications requiring adjustable rack rails and greater mounting flexibility for IT and networking equipment.
Documents
Additional information
Where the RB-CW Works Best
- ■Small network closets and utility rooms.
- ■Telecom backboards and low-voltage areas.
- ■Retail and branch locations.
- ■Low-density IT installations.
- ■Budget-sensitive projects.
- ■You need a minimal, low-cost mounting solution.
- ■Equipment weight and depth are light to moderate.
- ■Fast, straightforward installation is preferred.
- ■Open access for service and cabling is acceptable.
