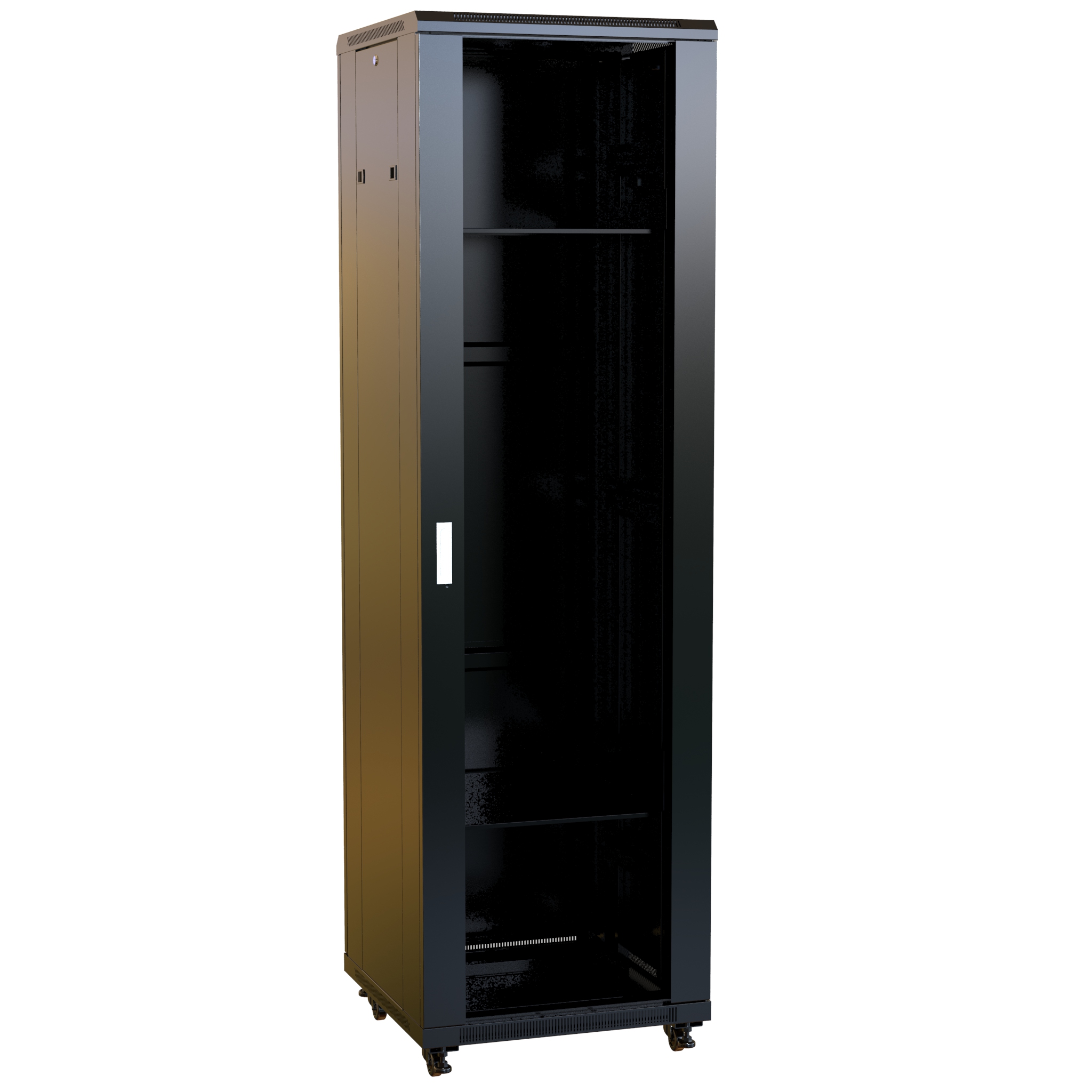

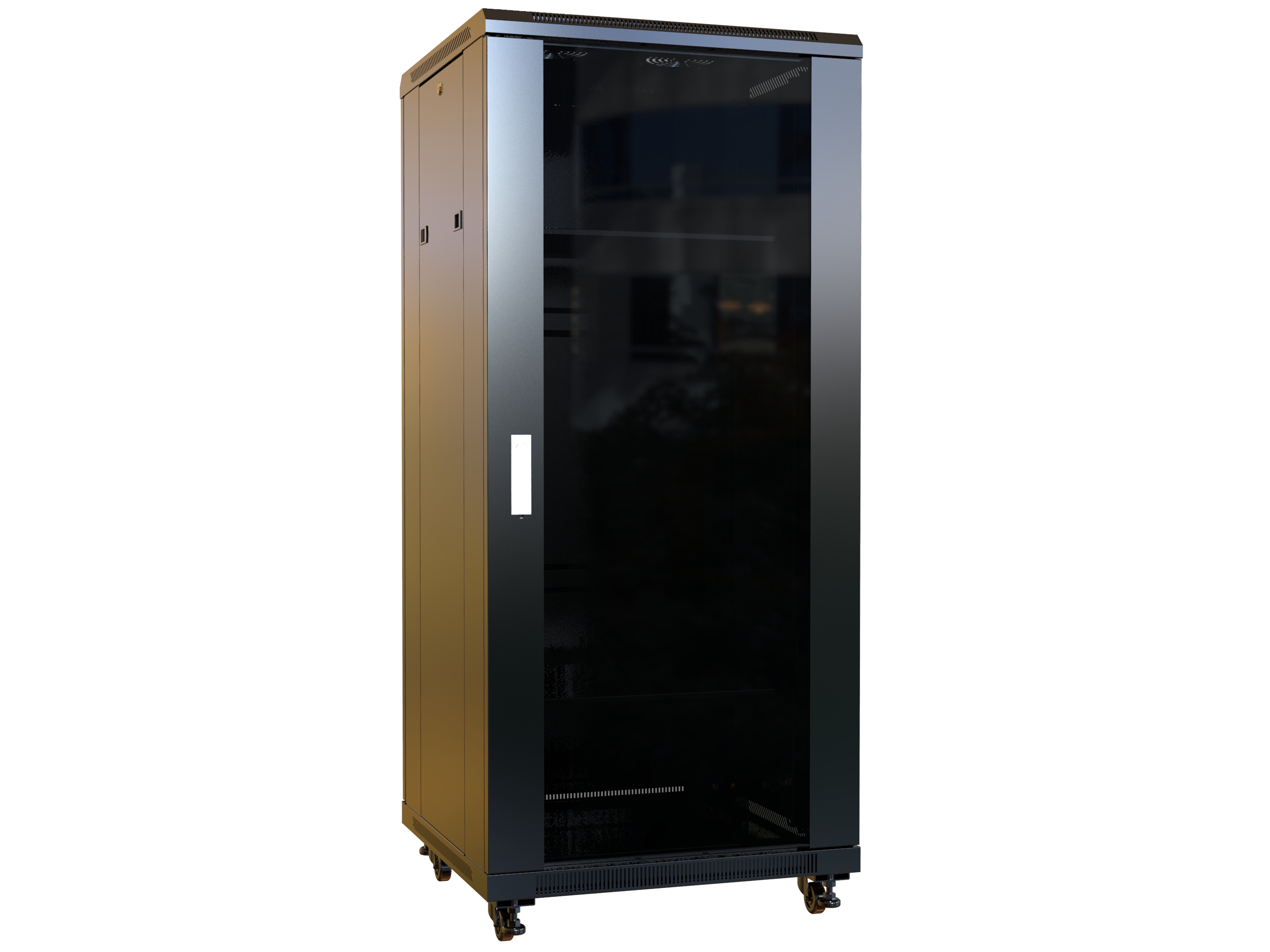

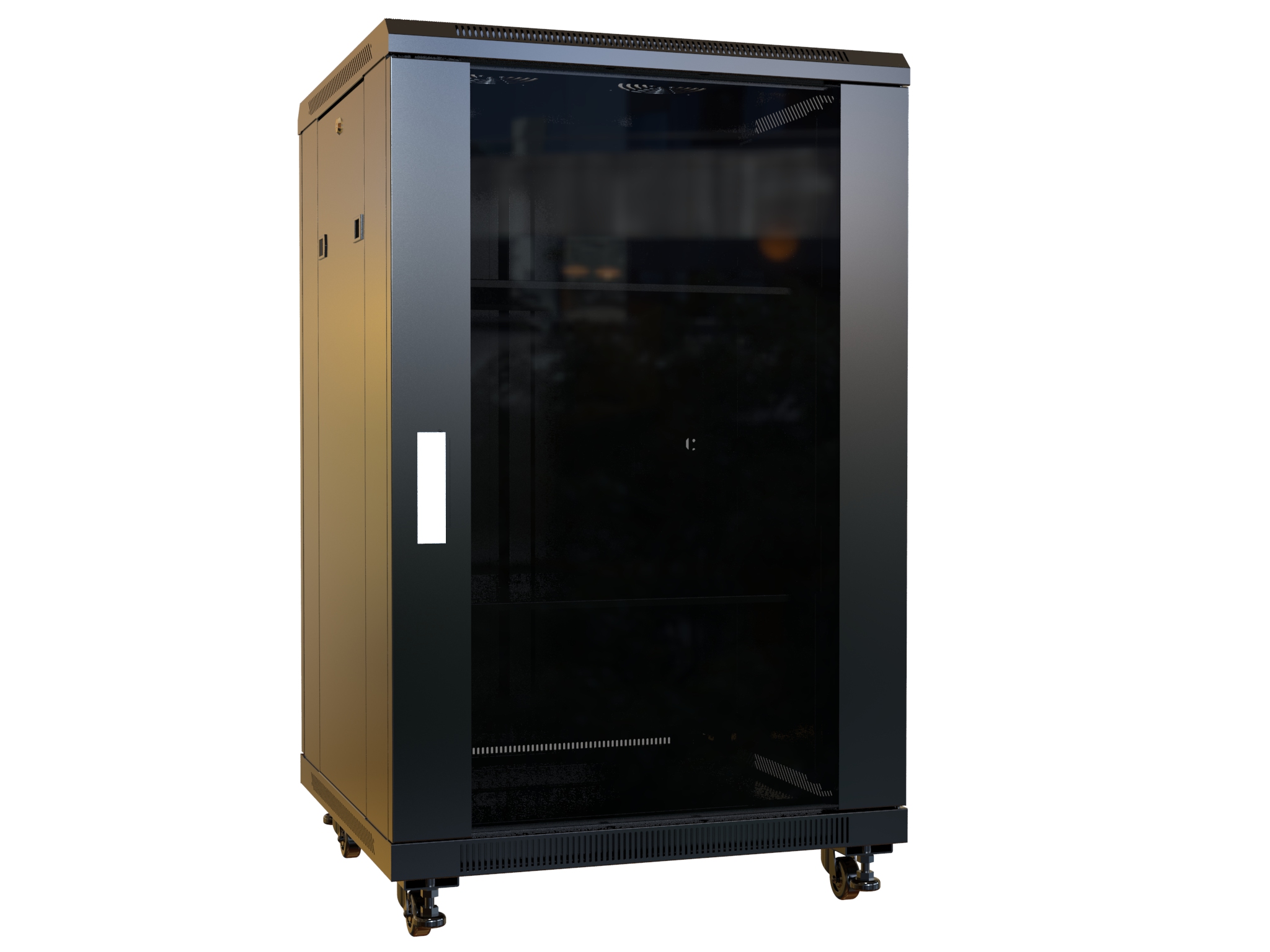

Assembled AV Rack Cabinet (950 lb) · RB-AV Series

Key Features and Benefits

• ■16-gauge welded steel cabinet (950 lb capacity) provides reliable support for AV, security, and network equipment.
• ■Ships fully assembled with pre-installed shelves and panels supports fast deployment and reduces installation time for integrators.
• ■Two (2) pairs of adjustable depth EIA-310 compliant 10-32 threaded mounting rails (13-gauge steel) support standard rack equipment. Includes a starter pack of 10-32 mounting hardware.
• ■Pre-installed vented rack shelves and filler panels support immediate equipment mounting and organization.
• ■Tempered glass front door and solid steel rear door with locking quarter-turn latches provide equipment visibility and security.

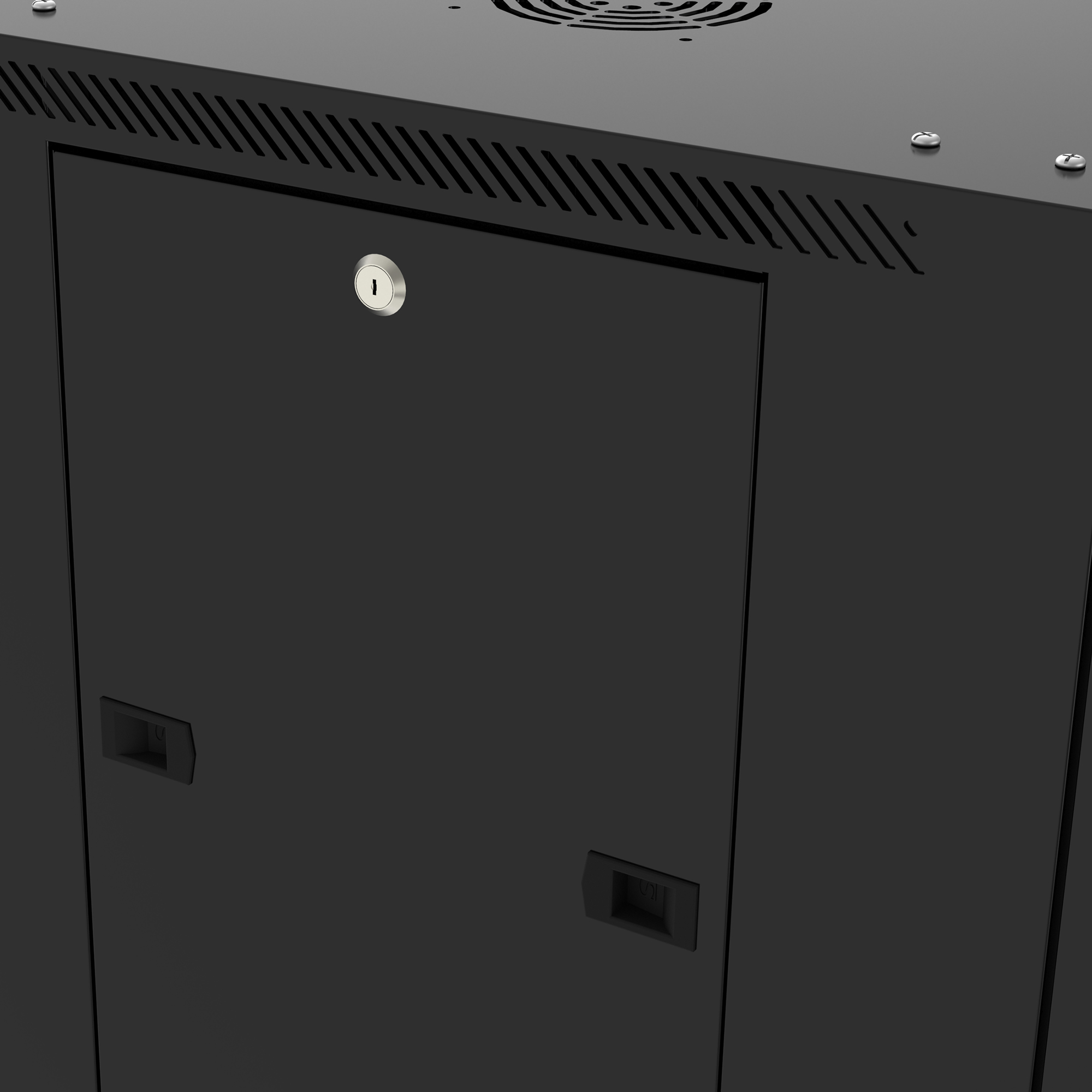

• ■Removable locking side panels support easy access during installation and maintenance.
• ■Passive ventilation on top, bottom, and sides with optional fan support supports cooling for AV and network equipment.

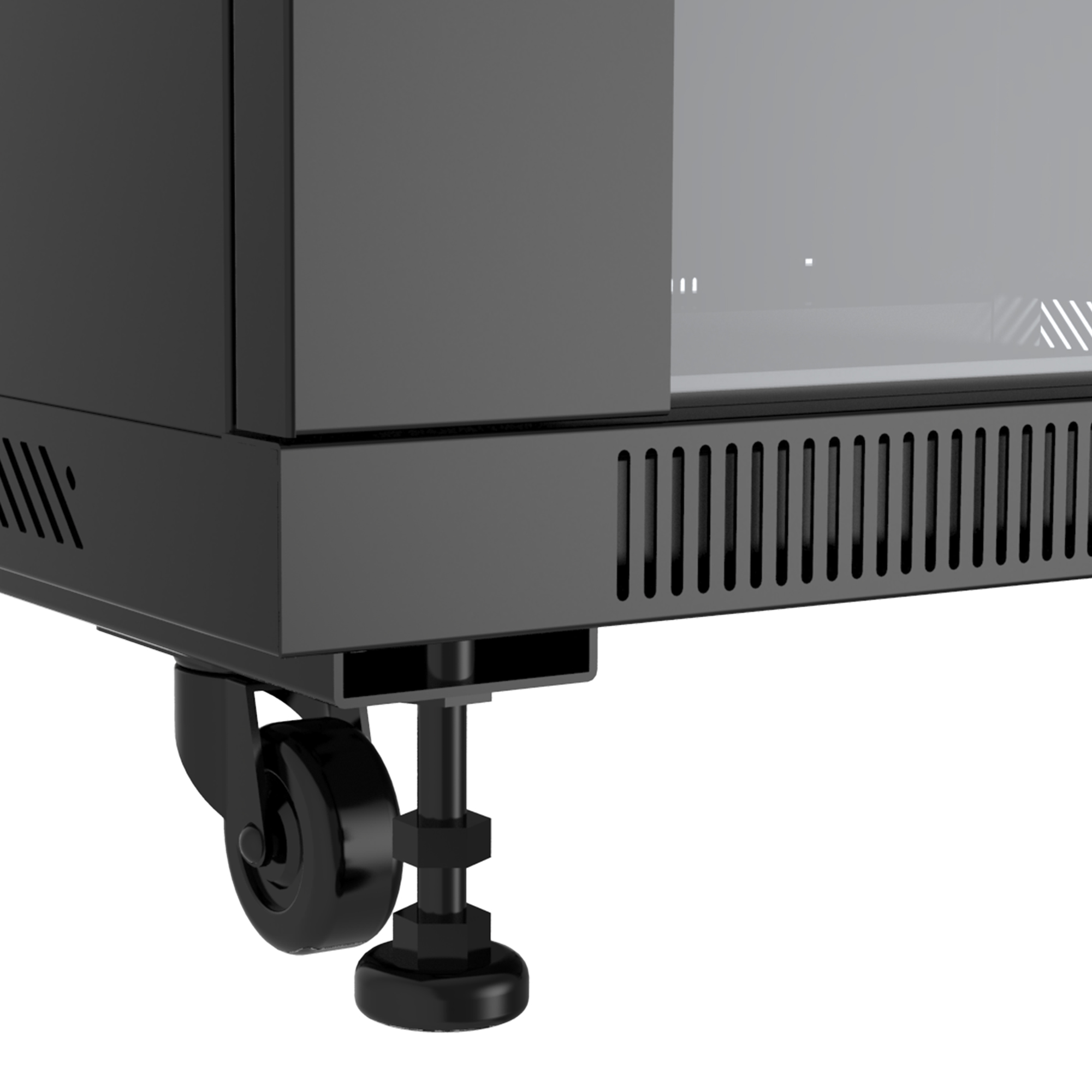

• ■Includes casters and leveling feet supports both mobile and fixed installations.
• ■Compact footprint (23.62" width and depth) supports deployment in residential, AV, and security environments.
• ■Meets PCI DSS (Payment Card Industry Data Security Standard) supports secure installations when required.
• ■Black powder coat finish (RoHS compliant) supports indoor air quality and environmental compliance.

Included Components

The RB-AV Series assembled AV rack cabinet provides a cost-effective solution for audio, video, and security installations. With a 950 lb load capacity and fully assembled design, it includes pre-installed shelves, panels, and mounting rails to simplify deployment.

Designed for integrators and installers, the RB-AV supports quick setup, secure equipment mounting, and efficient cable management, making it ideal for residential, commercial AV, and security applications.

Part of the Rack Basics® line designed for simple, reliable, and affordable installations.

• ■Steel frame with factory-installed leveling feet recessed casters and grounding studs. Casters and leveling feet are removable.
• ■Two (2) pairs of adjustable depth EIA compliant 10-32 tapped mounting rails. Starter pack of (50) 10-32 screws included.
• ■Starter pack of (50) 10-32 screws included.
• ■One (1) lightly smoked tempered glass removable front door with a quarter-turn lock.
• ■One (1) solid removable steel rear door with a quarter-turn lock.
• ■Two (2) solid removable side panels with a quarter-turn lock.
• ■Two (2) 2U factory-installed vented rack shelves.
• ■Removable cable access panels on cabinet top and bottom.
