24U 19IN 2-POST Rack Assembly
- Rack Units 24U
$201.19In stock
Buy now
New

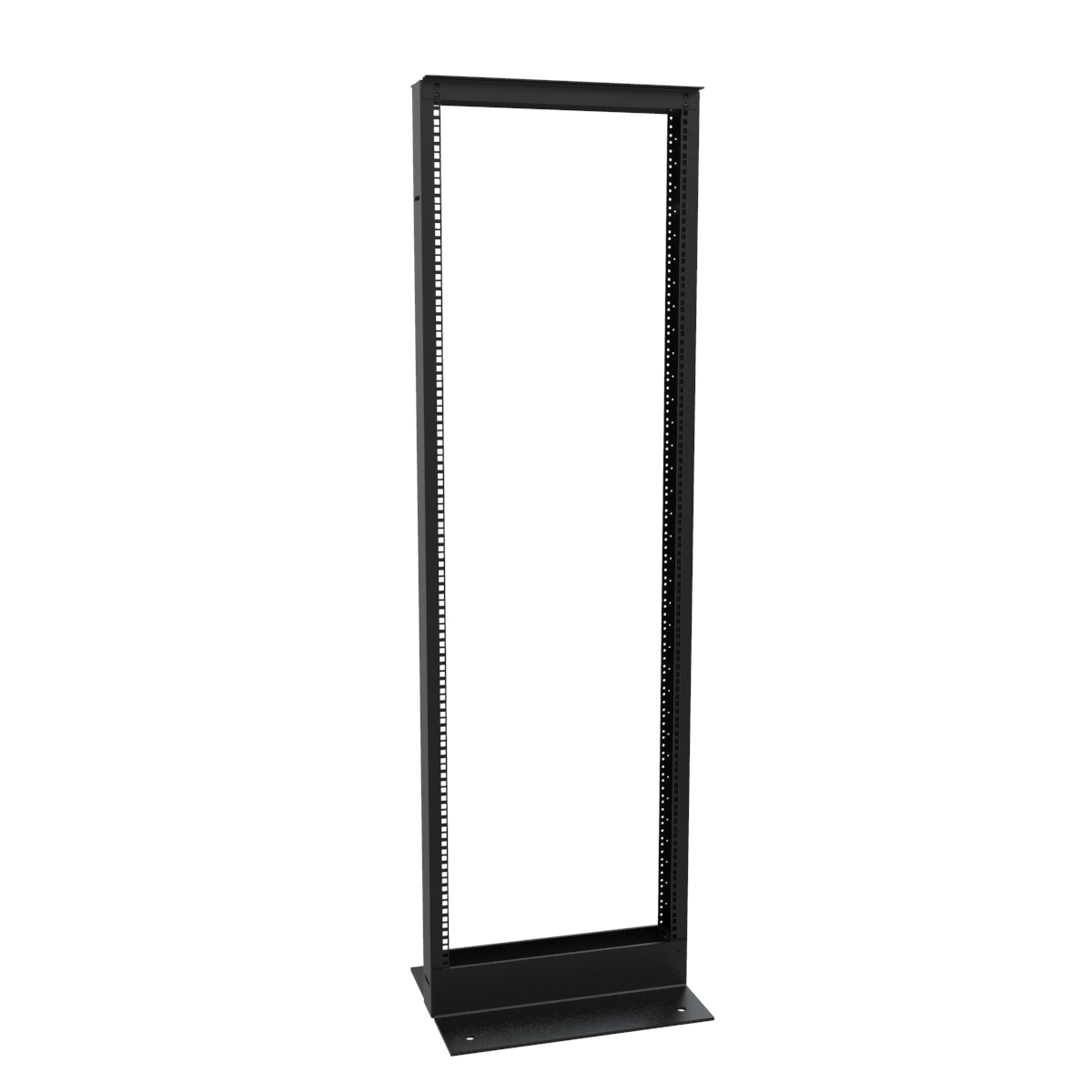

2-Post Open Frame Rack, Knock-Down Design (1600 lb Capacity) · RB-2PS Series
Brand: Hammond Manufacturing · 5 part numbers
Knock-down 2-post open frame rack designed for flexible shipping, on-site assembly, and high-capacity IT and telecom installations.
- ■12-gauge steel construction (1600 lb capacity ) provides reliable support for network, telecom, and IT equipment.
- ■Knock-down rack design (ships unassembled) supports easier shipping, handling, and on-site installation compared to welded racks.
- ■Open frame 2-post rack design (19" EIA compliant) allows full access to equipment for installation, servicing, and cable management.
- ■Dual rail configuration (12-24 threaded on one side, square holes on the reverse) supports flexible mounting options and compatibility with a wide range of hardware. Includes mounting hardware pack (12-24 screws) supports consistent installation and reduces additional hardware requirements.
- ■Self-squaring frame design simplifies assembly and ensures proper alignment during installation.
- ■Side ganging and accessory mounting provisions support expansion and integration with cable management solutions.
from $201.19
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Convert this product into a four-post rack when you purchase two (2) racks as well as our new Four Post Rack Kit (FPRK). Click here to learn more.
Configure & price
Find your RB-2PS Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
5 of 5 part numbers · 5 priced online
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Rack · Units | Mounting Dimensions · Height | Mounting Dimensions · Width | Price | Order |
|---|---|---|---|---|---|---|---|---|
| RB-2PS1924BK | 20.46 | 20.00 | 15.00 | 24U | 42.00 | 19.00 | $201.19In stock | Buy now |
| RB-2PS1936BK | 69.13 | 20.00 | 15.00 | 36U | 63.00 | 19.00 | $220.66In stock | Buy now |
| RB-2PS1942BK | 79.63 | 20.00 | 15.00 | 42U | 73.50 | 19.00 | $233.64In stock | Buy now |
| RB-2PS1945BK | 84.88 | 20.00 | 15.00 | 45U | 78.75 | 19.00 | $240.13In stock | Buy now |
| RB-2PS1948BK | 90.13 | 20.00 | 15.00 | 48U | 84.00 | 19.00 | $266.09In stock | Buy now |
Key Features and Benefits
The RB-2PS Series 2-post open frame rack provides a flexible, high-capacity solution for mounting 19-inch IT and telecom equipment. Designed with a knock-down construction, it ships unassembled for easier handling, transport, and on-site installation.
With a 1600 lb load rating and open frame design, the RB-2PS is ideal for network, telecom, and data room environments where accessibility, scalability, and installation flexibility are key.
- ■12-gauge steel construction (1600 lb capacity ) provides reliable support for network, telecom, and IT equipment.
- ■Knock-down rack design (ships unassembled) supports easier shipping, handling, and on-site installation compared to welded racks.
- ■Open frame 2-post rack design (19" EIA compliant) allows full access to equipment for installation, servicing, and cable management.
- ■Dual rail configuration (12-24 threaded on one side, square holes on the reverse) supports flexible mounting options and compatibility with a wide range of hardware. Includes mounting hardware pack (12-24 screws) supports consistent installation and reduces additional hardware requirements.
- ■Self-squaring frame design simplifies assembly and ensures proper alignment during installation.
- ■Side ganging and accessory mounting provisions support expansion and integration with cable management solutions.
- ■Available in multiple heights (24U to 48U) supports a range of installation requirements.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.
When another product may be a better choice
Part of the Rack Basics® line designed for simple, reliable, and affordable installations.
- ■When you need a welded rack that ships fully assembled for faster deployment, consider our RB-2P Series.
- ■When you need an aluminum rack for reduced weight and corrosion resistance, consider our RB-2PA Series.
Documents
Additional information
Where the series works best
- ■Data rooms and IT environments requiring flexible rack deployment.
- ■Telecom and structured cabling installations.
- ■Projects with shipping, access, or handling constraints.
- ■Network closets requiring open access and airflow.
- ■Installations where racks must be assembled on-site.
- ■Installations requiring high-capacity 2-post rack mounting (up to 1600 lb).
- ■Applications needing knock-down racks for easier transport and installation.
- ■Environments where on-site assembly is preferred or required.
- ■Deployments requiring flexible mounting options (threaded and square hole rails).
- ■Installations where accessibility and cable management are priorities.
