3U 24"D Solid Deep Chnl Shelf
$123.31In stock
Buy now
Variable-Depth Rack Shelf · DNRM Series
Brand: Hammond Manufacturing · 8 part numbers
Load rated to 300 lbs (136 kg)
- ■Designed for use with our heavy-duty DNRR and DRZ4 double-tapped two (2) post racks or any 2 post rack.
- ■Constructed of heavy-duty 16 gauge steel.
- ■Choice of 19" or 24" deep (19" deep shown).
- ■The vented version provides a sturdy shelf without obstructing upward heat movement.
- ■The front and rear lips are folded for extra strength & become equipment retainers.
- ■300 lbs (136 kg) load rating .
from $110.33
6 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your DNRM Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 6 priced online
3U 19"D Solid Deep Chnl Shelf
$110.33In stock
Buy now
3U 24"D Solid Deep Chnl Shelf
QuoteRequest a quote
3U 19"D Solid Deep Chnl Shelf
QuoteRequest a quote
3U 19W 19D Vented Battery Shelf
$142.78In stock
Buy now
3U 19W 24D Vented Battery Shelf
$129.80In stock
Buy now
3U 23W 24D Vented Battery Shelf
$155.76In stock
Buy now
3U 23W 19D Vented Battery Shelf
$142.78In stock
Buy nowDimension tables (inches / mm)
19 Inch Rack Mounting Shelf
Units shown: inch . Switch units to: mm
| Vented | Solid | Mounting Dimensions · Rack Units | Mounting Dimensions · Height | Mounting Dimensions · Width | Mounting Dimensions · Depth | Price | Order |
|---|---|---|---|---|---|---|---|
| DNRMV19BK1 | DNRMU19BK1 | 3U | 5.25 | 19.00 | 19.00 | $129.80In stockDNRMV19BK1 | Buy now |
| DNRMV1924BK1 | DNRMU1924BK1 | 3U | 5.25 | 19.00 | 24.00 | $142.78In stockDNRMV1924BK1 | Buy now |
23 Inch Rack Mounting Shelf
Units shown: inch . Switch units to: mm
| Vented | Solid | Mounting Dimensions · Rack Units | Mounting Dimensions · Height | Mounting Dimensions · Width | Mounting Dimensions · Depth | Price | Order |
|---|---|---|---|---|---|---|---|
| DNRMV23BK1 | DNRMU23BK1 | 3U | 5.25 | 23.00 | 19.00 | $142.78In stockDNRMV23BK1 | Buy now |
| DNRMV2324BK1 | DNRMU2324BK1 | 3U | 5.25 | 23.00 | 24.00 | $155.76In stockDNRMV2324BK1 | Buy now |
Features
- ■Designed for use with our heavy-duty DNRR and DRZ4 double-tapped two (2) post racks or any 2 post rack.
- ■Constructed of heavy-duty 16 gauge steel.
- ■Choice of 19" or 24" deep (19" deep shown).
- ■The vented version provides a sturdy shelf without obstructing upward heat movement.
- ■The front and rear lips are folded for extra strength & become equipment retainers.
- ■300 lbs (136 kg) load rating .
- ■Finished in textured RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
- ■TAA-compliant for federal GSA schedule purchases within the USA.
- ■RoHS and REACH compliant.
- ■Manufactured in North America.
Documents
Additional information

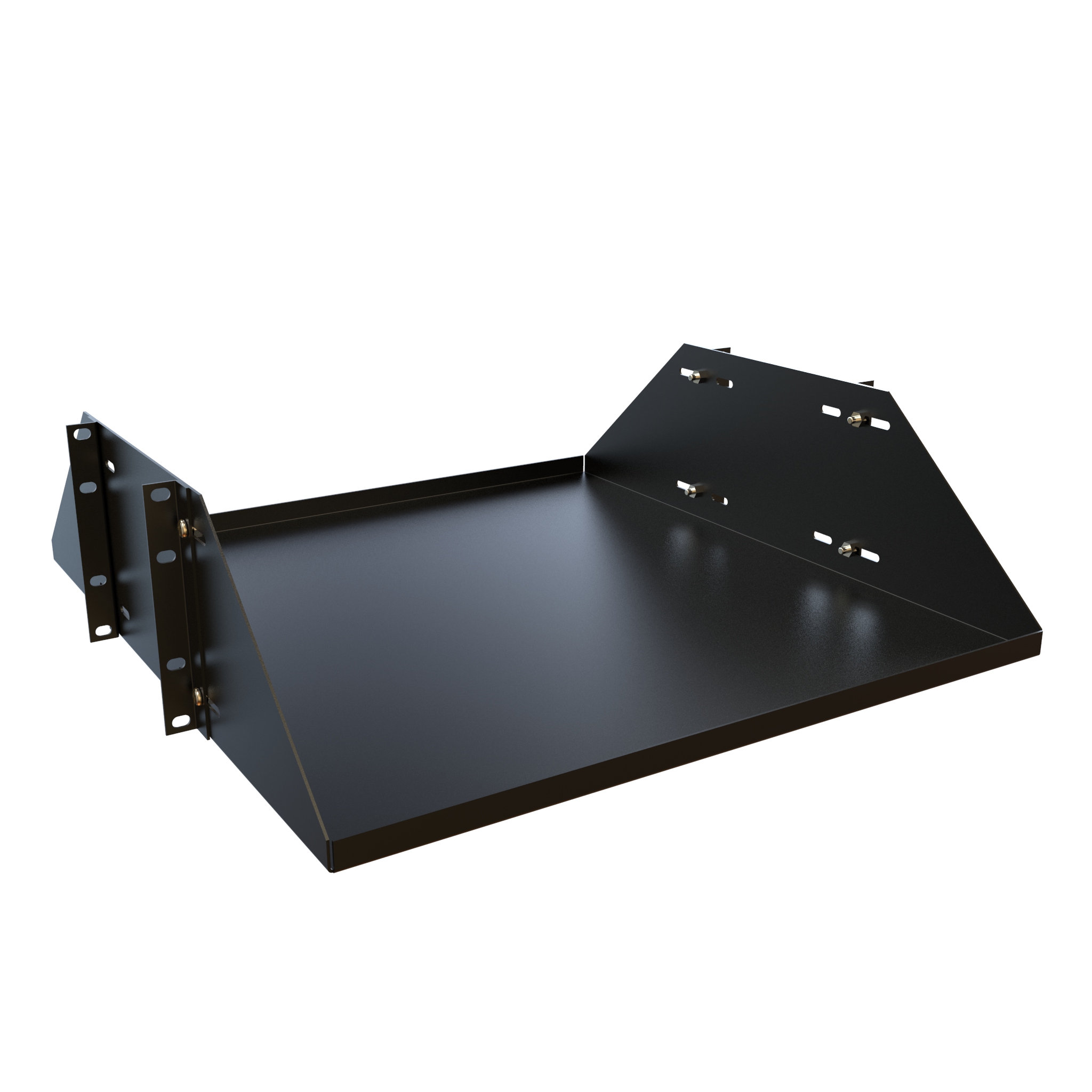

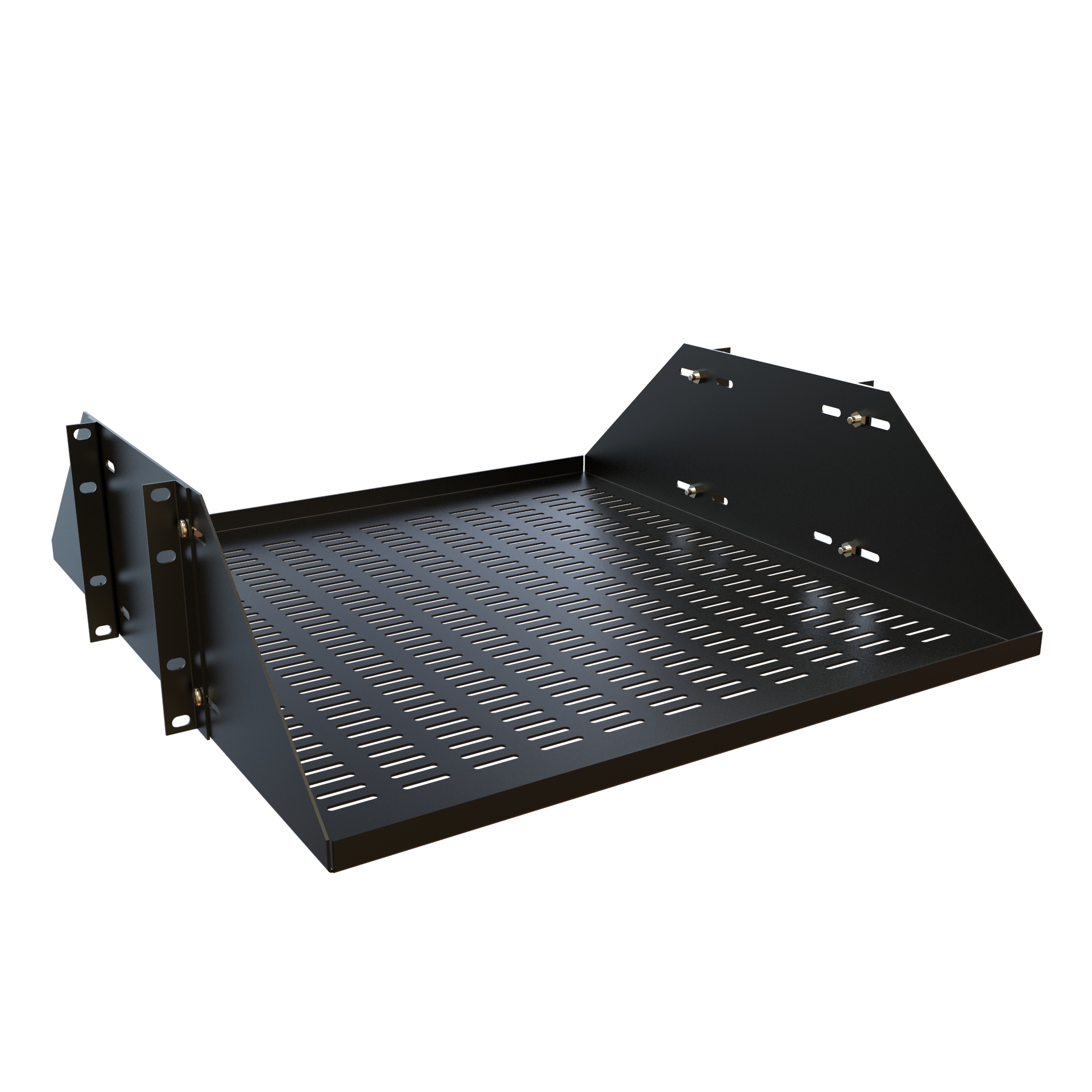

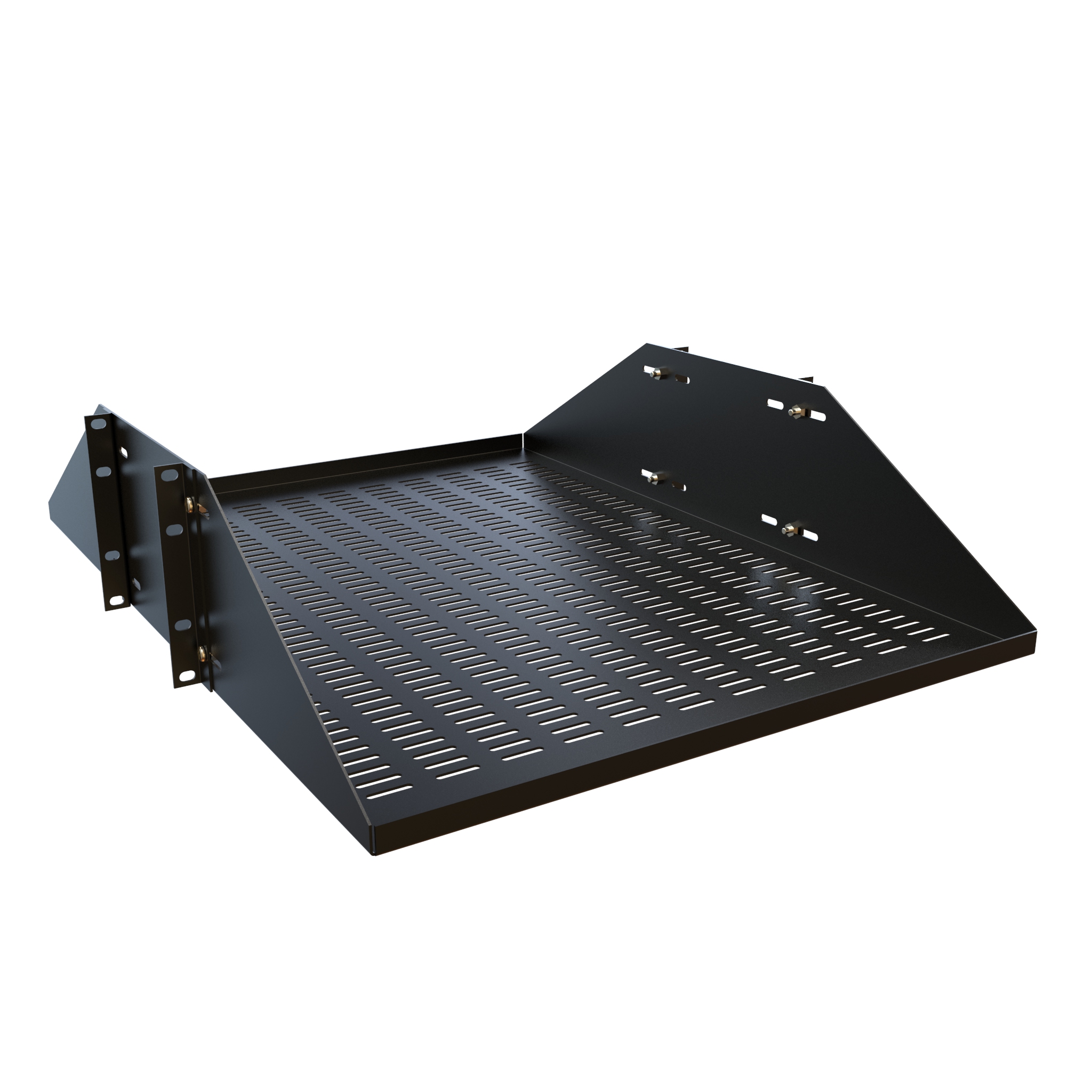

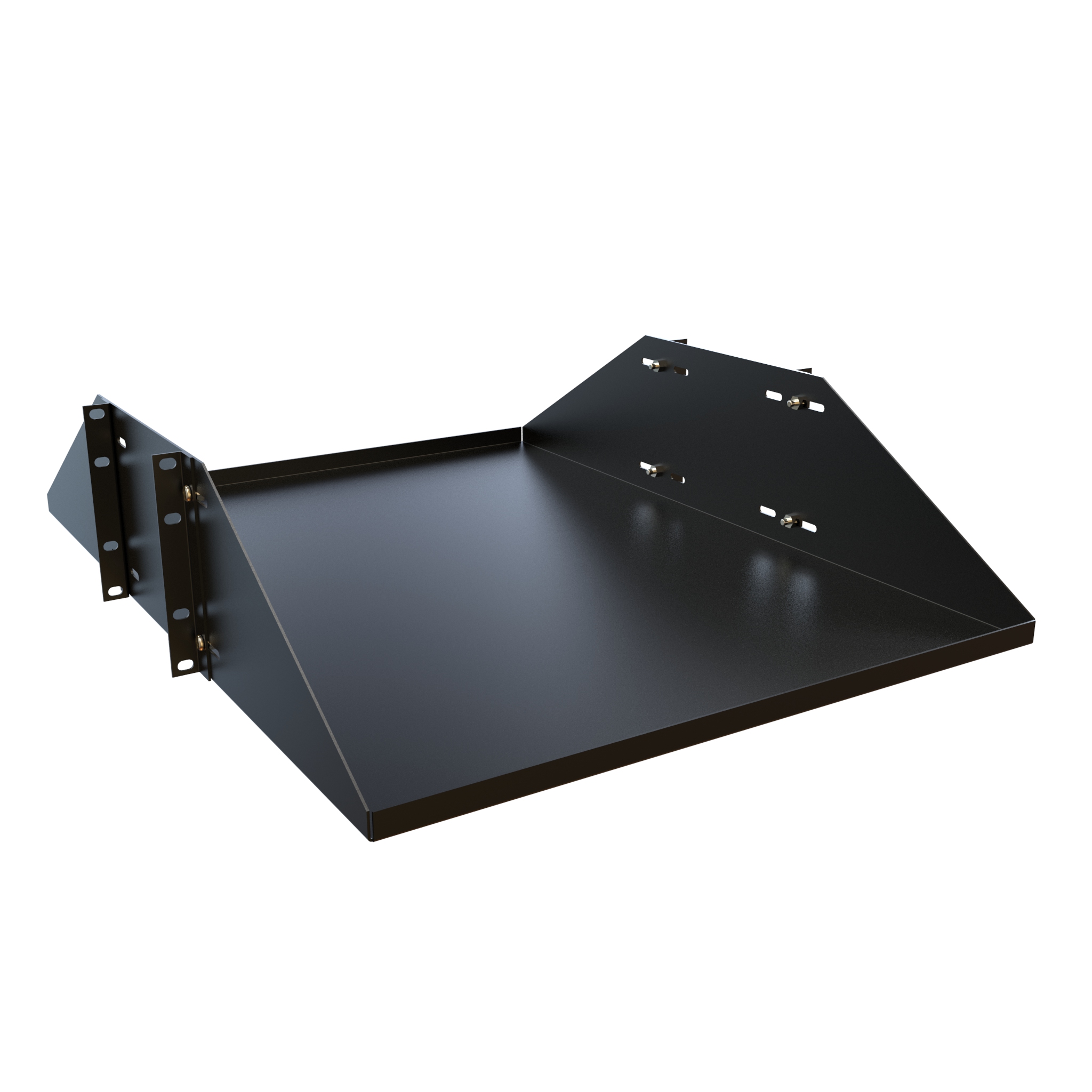

19 Inch Rack Mounting Shelf
| Part No. · Vented | Part No. · Solid | Mounting Dimensions · Rack Units | Mounting Dimensions · Height | Mounting Dimensions · Width | Mounting Dimensions · Depth |
|---|---|---|---|---|---|
| DNRMV19BK1 | DNRMU19BK1 | 3U | 5.25 | 19.00 | 19.00 |
| DNRMV1924BK1 | DNRMU1924BK1 | 3U | 5.25 | 19.00 | 24.00 |

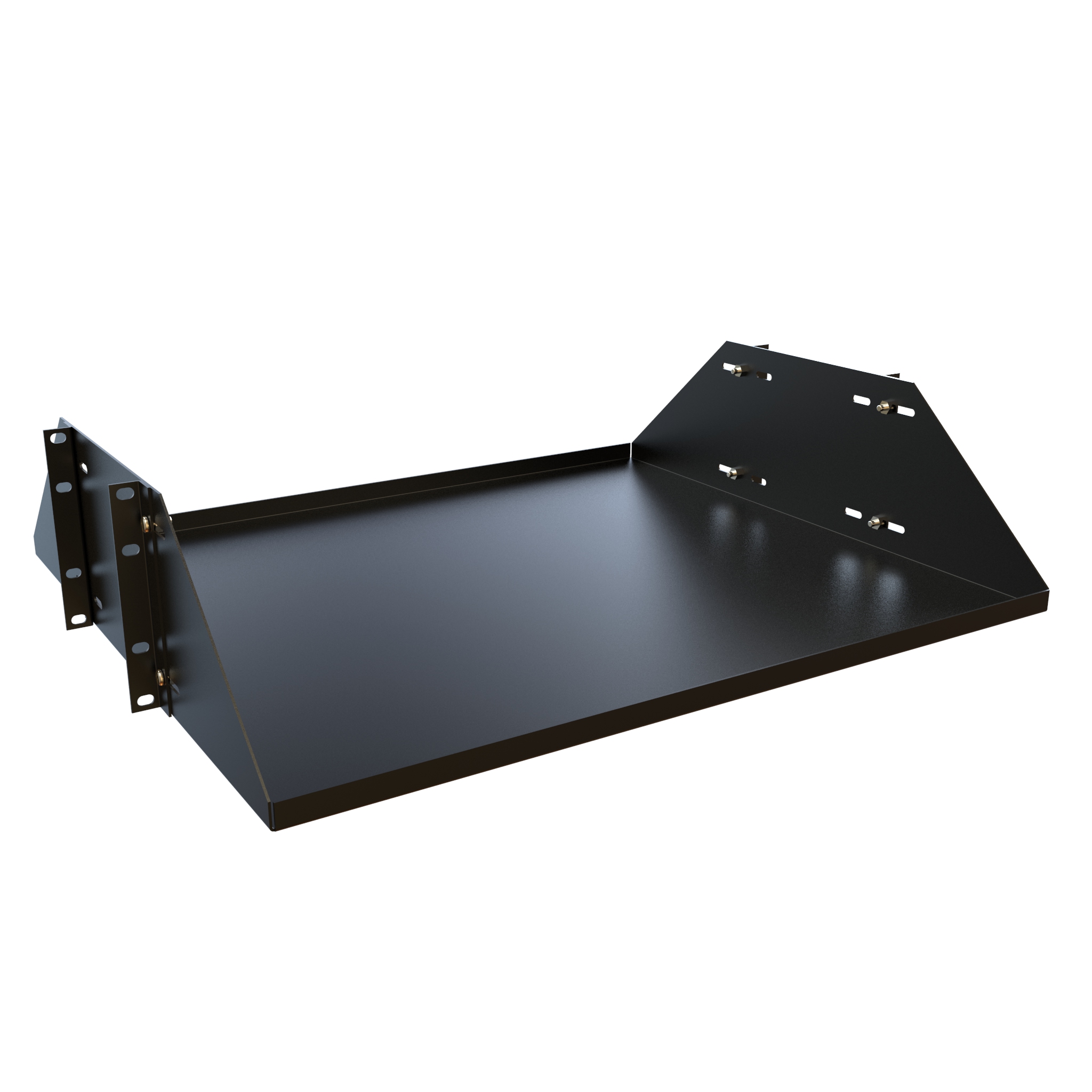

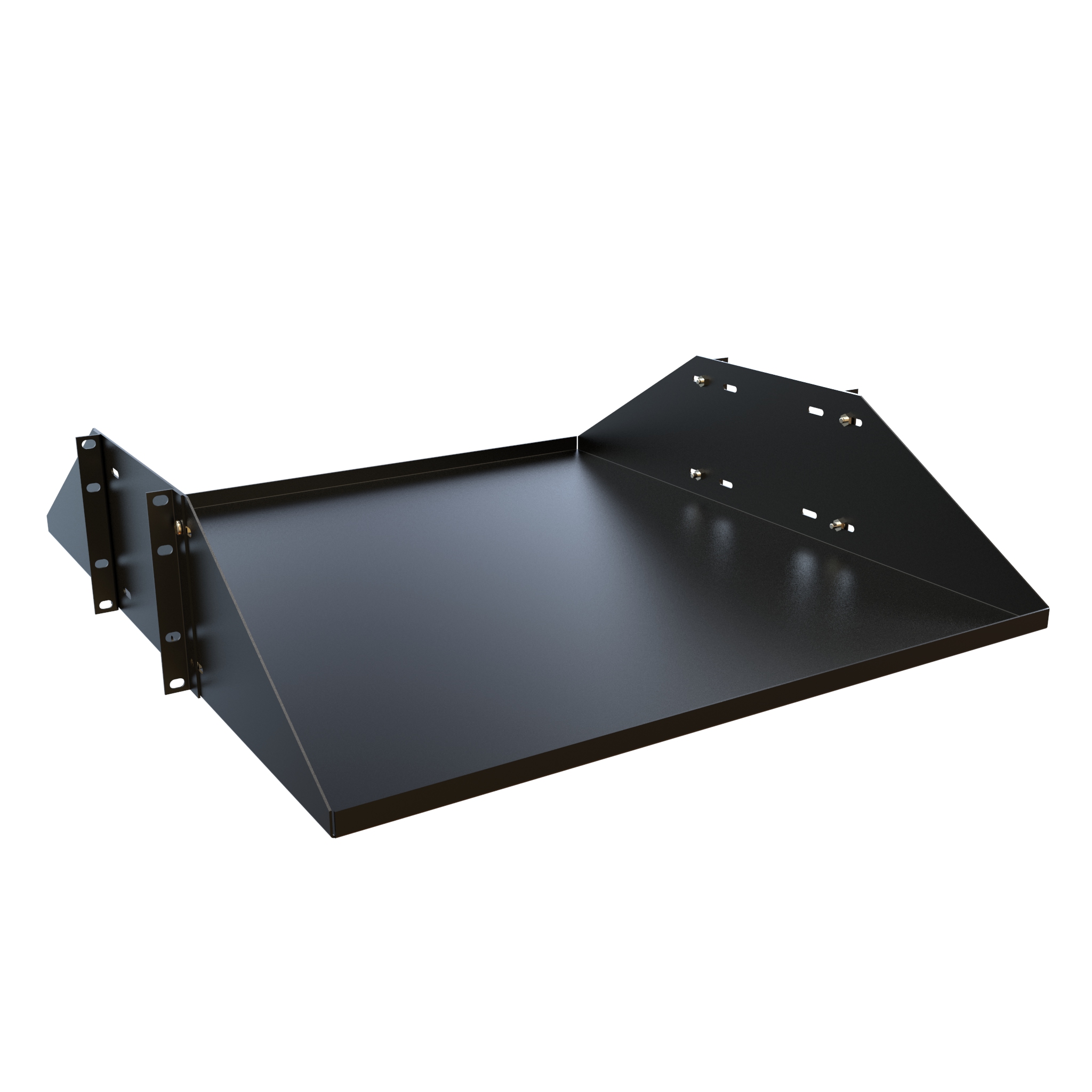

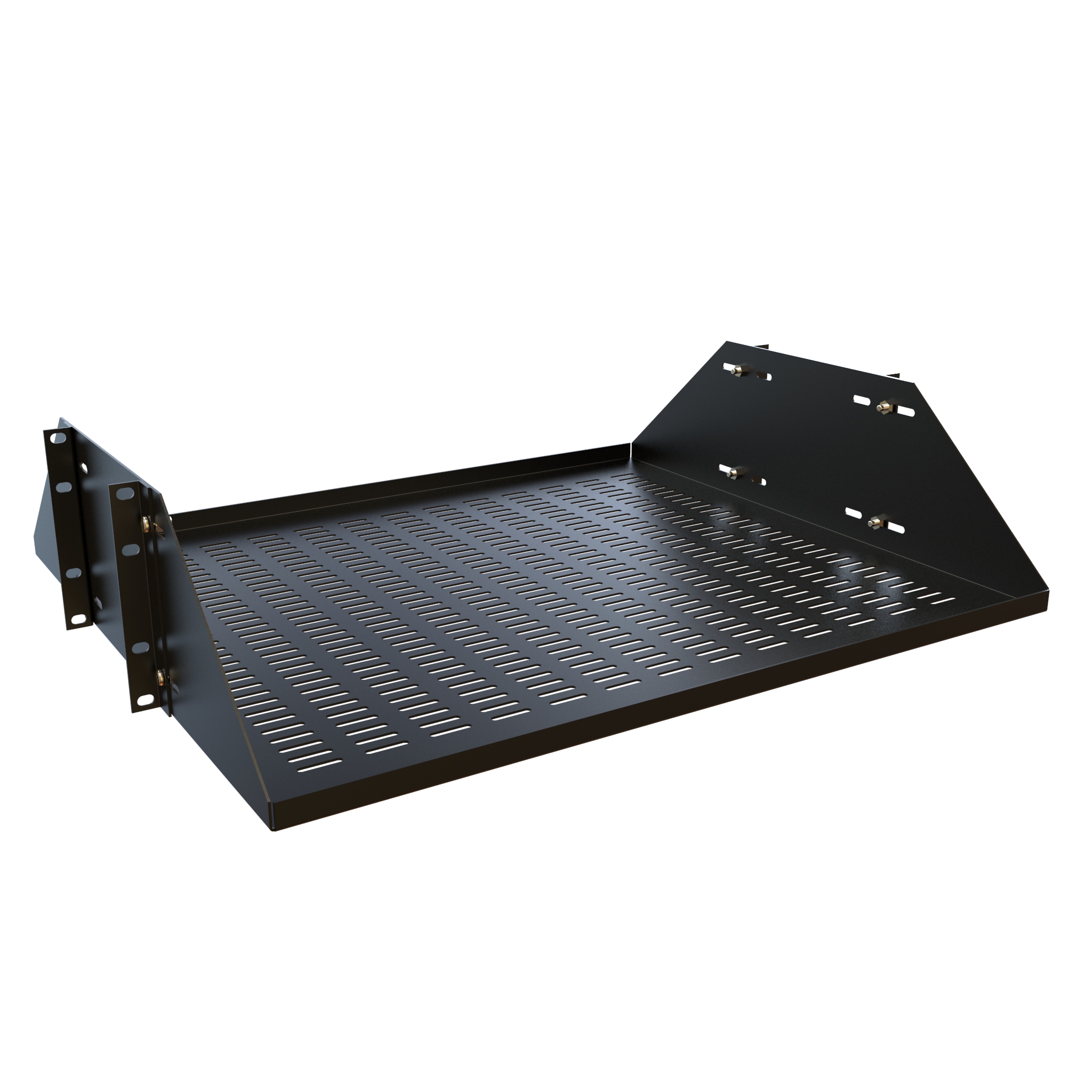

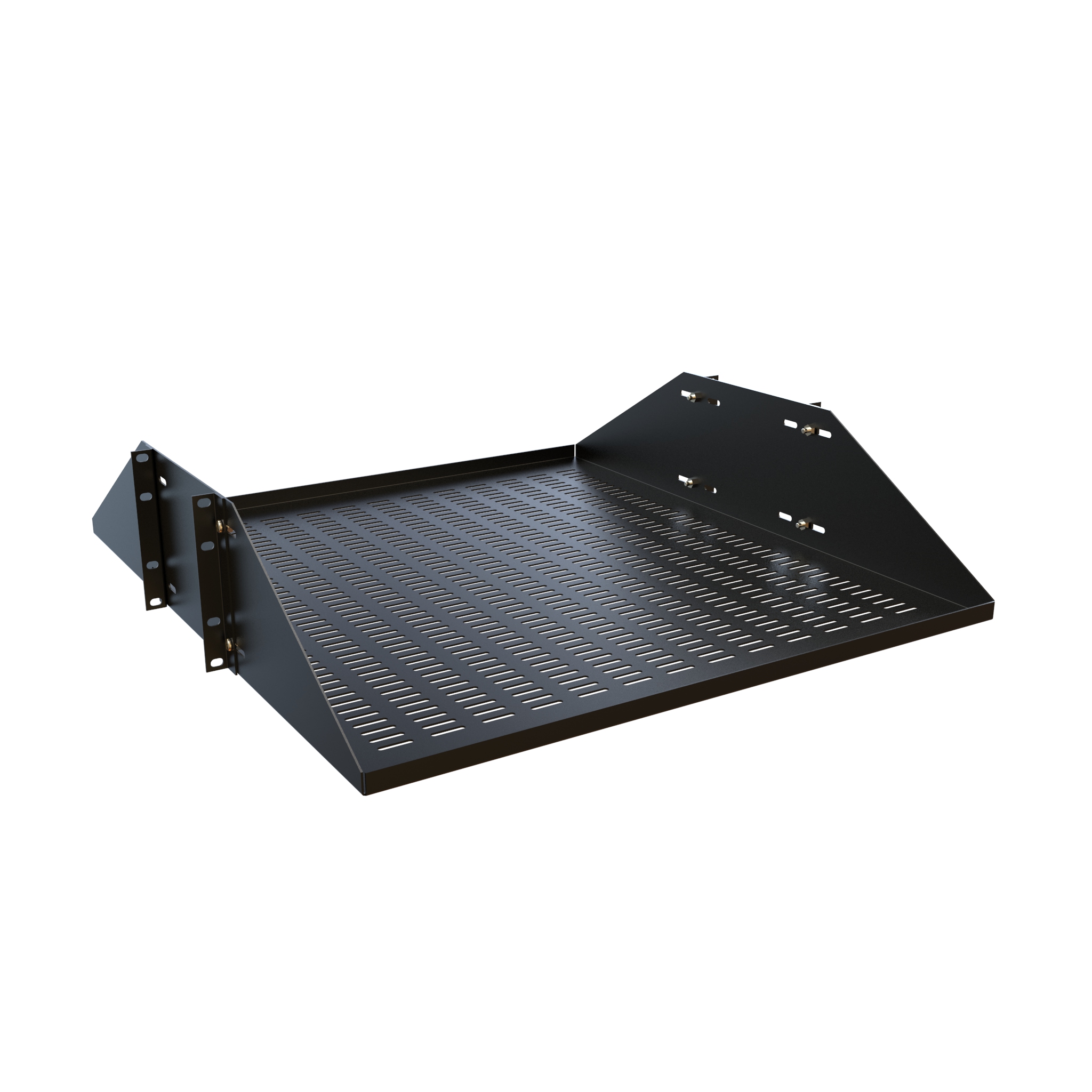

23 Inch Rack Mounting Shelf
| Part No. · Vented | Part No. · Solid | Mounting Dimensions · Rack Units | Mounting Dimensions · Height | Mounting Dimensions · Width | Mounting Dimensions · Depth |
|---|---|---|---|---|---|
| DNRMV23BK1 | DNRMU23BK1 | 3U | 5.25 | 23.00 | 19.00 |
| DNRMV2324BK1 | DNRMU2324BK1 | 3U | 5.25 | 23.00 | 24.00 |
