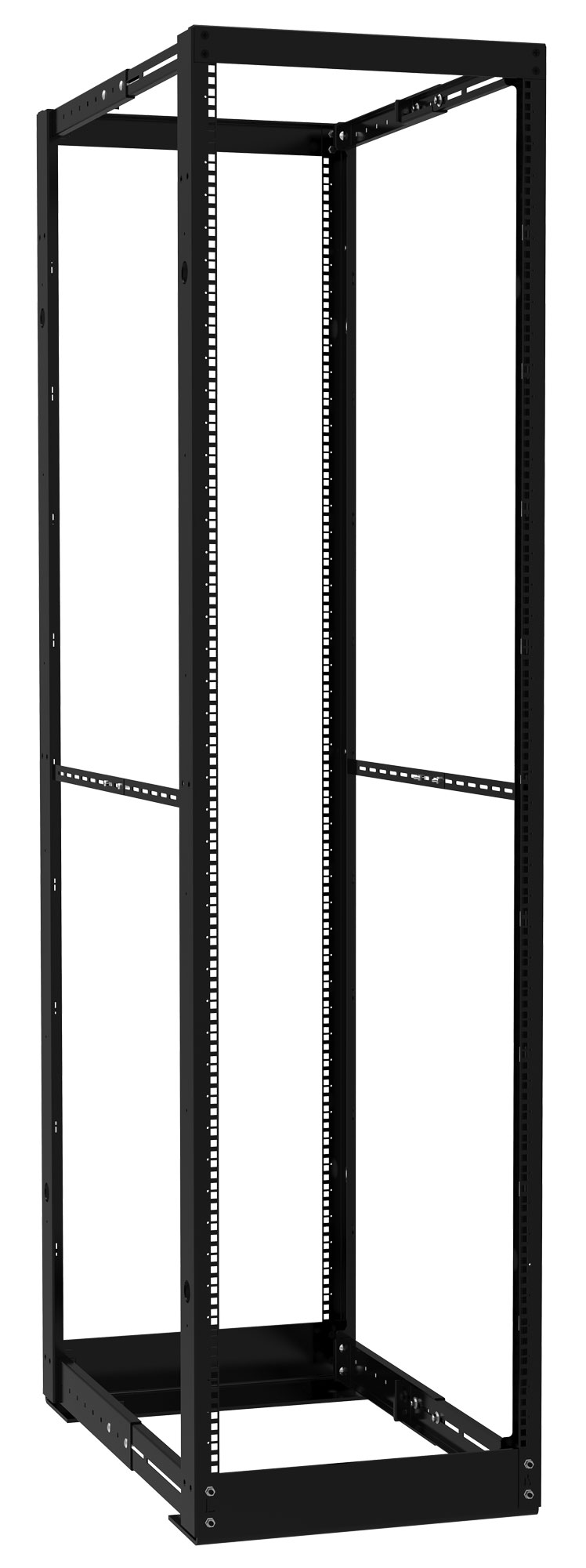

4-Post Open Frame Rack (2,000 lb Capacity) · DC4R Series

Key Features and Benefits

The DC4R Series 4-post open frame rack provides a high-capacity solution for mounting server, network, and IT equipment. With adjustable depth options and a 2,000 lb static load rating, it supports a wide range of equipment sizes while maintaining stability and accessibility.

Designed for data rooms, network closets, and homelab environments, the DC4R offers open access for cable management and servicing, with optional side panels and additional rails for added flexibility.

• ■12-gauge welded steel rack rails with 1/4" steel base angles (2,000 lb capacity ) provide high-strength support for server, network, and IT equipment.
• ■4-post open frame rack design (19" EIA compliant) provides enhanced stability and support for deeper and heavier equipment.
• ■Adjustable depth design accommodates a wide range of equipment sizes and mounting requirements.
• ■Two (2) pairs of 19" EIA-compliant mounting rails support standard rack equipment and consistent installation. Includes marked rack unit dividers to aid in equipment mounting, and ships with either a 50-pack of screws and cage nuts on square-hole versions or a 50-pack of screws on 10-32 threaded versions.
• ■One (1) set of two (2) horizontal cable manager bars supports cable organization, with additional bars available if required.
• ■Integrated 10-32 ground studs at the front and rear support bonding and grounding of rack components.
• ■Self-squaring knock-down design ships unassembled for easier handling and installation.
• ■Optional side panels and additional rails support added security and expanded mounting depth configurations.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Smooth RAL9005 black powder coat finish (GREENGUARD, RoHS, REACH compliant) supports indoor air quality and environmental compliance.

When another product may be a better choice

• ■When you need a knock-down 2-post rack for easier shipping and on-site assembly, consider our RB-2PS Series.
• ■When you need a lightweight aluminum rack for corrosion resistance, consider our RB-2PA Series.
• ■When you need an enclosed cabinet for security, airflow control, and cable management, consider our C4 Series cabinet with mounting rails installed.
