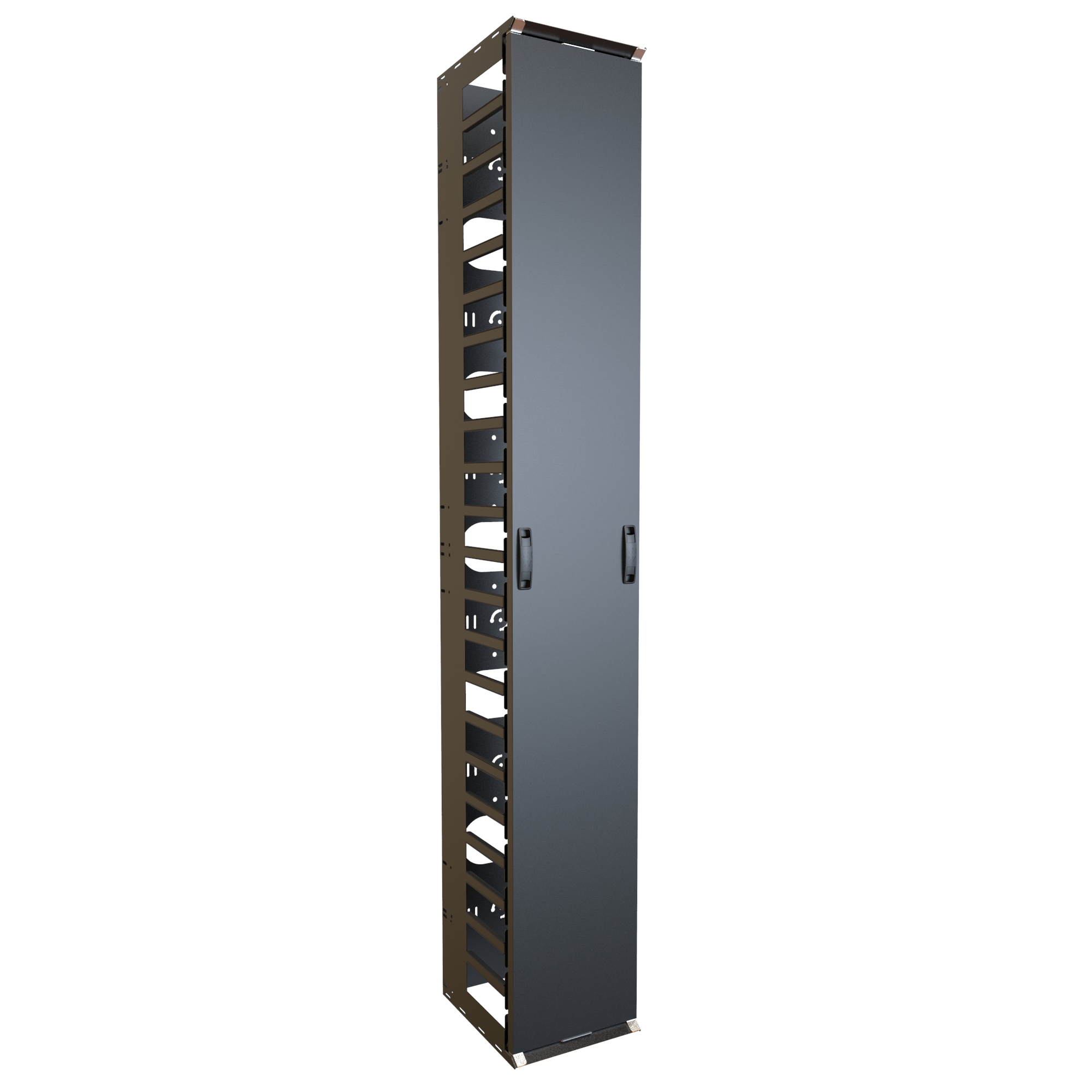

Vertical Cable Manager with Door High Density Finger Duct · FRCM Series
Brand: Hammond Manufacturing · 6 part numbers
Heavy-duty vertical cable manager with door designed for high-density cable routing in open frame rack systems.
- ■16-gauge steel body with 18-gauge steel door supports high-capacity cable routing and long-term durability in high-density environments.
- ■High-density T-shaped steel fingers spaced at 2RU support large cable bundles and heavy-gauge cables.

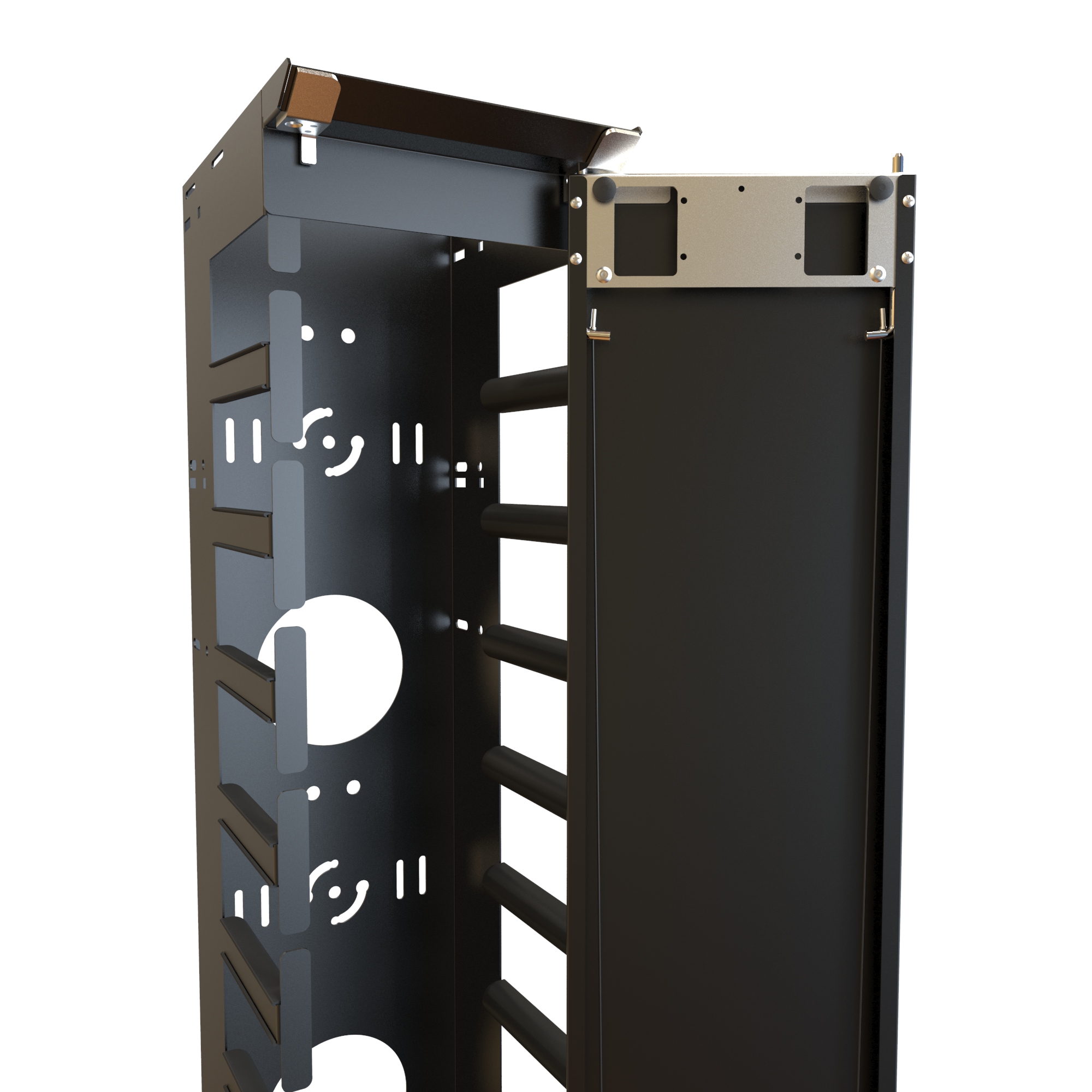

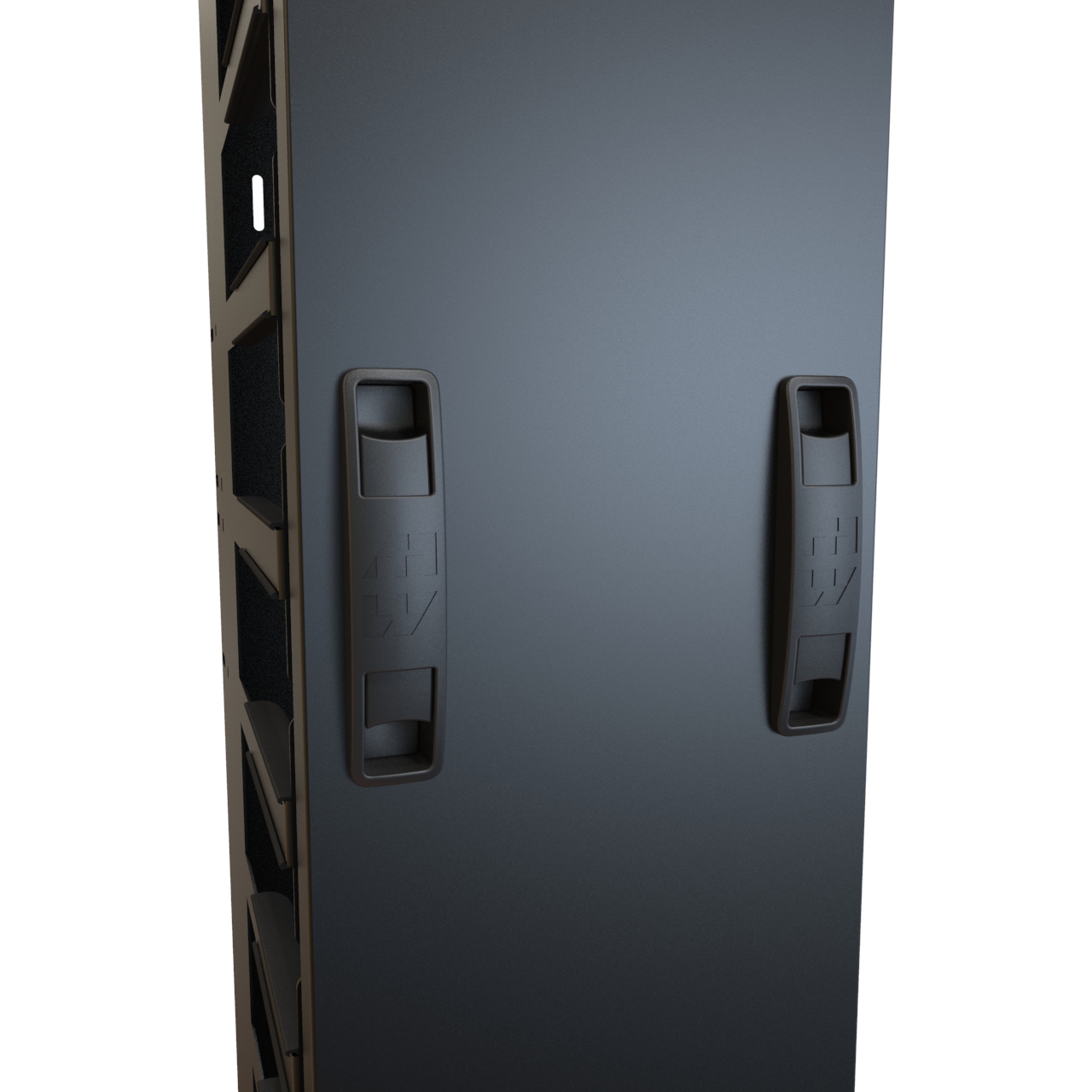

- ■Double-hinged, reversible slam-latch door provides secure cable containment with easy access from either side.
- ■Finger design allows cables to be added or removed without pulling or re-routing existing bundles.

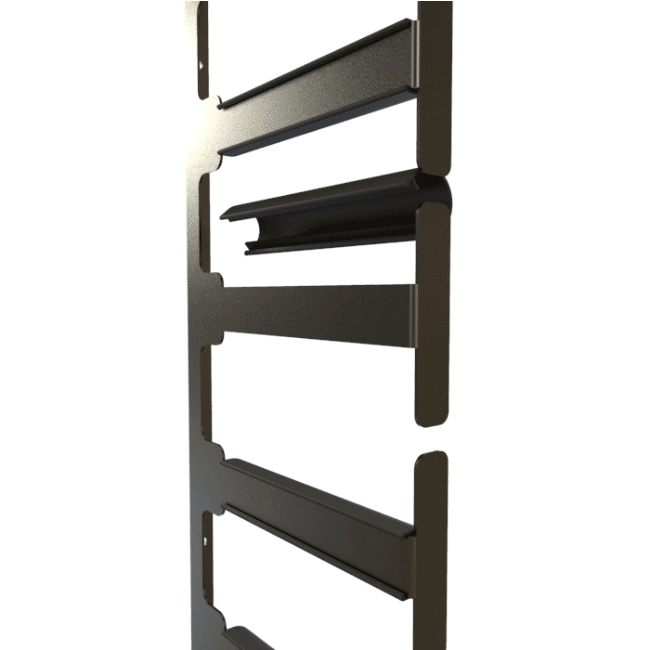

- ■Includes clip-on finger guards to maintain proper cable bend radius for fiber and data cables.
- ■Rear pass-through openings support front-to-rear cable routing for structured installations.
from $525.69
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your FRCM Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions (Inches) · Height | Overall Dimensions (Inches) · Width | Overall Dimensions (Inches) · Depth | Mounting Dimensions · Units | Mounting Dimensions · Rack Units | Door · Included | Rack Basics · Alternative | Price | Order |
|---|---|---|---|---|---|---|---|---|---|

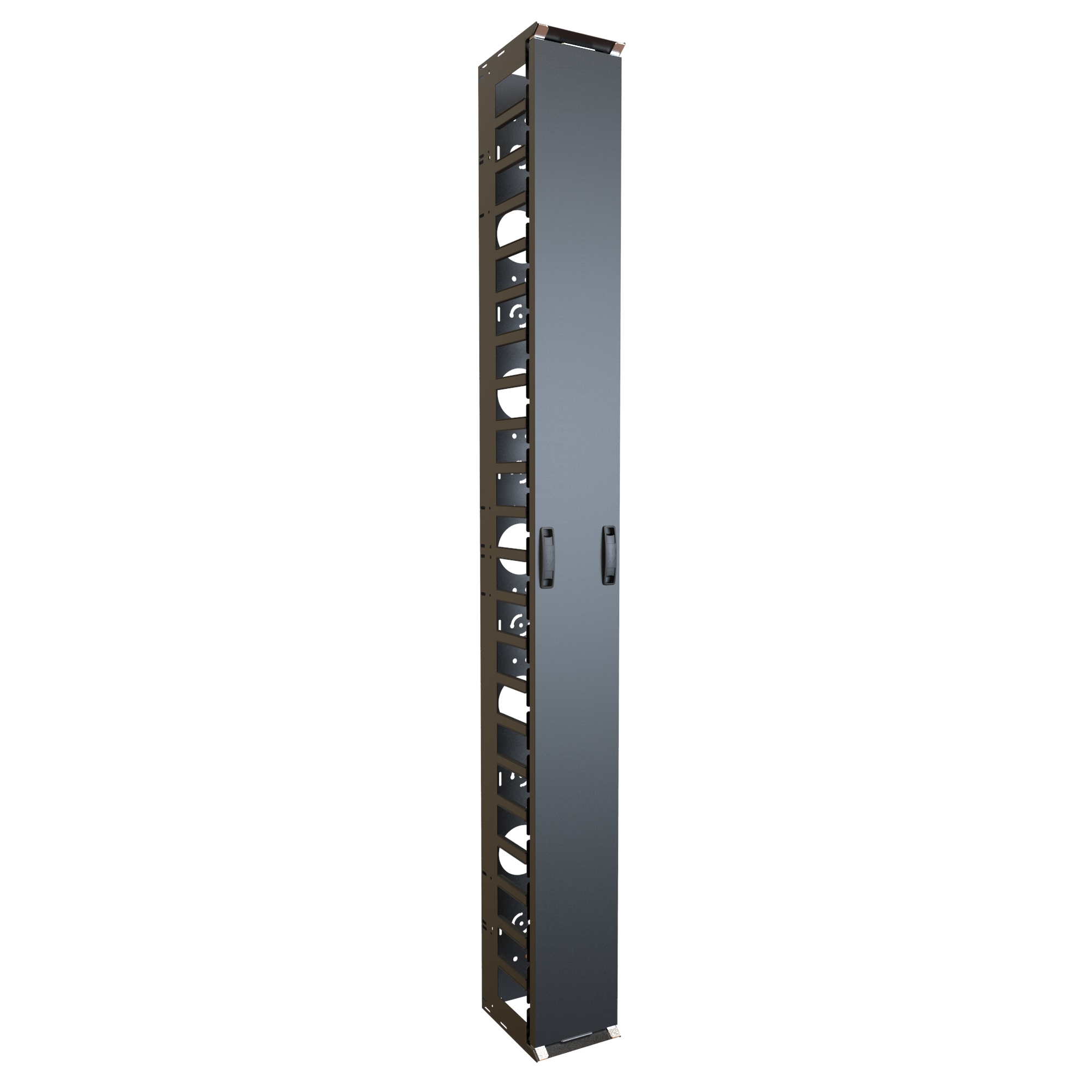

| FRCM44U88 | 82.00 | 8.00 | 9.64 | 77.00 | 44 | Yes | RB-VFM45-8-1 | $623.04In stock | Buy now |

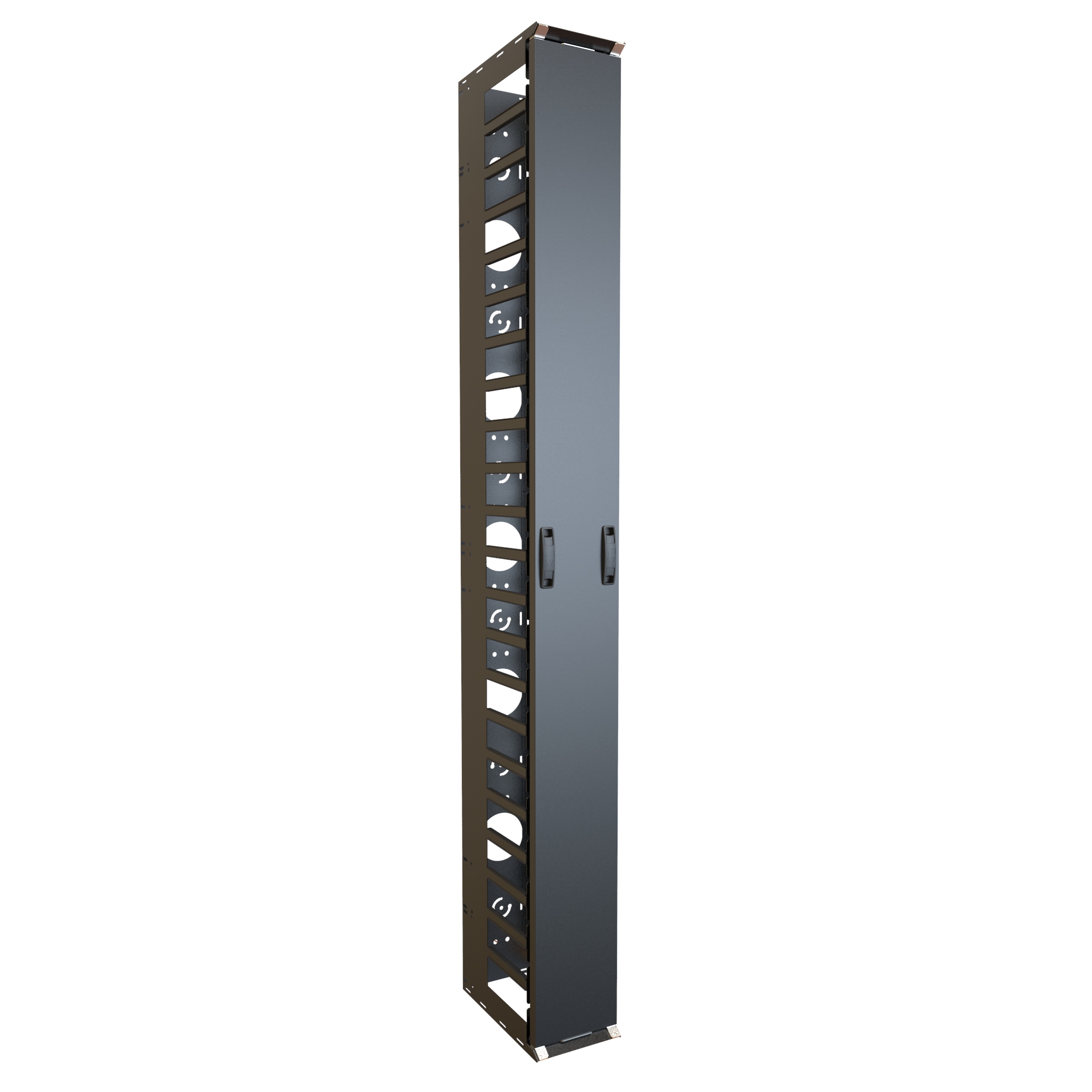

| FRCM44U812 | 82.00 | 8.00 | 13.64 | 77.00 | 44 | Yes | - | $655.49In stock | Buy now |
EOL Items on Clearance
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions (Inches) · Height | Overall Dimensions (Inches) · Width | Overall Dimensions (Inches) · Depth | Mounting Dimensions · Units | Mounting Dimensions · Rack Units | Door · Included | Rack Basics · Alternative (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| FRCM44U1012 | 82.00 | 10.00 | 13.64 | 77.00 | 44 | Yes | RB-VFM45-10-1 | $843.70In stockFRCM44U1012 | Buy now |

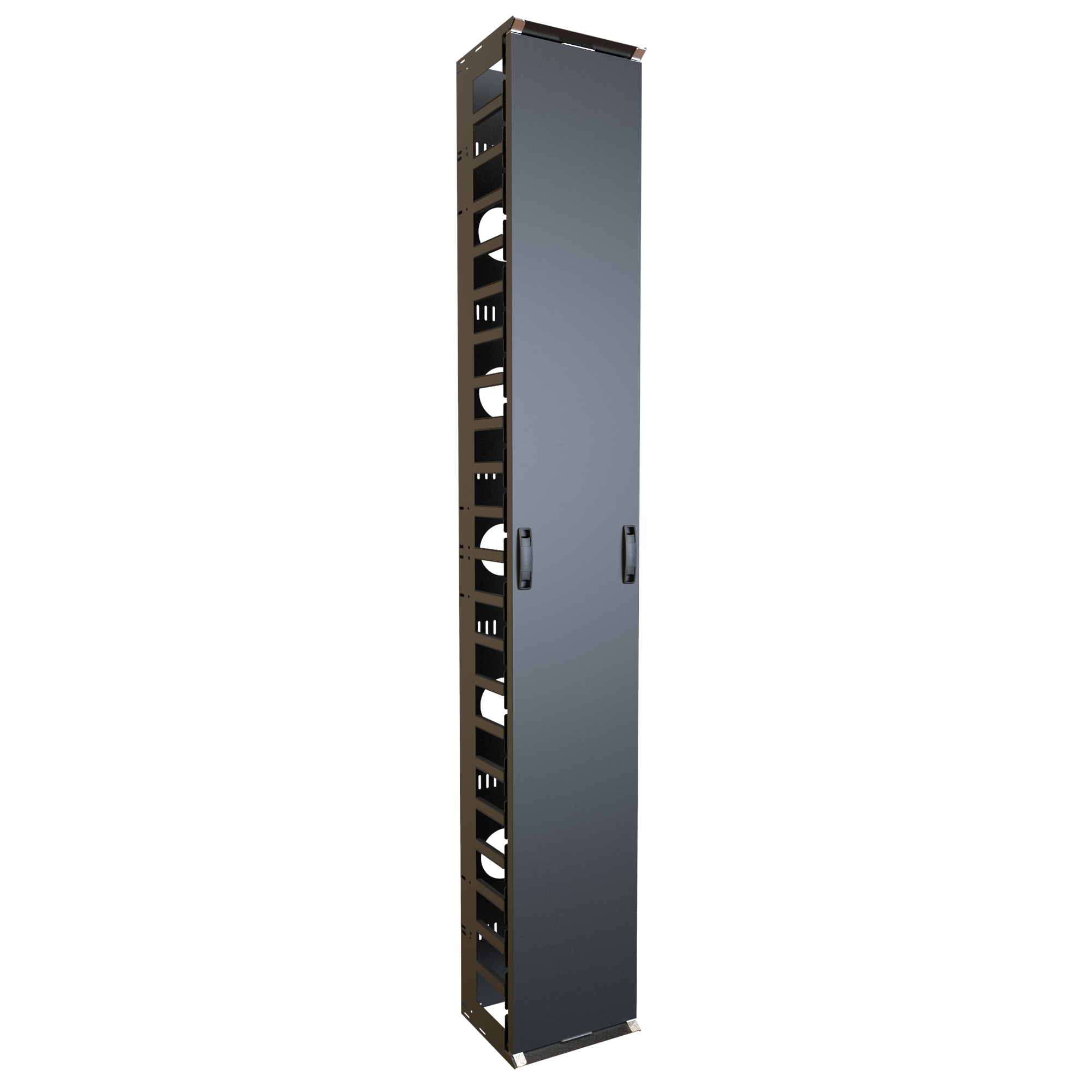

| FRCM44U1212 | 82.00 | 12.00 | 13.64 | 77.00 | 44 | Yes | - | $908.60In stock | Buy now |
Estimated Cable Fill Capacities
| Part No. | Description | Recommended Cable Fill (50% Fill Ratio) · Cat 6 | Recommended Cable Fill (50% Fill Ratio) · Cat 6a | Maximum Cable Fill (100% Fill Ratio) · Cat 6 | Maximum Cable Fill (100% Fill Ratio) · Cat 6a | Price | Order |
|---|---|---|---|---|---|---|---|
| FRCM44U88 | Channel Opening | 293 | 204 | 587 | 407 | $623.04In stock | Buy now |
| FRCM44U88 | Finger Opening | 65 | 45 | 130 | 91 | $623.04In stock | Buy now |
| FRCM44U88 | Rear Pass Through | 103 | 71 | 206 | 143 | $623.04In stock | Buy now |
| FRCM44U812 | Channel Opening | 416 | 289 | 831 | 577 | $655.49In stock | Buy now |
| FRCM44U812 | Finger Opening | 92 | 64 | 183 | 127 | $655.49In stock | Buy now |
| FRCM44U812 | Rear Pass Through | 103 | 71 | 206 | 143 | $655.49In stock | Buy now |
| FRCM44U1012 | Channel Opening | 554 | 385 | 1108 | 770 | $843.70In stock | Buy now |
| FRCM44U1012 | Finger Opening | 92 | 64 | 183 | 127 | $843.70In stock | Buy now |
| FRCM44U1012 | Rear Pass Through | 103 | 71 | 206 | 143 | $843.70In stock | Buy now |
| FRCM44U1212 | Channel Opening | 831 | 577 | 1662 | 1154 | $908.60In stock | Buy now |
| FRCM44U1212 | Finger Opening | 92 | 64 | 183 | 127 | $908.60In stock | Buy now |
| FRCM44U1212 | Rear Pass Through | 103 | 71 | 206 | 143 | $908.60In stock | Buy now |
Key Features and Benefits
The FRCM Series vertical cable managers provide a high-capacity solution for routing and organizing cables in open frame rack systems. Designed for demanding environments, they feature high-density steel fingers and a dual-hinged door that supports structured cable routing while maintaining accessibility.
Unlike lighter-duty vertical managers, the FRCM Series is built to handle large volumes of fiber, Cat6/6A, and coax cables. With scalable configurations and support for optional accessories such as cable spools and dividers, it enables advanced cable management strategies in high-density network and data center installations.
- ■16-gauge steel body with 18-gauge steel door supports high-capacity cable routing and long-term durability in high-density environments.
- ■High-density T-shaped steel fingers spaced at 2RU support large cable bundles and heavy-gauge cables.
- ■Double-hinged, reversible slam-latch door provides secure cable containment with easy access from either side.
- ■Finger design allows cables to be added or removed without pulling or re-routing existing bundles.
- ■Includes clip-on finger guards to maintain proper cable bend radius for fiber and data cables.
- ■Rear pass-through openings support front-to-rear cable routing for structured installations.

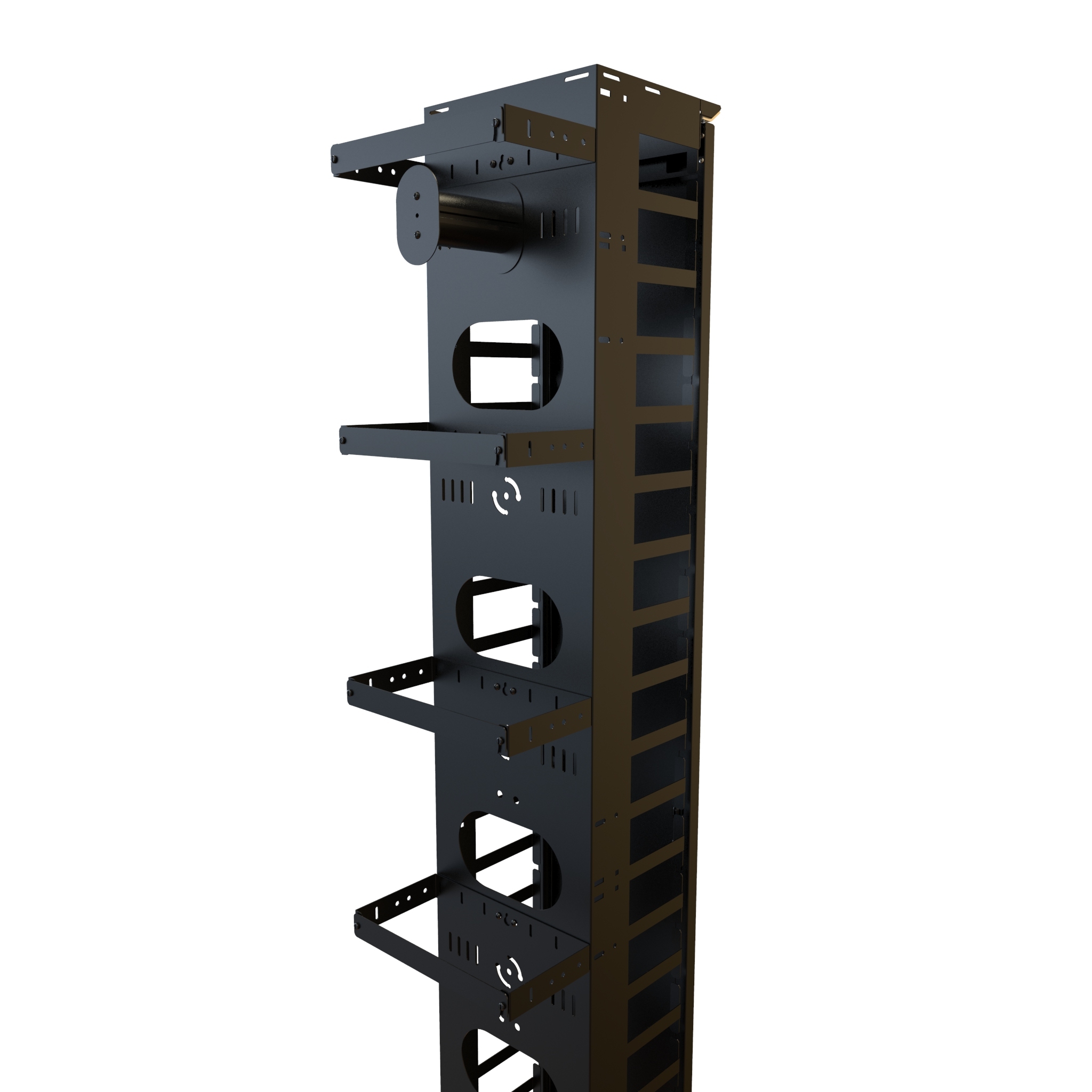

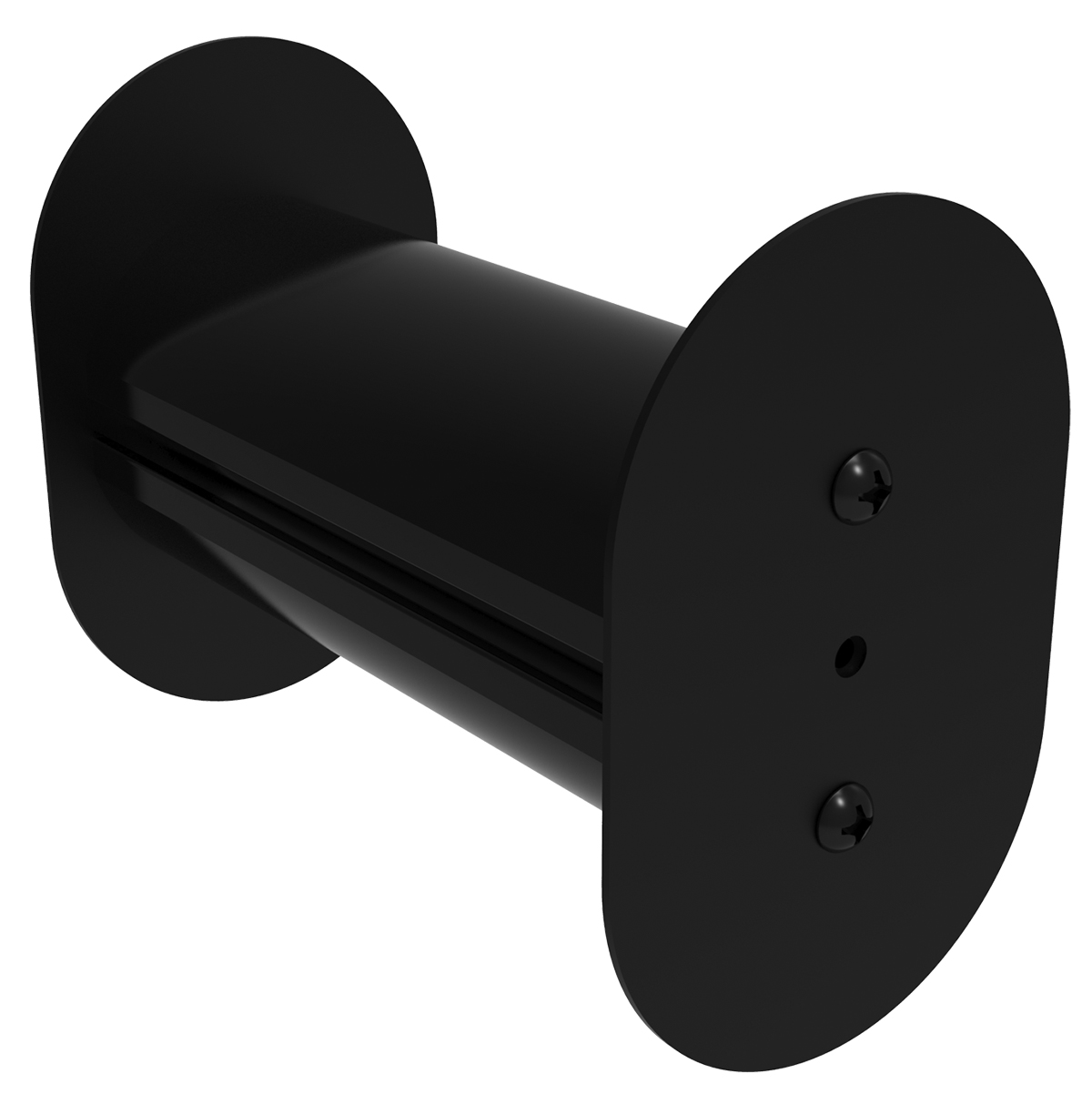

- ■Supports optional accessories including cable spools for advanced cable management.
- ■Can be installed single-sided, back-to-back, or ganged side-by-side for scalable cable management systems.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.
Documents
Additional information
Where the FRCM Series Works Best
- ■Data centers and high-density IT environments.
- ■Network and telecom installations.
- ■Enterprise structured cabling systems.
- ■Broadcast and AV infrastructure.
- ■Installations requiring scalable vertical cable management.
- ■Routing large volumes of fiber, Cat6/6A, and coax cables.
- ■Supporting high-density patching environments.
- ■Creating structured vertical cable pathways in open frame racks.
- ■Managing cable slack and separation using optional accessories.
- ■Improving airflow and serviceability in dense rack deployments.
