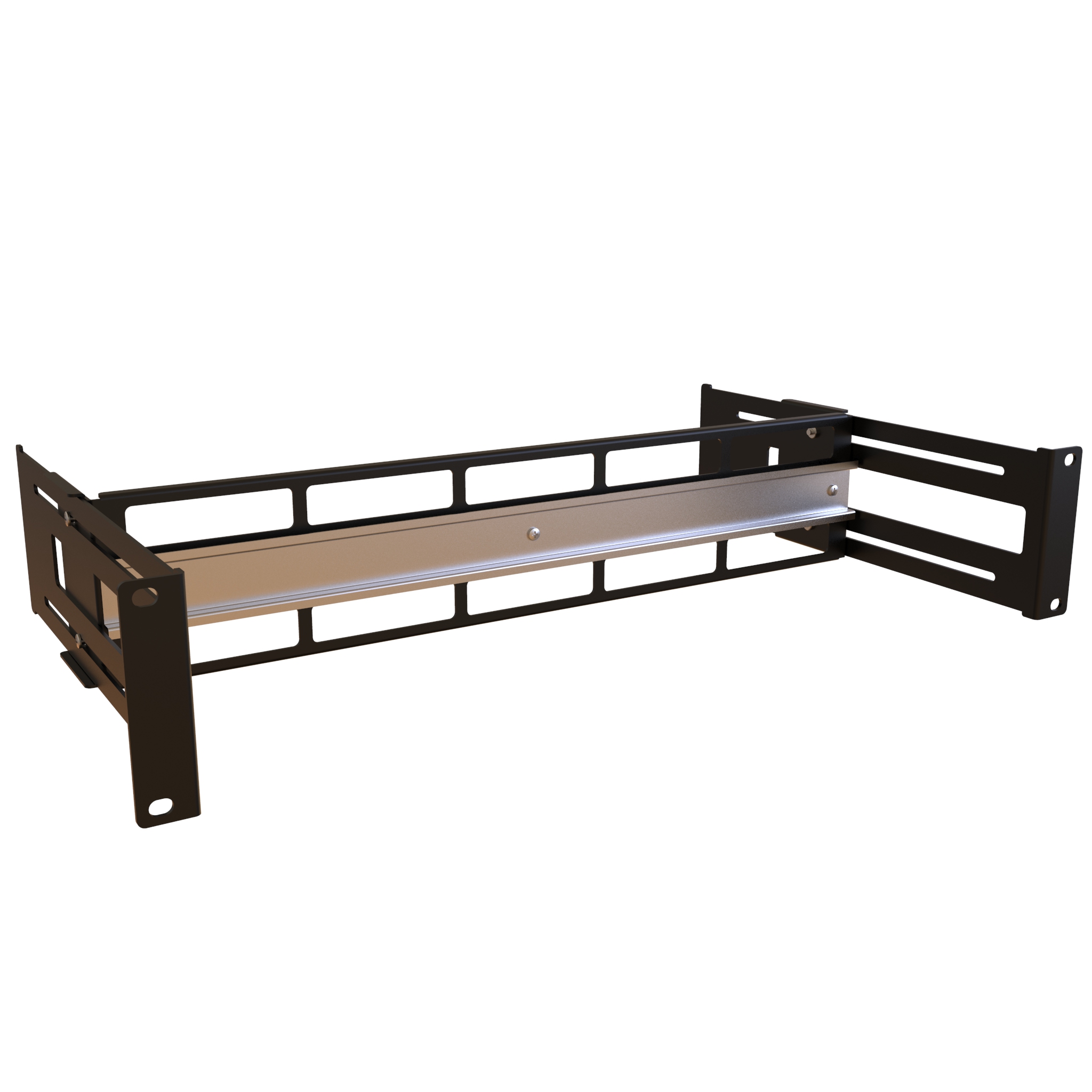

Adjustable Rack Mount DIN Rail Kit 2U Steel DIN Rail Panel · RMAD Series

Key Features and Benefits

The RMAD Series adjustable rack mount DIN rail kits provide a simple solution for integrating DIN rail-mounted equipment into standard 19-inch rack systems. Designed for flexibility, the adjustable depth allows proper positioning of industrial and control components within rack environments. With integrated DIN rail and cable pass-through features, the RMAD Series enables clean, organized installation of DIN rail devices in telecom, data center, and industrial applications.

• ■Mounts directly to standard EIA-310 19 in rack rails, converting rack space into DIN rail mounting.
• ■Includes 0.3 in thick top-hat DIN rail (DIN 3 profile) for immediate equipment installation.
• ■Occupies 2U of rack space, ideal for compact installations.
• ■Knockdown design ships unassembled for easier handling and reduced shipping damage.

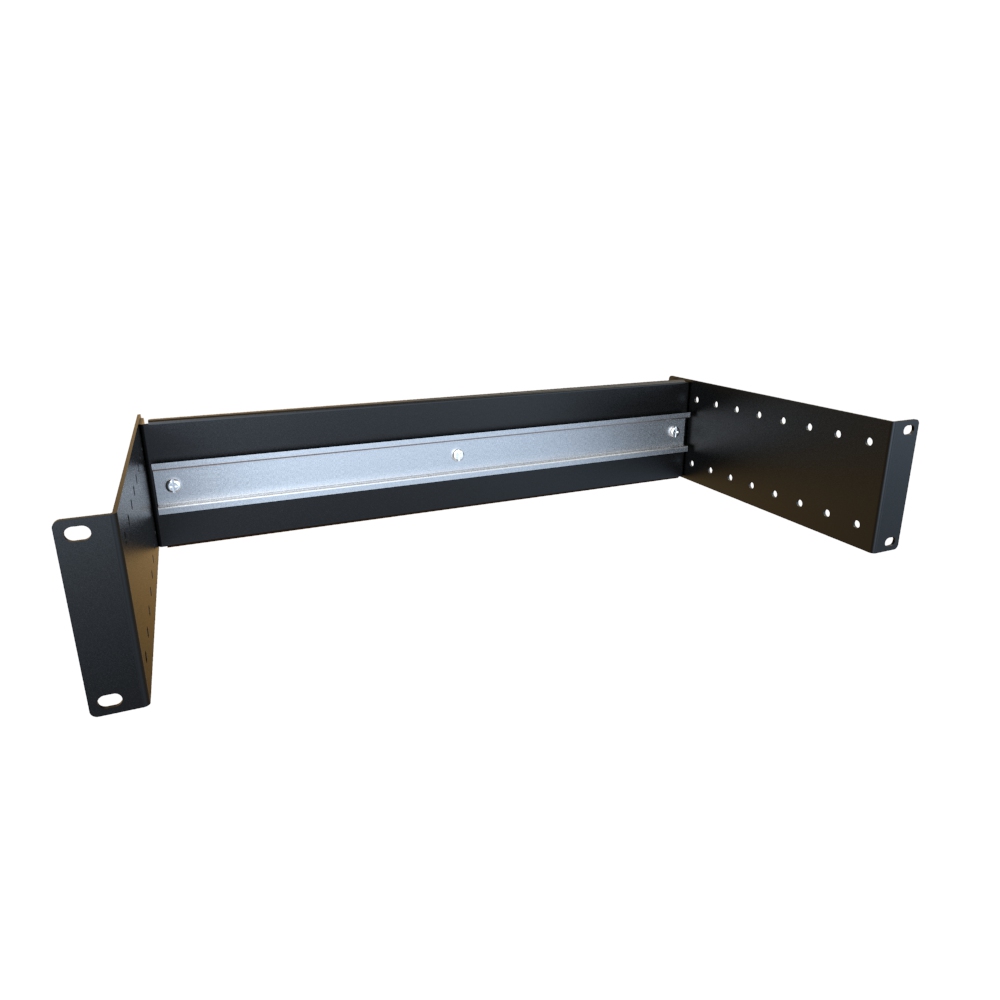

• ■Available in light-duty (RMAD) and heavy-duty (RMHD up to 100 lb) configurations.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
• ■Constructed of 14 and 16-gauge steel.
• ■Provides up to 8.38" of adjustable depth for DIN rail-mounted equipment.
• ■Rear and side cutouts provide cable pass-through and wire management.
• ■26 lbs (11 kg) load rating .
• ■Constructed of 14-gauge steel.
• ■Provides up to 8.00" of depth options for DIN rail-mounted equipment.
• ■100 lbs (45 kg) load rating .
