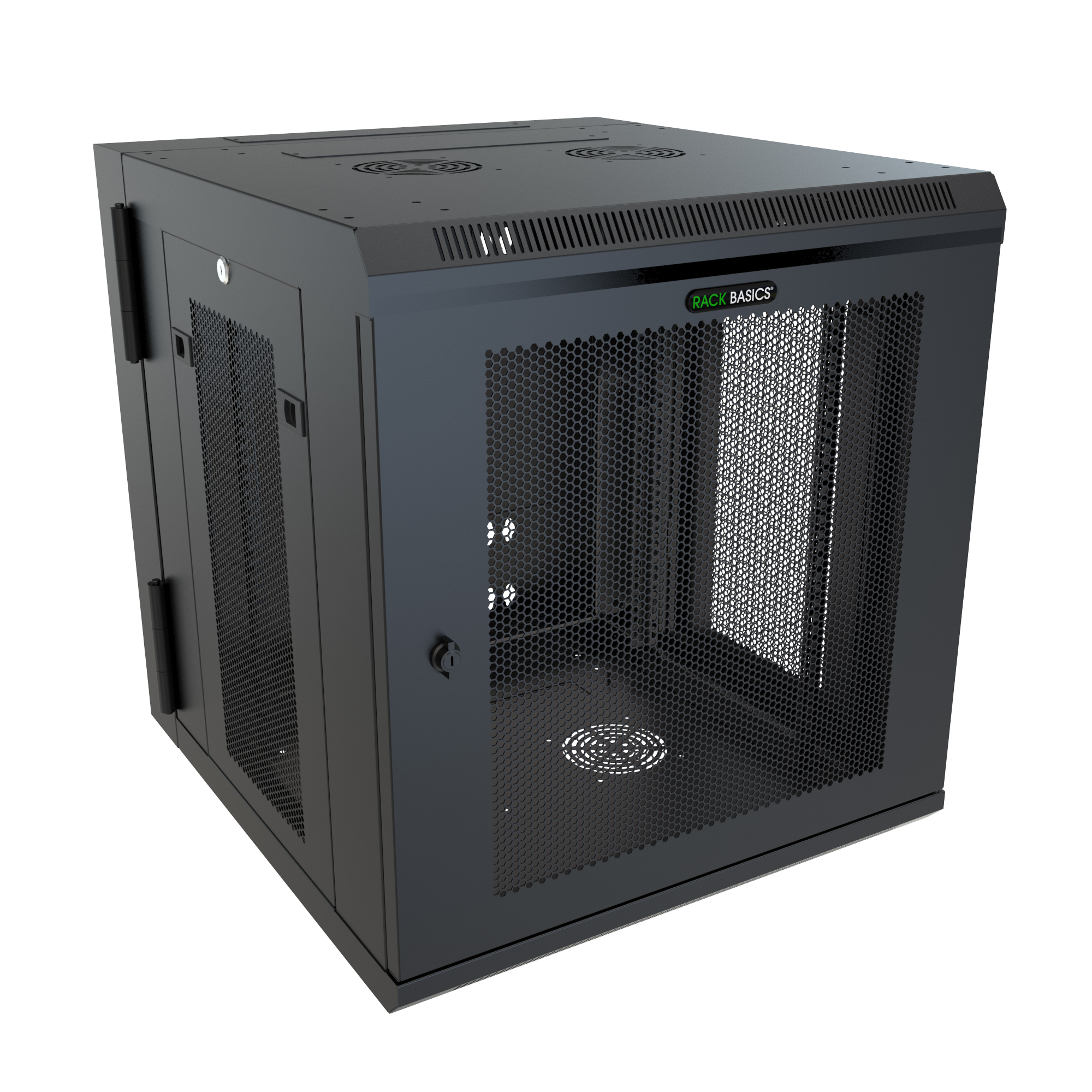

Hammond RB-SW12DV 12U Vented Swing-Out Wall Cabinet, 200 lb
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12U of usable rack space in a double-hinged swing-out wall cabinet with rear access up to 120 degrees
- 16-gauge steel construction rated for 200 lb of equipment load
- Locking vented front door and removable side panels for security with airflow
- Adjustable square-hole 19 in rails: two pairs included, plus 25 M6 screws and cage nuts
- Top, bottom and rear cable access with cable entry opening covers included
- Fan-ready with standard 4.70 in fan cutouts for optional cooling
- Reversible cabinet orientation for left-to-right hinging flexibility
- Ships fully assembled with hardware; RoHS and REACH compliant, meets PCI DSS requirements
The RB-SW12DV is a 12U swing-out wall-mount rack cabinet from the Rack Basics® line, built for network closets, telecom rooms and structured cabling installations that need enclosed 19-inch rack mounting with full rear access. Its double-hinged design lets the cabinet swing away from the wall up to 120°, so switches, patch panels and cabling can be installed and serviced from behind without removing the enclosure.
Construction is 16-gauge mild steel with a black textured painted finish, rated for a 200 lb equipment load. A locking vented front door and removable side panels combine physical security with airflow, while standard 4.70 in fan cutouts make the cabinet fan-ready for optional cooling. Cable entry openings with covers are provided at the top and bottom, and rear access supports flexible cable routing.
Swing-out overall dimensions are 25.50 in (648 mm) high x 23.62 in (600 mm) wide x 25.59 in (650 mm) deep, with 12U of mounting space measuring 21.00 in (533 mm) high x 19.00 in (483 mm) wide x 23.00 in (584 mm) deep. Maximum equipment mounting depth is 23.82 in (605 mm) and maximum rail mounting depth is 20.02 in (509 mm), suiting deeper active equipment that exceeds standard wall cabinet depth.
- Two pairs of adjustable square-hole 19 in mounting rails included
- Starter pack of 25 M6 screws and cage nuts included (for 10-32 hardware, see the CAGKIT Series)
- Reversible orientation for left- or right-hand hinging
RB-SW12DV ships fully assembled with hardware included, is RoHS and REACH compliant, and meets PCI DSS compliance requirements for installations handling payment card data.
Ideal For
- Network closets requiring rear access and deeper equipment support
- Telecom and data communication rooms
- Structured cabling installations with active equipment
- Commercial IT environments with higher equipment depth requirements
- Deployments where frequent servicing or reconfiguration is expected
Overview
| Series | RB-SWDV Series - Swing-Out Wall-Mount Rack Cabinet, Deep Depth (200 lb) |
| Assembly | Ships fully assembled, hardware included |
| Door Style | Vented, locking front door |
| Part Number | RB-SW12DV |
| Product Type | Wall Mount Rack Cabinet |
| Long Description | 12U Rack Basics Swing-Out Wall Mount Cabinet |
| Short Description | 12U VENTED SWING WALL CABINET |
Dimensions
| Swing-Out Overall Depth | 25.59 in (650 mm) |
| Swing-Out Overall Width | 23.62 in (600 mm) |
| Nominal Size (H X W X D) | 25 in x 23.63 in x 25.59 in (635 mm x 600 mm x 650 mm) |
| Swing-Out Overall Height | 25.50 in (648 mm) |
Identifiers
| UNSPSC | 43223306 |
| GTIN-14 | 00623980004037 |
| UPC (With Check Digit) | 623980004037 |
| UPC (Without Check Digit) | 62398000403 |
Rack Mounting
| Rail Type | Adjustable square-hole 19 in mounting rails |
| Rack Units | 12U |
| Load Capacity | 200 lb |
| Mounting Depth | 23.00 in (584 mm) |
| Mounting Width | 19.00 in (483 mm) |
| Rails Included | Two (2) pairs of 19 in mounting rails |
| Mounting Height | 21.00 in (533 mm) |
| Hardware Included | Starter pack of (25) M6 screws and cage nuts (for 10-32 hardware, see CAGKIT Series) |
| Maximum Rail Mounting Depth | 20.02 in (509 mm) |
| Maximum Equipment Mounting Depth | 23.82 in (605 mm) |
| 19 In Mounting Reference Width (Top View) | 18.35 in (466 mm) |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 102 lbs (46.27 kg) |
| Country Of Origin | CN |
Construction & Finish
| Gauge | 16-gauge steel |
| Latching | 1/4 turn locks; black plastic latch |
| Material | Mild Steel |
| Orientation | Reversible for left-to-right hinging |
| Side Panels | Removable |
| Hinge Design | Double-hinged swing-out, rear access up to 120 degrees |
| Finish / Paint Color | Painted black textured |
Environmental & Protection
| Ventilation | Vented front door; perforated area within border |
| Cable Access | Top, bottom and rear cable entry openings (covers included) |
| Fan Provision | Standard 4.70 in fan cutouts (top and bottom) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | PCI (meets PCI DSS compliance requirements) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | No |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment can the RB-SW12DV hold?▾
It provides 12U of 19-inch rack mounting space and is rated for a 200 lb load, supported by 16-gauge steel construction.
Can I access the back of the cabinet after it is mounted?▾
Yes. The double-hinged swing-out design allows the cabinet to swing away from the wall for full rear access up to 120 degrees for installation, servicing and cable management.
What is the maximum equipment depth it will accept?▾
Maximum equipment mounting depth is 23.82 in (605 mm) and maximum rail mounting depth is 20.02 in (509 mm). Rail-to-rail mounting depth is 23.00 in (584 mm).
What mounting hardware is included?▾
Two pairs of 19 in adjustable square-hole mounting rails and a starter pack of 25 M6 screws and cage nuts are included. For 10-32 hardware, see the CAGKIT Series.
Does it support fans?▾
Yes. The cabinet is fan-ready with standard 4.70 in fan cutouts and a vented, perforated front door for airflow.
Does the RB-SW12DV arrive assembled?▾
Yes, it ships fully assembled with hardware included.
