Hammond RB-SW15DV 15U Deep Swing-Out Wall Cabinet, 200 lb
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 15U usable rack space with 26.25 in x 19.00 in x 23.00 in (667 x 483 x 584 mm) mounting dimensions
- 16-gauge steel construction rated for 200 lb of equipment load
- Double-hinged swing-out design opens up to 120 degrees for full rear access and cable management
- Locking vented front door with perforated area plus removable side panels for security and airflow
- Includes two pairs of adjustable 19 in square-hole rails and 25 M6 screws with cage nuts
- Fan-ready with standard 4.70 in fan cutouts; top, bottom and rear cable entry with covers included
- Reversible orientation for left- or right-hand hinging; ships fully assembled with hardware
- RoHS and REACH compliant and meets PCI DSS compliance requirements

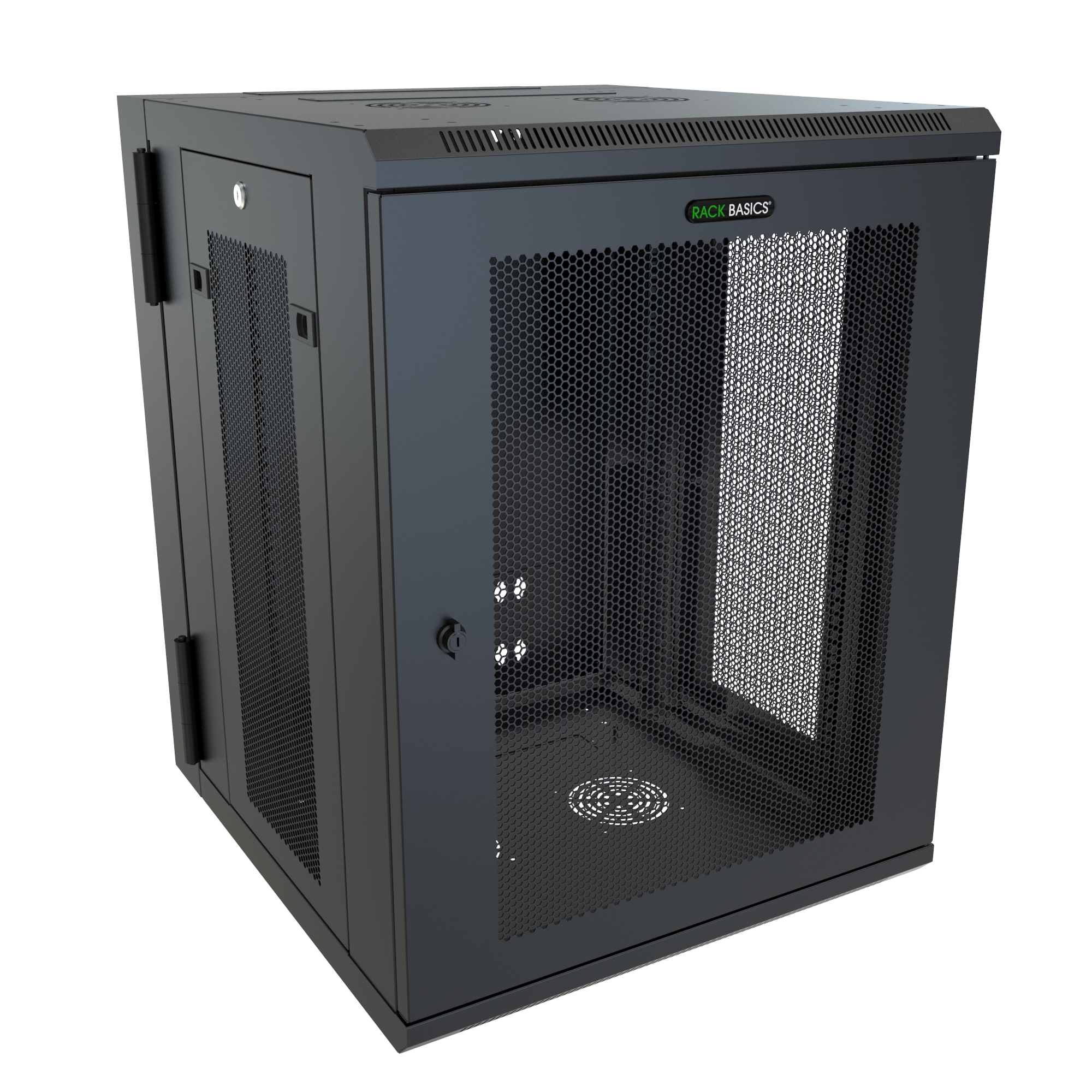

The RB-SW15DV is a 15U swing-out wall-mount rack cabinet from the Rack Basics® RB-SWDV Series, built for network closets, telecom rooms and structured cabling installations that need enclosed, secure 19-inch rack space plus full rear access. Its double-hinged design lets the cabinet swing away from the wall up to 120° so installers and service techs can reach the back of switches, patch panels and cabling without dismounting equipment.
Construction is 16-gauge mild steel with a 200 lb load rating, finished in black textured paint. A locking vented front door and removable side panels combine physical security with airflow, while the perforated door area and standard 4.70 in fan cutouts make the cabinet fan-ready for optional cooling. Cable entry openings in the top and bottom (covers included) plus rear access support flexible cable routing in wall-mounted deployments.
Overall swing-out dimensions are 30.40 in x 23.62 in x 25.59 in (772 mm x 600 mm x 650 mm), with a shipping weight of 112 lbs (50.80 kg). Internal mounting dimensions are 26.25 in high x 19.00 in wide x 23.00 in deep (667 mm x 483 mm x 584 mm), giving 23.82 in (605 mm) of maximum equipment mounting depth and 20.02 in (509 mm) of maximum rail mounting depth for deeper equipment that exceeds standard wall cabinet depth.
Two pairs of adjustable 19 in square-hole mounting rails are included, along with a starter pack of 25 M6 screws and cage nuts (for 10-32 hardware, see the CAGKIT Series). Cabinet orientation is reversible for left- or right-hand hinging, and RB-SW15DV ships fully assembled with hardware included. The cabinet is RoHS and REACH compliant and meets PCI DSS compliance requirements.
Ideal For
- Network closets requiring rear access and deeper equipment support
- Telecom and data communication rooms
- Structured cabling installations with active equipment
- Commercial IT environments with higher equipment depth requirements
- Deployments where frequent servicing or reconfiguration is expected
Overview
| Series | RB-SWDV Series - Swing-Out Wall-Mount Rack Cabinet, Deep Depth (200 lb) |
| Assembly | Ships fully assembled, hardware included |
| Door Type | Vented (perforated) locking front door |
| Part Number | RB-SW15DV |
| Product Line | Rack Basics |
| Load Capacity | 200 lb |
| Mounting Style | Wall mount, double-hinged swing-out |
| Long Description | 15U Rack Basics Swing-Out Wall Mount Cabinet |
| Short Description | 15U VENTED SWING WALL CABINET |
Dimensions
| Swing-Out Overall Depth | 25.59 in (650 mm) |
| Swing-Out Overall Width | 23.62 in (600 mm) |
| Nominal Size (H X W X D) | 30.4 in x 23.63 in x 25.59 in (772 mm x 600 mm x 650 mm) |
| Swing-Out Overall Height | 30.40 in (772 mm) |
Identifiers
| UPC | 623980004044 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980004044 |
| UPC W/o Check Digit | 62398000404 |
Rack Mounting
| Rail Type | Adjustable square-hole mounting rails |
| Rack Units | 15U |
| Rack Standard | 19 in rack compatible |
| Included Rails | Two (2) pairs of 19 in mounting rails |
| Mounting Depth | 23.00 in (584 mm) |
| Mounting Width | 19.00 in (483 mm) |
| Mounting Height | 26.25 in (667 mm) |
| Included Hardware | Starter pack of (25) M6 screws and cage nuts (for 10-32 hardware, see CAGKIT Series) |
| 19 In Mounting Centres | 18.35 in (466 mm) |
| Rail Mounting Height (15U) | 25.75 in (654 mm) |
| Maximum Rail Mounting Depth | 20.02 in (509 mm) |
| Maximum Equipment Mounting Depth | 23.82 in (605 mm) |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 112 lbs (50.80 kg) |
| Country Of Origin | CN |
Construction & Finish
| Gauge | 16-gauge steel |
| Latching | 1/4 turn locks, black plastic latch |
| Material | Mild Steel |
| Orientation | Reversible for left-to-right hinging |
| Side Panels | Removable |
| Finish / Paint Color | Painted black textured |
Environmental & Protection
| Ventilation | Entire area within door border perforated |
| Cable Access | Top, bottom and rear cable entry openings (covers included) |
| Cooling Provisions | Fan-ready with standard 4.70 in fan cutouts; 4.00 in (102 mm) fan opening |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | Meets PCI DSS compliance requirements |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | No |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment depth does the RB-SW15DV support?▾
The cabinet has a 23.00 in (584 mm) mounting depth, with a maximum equipment mounting depth of 23.82 in (605 mm) and a maximum rail mounting depth of 20.02 in (509 mm). Overall cabinet depth is 25.59 in (650 mm).
How much weight can this wall cabinet hold?▾
RB-SW15DV is built from 16-gauge steel and is rated for a 200 lb load capacity for switches, patch panels and other rack-mounted equipment.
Does it provide rear access after it is mounted on the wall?▾
Yes. The double-hinged swing-out design allows the cabinet to swing away from the wall up to 120 degrees for installation, servicing and cable management, and side panels are removable.
What mounting hardware and rails are included?▾
It includes two (2) pairs of 19 in adjustable square-hole mounting rails and a starter pack of (25) M6 screws and cage nuts. For 10-32 hardware, see the CAGKIT Series.
Can I add cooling fans?▾
Yes. The cabinet is fan-ready with venting provisions, including standard 4.70 in fan cutouts and a 4.00 in (102 mm) fan opening, and the door area within the border is perforated for airflow.
Does the cabinet arrive assembled?▾
Yes. RB-SW15DV ships fully assembled with hardware included, and the cabinet orientation is reversible so it can be hinged left or right during installation.
