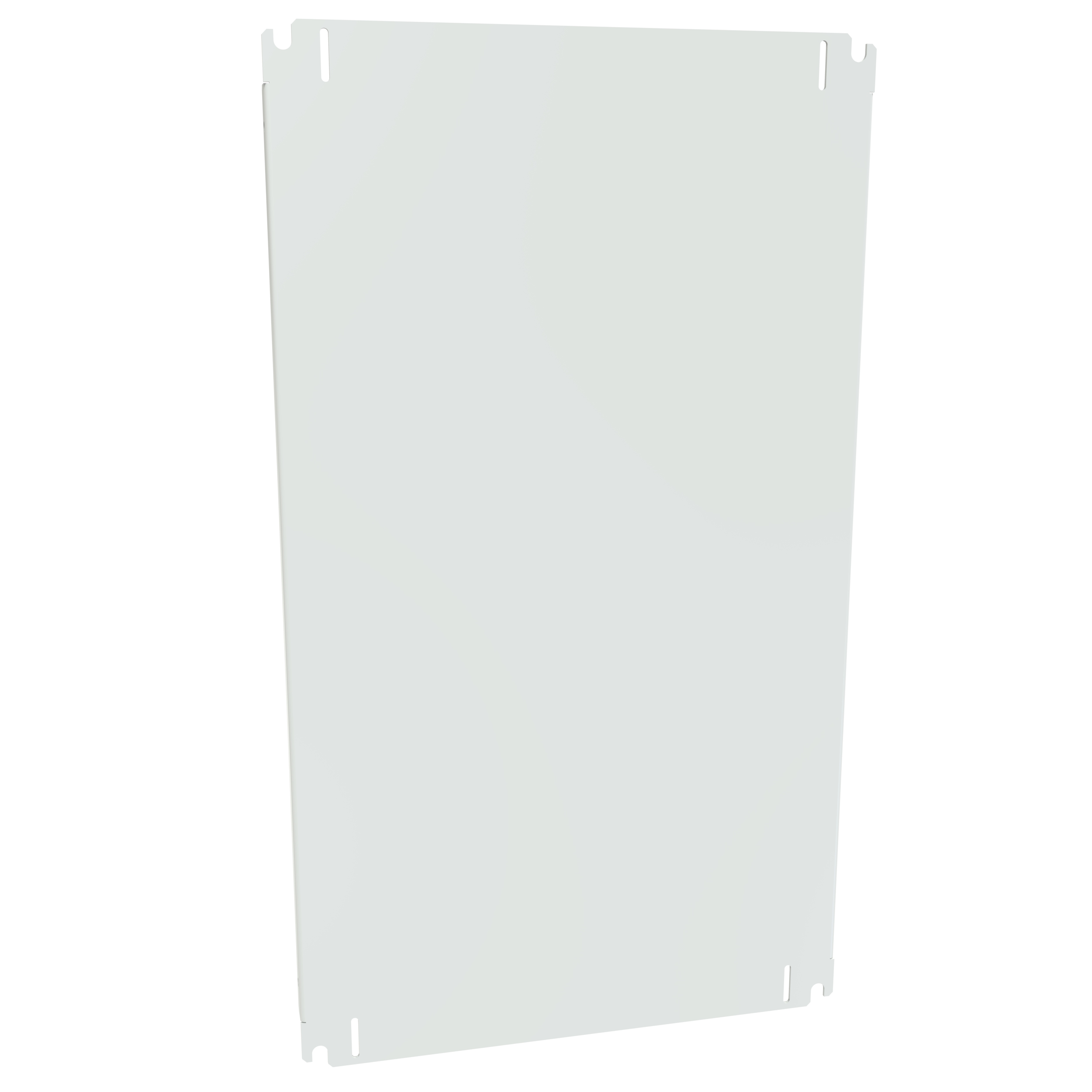

Hammond WRPS18UWH 18U White Steel Inner Panel for Wall Cabinets

The WRPS18UWH is an 18U inner mounting panel that creates a solid, flat surface for non-rackmount equipment inside Hammond wall cabinets. It is intended for IT and network integrators, telecom and low-voltage installers, and industrial panel builders who need somewhere to fasten devices that have no EIA rack ears — DIN rail components, small network boxes, power and control accessories, or cable management hardware.

Construction is 14-gauge steel finished in a smooth RAL9003 white powder coat. The finish supports GREENGUARD, TSCA and RoHS compliance where applicable, and the panel is TAA-compliant and manufactured in North America in an ISO 9001 certified facility. An unfinished aluminum equivalent is offered in the same series as WRPS18UNF if a bare metal surface is preferred.

Overall dimensions are 27.13 in x 16.19 in x 0.50 in (689 mm x 411 mm x 13 mm), sized for 18U cabinets, with a shipping weight of 14 lbs (6.35 kg). Rather than bolting to EIA-compliant rack rails, the WRPS18UWH secures to the rear mounting studs inside compatible cabinets, so it does not consume rail space needed by rack-mounted gear. A slotted corner design helps with alignment and makes it easier to hang and level the panel on the studs during installation, and mounting hardware is included.

• Compatible with the HWM, HWC, NWC and NWM wall cabinet series.
• Adds a secondary mounting surface behind rack-mounted equipment to improve space utilization and organization.

Use it wherever non-rackmount devices have to live inside a wall-mounted enclosure and need to be mounted securely and accessibly.
