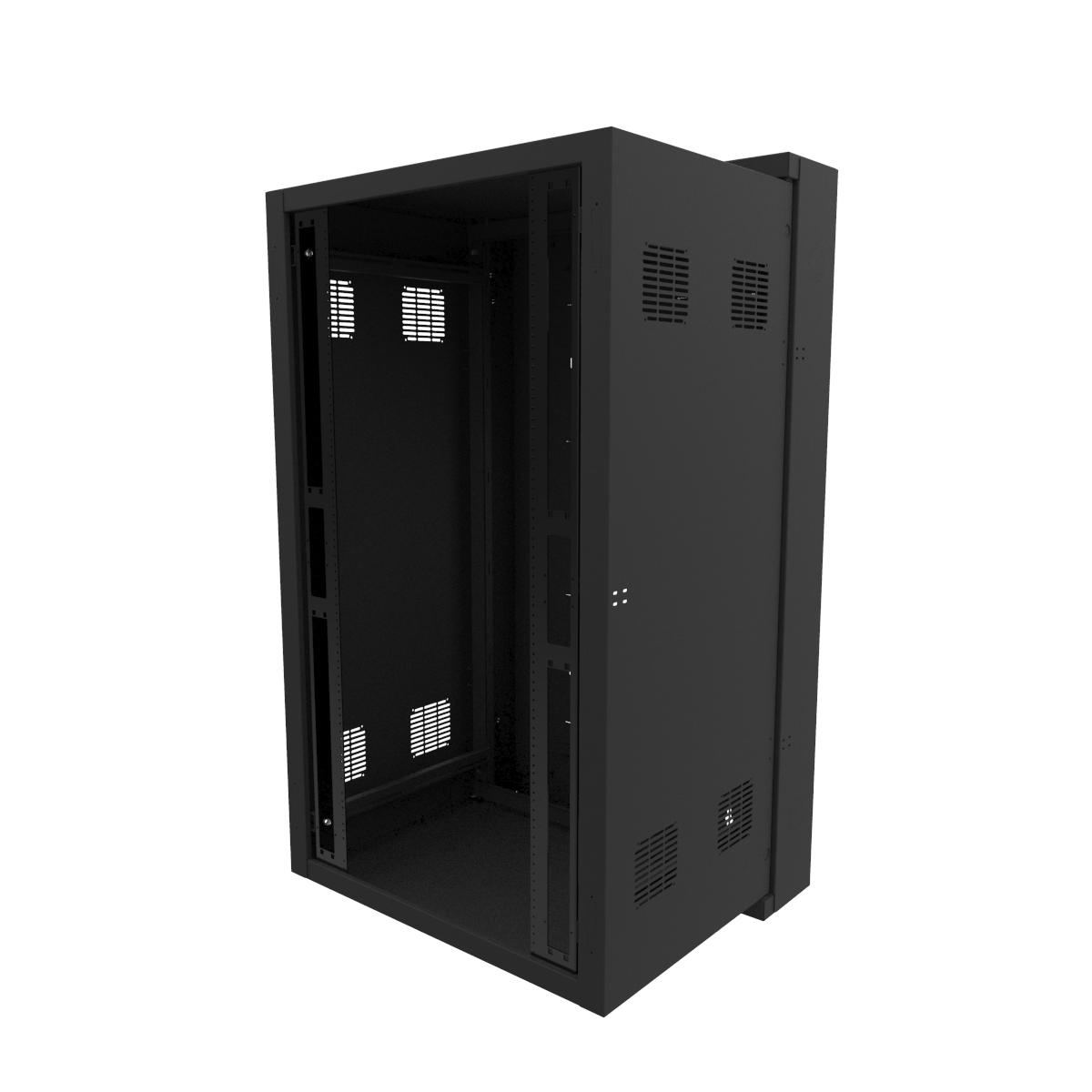

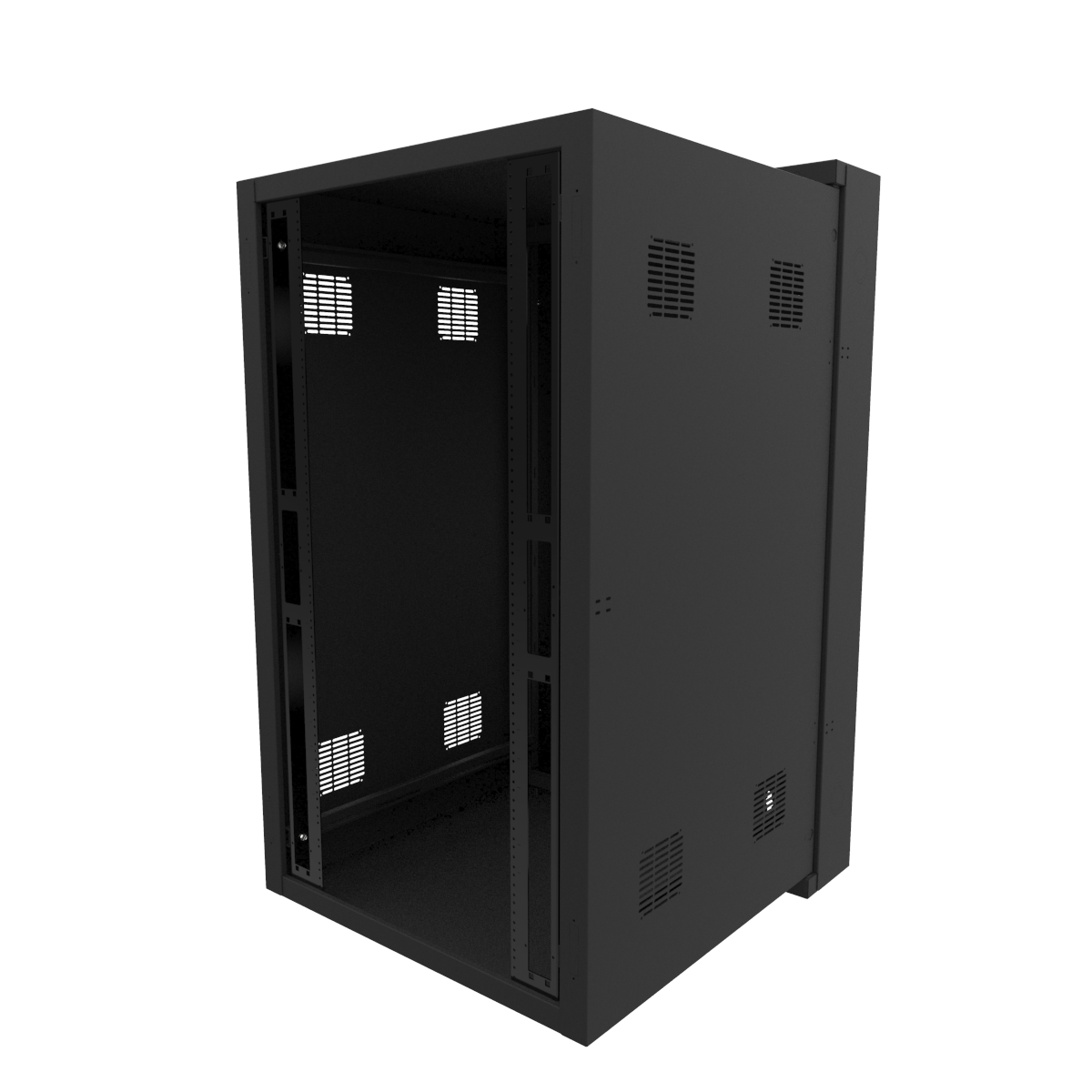

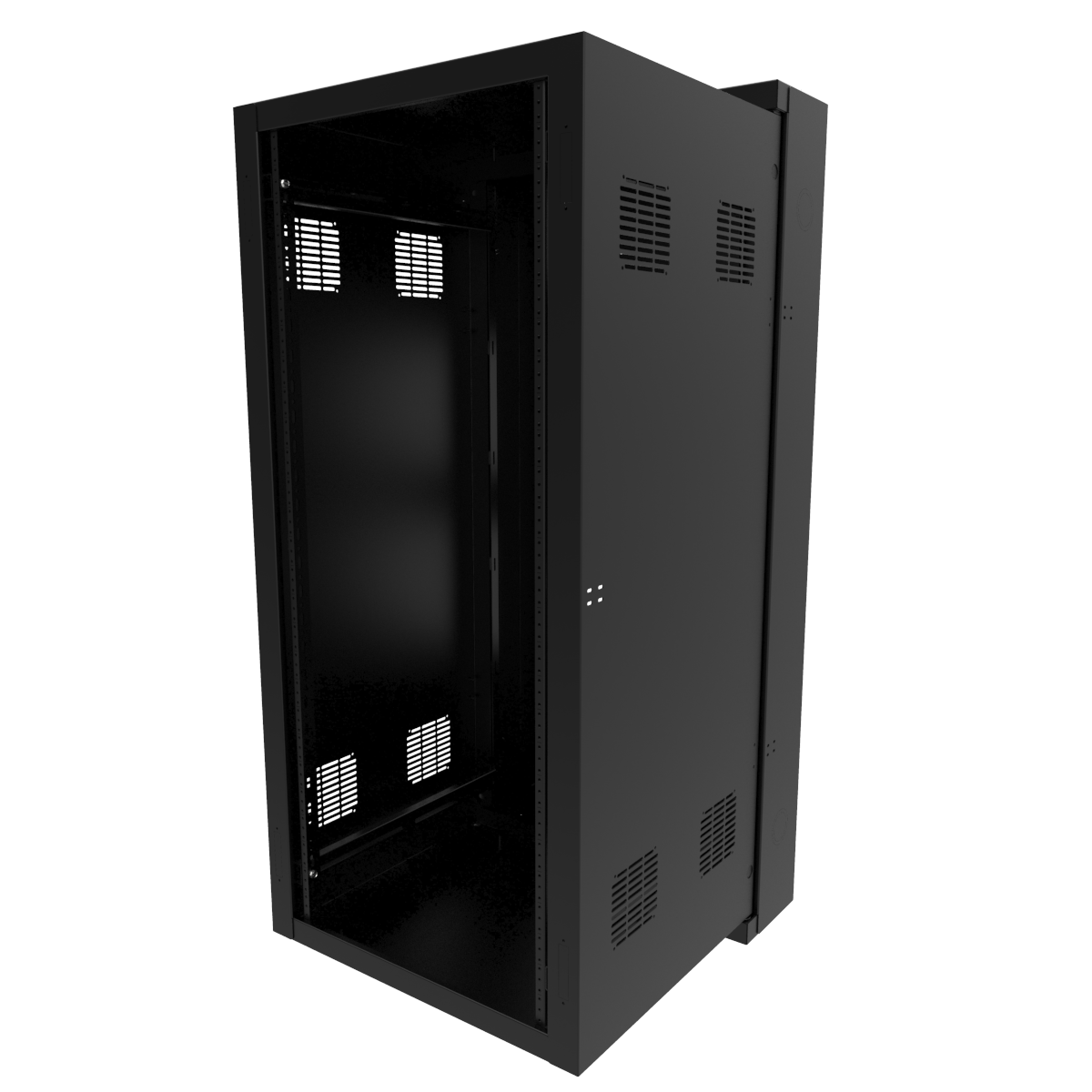

Swing-Out Wall-Mount Rack Cabinet (350 lb) · HWC Series

Key Features and Benefits

The HWC Series swing-out wall-mount cabinet is a UL2416 listed and seismic-rated solution for mounting 19-inch rack equipment in regulated and high-demand environments. Designed for structural integrity and compliance, it supports high load capacities while providing secure, enclosed equipment housing.

With a swing-out design for full rear access, adjustable mounting rails, and integrated cable management, the HWC Series is ideal for telecom, government, and critical infrastructure installations requiring both accessibility and compliance.

• ■14-gauge steel construction (UL2416 rated to 350 lb (158 kg), seismic rated to 200 lb (90.72 kg) supports heavy network and telecom equipment in demanding installations.

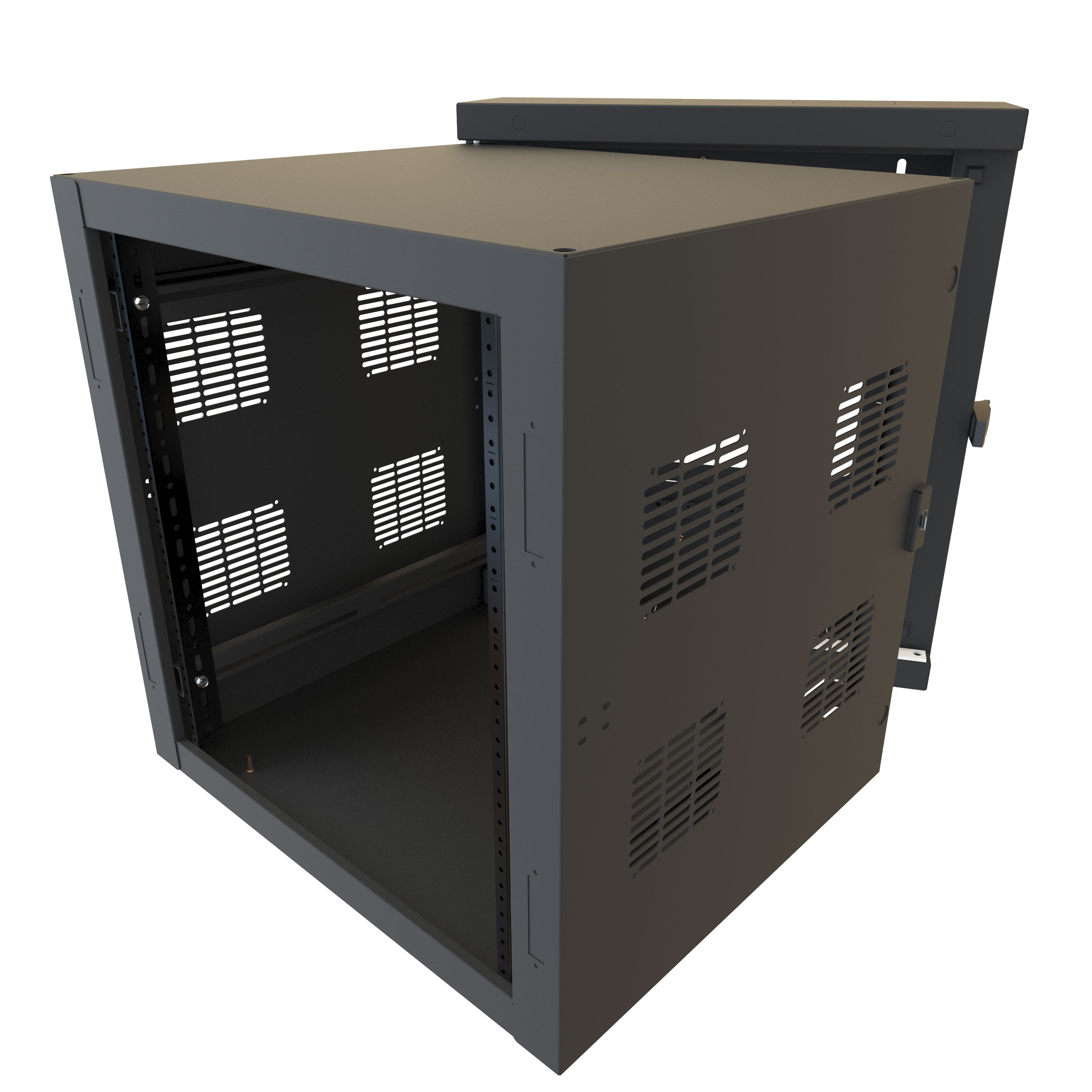

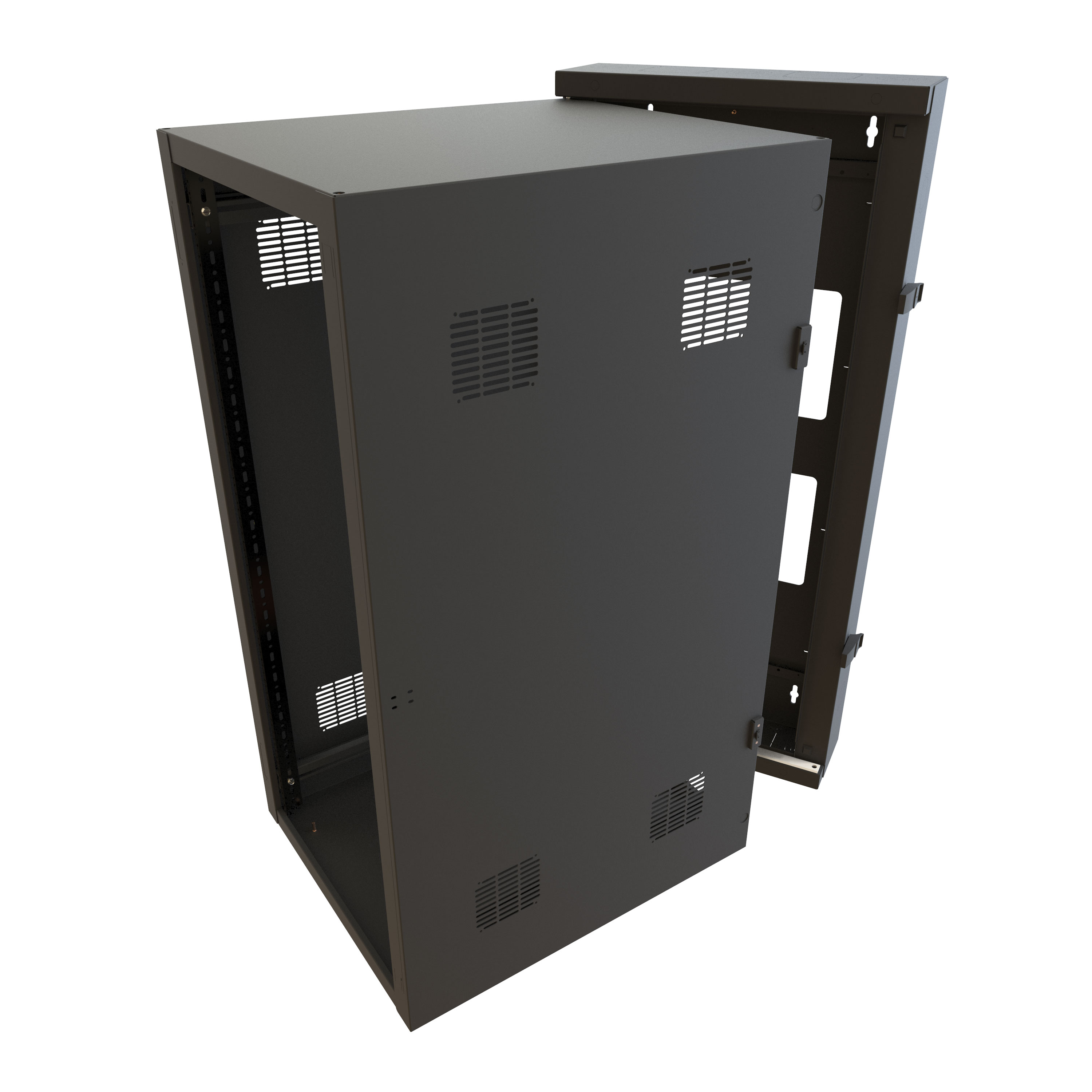

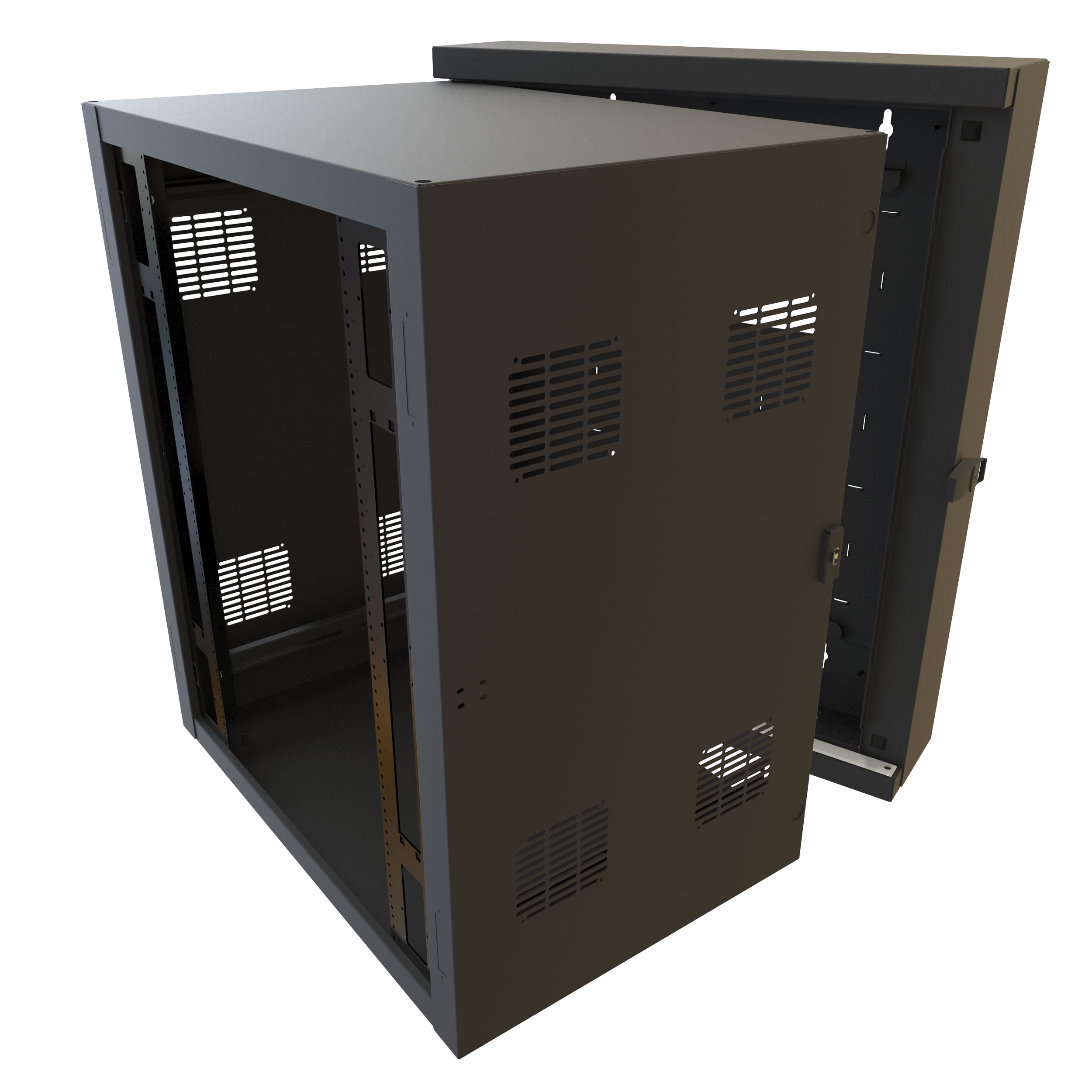

• ■Swing-out wall-mount cabinet design (19" rack compatible) provides front and full rear access for installation and servicing.
• ■Thirty (30) inch wide mounting rails with integrated cutouts support optional 1U 19" accessories such as cable management and power distribution.
• ■10-32 threaded rails are field-replaceable and can be swapped for square-hole rails (sold separately) to support different equipment requirements.
• ■Integrated cable management and ventilation support organized routing and airflow.
• ■Seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
• ■UL2416 listed with defined load ratings ensures verified structural performance for regulated environments.
• ■Meets PCI DSS requirements (with door installed) supports applications requiring payment card data security standards.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black powder coat finish (GREENGUARD Gold, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

When another product may be a better choice

• ■When you need a lower-cost swing-out cabinet for lighter-duty applications, consider our RB-SWDV Series.
• ■When you need improved dust resistance for indoor environments, consider adding the HWCF accessory kit to the HWC Series.
• ■When you need environmental protection against dust or water, consider our NWC or NWM Series cabinets.
