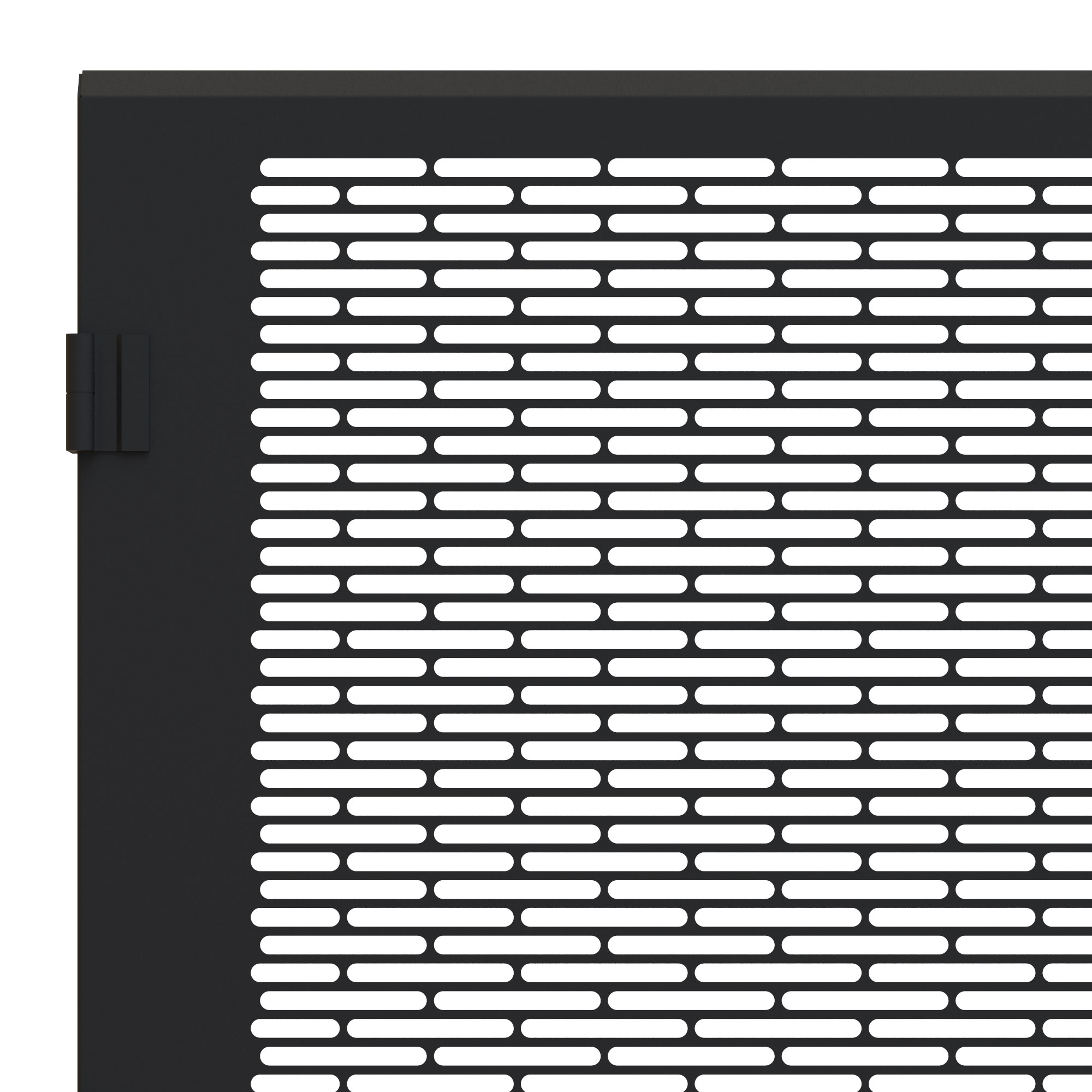

Hammond HWCVD3027UBK 27U Vented Locking Door for 30in Wall Cabinet

The HWCVD3027UBK is a 27U vented front door sized for 30 in wide Hammond HWC series wall mount cabinets. It is intended for IT, AV and facilities teams who need to secure network and AV equipment in a wall enclosure while allowing convection airflow through the door face. The perforated panel provides 64% airflow, making it a practical choice where passive ventilation is preferred over a solid or windowed door.

Construction is 16-gauge steel finished in a textured RAL9005 black powder paint coat that complies with the Greenguard guidelines for indoor air quality. The part is listed as mild steel, is RoHS and REACH compliant, USMCA compliant, TAA-compliant for GSA Schedule purchases, and is manufactured in North America.

Overall size is 50.25 in x 30 in x 1.34 in (1,276 mm x 762 mm x 34 mm) with a shipping weight of 14 lbs (6.35 kg). The drawing shows a 47.21 in / 1199 mm front dimension and a 29.69 in / 754 mm top view width for the door panel itself.

The door ships with the hardware needed to hang it: surface door hinges for both left-hand and right-hand mounting, two hinge cover plates, #10-24 x 3/8 thread cutting screws, a draw latch and latch striker, and two stick-on rubber bumper feet. Hinges can be mounted on the left or right so the door can swing whichever way the installation requires, and a snap-latch lock with two keys is included for basic physical security. Hinge components and latch hardware are shipped loose for field assembly. HWCVD3027UBK is intended exclusively for use with the HWC series.
