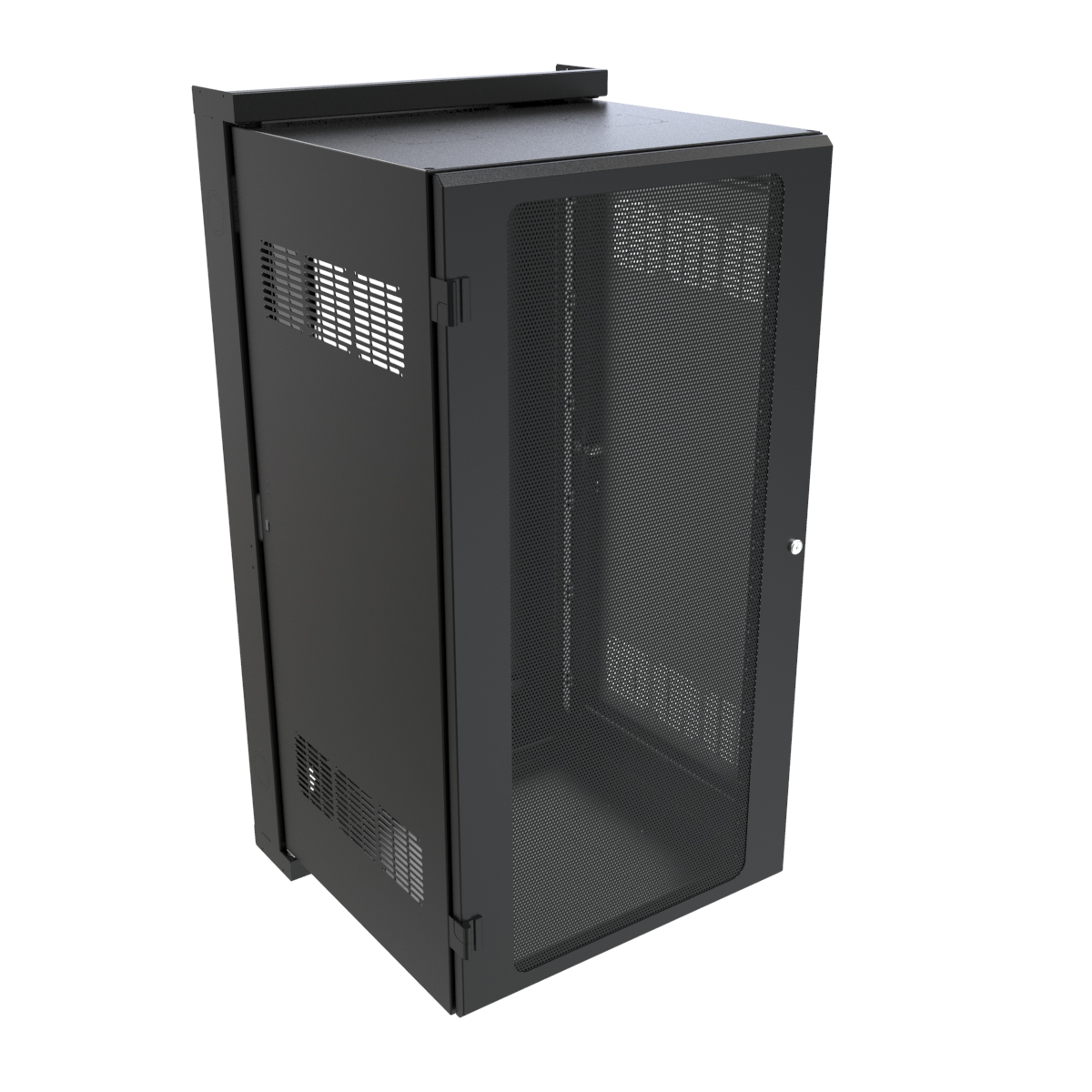

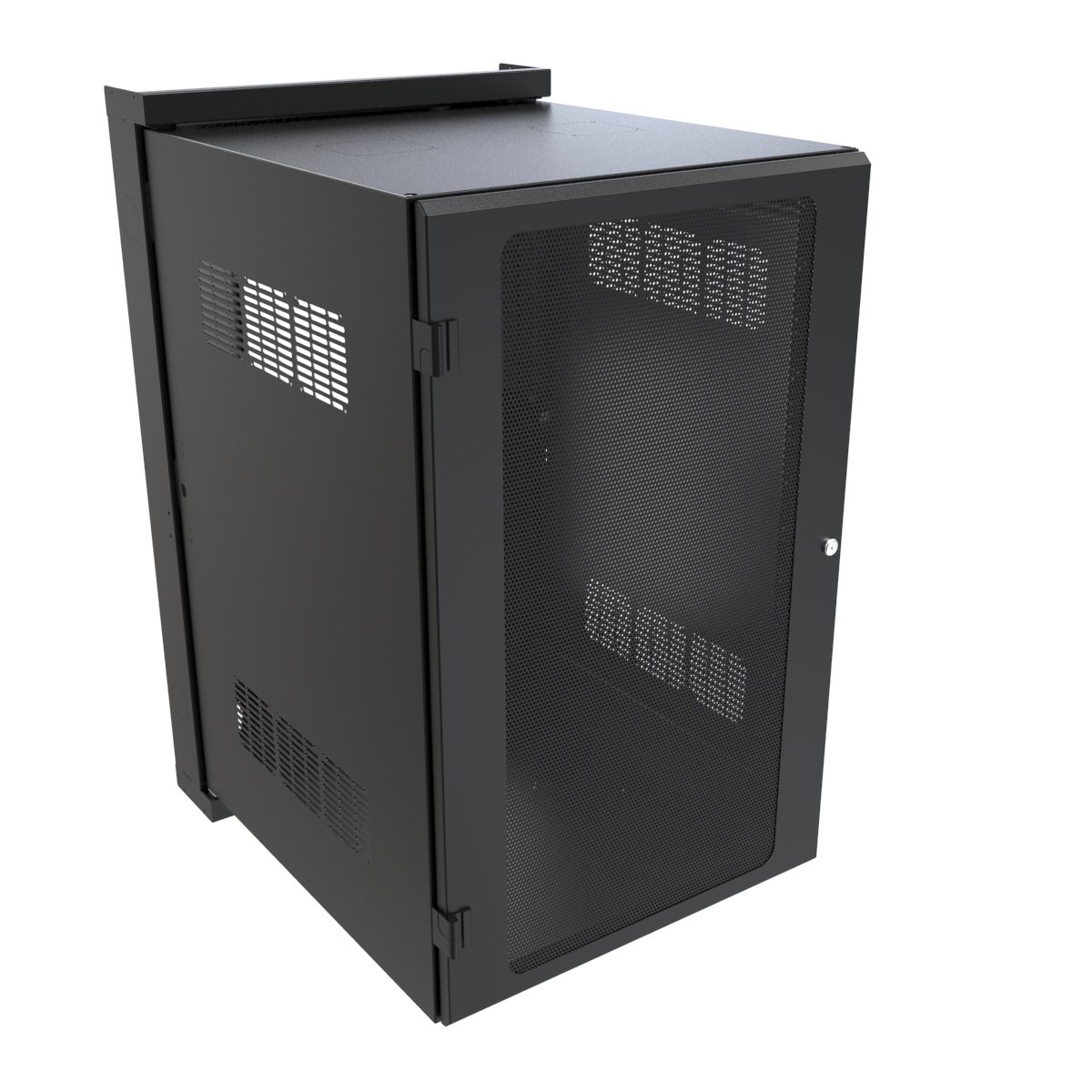

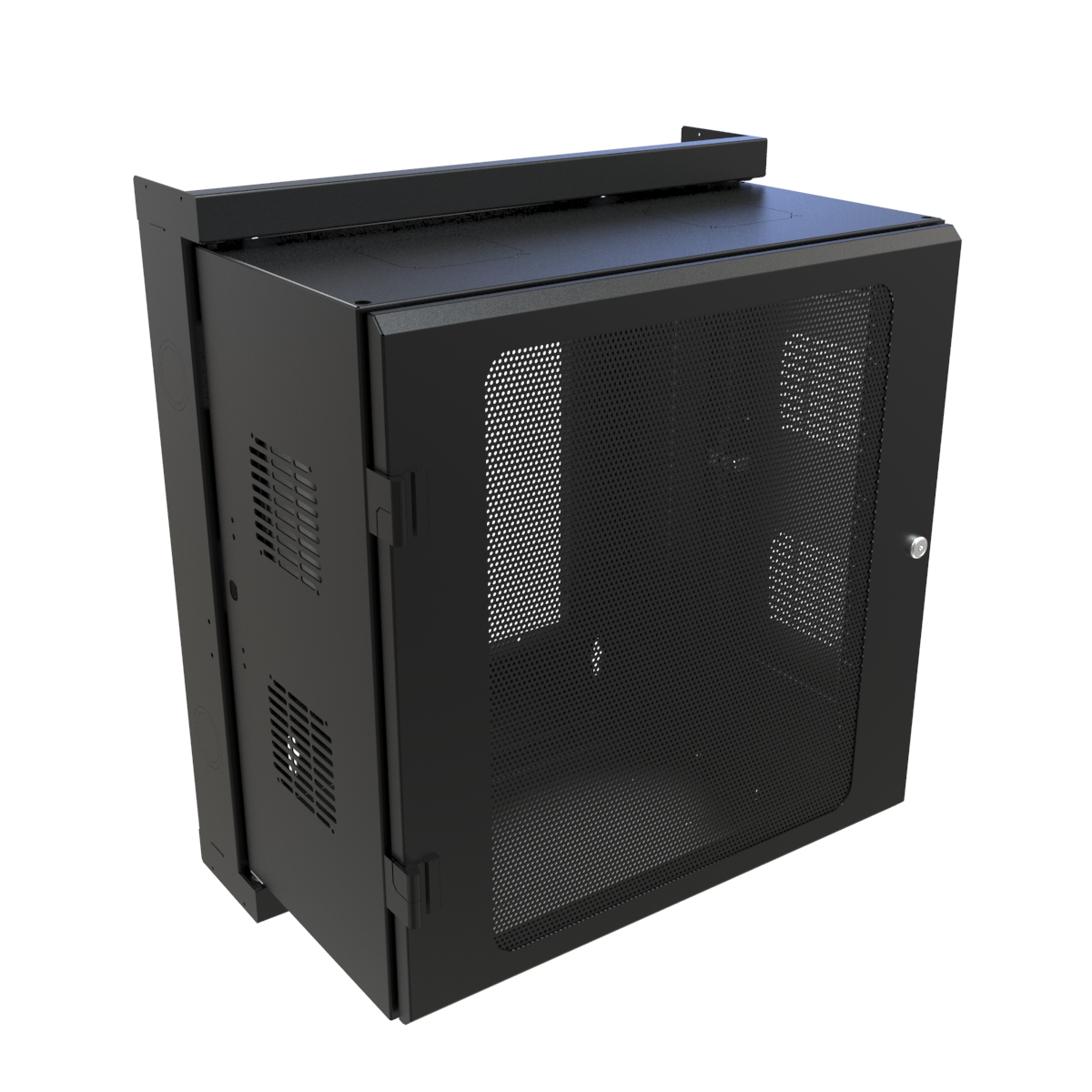

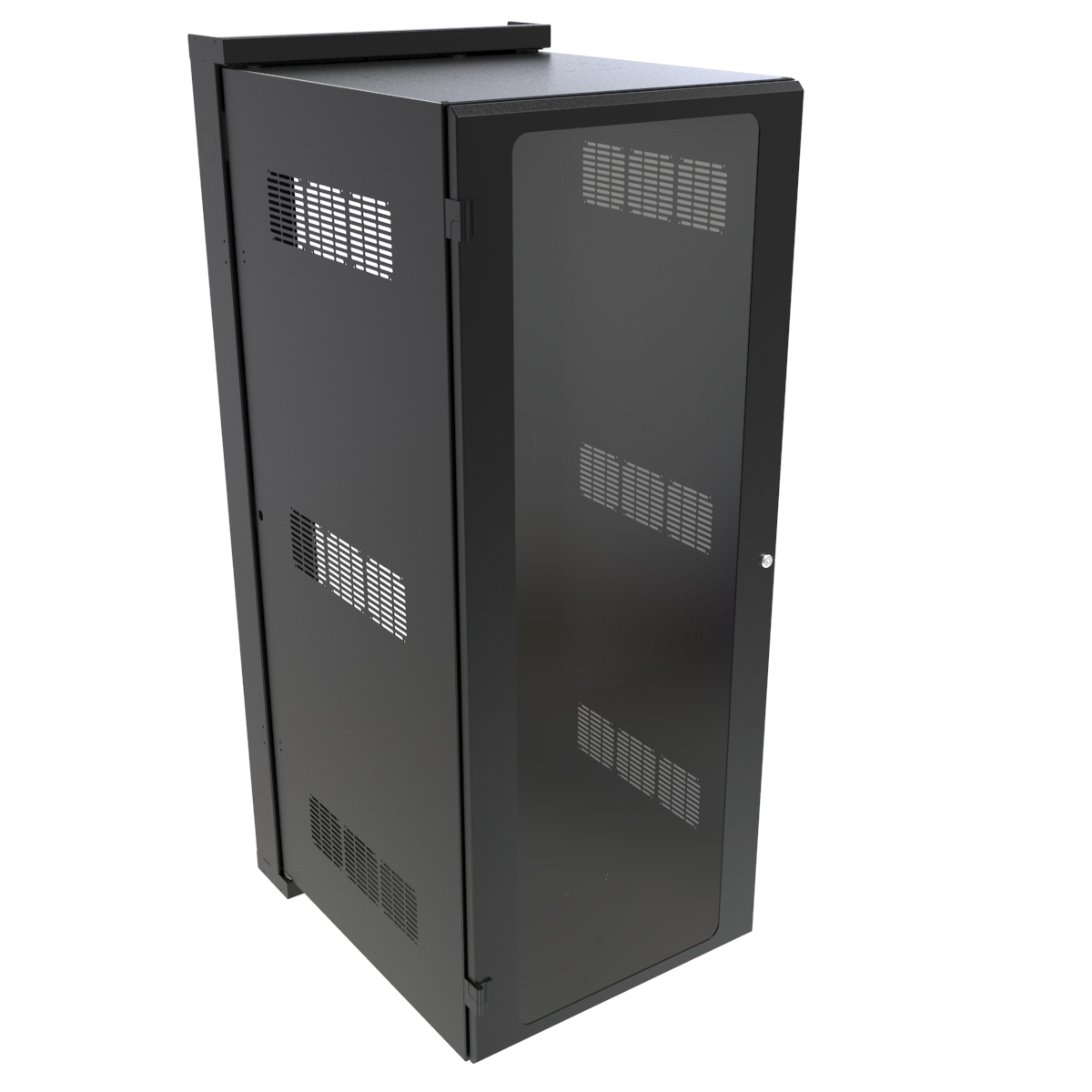

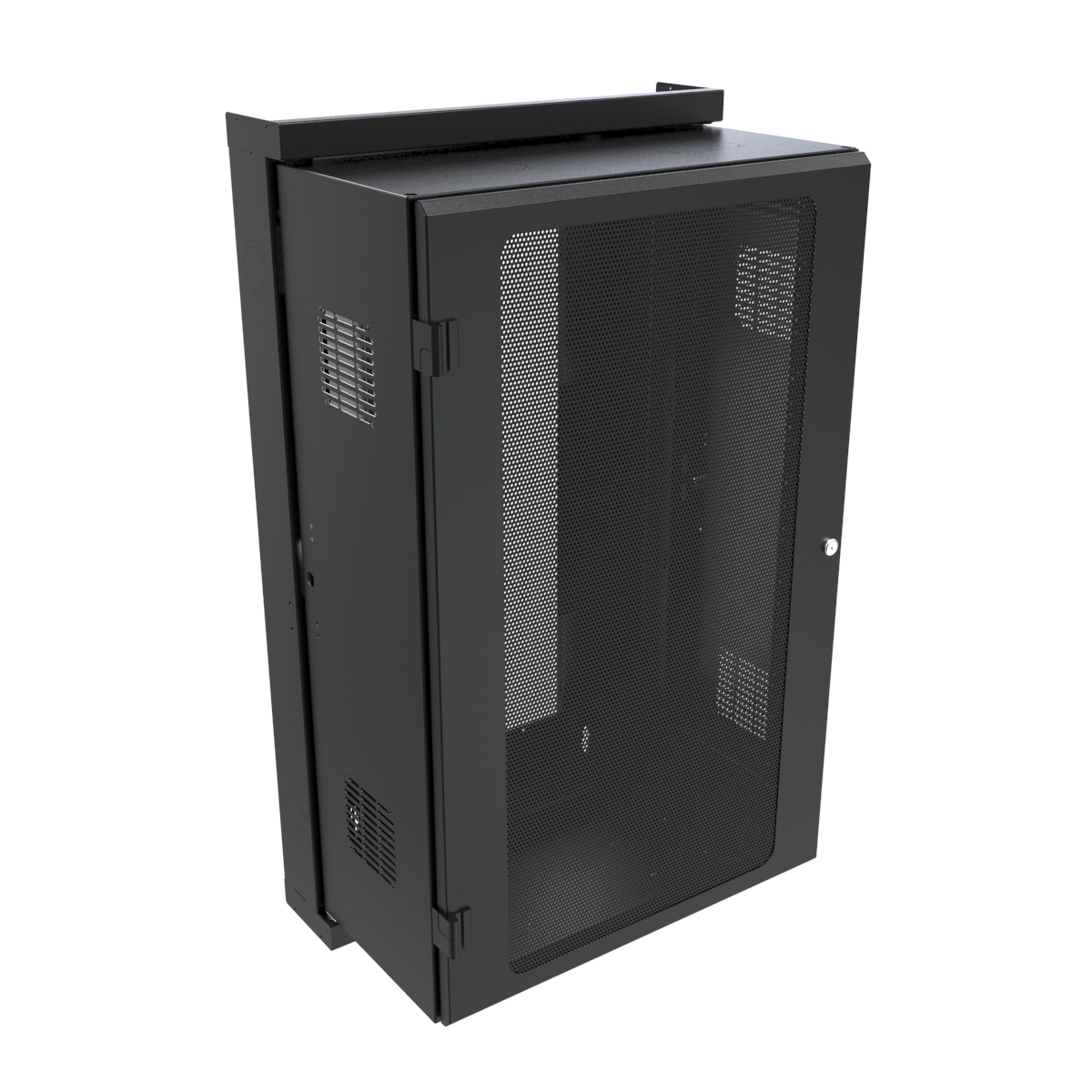

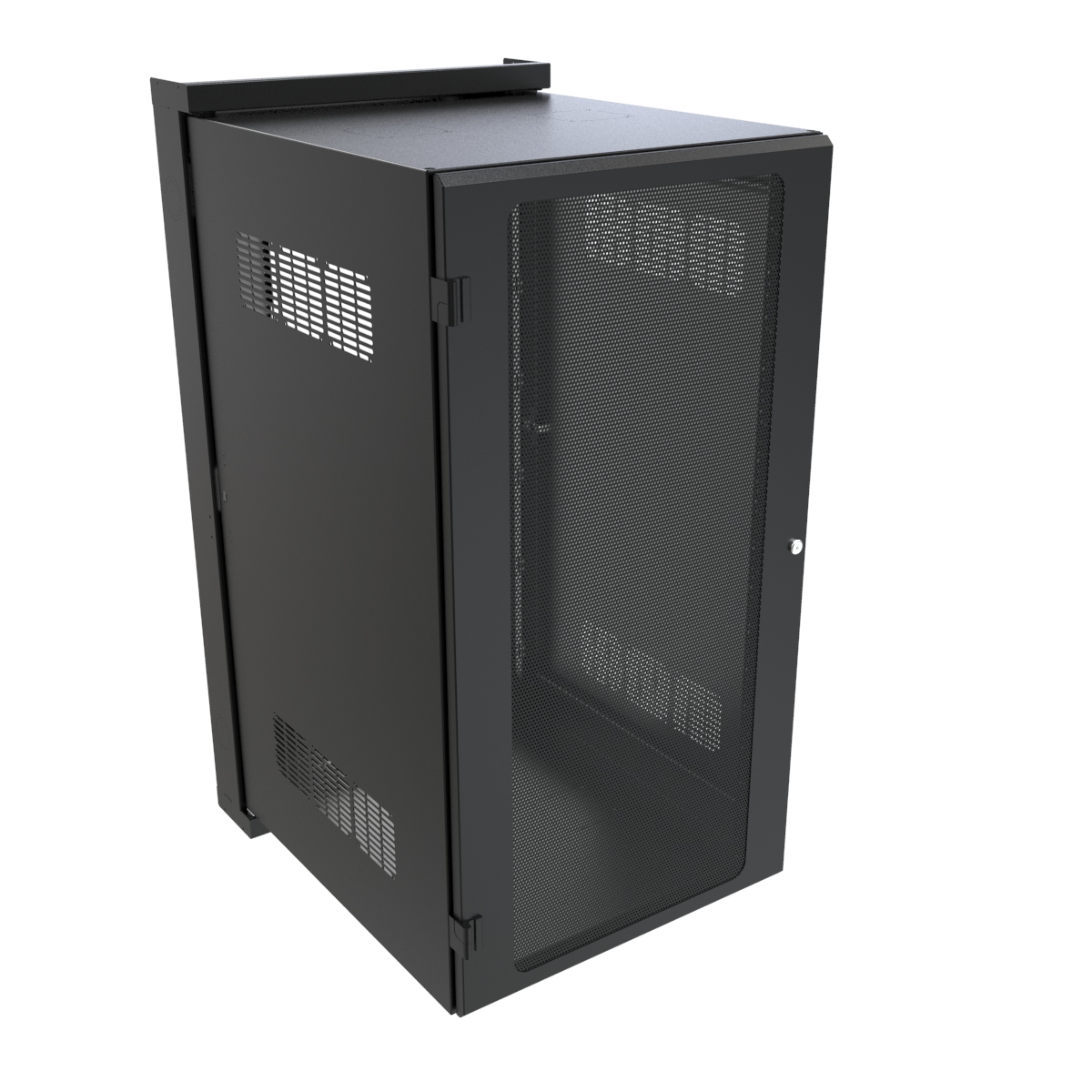

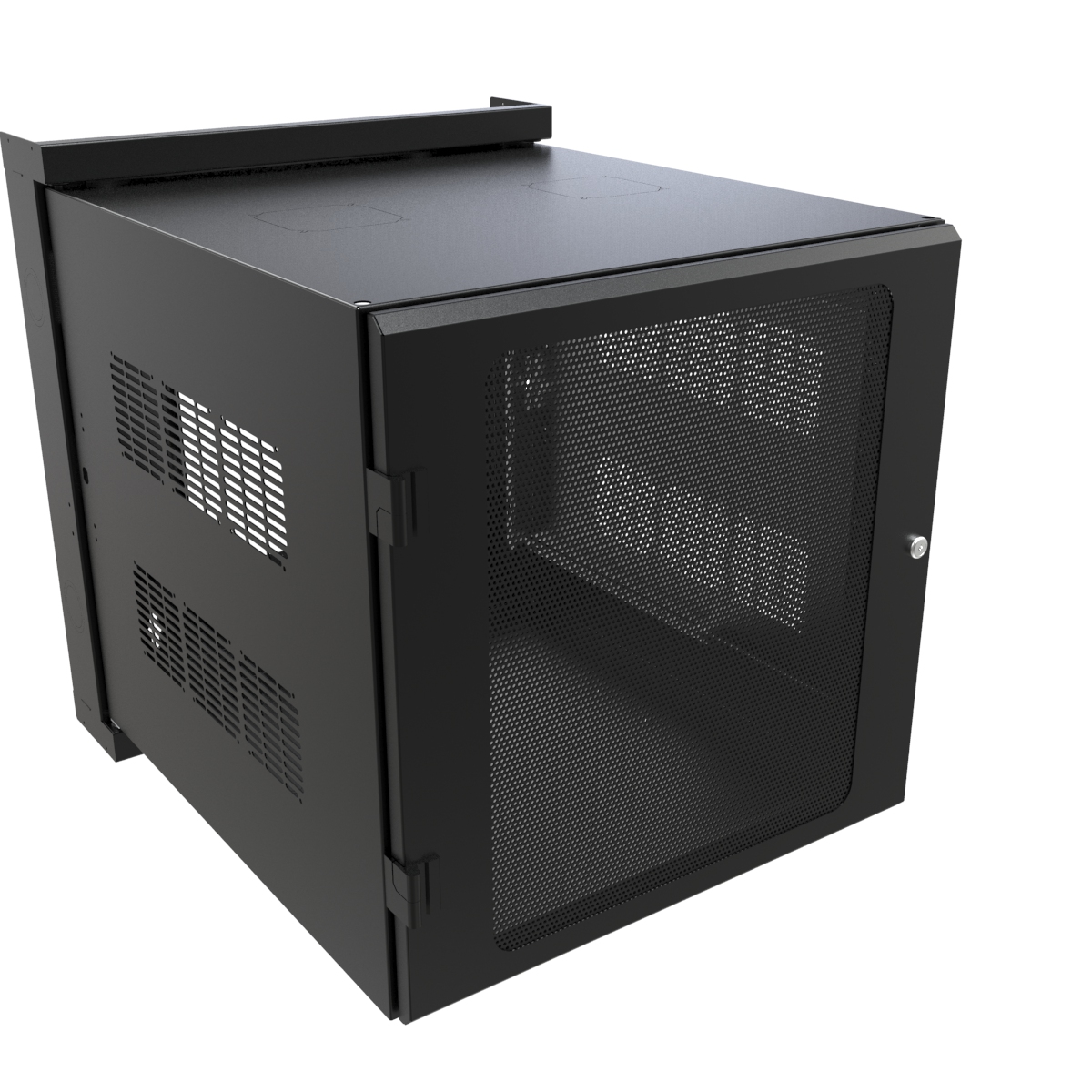

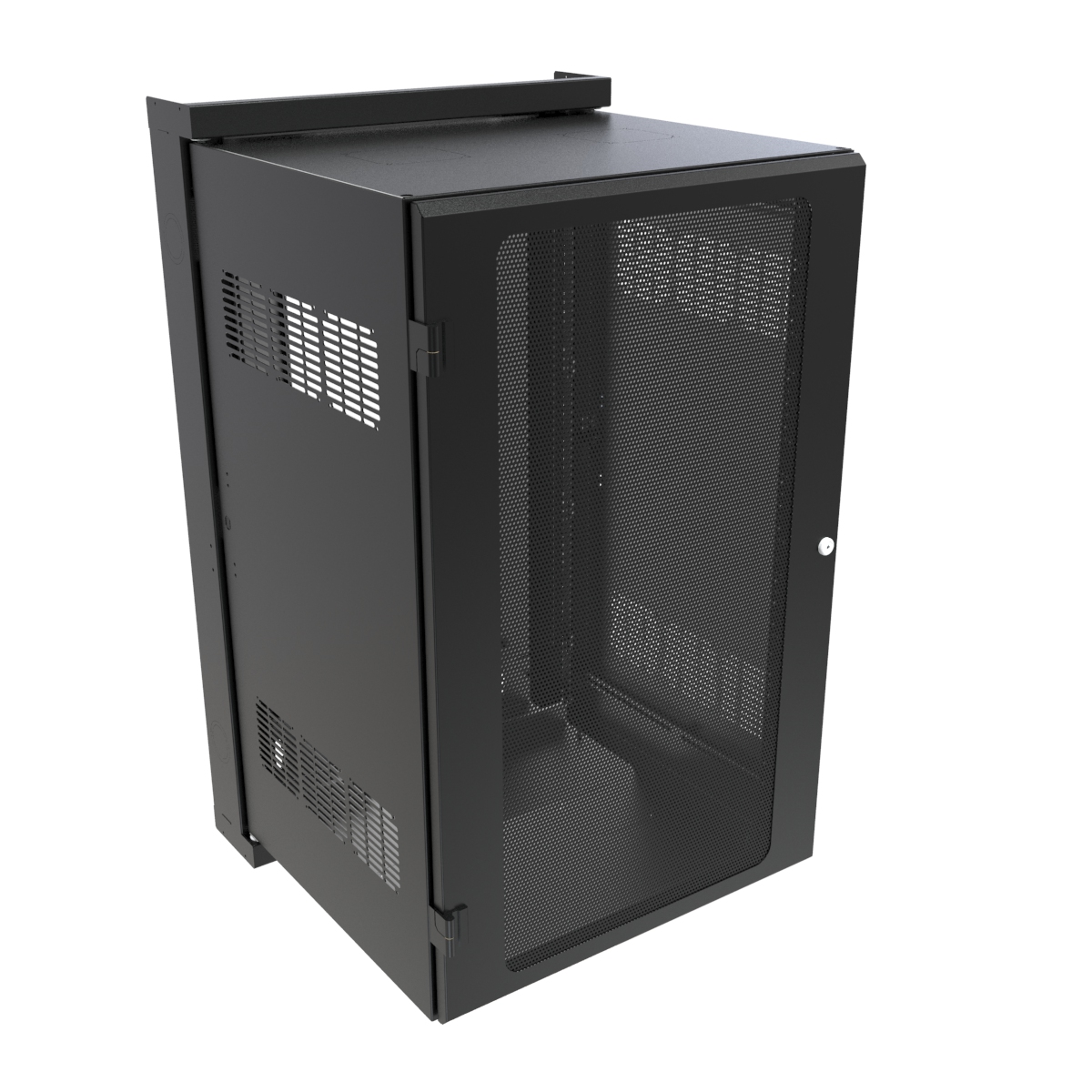

Swing-Out Wall-Mount Rack Cabinet with Vented or Window Door (350 lb) · HWM Series

Key Features and Benefits

The HWM Series swing-out wall-mount cabinet is a UL2416 listed solution designed for mounting 19-inch rack equipment in IT and telecom environments requiring secure enclosure and rear access. Its heavy-duty construction and 350 lb load rating support a wide range of network equipment while maintaining structural integrity.

With a swing-out design, adjustable mounting rails, and integrated cable management features, the HWM provides easy access for installation and servicing. Ideal for network closets and communication rooms, it offers a balance of capacity, accessibility, and security in a wall-mounted form factor.

• ■14-gauge welded rear section with 16-gauge center section and doors (UL2416 rated to 350 lb (159 kg), seismic rated to 200 lb (90.72 kg)) supports network and telecom equipment in demanding installations.
• ■Swing-out wall-mount cabinet design (19" rack compatible) provides front and full rear access for installation and servicing.

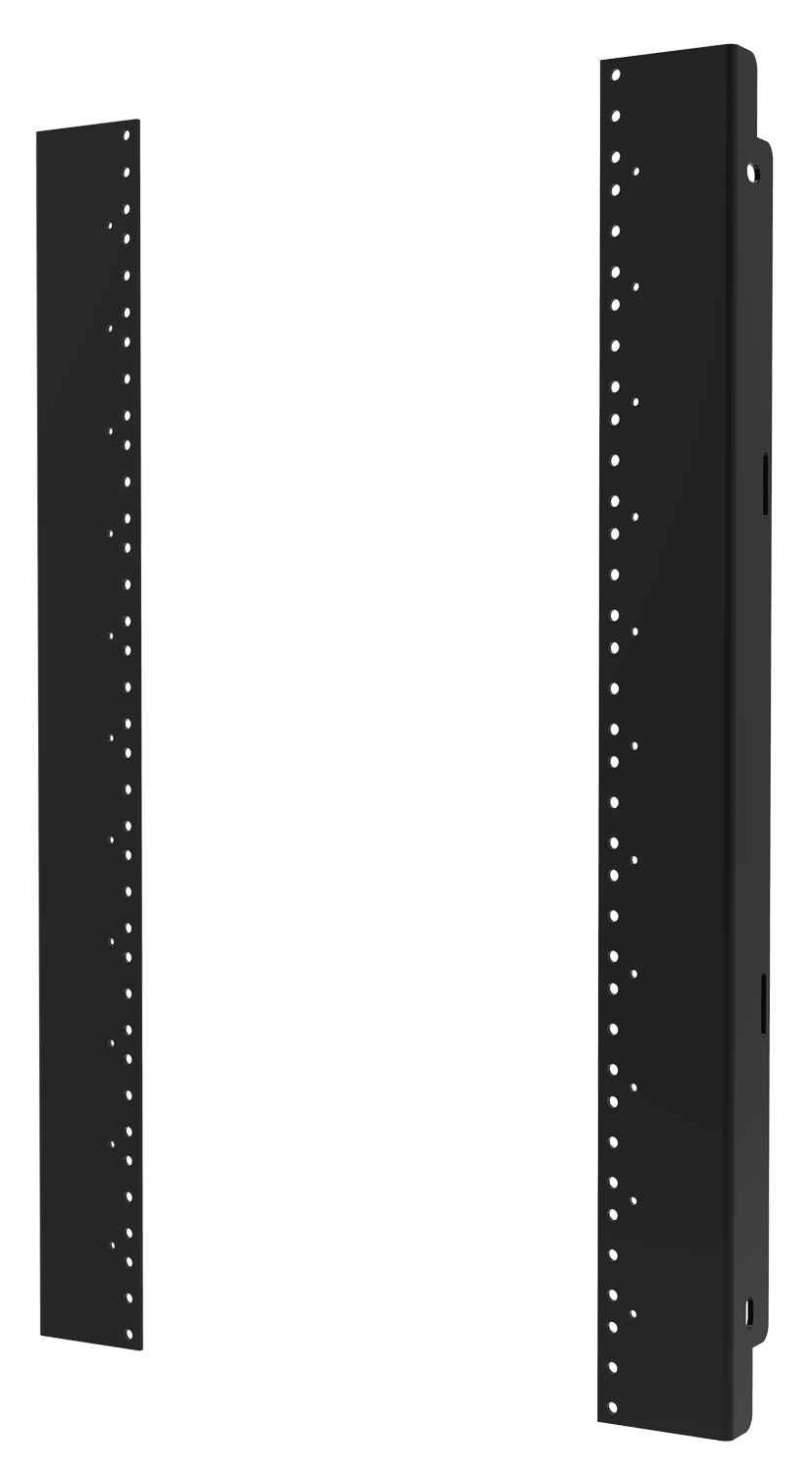

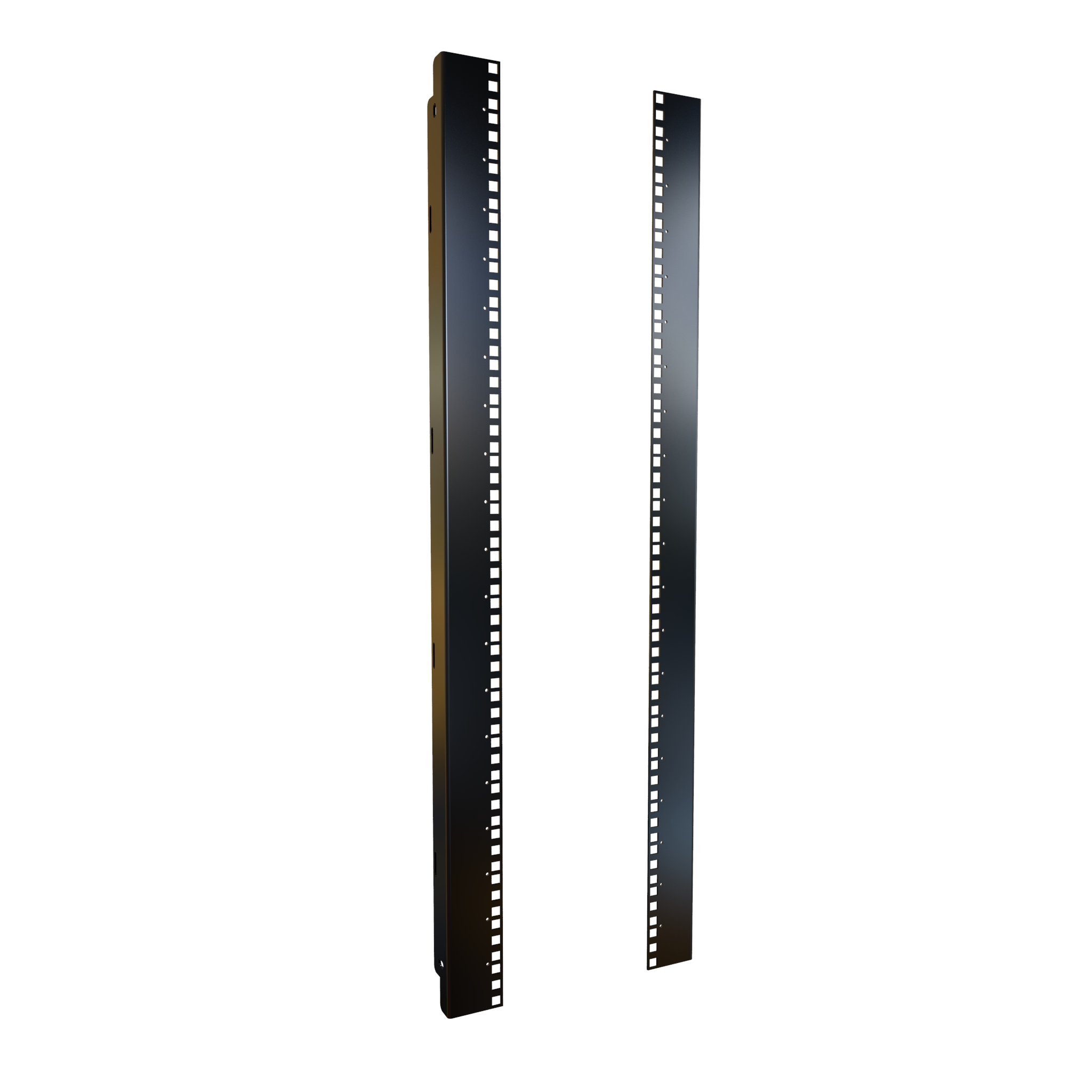

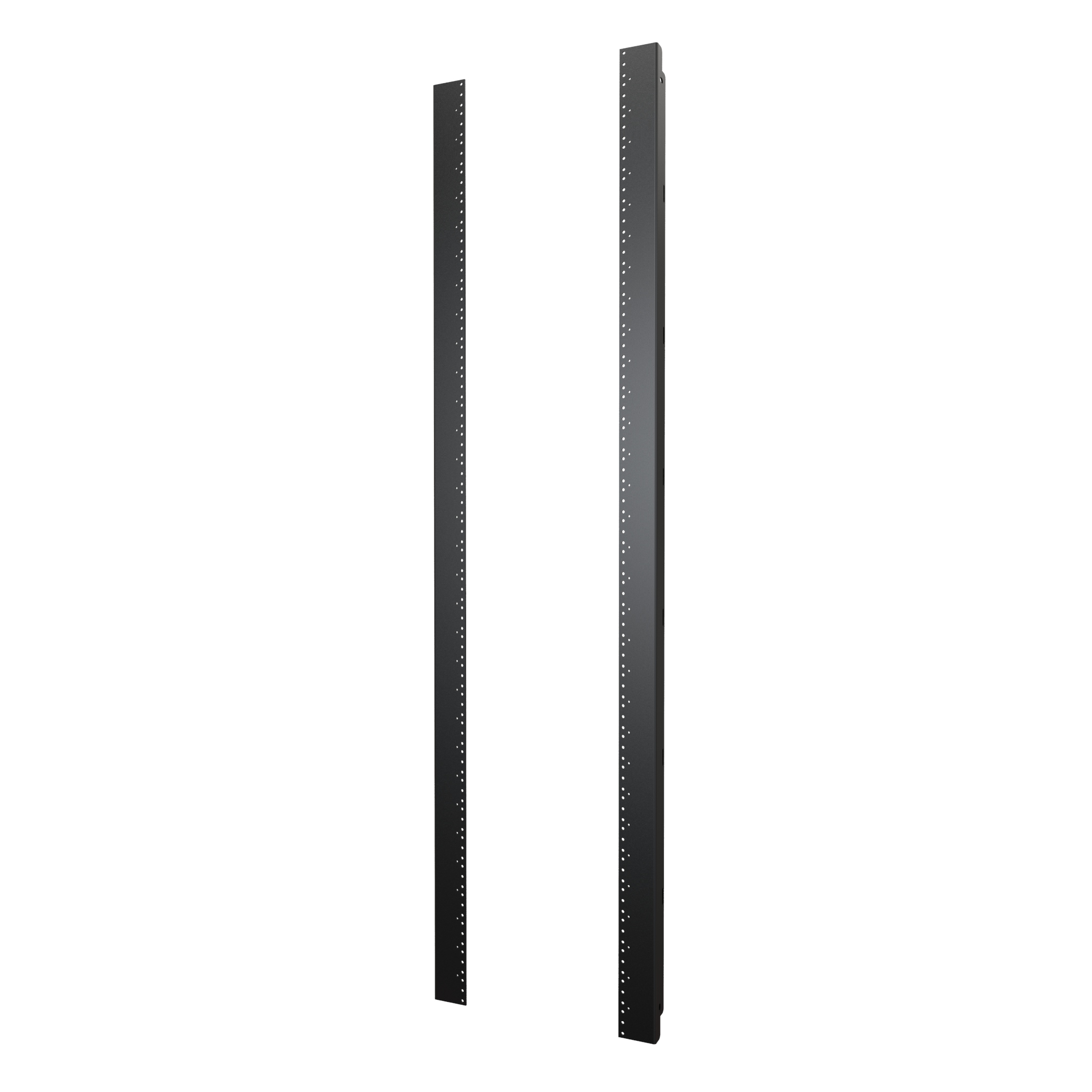

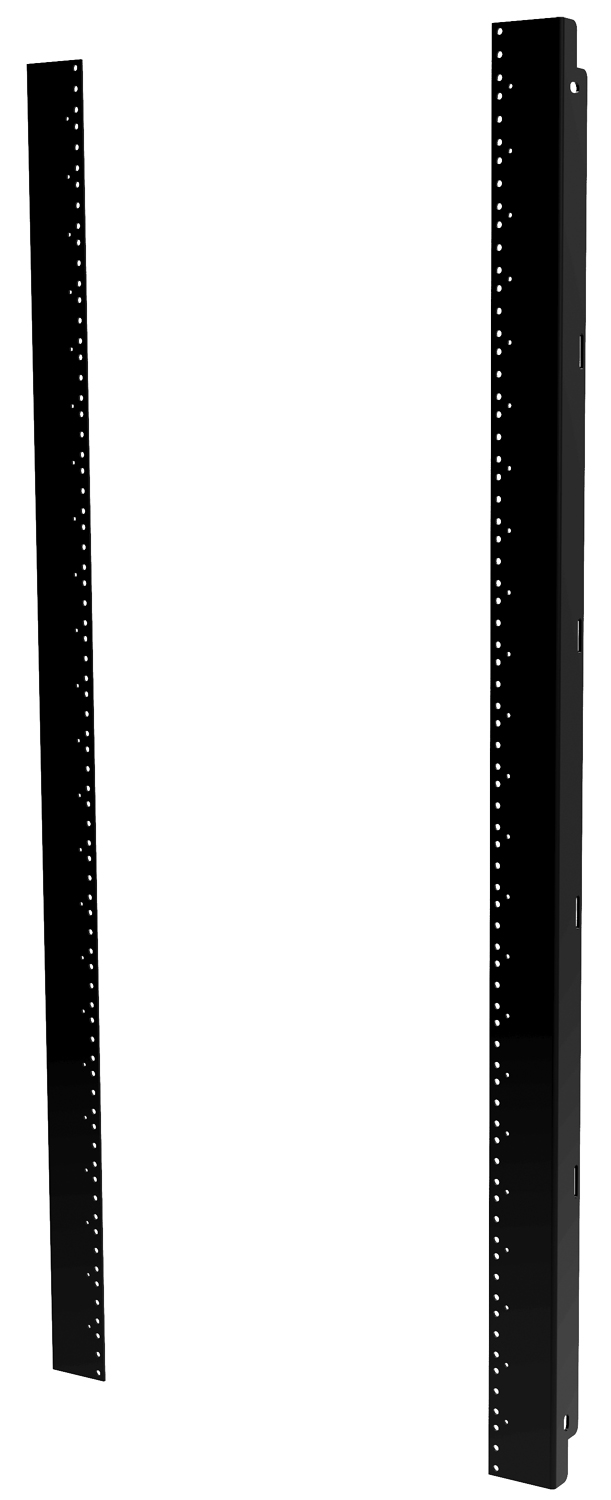

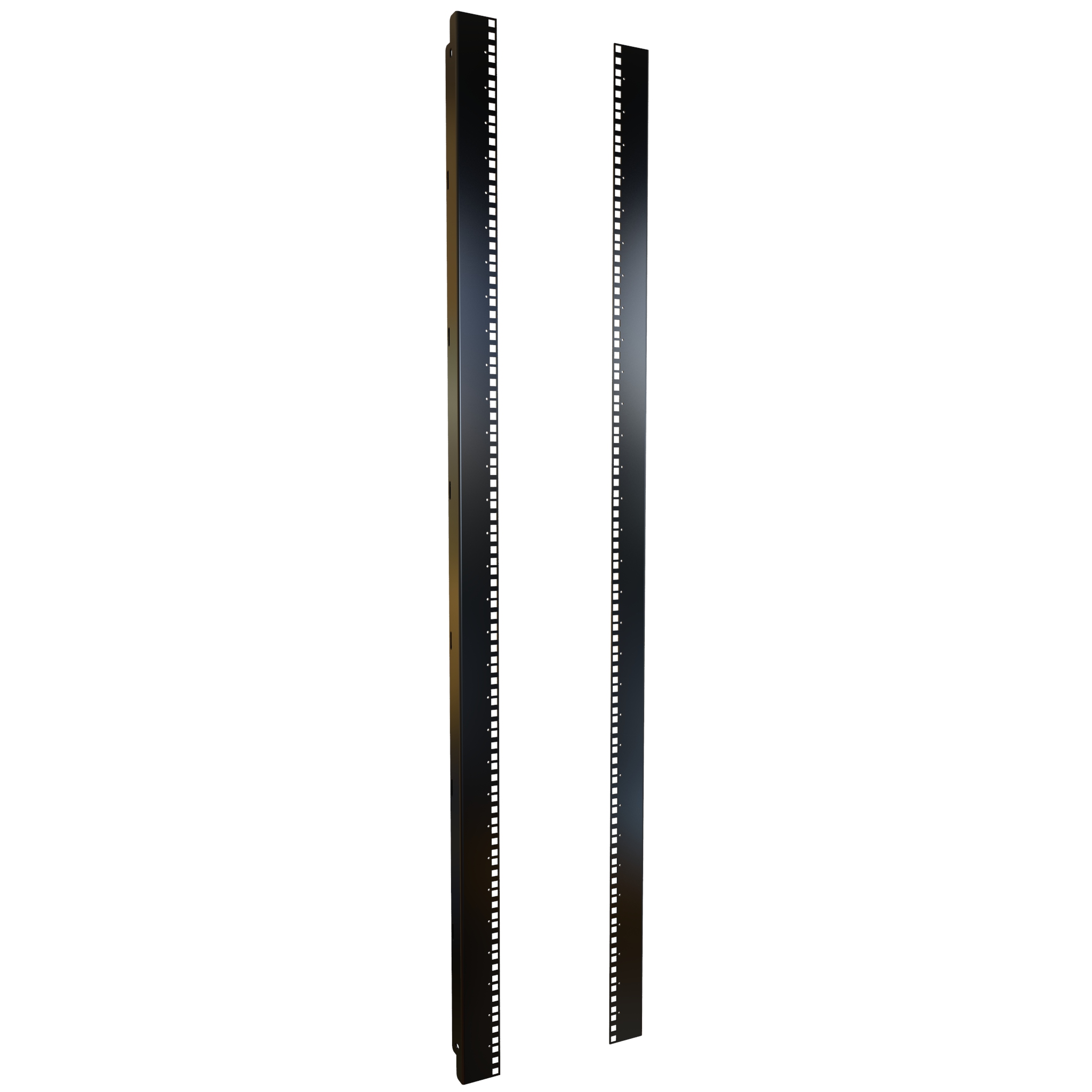

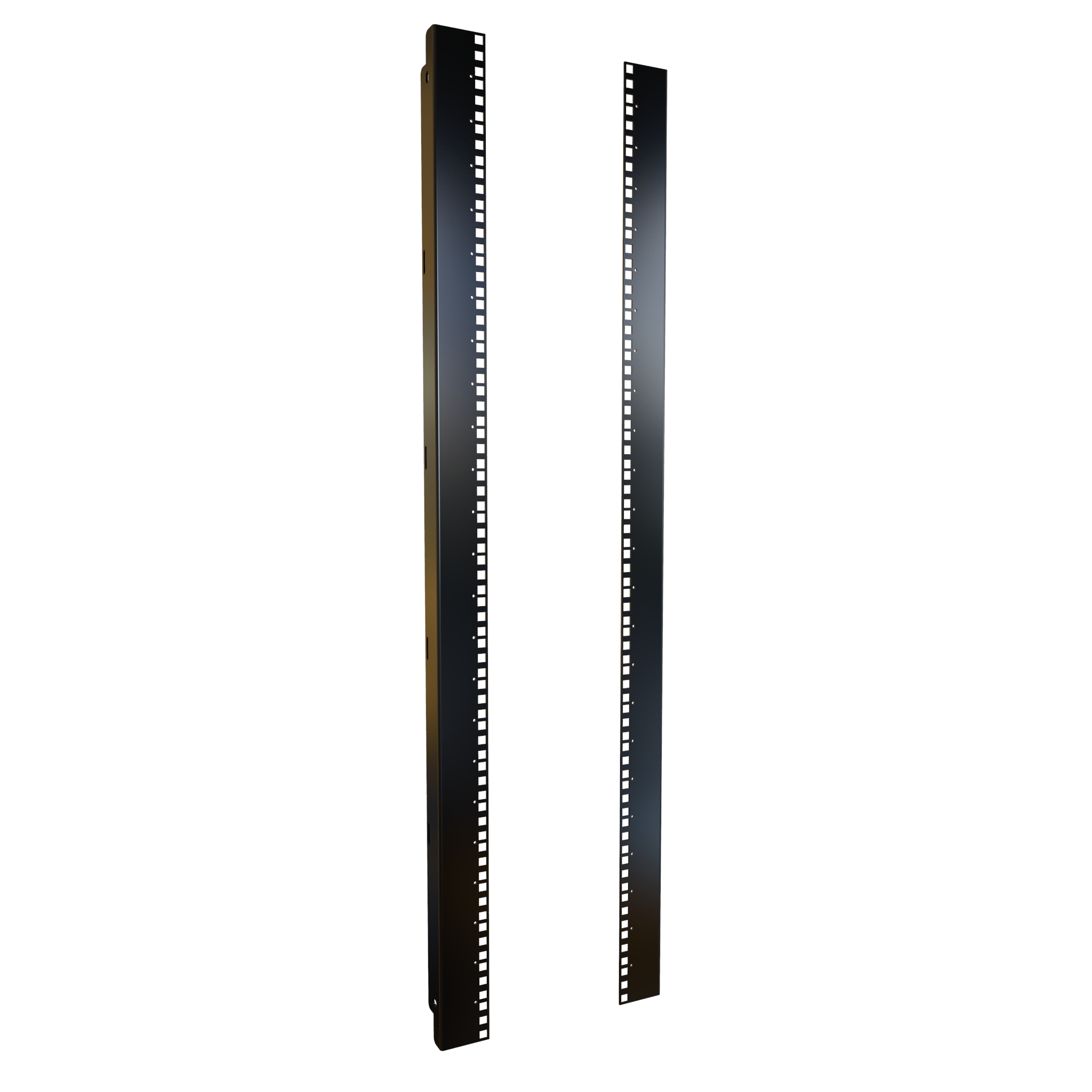

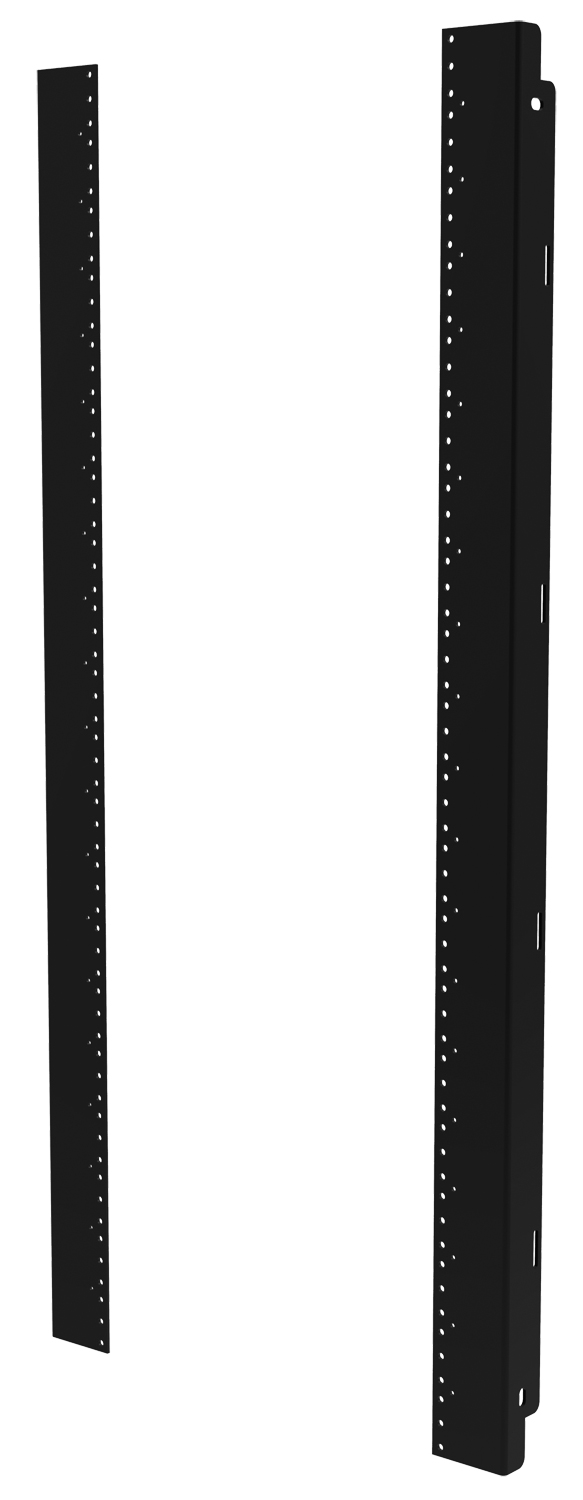

• ■One (1) pair of adjustable 10-32 threaded mounting rails supports flexible equipment positioning and standard rack compatibility. Includes starter hardware pack with SCREW1032-50 screws for equipment mounting.
• ■Includes starter hardware pack with SCREW1032-50 screws for equipment mounting.
• ■Heavy-duty spring-hinge mechanism supports controlled swing-out access during installation and servicing.
• ■Reversible cabinet body allows the swing direction to be changed on-site to suit installation requirements.
• ■Multiple cable entry knockouts and rear cable access support structured cable routing.
• ■Integrated ventilation and fan provisions support airflow and optional cooling.

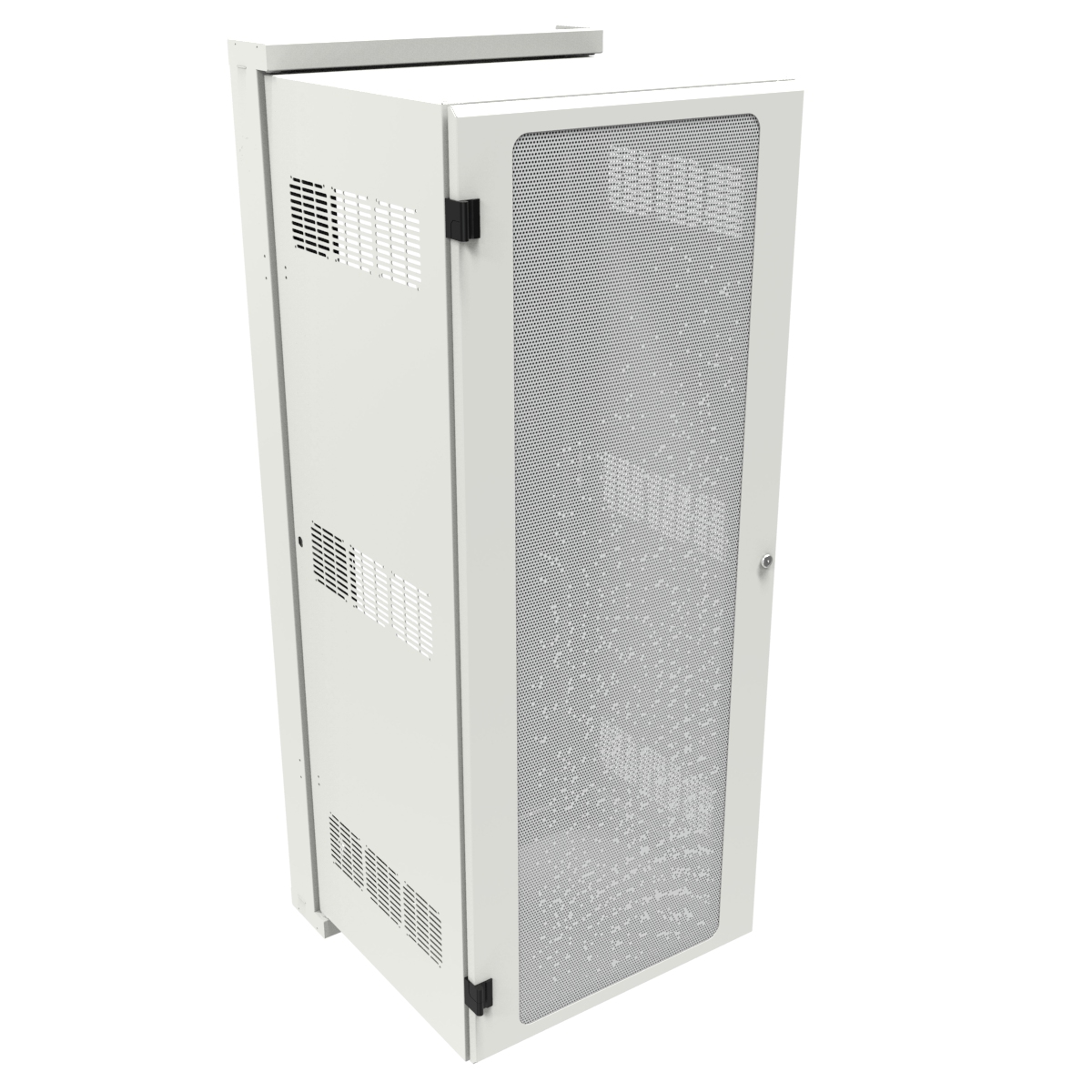

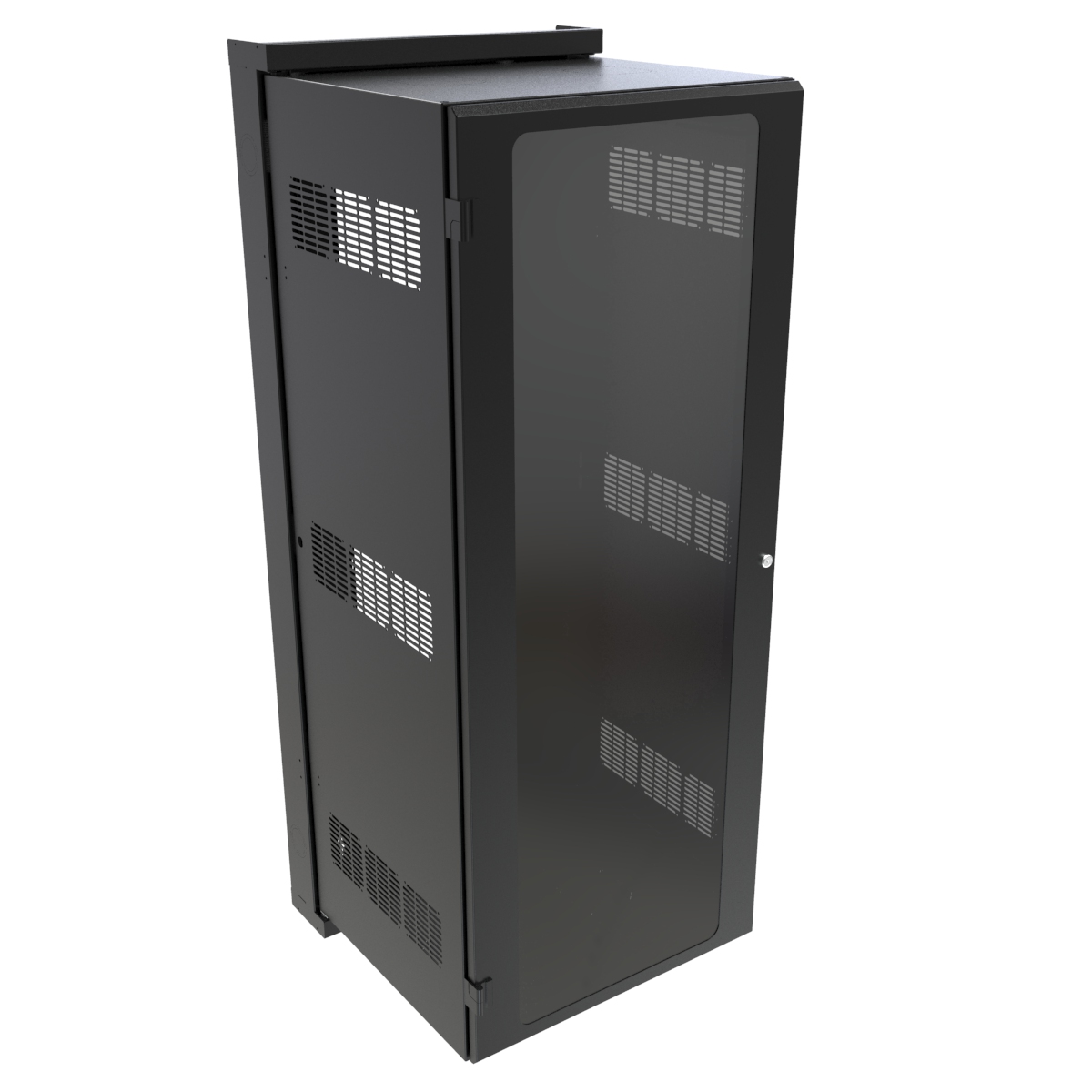

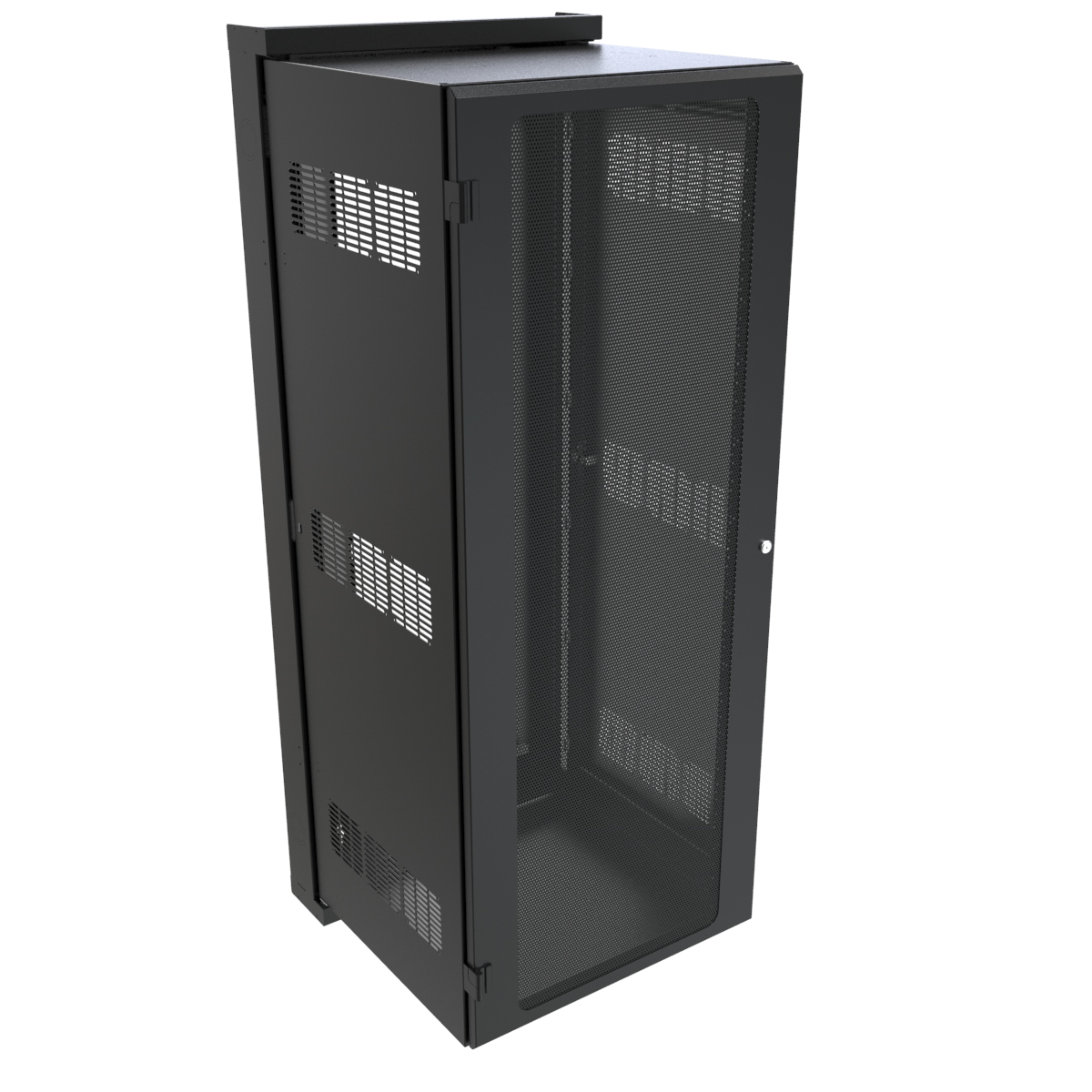

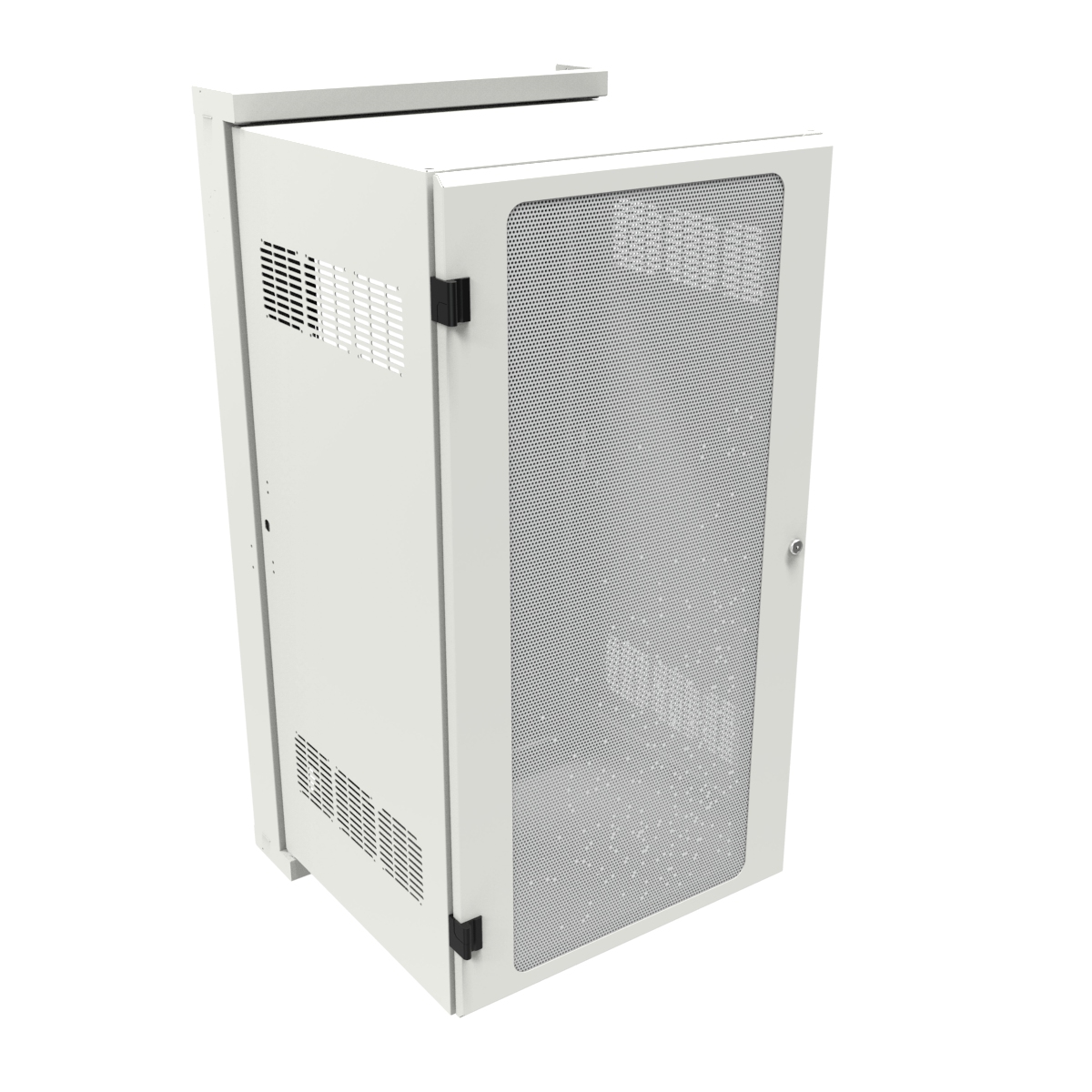

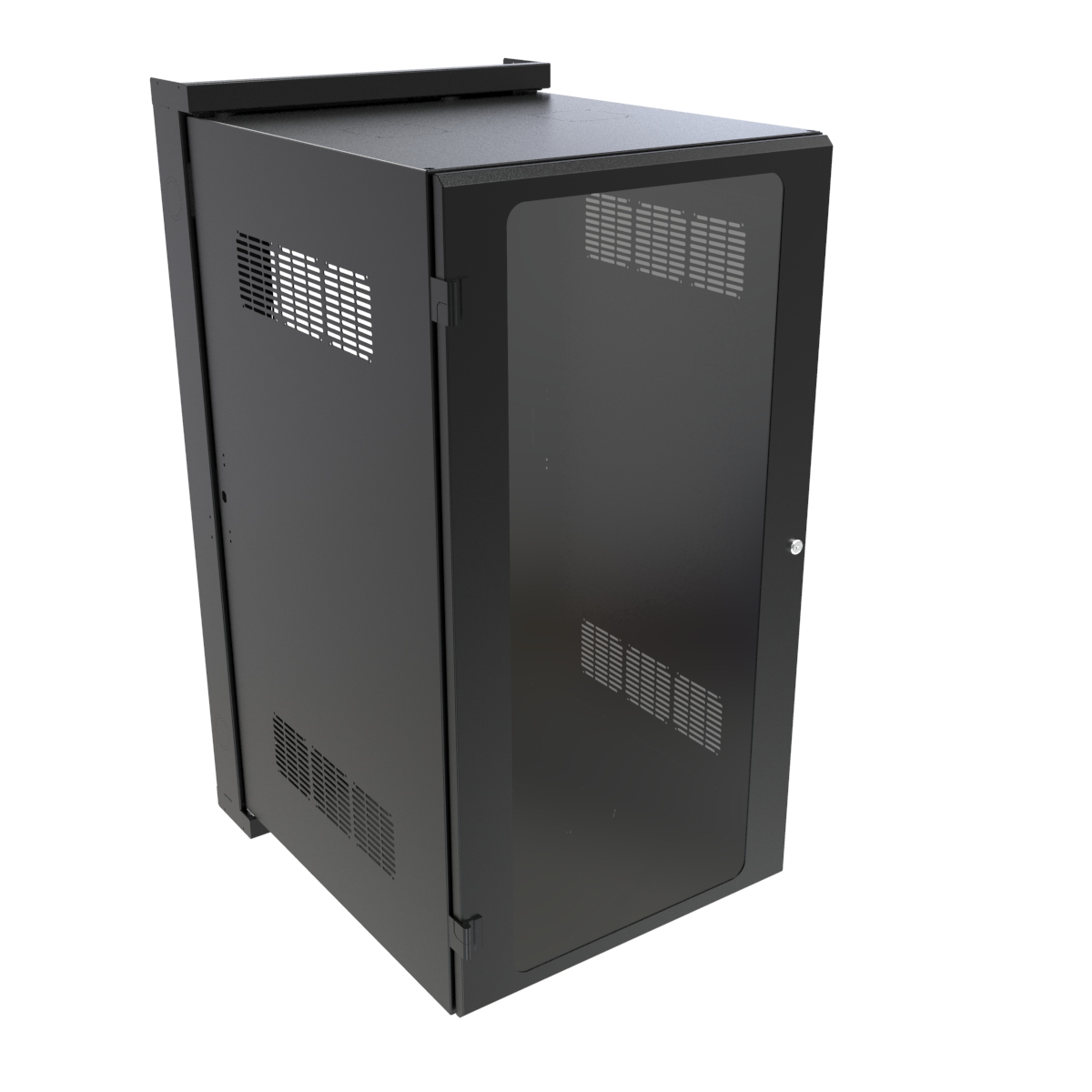

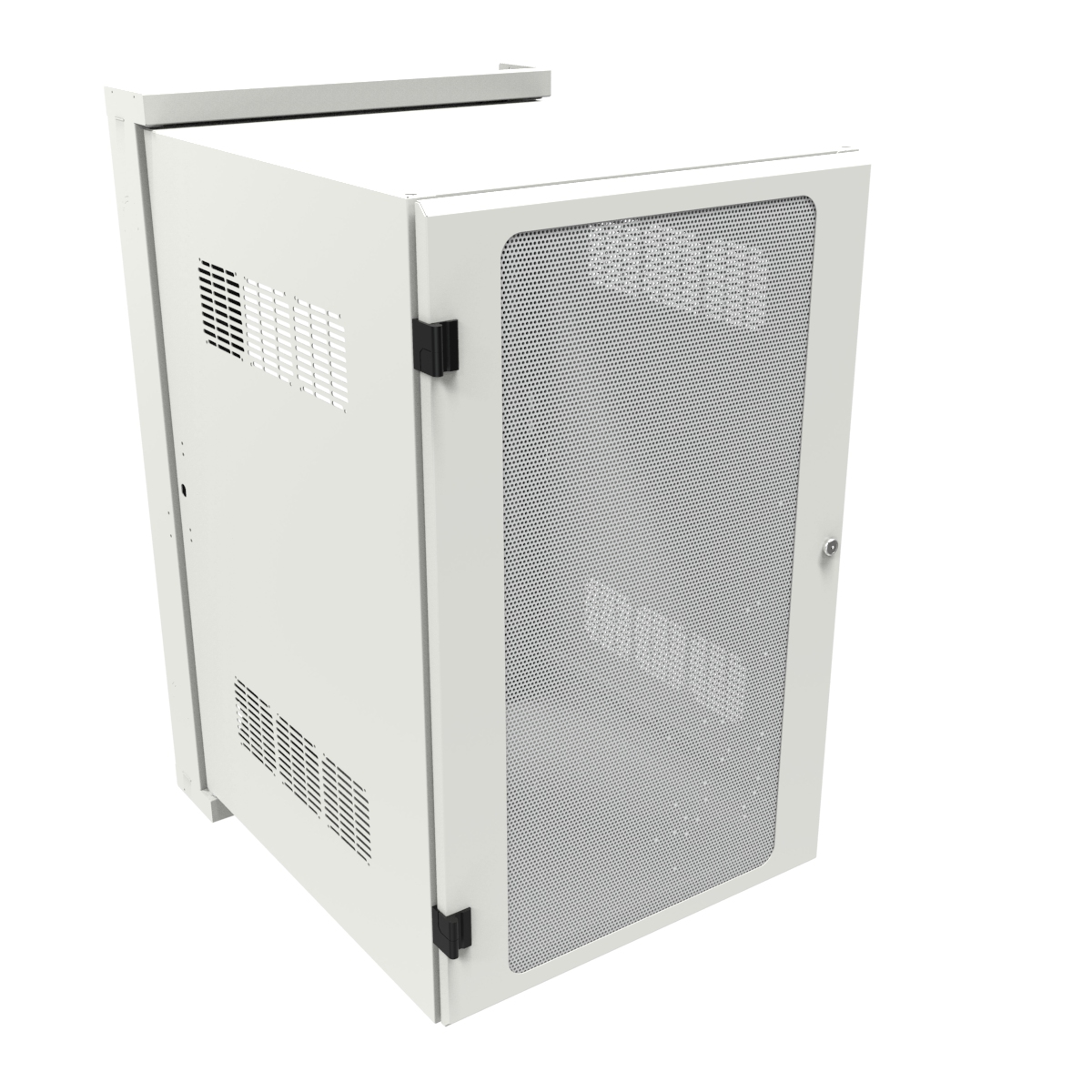

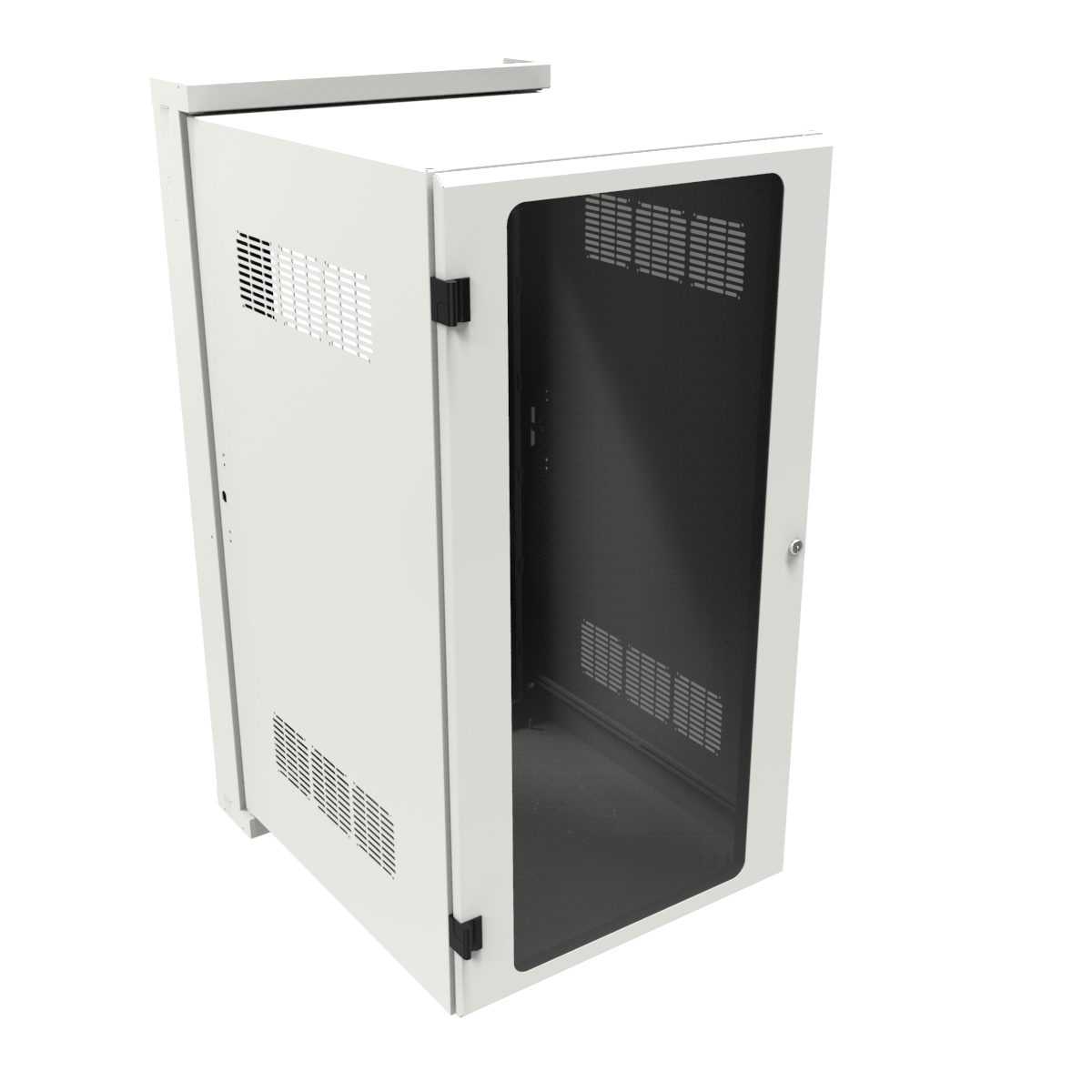

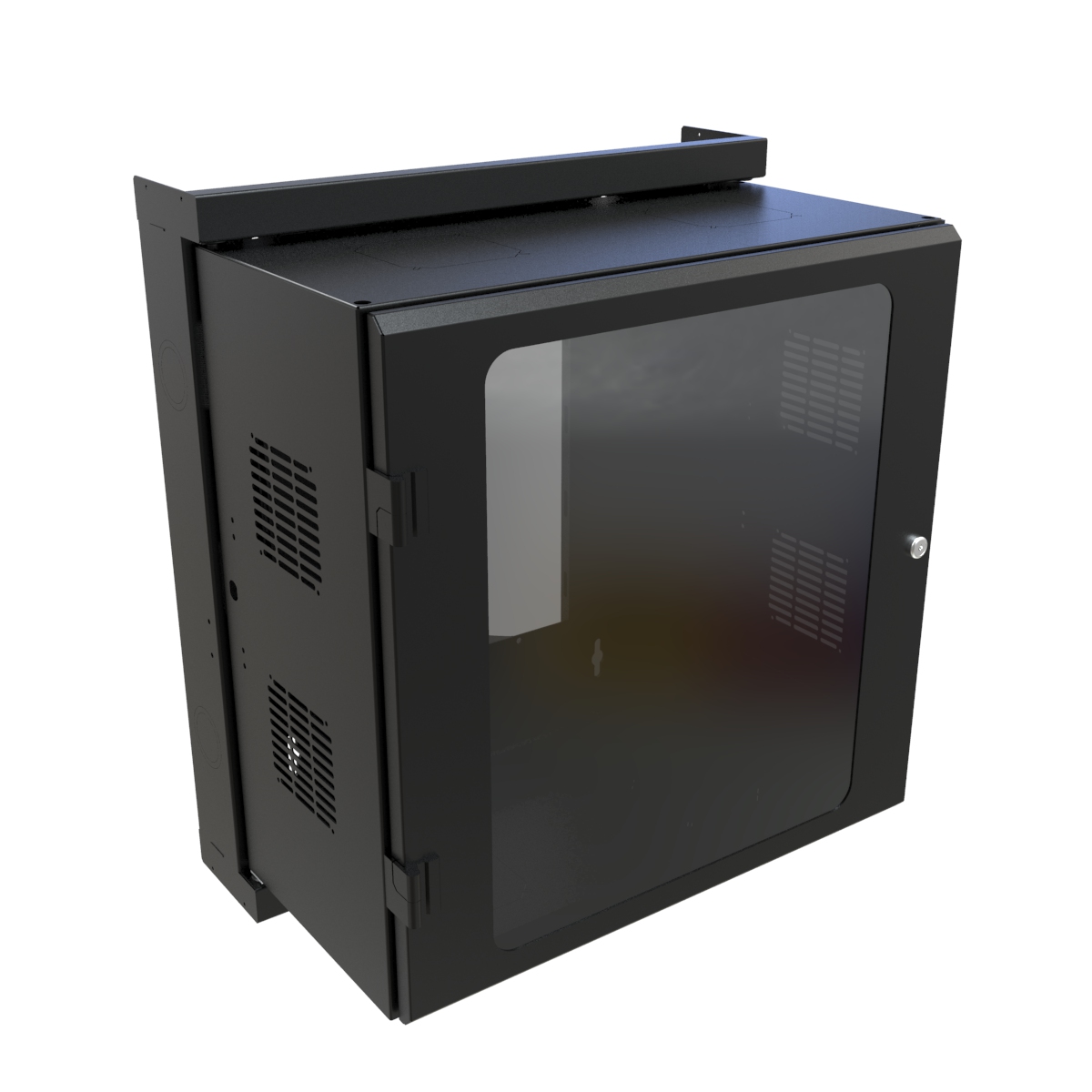

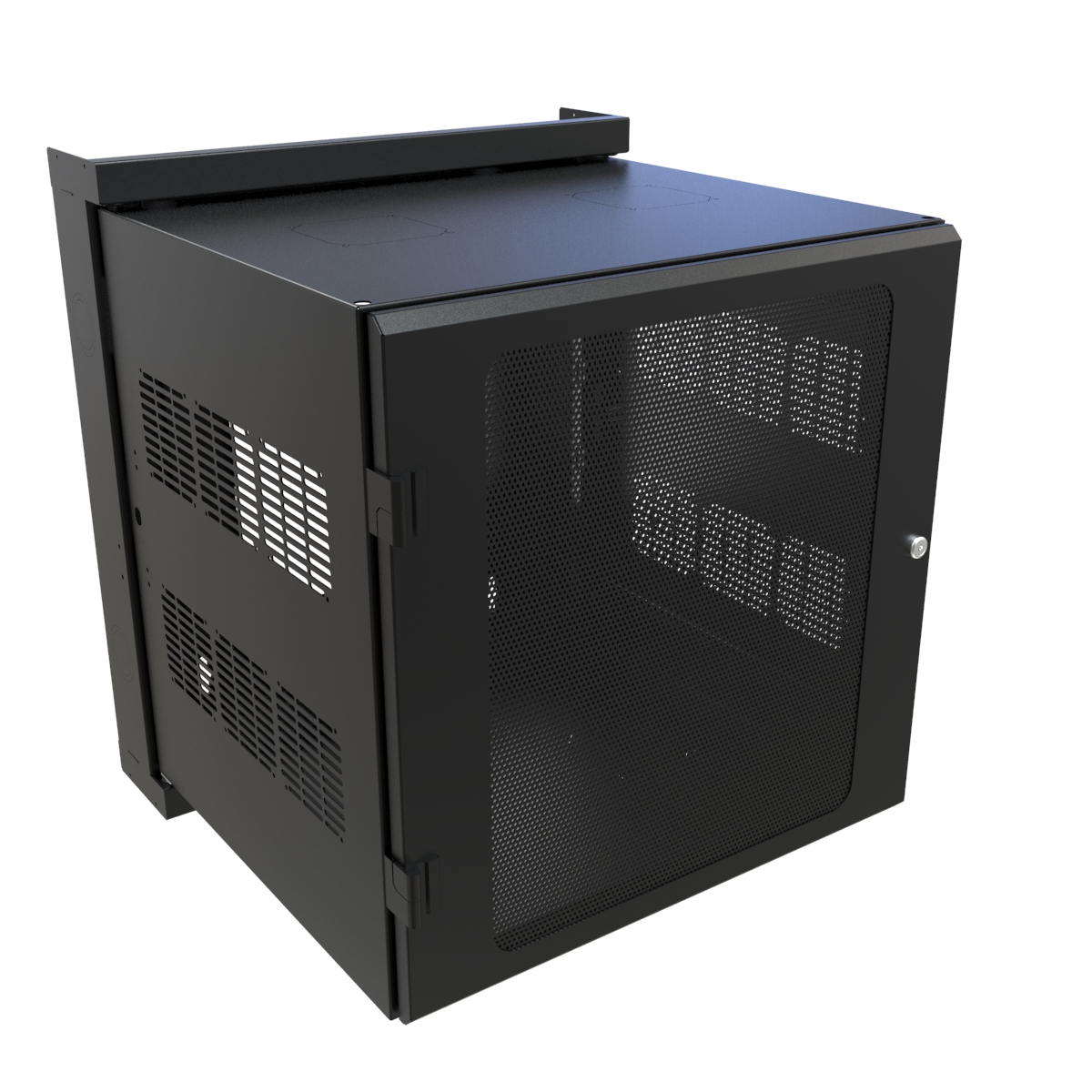

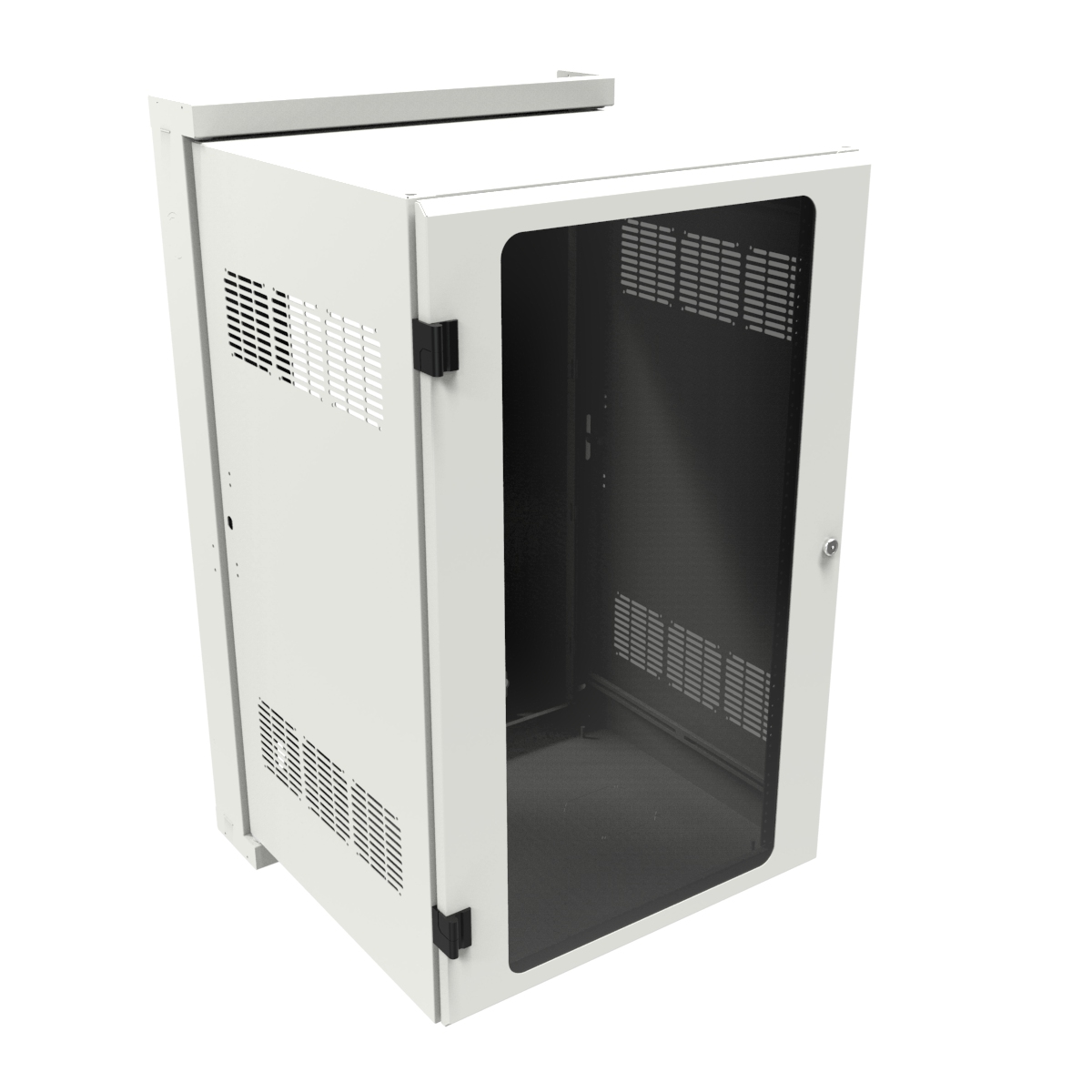

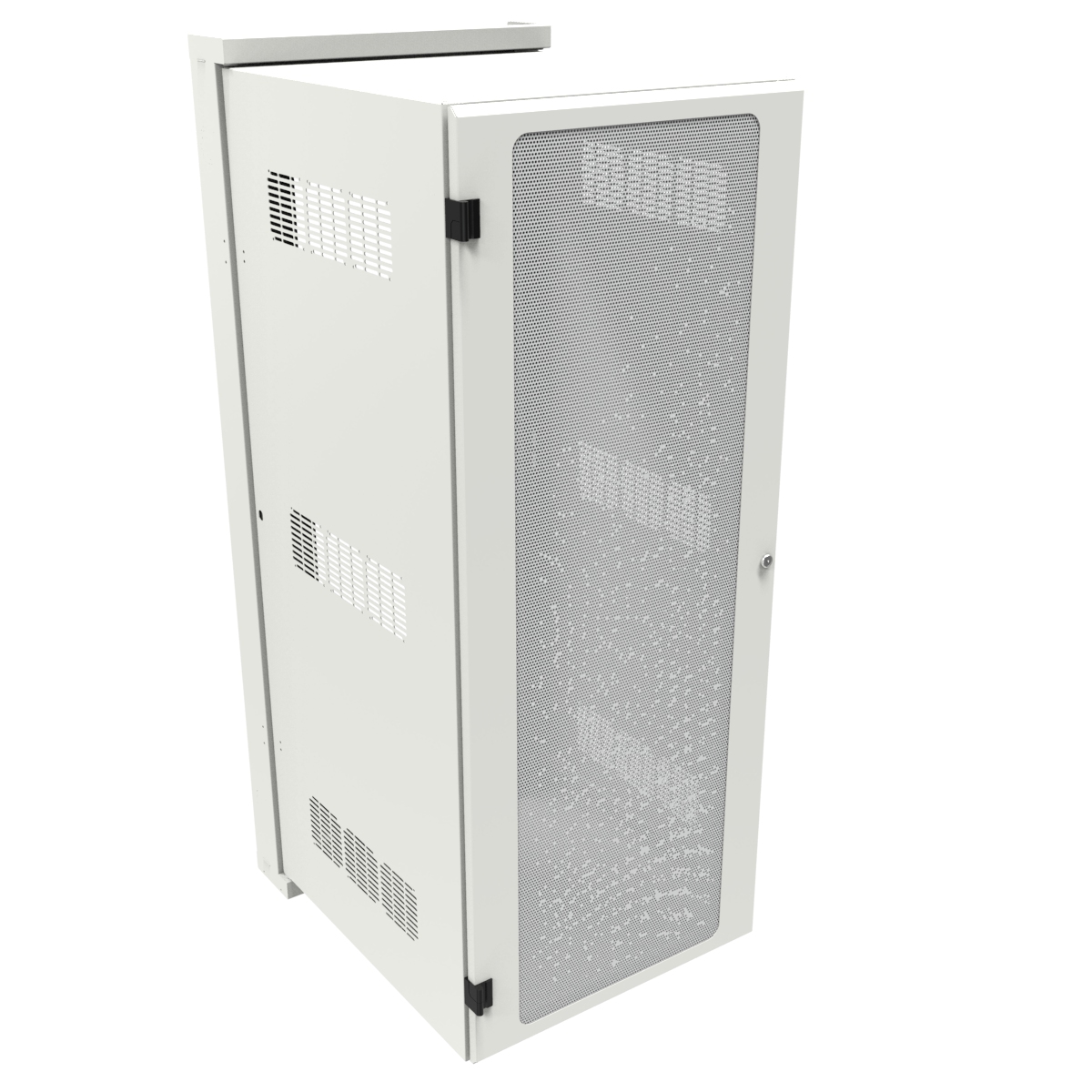

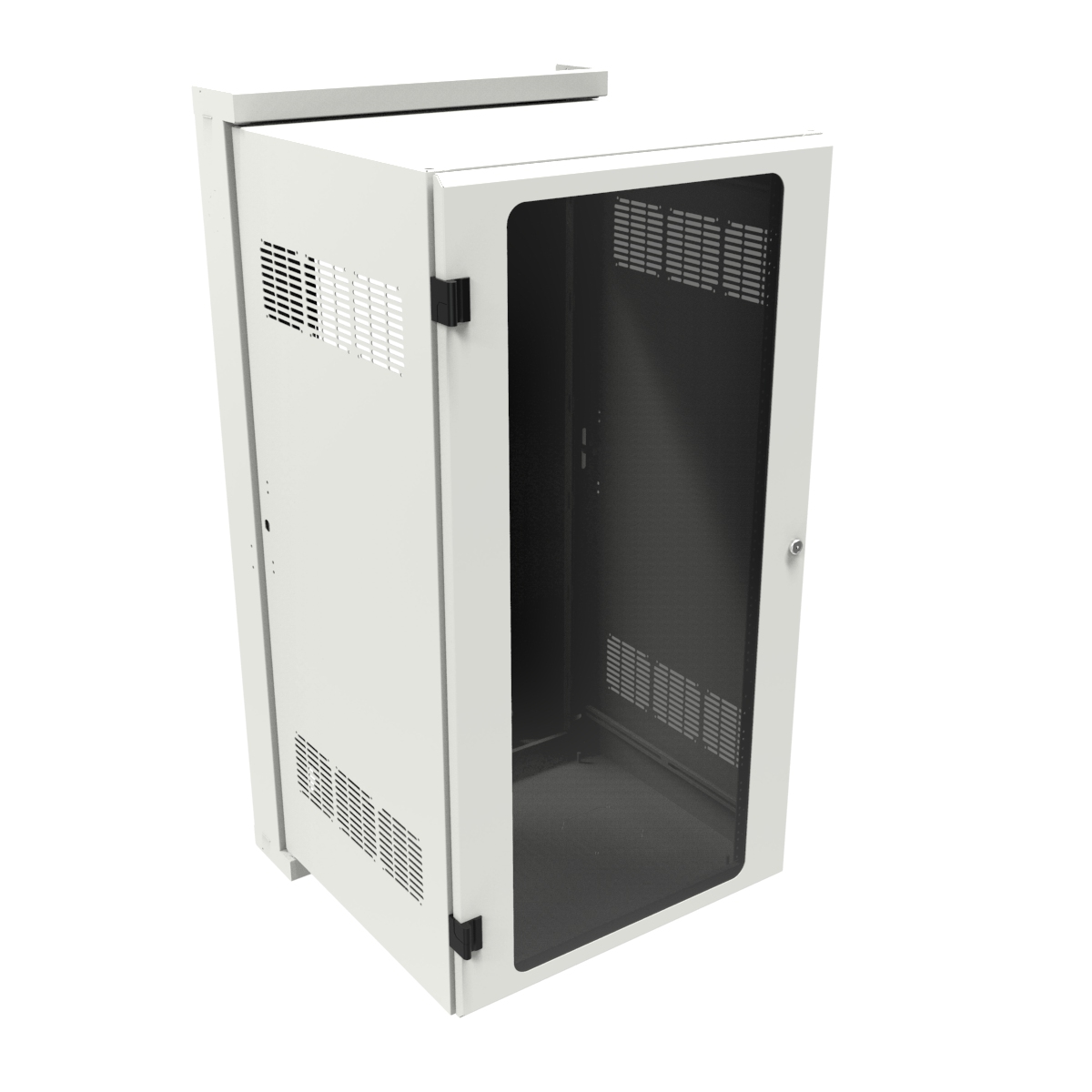

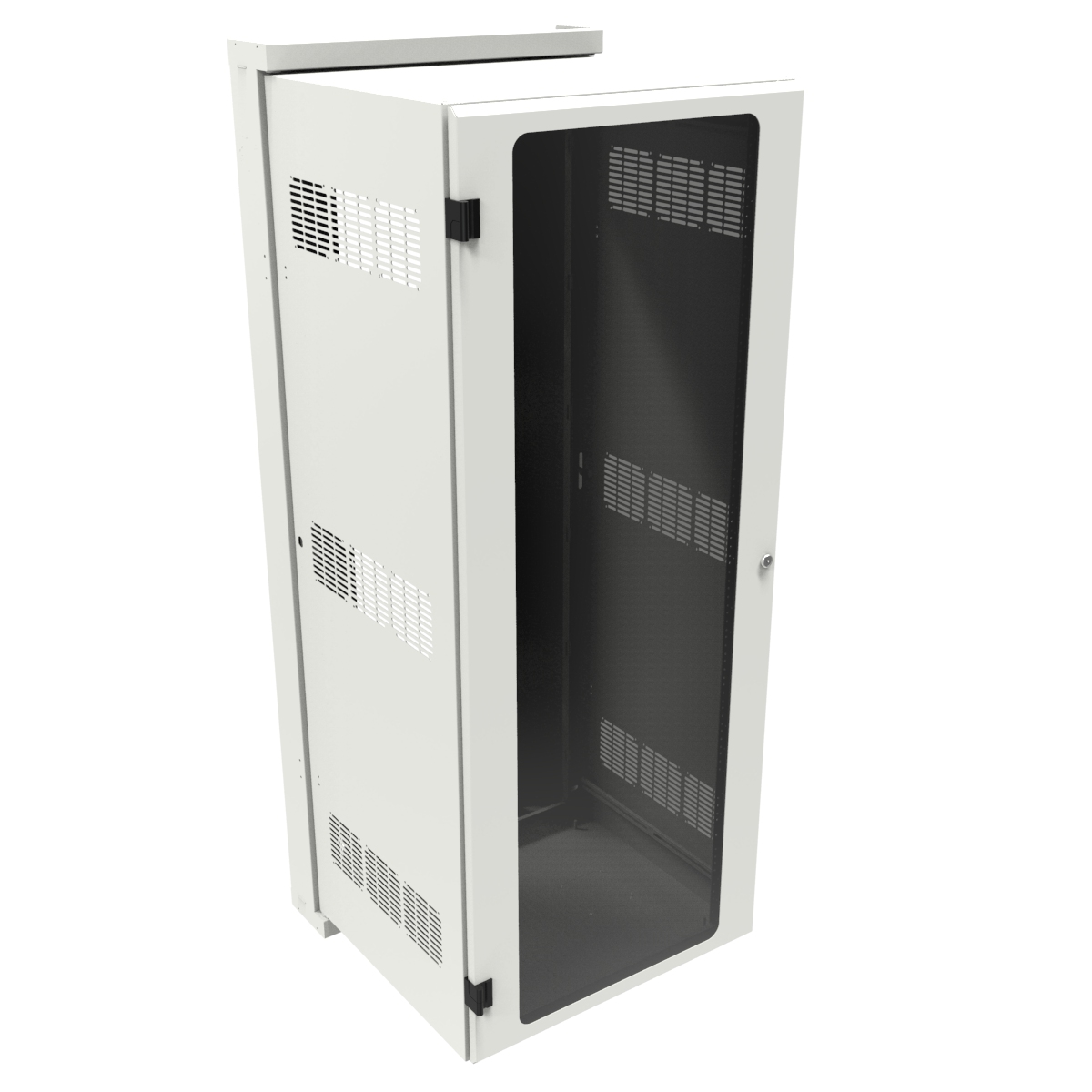

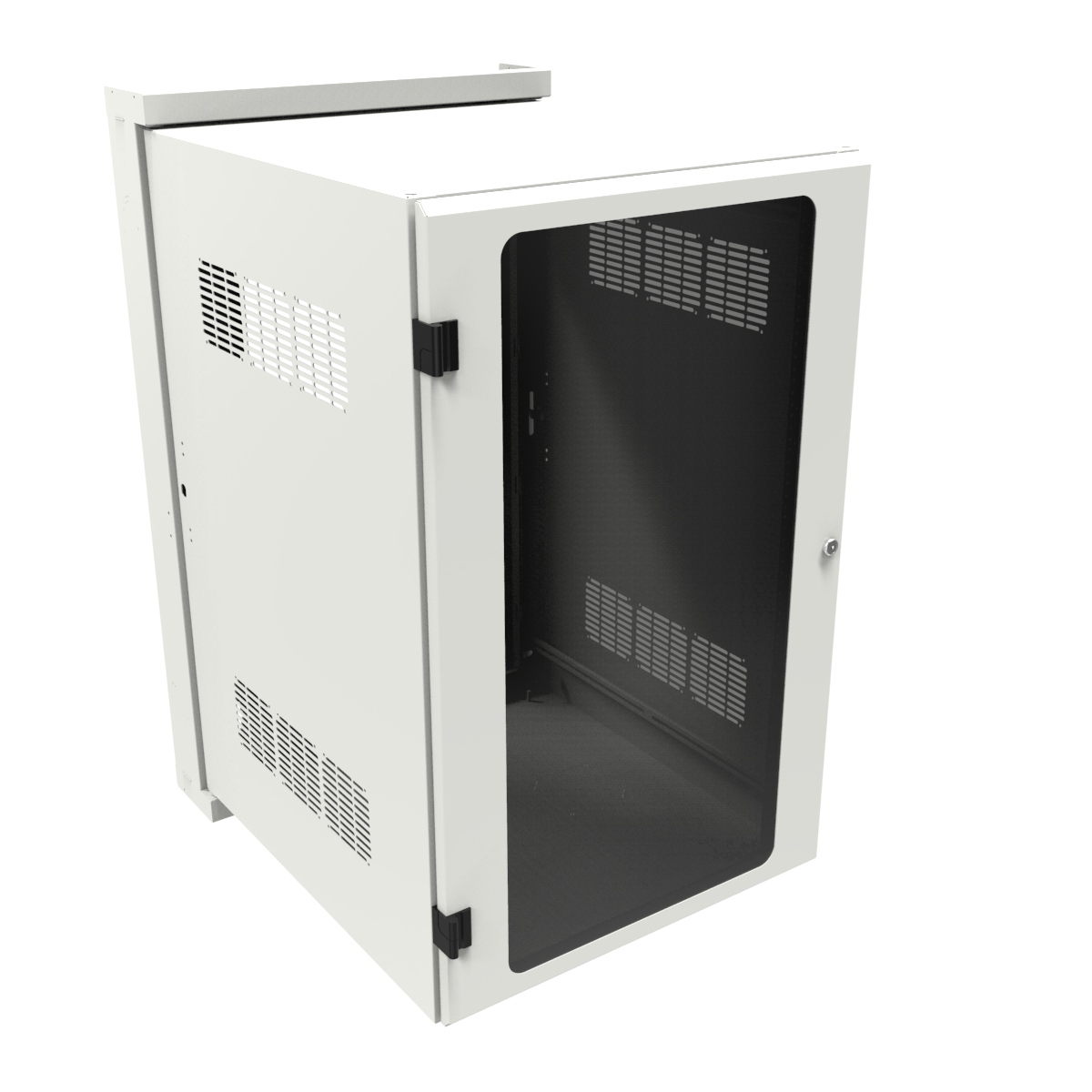

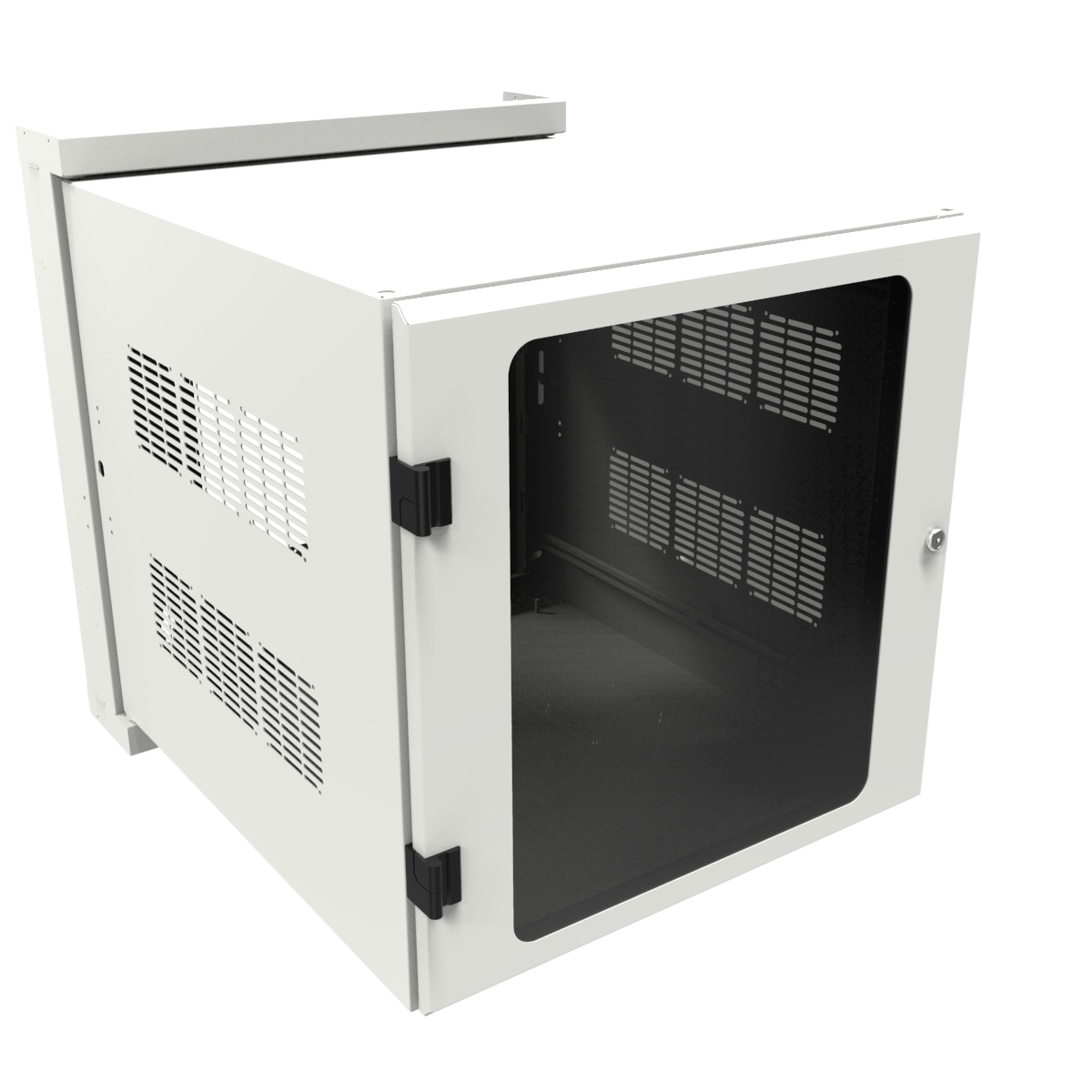

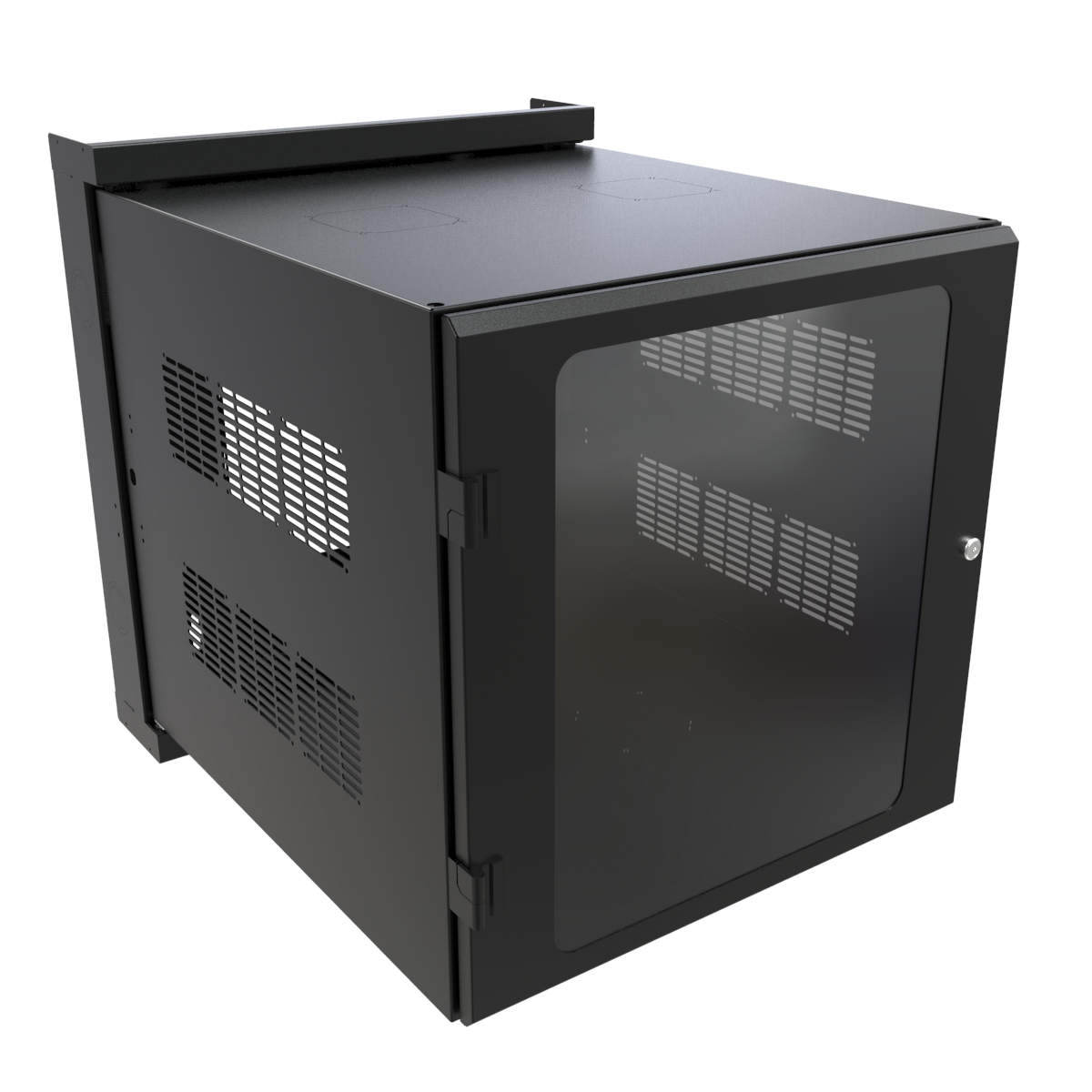

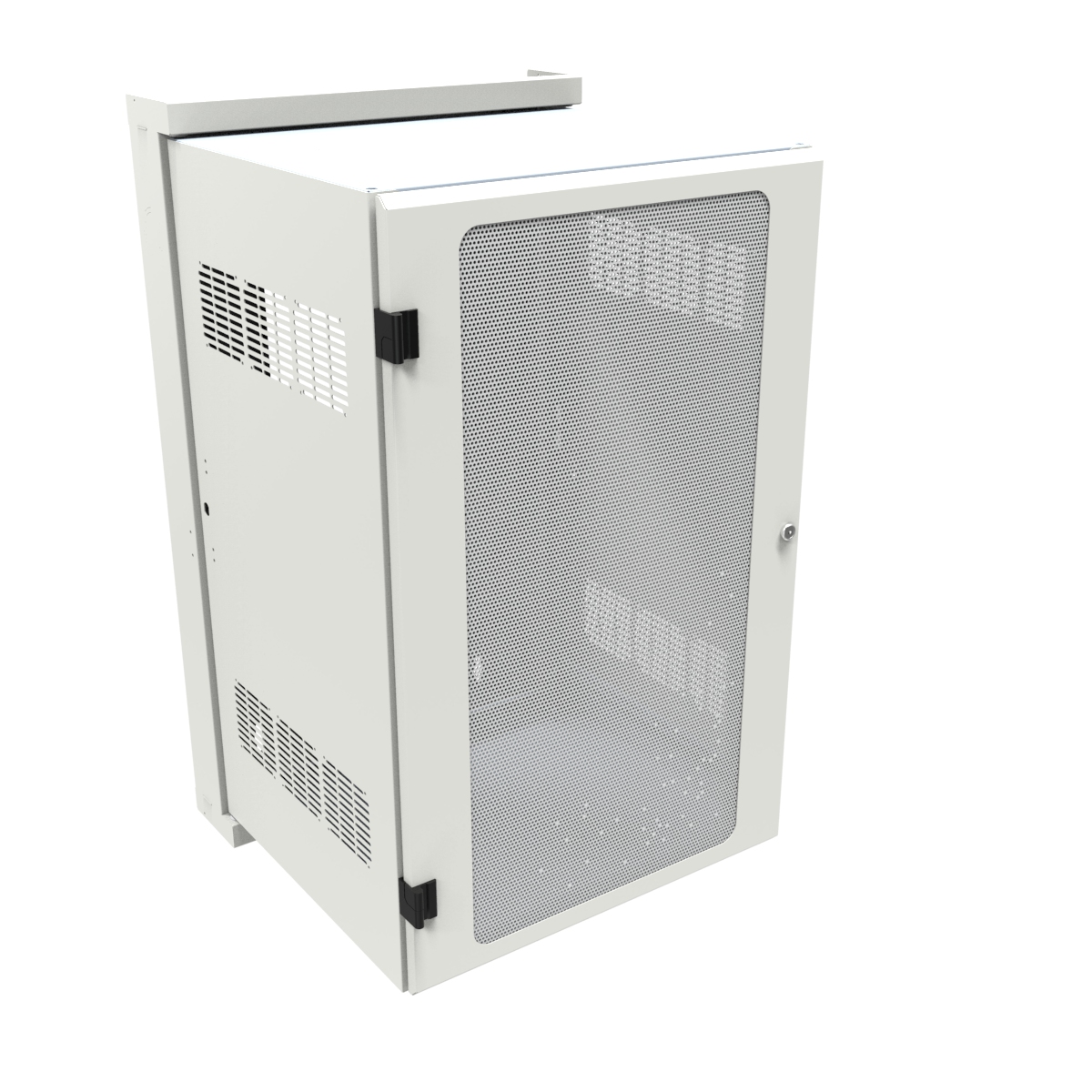

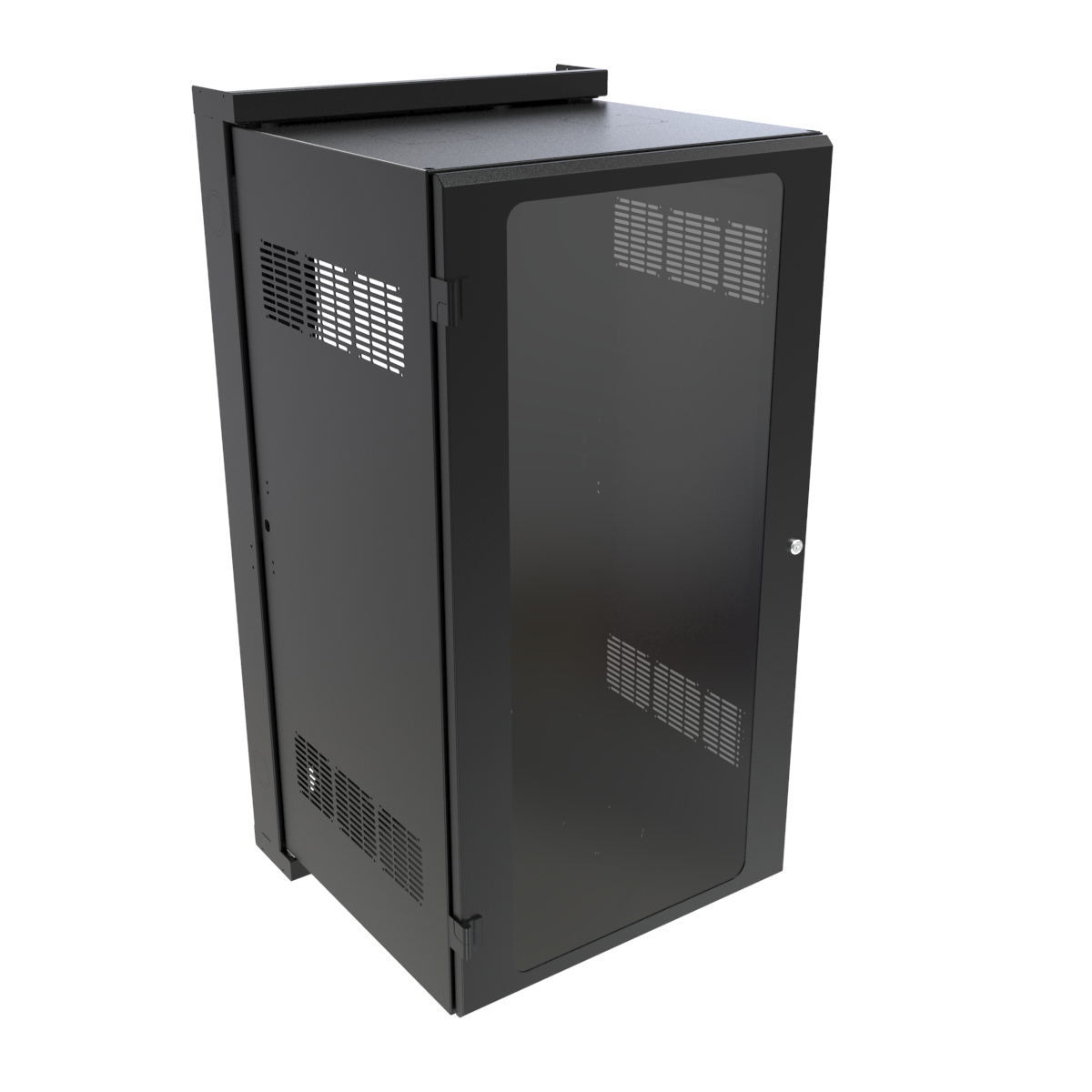

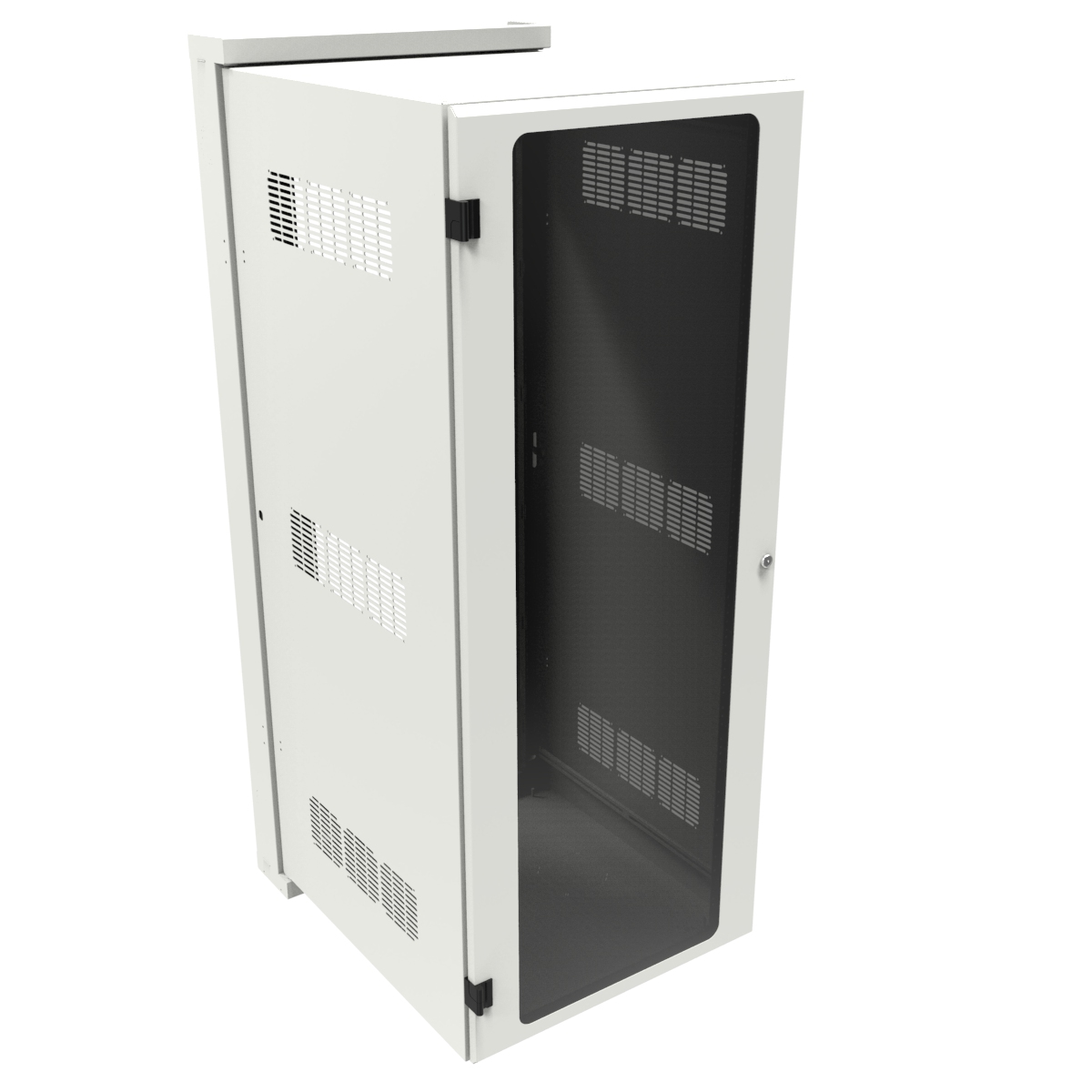

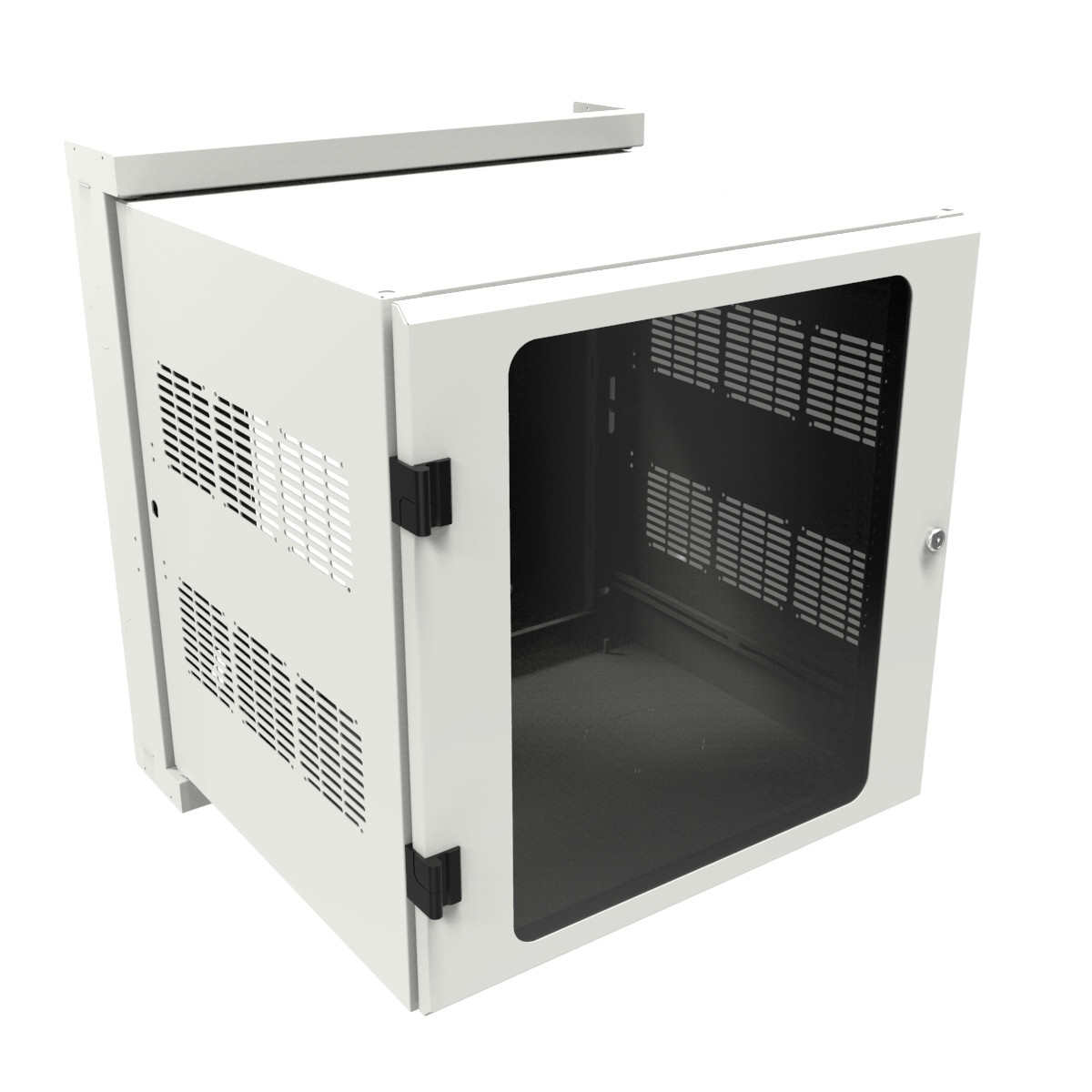

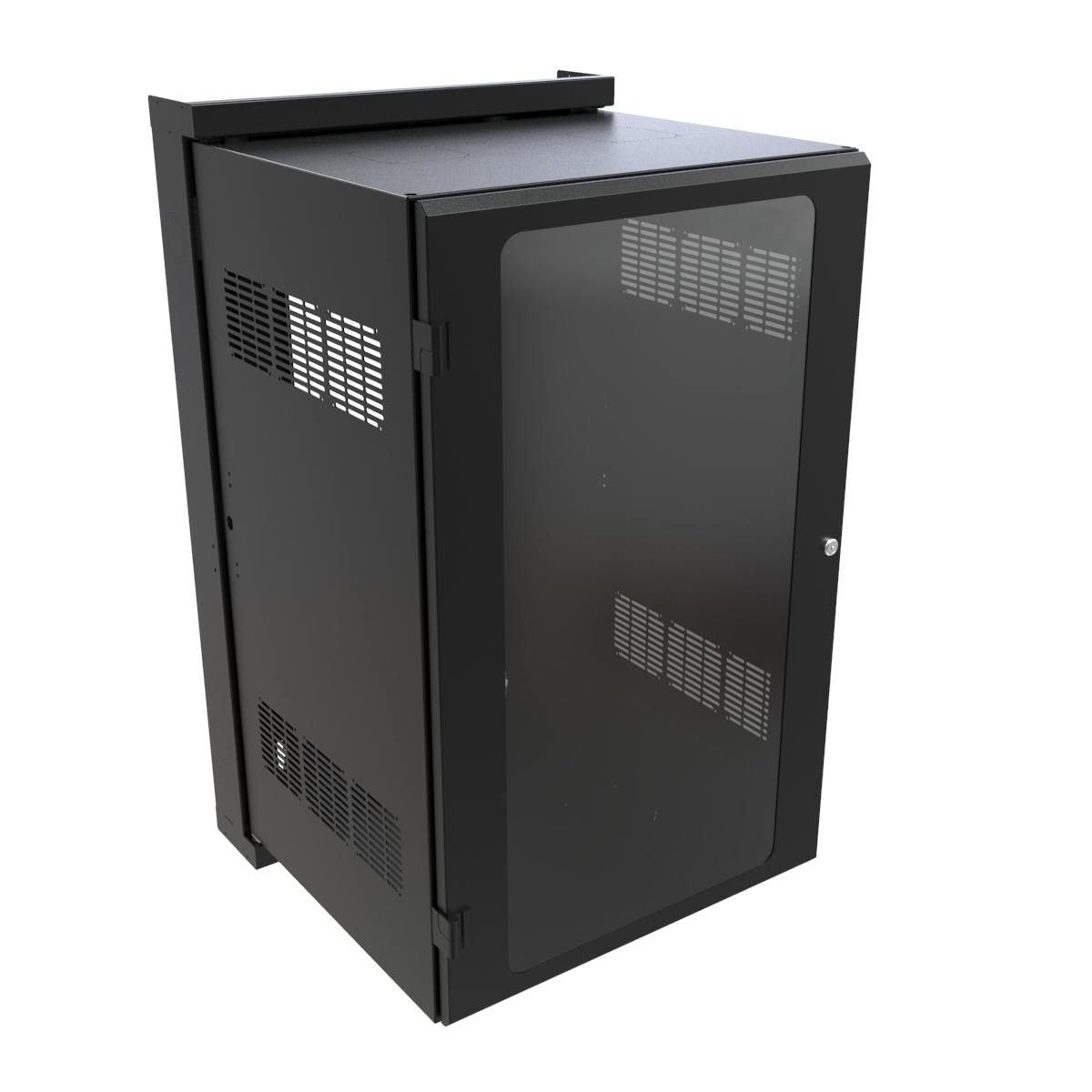

• ■Available with vented or window front door options supports airflow or equipment visibility depending on application needs.
• ■Seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
• ■UL2416 listed (350 lb load rating) ensures verified structural performance for regulated environments.
• ■TAA-compliant, manufactured in North America supports government procurement requirements.

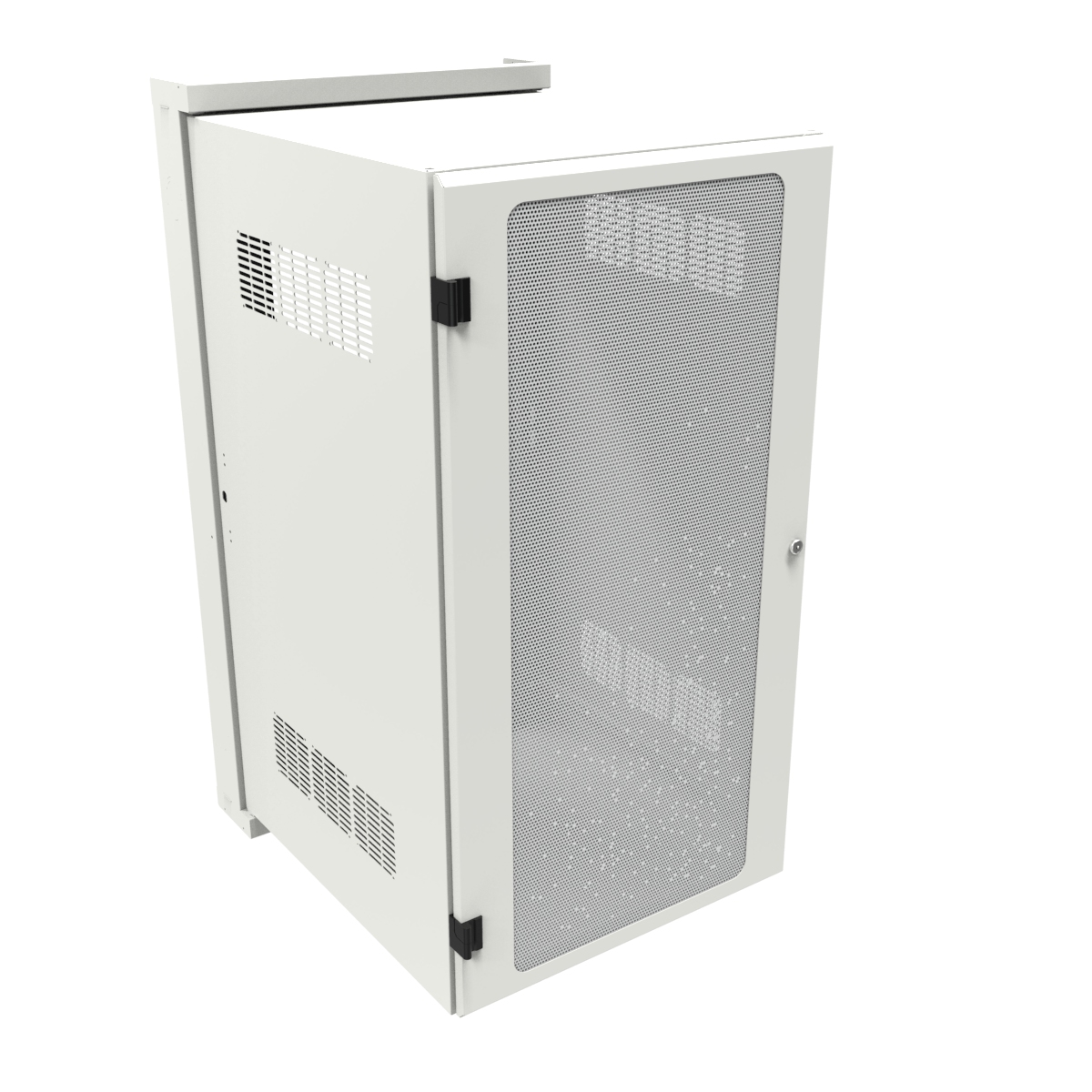

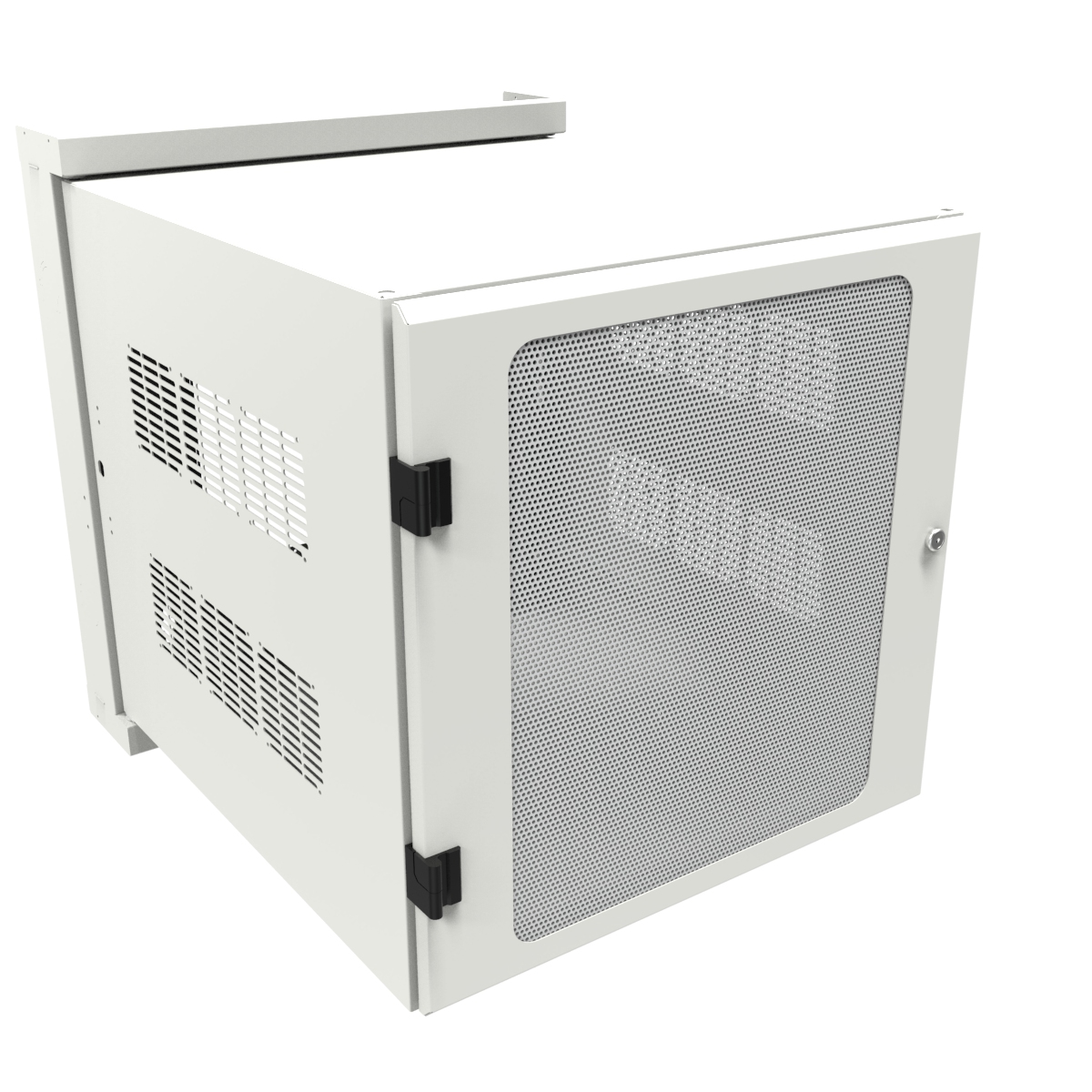

• ■Black or white powder coat finish (GREENGUARD Gold, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

When another product may be a better choice

• ■When you need a fixed cabinet with no rear access, consider our RB-FW Series.
• ■When you need a lower-cost swing-out cabinet for lighter-duty applications, consider our RB-SWDV Series.
• ■When you need environmental protection against dust or water, consider our NWC or NWM Series cabinets.
