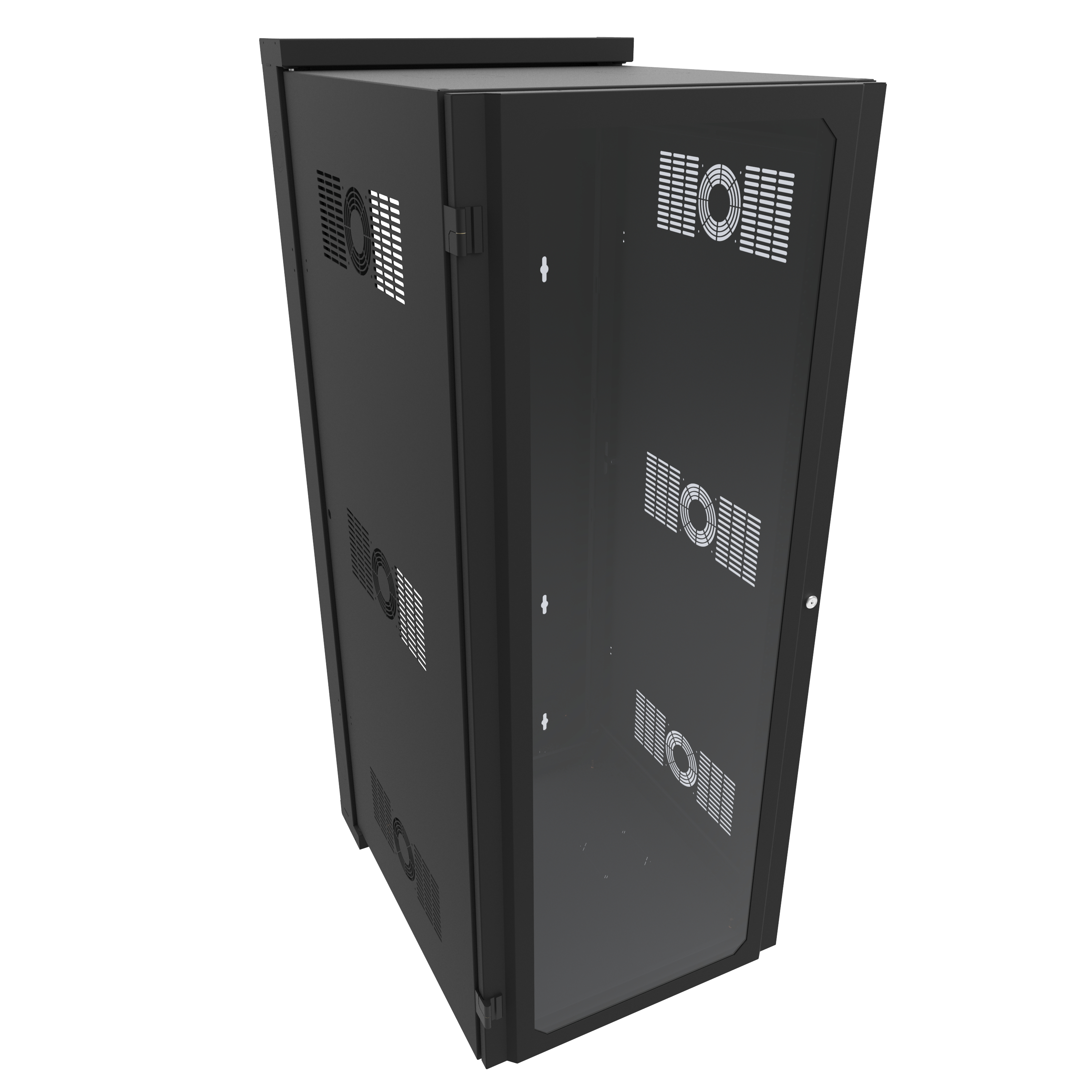

Hammond HWM2432U26WDBK 32U Window-Door Swing-Out Wall Cabinet, 350 lb

The HWM2432U26WDBK is a 32U swing-out wall-mount rack cabinet with a window front door, built for IT and telecom environments that need a secure enclosure for 19-inch rack equipment plus full rear access. It suits network closets, data communication rooms, and government, education and commercial IT installations where structured cabling and active equipment share the same wall space.

Construction is mild steel: a 14-gauge welded rear section with a 16-gauge center section and doors, finished in RAL9005 black textured powder coat. The HWM Series is UL2416 listed with a 350 lb (159 kg) load rating and is seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10. Standards listed for this part include cULus, PCI, Zone 4 and TAA-compliant, under UL file E474597, and the cabinet is made in Canada (USMCA compliant).

Overall dimensions are 62.81 in x 24.68 in x 31.18 in (1595 x 627 x 792 mm) with a 26 in deep center section; the nominal catalogue size is 62.75 in x 24.68 in x 31.7 in. Usable mounting space is 56.00 in (32U) high x 19.00 in wide x 28.85 in deep, where the usable depth is the maximum equipment depth that still allows the body section to swing out unimpeded. Shipping weight is 192 lbs (87.09 kg).

HWM2432U26WDBK ships as a rear section, center section, 32U window door assembly and one pair of 19-inch tapped 10-32 panel rails, with a starter hardware pack of SCREW1032-50 screws. A heavy-duty spring-hinge mechanism controls swing-out access, the cabinet body is reversible on-site to change swing direction, and multiple double knockouts plus a rear opening support cable routing. Fan knockouts accept optional DNMF100AC115 or DNMF100AC230 fans.
